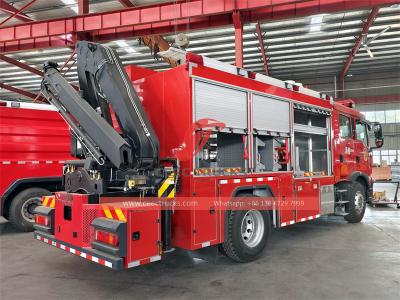

HOWO 4x2 fire rescue truck with lighting system

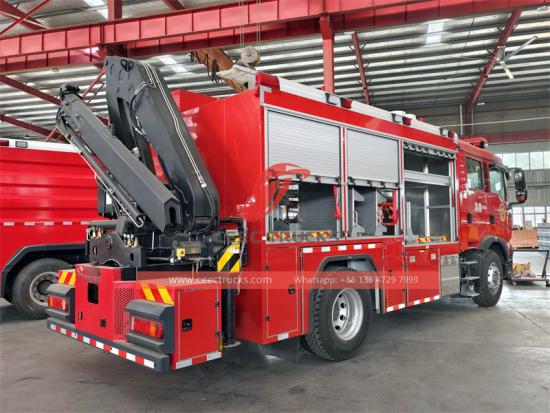

Howo fire rescue truck with 5ton kunckle crane

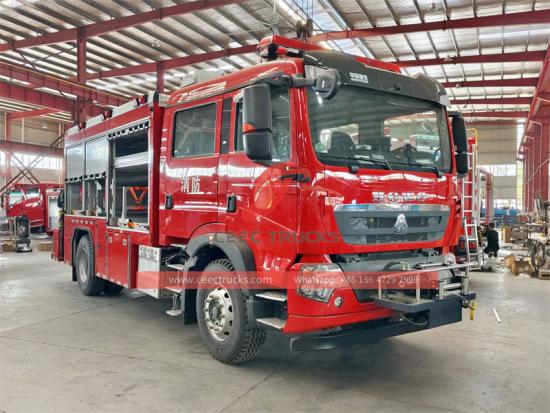

Howo emergency lighting fire truck is built on the high-quality Howo fire chassis, combining excellent power and environmentally friendly emissions. It has 290 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. The rear of the fire truck is equipped with an 5-ton knuckle crane, which can participate in emergency rescue.This Howo fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility.

Product Origin:
China CEEC
Work capacity:
5 ton
Dimension ( mm ):
7800 x 2500 x 3100
Wheelbase ( mm ):
4600 mm
Engine power:
290 HP
Engine type:
WD615.87
Axle drive:
4x2
Gear box:
8-Speed Manual
Remarks:
12m lighting system+long-lasting power

Inquiry now

Howo 4x2 emergency lighting fire truck is built on the high-quality Howo fire chassis, combining excellent power and environmentally friendly emissions. It has 290 horsepower and can challenge all kinds of difficult roads. It is equipped with an independent power generation system and emergency lighting system. It is multi-angle and all-round, and can quickly achieve the purpose of lighting the rescue channel when a fire breaks out. The control panel language is optional, and a variety of optional configurations are provided to meet different needs. The rear of the fire truck is equipped with an 5-ton knuckle crane, which can participate in emergency rescue.This Howo fire rescue lighting truck provides solid protection for fire emergencies and demonstrates outstanding performance and flexibility.

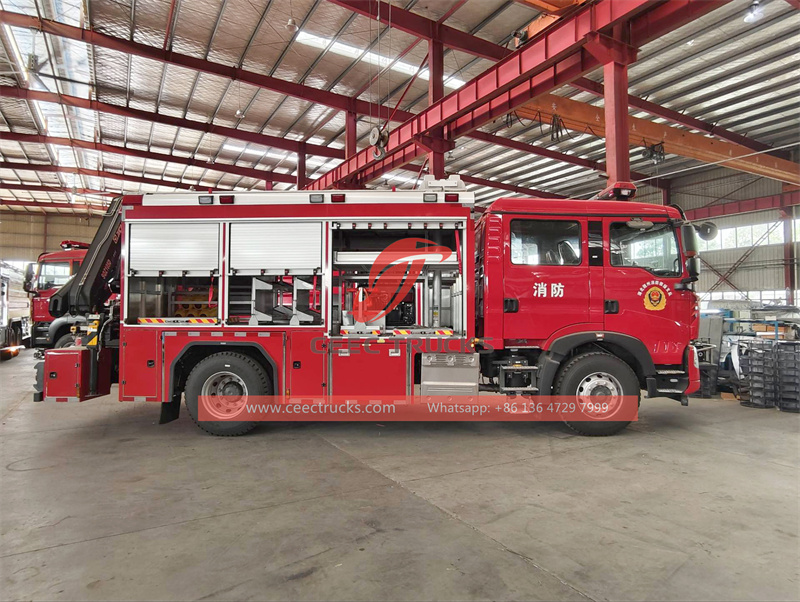

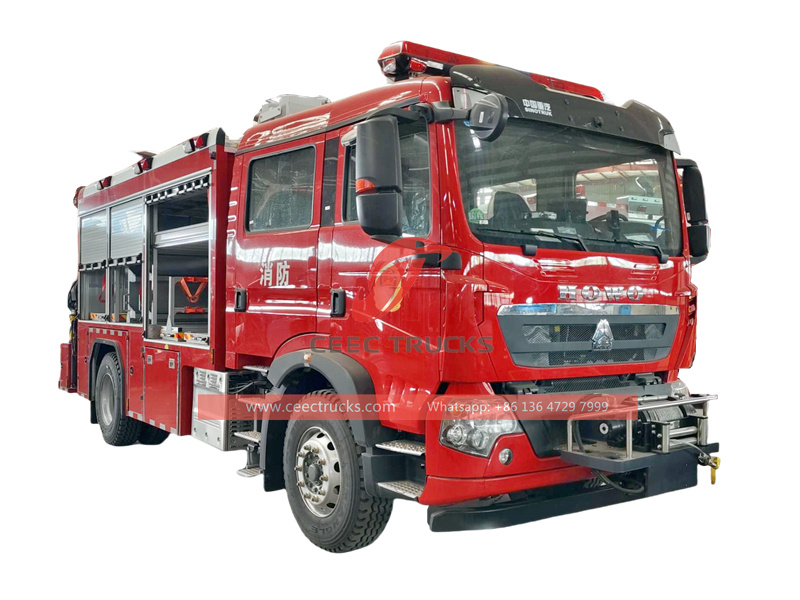

Howo 4x2 emergency lighting fire truck

● China best fire rescue truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

Howo Emergency Rescue Fire Truck
General	Vehicle Brand	CEEC TRUCKS
	Chassis Model	Howo
	Overall Dimension	7800 * 2500 * 3150 mm
	GVW / Kerb Weight	22,055kg / 9,300kg
Cab	Cab Capacity	3 persons allowed
Cab	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai
	Model	WD615.87
	Power	290 HP
	Displacement	9780 ml
	Emission Standard	Euro 3
Chassis	Drive Type	4X2 (left or right hand drive)
	Transmission	8-speed levers with 1 reverse
	Wheelbase/No. of axle	4600 mm / 2
	Tire Specification	295/80R22.5
	Tire Number	6 tires and 1 spare tire
	Max Speed	95 km/h
	Paint	Metallic paint
Lighting system technology	Light source type	LED and other high brightness, low energy consumption light sources
	Color Temperature	＞2700K
	Luminous flux	Evacuation passage ground illumination ≥1.0 lx
	Luminous flux	Stairwell ≥5.0 lx
	Coverage	Center or rear
		Adjustable angle robotic arm (horizontal ±180°, vertical ±90°)
		Multi-directional lighting，the coverage radius can reach more than 100m
	Centralized power supply	Continuous lighting time ≥ 90 minutes
	Control panel	English or Your language
Electrical System	Battery	Lithium iron phosphate battery
	Capacity	90 minutes
	Security	Fireproof and anti-leakage design
	Voltage	Converted to 220V AC through inverter
	Max Lifting Capacity	5000Kg
	Max Lifting Moment	6.2 T
	Recommend Power	12.5 Kw
	Hydraulic System Flow	15 L/min
	Hydraulic System Pressure	18 Mpa
	Oil Tank Capacity	25 L
	Installation Space	550 mm
	Self Weight	500 Kg
	Rotation Angle	330°

Advantage:

1. Chassis performance: reliable power and high passability

Engine and power system：The Howo chassis is equipped with a WD615.87 diesel engine (National 3 emission standard), with a maximum power of 290HP and a torque of 510N·m. It has stable power output and excellent fuel economy, and is suitable for long-term high-intensity operations. The dual-battery design ensures the stable operation of electrical equipment under extreme conditions.

Passability parameters：Equipped with 295/80R22.5 tires and all-wheel drive capability, the minimum turning radius is ≤12 meters, and the wading depth is ≥800mm, which can adapt to complex terrain and severe weather conditions.

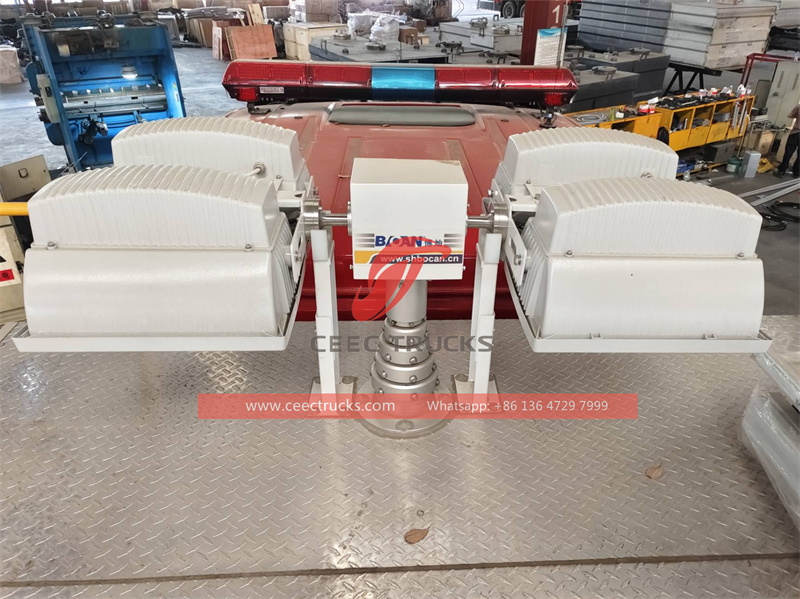

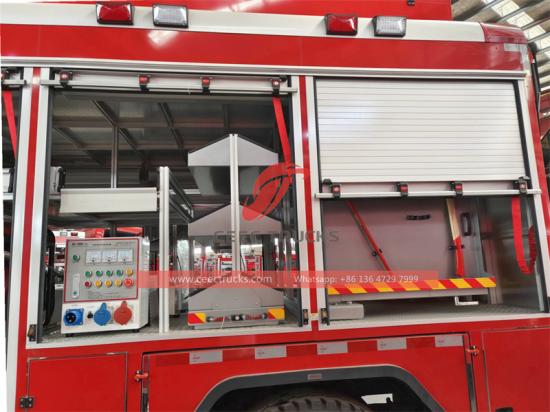

2. High-brightness mobile lighting system

Wide-area coverage:The Howo fire rescue truck equipped with multiple sets of high-power lifting lighting lamps (such as LED light sources), which can be quickly deployed to form a strong light coverage area with a radius of 50-100 meters, meeting the lighting needs of the entire work surface at night or in low-light environments (such as underground spaces and tunnels).

Intelligent adjustment:The Howo fire rescue lighting truck supports light color temperature switching (white light/yellow light) and brightness grading control to prevent strong light from interfering with the sight of trapped people and reduce visual fatigue of rescuers.

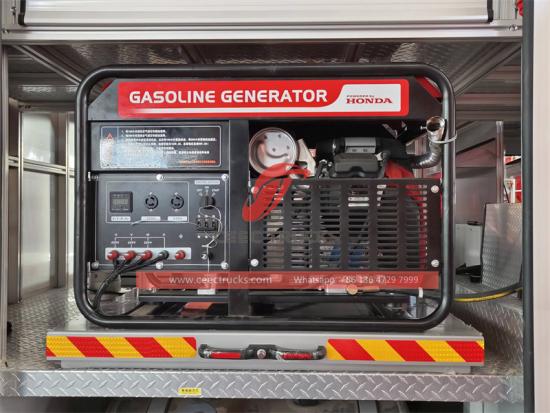

Independent power supply:The Howo fire truck built-in large-capacity battery pack or generator, which can continuously supply power for 8-12 hours in power outage scenarios to ensure lighting stability when power is interrupted in disaster areas.

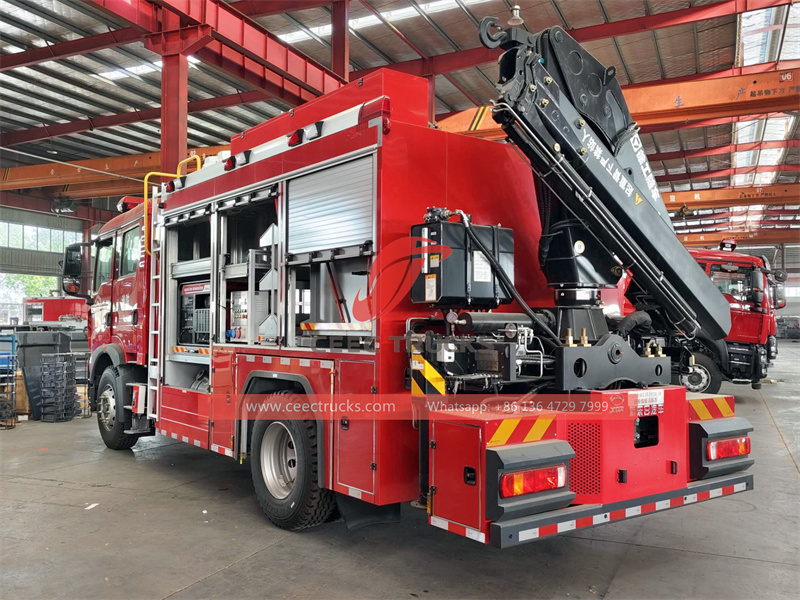

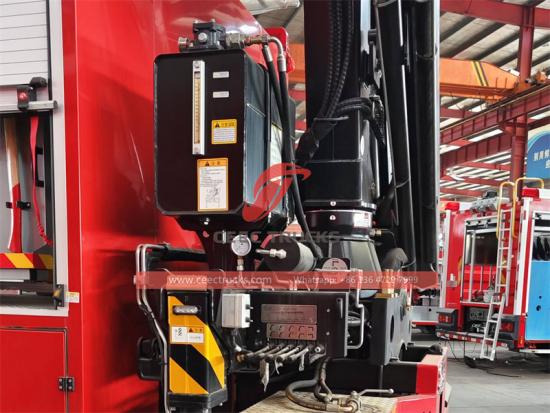

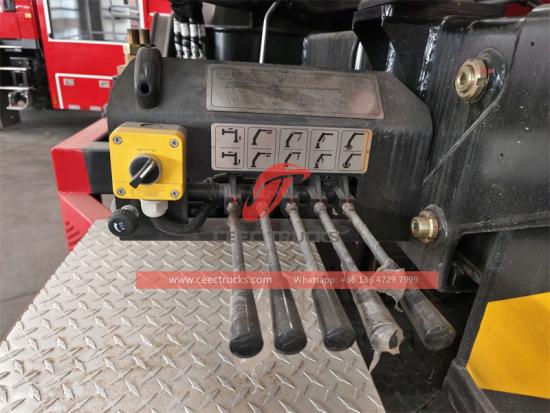

3.Multi-function crane

Precise control:hydraulic telescopic arm design (typical working radius 5-15 meters), equipped with electronic torque limiter and multi-angle camera, can complete obstacle removal (such as deformed vehicle parts) or heavy equipment lifting (such as generators) with millimeter-level accuracy.

Modular expansion:the hook can be quickly replaced with electromagnetic suction cups, grabs and other tools to adapt to complex tasks such as metal debris cleaning and hazardous chemical container transfer.

Safety redundancy:dual hydraulic system backup and overload protection device ensure equipment reliability under continuous high-intensity operations.

★ Euro 3 type, WEICHAI engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO fire engine exporter

★ Easy operation and easy maintenance

Howo 4x2 emergency lighting fire truck

CEEC TRUCKS is a leading supplier of fire fighting truck in China. We possess over 10-year export experience of fire truck. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire engines are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
