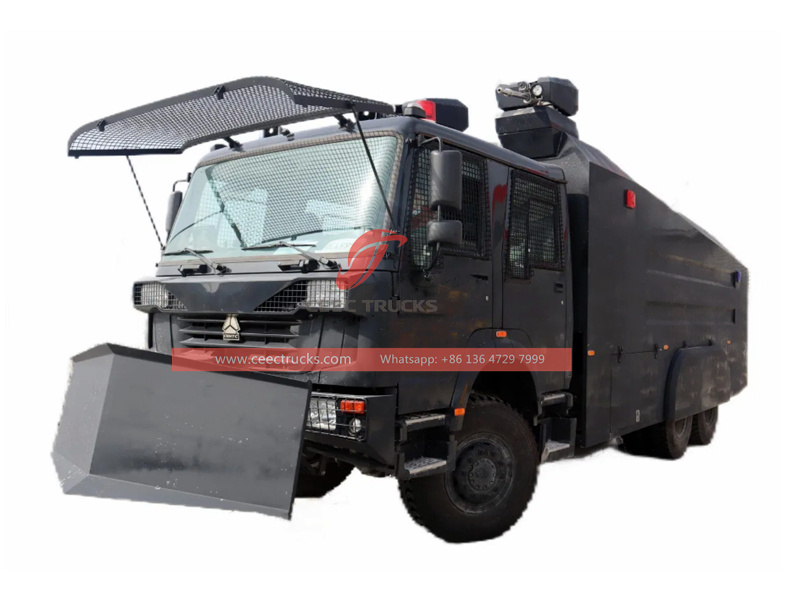

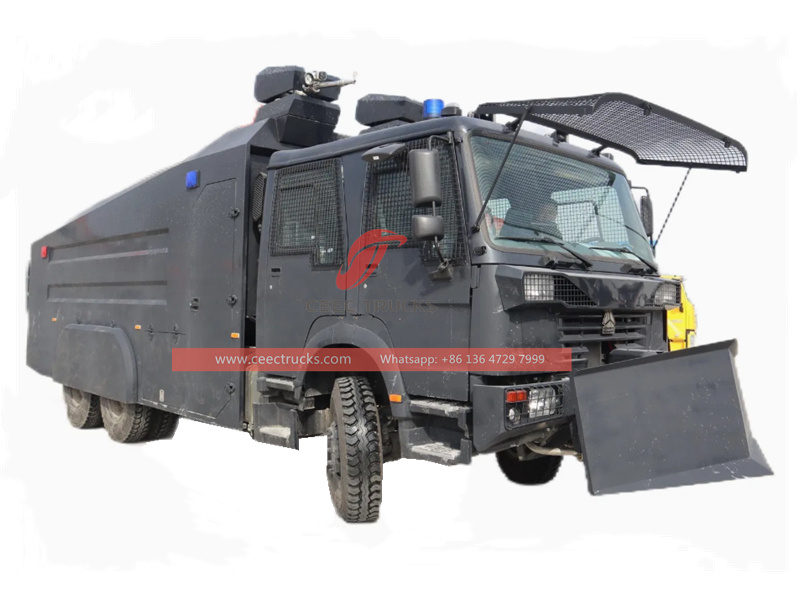

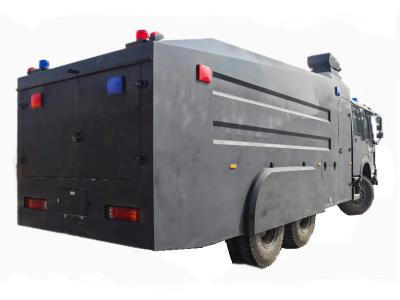

The Howo Fire Water Cannon Riot Truck adopt a heavy 6x4 chassis and is equipped with a WP10.340E32 engine rated at 340HP, ensuring strong mobility during emergency operations. The truck body features a comprehensive explosion-proof design in materials, structure, and systems, ensuring safe and efficient mission execution in extreme environments.
Work capacity:
8000L water tank+2000L foam tankDimension ( mm ):
9800x2500x3550 mmWheelbase ( mm ):
4350+1350 mmEngine power:
340HPEngine type:
WP10.340E60Axle drive:
6x4,LHDGear box:
HW15710 gearbox,10 forward and 2 reverseRemarks:
High-strength aluminum alloy or titanium alloy frames
The Howo Fire Water Cannon Riot Truck adopt a heavy 6x4 chassis and is equipped with a WP10.340E32 engine rated at 340HP, ensuring strong mobility during emergency operations. The truck body features a comprehensive explosion-proof design in materials, structure, and systems, ensuring safe and efficient mission execution in extreme environments.
Drivers must possess both specialized driving skills and emergency response capabilities, with a focus on preventative safety measures and remote collaborative operations. The Howo Fire Control Riot Truck's tank body is constructed of high-strength carbon steel with a thickness of 6-10mm. It can hold 6,000L of water and 2,000L of foam, making it an indispensable safety equipment for the petroleum, chemical, and other fields.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
» Ⅰ.Product Defination and Introduction:
|
Howo fire fighting riot truck |
|||
|
Truck Brand |
CEEC Trucks |
||
|
Chassis model |
HOWO |
||
|

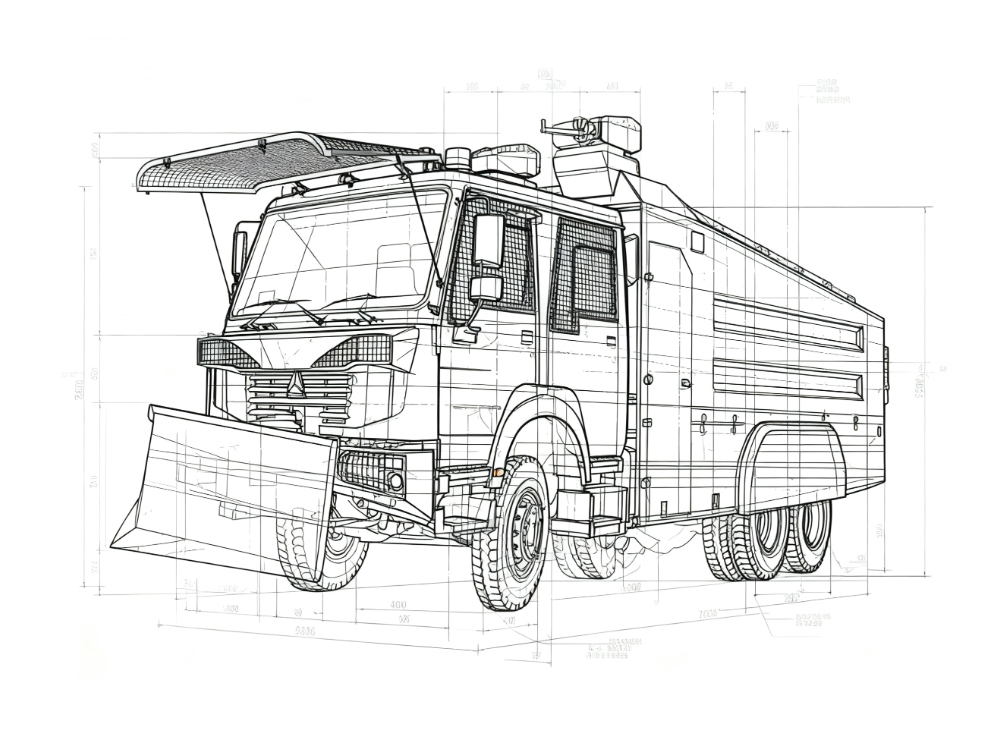

Max Dimensions |
9800x2500x3550 mm |
||
|
Wheelbase |
4356+1350 mm |
||
|
GVW/Curb Weight |
25000kg/12855kg |
||
|
Max Speed |
95 km/h |
||
|
Engine model |
WP10.340E32 |
||
|
Displacement |
9.726 L |
||
|
Max. power |
250kw/2200rpm |
||
|
Max. speed |
95 km/h |
||
|
Driving mode |
6 x 4 |
||
|
Carrying capacity of cabin |
4-5 person,equipped with Explosion-proof isolation net |
||
|
Upper Body Protection |
Use explosion-proof armor or thickened steel plates, and the interior may be filled with explosion-proof insulation layers to resist explosion shock waves and high temperatures |
||
|
Capacity of water tank |
6000 L |
||
|
Capacity of foam tank |
2000 L |
||
|
Remote Spraying Device |
Optional remote-controlled gun or robotic arm can be used to extinguish fires at a safe distance, reducing the risk of personnel exposure |
||
|

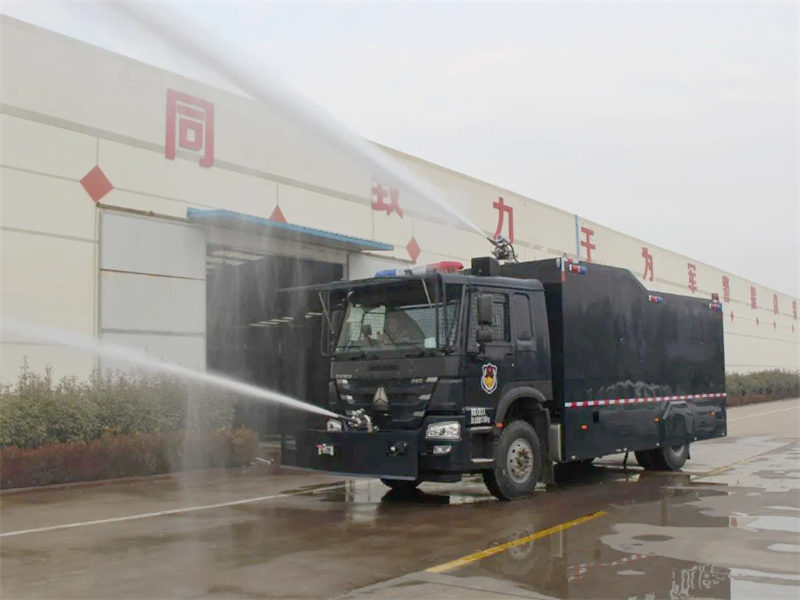

Anti-riot water cannon |
Horizontal rotating angle ° |
single:-135~135 |
double:-135~5 |
|
Pitching angle ° |
-10~45 |
||
|
Max. range m |
65 |
||
|
Fire Pump |
Brand |
China TOP Brand |
|
|
Drive mode |
PTO |
||
|
Priming Manner |
Automatic |
||
|
Pressure range |
1.6-2.5 MPa |
||
|
Flow rate |
60L / s |
||
|
Gas solution |
100 |
||
|
Dye coloring |
100 |
||
|
Foam solution |
100 |
||
|

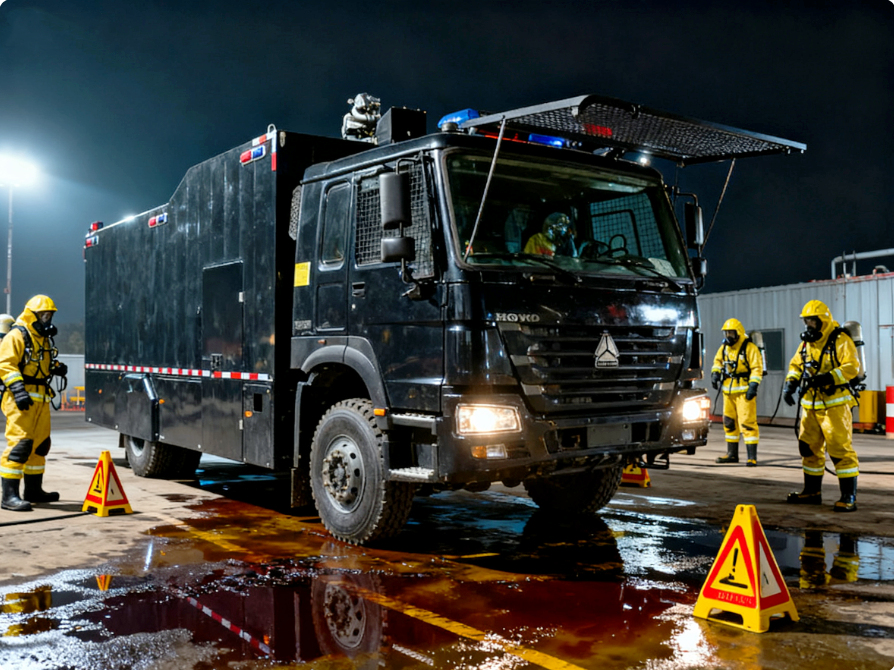

Safety monitoring and emergency equipment |
|||
|
Gas detector |
real-time monitoring of the concentration of combustible gas in the environment, automatic alarm and activation of protective measures when exceeding the limit. |
||
|
Positive pressure system |
the cab maintains a positive pressure state to prevent external toxic gas from infiltrating. |
||
|
Emergency escape system |
equipped with rapid evacuation channels, self-contained respirators and explosion-proof shields, etc. |
||
» Ⅱ.Product Parameter for Howo 20CBM dusty cleaning truck：
1. Explosion-proof material processing
♦ Explosion-proof armor welding: High-precision welding technology ，ensure that the joints of explosion-proof steel plates are free of pores and cracks，can withstand explosion shock waves and high-temperature deformation.
♦ Composite insulation layer filling: Insulation materials such as ceramic fibers， nano-aerogels are filled in the interlayer of the fire truck upper body.
♦ Explosion-proof glass installation: Multi-layer explosion-proof glass and the body frame must be seamlessly fitted, adopt explosion-proof sealants and pressure-resistant frame fixing processes.
♦ Lightweight design:
• High-strength aluminum alloy or titanium alloy frames are used to reduce weight through topological optimization design while ensuring explosion-proof structural strength.
• Fatigue testing and dynamic load simulation are required for key pressure-bearing components .
2. Explosion-proof electrical system integration
♦ Spark-free circuit layout:
All lines need to be shielded to avoid electromagnetic interference, and the joints use explosion-proof junction boxes.
♦ Explosion-proof sensor integration:
Temperature, humidity, and gas concentration sensors need to be embedded in explosion-proof housings, Connected to the main control system through an intrinsically safe circuit.
♦ The battery pack with explosion-proof packaging:
• Adopt flame-retardant electrolyte and double isolation design, equipped with overvoltage and overcurrent protection modules.
• Support fast power-off technology, which cuts off the power supply in milliseconds when short-circuited or high temperature occurs.
3. Customized production of fire extinguishing system
♦ Manufacturing of multi-media fire extinguishing tanks:
The storage tank is made of high-strength carbon steel, the inner wall is sprayed with a chemical corrosion-resistant coating, and an anti-vibration baffle is designed to prevent liquid shaking.
♦ Precision processing of remote injection devices:
• The hydraulic or electric actuators of remote-controlled fire cannons can reach the highest protection level.
• It can be resistant to high temperature and high pressure, and have explosion-proof servo motor control.
• The pipeline system can pass high-voltage pulse testing to prevent leakage or bursting of fire extinguishing agents.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
★ Euro 3 type, sinotruk engine, super powerful
★ Water tank and Foam tank capacity can be optional.
★ 12 months fast moving spare parts for FREE
★ Authorized HOWO fire engine exporter
★ Easy operation and easy maintenance
CEEC TRUCKS is a leading supplier of fire fighting truck in China. We possess over 10-year export experience of fire truck. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire engines are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
