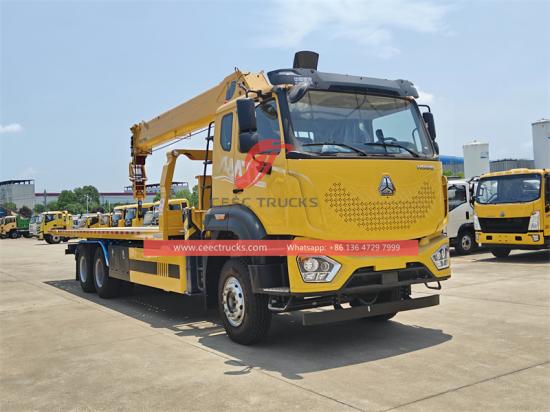

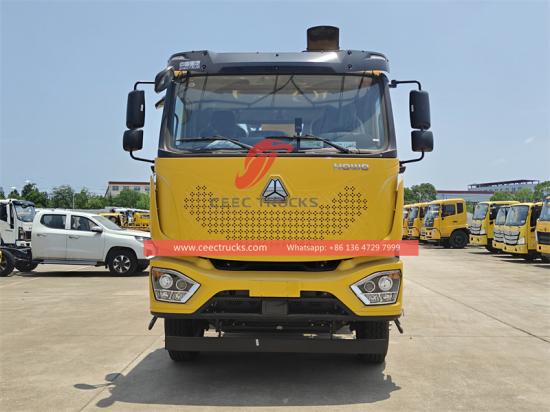

This Howo flatbed tow truck with 8T crane is a versatile and well-designed special truck. It is equipped with a diesel engine of Chinese brand Yuchai Engine, with a strong power of 260HP, which can meet various work needs. The new M9 luxury cab can accommodate three people and is equipped with air conditioning, providing a comfortable driving environment for drivers and operators. The crane is a telescopic boom with a maximum lifting capacity of 8000kg, 360° full rotation, and a maximum lifting height of 16.5m. The crane designed by CEEC factory weighs 1850kg and has an installation space of 1350mm, which is light and space-constrained. At the same time, the crane truck combines the flatbed tow system, with a load capacity of 12-15tons, providing more possibilities for engineering operations. The control panel can be selected in English or other languages, which is convenient for users with different needs. Howo cargo crane truck also provides a variety of optional configurations, such as folding arm boom, hydraulic dump box, customized box thickness and height according to needs, and optional remote control box.

*HOWO 6x4 wrecker truck 8ton crane

    Sinotruk 10wheeler flatbed tow truck with 8T crane*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk HOWO truck chassis, 6x4,6X6 model

                              YC6A260-20 model with 260HP and emission 7250cc.

2. Cargo material: 4mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand: CEEC,XCMG, Palfinger, HIAB, etc.

4.  Optional design: such as telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

The HOWO wrecker service truck mounted 8ton crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.



» Ⅱ.Product Parameter for HOWO single axle 4ton truck mounted crane

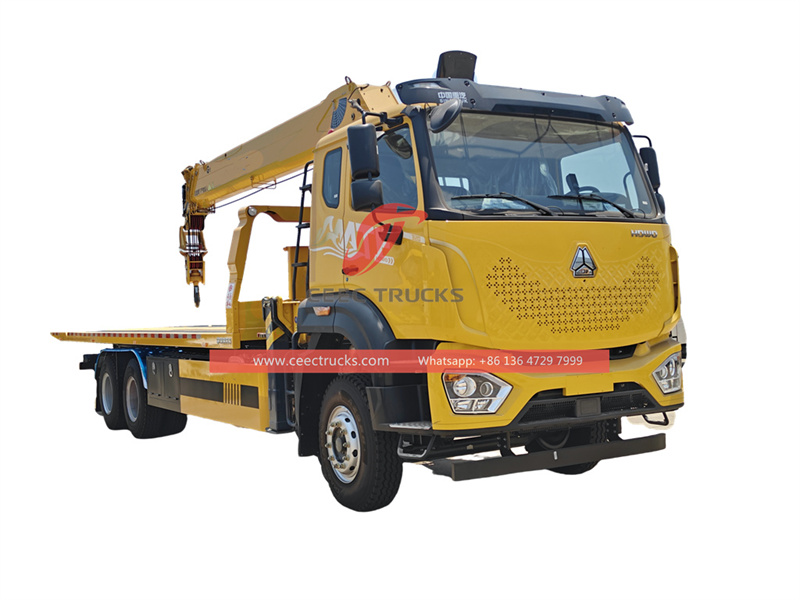

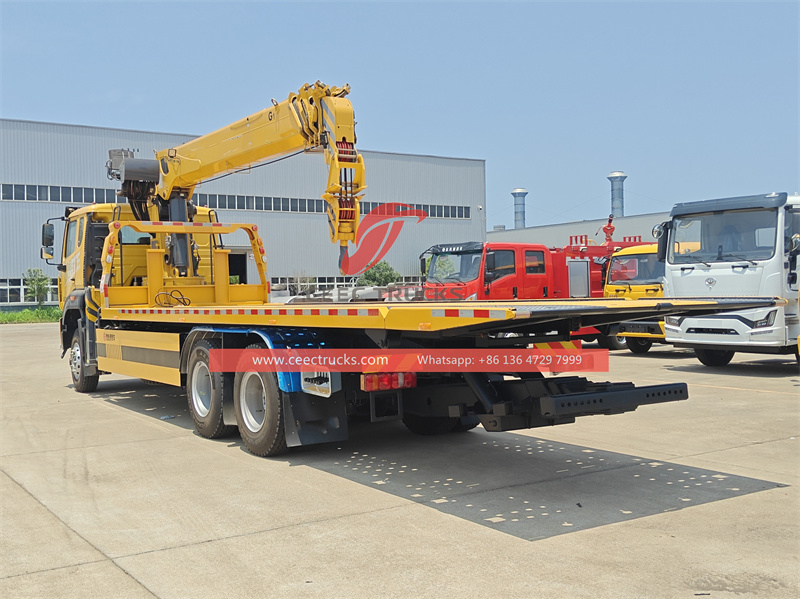

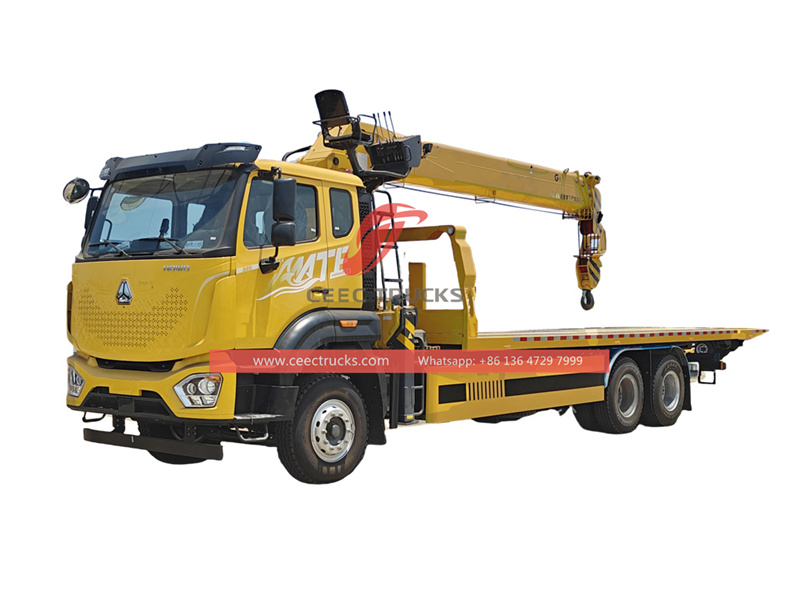

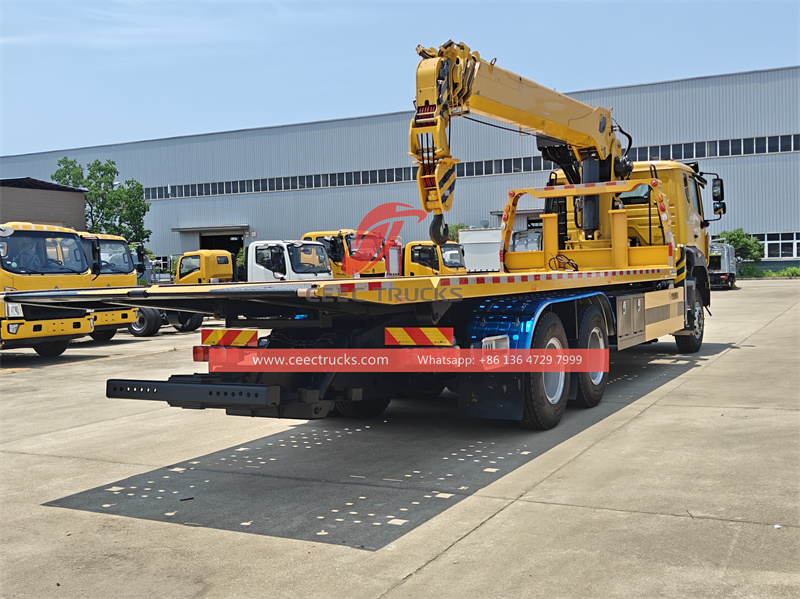

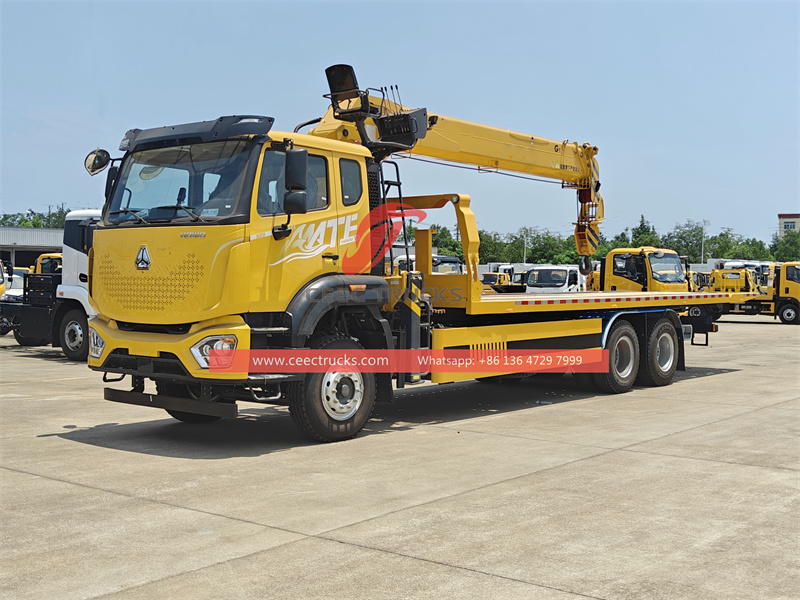

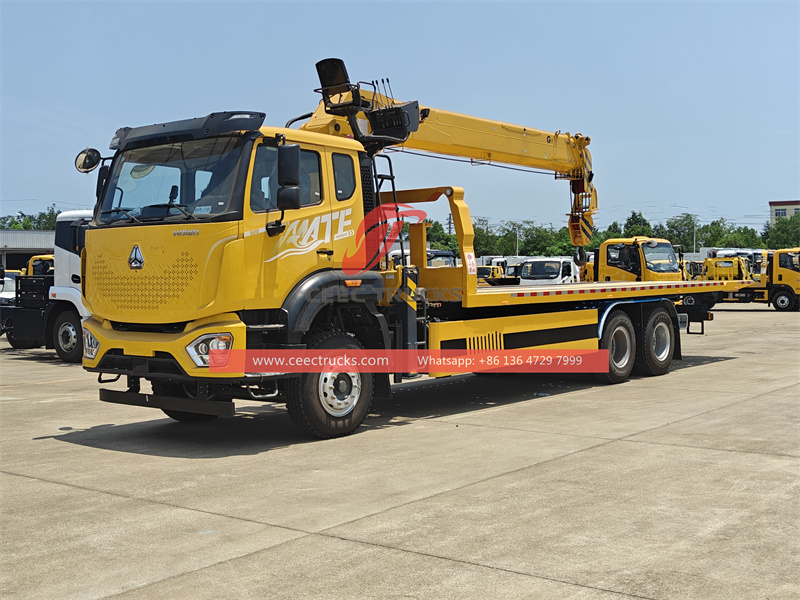

Howo wrecker tow truck with 8T telescopic crane
Overall dimensions	7600×2450×3150(mm)	Gross vehicle weight	18,000 kg
Payload weight	12,000 kg	Rated Load capacity	8,000 kg
Chassis specifications
Chassis Brand	Howo	Color	Yellow or optional
Engine	Fuel Type	Diesel
	Model	YC6A260-20
	Horse power	260 HP
	Displacement	7.250ml
	Engine Type	6 cylinders in line, water cooling, intercooled, turbocharged
	Emission Standard	Euro 3
Wheel Base(mm)	4600	Driving type	6x4 (right/left hand drive)
Type & Size of Tyre	10.00R20 (10+1pcs)	Air Conditional	Heating and cooling air conditioning
Cab	Single-row tilted cab	Gear Box	Manual 8 speed forward with 1 reverse, manual
Brake	Air brake	Steering Wheel	Left / Right Hand Drive with power-assisted
Crane specifications
Crane brand	CEEC	Crane weight	1396 kg
Max. lifting weight	8000 kg	Max. working height	13.5 m
Max oil flow of hydraulic system	25 L/min	Rated pressure of hydraulic system	20 Mpa
Oil tank capacity	60 L	Installation space	850 mm
Max. working radius	8.5 m	Max lifting Moment	10 T.M
Rotation angle	360°, all rotation	Boom	4 sections
Flatbed Tow
Platform Inside Size	7,800x2,450mm, 50mm thickness, Anti-slip Treatment Deck	Payload	12 tons
Application	Transporting cars, vans, SUV, mini vans	Control Type	Hydraulic control lever kit on both side
Language	English or according to specified Language	Towing capacity	8,000kg, hydraulic control lifting.
Maximum Extended	1.5M	Winch Cable Length	40 m
Others
Operation Type	Manually operated hydraulic valve	Type	Mechanical



» Ⅲ.Product Details & Advantages:



1. Chassis design and load-bearing capacity

Application of high-strength steel: The Howo middle-duty chassis adopts high-strength alloy steel and box-section design to improve torsional rigidity and load-bearing capacity, and can withstand dynamic loads in the crane operation (such as impact during lifting and rotation).

Optimized axle load distribution: The structure of the Howo middle-duty chassis has been verified by engineering to ensure reasonable distribution of front and rear axle loads, avoiding unbalanced control due to center of gravity shift after modification, and is particularly suitable for stability requirements after installing the boom.

Low center of gravity design: The crane operation needs to take into account both driving and lifting. The low center of gravity layout of the Howo crane truck reduces the risk of rollover and improves safety under complex road conditions.



2. Power system and fuel economy

The Howo boom truck is equipped with China Top brand YuChai series turbocharged diesel engine, which has low speed and high torque characteristics (maximum torque can reach 960N·m@2600rpm), suitable for frequent start-stop hoisting operations, fast power response and high fuel efficiency. The Howo boom truck adopts mature electronic control technology to reduce the failure rate. The durability of the engine has been verified for millions of kilometers and is suitable for high-load conditions.



3. Multi-function integration and efficiency improvement

The towing and lifting functions are highly integrated into a single platform, eliminating the cumbersome process of dispatching independent cranes to cooperate with tow trucks in the traditional mode.

The 8-ton lifting capacity is sufficient to independently complete the key actions such as straightening, shifting, and precise loading of most accident vehicles (such as SUVs, medium-sized trucks, and construction machinery).

The 12-ton towing capacity ensures that it can stably transport most common heavy vehicles on the road. Significantly shorten the handling time at the accident site (reduce equipment waiting and coordination links), realize the integrated operation of "lifting, loading, and transportation", especially suitable for complex scenes such as vehicle rollover, entrapment in ditches, and narrow sites, providing a complete end-to-end solution, greatly improving the comprehensive handling capabilities of a single visit.

•

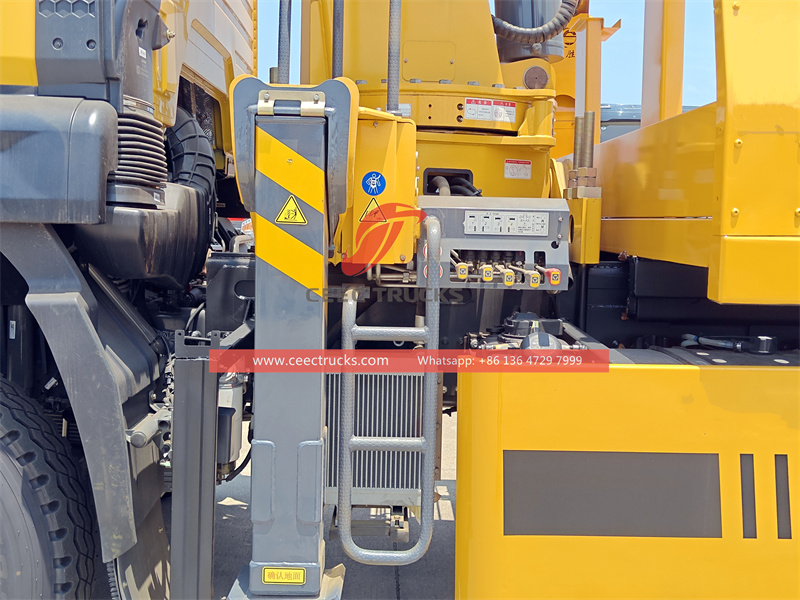

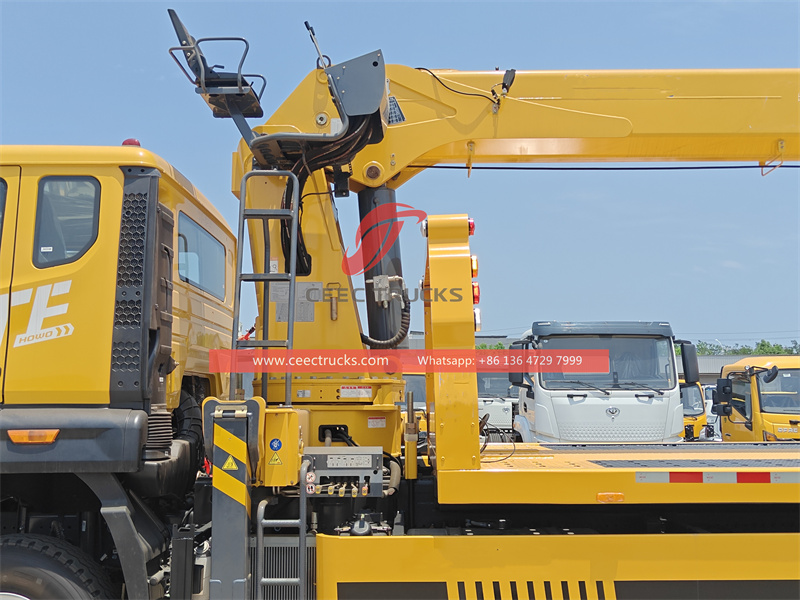

  Manually operation joystick


•

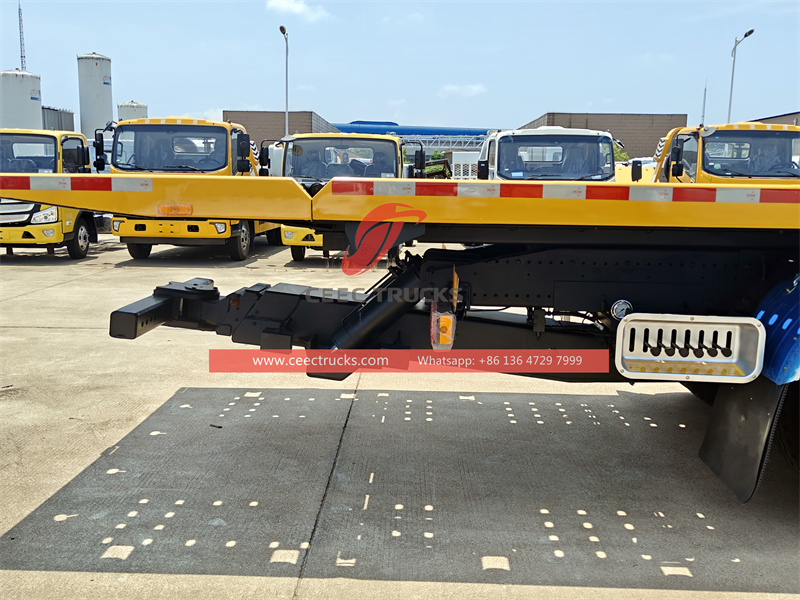

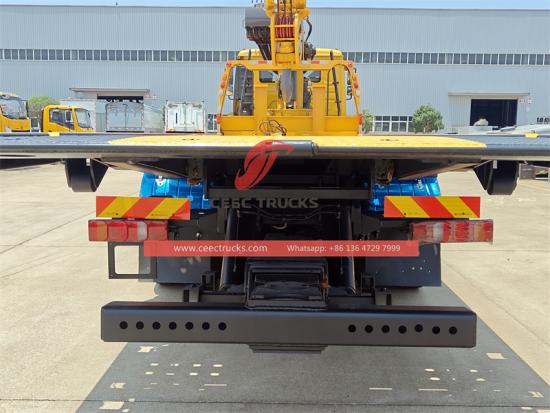

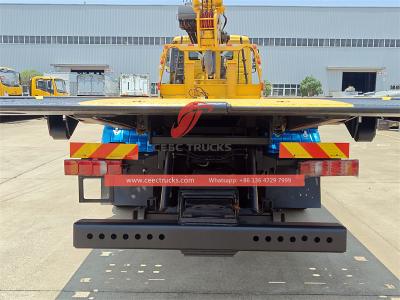

  Flatbed tow platform


•

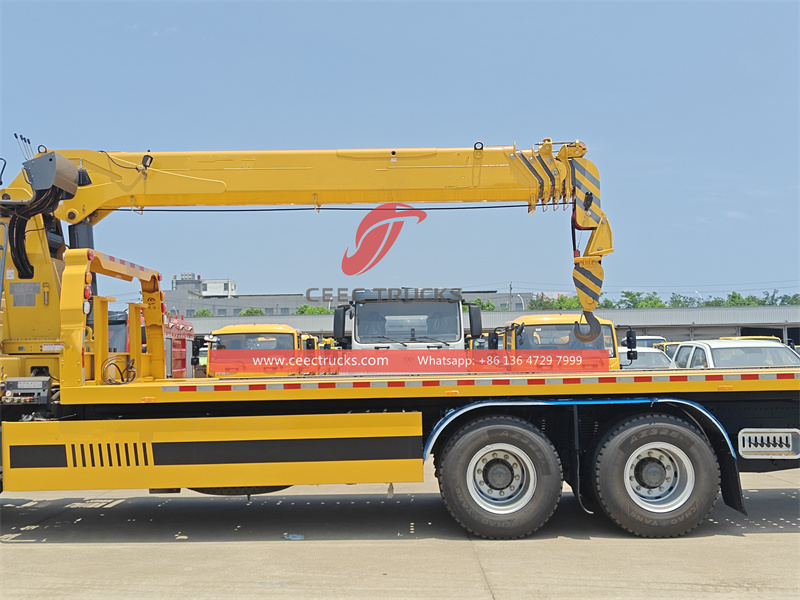

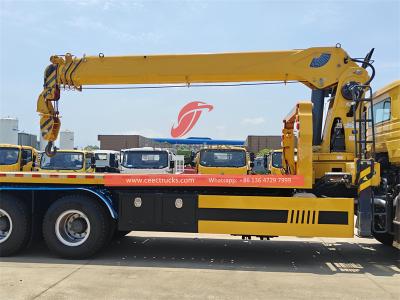

  Large-duty 8 tons capacity crane





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
