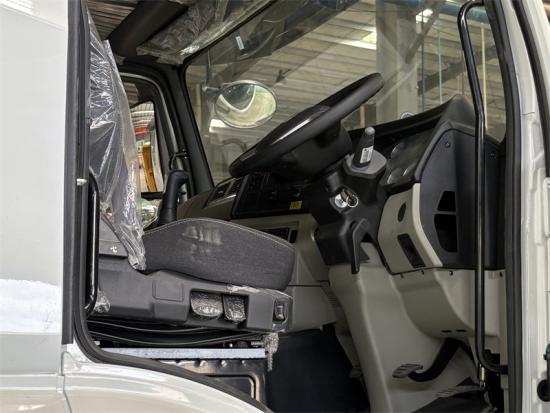

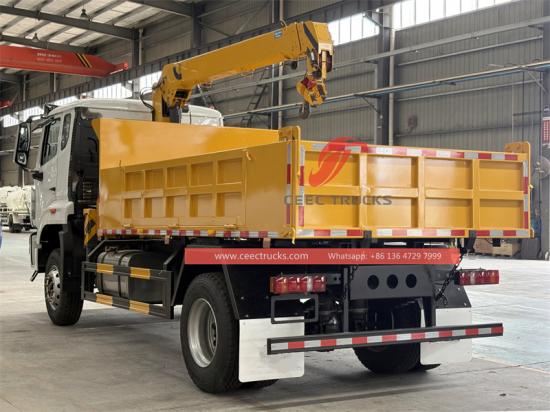

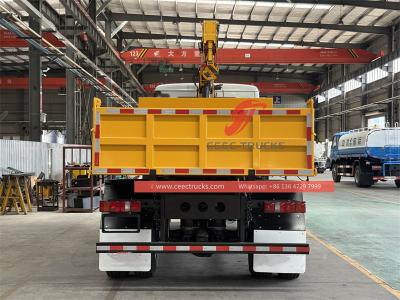

This Howo boom 5tons crane truck is a powerful and well-designed truck, it is equipped with a diesel engine of Chinese brand Yuchai Engine, with a strong power of 220HP, which can meet various work needs. The new M7 luxury cab can accommodate three people and is equipped with air conditioning, providing a comfortable driving environment for the driver and operator. The crane is a telescopic boom with a maximum lifting capacity of 5000kg, 360° full rotation, and a maximum lifting height of 13.5m. The crane designed by CEEC factory weighs 1350kg and has an installation space of 1150mm, which is light and space-constrained. The control panel can choose English or other languages to facilitate users with different needs. Howo cargo crane truck also provides a variety of optional configurations, such as folding boom, hydraulic dump box, customized box thickness and height according to needs, and optional remote control box.

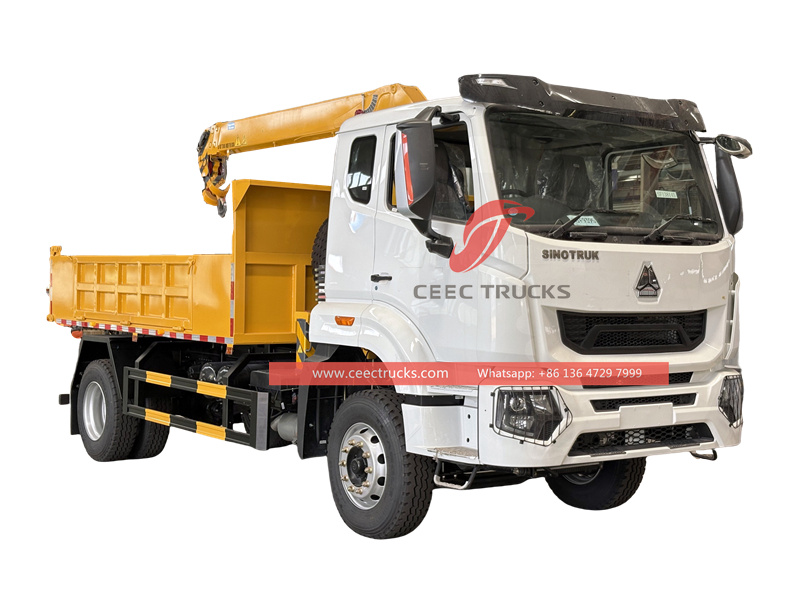

*HOWO 4x2 service truck 4ton crane

    Sinotruk 6wheeler boom crane truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk HOWO truck chassis, 4x2,4X4 model

                              YC-220E22 model with 220HP and emission 7879cc.

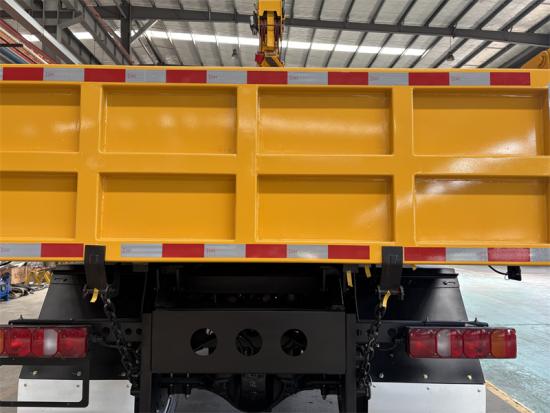

2. Cargo material: 4mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand: XCMG, Palfinger, HIAB, POWERSTAR, etc.

4.  Optional design: such as kunckle boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

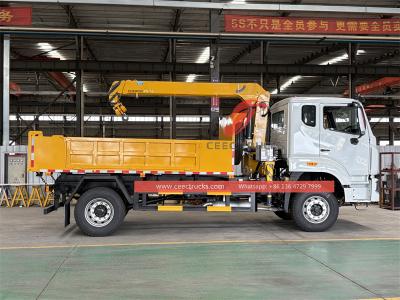

The HOWO single axle 5ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.



» Ⅱ.Product Parameter for HOWO single axle 5ton truck mounted crane

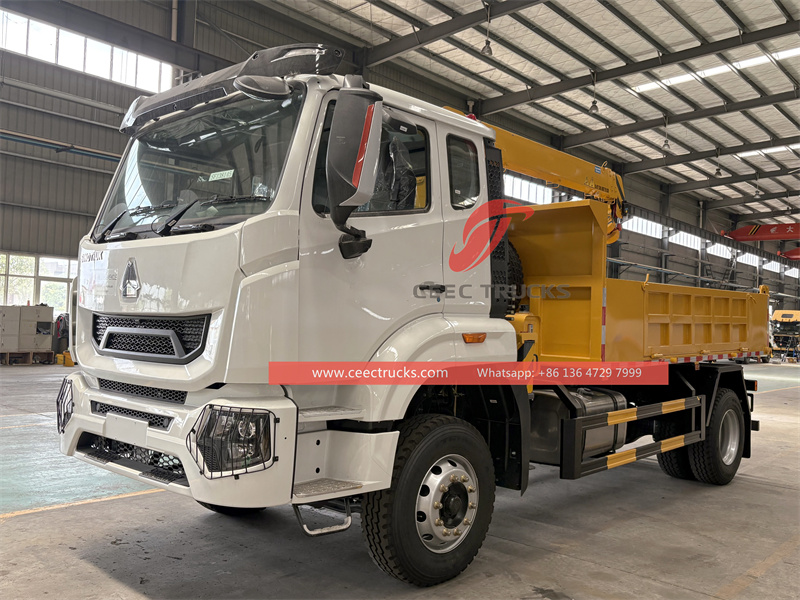

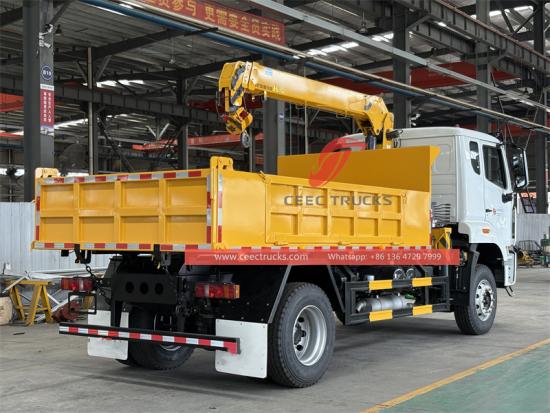

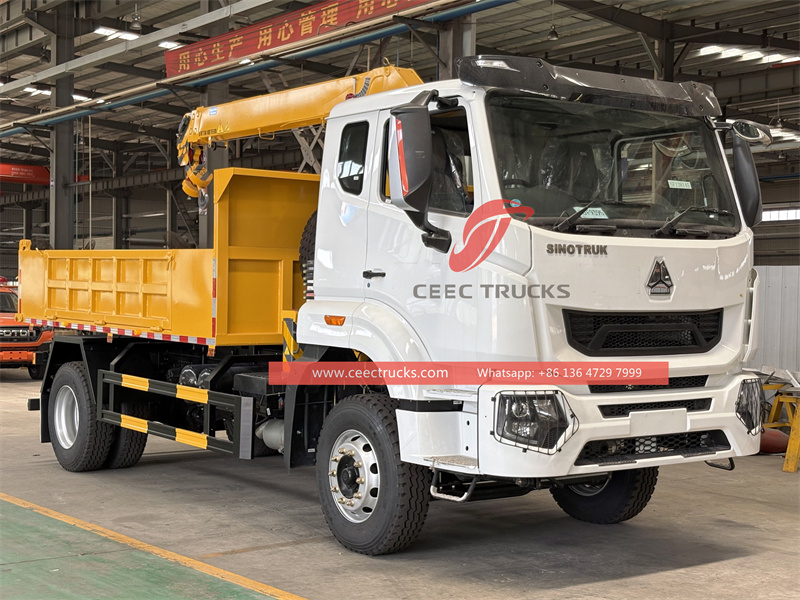

Howo cargo truck with 5T telescopic crane
Overall dimensions	6900×2450×3150(mm)	Cargo box dimensions	4300x2200x550(mm)
Gross vehicle weight	18,000 kg	Rated Load capacity	5000 kg
Chassis specifications
Chassis Brand	Howo	Color	White or optional
Engine	Fuel Type	Diesel
	Model	YC-220E32
	Horse power	220 HP
	Displacement	7897ml
	Engine Type	4 cylinders in line, water cooling, intercooled, turbocharged
	Emission Standard	Euro 3
Wheel Base(mm)	3815	Driving type	4x2 (right/left hand drive)
Type & Size of Tyre	8.25R16 (6+1pcs)	Air Conditional	Heating and cooling air conditioning
Cab	Single-row tilted cab	Gear Box	WLY 6 speed forward with 1 reverse, manual
Brake	Air brake	Steering Wheel	Left / Right Hand Drive with power-assisted
Crane specifications
Crane brand	CEEC	Crane weight	1196 kg
Max. lifting weight	5000 kg	Max. working height	13.5 m
Max oil flow of hydraulic system	25 L/min	Rated pressure of hydraulic system	20 Mpa
Oil tank capacity	60 L	Installation space	850 mm
Max. working radius	8.5 m	Max lifting Moment	10 T.M
Rotation angle	360°, all rotation	Boom	4 sections
Others
Cargo body	High-quality steel	Payload	6 tons

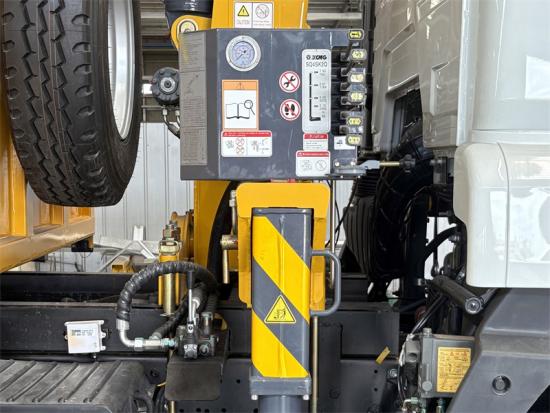

Operation Type	Manually operated hydraulic valve	Type	Mechanical





» Ⅲ.Product Details & Advantages:



1. Chassis design and load-bearing capacity

Application of high-strength steel: The Howo middle-duty chassis adopts high-strength alloy steel and box-section design to improve torsional rigidity and load-bearing capacity, and can withstand dynamic loads in the crane operation (such as impact during lifting and rotation).

Optimized axle load distribution: The structure of the Howo middle-duty chassis has been verified by engineering to ensure reasonable distribution of front and rear axle loads, avoiding unbalanced control due to center of gravity shift after modification, and is particularly suitable for stability requirements after installing the boom.

Low center of gravity design: The crane operation needs to take into account both driving and lifting. The low center of gravity layout of the Howo crane truck reduces the risk of rollover and improves safety under complex road conditions.



2. Power system and fuel economy

The Howo boom truck is equipped with China Top brand YuChai series turbocharged diesel engine, which has low speed and high torque characteristics (maximum torque can reach 726N·m@1800rpm), suitable for frequent start-stop hoisting operations, fast power response and high fuel efficiency. The Howo boom truck adopts mature electronic control technology to reduce the failure rate. The durability of the engine has been verified for millions of kilometers and is suitable for high-load conditions.



3. Modification adaptability

Modular design: The Howo middle-duty chassis has reserved standardized interfaces (PTO power take-off port, hydraulic pipeline channel, etc.) to facilitate the rapid integration of cranes and hydraulic systems and shorten the modification cycle.

Reasonable space layout: The engine compartment, cab and cargo box are compactly arranged to make room for boom installation and operating radius without affecting the driving vision.

Wide compatibility: Adaptable to mainstream crane brands such as XCMG, Sany, and Palfinger, the modification plan is mature and the risk of technical docking is low.
