The Howo NX garbage rear loader truck is a high efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Howo NX heavy chassis, the garbage rear loader is equipped with a 370HP Howo engine and HW 10-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the Howo NX 16CBM garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

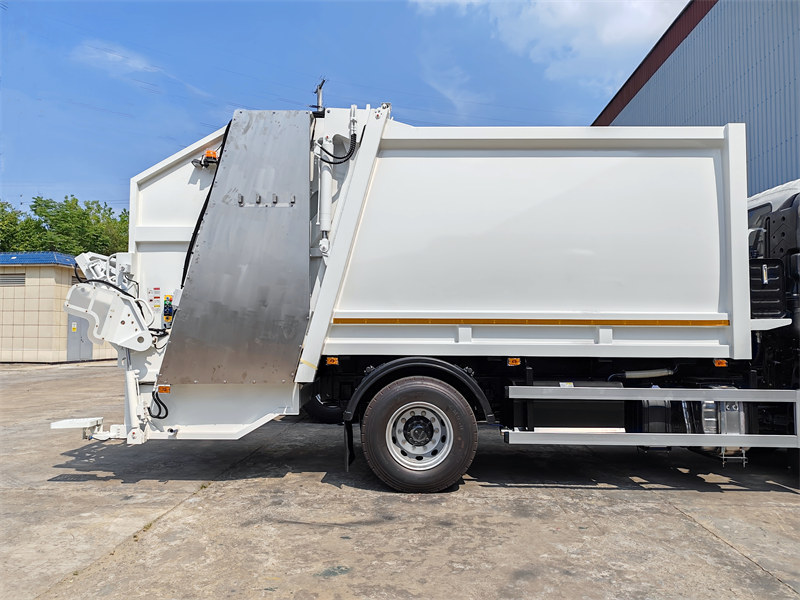

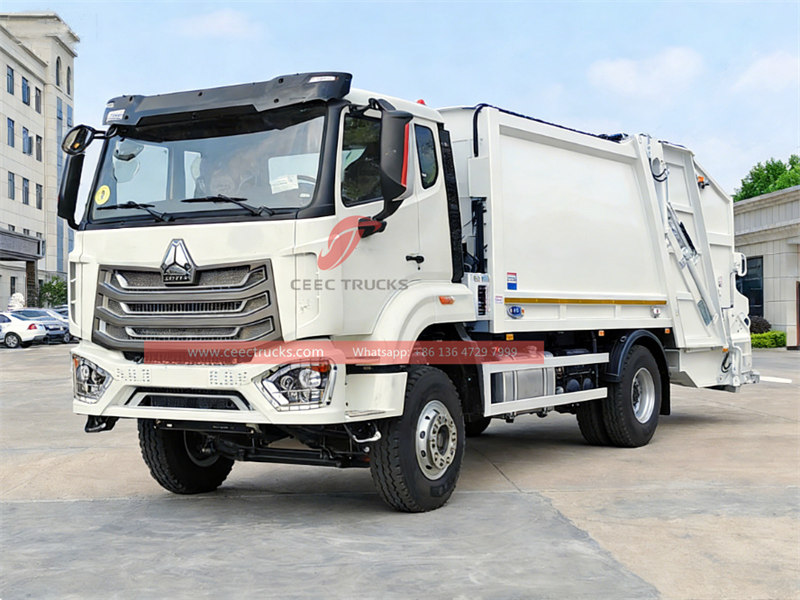

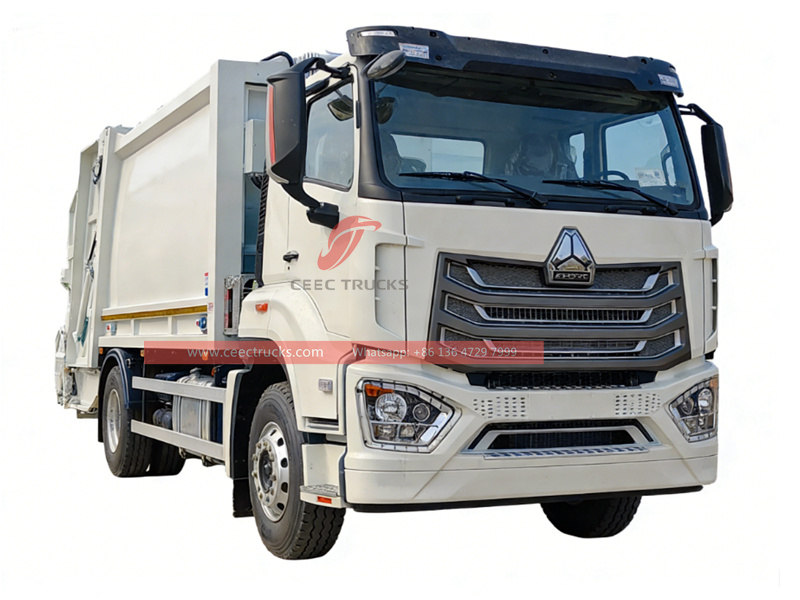

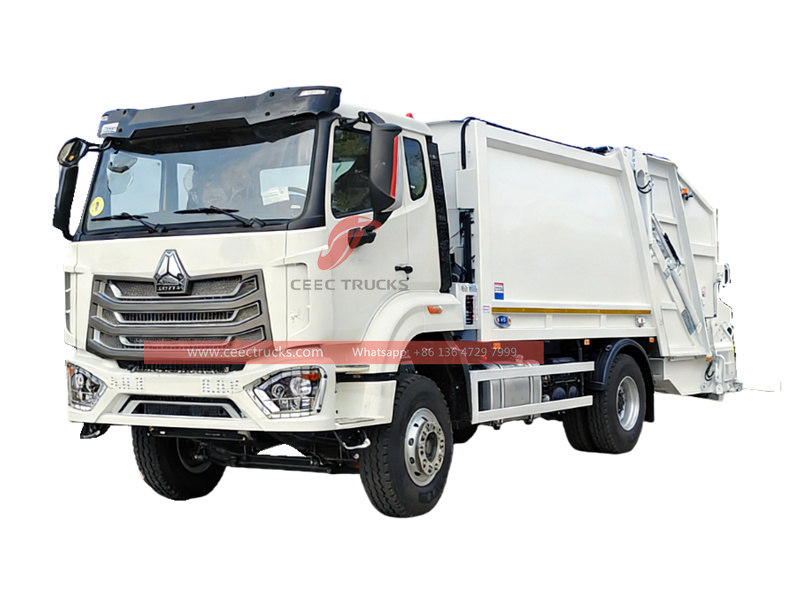

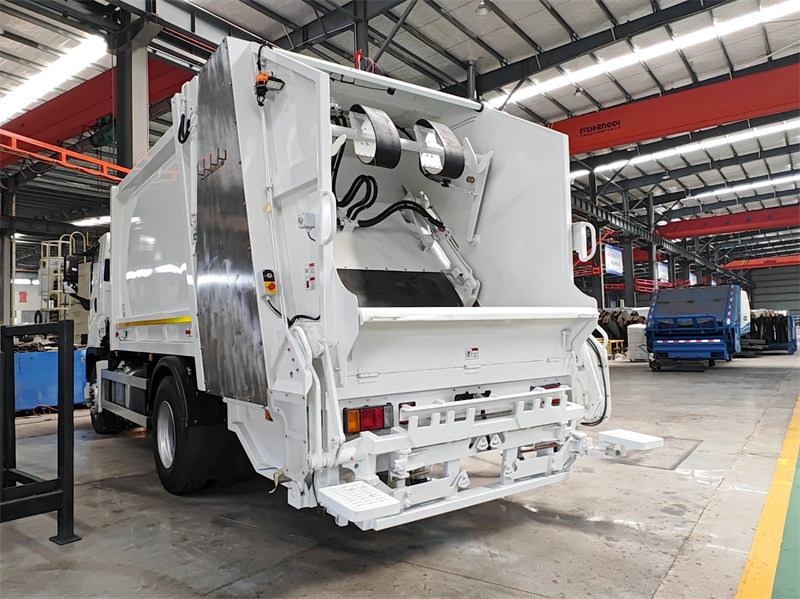

*Howo 16CBM rear end loader garbage truck

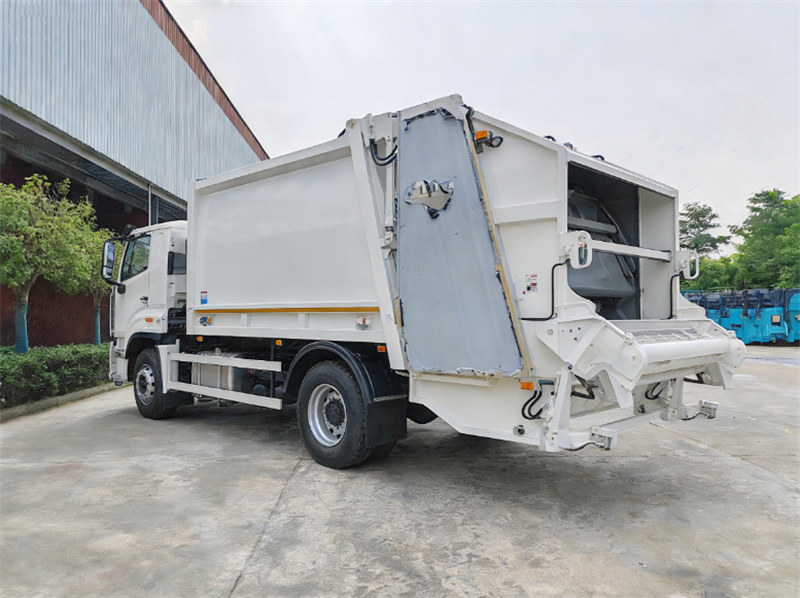

Howo NX heavy garbage compactor truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦Product Defination and Introduction « « «

Manufacturer: CEEC TRUCKS

Features:
1. Truck Chassis: SINOTRUK HOWO NX heavy truck chassis, 4x2and 4x4 model
                               WD model with 300HP, 340HP or 370HP
                               Optional EURO 2/3/4/5 emission for different market

2. Tank material: St52 material 5mm thick carbon steel for durable service
                             Q355, T420, HARDOX material can be choose

3. Tanker body: Customized for light duty 10-18CBM compactor body, curved shape, stronger

4. Control Box: CAN BUS control box with in cabin and rear hopper, convenient operation
                           Also matched hydraulic control valve for emergency usage

5. Rear Tilting Device: Standard 240L and 1100L bins, optional 360L, 660L, 770L, 1100L bins

6. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

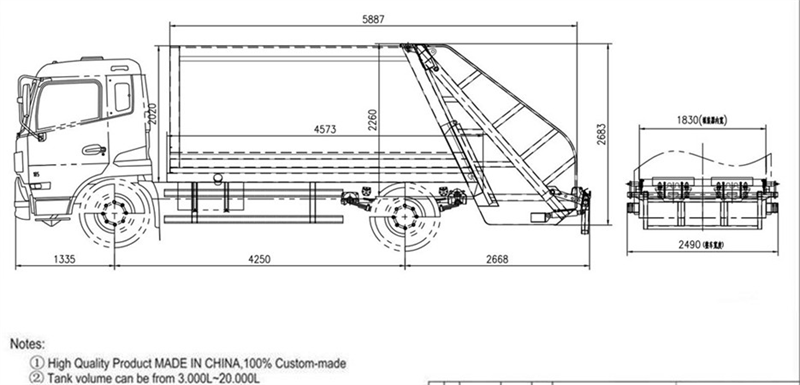

✦Product Parameter for Howo 16CBM rear loaders « « «

✦Howo 16cbm Rear End Loader Truck Details « « «

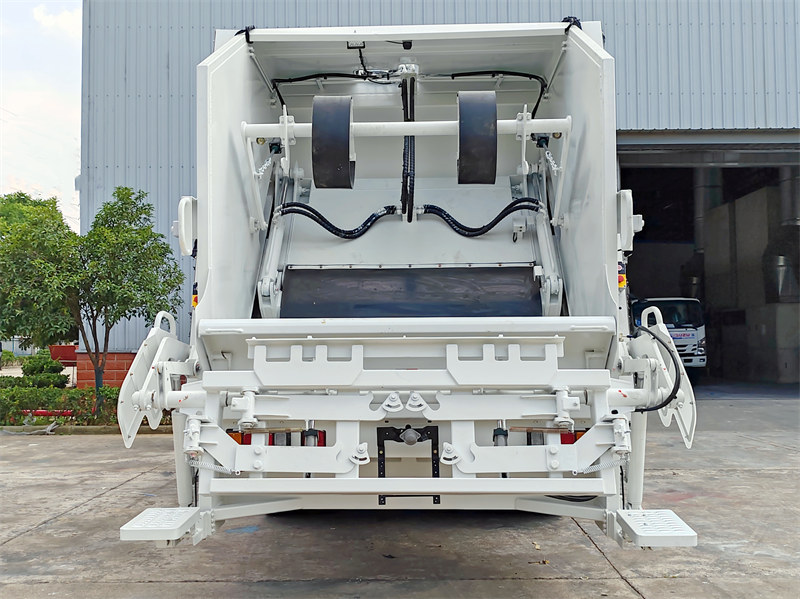

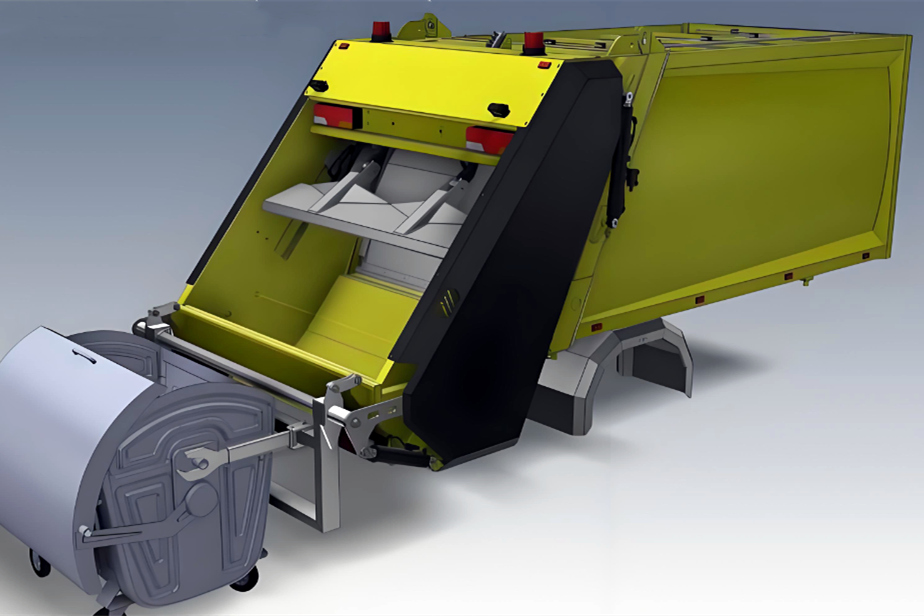

►Loading mechanism:

No-load cycle time ≤35 seconds, accurate positioning of the garbage bin, and no residue when dumping garbage.

It can be started and stopped at any position under load conditions, and it runs smoothly without jamming.

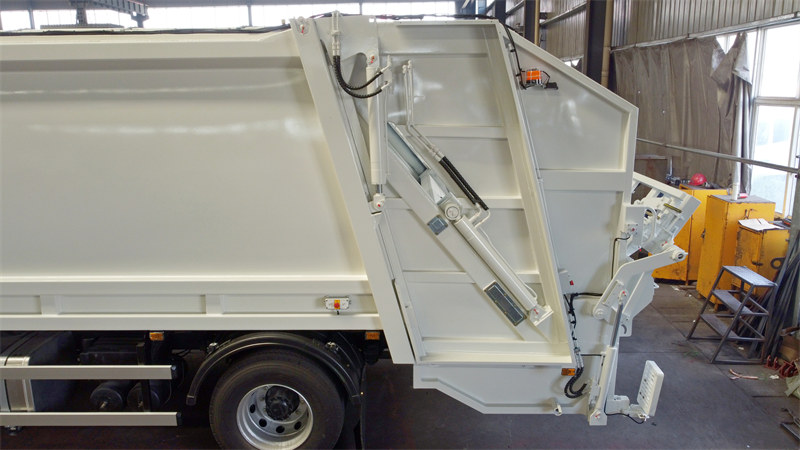

►Compactor mechanism:

Cycle time ≤30 seconds, no shaking or abnormal noise during compression, and no permanent deformation of the mechanism.

Passed 12,000 compression cycle tests to ensure long-term stable operation.

►Unloading mechanism:

The unloading cycle is completed within 60 seconds, and there is no residue in the garbage bin.

The unloading door is reliably locked, and there is no risk of opening it automatically during driving.



►Zero leakage of sewage:

The garbage bin is filled with 30-50mm of water and there is no leakage after standing for 60 minutes.

Anti-corrosion treatment: The inner wall of the box is made of anti-corrosion material to extend the service life.

►Hydraulic system

No leakage verification: No oil leakage in hydraulic pipelines and joints under rated pressure.

Cleanliness control: The solid contamination of hydraulic oil meets the standard limit to ensure long-term operation of the system.



►Ultra-long durability test：

12,000 cycles for the feeding and compression mechanisms and 1,000 cycles for the unloading mechanism to simulate a high-intensity working environment.

Reliability ≥ 80%, the failure rate is extremely low, and the average trouble-free working time is leading in the industry.



►Fault classification management：

Adopt four-level fault classification (fatal/serious/general/minor), strictly record and optimize the design to ensure worry-free use for users.

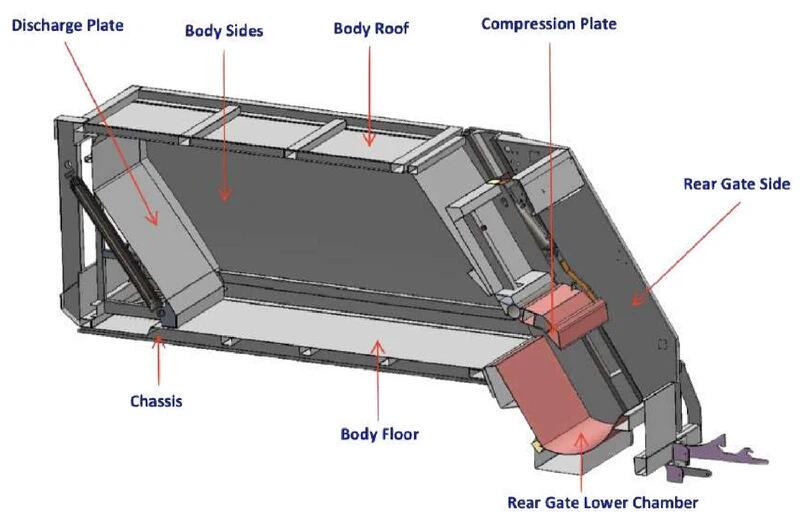

✦Body Structure and Material Durability « « «



⇒ Finite Element Analysis (FEA) and Topology Optimization:

CEEC Trucks Group simulates the entire process of waste compression and unloading, accurately identifying areas of concentrated stress.

Based on this, topology optimization is performed to achieve light weighting while maintaining strength.





⇒ High-Strength Steel Plates and Wear-Resistant Materials:

High-strength wear-resistant steel plate T420 is used in key load-bearing areas, with a Brinell hardness (HB) of 400 or higher.

The main body plates should be made of high-strength weather-resistant steel or galvanized steel, and the design avoids areas prone to water accumulation.





⇒ Welding Process and Corrosion Protection:

Welding must be automated using robotic welding to ensure weld penetration, strength, and consistency.

Key load-bearing welds require non-destructive testing (e.g magnetic particle or ultrasonic testing).

CEEC Trucks Group uses cathodic electrophoretic primer to enhance corrosion resistance.



---
