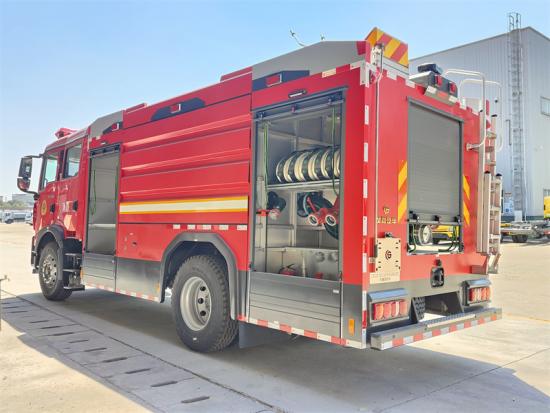

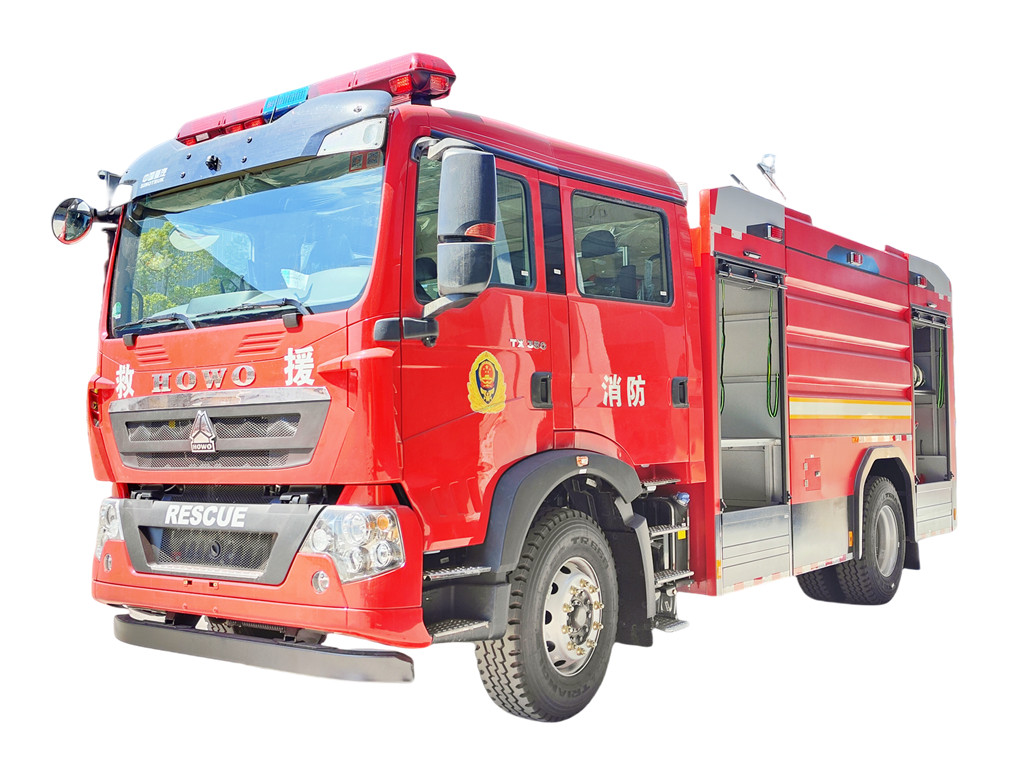

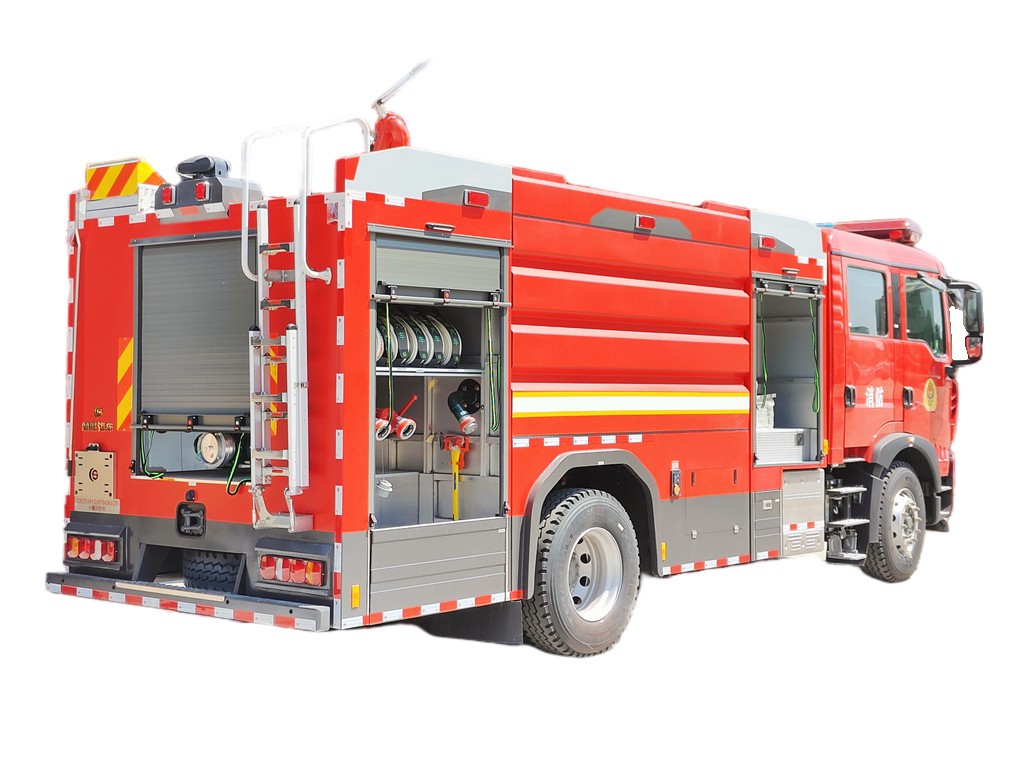

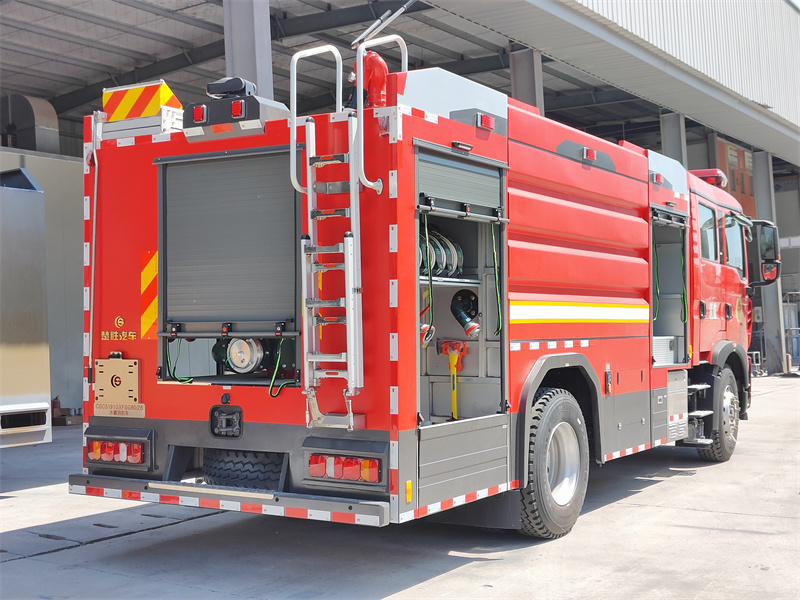

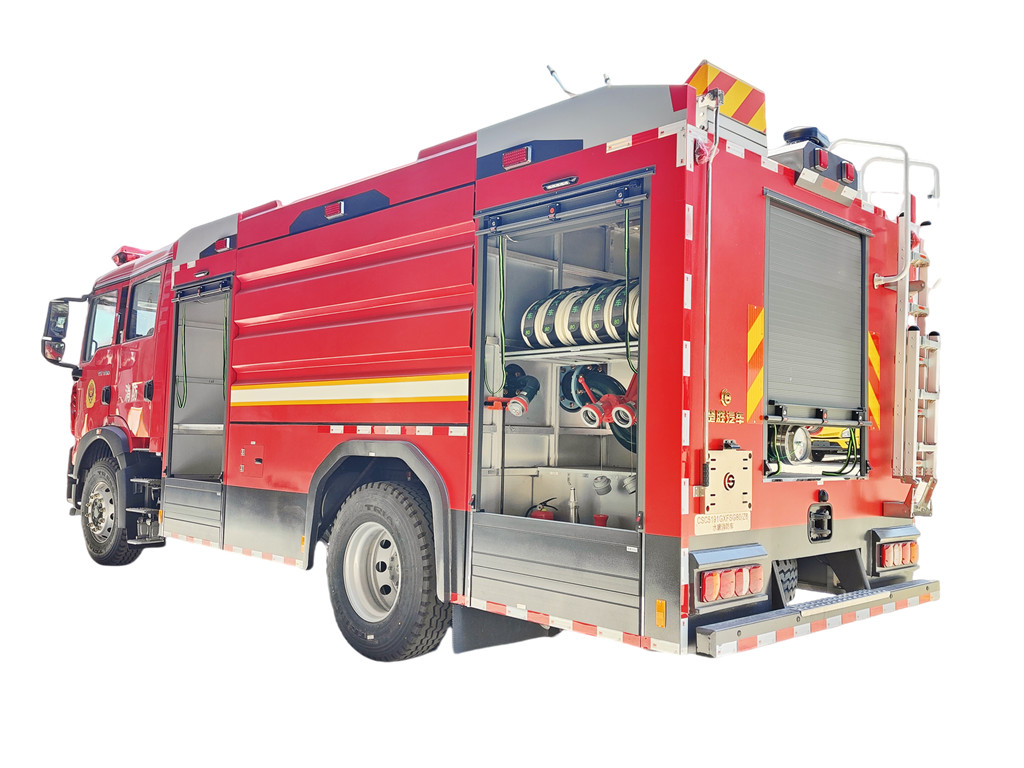

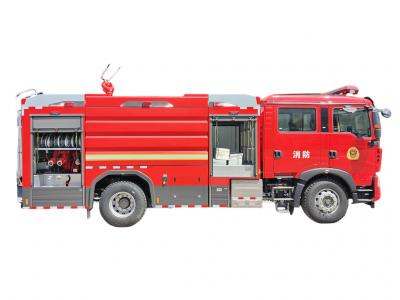

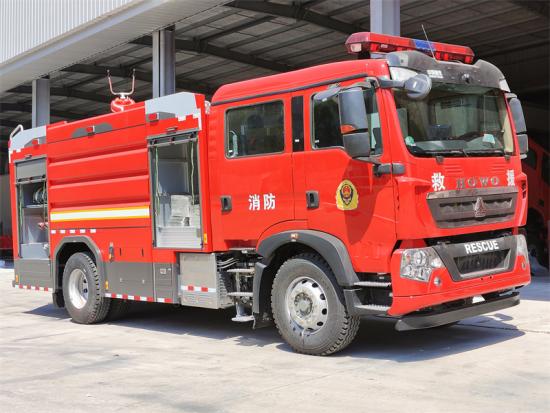

HOWO heavy pumper tanker fire truck

HOWO Fire truck is also called as the HOWO fire fighting truck, HOWO fire engine, HOWO fire apparatus. It is used to fight fire or for other emergency rescuing specially. For functions, it is divided into several kinds, including Pumper fire truck, Tanker fire truck, Ladder fire truck, and other trucks with some special equipment. The HOWO heavy pumper tanker fire truck is usually kept in fire bureau, and is driven to the accident location by the firefighter. Most HOWO fire engines are painted in red, but still some rare places that is painted in yellow, blue, gray. The siren is usually taken as the standard device for the truck. In fact, fire fighting truck is the common name for the truck that is equipped with various fire fighting devices and tools.  It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.

Complete Aluminum Alloy Compartment and Never Rust: The Howo Fire Engine compartment uses high-quality aluminum alloy profile, and the integral welded frame structure is made by the patented technology. It has a built-in bolt connection and the space could be adjusted easily. It has the advantages of high strength, corrosion resistance and light weight. All harnesses are preset in the groove to avoid wear.

Modular Standard Parts: Water fire pumps, CAFS system, fire monitors, aluminum roller shutter doors, storage racks, lighting system and pipelines are all manufactured by CEEC TRUCKS with modular design. It can not only ensure the quality of parts and the best match with the whole vehicle, but also ensure generalization and flexibility.

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service







Model			Howo Pumper fire fighting truck
Cab			SINOTRUK newly cab, double row, new type seat, adjustable steering wheel, EURO new type heating & ventilating system, German VDO instruments, safety belts, exterior sun visor, stereo radio/cassette recorder, air conditioner
Engine(Hp)			350
Power(Kw)			254
Wheelbase			4600
Front/Rear Suspension			1500/2305
Steering			Power steering
Approach/departure angle			14/11
Wheels & tire			12.00R20
Tire number			6+1
Tank Dimensions(mm)			Customized
Cubage (m3)			8
RHD or LHD			optional

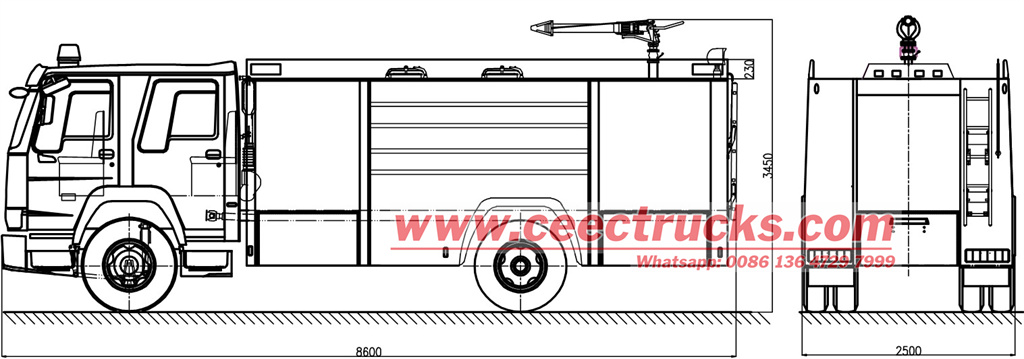

Overall Dimensions(mm)			8405×2500×3540
Curb weight (Kg)			10800
Engine	Model		MC07H.35-60
	Horsepower		350
	Maximum output Kw		254
	Maximum torque N.m		1400
	Type		6 cylinders, in-line, 4-stroke,water-cooled, turbo inter-cooling, diesel engine
	Displacement		7.36L
	Sinotruk brand, Euro 6
Driving passenger	2+4
Transmission	HW19710, 10 forwards,2 reverse
Front Axle	HF 7T
Rear Axle	ST 16T
Brake System	Air brake Exhaust brake
Color and LOGO	customized
Electric system	24V
Fire equipment part	Fire pump	CB10/80 , rated pressure 1.0MPa, flow 80L/s
	Fire gun	PS80 , flow 80L/s , jet distance ≥70m

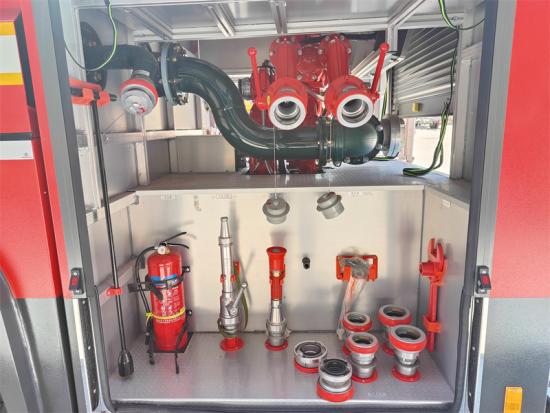

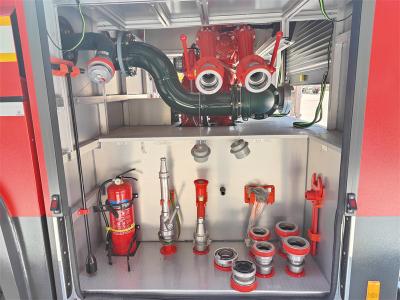

Standard configuration	national standard equipment box, full units national standard fire-fighting equipment, fire pump, fire gun,fire power take off, sliding gate, row type lights, reel, common tools ,rear climbing ladder, water tank.
Optional configuration	foam type, dry powder type, stainless tank, other requirements.
Delivery date	Within 60 days after receipt advance
Packing	Nude Pack .The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture, shocks and rust according to the special needs of the commodity.

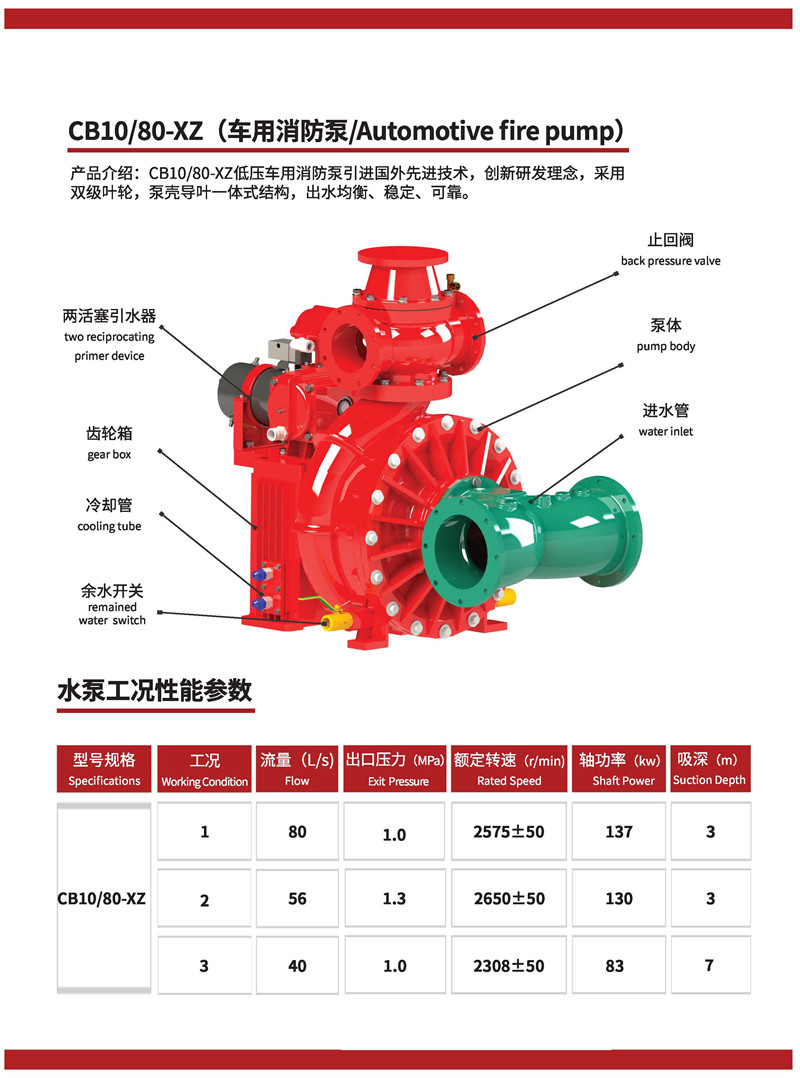

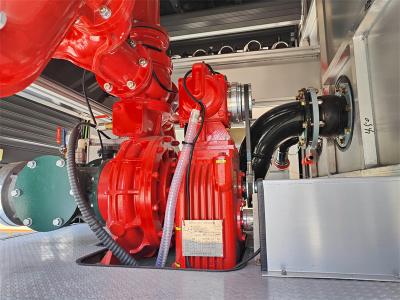

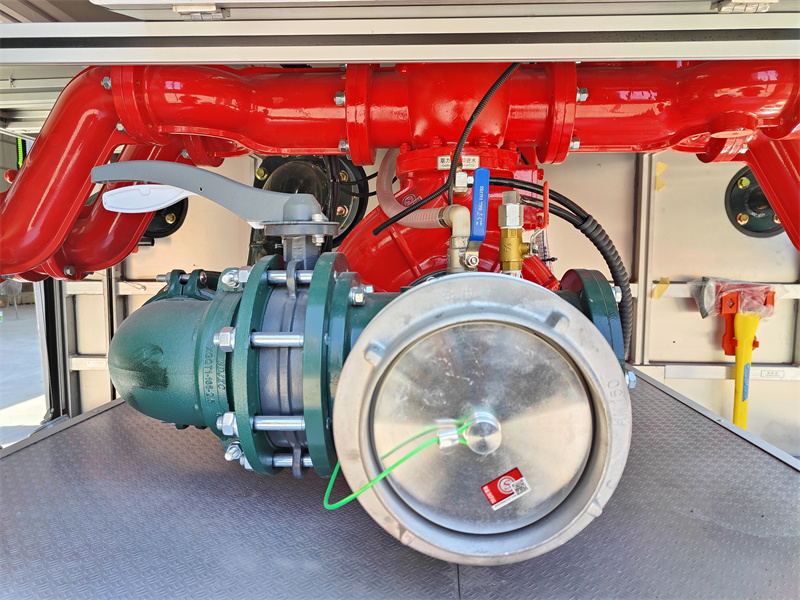

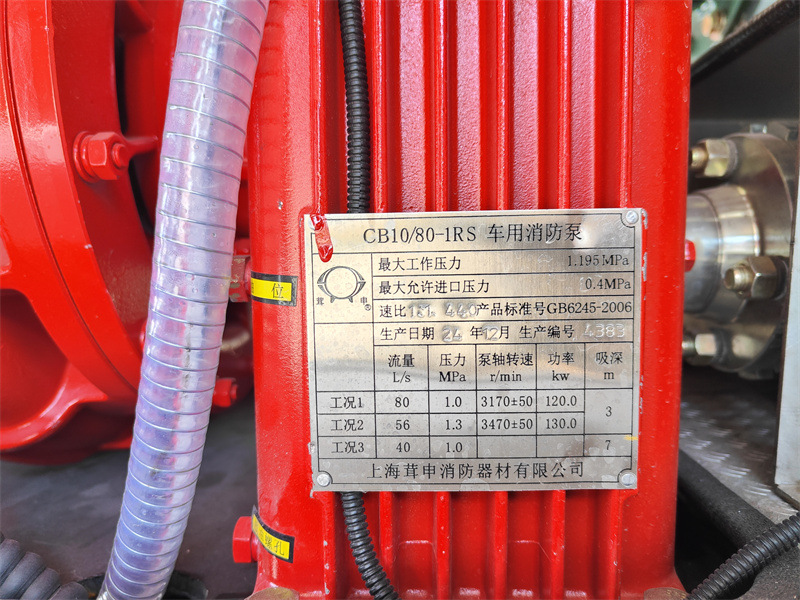

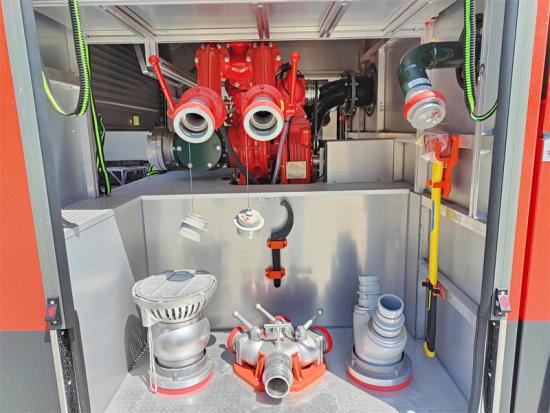

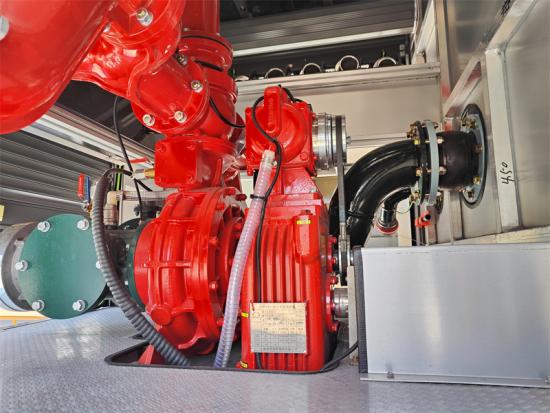

At the heart of HOWO pumper fire fighting truck, the firefighting system is the CB10/80 fire pump, which operates at a rated RPM of 3,170±50 and delivers an output of 4,800 liters per minute at 10 bars of pressure, with the rated power 120KW. It has a 3-7meter suction depth, allowing it to draw water from external sources efficiently. Complementing the pump is the PS80 top mounted fire monitor, offering a 0-360° horizontal range and -10~80° vertical range, ensuring flexibility in directing water or foam streams. The fire monitor operates at a maximum pressure of 1.0 MPa and achieves a flow rate of up to 4,800 liters per minute, enhancing firefighting effectiveness. Designed for urban and industrial firefighting, the HOWO 10,000-Liter water foam fire engine provides a reliable and efficient solution for combating large-scale fires. Its combination of a robust chassis, high-performance pump, and flexible fire monitor makes it an essential asset for fire departments and emergency response teams. Below 3D drawing for customied HOWO pumper fire engine can help clients better understanding the component of fire truck.
