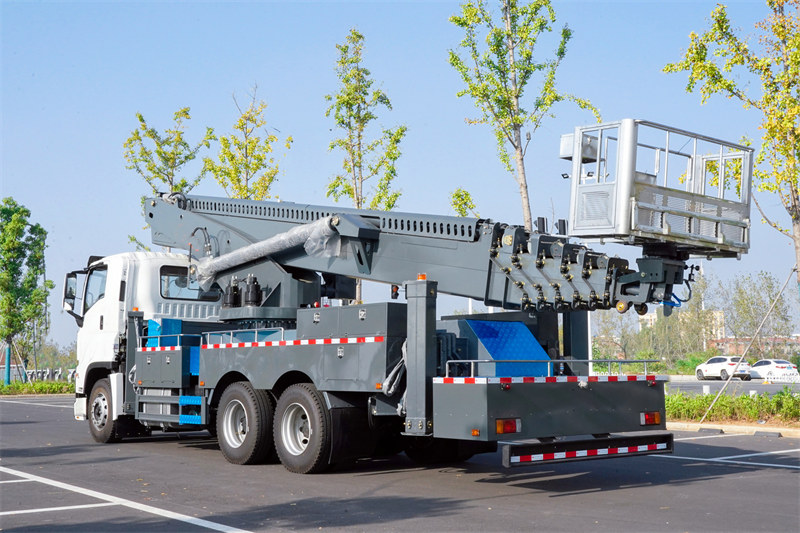

Howo NX 56m aerial platform truck

The Howo NX heavy 56m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the Howo New NX chassis, the truck is equipped with a WD615.47 engine with a maximum output power of 371 horsepower and a total vehicle mass of 33,000 kg. The Howo NX aerial platform truck has a maximum working length of 56 meters, a maximum working radius of 42 meters, and a hydraulic static balance system to ensure stability.

Work capacity:
56m
Dimension ( mm ):
11500×2550×4020 mm
Wheelbase ( mm ):
4600+1350 mm
Engine power:
371HP
Engine type:
WD615.47
Axle drive:
6x4, LHD
Gear box:
HW 10 shift
Remarks:
6X6, RHD drive type avaiable

Inquiry now

The Howo NX heavy 56m aerial platform is a professional engineering special truck that integrates excellent technical performance and safety design. Based on the Howo New NX chassis, the truck is equipped with a WD615.47 engine with a maximum output power of 371 horsepower and a total vehicle mass of 33,000 kg. The Howo NX aerial platform truck has a maximum working length of 56 meters, a maximum working radius of 42 meters, and a hydraulic static balance system to ensure stability.

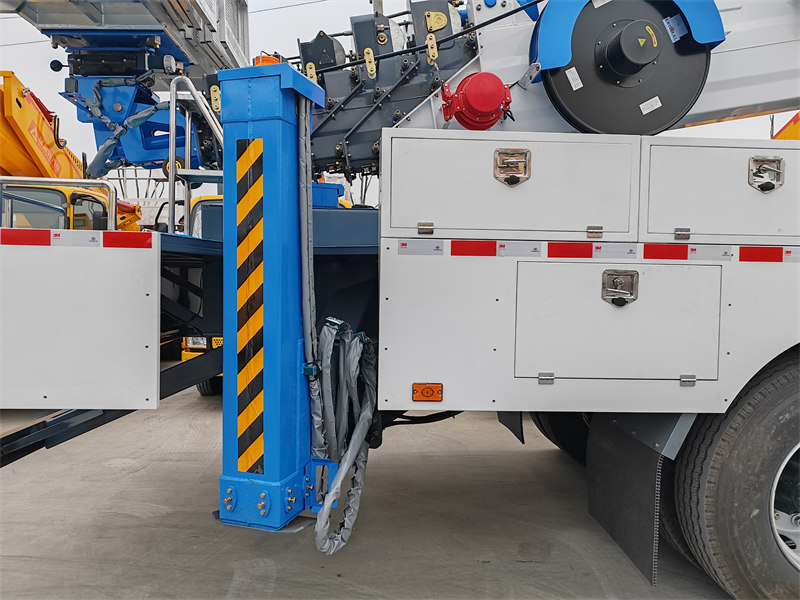

Its unique H-type hydraulic outrigger design has a horizontal and vertical expansion distance of 8,600 mm and is equipped with a two-way hydraulic locking mechanism to ensure stability during operation. The truck is also equipped with a dual operating system of manual and wireless remote control, a platform rated load of 250 kg, 360° hydraulic rotation, and built-in multiple safety protection devices, such as automatic out-of-bounds limit, emergency stop device and leakage protection.

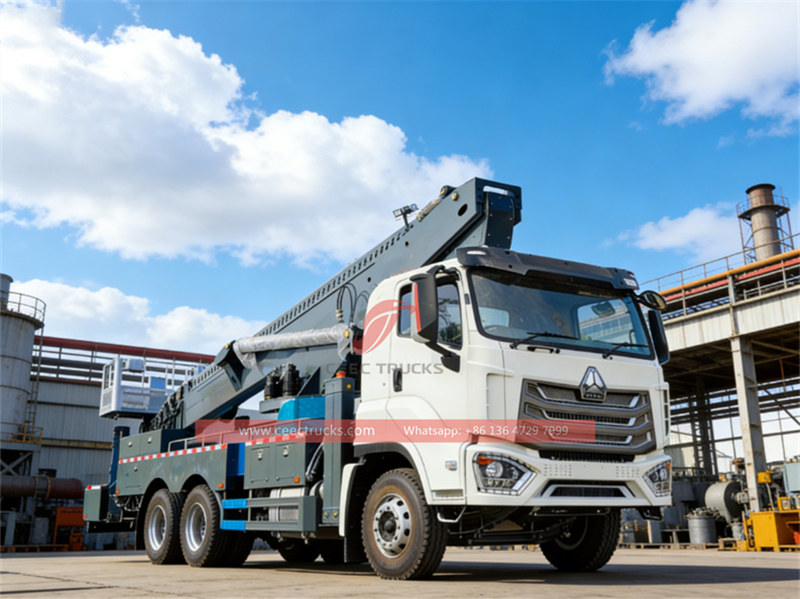

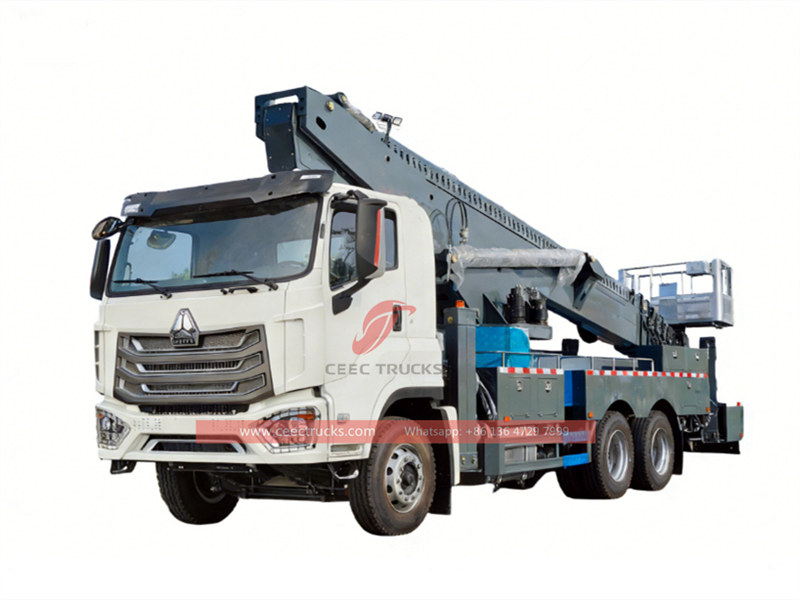

Howo 6x4 heavy 56m aerial platform truck

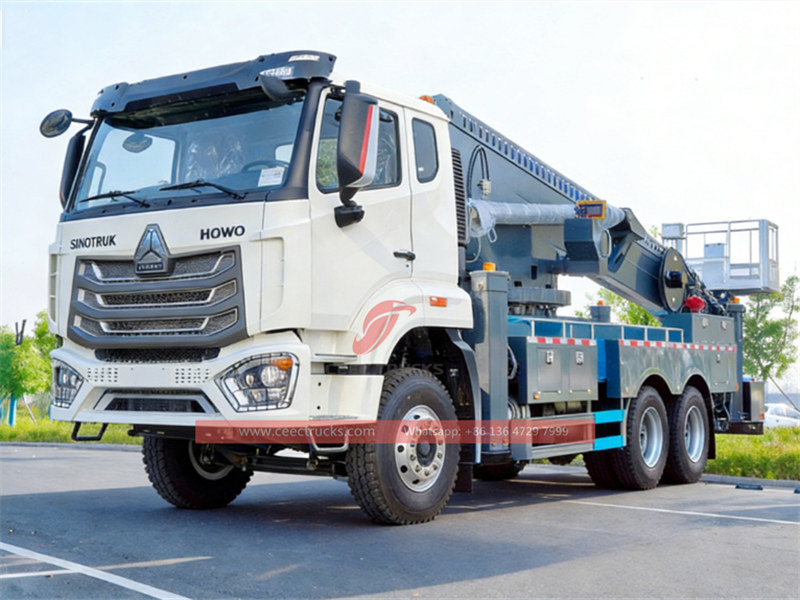

*Howo NX heavy 56m manlift truck

Howo 10wheeler aerial platform truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of Howo Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Howo NX truck chassis, 6x4,6X6 model

WD model with 371HP and emission 9.8L.

2. Upper Body material: 6mm thick high-quality steel for prolonged service lier
carbon steel or stainless steel can be choose.

3. Capacity: maximum lifting height of 56 meters,

maximum lifting capacity of 250kg (within the operating radius)

360° slewing capability

4. Options Equipment: High quality hydraulic part, single-level telescopic lifting arm, two units of hydraulic winch 12ton , tool case, two outriggers, manual operation device, two floodlight, one alarm lamp and basic accessories

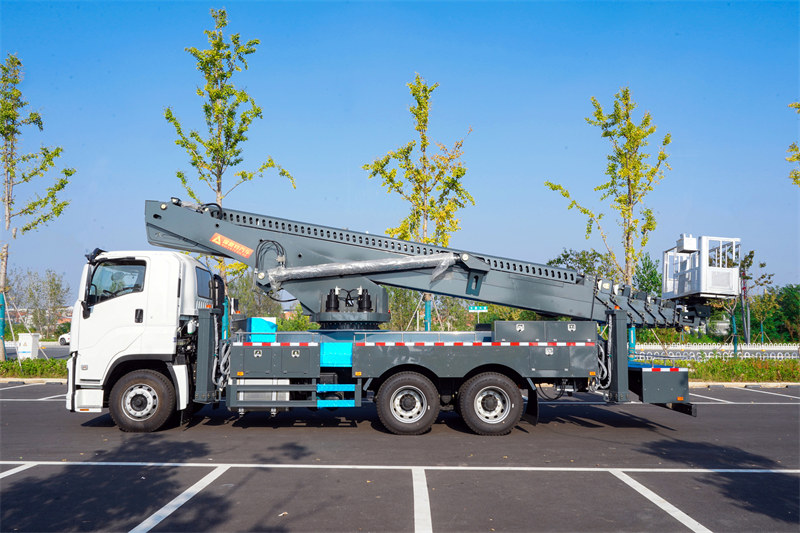

Howo 6x4 heavy 56m aerial platform truck

✦ Product Parameter of Howo Heavy Manlift Truck « « «

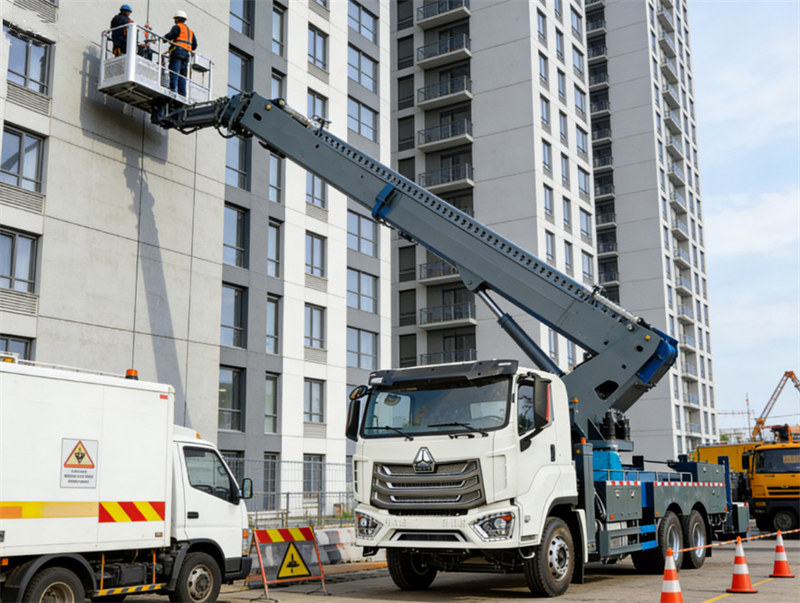

Howo NX 56m aerial platform truck
Vehicle model		CSC5336GKZ			Overall dimensions (mm)	11500×2550×4020
GVW (kg)		33000			Operational height (m)	56
Curb weight(kg)		11995			Max. Speed (km/h)	95
Chassis Description
Chassis Model				Howo NX chassis
Cab				Single cab with A/C
Allowable person in cab				3
Wheel base (mm)				4600+1370
Front/Rear overhang (mm)				2155/2785
Number of axles				3
Axle	Front axle (kg)			9000
	Rear axle (kg)			13000+13000
Traction system				6*4
Operation control system				Power steering
Braking system				Air brake
Transmission				HW19710
Tire specification				12.00R20
Tire quantity				10+1
Engine Description
Engine manufacture				Howo Engines
Engine model				WD615.47
Emission standard				Euro 6
Exhaust/output				9.726L/ 273 kw
Horse power				371HP
Upper Body Description
Max. working height (m)				56
Height of platform above ground (m)				29
Max. working radius (m)				7
Working pressure (Mpa)				16
Control type				1. Manual operation in two positions 2. Wireless remote operation
Type				Insulating type
Rated loading (kg)				250
Adjusting balance mode				Hydrostatic Leveling System
Safety belt				1 set
Rotation Angle				360° Hydraulic
Boom Amplitude Time				160 ≤ t ≤ 180
Boom Telescopic Time				140 ≤ t ≤ 160
Boom Rotation Time				160 ≤ t ≤ 180
Hydraulic leg span			Horizontal(mm)	8600
			Vertical(mm)	9400
Hydraulic leg retraction time (s)				100 ≤ t ≤ 120
Type				H type
Quantity				4 PCS
Adjustment				Adjusted separately or interconnected
Hydraulic lock				Two-way hydraulic lock for four legs
Strobe light on rear landing legs				Two yellow lights
Main structure
Material				High quality carbon steel and profiles, with slip-proof decorative steel plates
Tool box				Mould stamping door with stainless steel door lock
Fencing				Stainless steel tube
Steps				With steps on drivers’ side
Guard railing				High quality cold bending carbon steel profile; High strength
Wheel casing				Injection mold molding, beautiful, high strength
Rotary table
Supporting Boom				Low alloy steel plate welding
Slewing bearing				Single row of four - point contact ball belt outer teeth
Reduction gears				Planetary gear type
Motor				Axial piston motor
Security configuration
Automatic interlock device for get on and off				Prevent the risk of misoperation
Hand-operated emergency pump				When the engine and the main pump failure, through the emergency system to send the worker back to the ground and the vehicle back to the running state
Emergency stop device for working platform				Used for emergency stop operation and restricted boom operation
Automatically limit work range				When the working range reaches the specified value, the dangerous direction is automatically restricted.
Leakage protection device				Equipped with leakage protector to ensure the safety of power supply and power tools

✦ Ultra-high Working Capacity of Howo Manlift Truck« « «

♦ Maximum operating height of 56 meters: suitable for high-altitude operations in large projects such as high-rise buildings, bridges, and power towers.

♦ Maximum operating range of 29 meters: wide coverage, flexible to complex operating environments.

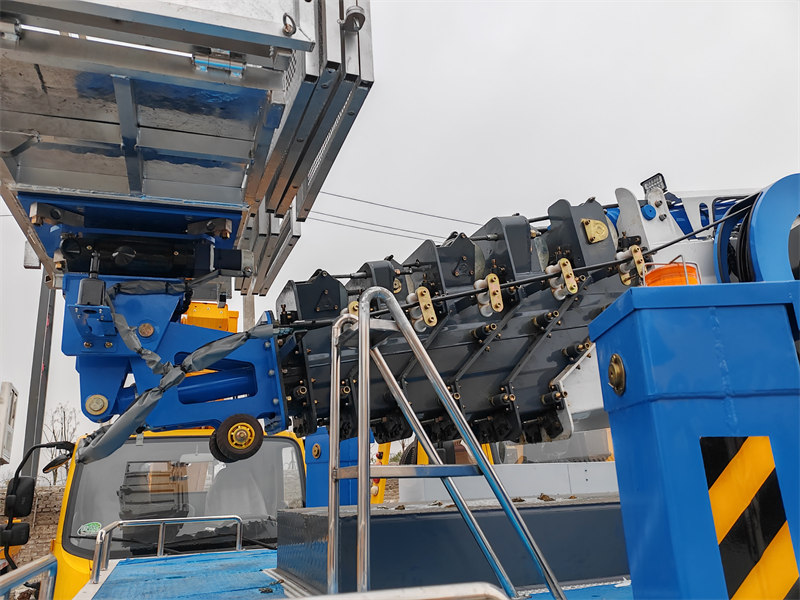

♦ Nine-section fourteen-sided synchronous telescopic arm: multi-section arm design combined with high-strength materials to improve stability and telescopic efficiency, adapting to different operating angles.

✦ Advantage of Howo Aerial Platform Truck« « «

Efficient power and control

♦ Isuzu Howo 6X4 chassis: equipped with WD615.47 engine (273kw/371ps), powerful power to meet high-speed driving (up to 100km/h) and complex working conditions.

♦ Fully hydraulic electric emergency operation: supports turntable fixed operation, wireless remote control and hydraulic handle operation. In an emergency, the electric emergency pump can be used to restore the action to ensure personnel safety.

Humanized design

♦ Customized working platform: the size of the hanging basket can be adjusted as needed (standard 2000×700×1000mm) to adapt to different working scenarios.

♦ Cab configuration: equipped with heating and cooling air conditioning, multi-function LCD instrument, ABS system, to improve operating comfort and safety.

♦ 360° continuous rotation: the working platform and boom support all-round rotation, reducing blind spots and improving working efficiency.

✦ Intelligent Safety System of Howo Manlift Truck « « «

♦ Outrigger soft leg detection: real-time monitoring of the outrigger status to prevent loosening or tilting and ensure operational stability.

♦ Automatic limit and horizontal state detection: limit the operating range and detect the body tilt in real time to avoid the risk of over limit or imbalance.

♦ Triple emergency stop device: distributed on the turntable, remote control box and hydraulic handle, all actions can be stopped immediately in an emergency.

♦ Double wire rope chain break protection: ensure that the left and right wire ropes are evenly stressed through the balance mechanism to prevent breakage accidents.
