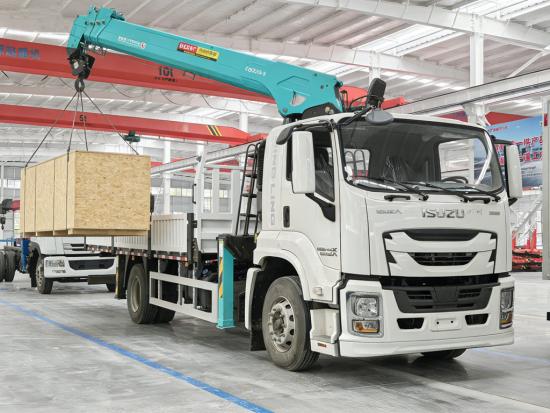

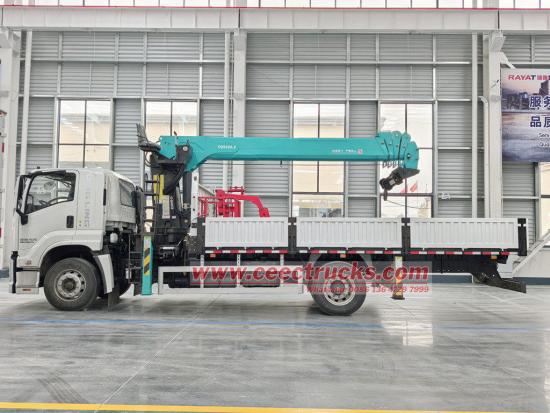

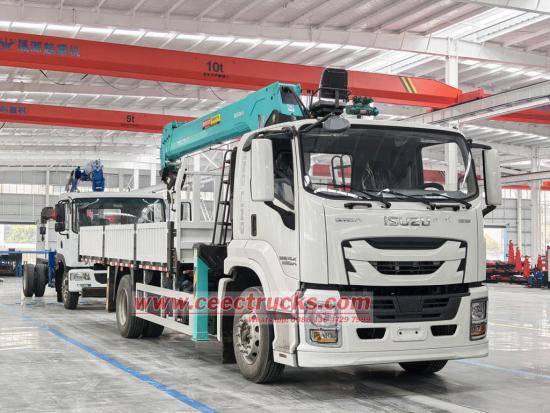

Guyana clients purchased ISUZU GIGA 4X mobile boom crane truck is designed and manufactured based on ISUZU right hand drive truck chassis, equipped with Japanese technology 4HK1-TCG62 diesel engine, efficiently horse power can be 225HP, 4 cylinder and four stroke, matched working with FAST 8 shift manual gearbox, convenient and safety for driving, and very lower fuel consumption. Also equipped with 8tons telescopic boom crane and dropside cargo body kit. details as below showing:

Telescopic Boom Crane: Famous brand mobile boom crane with loading capacity 8000kg, equal to 8MT, efficiently lifting height can be 13.5m and working radius can be 11.8m. Optional to be equipped with higher control seat. The crane color can be 100% customized as yellow, red, blue, green, etc.

Dropside Cargo Body: Customized Isuzu 225HP crane truck with cargo box, full dropside model with length range form 4000mm to 7000mm, side fence material can be optional as normal carbon steel Q235, Q345, Aluminum alloy 5182, Stainless steel #304, #316, etc.

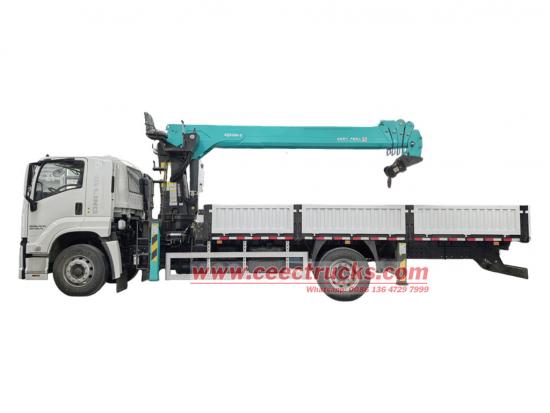

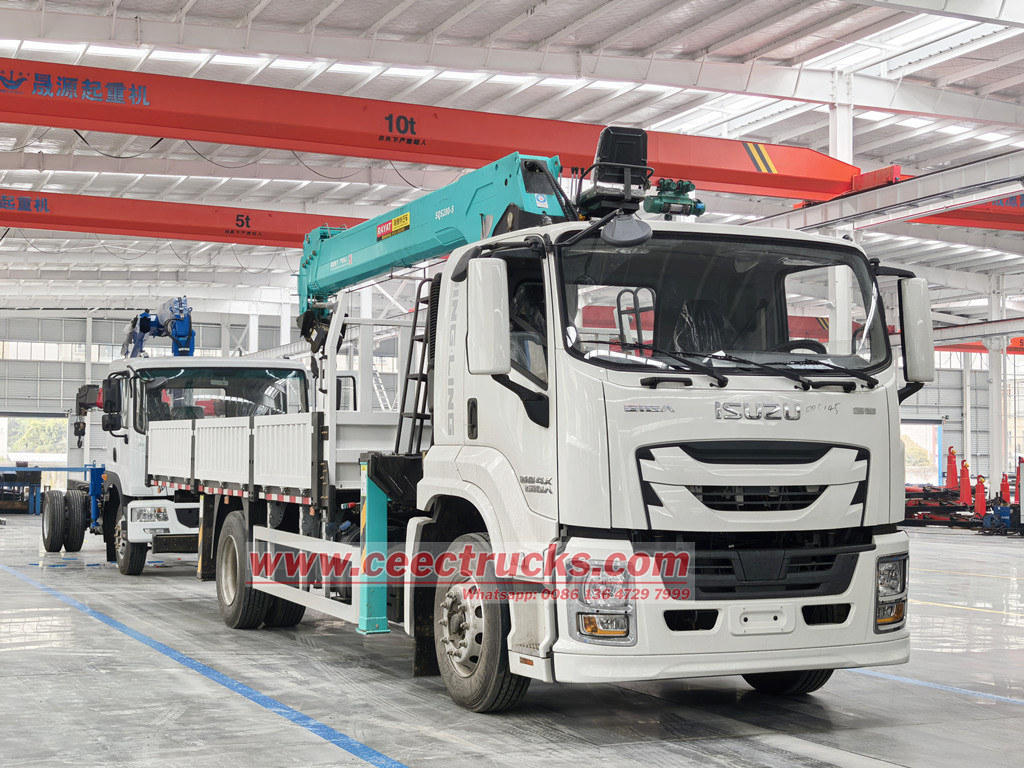

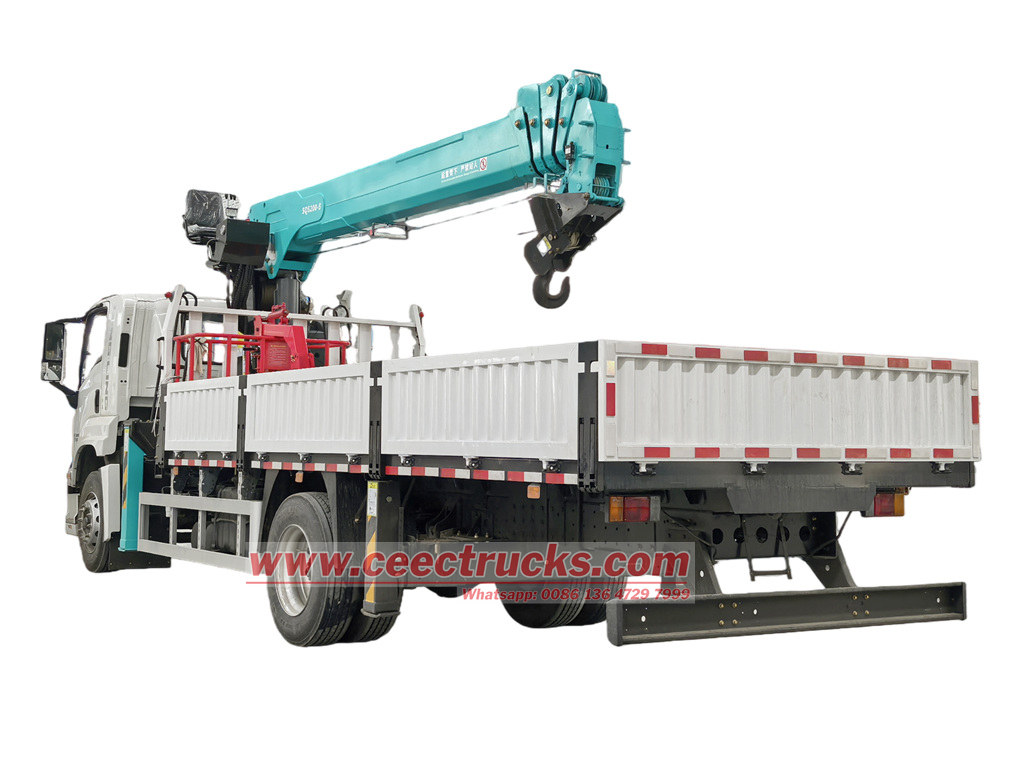

*Isuzu GIGA 4X service boom crane truck 8ton

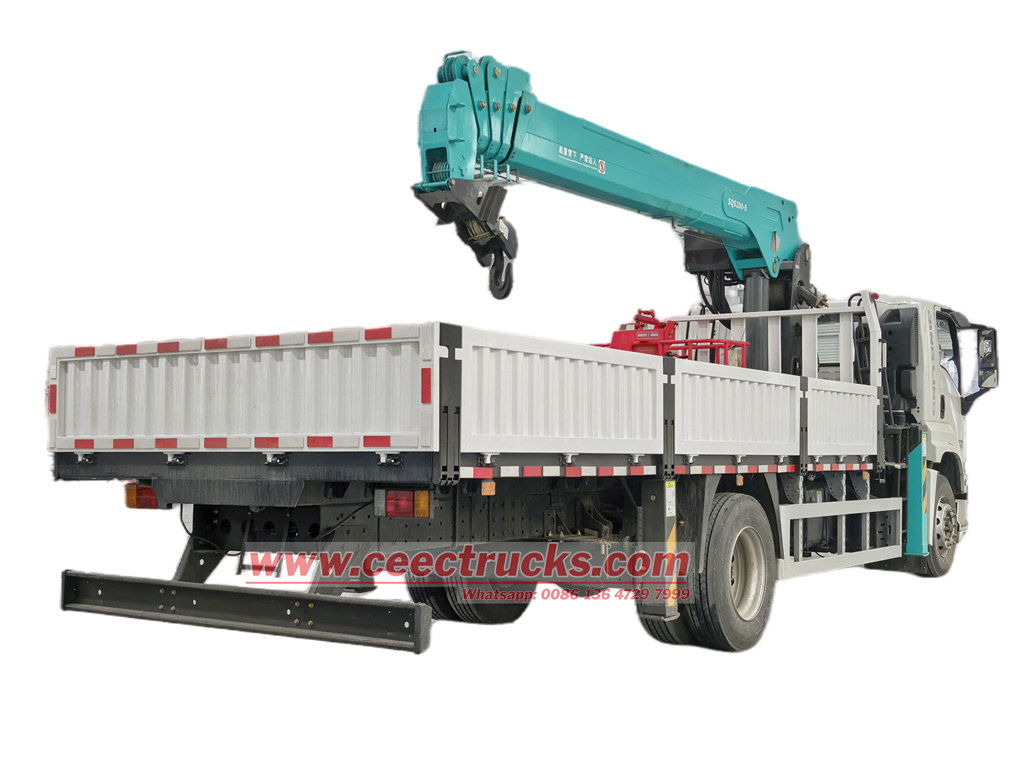

    Isuzu 225HP mobile truck crane*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

✦ Product Introduction of ISUZU Boom Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: ISUZU GIGA 4X truck chassis, RHD, 4x2, 4X4 model optional

                              4HK1-TCG62 diesel engine 225HP and emission 5.2L.

2. Dropside Cargo: Full dropside model, carbon steel, thickness for side 3mm and floor 4mm thick
                                 Optional Aluminum alloy or stainless steel can be choose.

3. Crane Brand: CEEC SQS200 model with 8tons capacity, 13.5m height and 11.8m working radius

                            XCMG, Palfinger, HIAB, CEEC, etc.

4. Optional design: Full customized crane and dropside cargo body model, also remote control box.



Japanese ISUZU 225HP boom crane truck is designed for multiple purpose. Which composed of a boom, turntable, frame, stabilizers and dropside cargbo box. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements. And designed for service different area, including factory, community, rescue project, etc.



✦ Product Parameter of ISUZU RHD Crane Lorry Truck « « «





Product name	ISUZU 4×2 5 tons 6.3 tons 8 tons telescopic crane truck truck mounted crane
Chassis brand	ISUZU GIGA 4X
Wheelbase	4500 MM
Drive form	4×2
drive type	Right hand drive
Steering gear	Hydraulic Power Steering

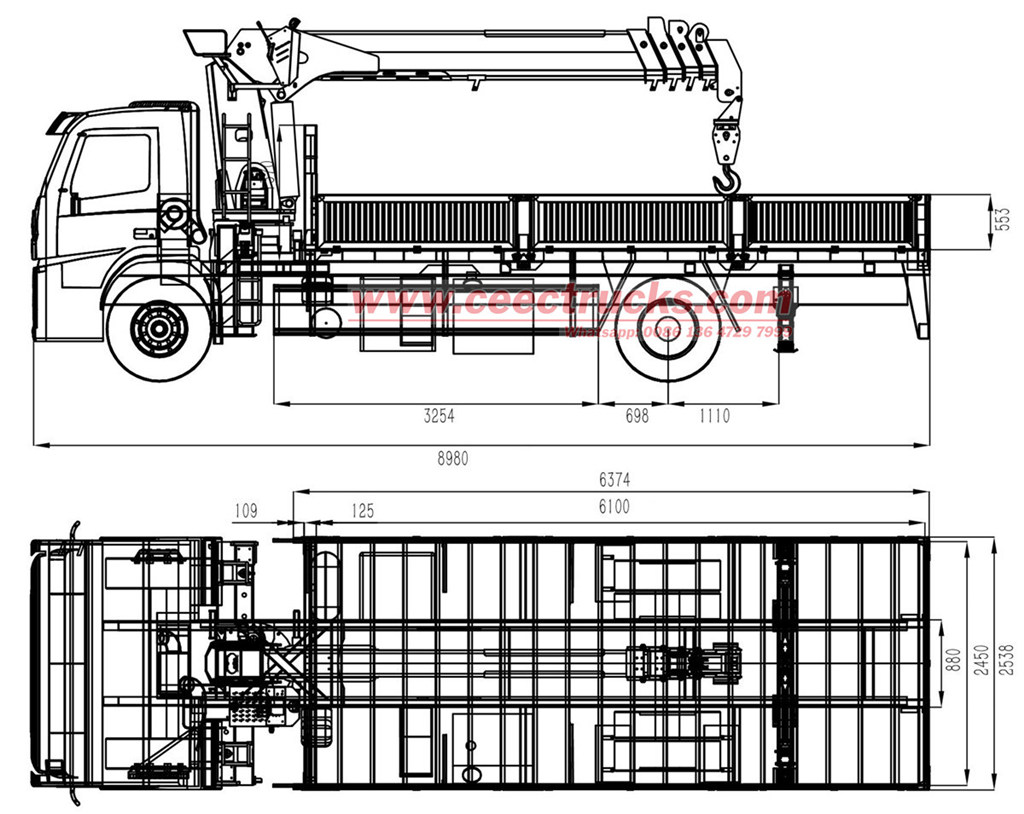

Overall Dimensions	8500*2550*3500mm
Gargo box Dimensions	5000*2450*550 mm, full dropside model, thickness for side 3mm and floor 4mm
Engine
Engine brand	ISUZU
Emission Standard	Euro 5/6
Rated power	225HP
Engine Fuel	Diesel Oil
Gearbox	FAST 8 Forward gears, 1 Back gear
Brake	Dual-circuit, pneumatic brake Hand parking brake Engine exhaust brake
Tires model	295/80R22.5 12.00R20
The number of Tire	6+1 (spare tire)
Front axle	6.3 T
Rear axle	13 T
Fuel tank	200L
DROPSIDE GARGO BOX
Material	Q235B / Q345
Thickness	Side 3mm, floor 4 mm
Dimensions	5000*2450*550 mm
CRANE
Brand	XMMG, S-ANY Palfinger, Zoomlion, CLW
Capacity	5 tons, 6.3 tons, 8 tons,10 tons
Crane type	folding arm (straight arm Telescopic boom)
Paint color	As the customer required
Warranty	One year



✦ Analysis diagram of Isuzu Boom Truck« « «





Crane Rated Lifting Capacity (Kg)	8000
Rated Lifting Capacity (T.m)	20
Max Lifting Height (mm)	13.5
Number of Crane Boom Sections	4
Basic Arm Cross-Section	Hexagon
Rotation Angle	360°
Leg Span (fully retracted/fully extended) (m)	2.5/5.8
Recommendation Hydraulic System Flowrate (L/min)	55
System Rated Pressure (MPa)	27
Operation Method	Upper Seat Operation
Hydraulic Oil Tank	160L

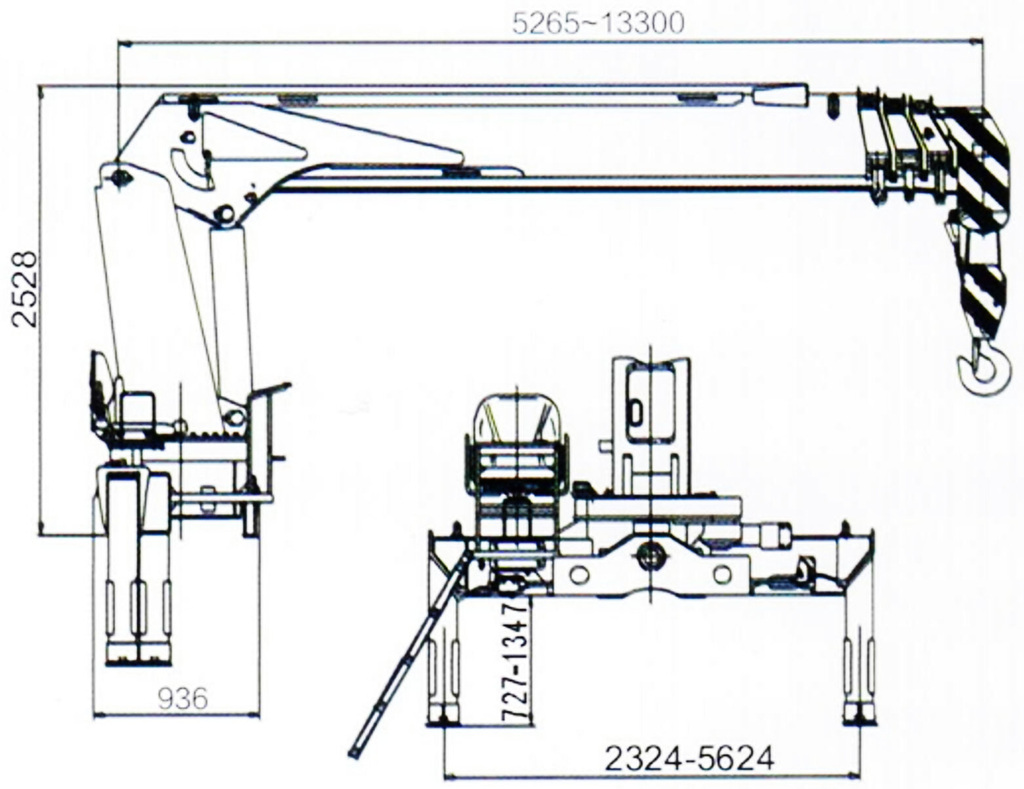

8tons telescopic boom crane drawing

Stabilizer working width: 2324mm to 5624mm

Installation space: minimum 936mm

Boom length: 5265mm to 13300mm

Boom crane self height 2528mm

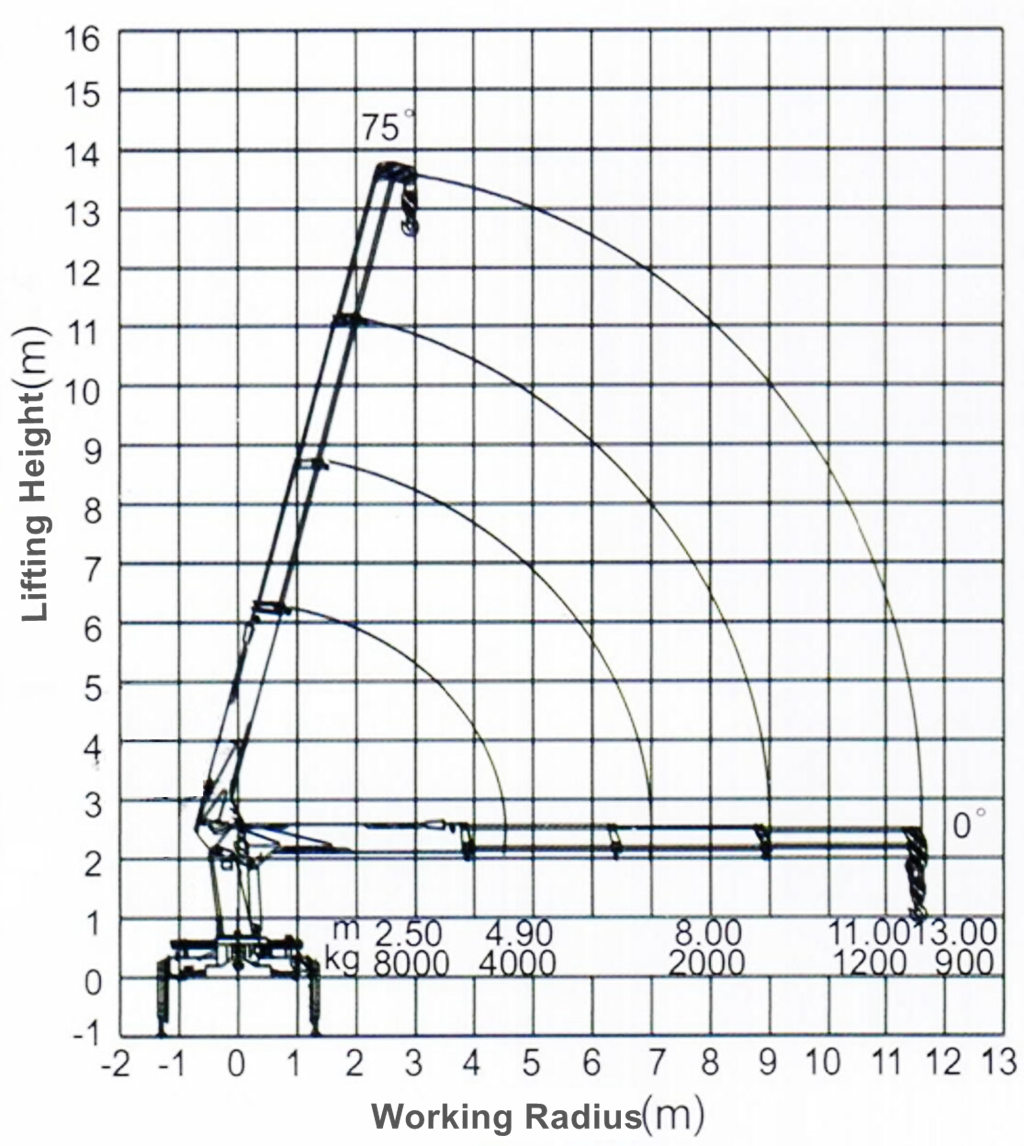

8 tons boom crane working chart





✦ How to choose ISUZU Service Truck with Crane« « «



♦ ISUZU GIGA 4X model truck, right hand drive model suitable for Guyana market.

♦ Optional higher power diesel engine 4HK1-TCG62 model, with 225HP and emission 5193cc

♦ Customized dropside cargo body with size 5000mm in length, 2450mm in width and 550mm in height, full dropside model

♦ High strength telescopic boom crane, with efficiently lifting height 13.5m and working radius 11.8m, equipped with 4 sets stabilizers with front two sets and rear two sets, stronger for safety working.

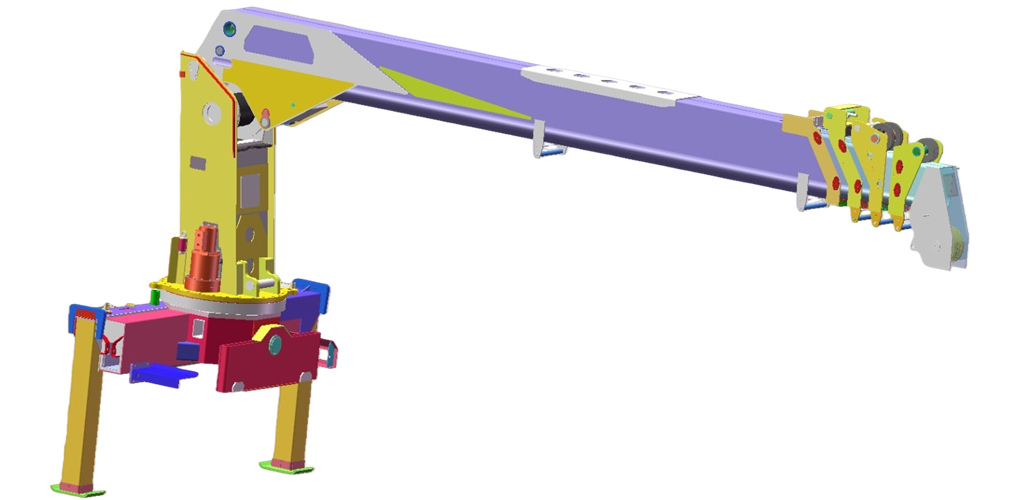

Telescopic boom crane 3D drawing

→Single clinder synchronization guy cable technology make work efficiency more higher than before.

→Compactor hinge point design take up smaller space

→Slewing machine with greater drive force can be durable

→Anti-slow impulse equipment that make vehicle more safety

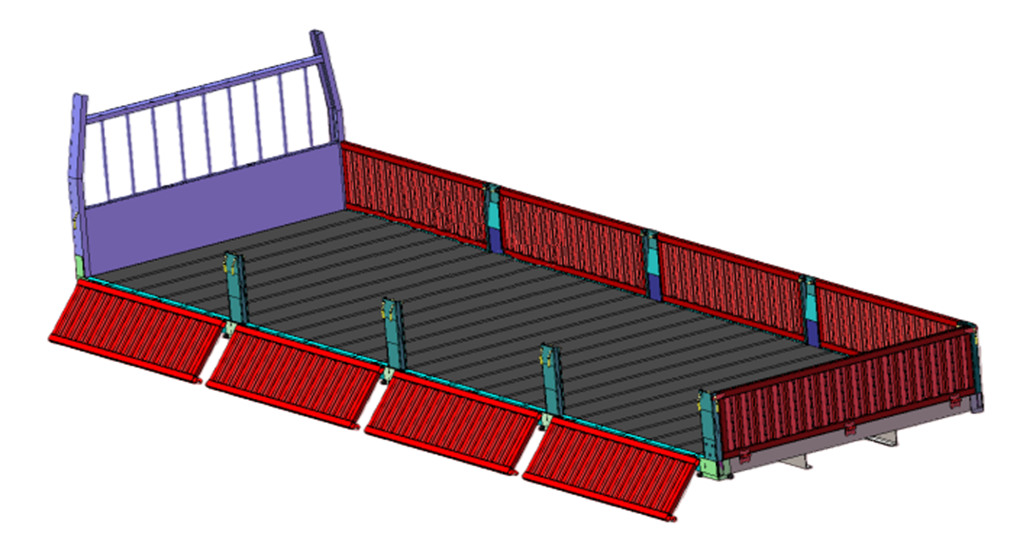

Dropside cargo body for ISUZU crane truck

→Easier loading and unloading: the folding side of the dropside truck give easy access for loading and unloading, also avoid hinge damage from forklifts.

→More secure: the fixed panel can make dropside fence fixed and guarantee transportaiton more safety.

→Personalized mode: we CEEC TRUCKS can 100% customize all type dropside cargo body with optional material and thickness, also painting and logo.



✦ Advanced features and component of Isuzu crane truck « « «



CEEC TRUCKS factory with boom crane in stock for fast delivery within 7 days

•

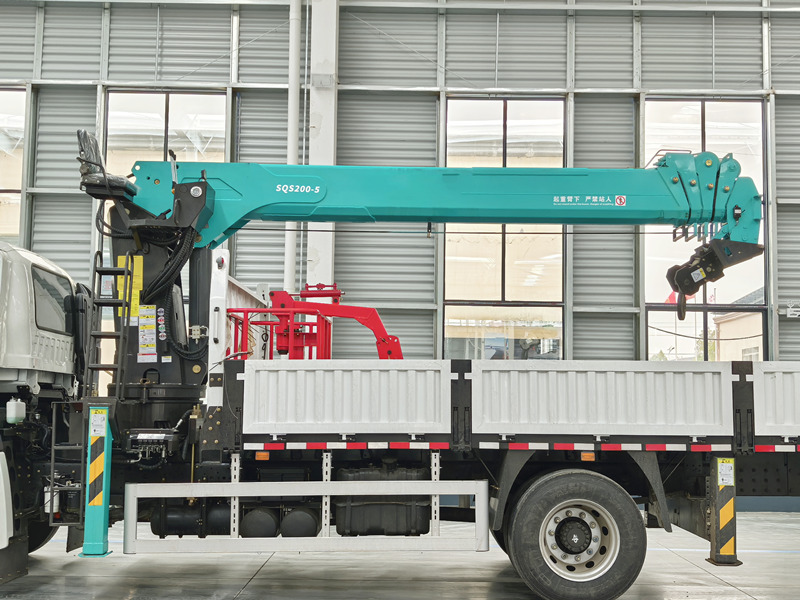

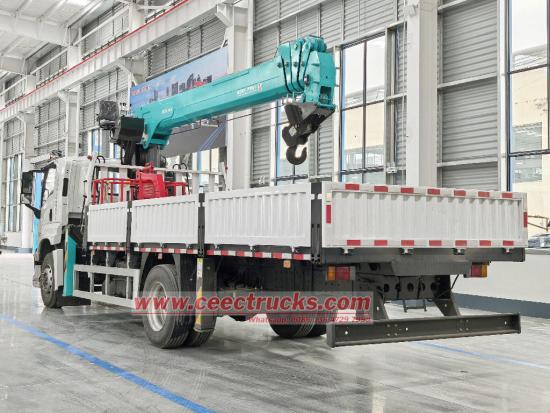

  Isuzu truck mounted 8tons boom crane
•

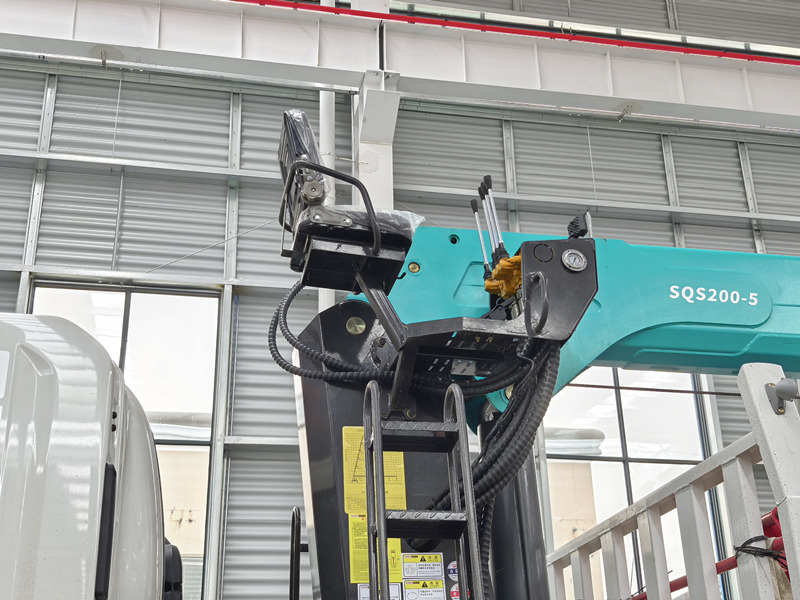

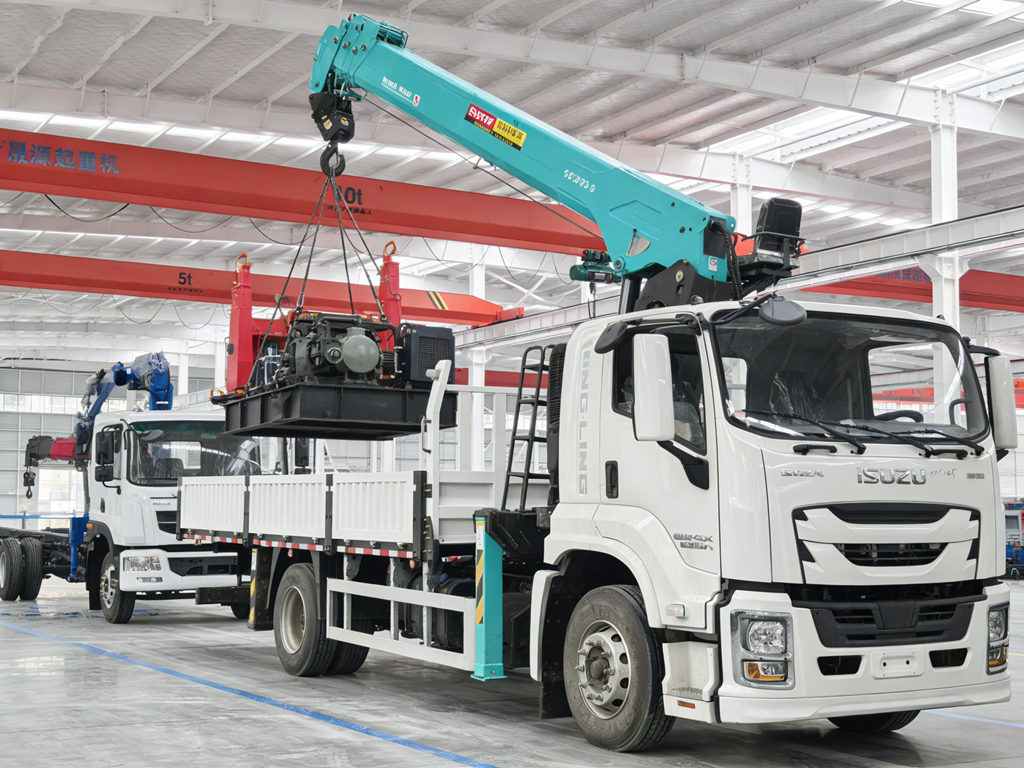

  Isuzu 8tons loader crane with higher operation seat
•

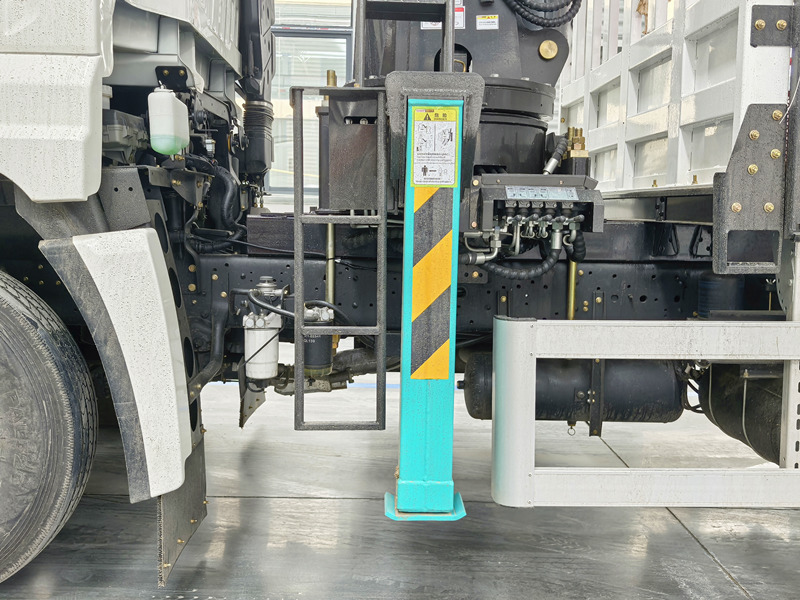

  Hydraulic stabilizers for ISUZU boom truck

•

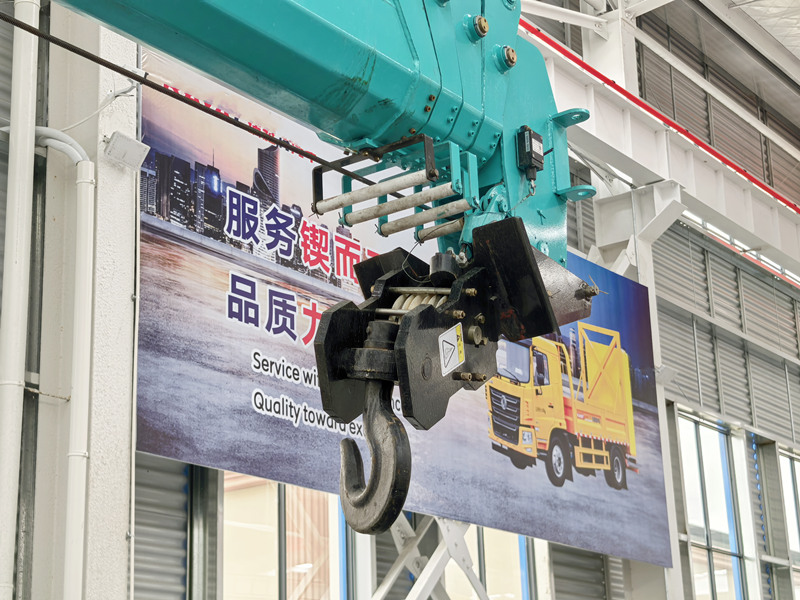

  Isuzu crane lorry with stronger hook
•

  Isuzu Boom Crane with safety Planetary Rotation Mechanism
•

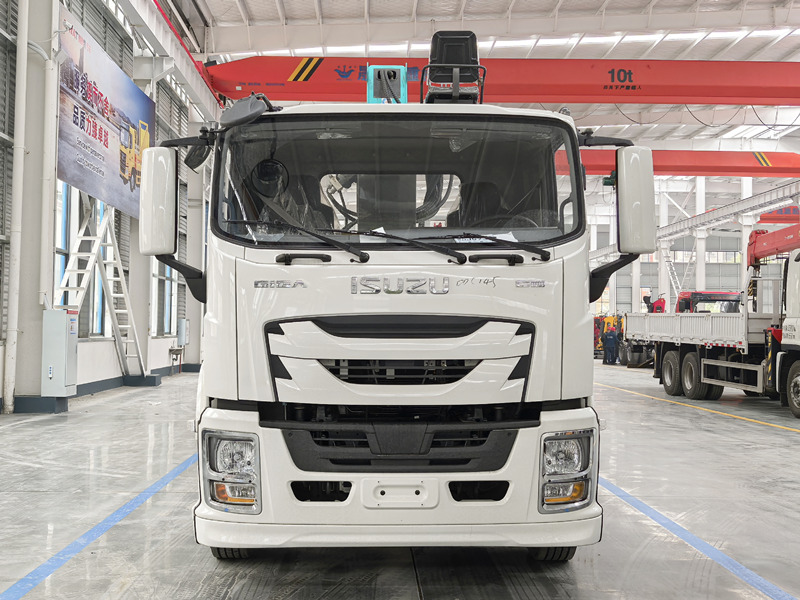

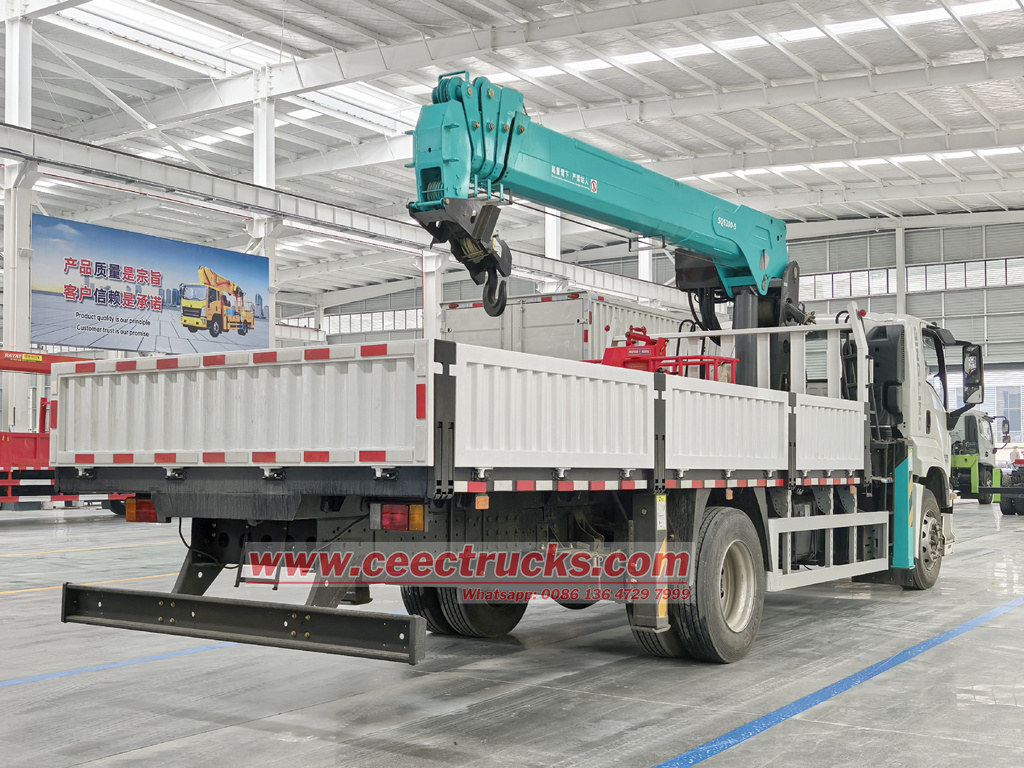

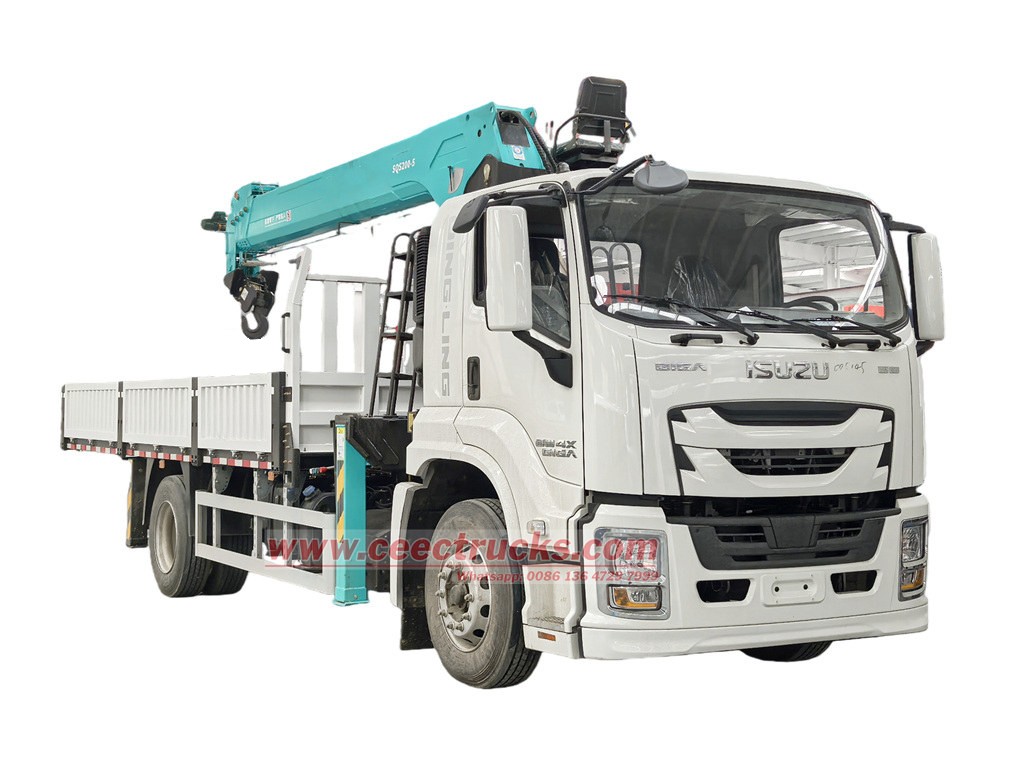

  ISUZU GIGA 4X truck mounted 8tons crane

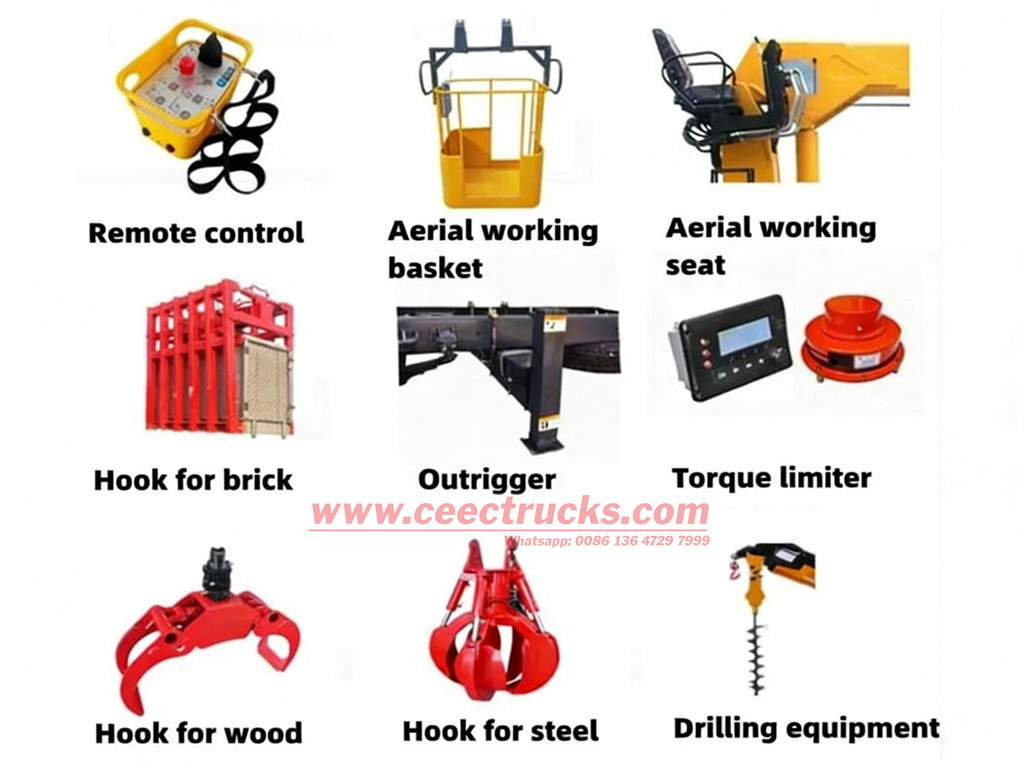

✦ Accessories Equipment service for Isuzu boom truck « « «



Isuzu GIGA 4X 225HP 8tons telescopic boom crane truck are designed based on RHD model and export to South American Guyana, with efficiently working radius 11.8m and maximum lifting height 13.5m, which can not only be a mobile boom crane truck, but also customized to be equipped with various special equipment for multiple purpose. Then the Isuzu service boom crane truck can combine below accessories with various functional equipment to achieve multi-functionality and maximize the value of the crane truck.

Remote Control	Customized with remote control box for wireless operation, which can be safety and used any way convenient
Aerial Working Basket	Customized with basket, mounted on the top of the boom crane, then the mobile crane truck can working as aerial platform truck, manlifter truck for high altitude working and operation
Aerial Working Seat	Customized for higher working with good view and more safety
Hook for Brick	Customized for brick collection and loading
Outrigger	Standard front two sets, also can be customized installed rear two sets for safety guarantee
Torque Limiter	Customized installed for safety working notice
Hook for Wood	Customized for wood collection and loading
Hook for Steel	Customized for steel collection and loading
Drilling Equipment	Customized for drilling the hole for planting tree
