HOWO single axle 4ton truck mounted crane has high load-bearing capacity and anti-bending performance. Its maximum lifting capacity is 4 tons, the maximum lifting moment is 10T.M, the maximum flow of the hydraulic system is 25L/min, the crane weighs 1271kg, and is equipped with a 360° full rotation function, which can adapt to operations in multiple scenarios such as construction sites and ports. HOWO single axle 4ton truck mounted crane is equipped with stable outriggers and chassis, integrated with multiple safety devices such as overload protection and high position limit, easy to operate and highly safe, and is a reliable choice for small and medium-sized lifting operations.

● China best telescopic crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service

*HOWO 4x2 service truck 4ton crane

    Sinotruk 6wheeler boom crane truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk HOWO truck chassis, 4x2,4X4 model

                              WP10.300E22 model with 300HP and emission 9726cc.

2. Cargo material: 4mm thick high-quality steel for prolonged service lier
                               carbon steel, aluminum alloy or stainless steel can be choose.

3. Crane Brand: XCMG, Palfinger, HIAB, POWERSTAR, etc.

4.  Optional design: such as telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

The upper part of HOWO single axle 4ton truck mounted crane is cleverly designed, integrating two functional modules, the box and the crane, realizing the convenience of "one vehicle for multiple uses". The box size is 3800×2400×450 (mm), made of high-strength carbon steel, and the three-side and four-bottom structural design not only ensures the durability of the box, but also effectively improves the cargo capacity. Whether it is construction materials, equipment accessories or other bulk goods, it can be easily loaded.

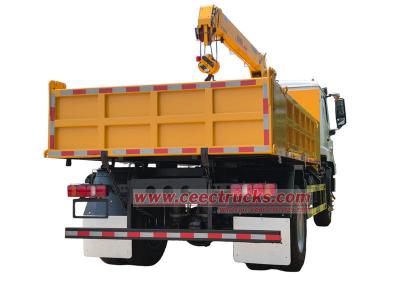

HOWO single axle 4ton truck mounted crane also called HOWO 4x2 service truck 4ton crane,Sinotruk 6wheeler service truck crane, Sinotruk HOWO boom crane truck,Sinotruk telescopic crane truck,Sinotruk lorry mounted crane,etc.

The optional tonnage of is 2 tons, 3.2 tons, 4 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, 18 tons, 20 tons, 25 tons, and 30 tons. The crane can For selection, you can choose a straight arm or a folding arm crane.

The HOWO single axle 4ton truck mounted crane is composed of a boom, turntable, frame, legs and other parts. The mechanical movements of the telescopic crane truck are realized through the movements of luffing, telescopic, rotating, winching and other mechanisms, and the lifting operation is realized through the combination of different movements.Equipped with an intelligent safety system, including overload protection, torque limiter to ensure operational safety. Optional grab buckets, hanging baskets and other accessories are available to meet the needs of different working conditions.



» Ⅱ.Product Parameter for HOWO single axle 4ton truck mounted crane

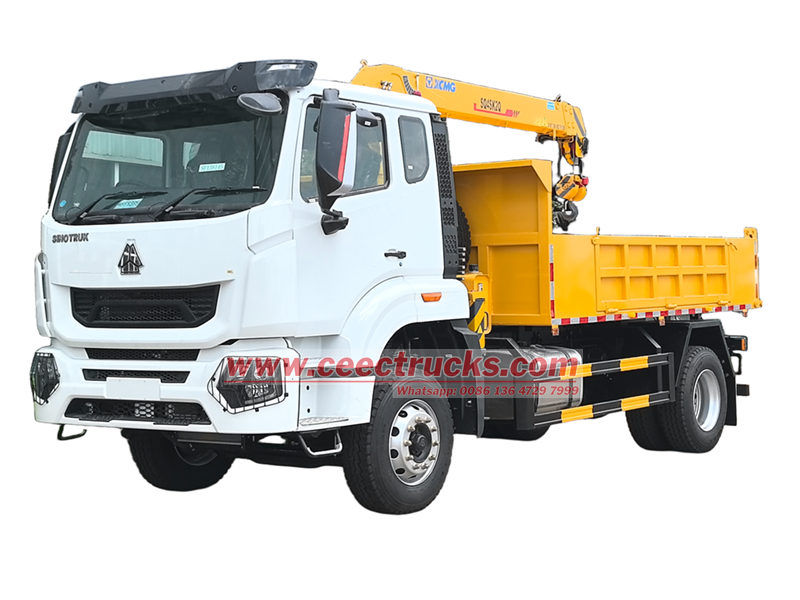

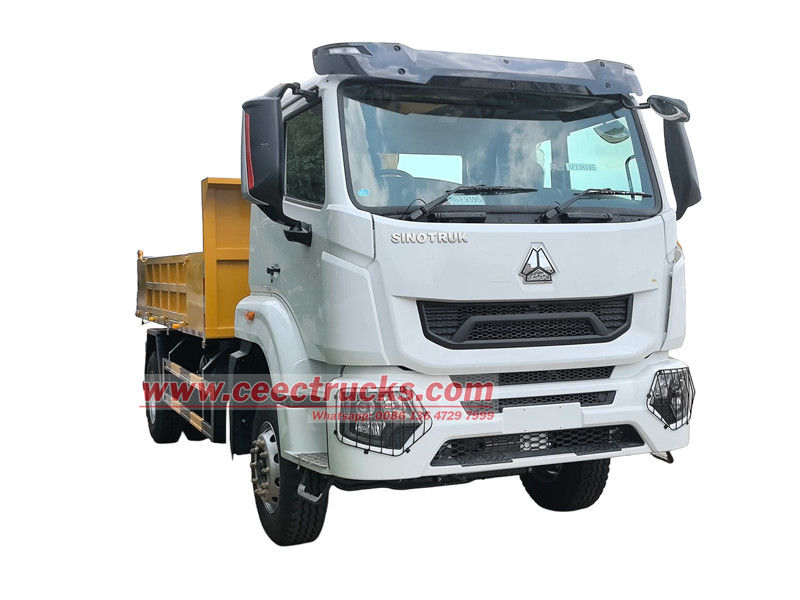

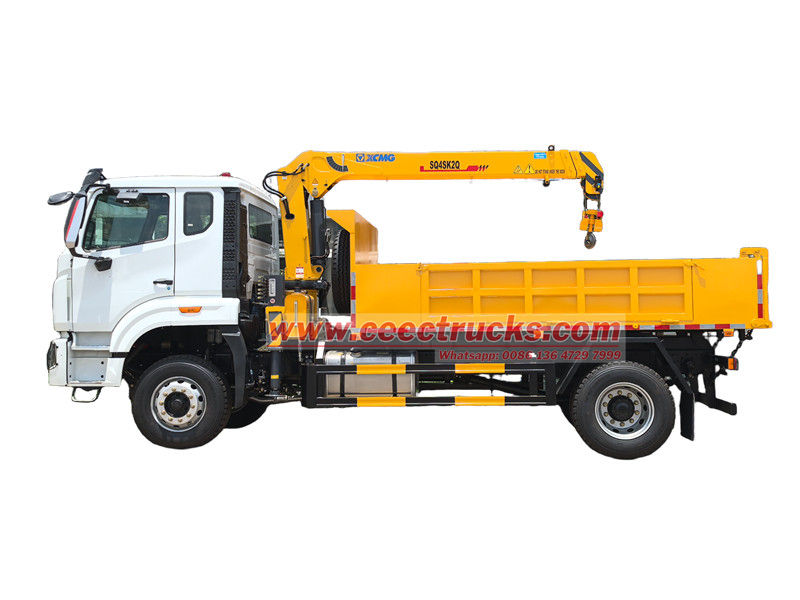

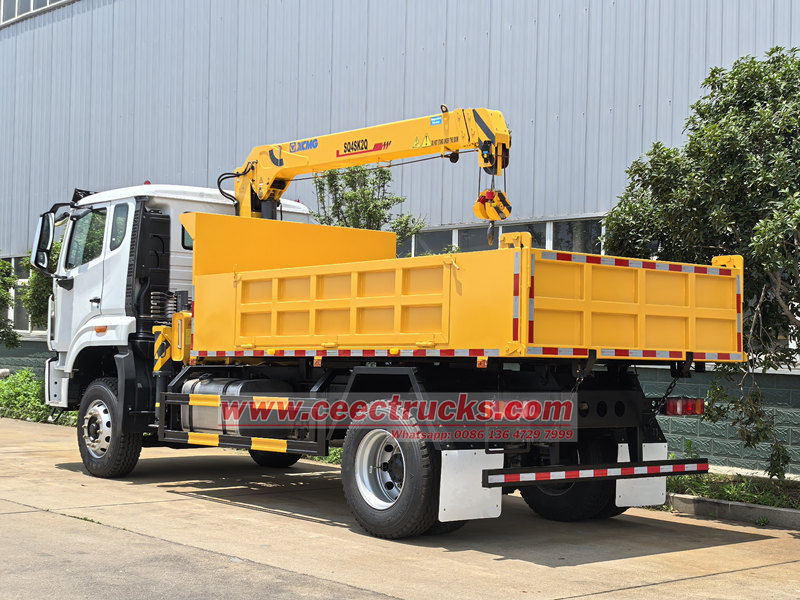

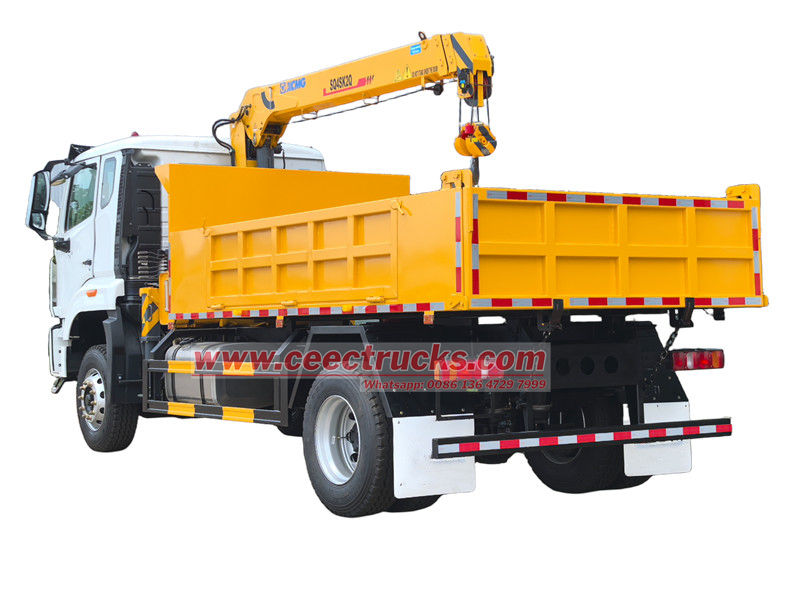

HOWO single axle 4ton truck mounted crane
Overall Dimension		7200x2500x3350mm
Gross Vehicle Weight		18000(Kg)
Curb Weight		9500(Kg)
Chassis Specification
Chassis Brand		HOWO
Drive model		4x2,RHD
Cabin		HOWO NX cabin,2 seats with a sleeper, with air conditional
Engine	Model	4-stroke direct injection, 6-cylinder in-line turbocharger, inter-cooling
	Type	WEICHAI WP10.300E22
	Power	221KW/300HP
	Displacement	9.726L
	Rated speed	1900rpm
	Fuel type	Diesel
Gearbox		HW13710, 10 forward gears, 2 reverse gears
Brake System		Air brake
Wheel Base		4600mm
Tire		295/80R22.5, 6+1 pcs
Superstructure Specification
Cargo Body	Dimension		3800×2400×450mm
	Material		Q235 carbon steel
	Cargo Thickness		Side 3mm, Bottom 4mm
Working System	Boom Type		Straight 3-Arm telescopic boom

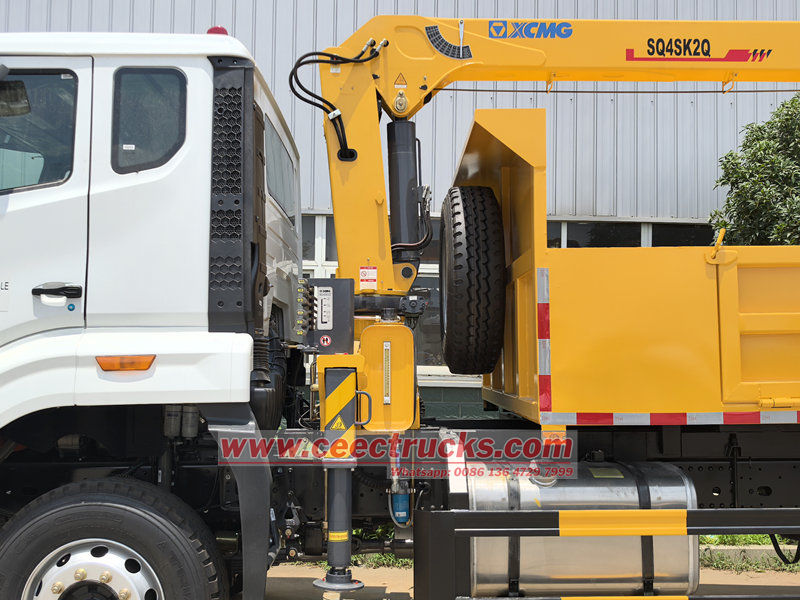

	Crane	Crane Brand	XCMG SQ4SK2Q
		Max Lifting Moment	10T.M
		Max Lifting Capacity	4000kg
		Maximum working radius	8.1m
		Max lifting height	10m
		Rotation angle	360°
		Installation space	850mm
		Maximum working pressure	20Mpa
		Crane weight	1271kg
	Oil tank capacity		30L



» Ⅲ.Product Details & Advantages:



1. Product Overview

HOWO single axle 4ton truck mounted crane integrates lifting and transportation functions and is widely used in construction sites, logistics warehousing, municipal engineering and port terminals. Its design takes into account flexibility and stability, and can quickly complete tasks such as equipment lifting and cargo handling, significantly improving operating efficiency.



2. Structural and technical advantages

HOWO single axle 4ton truck mounted crane adopts a boom structure made of high-strength steel, which has excellent bending and torsion resistance, ensuring structural safety during the lifting process. Equipped with single-cylinder cable synchronous telescopic technology, the boom can be smoothly extended to the maximum working radius, and with the 360° full rotation mechanism, it can achieve multi-angle precision operation. In addition, the equipment is equipped with safety devices such as hydraulic system overload protection and high-position limit automatic shutdown, which effectively reduces operating risks and ensures the safety of personnel and equipment.



3. Performance parameter highlights

The maximum lifting capacity of XCMG SQ4SK2Q is 4 tons, and the maximum lifting torque is 10kN·m. The lifting capacity covers most small and medium-sized engineering needs. Its outrigger span is adjustable to adapt to different terrains and ensure operational stability. At the same time, the equipment has a simple operation interface and an optional wireless remote control function, which can remotely control the boom movement, reduce the operating intensity, and improve the operation accuracy.





4. Comprehensive benefits of HOWO single axle 4ton truck mounted crane

Compared with traditional lifting equipment, the XCMG SQ4SK2Q straight arm truck mounted crane combines mobility and functionality. It can complete cargo lifting and transportation without additional transport vehicles, significantly reducing construction costs. With high cost performance, reliable performance and flexible adaptability, this product has become the preferred solution in the small and medium-sized lifting market.

•

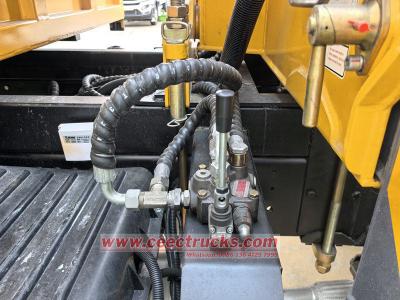

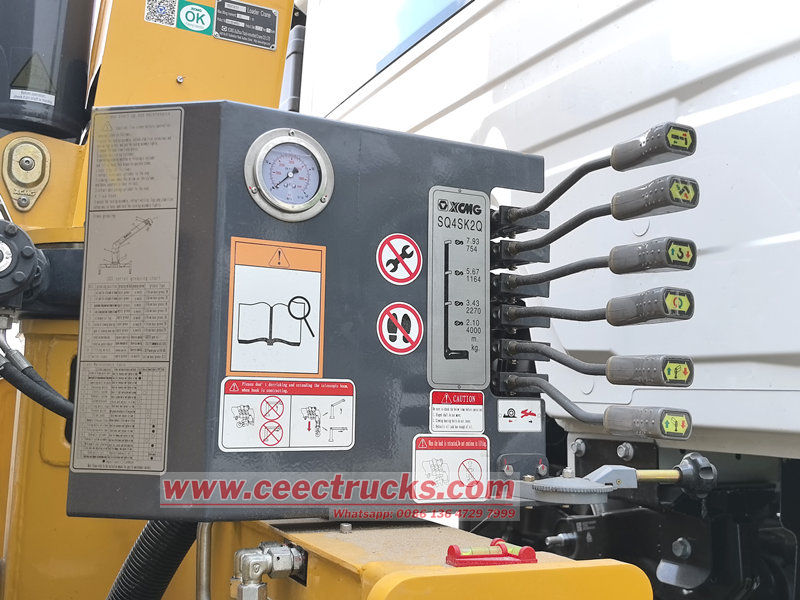

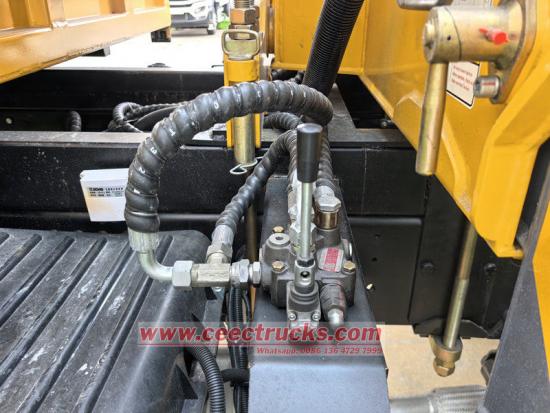

  Manually operation joystick


•

  Manually operation joystick


•

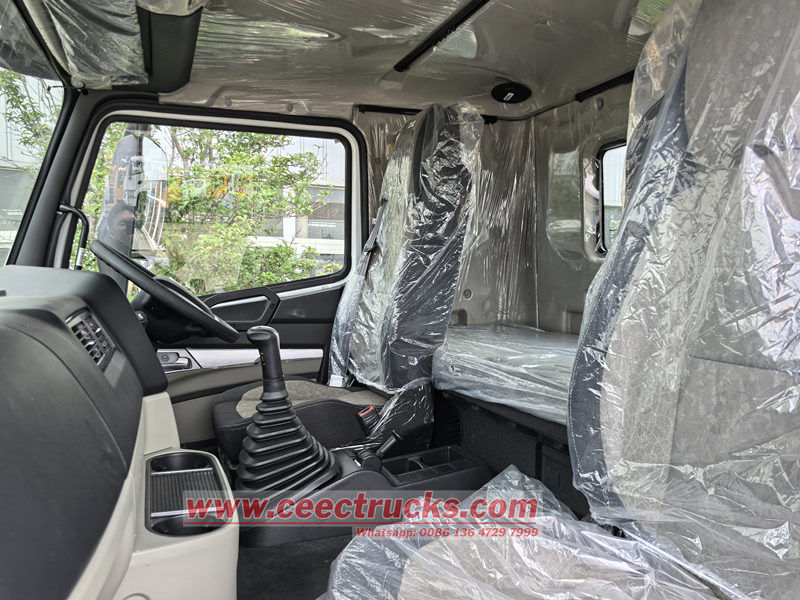

  2 seats with a sleeper
