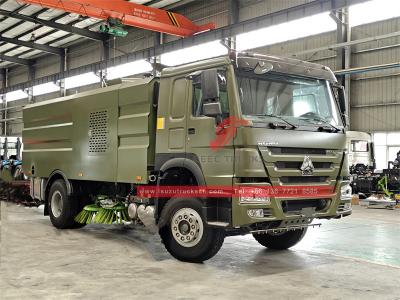

Africa Howo 300HP garbage street sweeper truck

Howo Truck Mounted Vacuum Road Sweeper

The Howo 300HP Road Sweeper Cleaning Truck boasts powerful sweeping performance and efficient operation, making it ideal for cleaning urban roads and public squares. Its 6CBM dust collection tank and 3CBM water tank, combined with the 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and a Fast 10-speed transmission, it delivers a powerful and smooth ride. Optional rear traffic alerts and cameras, an Italian/American hydraulic motor, and a front snowplow further enhance the Howo Street Sweeper Cleaning Truck's safety and versatility. Furthermore, the factory-fitted hydraulic system, safety guards, rotating lights, and work lights ensure convenient and safe operation. The Howo Road Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

Product Origin:
China CEEC
Lead Time:
40 Days
Work capacity:
10 CBM
Dimension ( mm ):
8360x2380x2850
Wheelbase ( mm ):
4600 mm
Engine power:
300 HP
Engine type:
WP10.300E22
Axle drive:
4x2, LHD
Gear box:
Fast 10-shift gearbox
Remarks:
Stainless steel

Inquiry now

The Howo Truck Mounted Vacuum Road Sweeper is a heavy-duty machine with powerful sweeping performance and efficient operation, suitable for cleaning urban streets, industrial parks, and administrative buildings. Its 6CBM dust collection tank and 4CBM water tank, combined with a 4mm stainless steel sweeper body, ensure durability and efficient cleaning. Equipped with a 300HP diesel engine and HW 10-speed transmission, it delivers a powerful and smooth ride.

The Howo sweeper's optional rear alert and camera, Italian/American hydraulic motor, and front snowplow further enhance its safety and versatility. Furthermore, the factory-installed hydraulic system, safety guards, rotating lights, and working lights ensure convenient and safe operation. The Howo Road Sweeper Cleaning Truck also comes with an English operator's manual, spare parts list, and all necessary export documentation, providing comprehensive customer support and assurance.

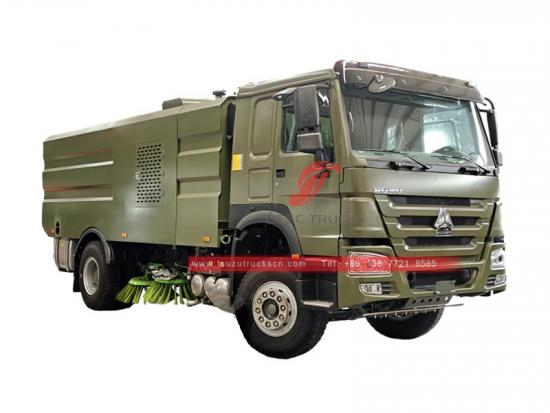

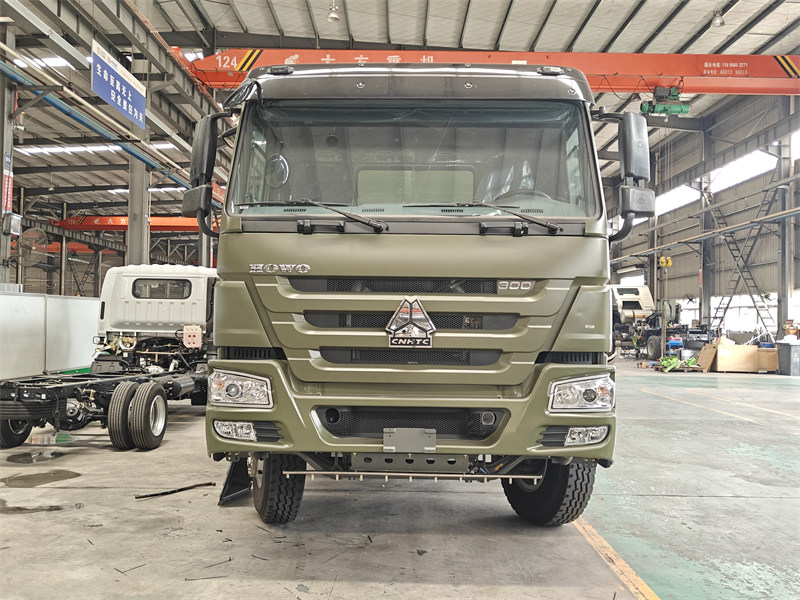

Howo 300HP Road Sweeper Cleaning Truck

*Howo heavy 10CBM sweeper truck

Howo 300HP garbage sweeper truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Low fuel consumption and economy: Weichai 300HP engine + 10-speed gearbox, excellent fuel economy.

2. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

3. Tank: 6CBM stainless steel duty tank + spacious 4 CBM water tank

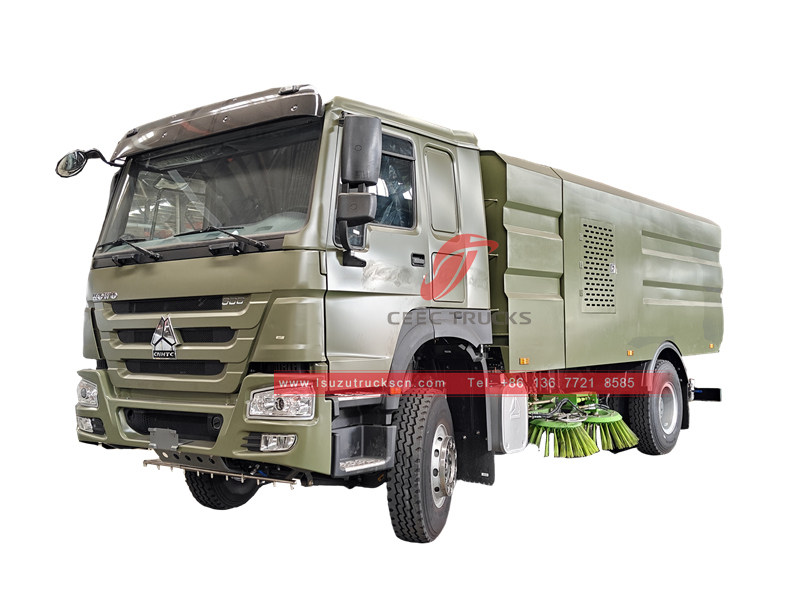

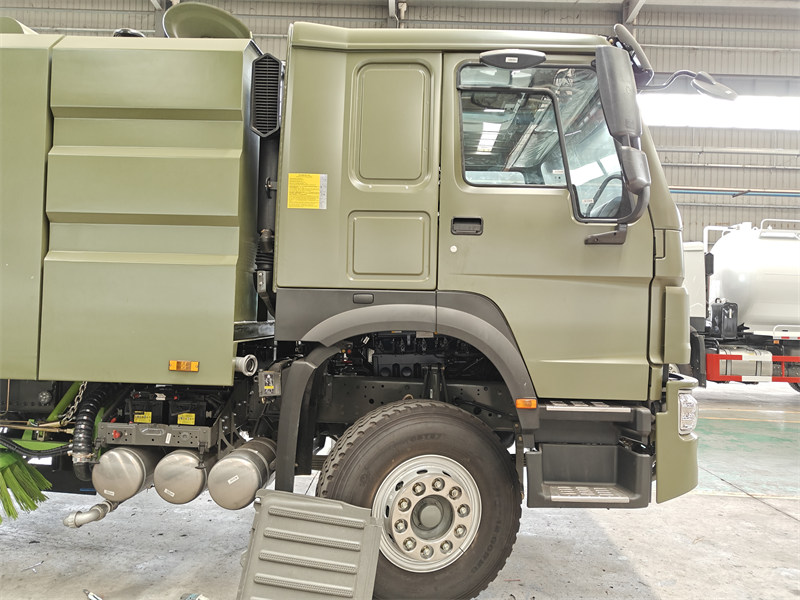

Howo 300HP Road Sweeper Cleaning Truck

Howo road sweeper is a professional road cleaning equipment that integrates efficient cleaning, stable performance, environmental protection and energy saving, and intelligent operation. The Howo road sweeper is equipped with a powerful cleaning system and a maintenance-free centrifugal fan to ensure large-area, high-efficiency cleaning operations; it adopts advanced power systems and stable control technology to provide long-lasting and reliable power support and a comfortable driving experience.

» Ⅱ.Product Parameter for Howo garbage road sweeper truck：

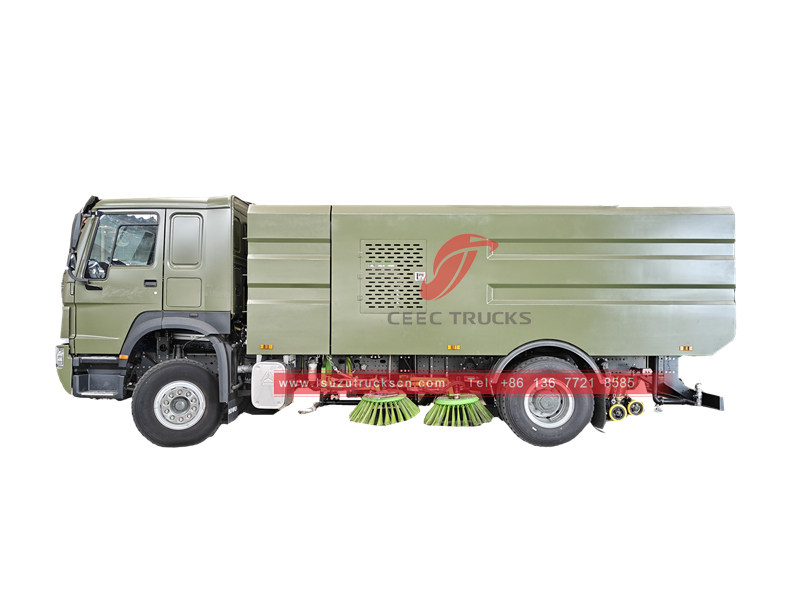

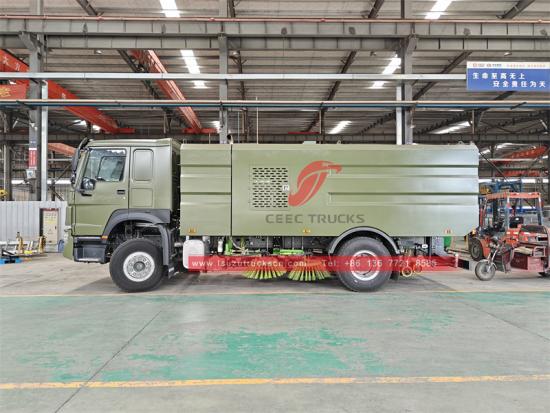

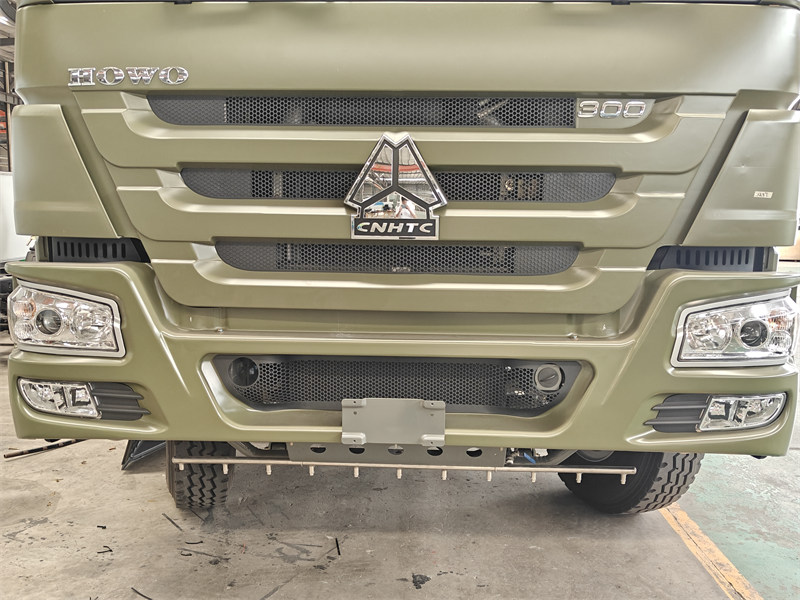

Howo 300HP Road Sweeper Cleaning Truck

Howo Heavy-duty Street sweeping Tuck
Main Specification
Vehicle Brand	CS Trucks Group
Chassis Brand	Howo heavy-duty
Overall dimensions (L x W x H)	8360x2380x2850 mm
Drive Type	4x2 Left/Right hand drive
Wheelbase	4600 mm

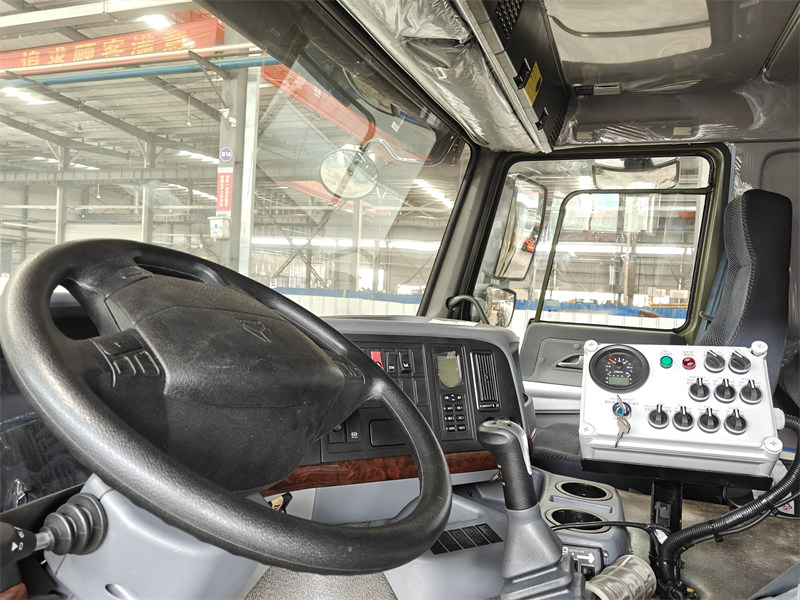

Cabin	Howo luxury cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension
Weight	GVW	15300kg
Weight	Kerb weight	6830kg
Engine	Model	WP10.300E22
	Type	Inline 6-cylinder diesel engine
	Power	300HP/221KW
	Displacement	9.726L
	Emission standard	Euro 3
Transmission	Manual	Fast 8 forward and 2 reverse speeds
Tyre	8.25R20	6+1 spare tyre
Upper Structure Parameter
Volume of water tank	2000L
Volume of Dustbin	6000L
Material	water tank	Carbon steel
Material	garbage tank	Inner stainless steel, outer carbon steel
Hydraulic valve	Taiwan famous brand
Hydraulic motor	Domestic famous brand
Switch	Schneider control switch
Auxiliary Motor	Brand	Cummins
Auxiliary Motor	Horsepower	77HP
Sweeping Technical	Max sweeping width (mm)	3.5m
	Max. sweeping capacity	70000m3/h
	Sweeping speed	3-20km/h
	Cleaning efficiency	≥95%
	Max. particle inhalation	110mm
	Disc plate brush extension size	>400mm
	Garbage tank door max.discharge angle	>50°
Sweeping system	Type	Total 4 pcs mechanical brushes and 1 sucking discmounted in the rear, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function
	Sweeping brush diameter	ф 850mm
	Sweeping disk speed	1 10r/min high-speed,80r/min medium speed50r/min low-speed
	Sweeping disk dip angle adjust	forward 4 ° ~ 6 ° extroversion 4 °~ 7 °

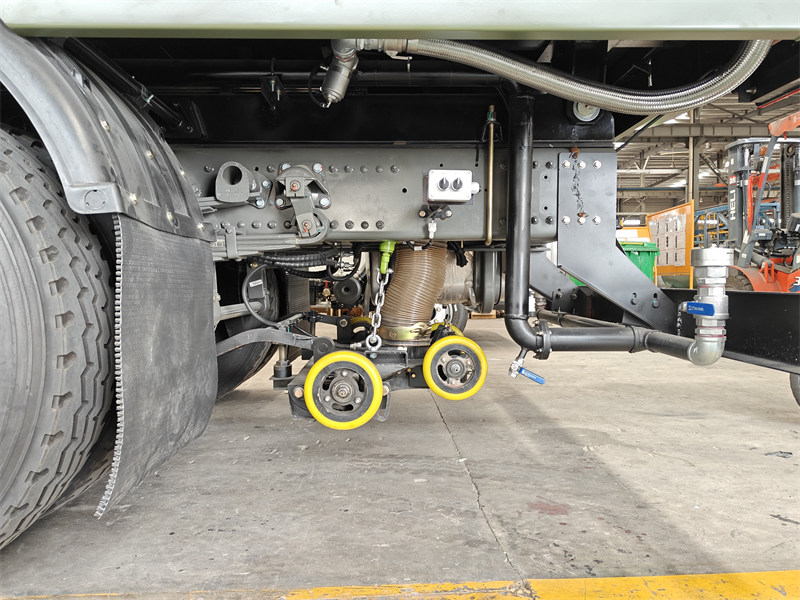

Sucking disc	Type	Double suction hole, hydraulic control, spring suspension
	Suction hole diameter	180mm
	Suction performance	Delivers air blast and suction
Hydraulic system	Type	Open type, electrical
	Main components	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	Pressure	16Mpa
	Hydraulic oil volume	60L
	Oil temperature	60°C
Water spraying system	Components	Pump, nozzle, water filter, etc.
Low pressure water system	Model	Hangzhou Weilong 60/90
	Flow rate	60m3/h
	Water delivery distance	90m
	Washing width	24m
Washing road	Type	Front washing bar

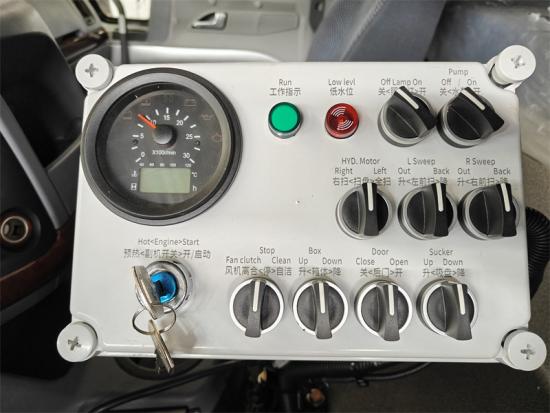

Electrical system	Type	DC24V, PLC control
	Volts	24V
	Battery	2x12V
Tools	2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker
Spare parts	88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal

» Ⅲ.Product Details & Advantages:

1.Power system

♦ The Howo sweeper is equipped with an advanced WP10.300E22 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.

♦ Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

♦ Cummins 140HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key components such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

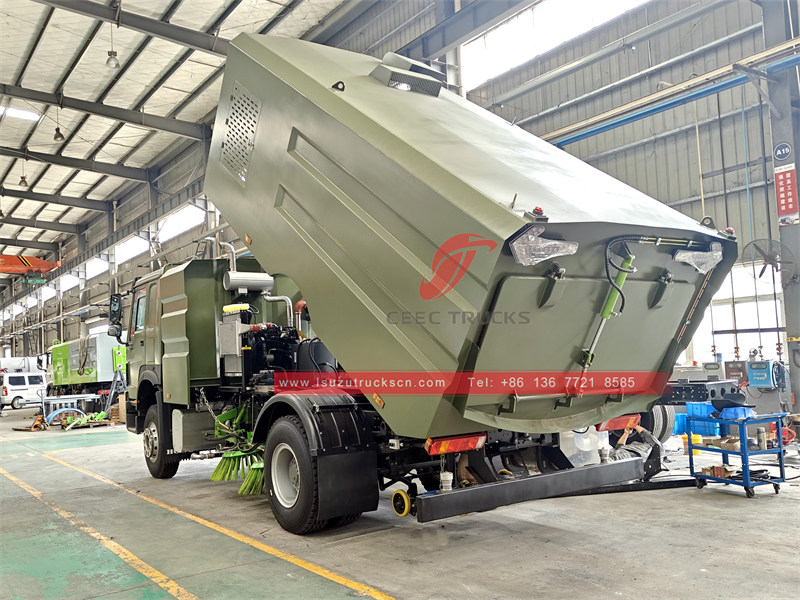

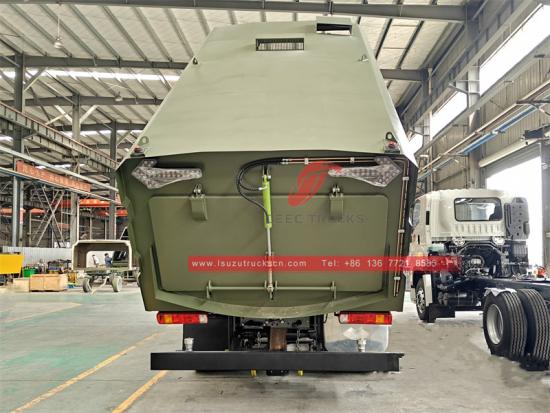

2.Water tank and dusty tank

♦ The Howo road sweeper is equipped with a spacious 4 CBM water tank to ensure continuous water supply to suppress dust during sweeping operations.

♦ It is also equipped with 6CBM stainless steel duty tank,the inner layer of the dustbin is made of stainless steel and the outer layer of carbon steel.With excellent corrosion resistance and wear resistance.

♦ The inside of the dustbin is smooth and flat, and it is not easy to leave garbage and dirt. Keep clean and hygienic for a long time.

♦ The 6 CBM capacity design can meet the needs of long-term cleaning operations and reduce the number of frequent dumping of garbage.

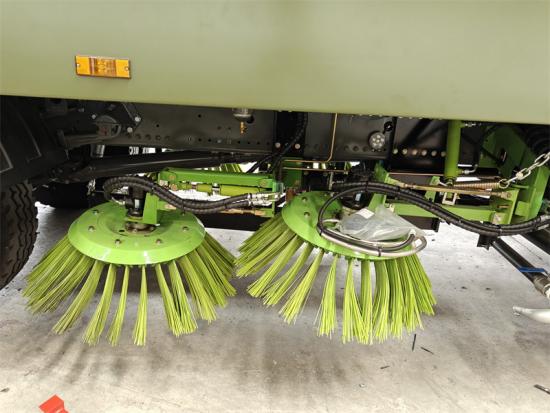

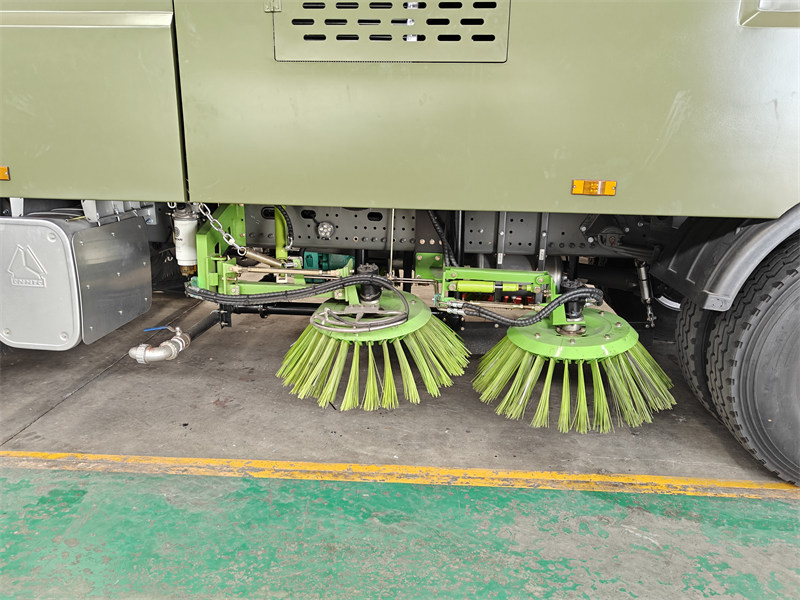

3.Cleaning system

♦ The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.

♦ The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.

♦ The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road.

♦ The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground.The entire cleaning system works in tandem, utilizing a powerful suction cup mechanism to achieve efficient and rapid cleaning results.

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ WP10.300E22 Euro 3 engine, super powerful

★ Fast Manual 10-shift mechanical transmission gearbox

★ 12 months fast moving spare parts for FREE

★ Authorized Howo sweeper truck lift truck exporter

★ Training service for Howo road sweeper truck.

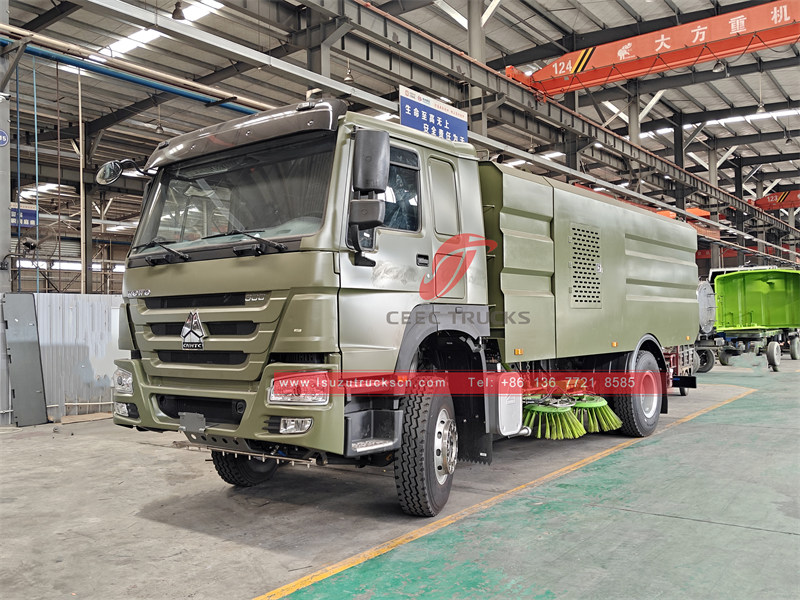

Howo Heavy duty Street sweeping Tuck
