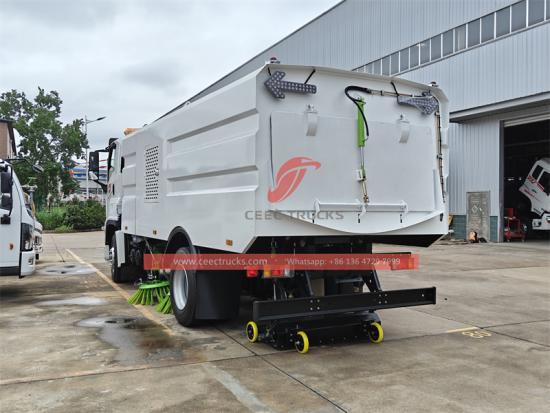

ISUZU FSR series 240HP street sweeper truck

ISUZU FVR road sweeper is a professional road cleaning equipment that integrates efficient cleaning, stable performance, environmental protection and energy saving, and intelligent operation. The ISUZU FVR road sweeper is equipped with a powerful cleaning system and a maintenance free centrifugal fan to ensure large-area, high-efficiency cleaning operations; it adopts advanced power systems and stable control technology to provide long-lasting and reliable power support and a comfortable driving experience.

Product Origin:
China CEEC
Lead Time:
40 Days
Work capacity:
10 CBM
Dimension ( mm ):
8360x2380x2850
Wheelbase ( mm ):
4500 mm
Engine power:
240 HP
Engine type:
ISUZU 6HK1-TCG61
Axle drive:
4x2, LHD
Gear box:
Fast 8-shift gearbox
Remarks:
Stainless steel

Inquiry now

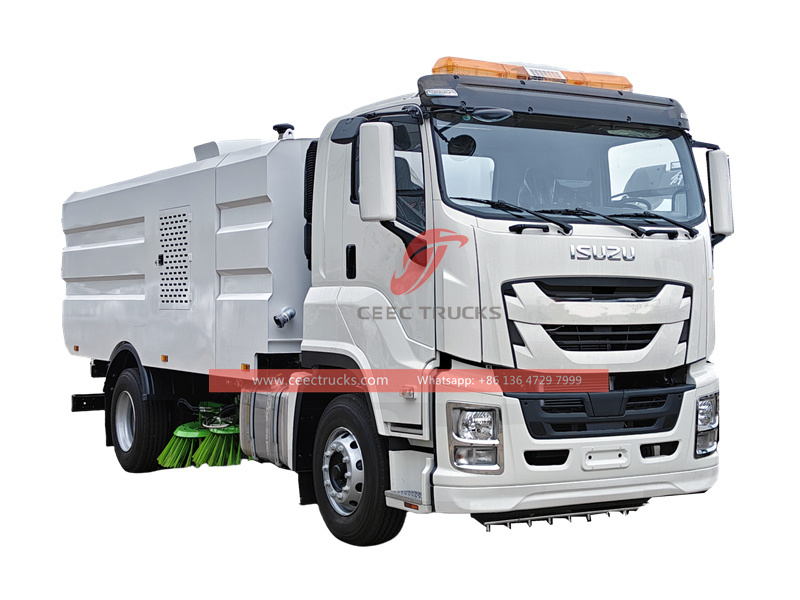

ISUZU Road Sweeper Cleaning Truck

At the same time, it focuses on environmentally friendly design, reduces emissions and promotes classified resource utilization. The intelligent operation interface and remote monitoring system make operation easier and maintenance more convenient. It is suitable for a variety of scenarios such as urban roads, highways, public places and industrial parks, and is an ideal choice for urban cleaning operations.

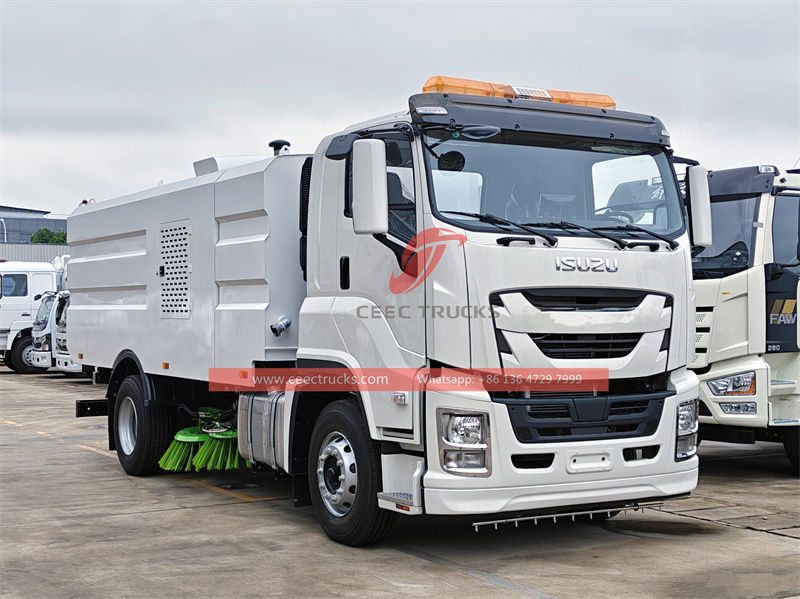

ISUZU FVR road sweeper truck

*Isuzu heavy 10CBM sweeper truck

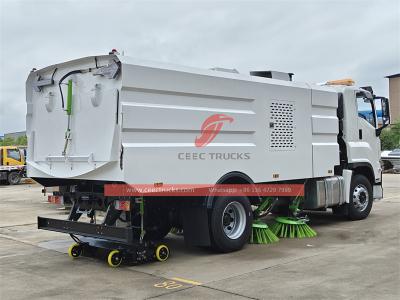

Isuzu 240HP garbage sweeper truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:
1. Truck Chassis: ISUZU F series chassis, 4x2 and 4x4 model
ISUZU engine model with205HP, 240HP or 300HP
Optional EURO 4/5/6 emission for different market

2. Tank material: Both Water tanker and Dust tanker stainless Steel material, 3mm thick for durable service

3. Tanker body: Customized for 4CBM water tanker and 6CBM dust tanker

4. Control Box: SIMENS PLC electric control box with in cabin and rear hopper, convenient operation
Also matched hydraulic pump for tanker lifting for emergency usage

5. Working Environment: Super designed working temperature -22℃ to +48℃ day and night, with efficiently working height over 4000m

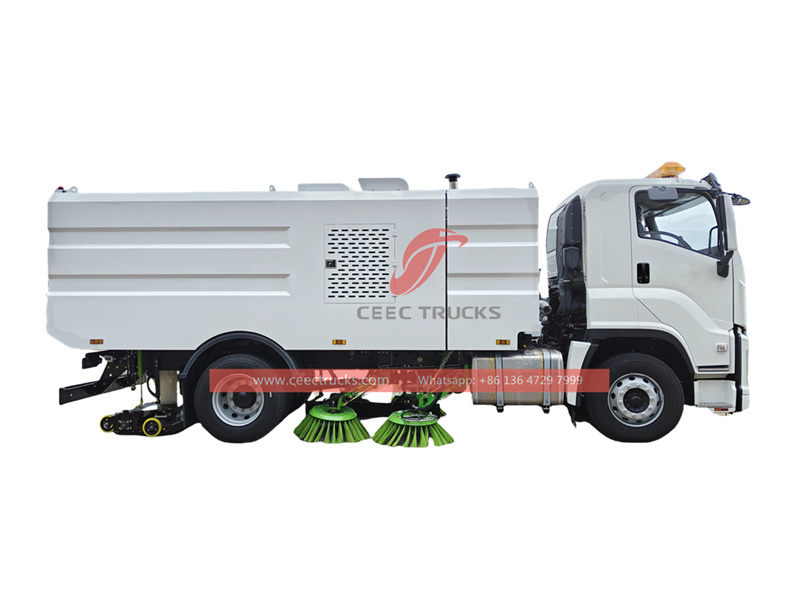

ISUZU FVR 240HP Road Sweeper Cleaning Truck

» Ⅱ.Product Parameter for ISUZU garbage road sweeper truck：

ISUZU FVR Road Sweeper Cleaning Truck

ISUZU FVR Street sweeper Tuck
Main Specification
Vehicle Brand	CEEC
Chassis Model	ISUZU FVR Model
Overall dimensions (L x W x H)	8360x2380x2850 mm
Drive Type	4x2 Left hand drive
Wheelbase	4500 mm
Cabin	ISUZU 3D cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension
Weight	GVW	22000kg
Weight	Kerb weight	8630kg
Engine	Model	ISUZU 6HK1
	Type	Inline 6-cylinder diesel engine
	Power	240HP/177 KW
	Displacement	7.78L
	Emission standard	Euro 6
Transmission	Manual	Fast 8 forward and 2 reverse speeds
Tyre	295/80R22.5	6+1 spare tyre
Upper Structure Parameter
Volume of water tank	4000L
Volume of Dustbin	6000L
Material	water tank	Carbon steel
Material	garbage tank	Inner stainless steel, outer carbon steel
Hydraulic valve	Taiwan famous brand
Hydraulic motor	Domestic famous brand
Switch	Schneider control switch
Auxiliary Motor	Brand	Cummins
Auxiliary Motor	Horsepower	140HP
Sweeping Technical	Max sweeping width (mm)	3.5m
	Max. sweeping capacity	70000m3/h
	Sweeping speed	3-20km/h
	Cleaning efficiency	≥95%
	Max. particle inhalation	110mm
	Disc plate brush extension size	>400mm
	Garbage tank door max.discharge angle	>50°
Sweeping system	Type	Total 4 pcs mechanical brushes and 1 sucking discmounted in the rear, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function
	Sweeping brush diameter	ф 850mm
	Sweeping disk speed	1 10r/min high-speed,80r/min medium speed50r/min low-speed
	Sweeping disk dip angle adjust	forward 4 ° ~ 6 ° extroversion 4 °~ 7 °

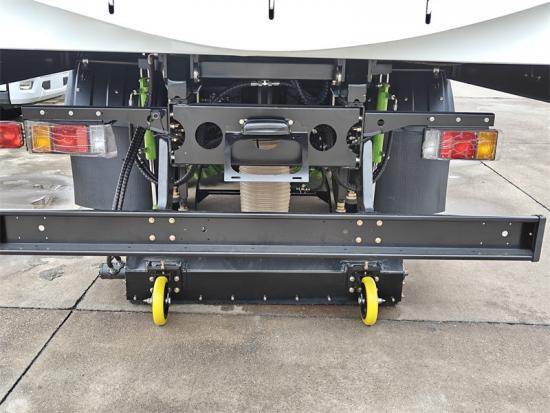

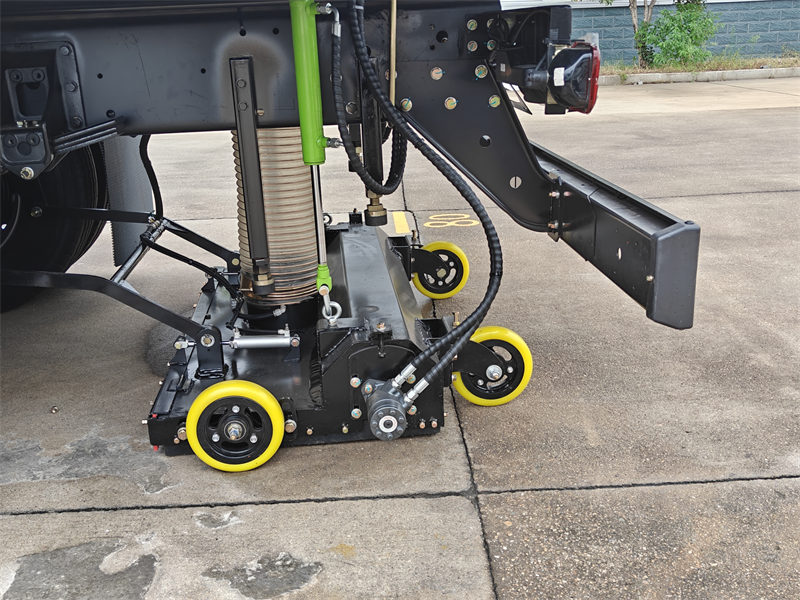

Sucking disc	Type	Double suction hole, hydraulic control, spring suspension
	Suction hole diameter	180mm
	Suction performance	Delivers air blast and suction
Hydraulic system	Type	Open type, electrical
	Main components	Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve
	Pressure	16Mpa
	Hydraulic oil volume	60L
	Oil temperature	60°C
Water spraying system	Components	Pump, nozzle, water filter, etc.
Low pressure water system	Model	Hangzhou Weilong 60/90
	Flow rate	60m3/h
	Water delivery distance	90m
	Washing width	24m

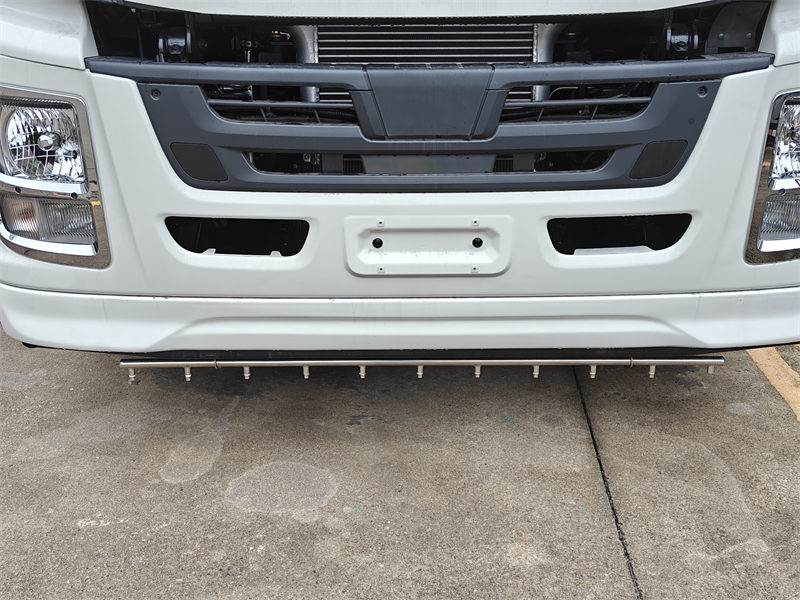

Washing road	Type	Front washing bar
Electrical system	Type	DC24V, PLC control
	Volts	24V
	Battery	2x12V
Tools	2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker
Spare parts	88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal

» Ⅲ.Product Details & Advantages:

1.Power system

♦ The ISUZU FVR sweeper is equipped with an advanced 6HK1 diesel engine, which is powerful, ensure the stability and reliability under various working conditions.

♦ Intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

♦ Cummins 140HP auxiliary engine designed for auxiliary sweeping operations. Ensuring that key parts such as the sweeping system, sprinkler system and dust collection device can operate stably and efficiently.

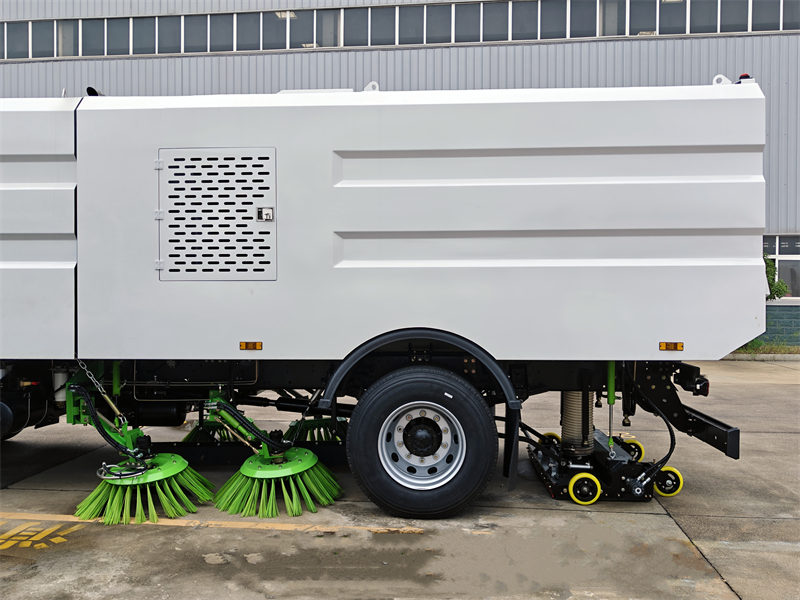

2. Water tank and dusty tank

♦ The Howo road sweeper is equipped with a spacious 4 CBM water tank to ensure continuous water supply to suppress dust during sweeping operations.

♦ It is also equipped with 6CBM stainless steel duty tank,the inner layer of the dustbin is made of stainless steel and the outer layer of carbon steel.With excellent corrosion resistance and wear resistance.

♦ The inside of the dustbin is smooth and flat, and it is not easy to leave garbage and dirt. Keep clean and hygienic for a long time.

♦ The 6 CBM capacity design can meet the needs of long-term cleaning operations and reduce the number of frequent dumping of garbage.

3.Cleaning system

♦ The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc.

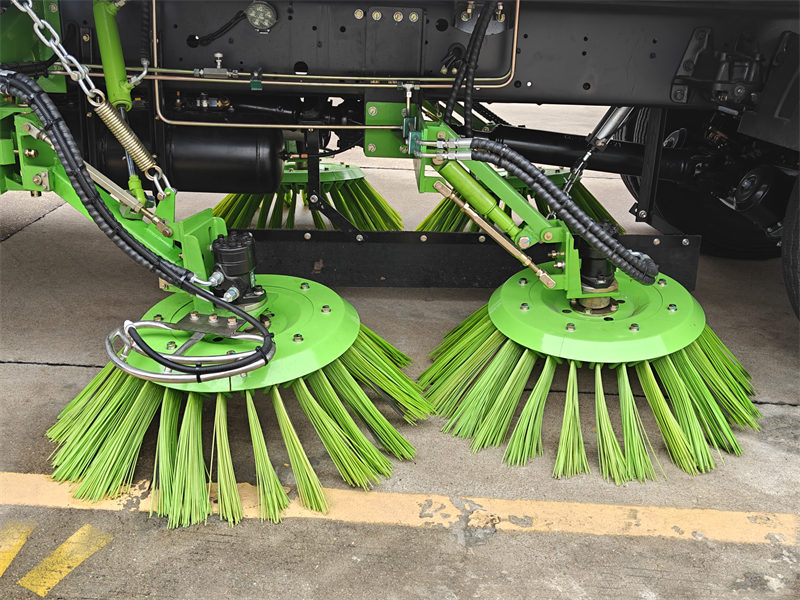

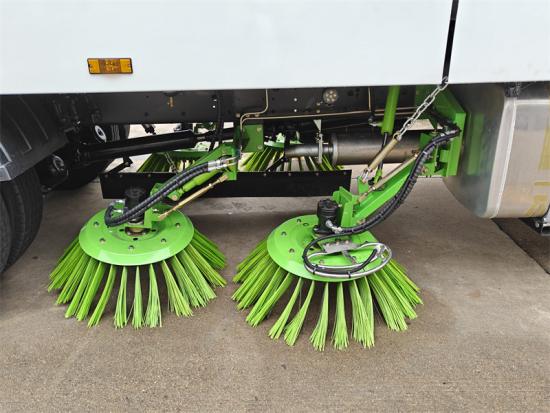

♦ The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.

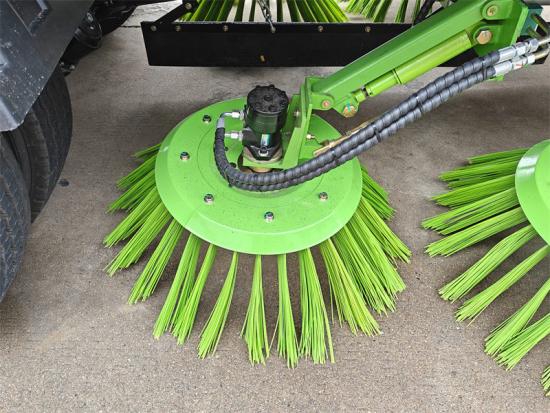

♦ The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road.

♦ The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground.

♦ The entire cleaning system works in tandem, utilizing a powerful suction cup mechanism to achieve efficient and rapid cleaning results.
