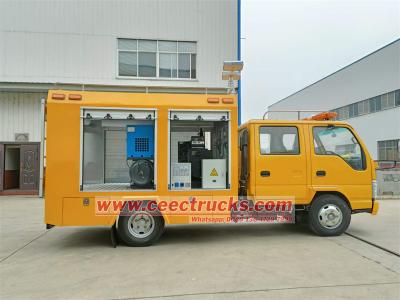

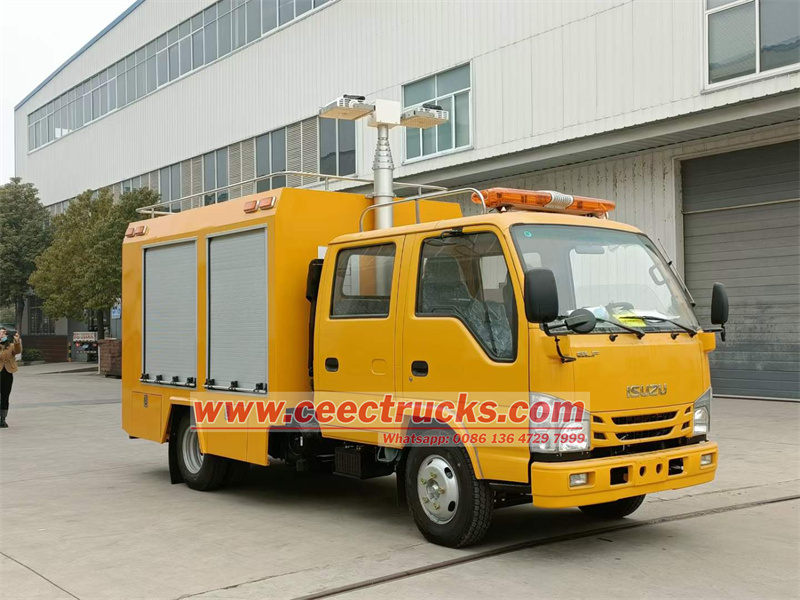

Isuzu mobile rescue fire fighting pumper truck

ISUZU 120HP fire tender rescue equipment

ISUZU mini type Fire Tender Rescue Equipment is a main emergency rescue vehicle composed of an ISUZU 4x2 truck chassis and its engine, power generation lighting system, winch traction system and various rescue equipment and protective equipment. It is mainly suitable for highway traffic accidents, building collapses, and dangerous chemicals. Handling of sudden public safety accidents in various places such as product accidents, personnel in distress and social assistance. The double row driving room with 2+4 seats, including 4 SCBA seats, equipped with 4KH1CN6LB diesel engine with 88KW and 120HP, MSB 5 shift manual gearbox with 5 forward and 1 reverse.

Product Origin:
China CEEC Trucks
Lead Time:
80 days
Work capacity:
7.6m working height
Dimension ( mm ):
6500 × 2000 × 3320
Wheelbase ( mm ):
3360 mm
Engine power:
120 HP
Engine type:
ISUZU 4KH1CN6LB
Axle drive:
4x2, LHD
Gear box:
MSB 5-shift with 5F & 1R
Remarks:
Customized Engineering Yellow painting

Inquiry now

The Isuzu fire tender mounted with double row seat crew cabin, which can carry 2+4 passengers including the driver. The ISUZU 120HP fire tender rescue equipment is equipped with original Japanese ISUZU brand 4KH1CN6LB diesel engine, 88KW / 120HP horse power and emission 2999cc. MSB brand manual gearbox with 5 forward and 1 reverse back. Truck mounted with original American Champion electric winch with 4 tons capacity. Original Japanese Honda generator SHT11500 with a power of 10KW. The top of tanker body is equipped with a lifting lighting system YZH4-5.0CF, which can lift up to 7.6 meters above the ground. The equipment compartment is Aluminium alloy structure, and in the vehicle can hold no less than 90 pieces of emergency rescue equipment.

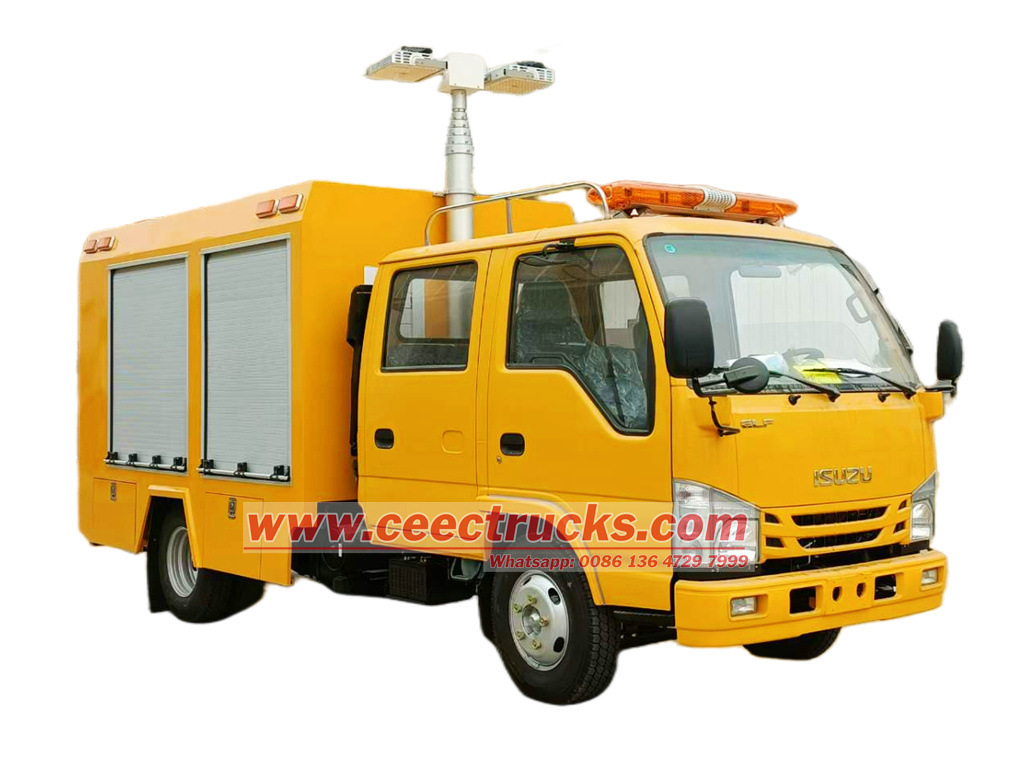

ISUZU rescue fire truck

Details description and component for Isuzu rescue fire truck as below showing:

1.ISUZU telescopic lighting rescue fire engine adopts a double-row four-door cab with up to 2+4 crewmembers and a maximum speed of more than 90km/h, the rear seats are SCBA model and suitable for air apparatus storage, which meets the needs of the firefighting unit as the first vehicle for combat formation and single-vehicle rescue operations.

2. Powerful hinge plate traction function, equipped with imported American champion hydraulic towing winch at the front of the vehicle, traction force ≥4000kg, far higher than the standard requirements of special service stations with traction quality ≥3200kg.

3. High-power power supply system: Isuzu mobile rescue fire truck is equipped with imported Japanese HONDA SHT11500 model generator with control cabinet, which can provide 11.5kw power 220V and 380V, which can meet the needs of a large number of electrical equipment working at the same time.

4. Sufficient lighting capacity: 2×2 kw all-round high-altitude lighting, 4×1000w mobile lighting, perfect body lighting, with lifting height 7.6m, meeting the lighting needs of various emergency environments

5. Safe and convenient equipment layout: all equipment racks are designed with rotating, flipping, pallet, pull-down brackets, combined drawers, etc., and all kinds of equipment are fixed on the equipment rack with anti-loosing fixtures, and the entire storage space The pedal design not only ensures the space utilization, but also ensures the convenience and quickness of access.

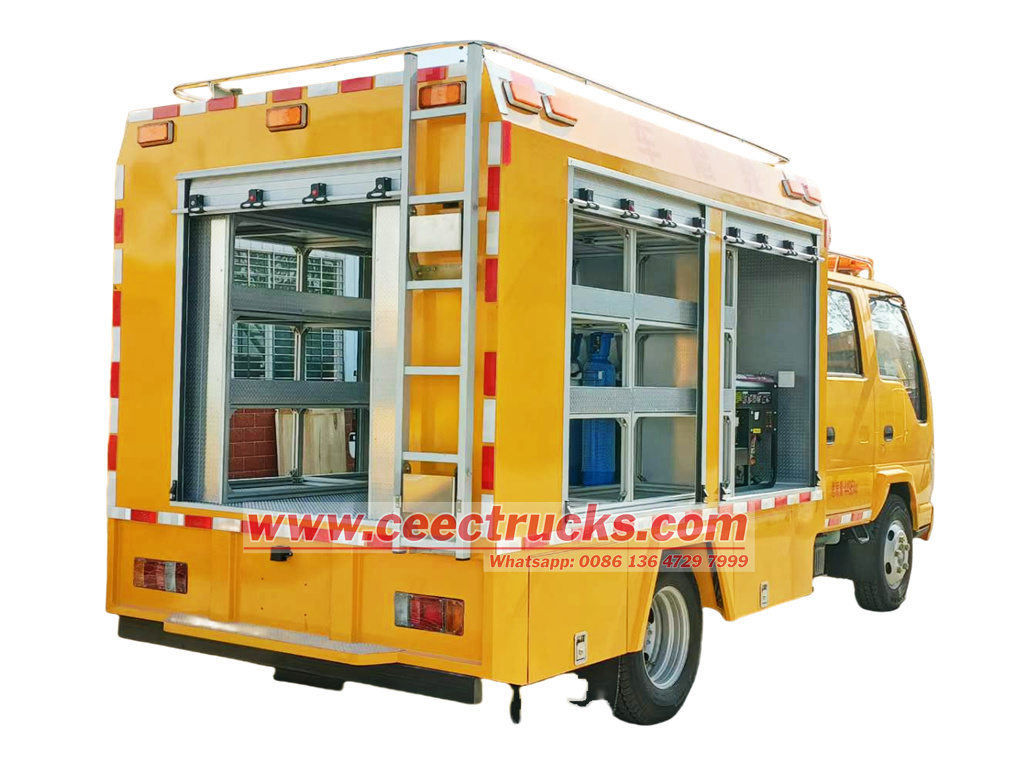

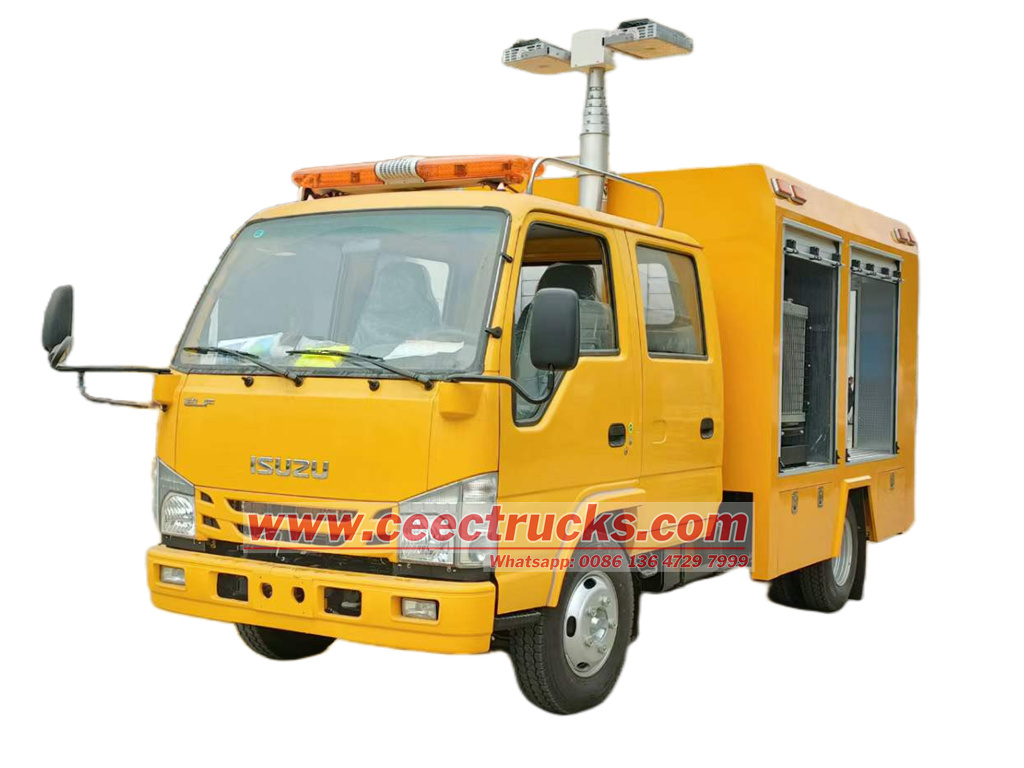

Isuzu telescopic lighting fire truck

● China best ISUZU fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

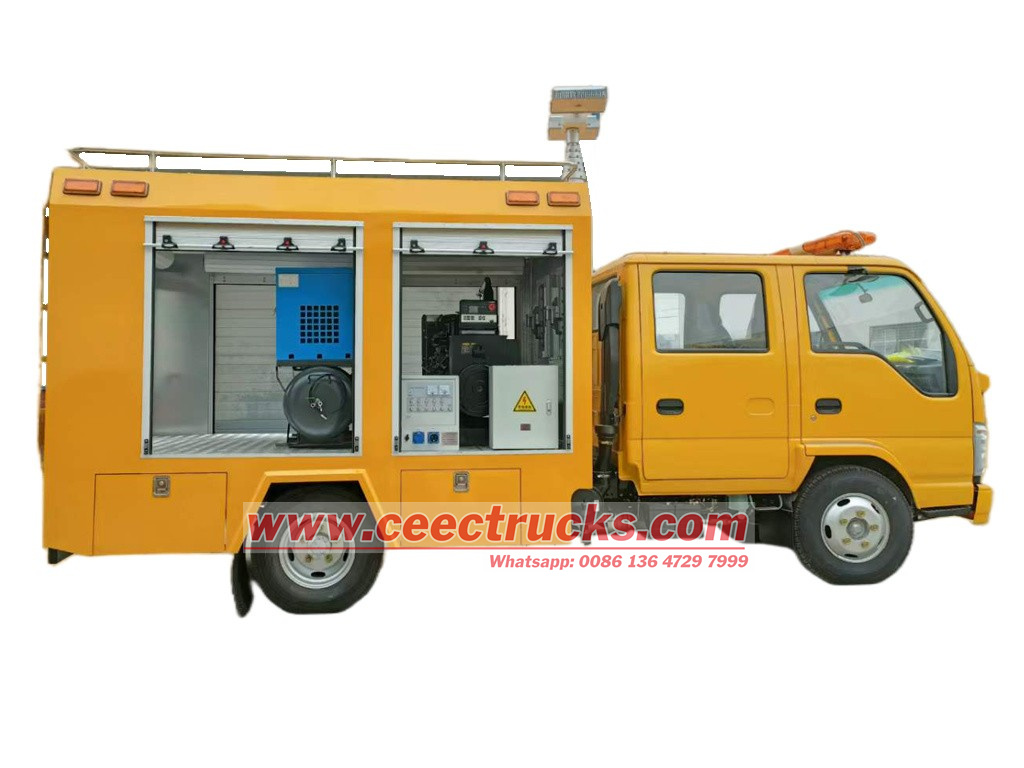

Isuzu fire fighting truck rescue equipment

Isuzu mini type mobile rescue fire truck is mainly used for fire response tasks and fire rescue mission, most national Isuzu fire departments, also use it for other emergency rescue purposes. ISUZU lighting fire engines can transport firefighters to disaster sites and provide them with a variety of tools to carry out relief missions. And below details showing the specifications of the parameters for ISUZU 120HP fire tender rescue equipment.

01, Fire Truck chassis:

Model	Parameters	others
Chassis	ISUZU mini ELF	Fire application
GVW	7300kg
Engine Model	4KH1CN6LB	ISUZU
Engine Power	120 HP
Wheelbase	3360 mm
Driving Type	4x2/ 6 wheels	Left hand
Transmission	MSB 5-shift	Manual
Emission Standard	2999 ml	Euro 6

02, Crew Cabin:
Capacity	Flat roof, double cabin row with four doors
Seats	2+4 with SCBA seats for Air Apparatus
Driver Side	Standard as left-hand drive
Structure	All metal welding structure, the overall corrosion resistance, have Shock absorption measures, forward tilting device, with A/C
Equipped	Full sets ISUZU dashboard for truck controller
	Siren and alarm controller
	Additional Power switch

03, Upper Body Kit:

Configuration

Integrated frame structure, symmetrical on both sides. There are equipment boxes on both sides of the front, middle and rear of the carriage, and a knuckle boom crane is mounted at the rear of the carriage. There are aluminum alloy rolling shutter doors on both sides of the carriage; a flip-down door is set on the lower part of the rolling shutter door; and a ladder is set on the right rear side of the vehicle body.

04, Tool Box:
Material	The outer frame and outer skin of the carriage are made of high-quality steel (Q235A), the inner frame is made of high-strength aluminum alloy profiles, and the bottom plate is made of anodized aluminum alloy plates.
Door	The rolling shutter doors on both sides adopt an aluminum alloy locking structure, which has good sealing and dust-proof functions.
License Plate	Fixed with metal structural parts, strong and durable
Foot Padel	The lower skirt of the rolling shutter door is equipped with an ever-folding aluminum profile pedal door. The opening and closing of the pedal are double-fixed by a double tension spring hinge limiter, which has reliable safety performance. The flip-up door car above the rear wheel is assisted by a gas spring, and it complies with the regulations of GB11567 when flipping down. Each pedal can bear weight ≥150kg.

05, Electrical Equipment:
Additional Electric	Independent electrical system
Auxiliary Lighting	Equipment boxes are equipped with LED lighting strips
Side Flashing Lighting	Red and blue flashing lights are installed on both sides of the car body
In cabin Warning Device	One red long row of warning lights, installed on the top of the cab; one electronic siren, with power ≥100W, installed in the cab, with its control box under the front of the driver

06, Special Equipment

Lighting System	Lifting System	YZH4-5.0CF
	Power	4x1000W
	Lifting Height	7.6 m
	Rotation Angle	Horizational 360°Vertical 330°
	Lifting Model	Pneumatic
	Others	Control Box
Towing Winch	Capacity	5Tons
	Power	24V
	Steel Rope Length	28m
	Steel Rope Diameter	10.2mm
Generator	Brand	Honda SHT11500
	Rated Power	11.5KVA
	Rated Voltage	220V / 400V

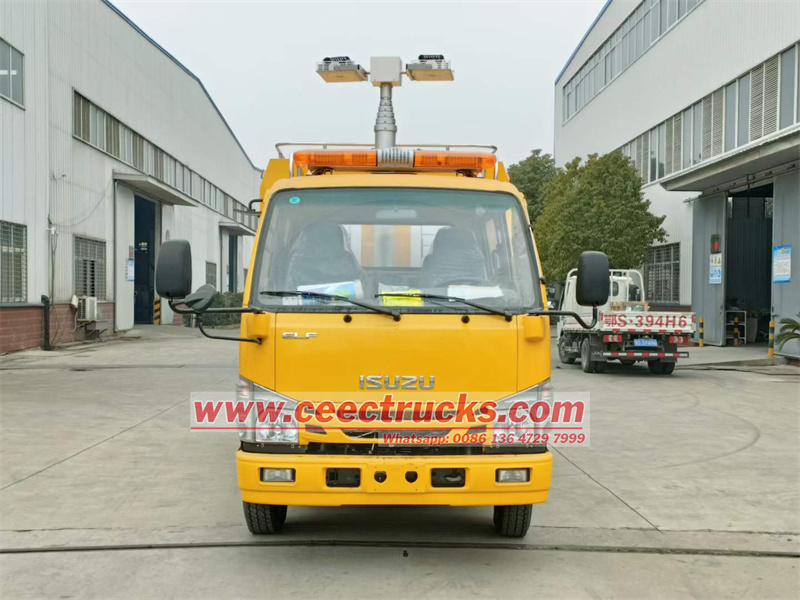

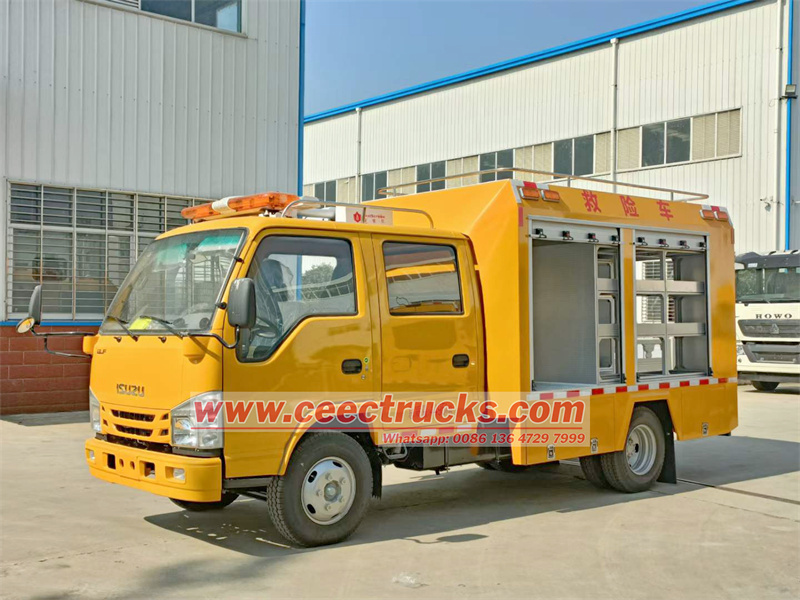

Isuzu mini ELF fire rescue truck with 120HP diesel engine

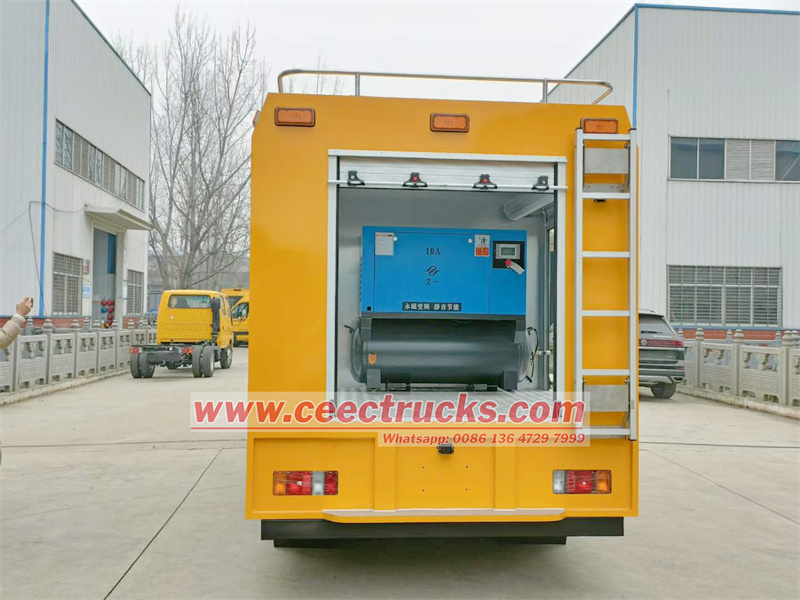

Isuzu mobile rescue fire engine with Aluminium alloy body

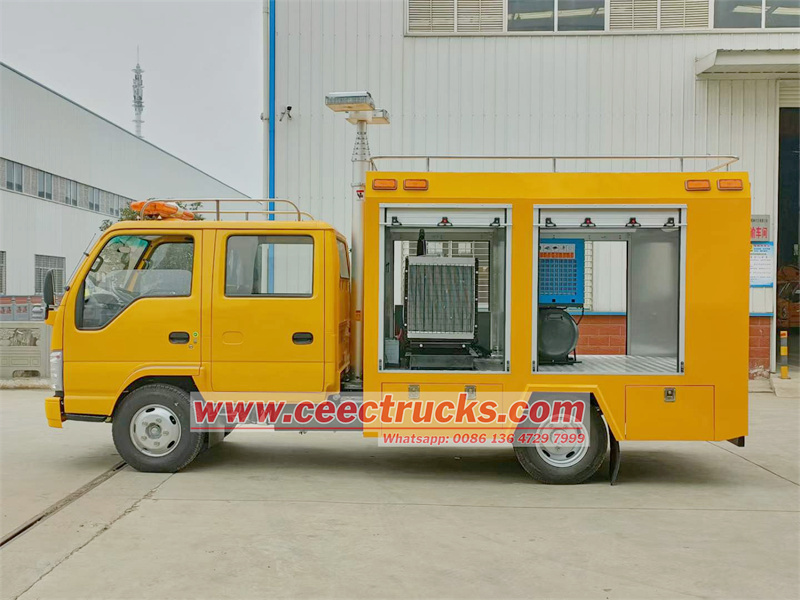

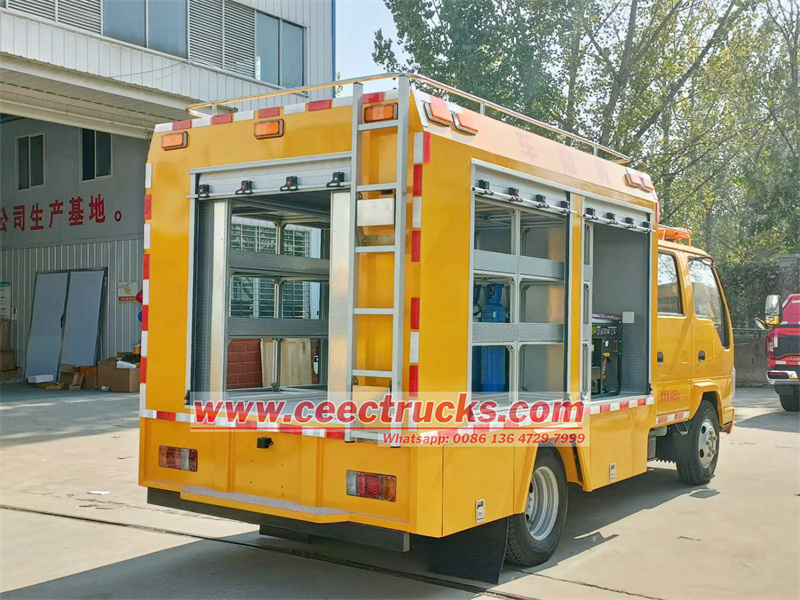

Isuzu rescue pumper fire engine side view and necessary equipment

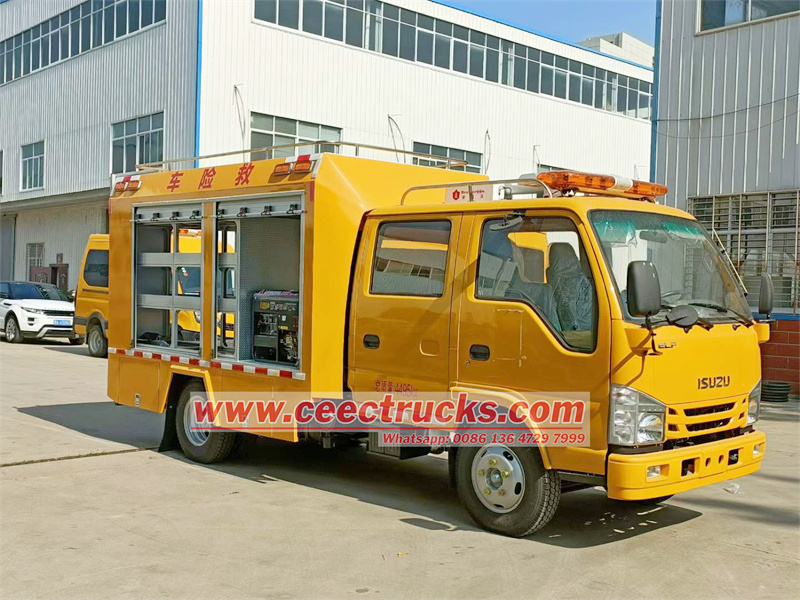

Isuzu rescue fire fighting truck

★ ISUZU diesel engine, super powerful

★ Expert for producing Isuzu Fire Truck over 10 years with good reputation

★ High quality tanker material, Aluminium Alloy structure

★ Optional import Darley / HALE fire pump, also AKRON fire monitor

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for ISUZU tanker fire trucks

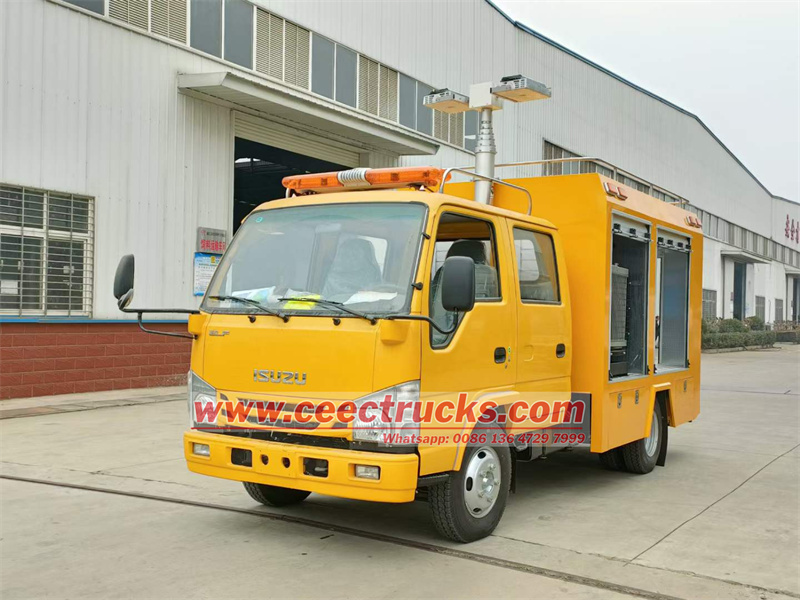

Isuzu rescue fire department truck

CEEC TRUCKS is a leading exporter of fire trucks in China. We possess over 10-year export experience of fire fighting trucks. We can ensure the fast delivery time and 12 months guarantee for our fire engine tanker trucks. Our fire department trucks can be customized as ISUZU Fire truck, Mercedes Benz fire truck, MAN fire truck, VOLVO fire truck, SCANIA fire truck, HOWO fire truck, etc. Which are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
