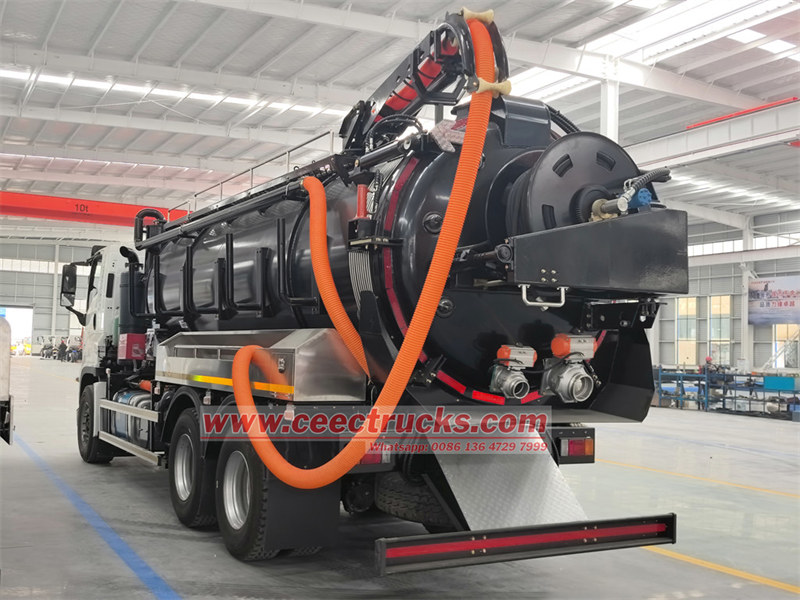

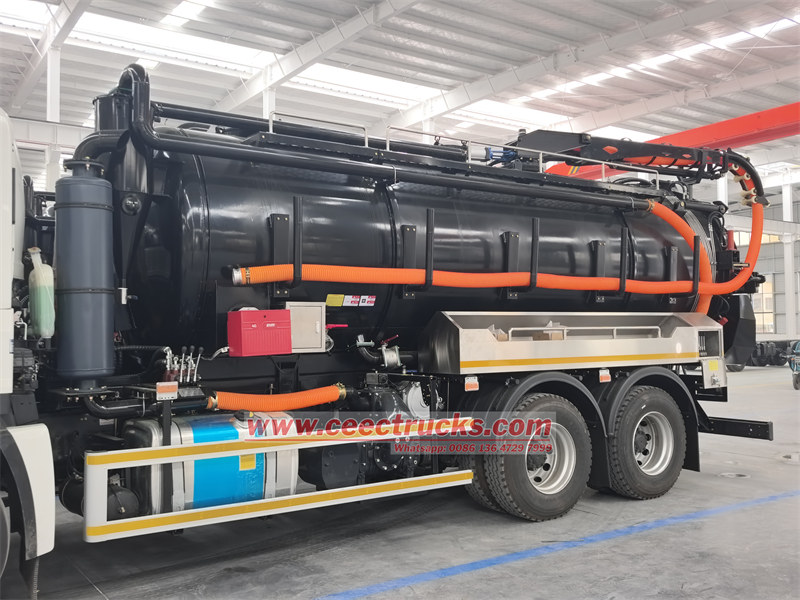

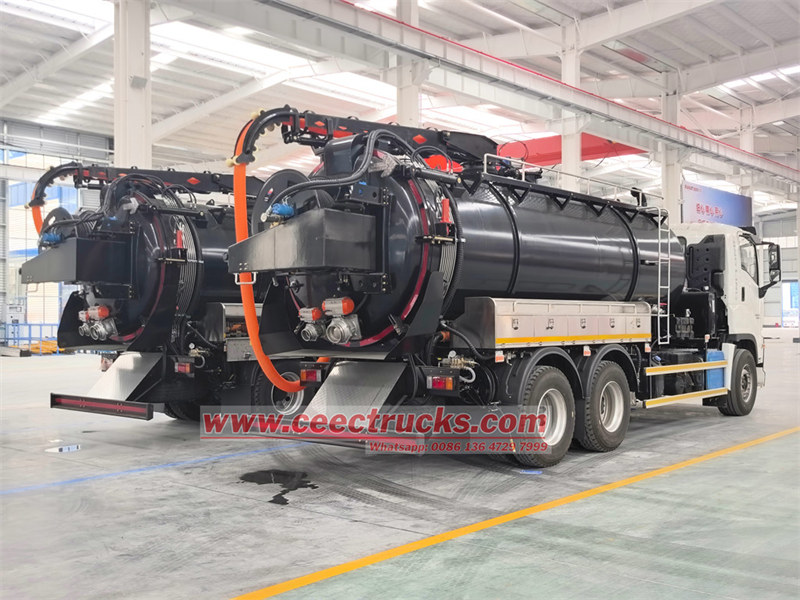

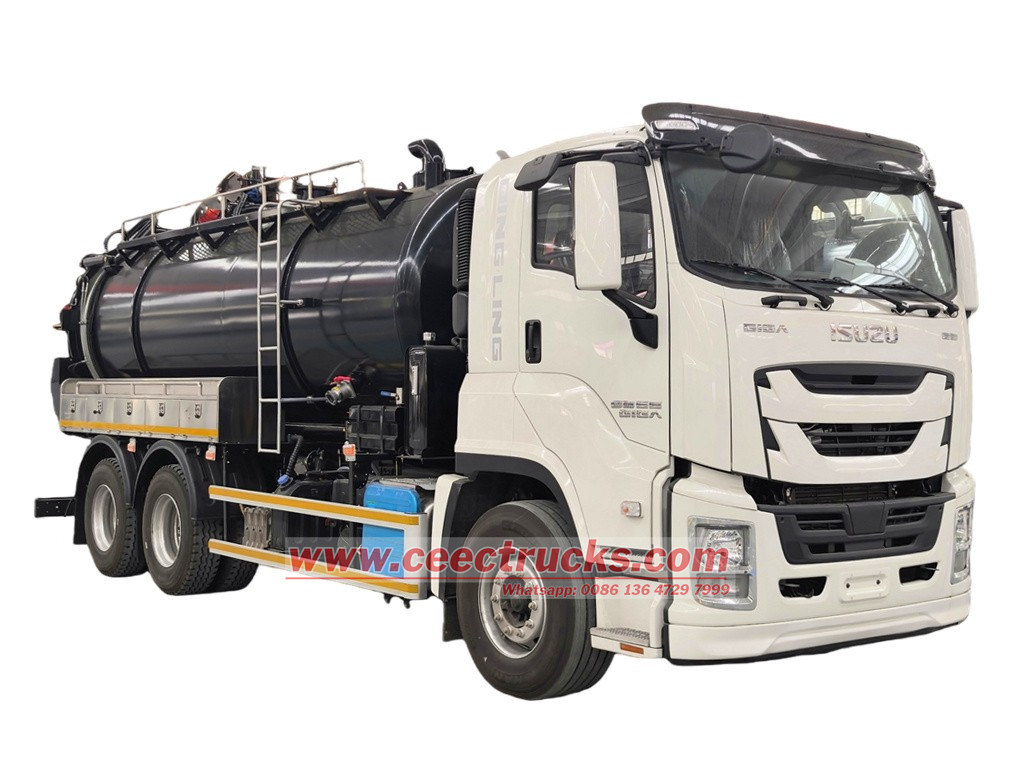

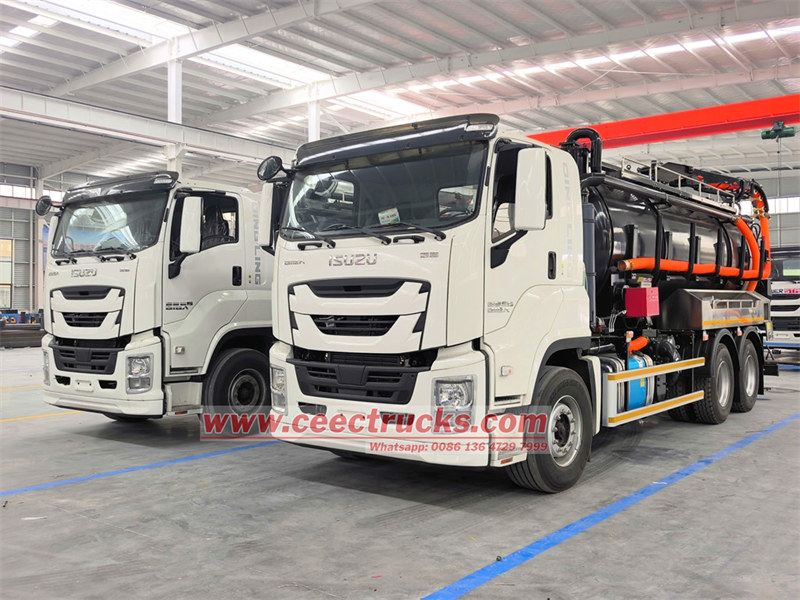

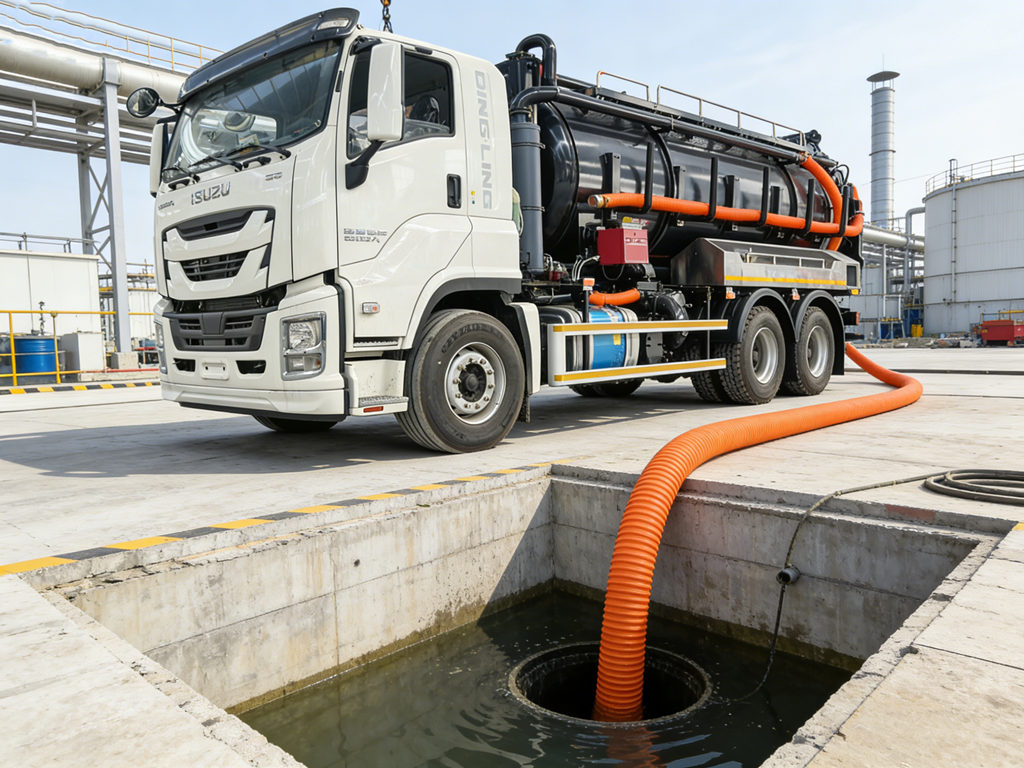

South American clients purchased ISUZU GIGA heavy duty super sucker vacuum trucks are used for city vacuum sewage suction and high pressure jetting. Originally GIGA VC66 cabinet truck mounted with Japanese ISUZU technology 6WG1 model diesel engine, 520HP and emission 15681 dimension, equipped with 20000Liters round tanker divided into 2 compartment, front 4000Liters clean water and rear 16000Liters vacuum tanker, JUROP PVT 400 super vacuum pump and efficiently flow rate 2430m3 per hour, matched working with rear 60m φ19 hose reel and multiple nozzles.
Work capacity:
20,000LitersDimension ( mm ):
10500×2550×3650 mmWheelbase ( mm ):
4600+1370 mmEngine power:
520HPEngine type:
6WG1-TCG62Axle drive:
6x4, LHDGear box:
FAST 12-shift manual transmissionRemarks:
Optional mounted with MORO, BP vacuum pumpSouth American clients purchased ISUZU GIGA 520HP sewer jetting truck full relay on the advanced features of ISUZU LHD VC66 truck chassis, equipped with Japanese technology 6WG1-TCG62 diesel engine, with efficiently horse power can be 520HP, 6 cylinder and four stroke, matched working with FAST 12 shift manual gearbox, convenient and safety for driving, and very lower fuel consumption. The 20000Liters round shape tanker body kit is designed based on Q355 material, thickness for tanker 6mm and cover 8mm, with two compartment 4000L water tanker in the front and 16000L vacuum tanker at rear. Equipped with Italy brand JUROP PVT400 vacuum pump and efficiently suction flow rate can be up to 2430m3/h, equal to 40.5m3/min and 675L/s. And matched working with PINFL high pressure jetting pump. Top mounted with electric control wonder horse and efficiently length 10m. Therefor, the Isuzu combined jetting vacuum truck mainly used for dredge sewer and liqiud sewage suction.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
Manufacturer: CEEC Trucks Group
Features:
1. Truck Chassis: ISUZU GIGA VC66 truck chassis, LHD, 6x4, 6X6 model optional
6WG1-TCG62 diesel engine 520HP and emission 16L.
2. Tanker Body Kit: Full welding round shape, Q355 steel, thickness for body 6mm and cover 8mm
Water Tanker 4000Liters, Sewage Tanker 16000Liters.
3. Vacuum Pump:Italy JUROP brand PVT400 model, efficiently flowrate 2430m3/h
Optional MORO, BP, WEILONG, CEEC, etc.

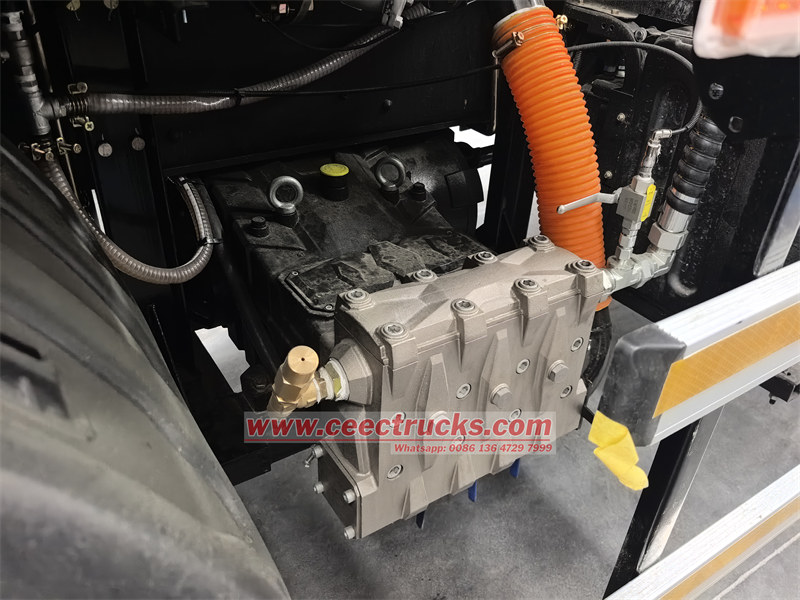

4. High Pressure Pump: Germany brand PINFL vacuum pump UV215 model, with working pressure 22Mpa and flow rate 215L/min.

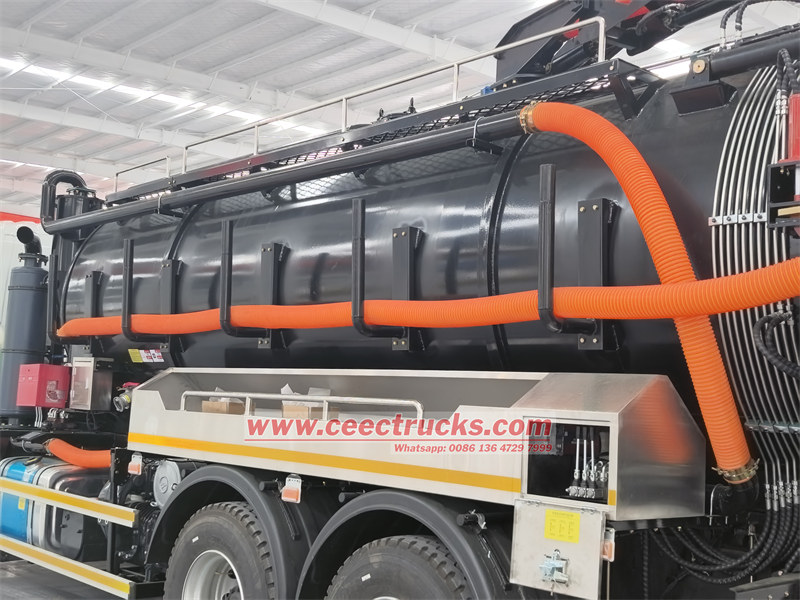

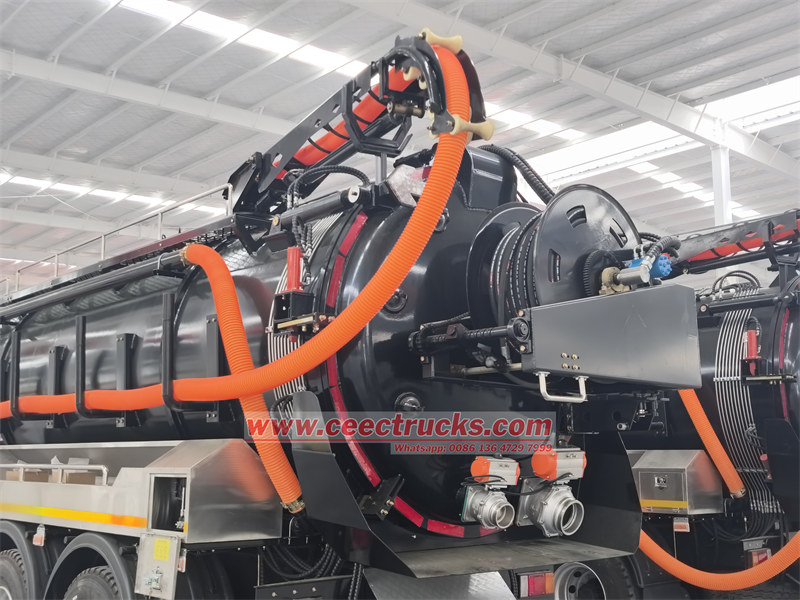

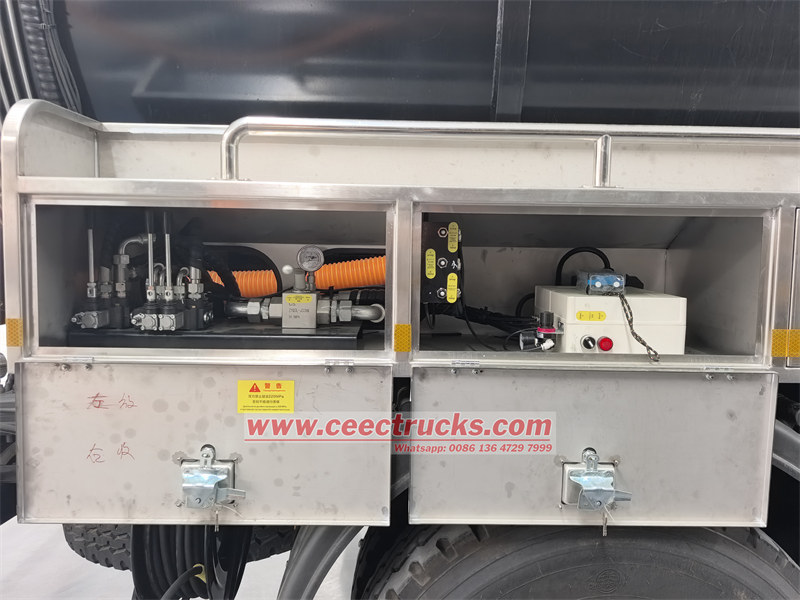

5. Specialized Equipment: Top mmounted wonder hose, hydraulic control type, 7-10m hose reel.
| Product name | ISUZU GIGA VC66 LHD / RHD 6×4 10 Wheels 20000L Sewage Jetting Truck Sewage Suction Truck Vacuum Truck Mud Flushing Truck High Pressure Vacuum Jetting Sewage Suction Truck | |
| Vehicle Dimensions, Weights & Capacities | Chassis brand | ISUZU GIGA VC66 |
| Overall dimension (L*W*H) | 105000*2550*3650mm | |
| Wheelbase | 4600+1370mm | |
| Curb weight | 18,000 Kgs | |
| Gross weight | 35,000 Kgs | |
| Axle loads | 7000/26000Kgs (Two-Axis Group) | |
| Chassis | Drive mode | 6x4 |
| Cabin type | Standard roof one bed | |
| Seats | 2 seats + 1 berth | |
| Steering | LHD / RHD optional | |
| Tyres | 10+1 spare tyre, 315/80R22.5 | |
| A/C | Air conditioning | |
| Engine | Enging model | 6WG1-TCG62 |
| Fuel and engine Type | Diesel, 6 cylinders in-line | |
| Horse power | 520HP | |
| Displacement | 15.681L | |
| Other Standard Configurations | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | ABS, Automatically Air-cut Brake | |
| 4 | Tubeless tyres | |
| 5 | Retro-Reflective Marking | |
| 6 | Free Maintenance Battery | |
| 7 | Central Lock | |
| 8 | Power Window | |
| 9 | USB, Radio | |
| 10 | Widened Bumper | |
| 11 | Aluminum Alloy Gas Tank | |
| 12 | Front Chrome Kit for option | |
| Tops Parameters | Loading Capacity Volume | 20,000 Liters ( Other capacity can be customized ) |
| Tank Material | Strengthen high performance wear-resisting carbon steel Q355 with anti-corrosion treatment paint, thickness for tanker 6mm and cover 8mm | |
| Colour | As demands | |
| Logo Paint | As demands | |
| Others | Standard, customized top mounted wonder hose for suction | |
 |
 |

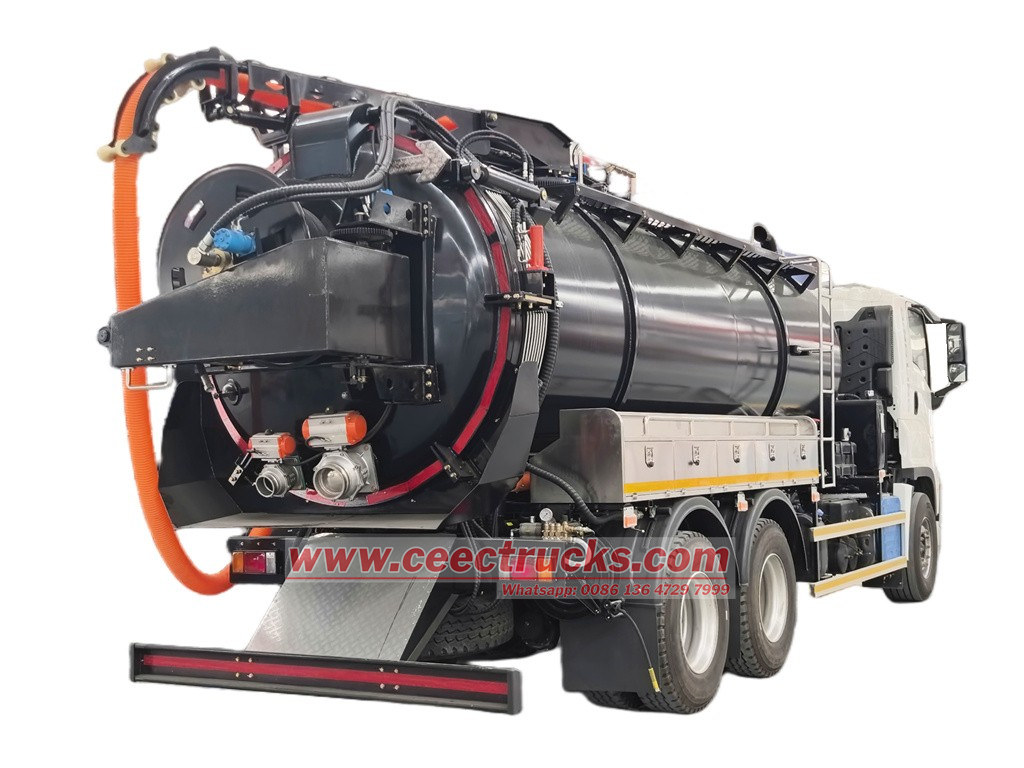

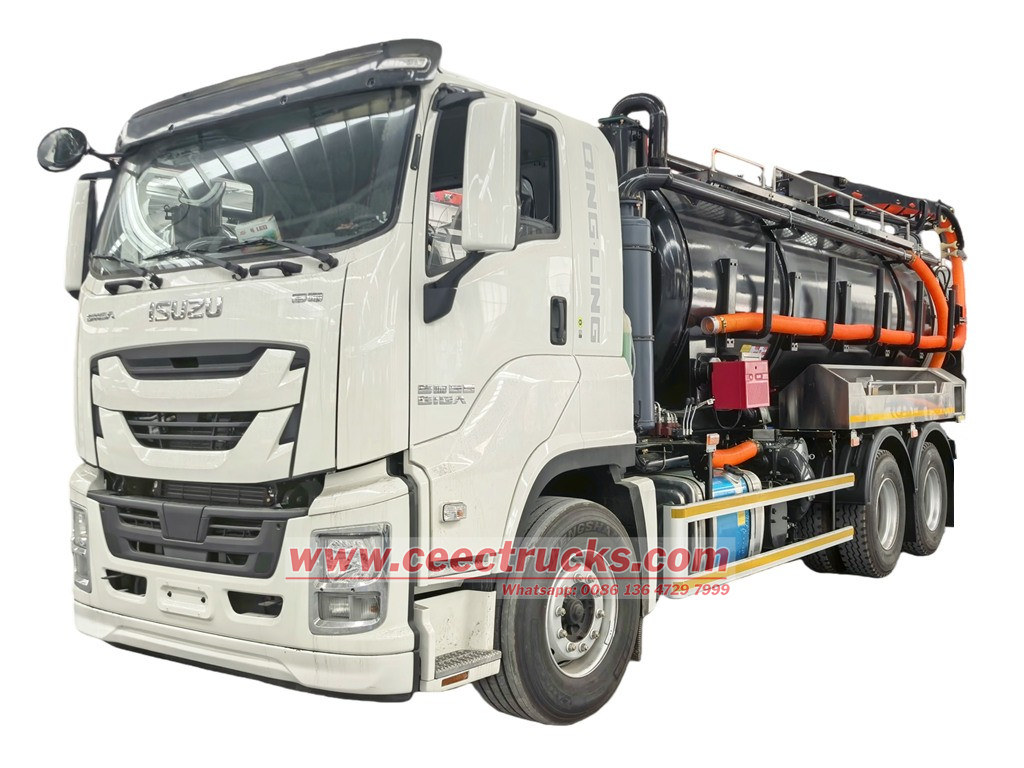

| ISUZU 520HP sewage septic pump jetter truck | Isuzu sewer jetting truck 20000Liters |
| Name | ISUZU GIGA VC66 Sewer Jetter Truck |
| Cabin | GIGA VC66, optional color and painting |
| Driving | LHD / RHD |
| Engine | 6WG1-TCG62 diesel engine, 520HP and emission can be 15681cc |
| Tranmission | FAST 12 shift manual type, 12F & 2R |
| Wheelbase | 4600+1370 mm |
| Tire |
Front: 385/80R22.5, 2 units Rear: 315/80R22.5, 8 units |
| Capacity | 20000Liters / 20CBM |
| Tanker Material | Q355 material, thickness 6mm / 8mm |
| Vacuum Pump |
Italy brand JUROP PVT400 model Flow rate: 2430m3/h Pressure: 1.8bar Speed: 2900rpm |
| High Pressure Pump |
Germany brand PINFL UV215 model Flow rate: 215L/min Pressure: 22Mpa / 220Bar / 3190psi Speed: 10000rpm |

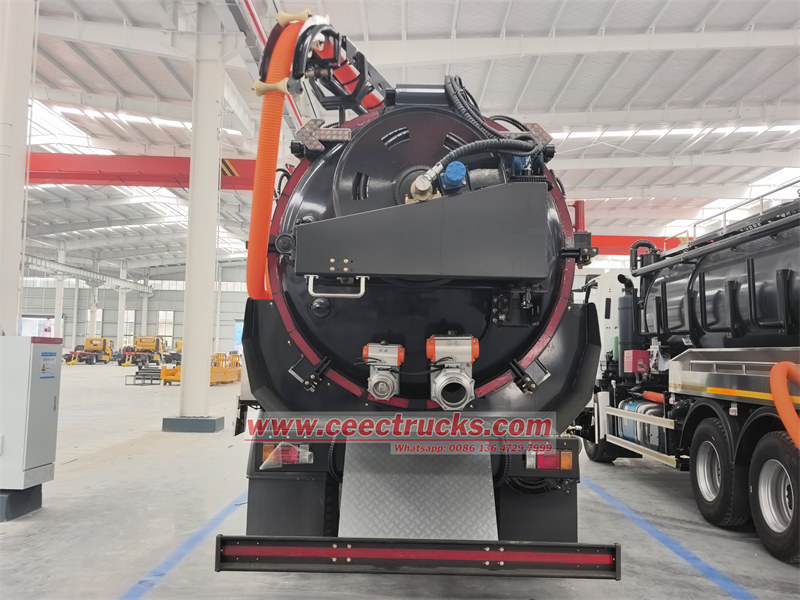

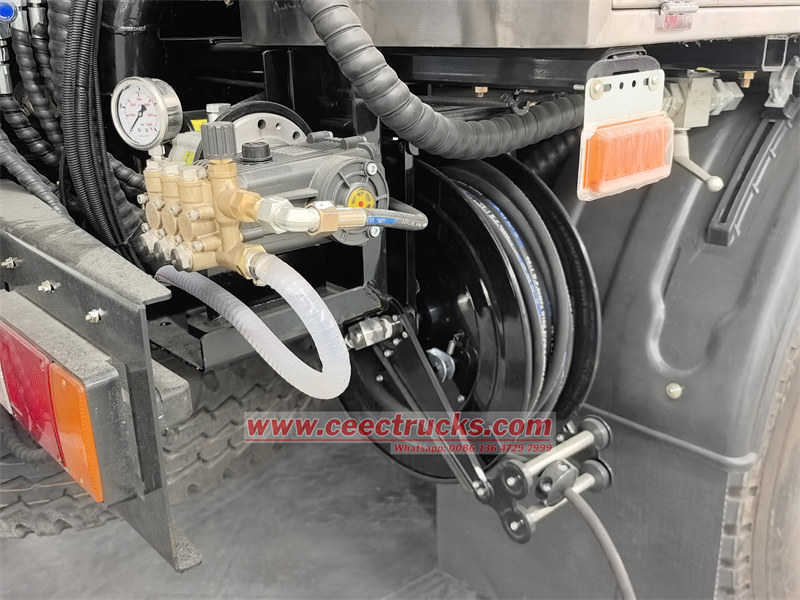

| Hose Reel | Rear mounted, 60m φ19 hose reel with customized 10 sets jetting nozzles |
| Pipe Storage Platform | Two sides mounted with Stainless steel material platform |
| Painting | 100% customized painting and logos |

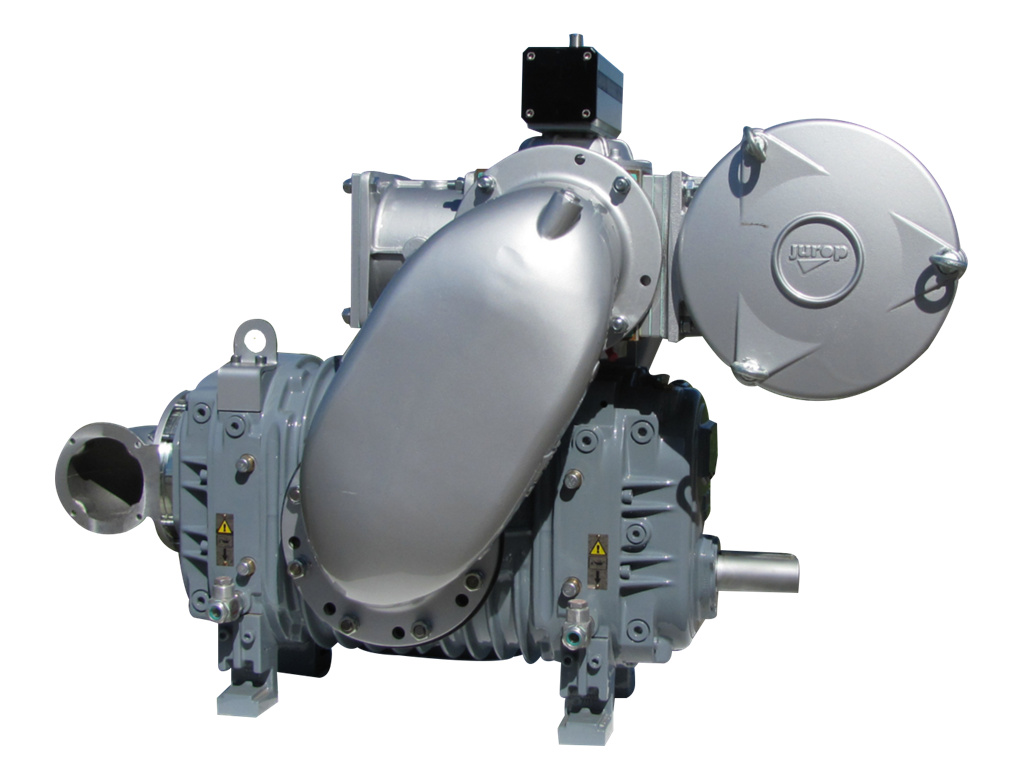

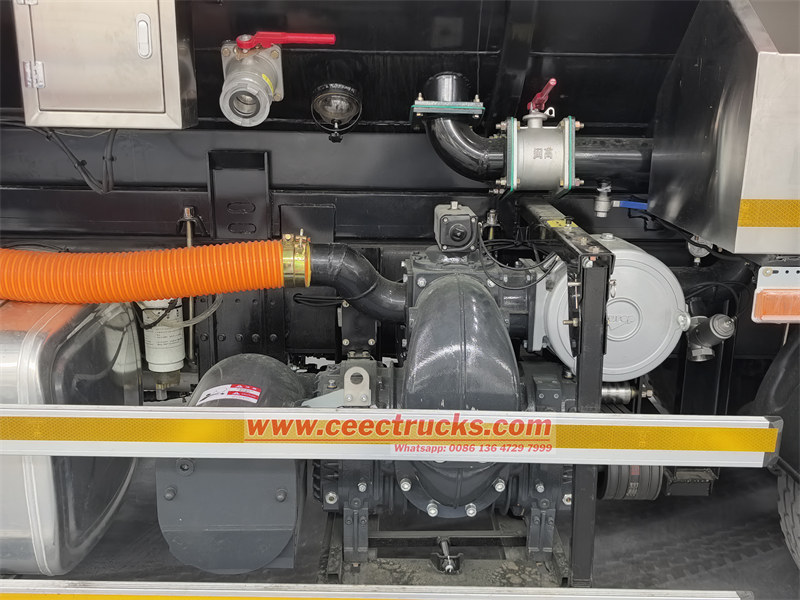

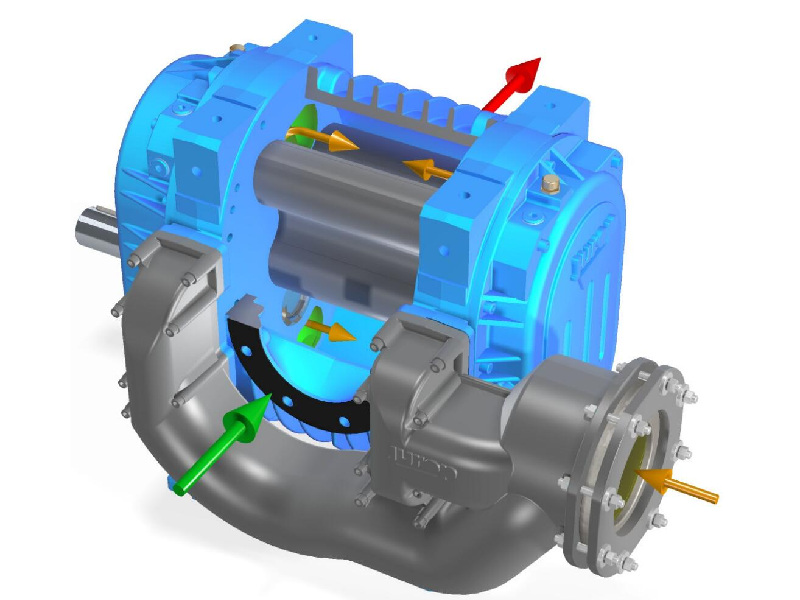

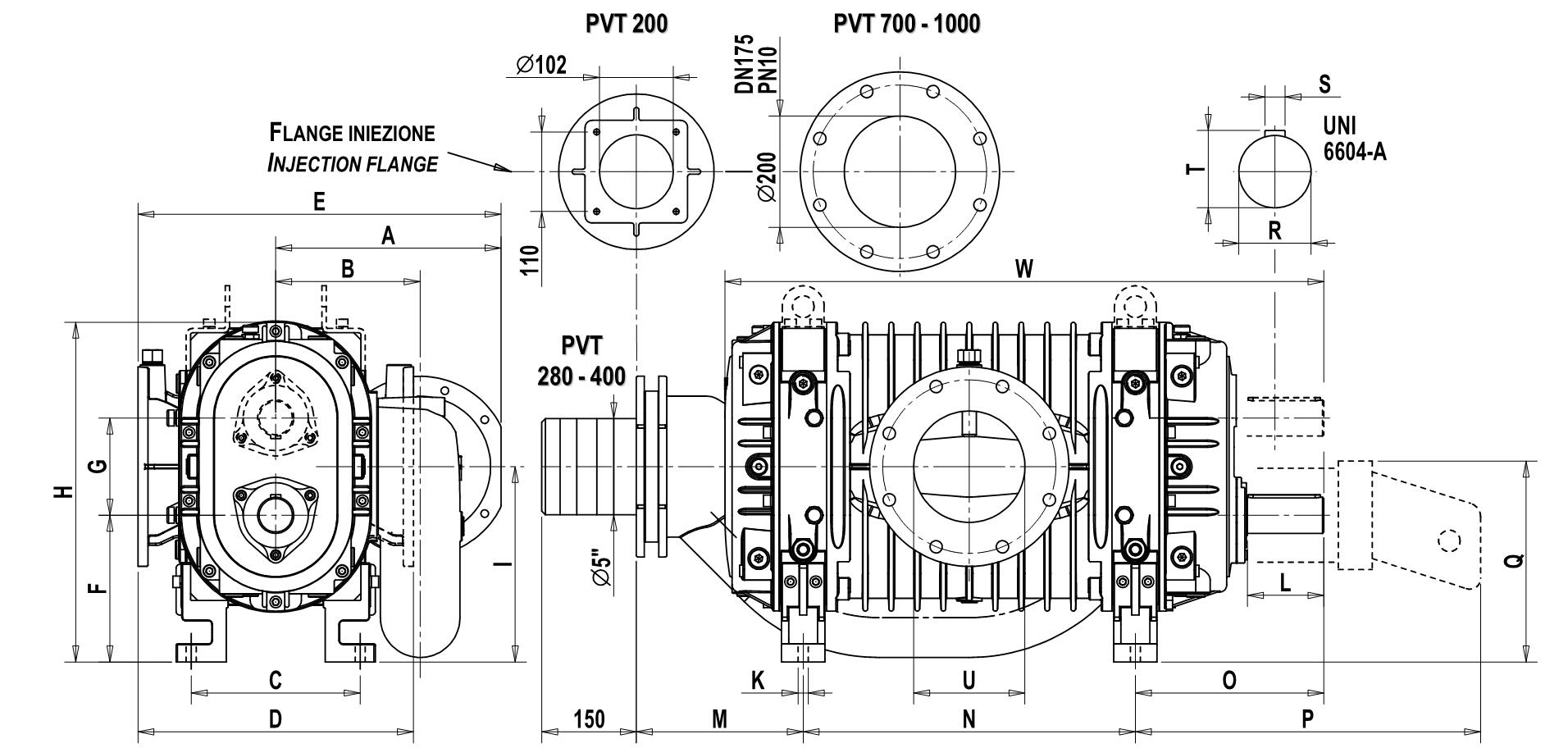

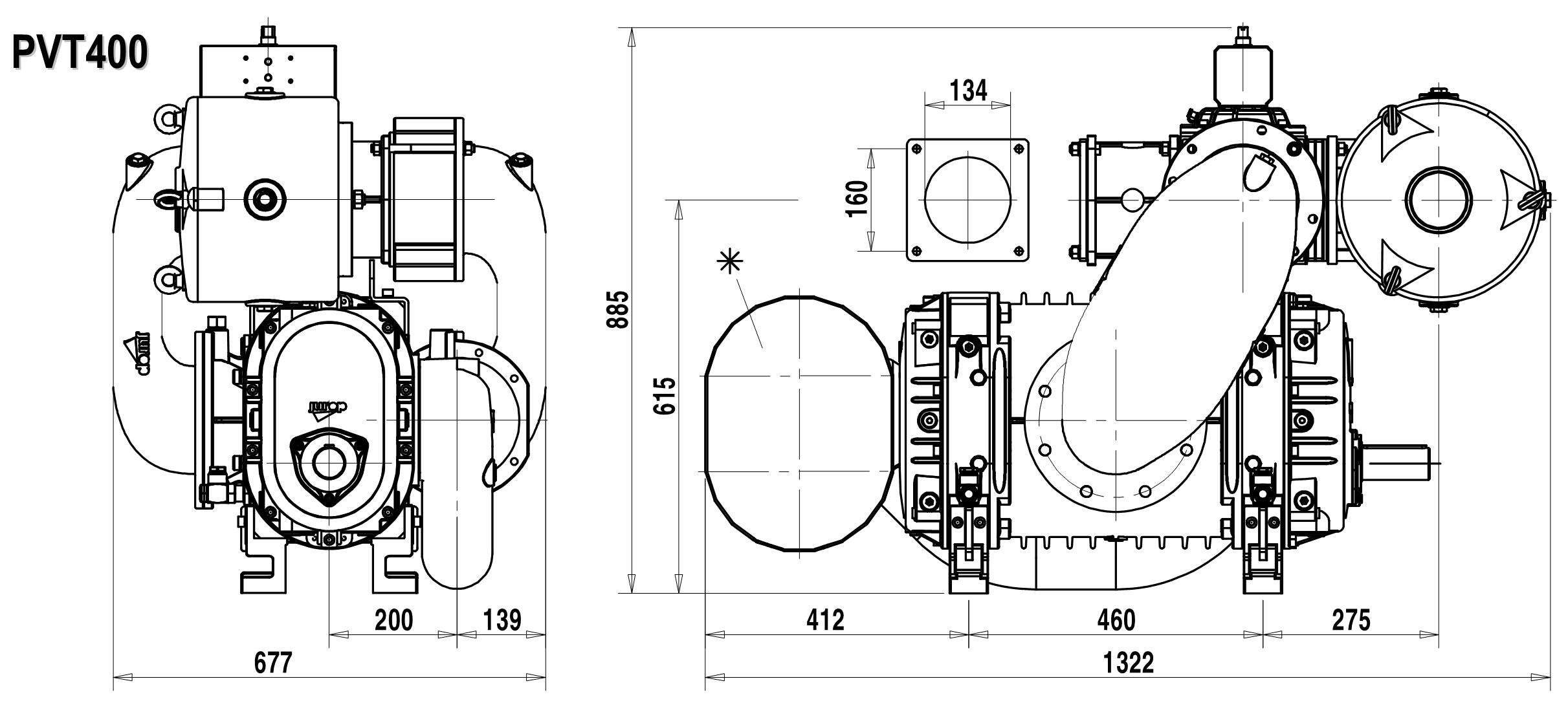

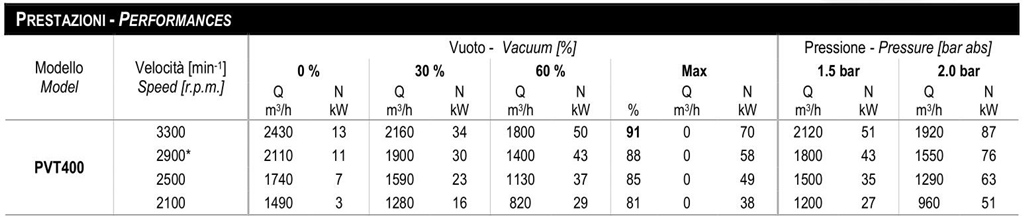

JUROP PVT400 vacuum pump
| Brand | JUROP (MADE IN ITALY) |
| Model | PVT400 |
| Series NO. | J411863 |
| Year | 2025 |
| Max. Pressure | 1.8 Bar |
| Max. Speed | 2900 r.p.m |

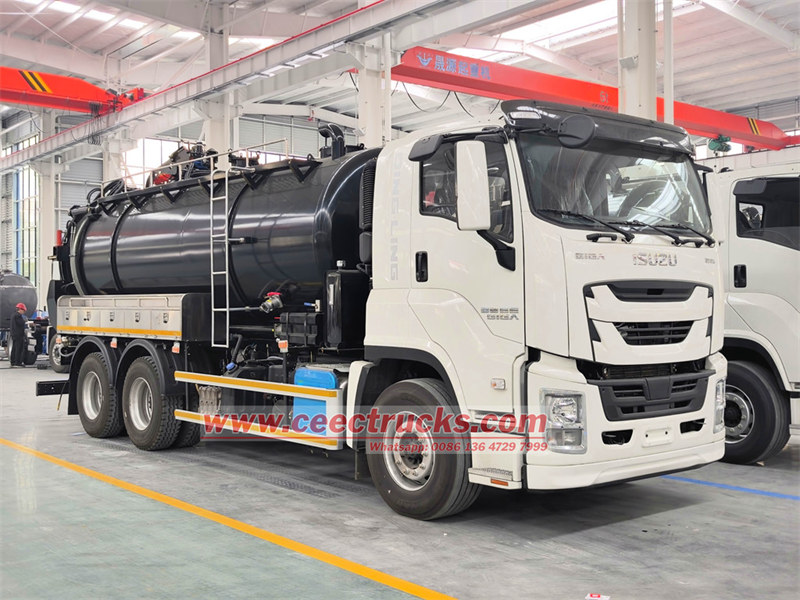

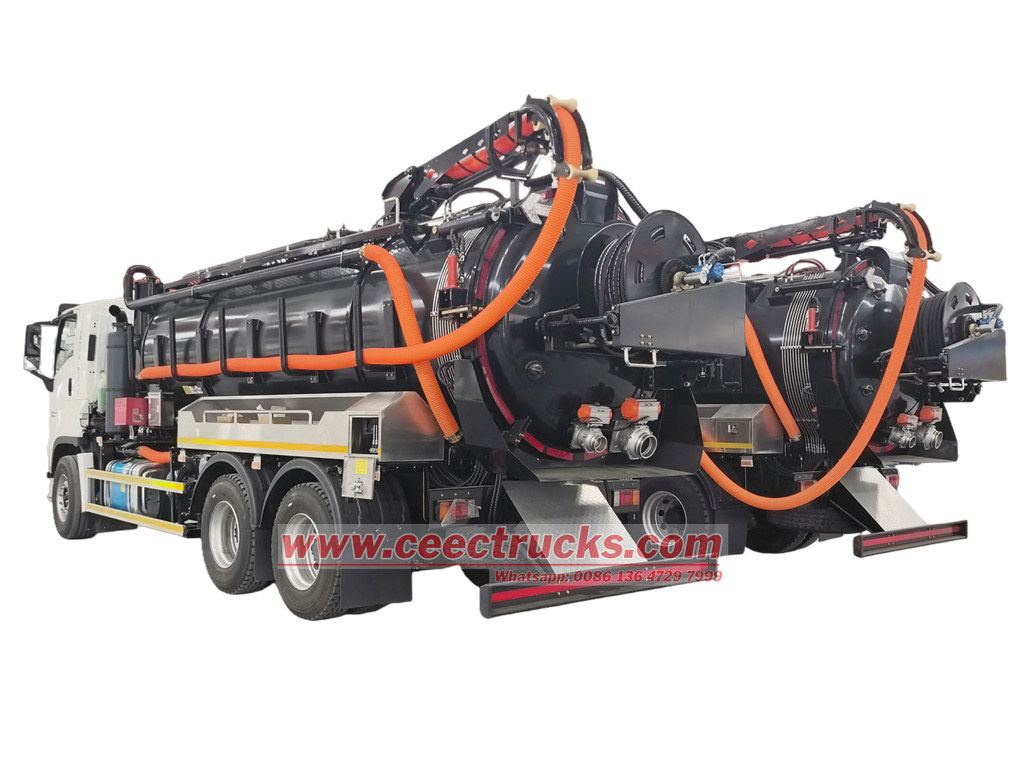

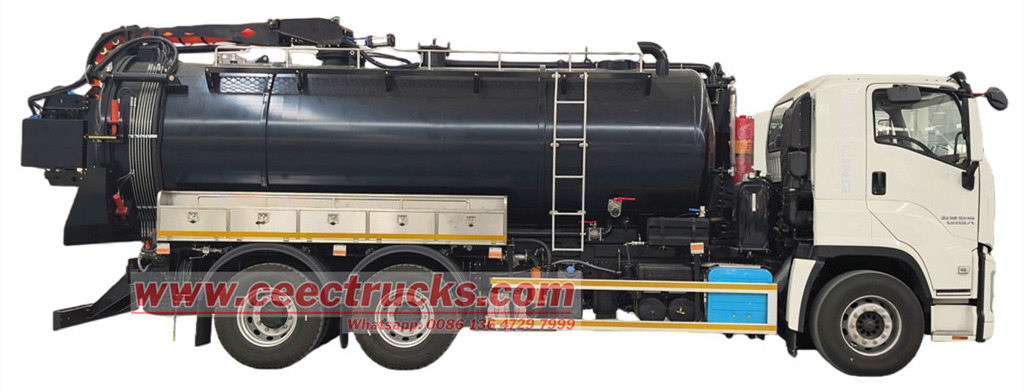

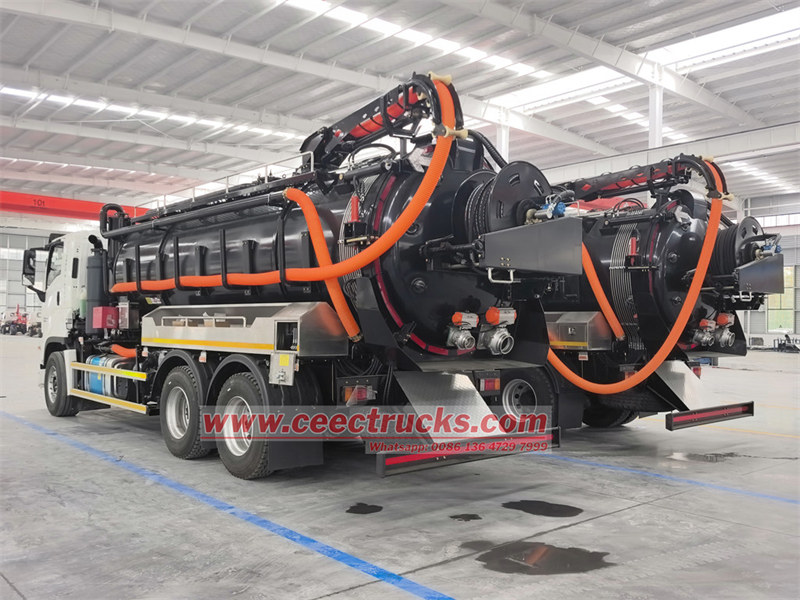

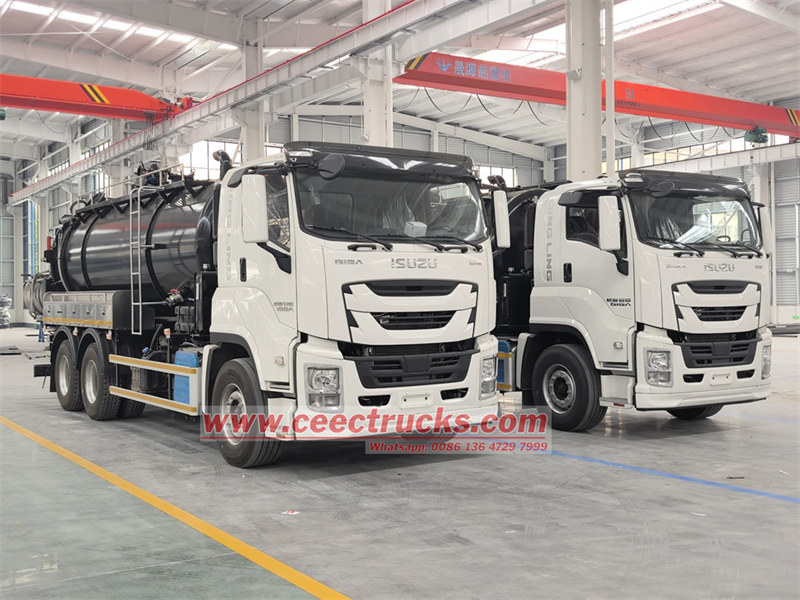

Isuzu GIGA VC66 LHD 520HP 20000Liters combined sewage suction jetting truck, which including 4000L clean water tanker and 16000Liters vacuum sewage tanker. Water tanker matched with PINFL V215 high pressure jetting pump for water jetting and drainage cleaning. Vacuum tanker matched with JUROP PVT400 super vacuum pump for sewage suction and transportation. And the Isuzu sewer jetting trucks widely used for debris suction and cleaning.
★ Japanese ISUZU super diesel engine 520HP, fuel consumption save 20%
★ FAST Manual 12 shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized ISUZU GIGA 6x4 sewer jetting truck exporter
★ Training service for Isuzu combined vacuum jetter truck.
China professional vacuum truck supplier and exporter, we supply high quality cesspool emptier truck and combined sewer jetter truck. We can ensure the fast delivery time and 12 months guarantee for our crane trucks. Our vacuum tank trucks are customized with different type vacuum pump JUROP, MORO, BP brand, and sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
