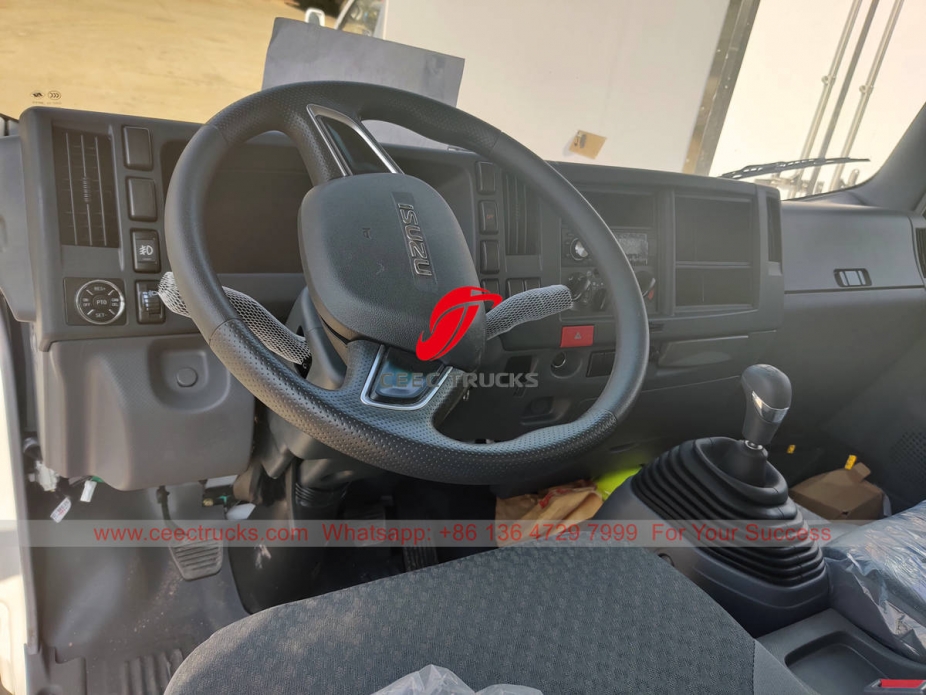

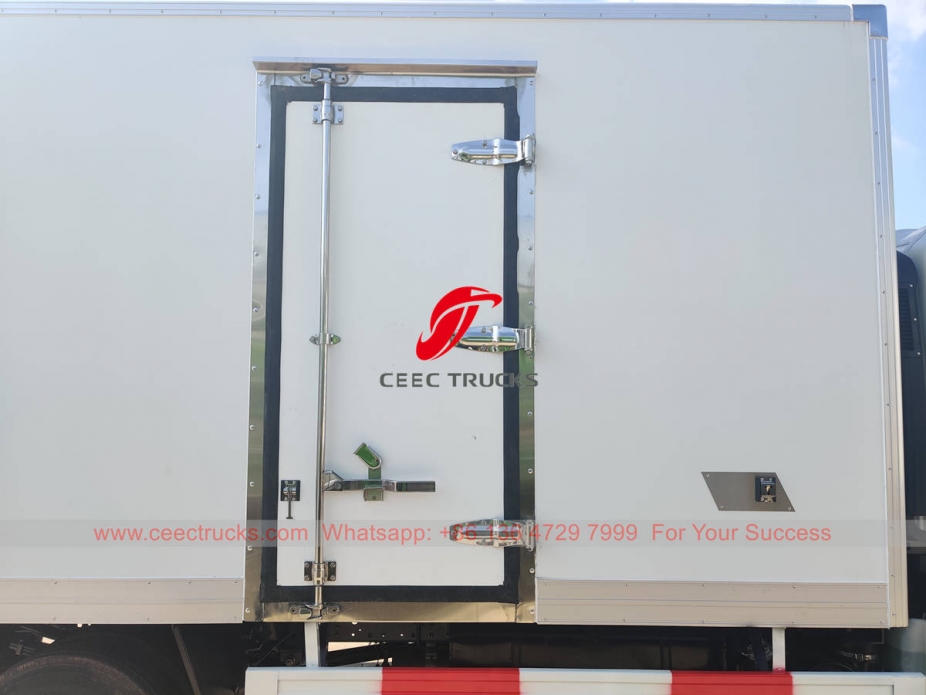

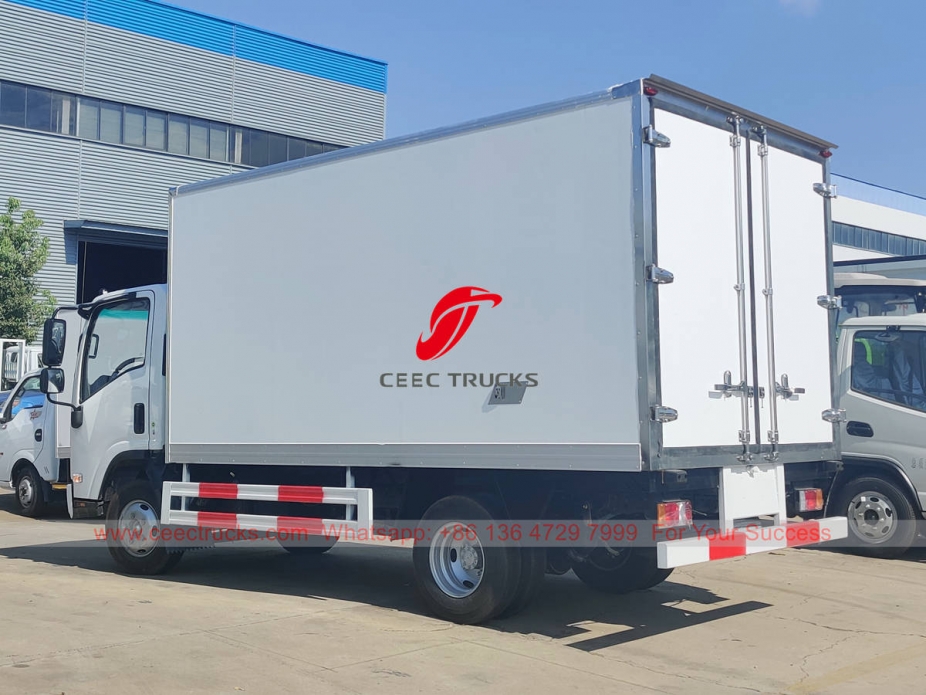

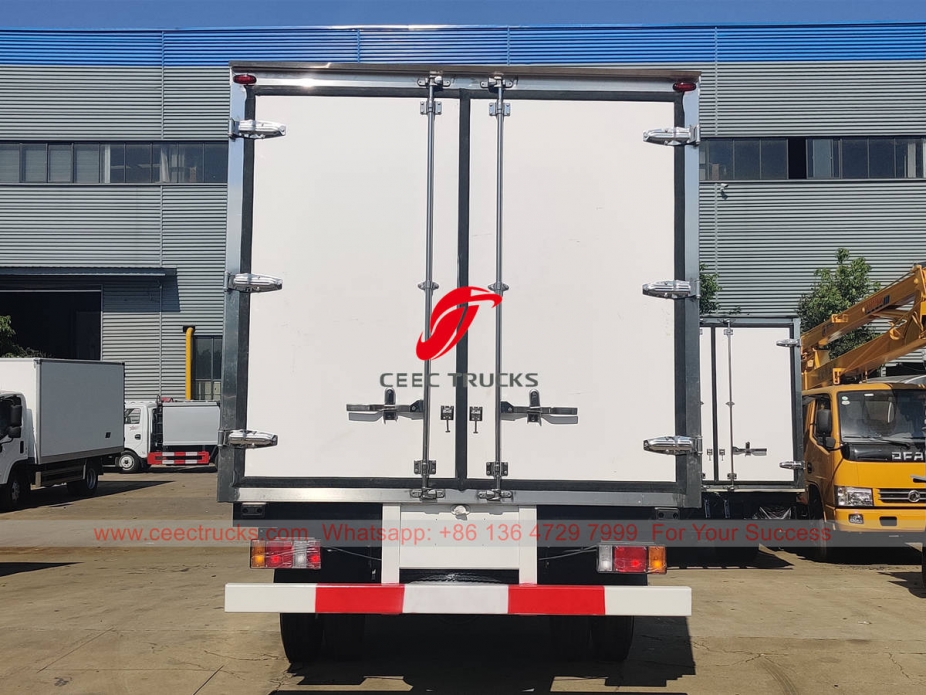

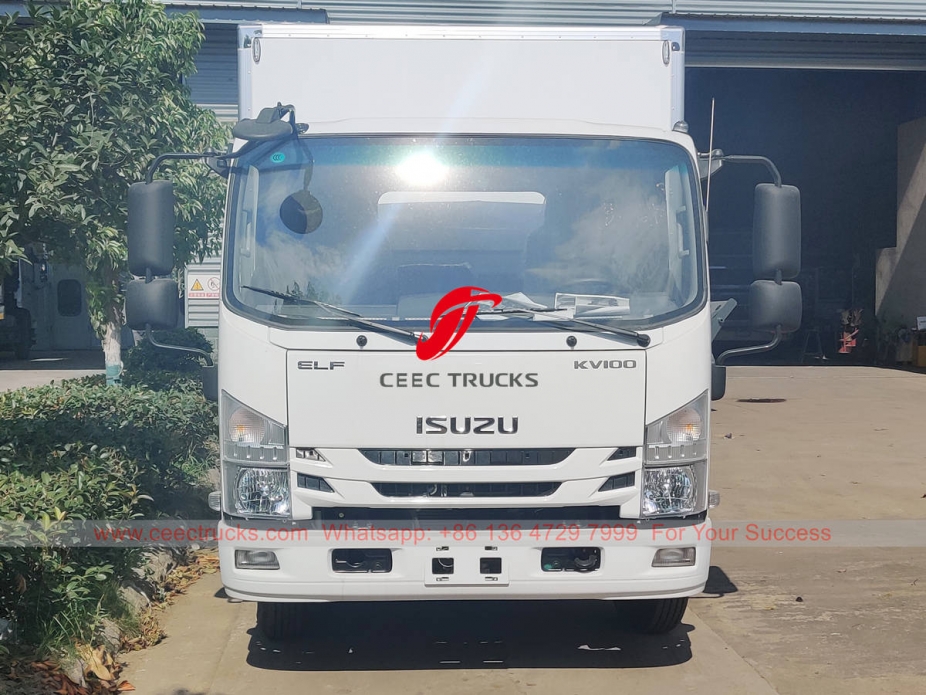

ISUZU ELF refrigerated lorry

ISUZU 15CBM Freezer Truck

ISUZU ELF Refrigerated box truck, ISUZU left hand drive model 4×2 chassis, MSB 5-shift manual gearbox, ISUZU 98HP engine. Equipped with China famous cooling units for high performance, as for van capacity can be 3-25T optional.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

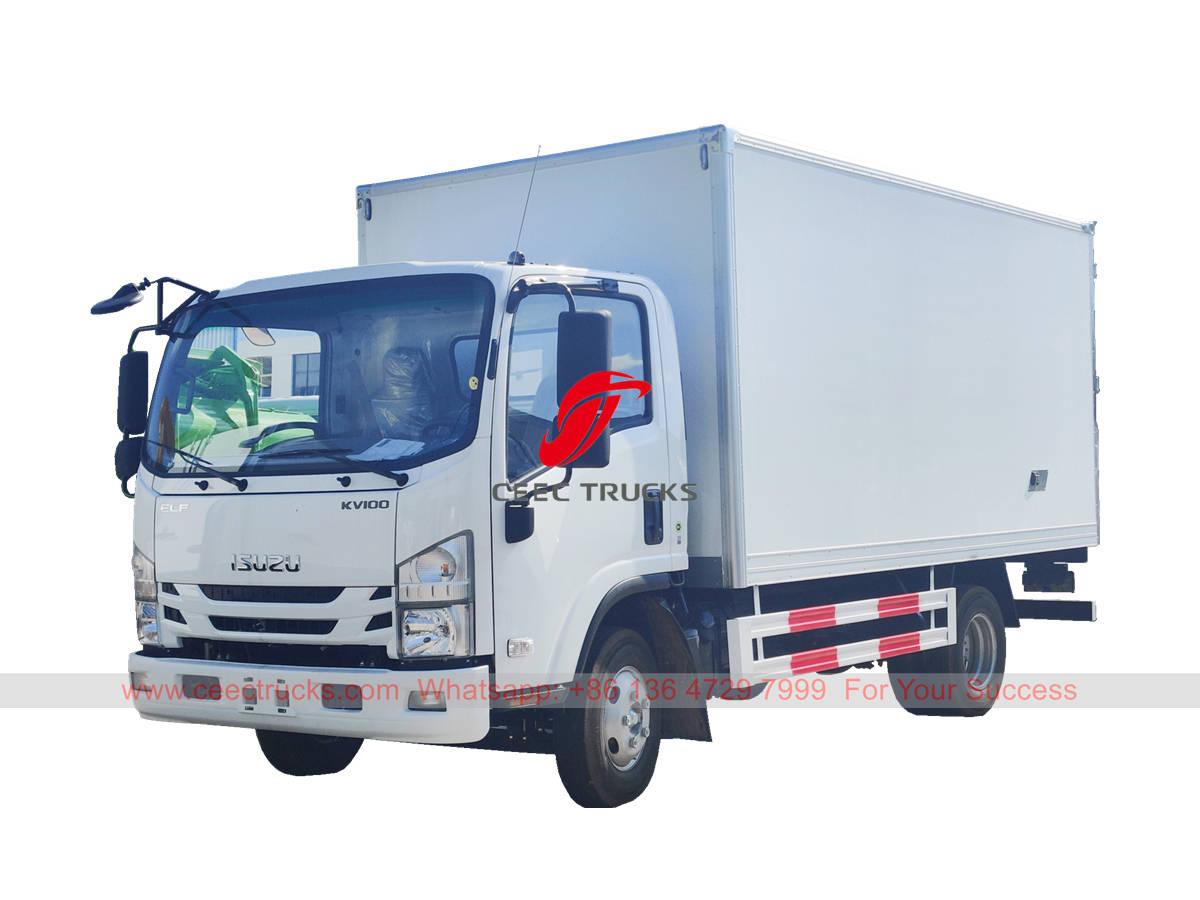

ISUZU refrigerator box truck

 Applications:

ISUZU 15CBM Refrigerated van (also called Refrigerated box truck ISUZU, ISUZU 5 Ton freezer truck, ISUZU NKR chiller lorry, ISUZU reefer truck, ISUZU 6 wheeler refrigerator van truck) is a van or truck designed to carry perishable freight as specific temperatures.


Refrigerated trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize carbon dioxide as a cooling agent.


CEEC TRUCKS can supply reefer box trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.


 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.

---- Refrigeration system brand can be optional.

---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.



 Specifications:



  ISUZU Refrigerated van (15 CBM)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

5995* 2270 * 2980 mm

GVW / Kerb Weight

7,300kg / 3,800kg

Cab

Cab Capacity

2 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

98 HP (72 KW)

Displacement

2999 ml

Emission Standard

Euro 5

Chassis

Drive Type

4X2 (left hand drive)

Transmission

MSB 5-shift speed levers with 1 reverse

Wheelbase/No. of axle

3360 mm / 2

Tire Specification

7.00R16

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body size

4070×2060×1860(mm)

Load Capacity

3 Tons

Panel Structure

Fiber glass sandwich polyurethane

Front/Side/Rear panel

Panel Thickness: 85mm

Roof/Floor panel

Panel Thickness: 105mm

Lights & Switch

Led, Water-proof, 12V/24V convertible

Lowest temperature

-5°C or -25

Equipment

Standard: Aluminum alloy flooring, rear doors.

Optional: 1. Hydraulic Tailift and Cargo Control System.

2. Side doors, side steps and ladders.

3. Different temperature area control.

4. Customized floor roller design for convenient working.




CEEC TRUCKS is a premium refrigerated van trucks manufacturer. We can provide ISUZU reefer box truck, HOWO chiller lorry, FOTON refrigerator truck, Dongfeng freezer truck, etc. The capacity of refrigerator van can be 3-25 tons. Our refrigerated trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Equipped with famous domestic chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, and Sinotruk

Equipped with famous refrigeration units, Thermo King & Carrier, & Guchen Super Snow refrigeration units.

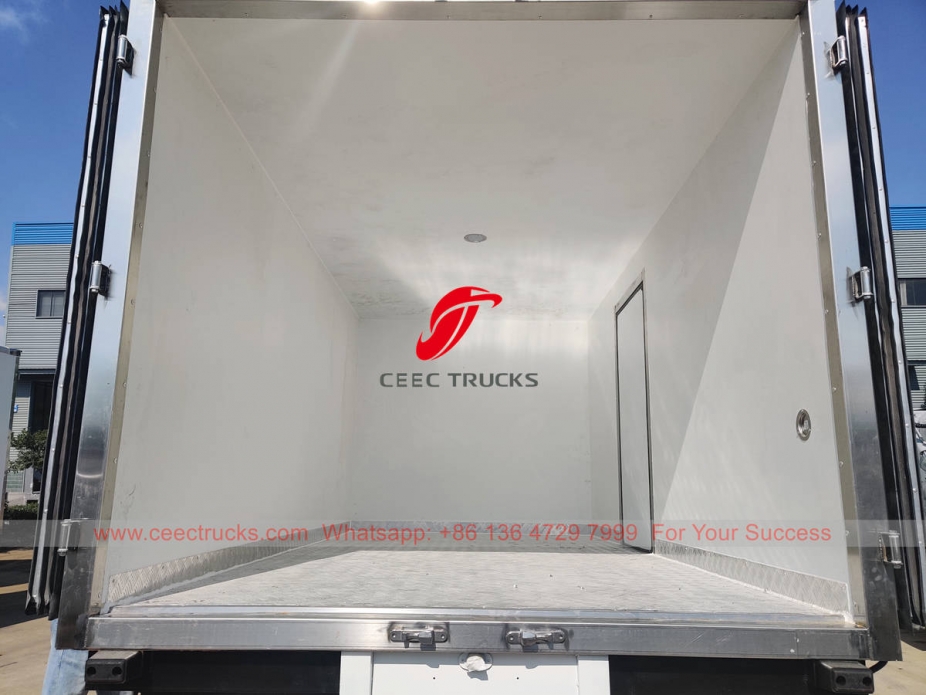

Refrigerated truck body structure is sandwich structure: Fiberglass + PU + fiberglass. All the double surface sandwich polyurethane panel and door are 100mm thickness, the Fiberglass plate thickness is 2.5mm for the outer and inner skins; the polyurethane foam density is 45-50kg/m3. (All is the best material in China and have excellent insulation performance).

The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.

Sandwich panel thickness can be changed according to customers’ requirements: 60mm, 80mm, and 100mm.

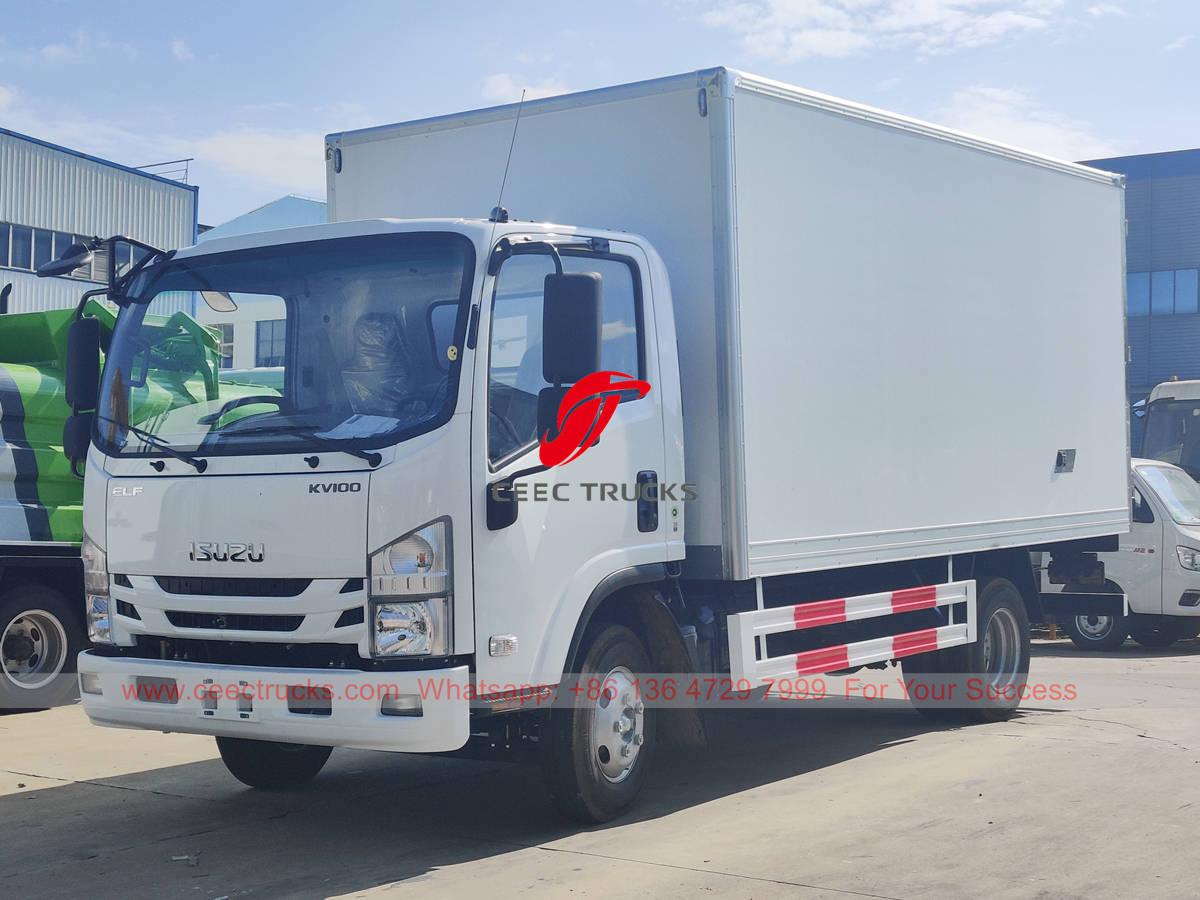

ISUZU freezer lorry

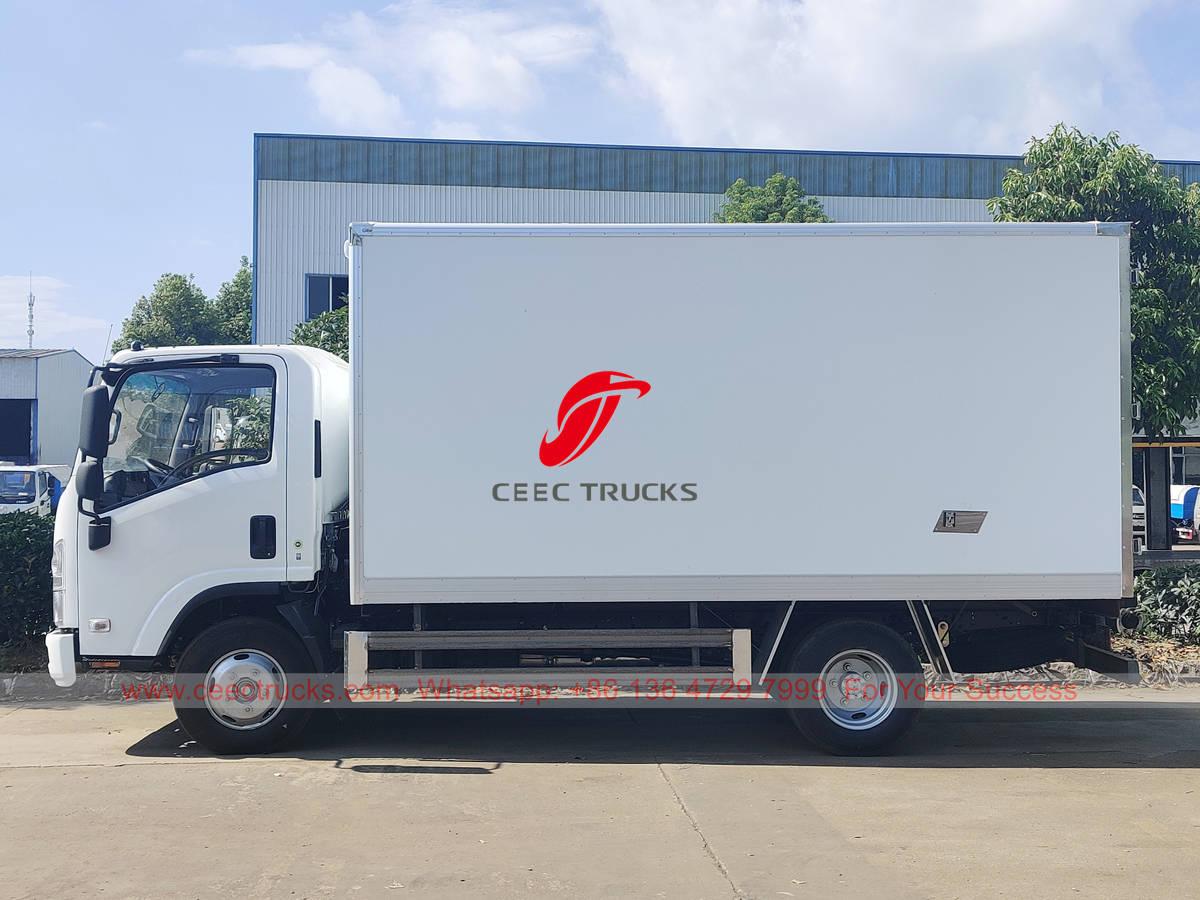

ISUZU reefer truck

CEEC TRUCKS is a leading exporter of reefer truck in China. We possess over 10-year export experience of refrigerated vehicls. We can ensure the fast delivery time and 12 months guarantee for our freezer box trucks. Our refrigerator trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
