Original factory ISUZU 16m High Ladder Fire Rescue Truck

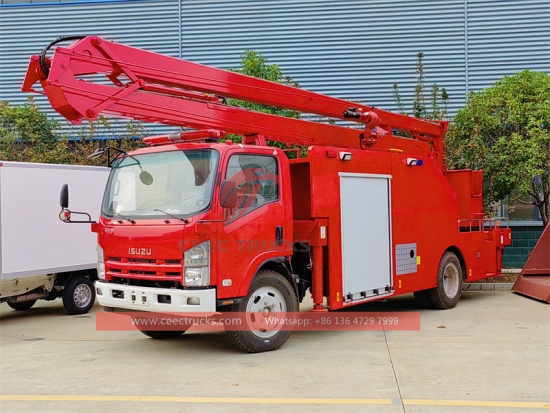

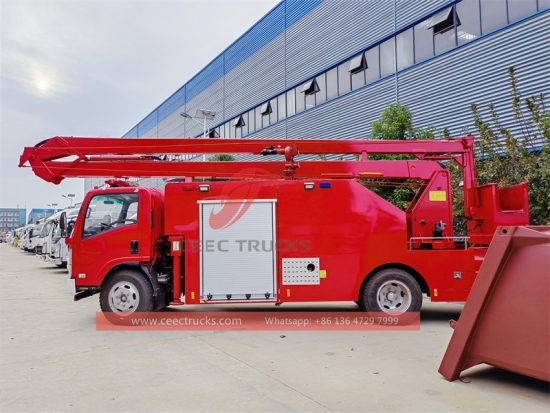

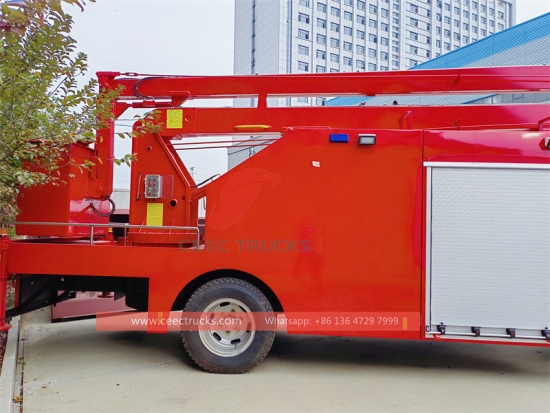

ISUZU 16m High Ladder Fire Rescue Truck

ISUZU 700P high ladder fire rescue truck, ISUZU ELF Left Hand Drive model 4x2 chassis, MLD 6-speed manual gearbox, ISUZU 190HP diesel engine, painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

Isuzu high ladder fire rescue truck



ISUZU High Ladder Fire Rescue Truck (also called ISUZU Fire fighting vehicle, ISUZU NPR water fire rescue truck, ISUZU 4×2 Fire rescue truck, ISUZU fire rescue truck, ISUZU fire engine manufacturer) is apply for fire brigade of large and medium city, petrochemical enterprises, airports and harbors and so on, to put our large area fire of oil and other substance.


CEEC Trucks can supply water fire truck, foam fire truck, Foam and powder fire vehicle, Emergency fire truck, Fire pumper, fire rescue vehicle, CAFS fire trucks and so on.


All our fire fighting trucks with huge fire equipment and you can put fire-fighting immediately.

 Key Features:


---- ISUZU chassis, perfect performance

---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.

---- Water tank and Foam tank capacity can be optional.

---- Easy operation and easy maintenance.

---- Various types of fire equipment are available.

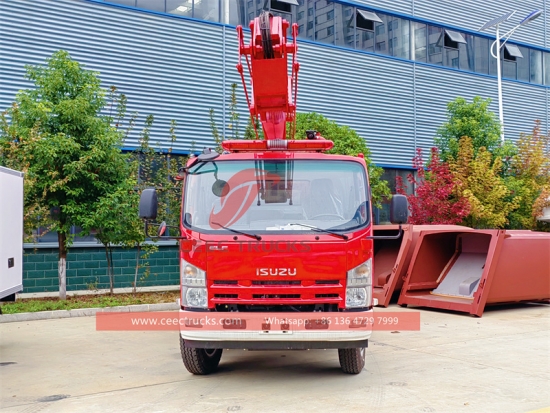

Isuzu High Ladder Fire Rescue Truck


Vehicle Brand


Chassis Brand


Overall Dimension

7000 * 2350 * 3150 mm

GVW / Kerb Weight

10,055kg / 5,300kg


Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner


Fuel Type


Engine Brand



190 HP (141 KW)


5193 ml

Emission Standard

Euro 5


Drive Type

4X2 (left hand drive)


MLD 6-speed levers with 1 reverse

Wheelbase/No. of axle

4175 mm / 2

Tire Specification


Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h


Metallic paint


Tank Capacity

2,000 L water tank

Tanker Material

Carbon Steel

Fire pump

CB10/30, 30L/S

Fire pump location

Center or rear

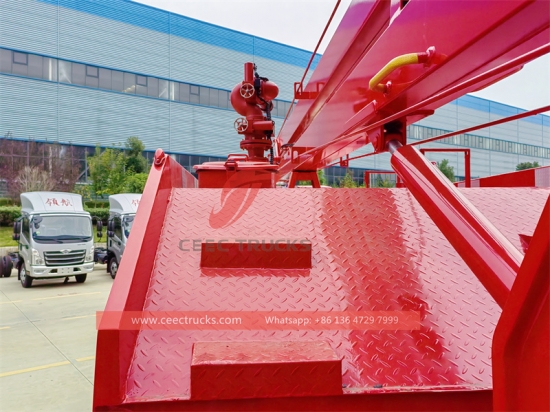

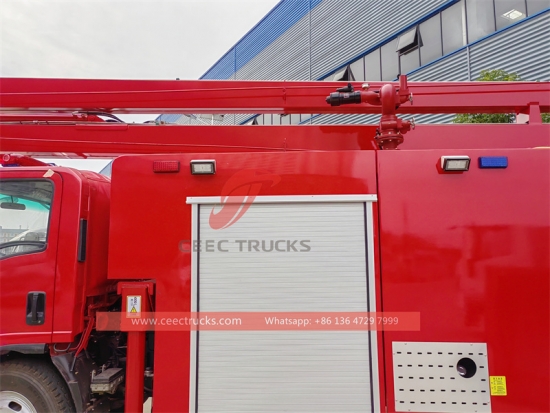

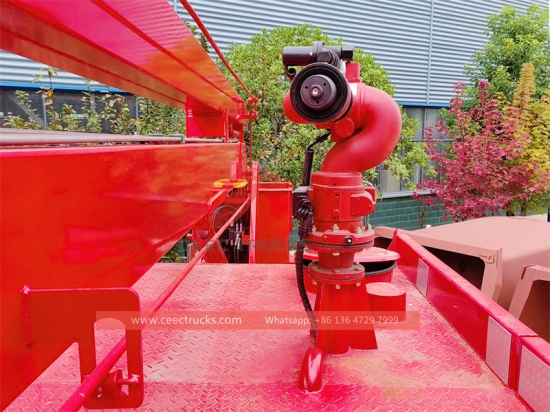

Fire monitor

Water jet distance: ≥45m / Foam jet distance: ≥40m

Electronic alarm

1.2 m long

Cage Rated Capacity

200 kg

Working Height

16 m

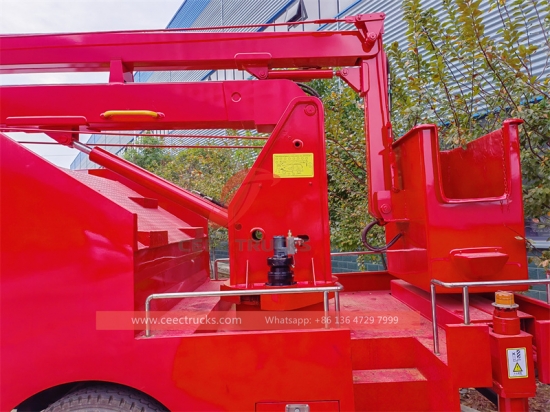

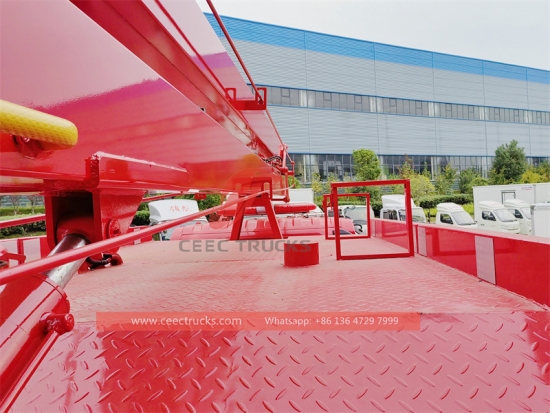

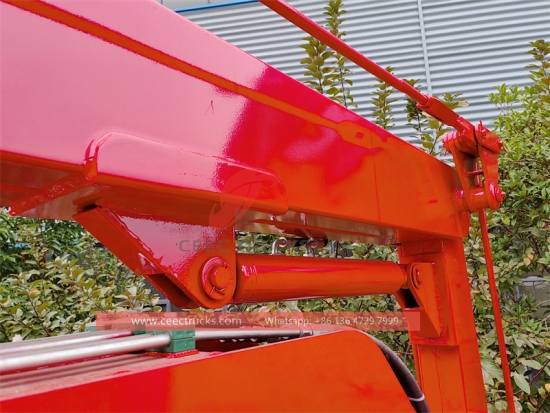

The beam is articulated & telescopic extension type, hydraulic actuated and controlled


Slewing range is continuous 235° (minimum) with a slewing speed of maximum 15° per second.


Control both on the ground and remote control in cage

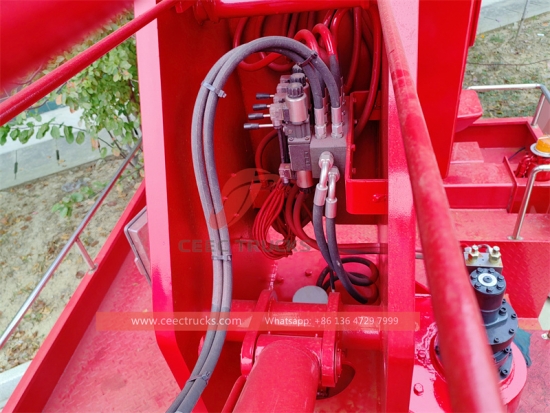

Safety Device

Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump

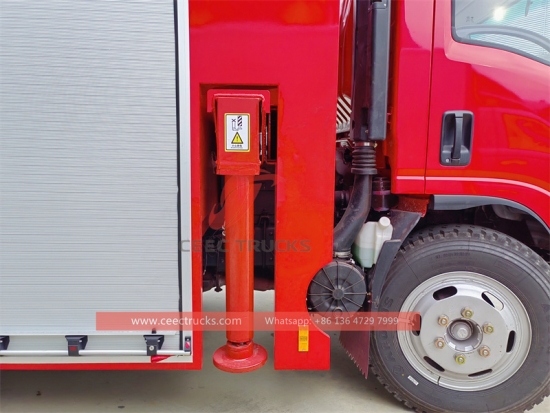

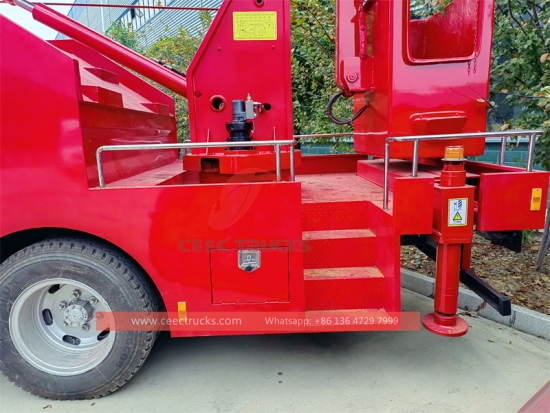

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

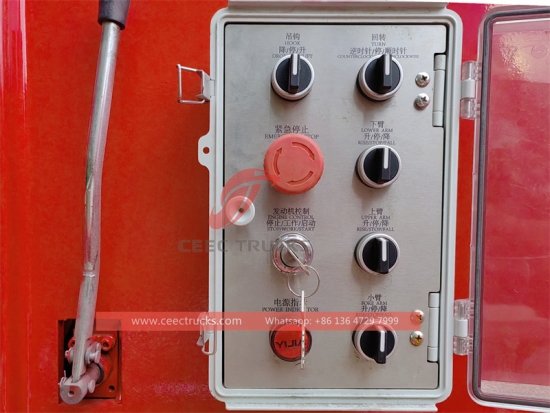

Control panel

English or Your language

All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……


** Back alarm and Camera can be equipped.

** Standard carbon steel, stainless steel optional.

** USA or Germany fire pump can be optional


CEEC TRUCKS is a professional special purpose vehicles manufacturer. We produce water tank fire truck, dry powder fire engine, water-foam fire fighting truck base on chassis ISUZU, HOWO, Dongfeng, FOTON, etc. We can also provide ISUZU tractor truck, ISUZU refueling trucks, ISUZU water tanker trucks, ISUZU garbage compactor trucks, ISUZU dump trucks, etc. Our special purpose trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Euro 5 type, ISUZU engine, super powerful

Water tank and foam tank capacity can be optional.

12 months fast moving spare parts for FREE

Authorized ISUZU fire fighting trucks exporter

Easy operation and easy maintenance

Isuzu high ladder fire rescue truck


Isuzu high ladder fire rescue truck

CEEC TRUCKS is a leading exporter of fire vehicles in China. We possess over 10-year export experience of fire fighting trucks. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.

---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely


CEEC garbage compactor truck factory review

---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...


 export documents
Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
