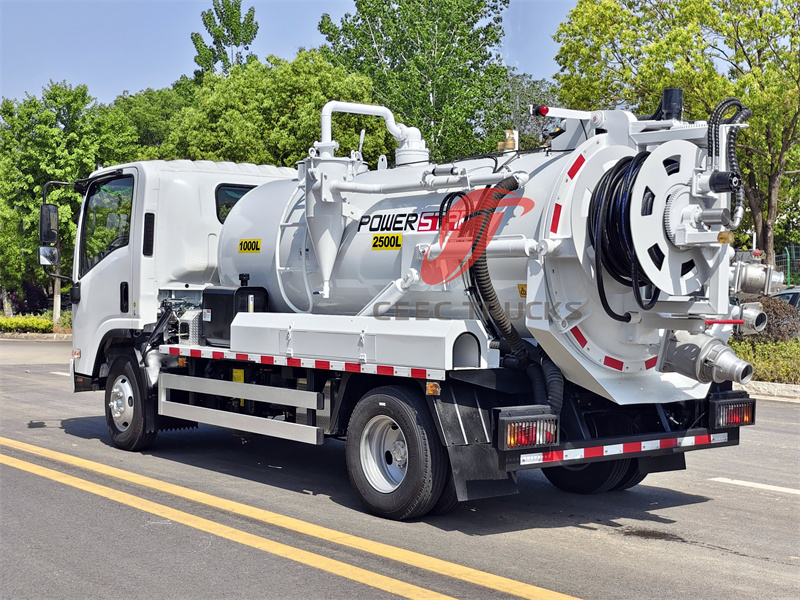

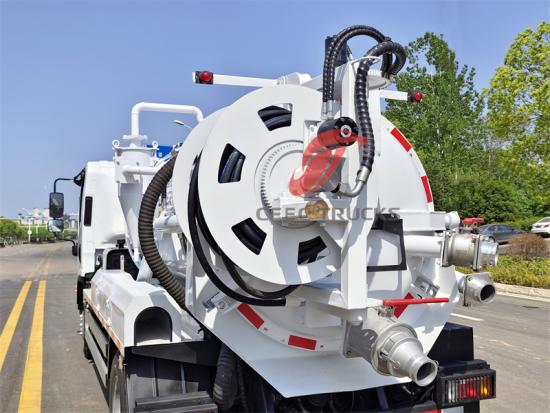

ISUZU NPR Combined Vacuum Jetting Tanker

In the field of municipal sanitation, ISUZU ELF Clean Combined vacuum Sewage Tanker has become an industry benchmark with its excellent performance and multifunctional design. Equipped with a powerful 4HK1 series engine with a maximum horsepower of 190Ps, combined with a high-pressure cleaning pump (pressure 16-19Mpa) and a sewage suction system, it can quickly dredge sewers, septic tanks and other complex scenes. The tank volume is up to 8 cubic meters, and the operating efficiency is extremely high. It adopts a modular design and supports optional front reels, liquid level gauges and sprinklers to meet diverse needs. The ISUZU NPR chassis has a sturdy structure, flexible wheelbase (3815-5500mm), strong passability, and is optimized for narrow urban roads and harsh environments.

Work capacity:
3000L sewage tank,1000L clean water tank
Engine power:
120HP
Engine type:
Isuzu 4KH1CN6LB
Axle drive:
4x2, left hand drive
Gear box:
Isuzu MSB 5-speed,manual
Remarks:
Equipped with Hangzhou Weilong vacuum pump and Italy HPP high pressure water pump

Inquiry now

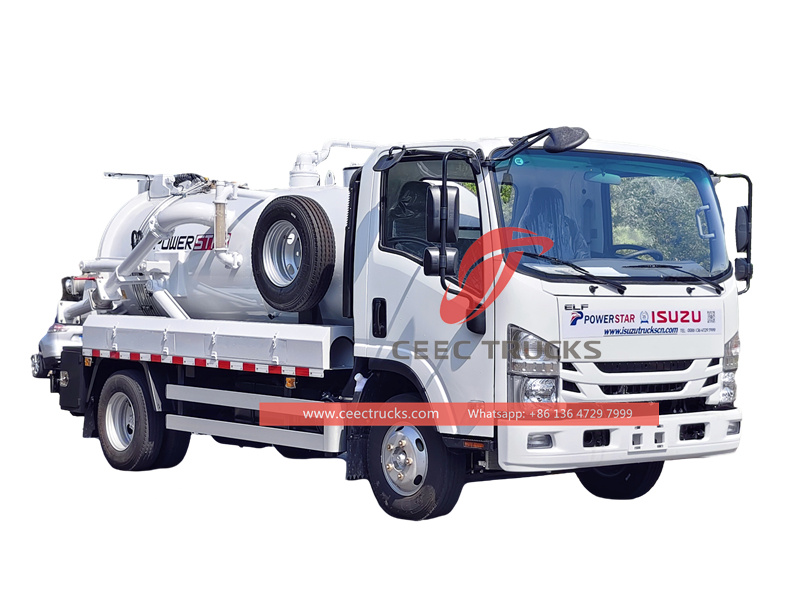

ISUZU ELF Clean Combined vacuum Sewage Tanker

● 30 years experience on combined sewer jetter truck designing

● Professional sales team which will help you to choose suitable truck.

● Build strict QC team to guarantee the quality

● Fast delivery time, Quick 10 days shipping time

● 24 months long guarantee time assurance

Specification:

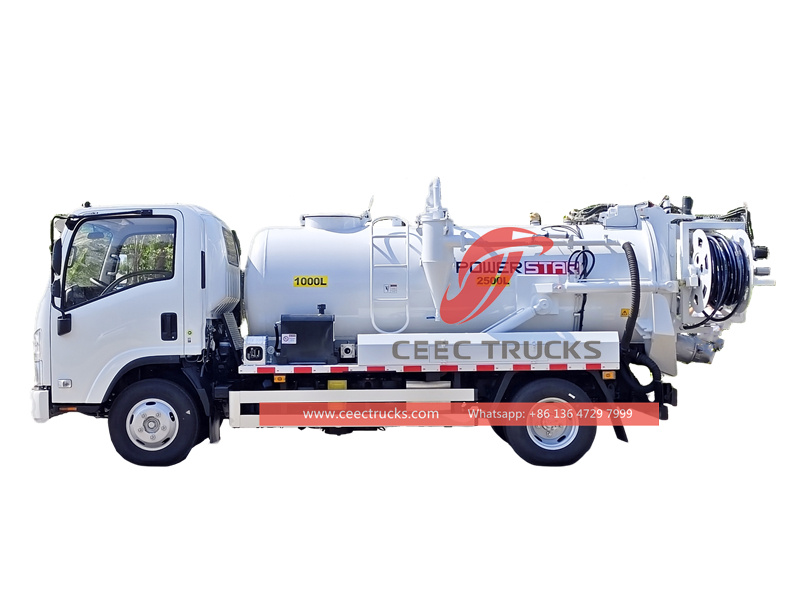

Isuzu NPR septic tanker truck

Isuzu NPR septic tanker truck
Vehicle Description
Overall dimensions	630022502550mm
GVW	13000kg
Curb weight	5600kg
Sewage tank (m3)	3+1
Drive system	4*2
Chassis Description
Chassis brand	ISUZU
Steering	LHD
Cab	ISUZU ELF,single row, 2 seats,with A/C
Wheelbase	3815mm
Tire specification	235/75R17.5
Tire quantity	6 tires and 1 spare tire
Engine	Engine model	4HK1-TCG61
	Emission level	EURO 6
	Displacement/output	5193ml/151kw
	Horse power	190HP/2250rpm
	Weight	456Kg
	Fuel	Diesel
Gear box	Model	ISUZU MLD
	Number of gears	6-speed
Brake system	Air break
Axle	Front	4.8T
	Rear	8T
Fuel tanker	Type	Stainless steel
	Capacity	140L
Tanker Description
Tanker	Capacity	3000+1000 Liters
	Material	6mm thickness, high quality carbon steel
	Structure	Welding, vacuum tank, Cylindrical
Pump	Type	Water circulation pump
	Flux	68(L/S)
	Rating speed	800~1000(r/min)
	Shaft power	5(kw)
	Features	Low speed, low fuel consumption, low noise, high vacuum, high efficiency
Pipe	Suction and discharge pipe
Special function	Suction time ≤ 5min, effective suction range ≥ 8, Max vacuum degree ≤ 15 KPa, dump angle ≥ 45°
Standard configuration	Equipped with Inspect window,discharge valve,cleaning apparatus,5 meter long suction pipe,oil-water separators,overflow valve,etc. Cylinder vacuum tank can be lifted hydraulically to 40-45 degree. Rear door can be opened and closed hydraulically.
Optional configuration	Tanker material: stainless steel. Vacuum pump: China or Spain vacuum pumps. Anti-rust coating inside tank

Advantage:

ISUZU NPR Combined Vacuum Jetting Tanker

1. Efficient operation capability and multi-functional integration

High-pressure cleaning and sewage suction dual-mode synergy: ISUZU NPR Combined Sewage Clean truck integrates the functions of high-pressure cleaning truck and sewage suction truck, adopts 16-19Mpa high-pressure water jet technology, can powerfully remove stubborn dirt, tree roots and other obstacles in the pipeline, and quickly suck out the sewage through the vacuum suction system, realizing the seamless connection of "flushing + sewage suction" operation, significantly improving the dredging efficiency.

Large capacity and fast processing: The tank volume reaches 4000L, and it only takes ≤3 minutes to pump out the sewage. It supports the rapid processing of septic tanks, sewers and other scenes, reducing the multiple round-trip transportation caused by the capacity limitation of traditional sewage suction trucks, reducing time and cost.

Continuous operation design: Equipped with a multi-level sewage water circulation system, it allows high-pressure flushing, sewage suction and other functions to run simultaneously to ensure the continuity of operation, especially suitable for large-scale municipal engineering or emergency rescue tasks.

2. Environmental protection and economic optimization

Solid-liquid separation and on-site treatment: The source factory customization can support the cylindrical filter plus the shaftless spiral structure to achieve solid-liquid separation of pollutants. Sewage can be directly discharged into the municipal pipe network, and solid waste can be packaged and processed to avoid secondary pollution caused by traditional transportation, while saving transportation costs.

Long-term cost savings: Mechanized operation efficiency far exceeds manual labor, a large single processing area, and reduced unit cleaning costs; modular design reduces repeated equipment purchases and extends service life.

3. Adaptability and reliability

Complex scenario coping ability: flexible wheelbase (3815-5500mm), strong chassis passability, can adapt to narrow urban roads and harsh road conditions; optional front reel, level gauge, sprinkler, to meet diverse needs, such as winter snow shoveling, greening spraying and other extended functions.

Durable material and anti-corrosion design: The tank and pipeline are made of stainless steel or 4mm carbon steel, and the external frame-type protective structure is highly corrosion-resistant and extends the service life of the equipment.

Low failure rate guarantee: Key components such as hydraulic pumps and solenoid valves can use imported brands (such as Italian hydraulic pumps and German solenoid valves) according to customer needs to ensure stable operation of the system and reduce maintenance frequency.

★ ISUZU 4KH1 diesel engine, super powerful

★ Expert for producing ISUZU combination vacuum trucks over 30 years with good reputation

★ Vacuum tank and water tank is made of high-strength carbon steel

★ 12 months free fast moving spare parts

★ All English version control box, panel, and owner's manual, for easy understanding

★ Training service for ISUZU combination sewer trucks

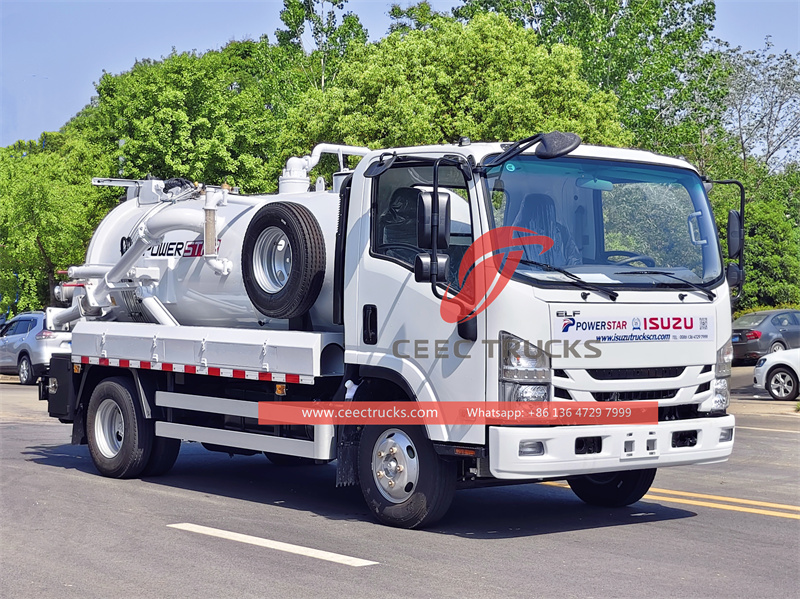

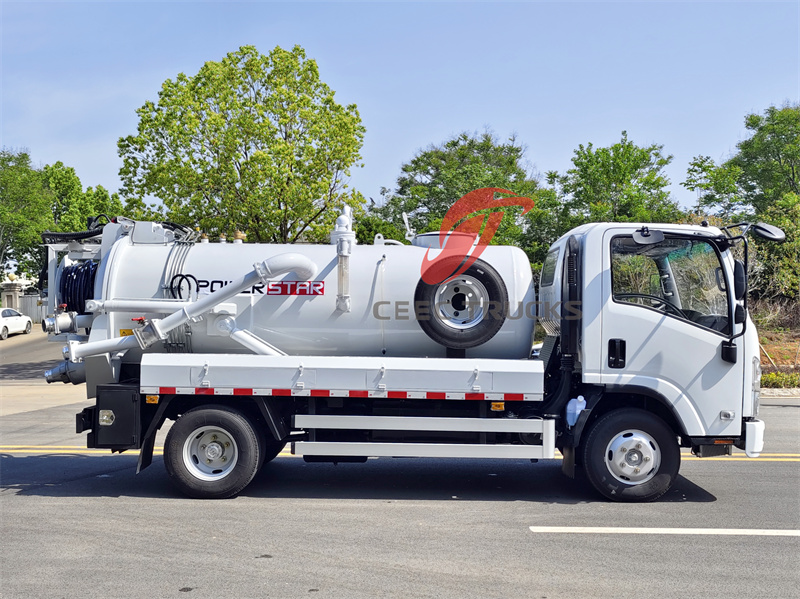

Isuzu 4,000 liters combined jetting suction truck

CEEC TRUCKS is a leading exporter of combined jet trucks in China. We possess over 10-year export experience of combination jetting truck. We can ensure the fast delivery time and 12 months guarantee for our sewage trucks. Our jetting and vacuum trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
