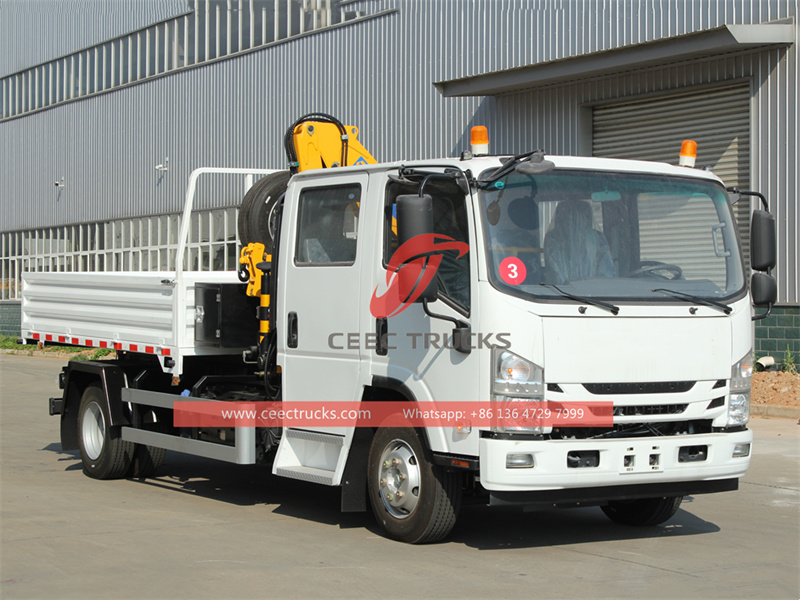

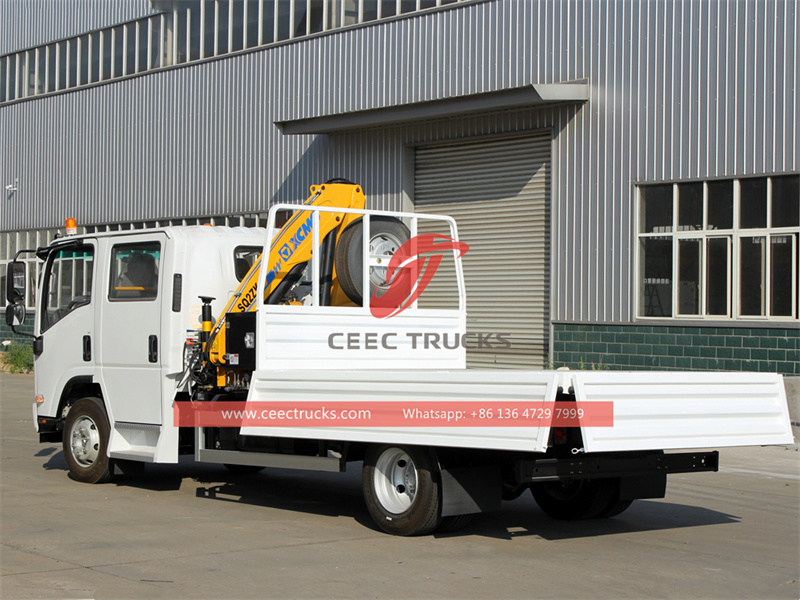

The Isuzu ELF 190HP cargo truck mounted crane is a powerful and well-designed truck with absolute advantages in transportation and lifting operations. The Isuzu crane truck is equipped with an ISUZU brand diesel engine with a powerful power of 190HP, which can meet the needs of fast work. The double-row cab can accommodate 5 people and is equipped with air conditioning, providing a comfortable driving environment for the driver and staff. The upper part of the Isuzu NPR double cabin crane truck is equipped with a folding arm crane with a maximum lifting capacity of 5 tons, a maximum lifting height of 11m, and a full rotation of 520°. The crane weighs 950kg and has an installation space of 850mm. At the same time, the box has a self-unloading function, and the control panel can choose English or other languages, which is convenient for users with different needs. The Isuzu NPR cargo crane truck also provides a variety of optional configurations, such as telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.

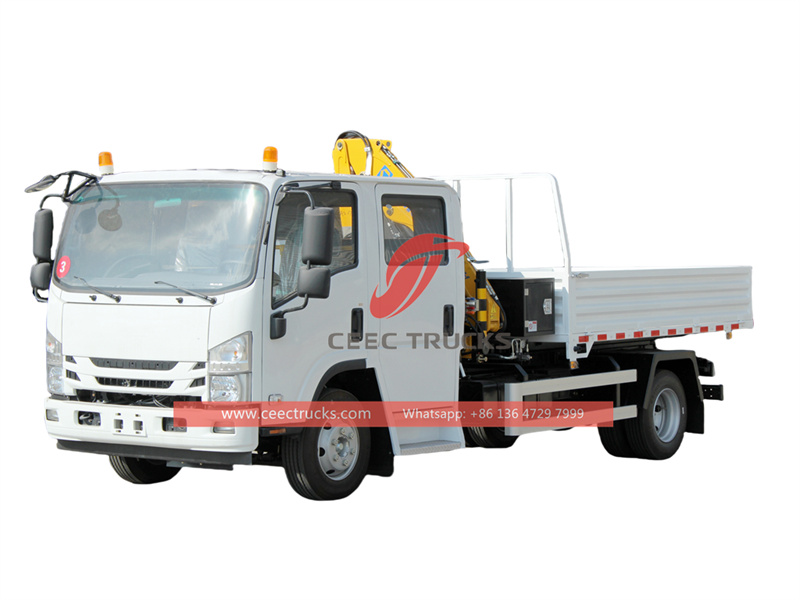

*ISUZU NPR Double Cabin Lorry truck With 5 Tons Crane

ISUZU ELF 190HP Knuckle Boom Crane Truck*

Our factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: ISUZU ELF truck chassis, 4x2,4X4 model

                              4KH1 model with 120HP or 132HP and emission 2999cc

                              4HK1 model with 190HP, 205HP with emission 5190cc.

2. Dumper box material: 4mm thick high-quality steel for prolonged service lier
                                  carbon steel, aluminum alloy or stainless steel can be choose

3. Dumper body: Customized for load,transport and dump

                             With high-quality hydraulic cylinder

4.  Optional design: such as telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.









Boom crane truck also know as knuckle crane truck, boom truck, propane crane truck, service truck with crane, mounted hydraulic crane truck, knuckle boom truck, lorry mounted crane truck,folding truck crane, forestry boom truck, knuckle boom service truck, which is mainly used for engineering operations, heavy object loading, fast transportation, waste unloading, etc.



» Ⅱ.Product Parameter for Isuzu NPR 5tons service boom truck

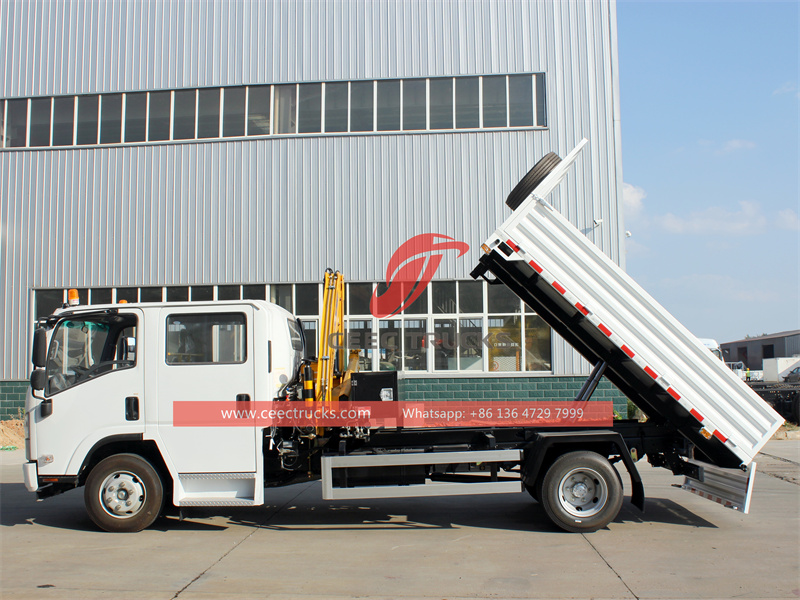

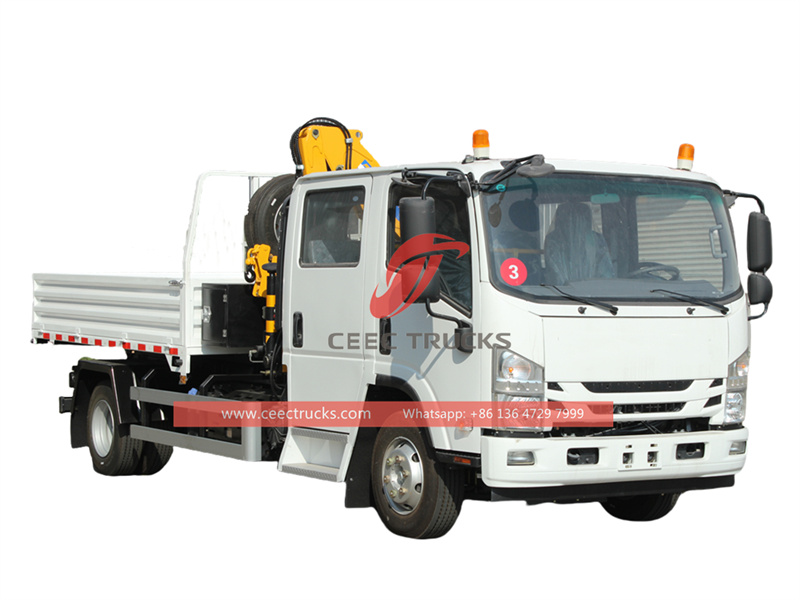

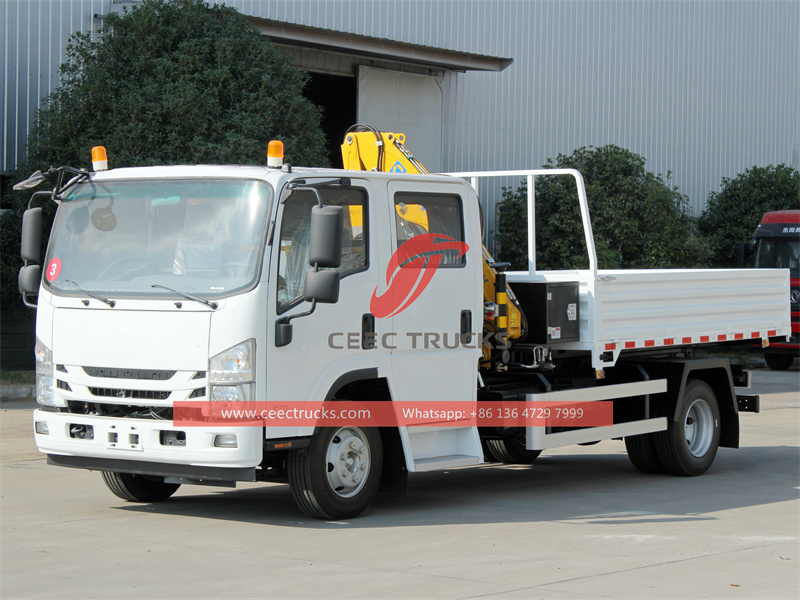

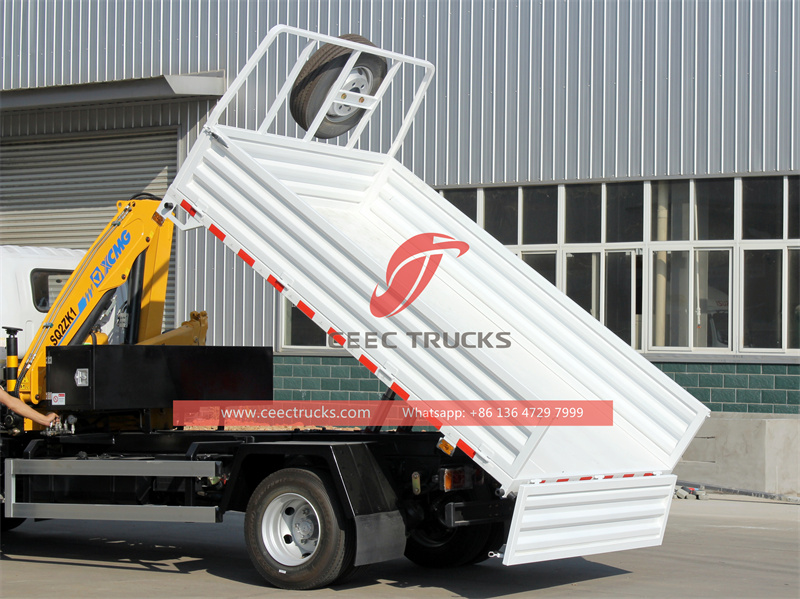

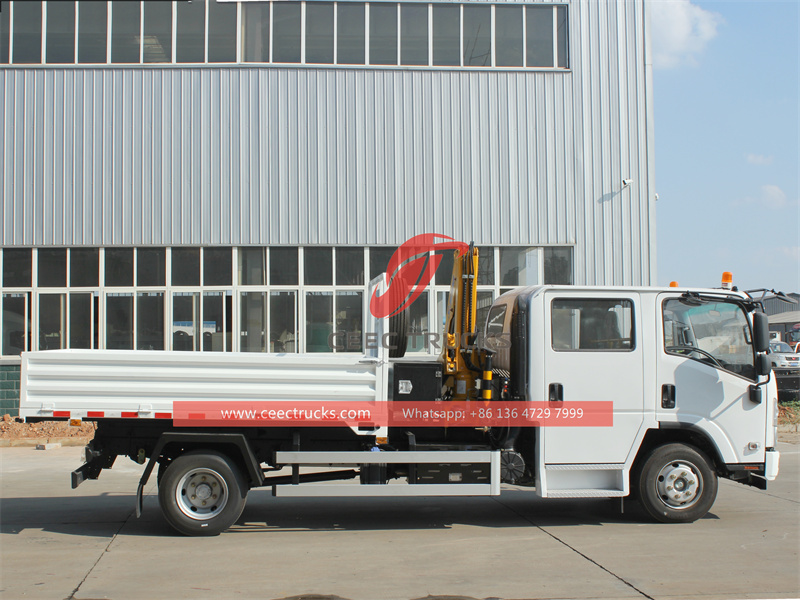

ISUZU NPR double cabin truck with folding crane
Overall dimensions	6800×2300×3250(mm)	Dump box dimensions	3600x2000x450(mm)
Gross vehicle weight	11,000 kg	Rated Load capacity	5000 kg
Chassis specifications
Chassis Brand	ISUZU	Color	White or optional
Engine	Fuel Type	Diesel
	Model	4HK1-TCG61
	Horse power	141kw/190HP
	Displacement	5193ml
	Engine Type	4 cylinders in line, water cooling, intercooled, turbocharged
	Emission Standard	Euro 6
Wheel Base(mm)	4175	Driving type	4x2
Type & Size of Tyre	235/75R17.5 (6+1pcs)	Air Conditional	Heating and cooling air conditioning
Cab	Single-row tilted cab	Gear Box	ISUZU MLD 6 speed forward with 1 reverse, manual
Brake	Air brake	Steering Wheel	Left Hand Drive with power-assisted
Crane specifications
Crane brand	XCMG	Crane weight	1396 kg
Max. lifting weight	3200 kg	Max. working height	8.6 m
Max oil flow of hydraulic system	25 L/min	Rated pressure of hydraulic system	20 Mpa
Oil tank capacity	60 L	Installation space	850 mm
Max. working radius	8.92 m	Max lifting Moment	10 T.M
Rotation angle	520°, all rotation	Boom	3 sections
Others
Dump body	High-quality steel	Payload	3 tons
Operation Type	Manually operated hydraulic valve	Type	Mechanical





----- Dumper body Material: Carbon steel, stainless steel, aluminum alloy

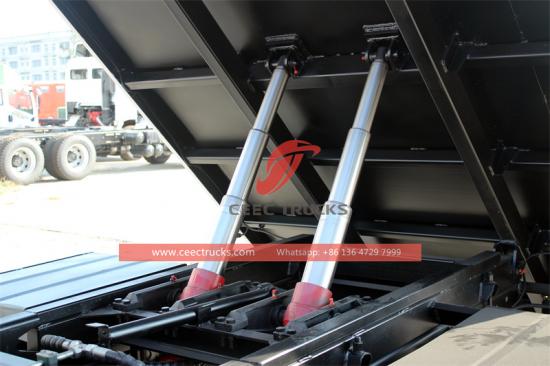

-----Hydraulic cylinder: Based on dumper body and lifting angle, China top brand

-----Optional: Telescopic boom, grab boom, tarpaulin cargo box, customized box thickness and height according to needs, and remote operation control box.



» Ⅲ.Product Details & Advantages:



1. Outstanding power advantages

Isuzu NPR chassis is equipped with 4HK1-TCG61 diesel engine, 190HP, with turbocharger + intercooler technology, low speed and high torque characteristics (peak torque estimated 650N·m@1800rpm), and mature combination with MLD 6 gearbox (market verification of more than 500,000 kilometers of service life), especially suitable for construction site operations.



2. Multifunctional integrated design innovation

The Isuzu NPR truck is matched with the XCMG folding arm crane (10T.M torque/8.6m height) + 5-ton dump truck combination, realizing the full process of "lifting-transporting-unloading", saving 30% of operation time compared with traditional split equipment. The three-section arm folding structure can be placed behind the cab, forming a space complement with the dump box, realizing a compact layout with a total length of 6.8m, flexible and lightweight, and fully functional.



3. Ergonomics optimization

Isuzu double cabin can accommodate 5 people and is equipped with air conditioning. Compared with similar single-row models, it is more suitable for team collaboration. The hydraulic system uses a 25L/min quantitative pump + 100L fuel tank, which can work continuously for 2.5 hours, promoting the work efficiency of the engineering team.





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best boom crane truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Factory Testing:

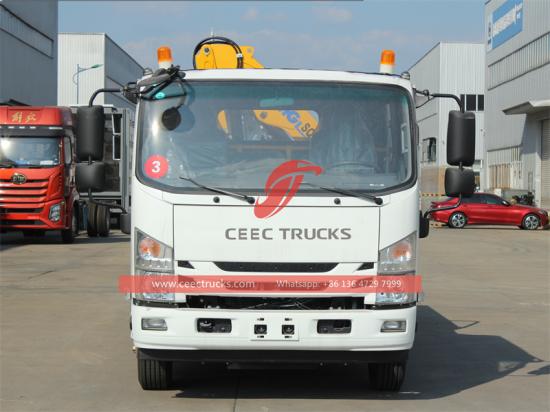

CEEC Engineer will test Isuzu boom truck

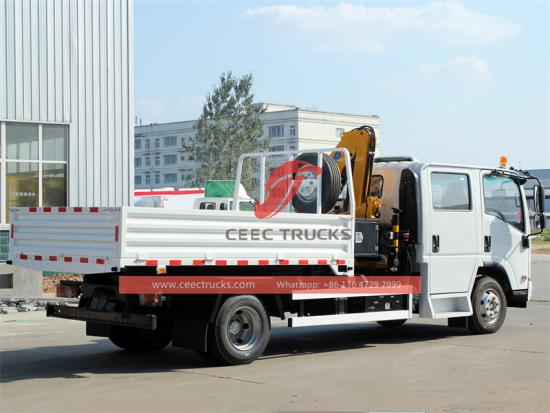

Isuzu service dumper crane truck factory testing before shipment



CEEC Engineer is testing Isuzu NPR dumper truck with crane
