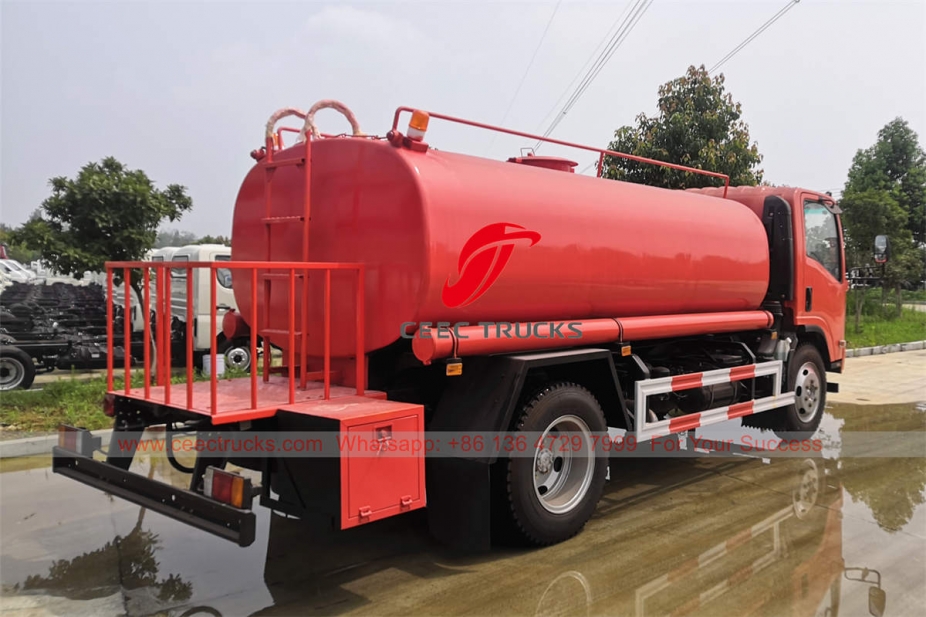

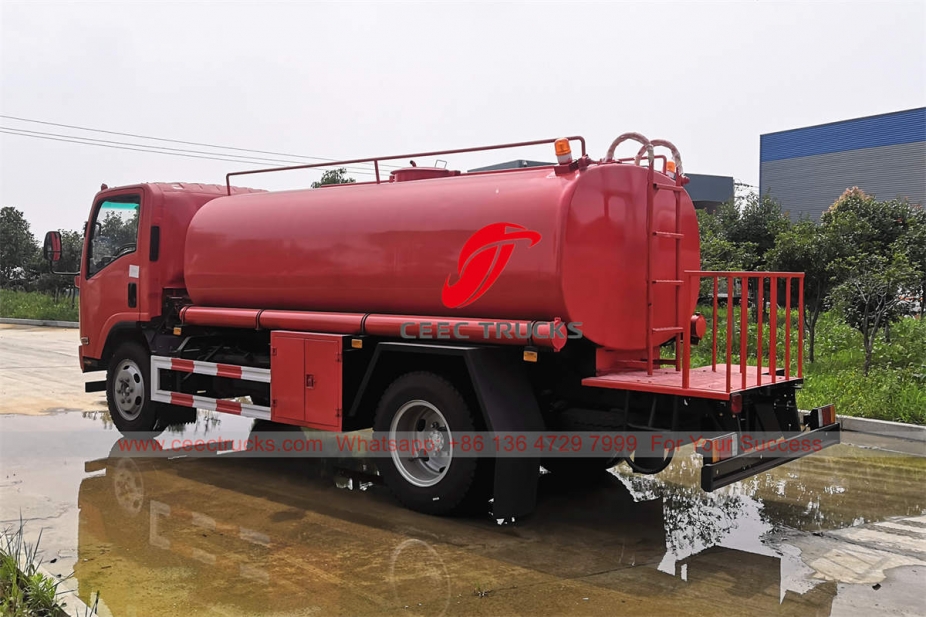

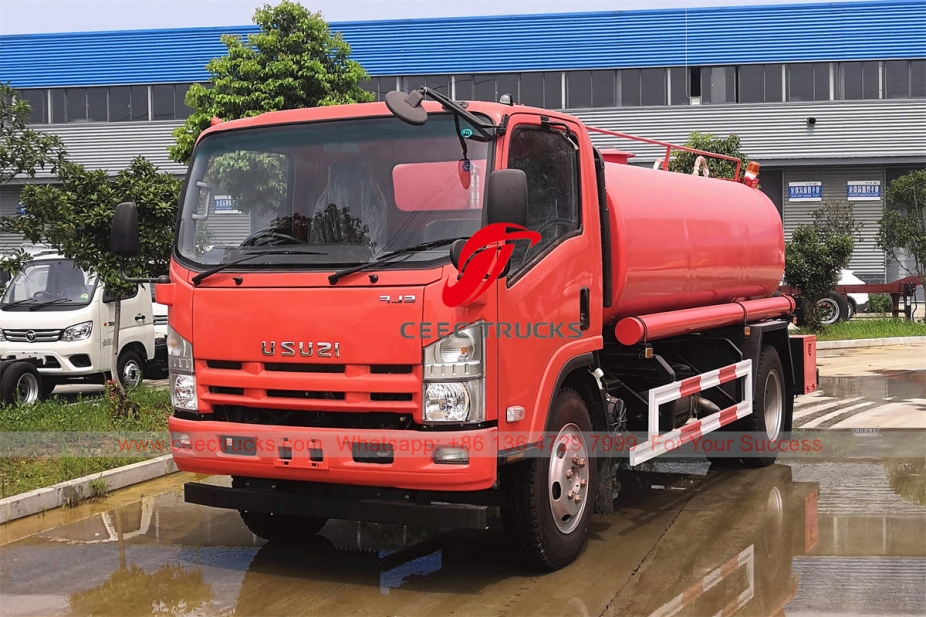

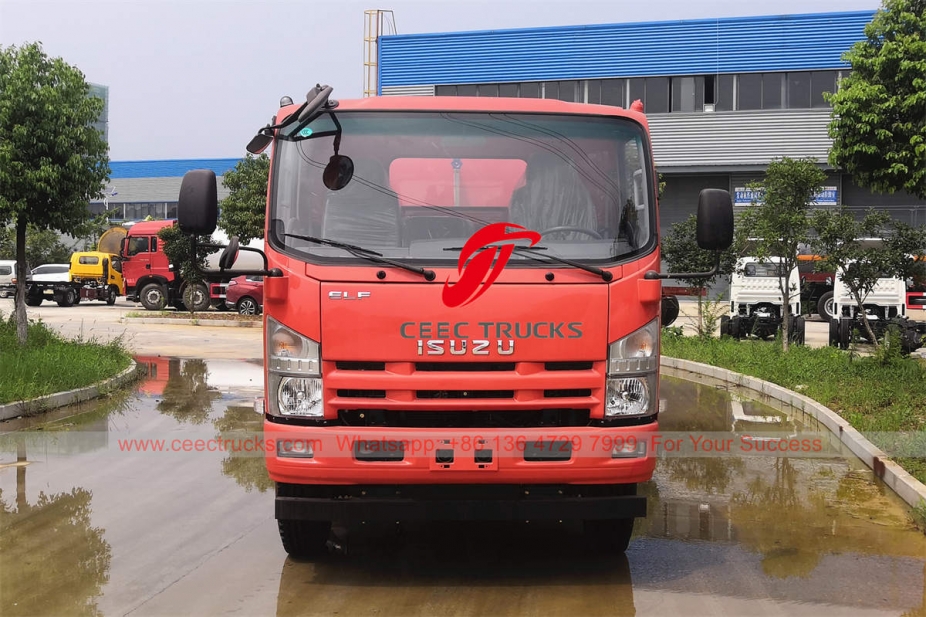

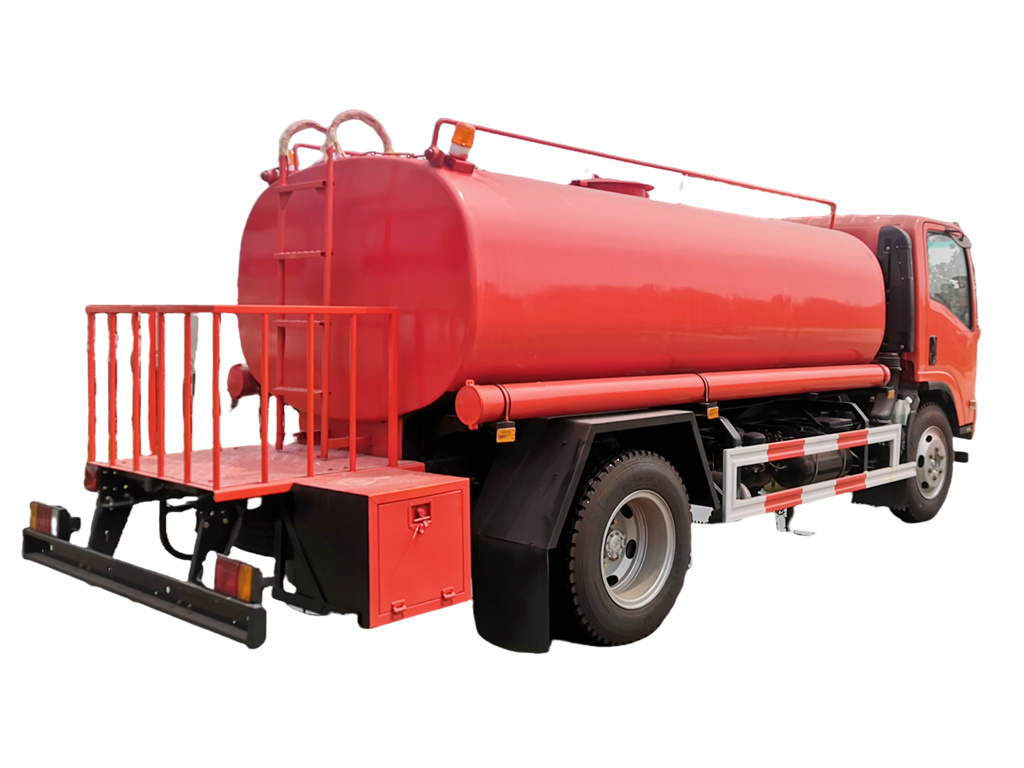

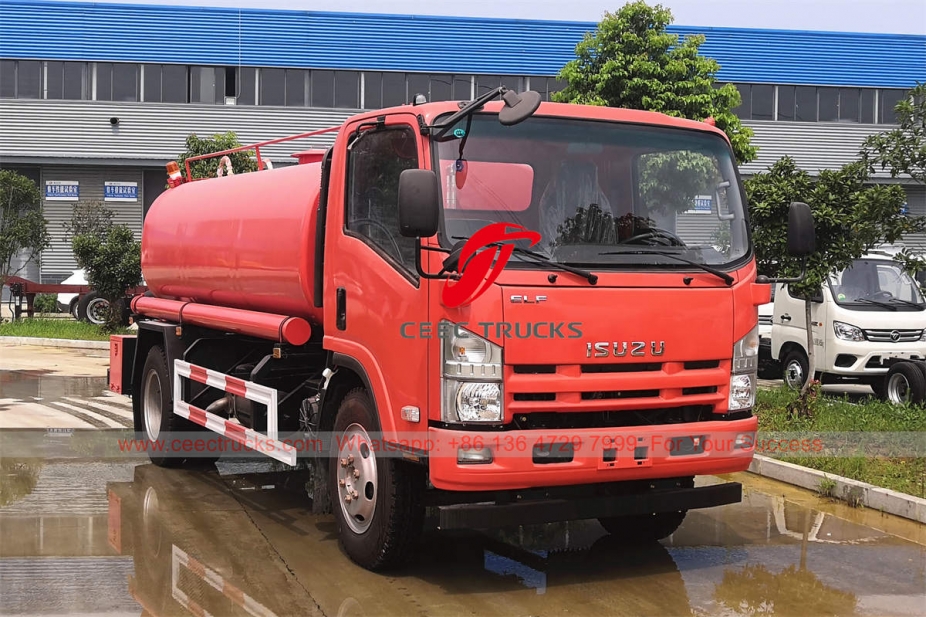

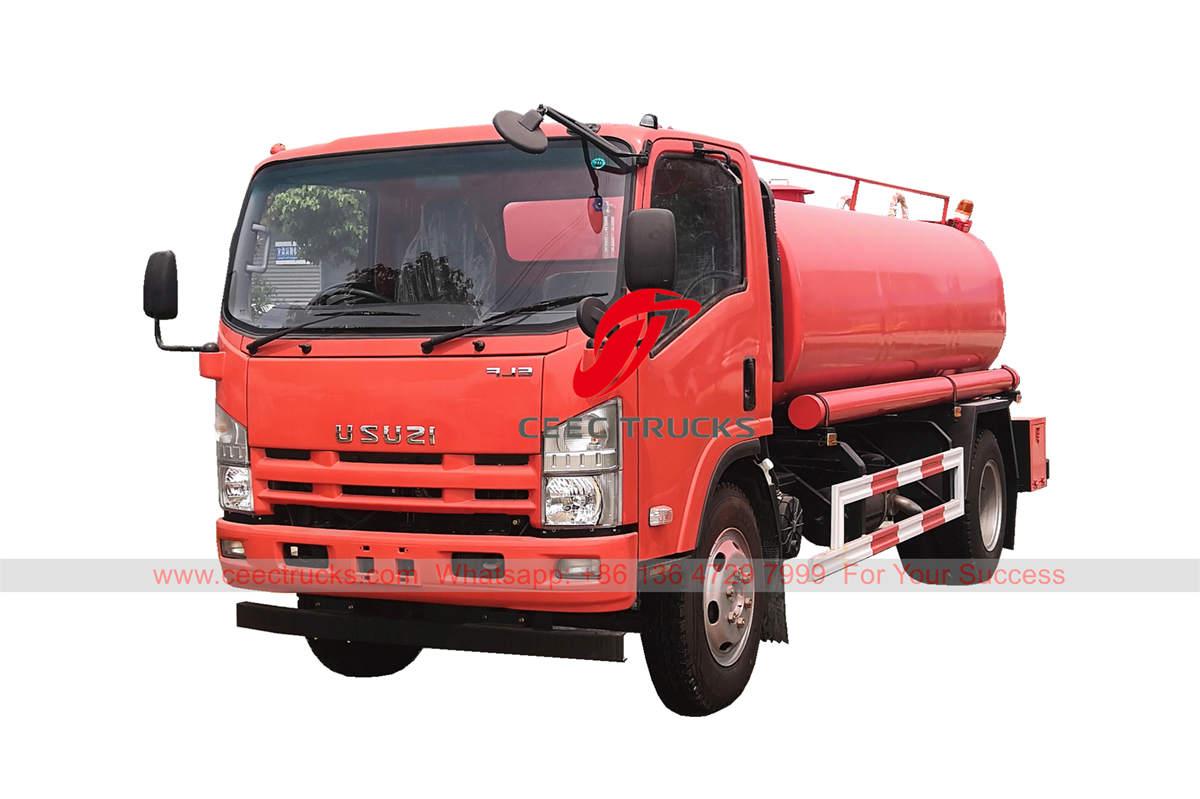

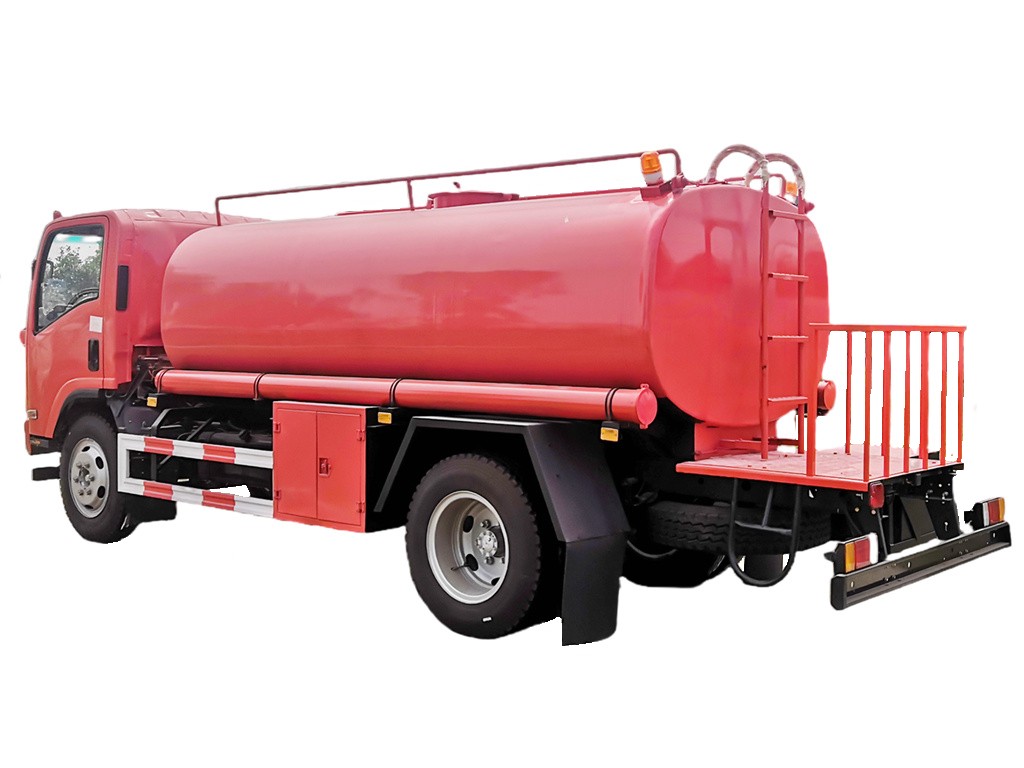

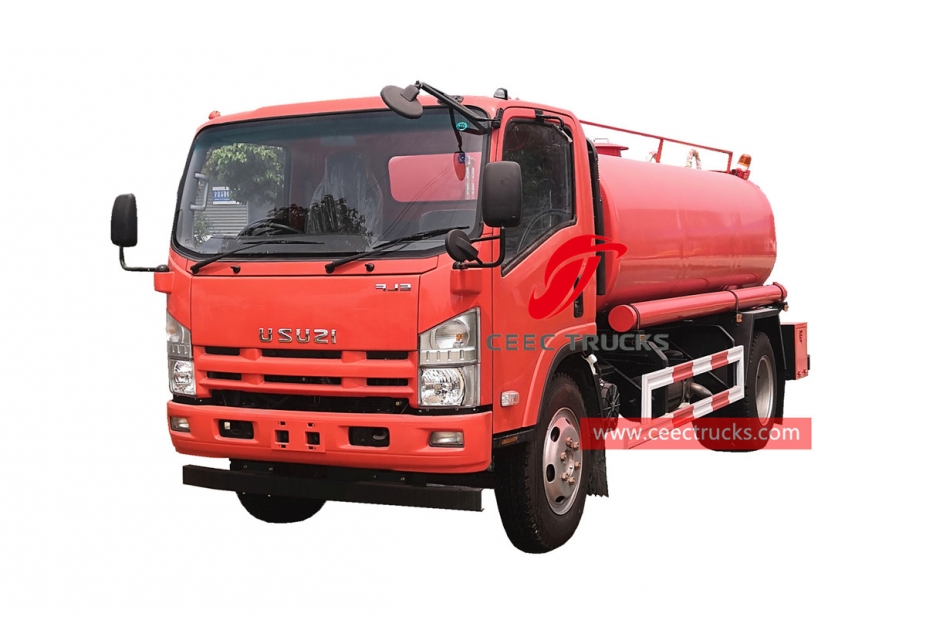

ISUZU ELF Water Tank Truck

 Applications:

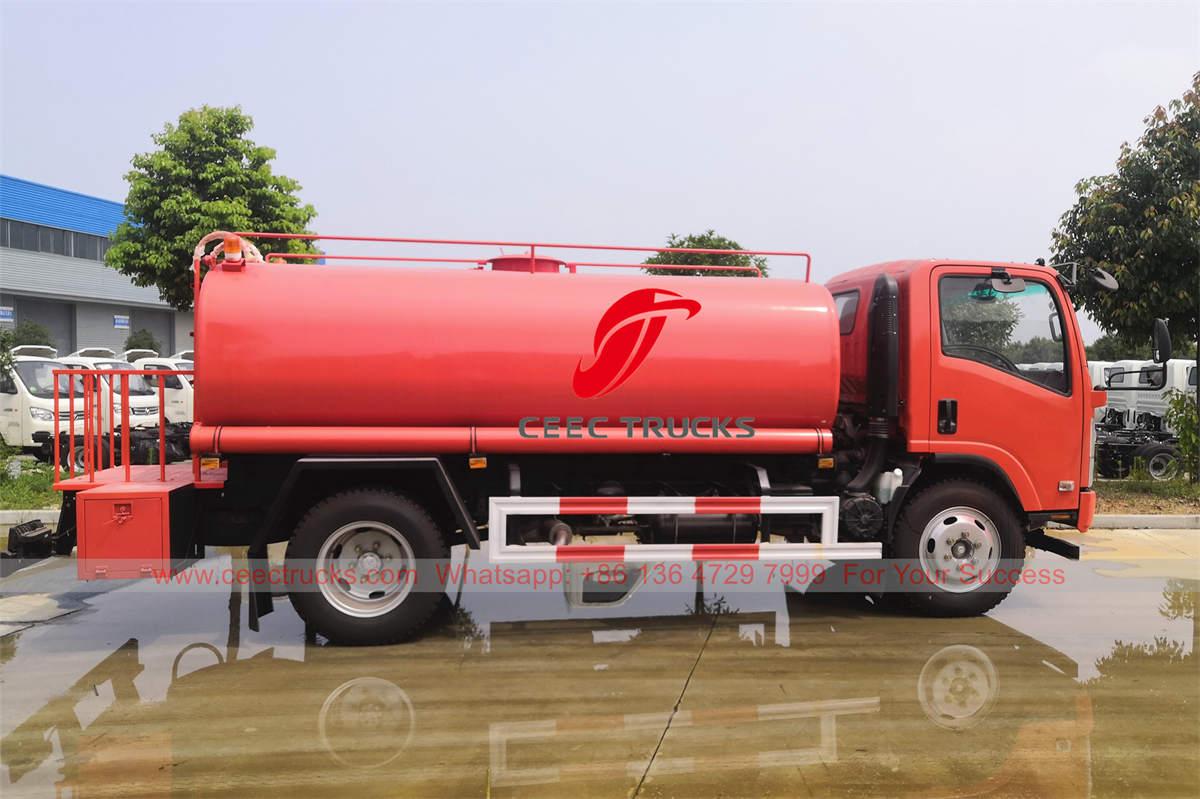

ISUZU Water spray truck (also called Water tanker truck ISUZU, ISUZU 6 wheeler Water delivery truck, ISUZU 4×2 Water bowser truck, ISUZU Water truck manufacturer, customized ISUZU water sprinkler truck) is used for the road flushing, tree and lawn greening, high building cleaning, construction of road and factories. It has the functions of flushing, watering, transporting water and fire fighting.

CEEC TRUCKS water truck is mainly composed of chassis, tanks, pumps, valves, and the water pipe, sprinkler and other parts. Water truck is made of high quality carbon steel sheet.

 Key Features:

---- ISUZU chassis, perfect performance

---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Nice shape, rational structure

---- Water pump super powerful, efficient pump in and out

---- Strong, durable, perfect performance

 Specifications:

(6 units stainless steel water trucks for export)

CEEC TRUCKS is a premium water trucks manufacturer and supplier in China. We export water tank trucks many years with good reputation. We can customized water tankers based on chassis ISUZU, FOTON, HOWO, Dongfeng, Beiben, etc, the capacity of water tanker body can be 3,000-25,000 liters. The material of water bowsers can be carbon steel or stainless steel. Our water spraying trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Advanced features for Water Pump:

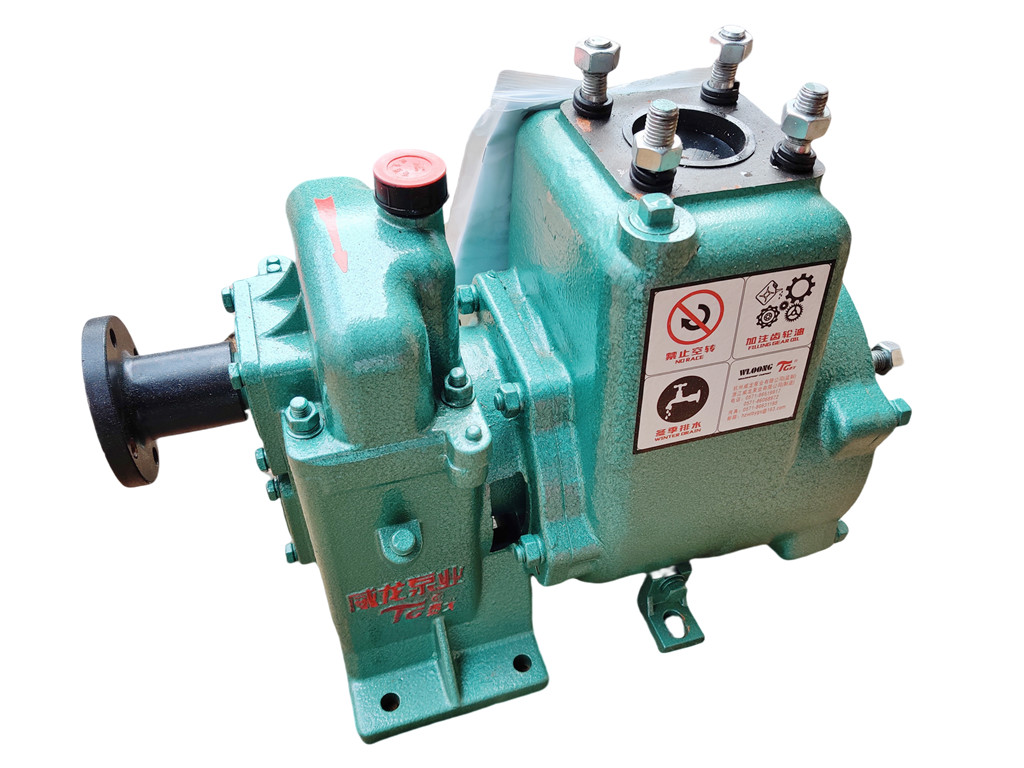

CEEC TRUCKS produced ISUZU water tanker truck equipped with WEILONG Pump, which is one of TOP Chinese brand pump. This ISUZU NPR Water Bowser use 80QZF-60/90S model water pump, the pump is newly produced National Patent Products which based on our many years’ independent developing & production of self-priming centrifugal pump. Also the pump comply with national standards QC/T29114-93. Advanced features for the pump showing as below: Simple Structure, Smooth Operation, High Efficiency and Reliable Operation.

Isuzu water tanker truck for hot sale. WEILONG 80QZF-60/90S model water pump internal body should have some Liquid Storage. When pump start working, the Impeller rotates and inlet valve have Negative Pressure, the air into pipeline and mixed with the liquid inside pump, then enter into Gas-Liquid Separation Chamber through Delivery Chamber. Because of density difference for water & air, air separated from liquid and discharged from outlet valve, meanwhile liquid sink in the Gas-Liquid Separation Chamber, after many times cycle operation till no air inside the suction pipeline, and then the pump can start working normally.



Detailed componet for Water Pump

1. Suction Flange         2. Drain Valves          3. Guide Cane

4. Secondary Impeller   5. Supporting Lug     6. Leakage Hole

7. Impeller Nut          8. Pump Spindle            9. Mini Axle Sleeve

10. Primary Impeller      11. Pump              12. Triangle Sealing Ring

13. Sealing Socket       14. Mechanical Seal      15. Oil-Filler Plug

16. Gearbox            17. Driving Gear                   18. Bearing

19. Input Shaft Bearing Cover   20. Input Shaft     21. Oil Sealing

22. Driven Gear           23. Axle Sleeve                   24. Body

25. Oil Drain Screw



Isuzu Water Pumper Truck working principle:

Pipeline is to water truck what blood vessel is to human body! The Isuzu water tanker trucks pipeline system is simple but very practical. One main pipeline connect with water tank and water pump, which means there are two ways to collection water: firstly is pumping water directly through WEILONG 80QZF-60/90S pump; secondly is collection water from top Manhole.

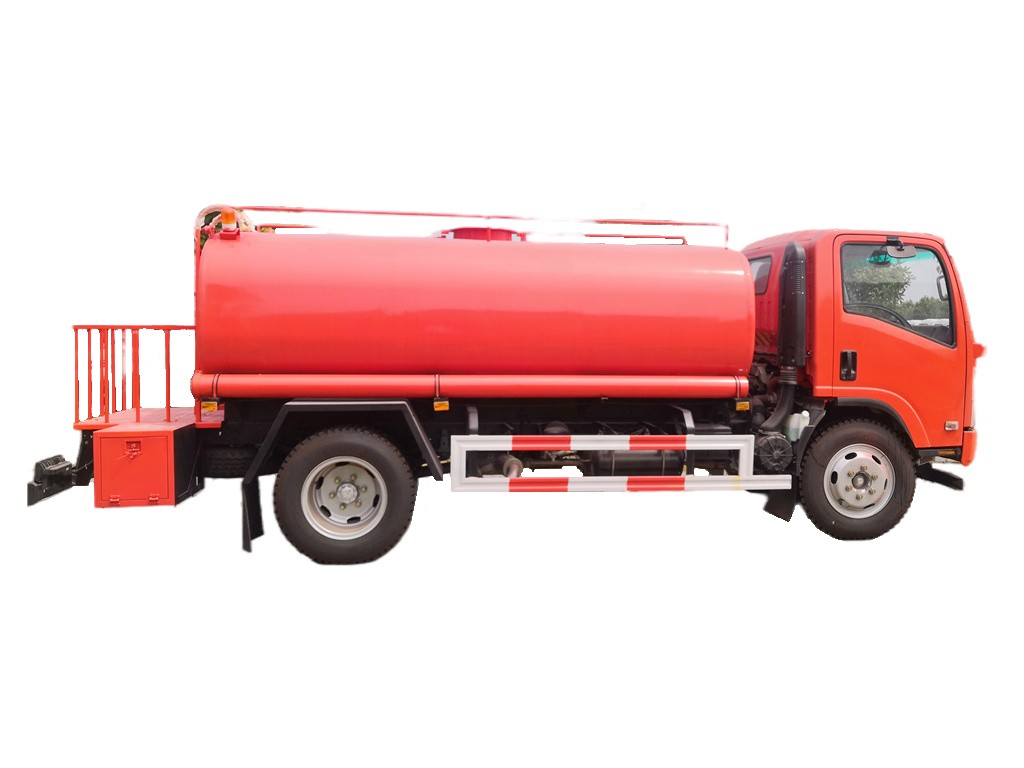

The Isuzu 10CBM Potable Water Tanker Truck makes use of the special power take off (PTO) to get power from the engine, and then pass the power to the WEILONG 80QZF-60/90S pump via drive axle so to rotate the pump. The pump, pipelines valves and joints consist of the pipeline system. Turn on/off valves through the regulated program, the pump can absorb water into the tank from the source or exhaust the water inside the tank through the set lines, and then come to all function. And below chart showing multiple working principle for pump in and pump out process.

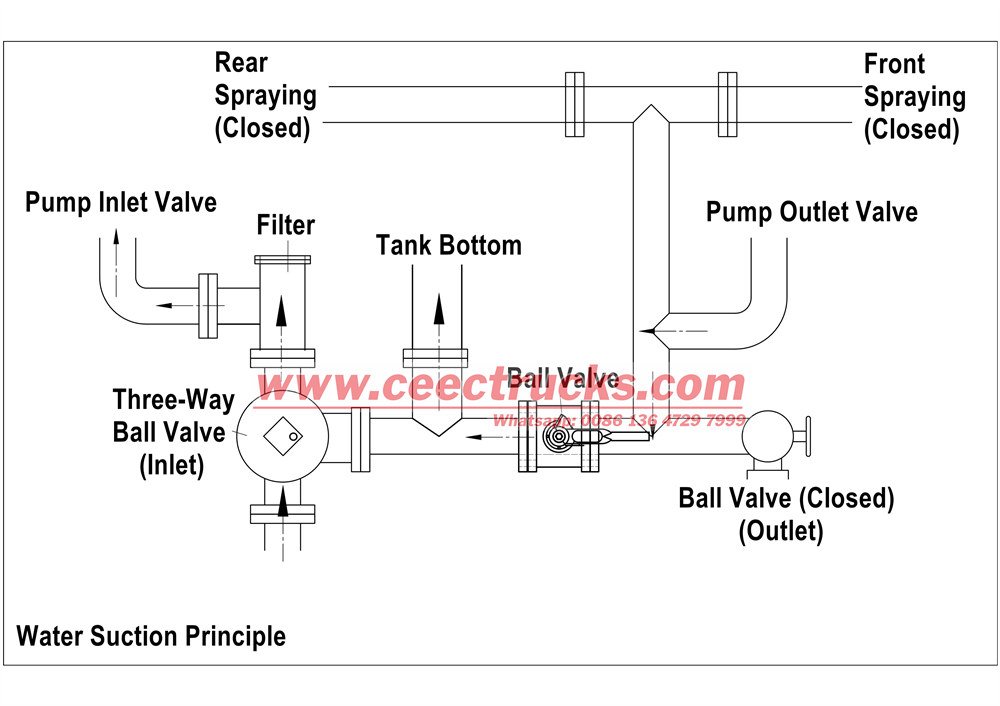

Water truck pump in working principle



Water pumping into the tank: close Pump Out Valve A, open Control Valve B & Pump In Valve C, connect the pipeline with Pump In Valve C, the other side of pipeline be in pond, river, etc, then the pump start working and water go into the tank through Inlet Valve C, details showing as below chart.

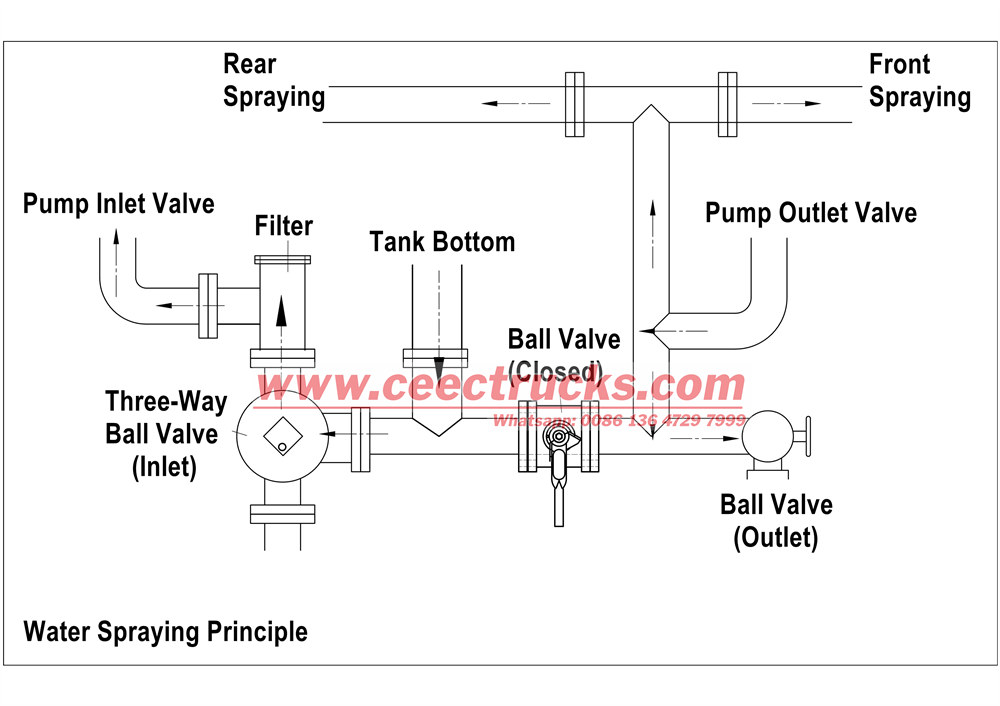

Water truck pump out working principle



Water pumping out of the tank: open Pump Out Valve A, close Control Valve B & Pump In Valve C, then the pump start working and water go out of the tank through Pump Outlet Valve A, details showing as below chart.

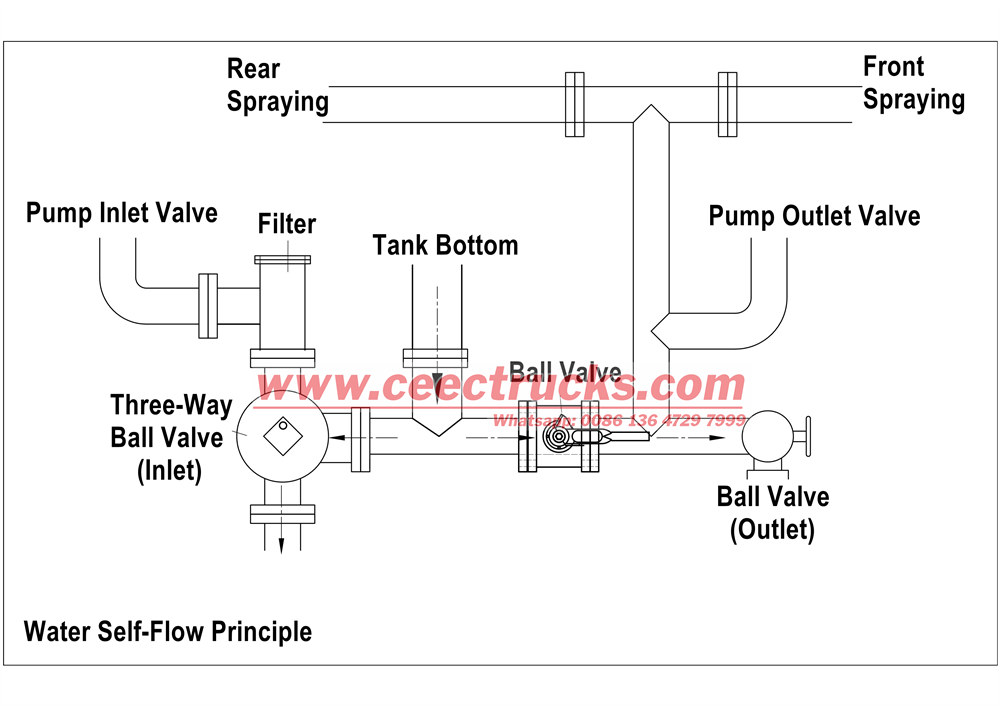

Water truck self discharge working principle



Water flowing out of the tank automatically (Water Pump does not work): close Pump In Valve C, open Pump Out Valve A & Control Valve B, then the water flow out of the tank automatically by self-gravity, details showing as below chart.
