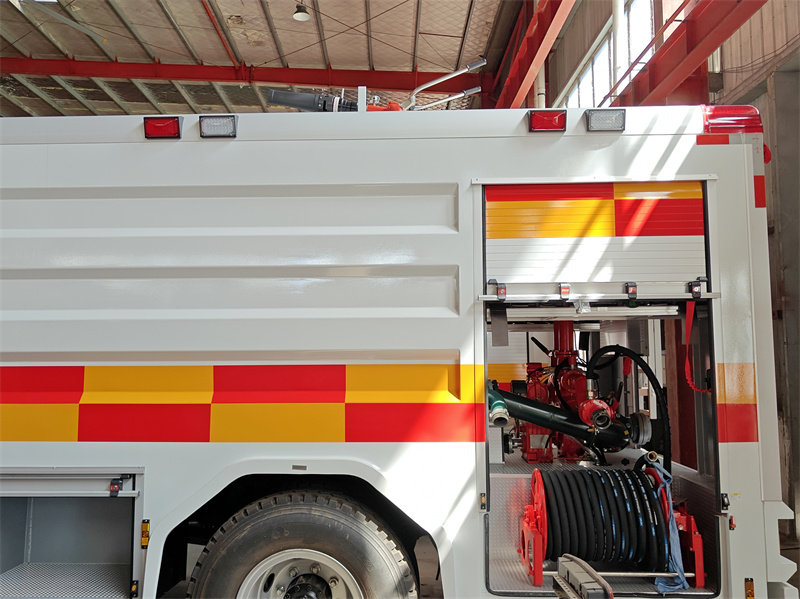

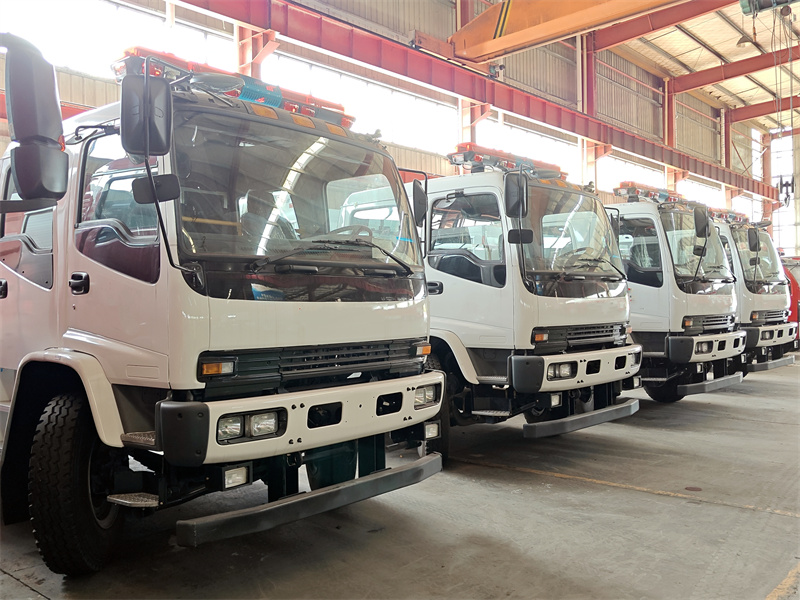

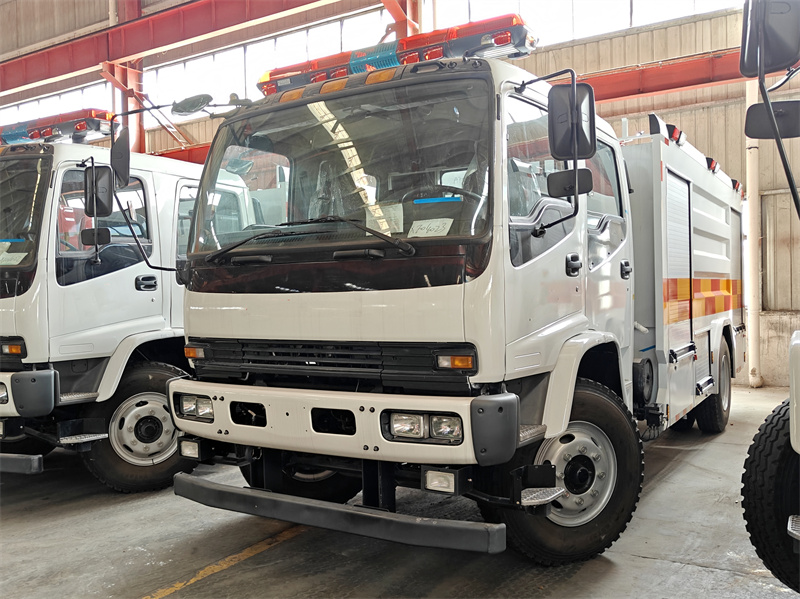

The fire rescue truck, built on the sturdy ISUZU FTR chassis, combines excellent power, 4HK1 engine 205HP, can challenge all kinds of difficult roads, equipped with a 5000-liter large-capacity water tank and a professional fire pump, long spraying distance, optional control panel language, and a variety of optional configurations to meet different needs. This Isuzu all-wheels fire water truck provides solid protection for fire safety and demonstrates excellent performance and flexibility. The Isuzu FTR fire fighting truck's double-row cab provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions.

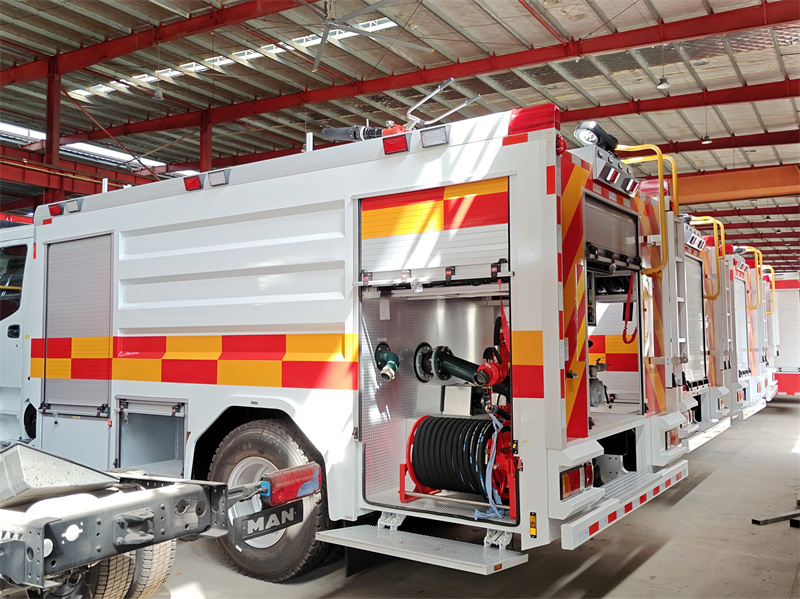

*ISUZU FTR 205HP fire fighting truck

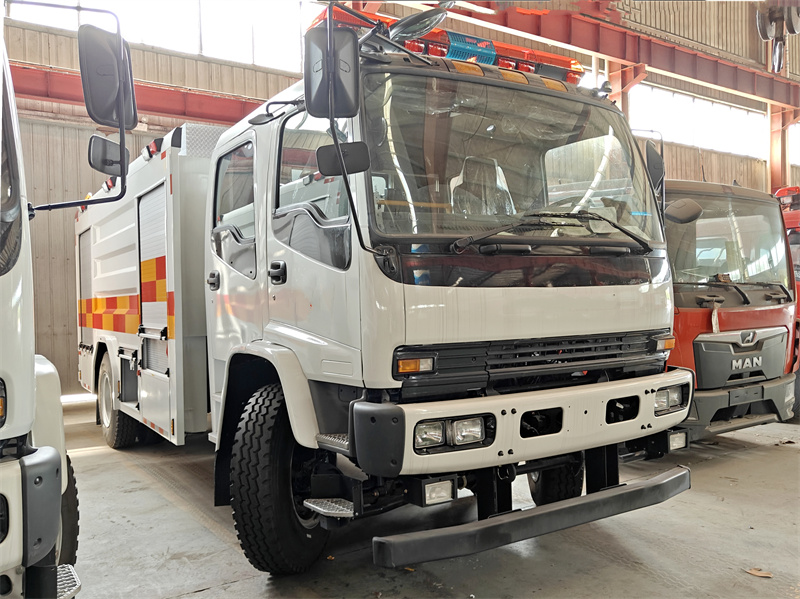

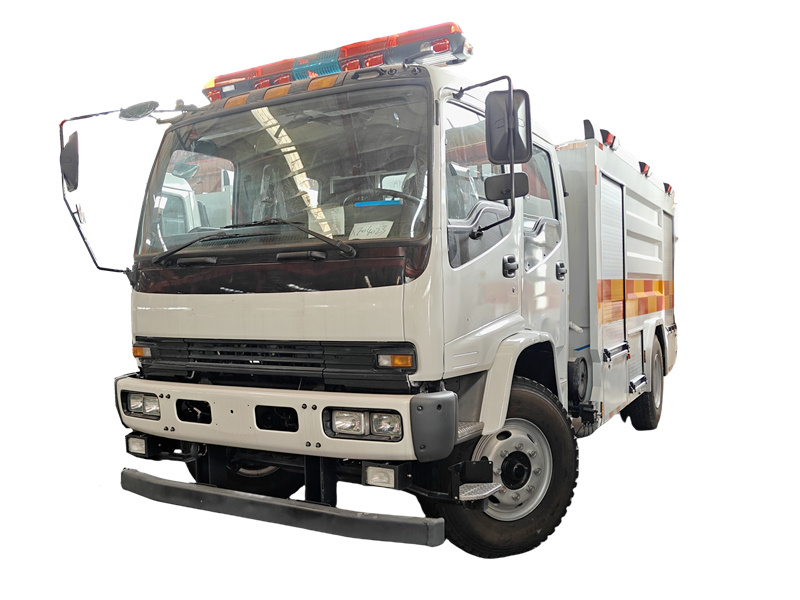

ISUZU FTR 205HP double cabin fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: ISUZU FTR truck chassis, 4x2,4X4 model

                              4HK1 model with 190HP and emission 5199cc

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

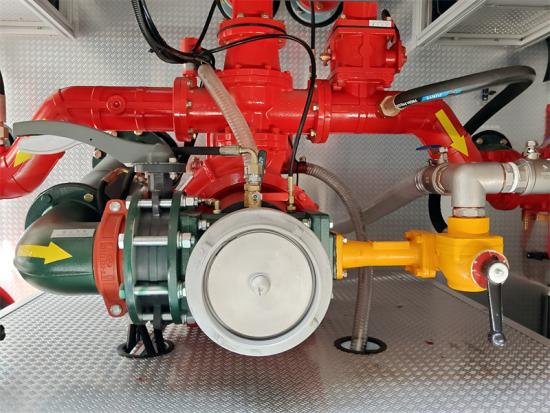

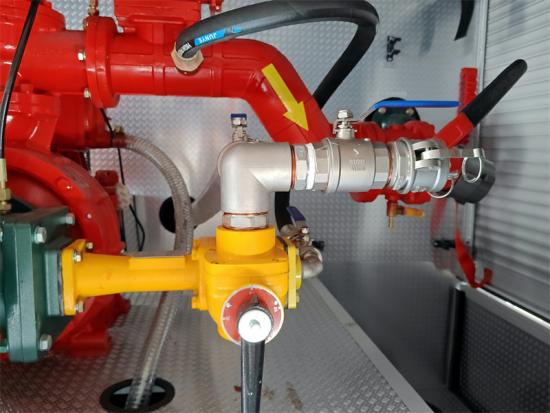

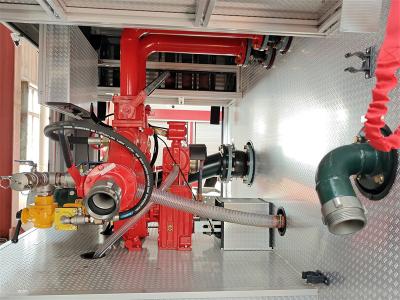

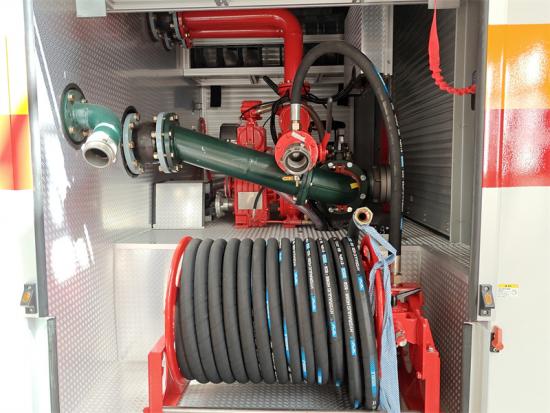

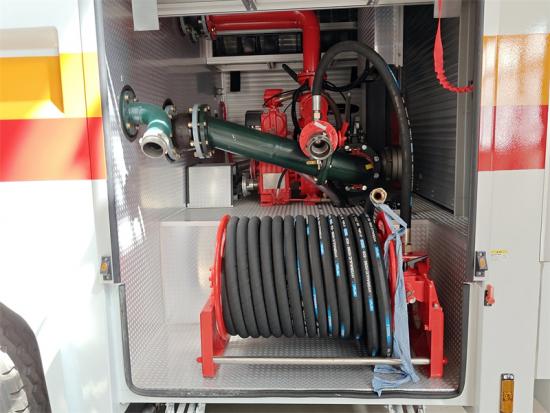

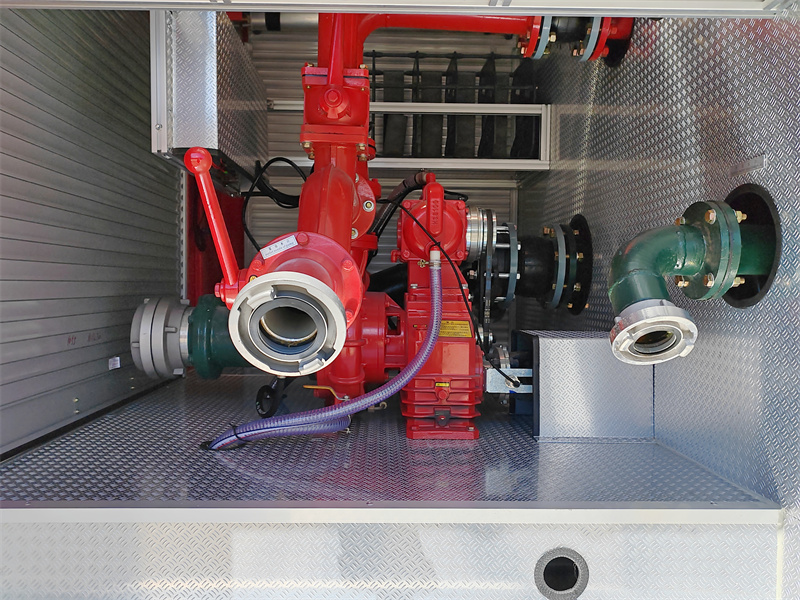

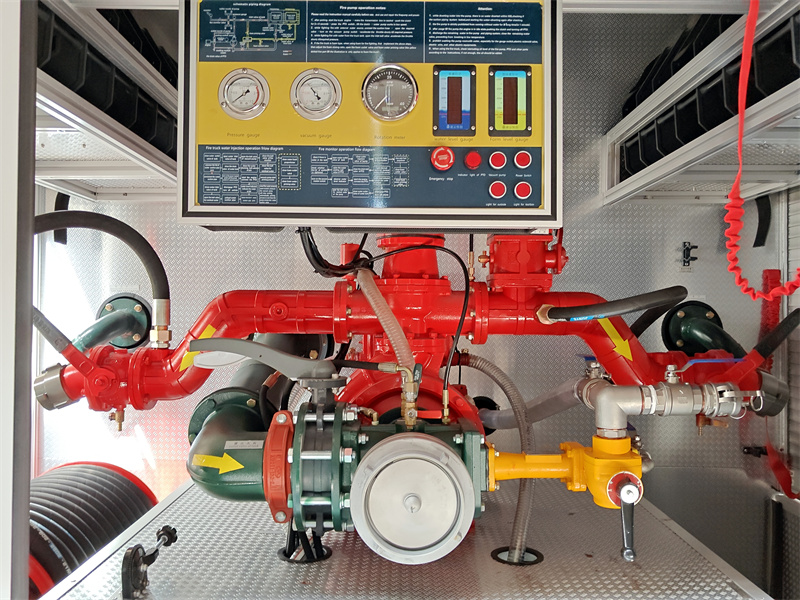

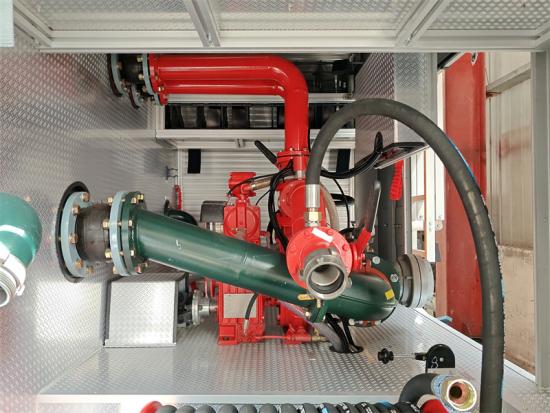

4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working distance over 60m
                        Optional CB10/40,  also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Isuzu NPR 5tons service boom truck







ISUZU FTR 4x2 fire rescue truck
General	Vehicle Brand	Powerstar
	Chassis Brand	ISUZU
	Overall Dimension	7600*2580*2950mm
	GWW/ Kerb Weight	18,300kg/7,220kg
	Painting	Red color
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU engine ,4HK1-TCG60
	Engine type	Inline 4-cylinder, turbocharged, inter-cooled diesel engine
	Power	205 HP
	Displacement	5.19L
	Emission Standard	Euro 6
Chassis	Drive Type	4X2,left/right hand drive
	Transmission	Fast 8-speed forward, 2 reverse
	Wheelbase/No.of axle	4500 mm/2
	Tyre Specification	295/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Fuel tank capacity	200L
	PTO	Full power sandwich type
Superstructure	Water Tank Capacity	6,000 Litres
	Tank Material	carbon steel
	Standardized Sub-frame	Material	High-strength rectangular tube made of special steel

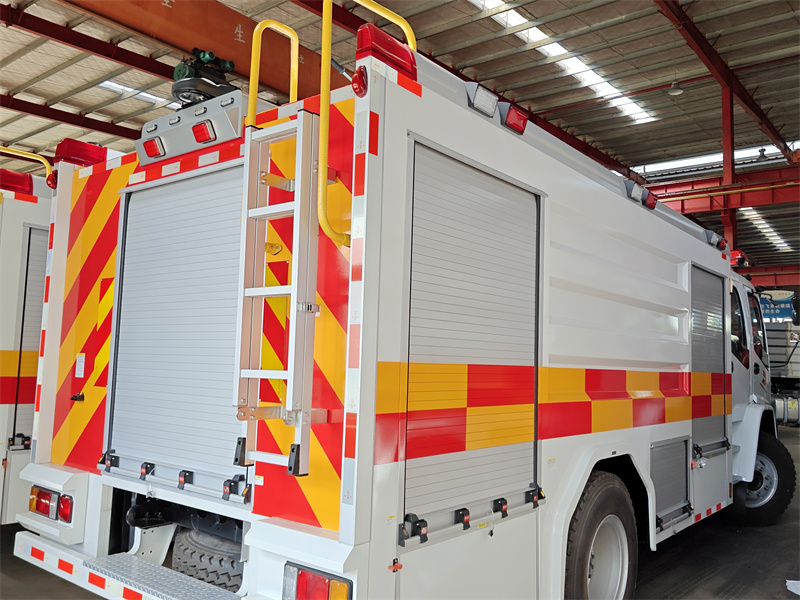

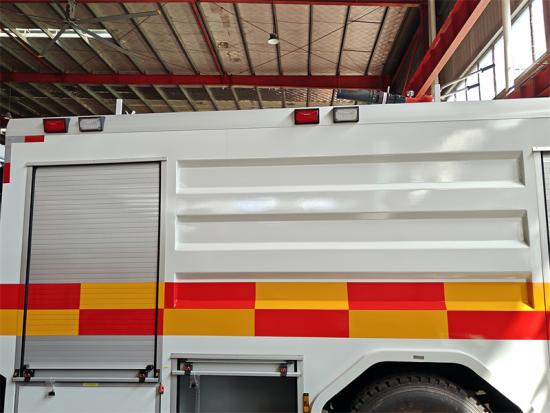

		Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m

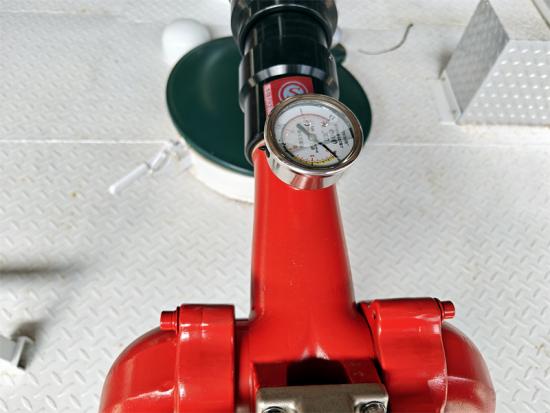

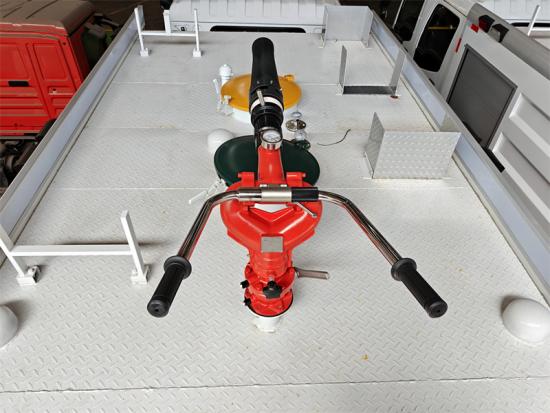

	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.Product Details & Advantages:



1.Isuzu FTR chassis and power system:

High power density engine: Sufficient power is required under high temperature and high load conditions (simultaneous driving, large flow water pump, air conditioning, etc.). Isuzu 4HK1 engine has a large displacement, high torque diesel engine with high temperature optimization tuning.

Isuzu FTR chassis and suspension: Isuzu FTR fire truck can carry extra-large capacity water tanks and additional equipment, with a sturdy chassis and reinforced suspension system (such as leaf springs or heavy-duty airbag suspension) to adapt to possible non-paved roads.

High passability: For vehicles that need to enter deserts, construction sites, and undeveloped areas, all-wheel drive, high ground clearance, and even off-road tires can also be customized and matched.



2.Adaptability to extreme high temperature environments:



Enhanced engine cooling system: Use ultra-large capacity radiator, high-performance fan (multiple fans can be connected in parallel if necessary), and optimize the air duct design to ensure that the engine, gearbox, hydraulic system, and power take-off do not overheat when running at full power for a long time at an ambient temperature of 55°C+ (such as full water pump, water spraying during driving). Auxiliary cooling units may be required.

High temperature resistant parts: All rubber parts (pipes, seals, tires), plastic parts, electronic components, and lubricating oil/hydraulic oil must be special models that can withstand high temperatures above 70°C or even higher instantaneous temperatures for a long time. Wire insulation must be aging-resistant.



Cockpit/passenger compartment air conditioning system: Must be equipped with an ultra-strong cooling air conditioning system that far exceeds conventional standards to ensure that the cabin temperature can be maintained in a safe and comfortable range under extreme high temperatures (usually requiring the cabin temperature to be ≤25°C when the outside temperature is 55°C). Good insulation and sealing are also crucial.

Thermal management strategy: Optimize the layout of the entire vehicle to avoid excessive concentration of heat sources. Provide additional insulation for high-temperature components such as exhaust pipes and turbochargers to reduce heat radiation to surrounding equipment (especially electronic equipment and water systems)





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Key points of periodic maintenance：





• Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).





• Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).





• Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
