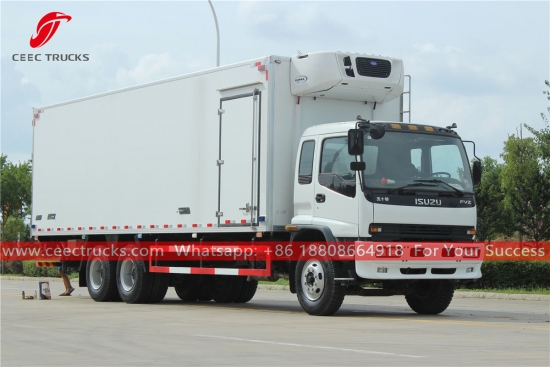

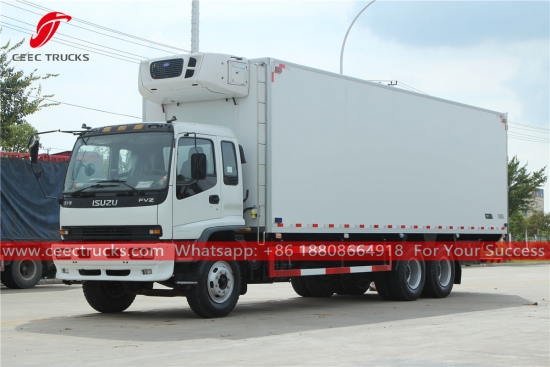

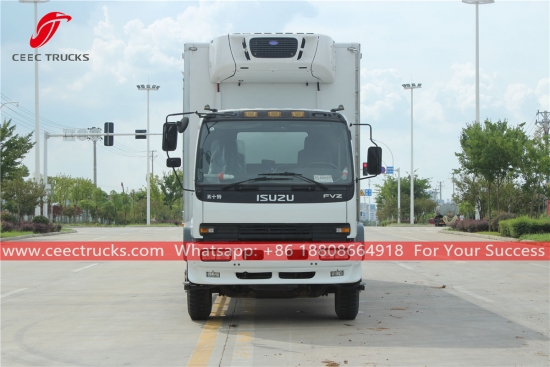

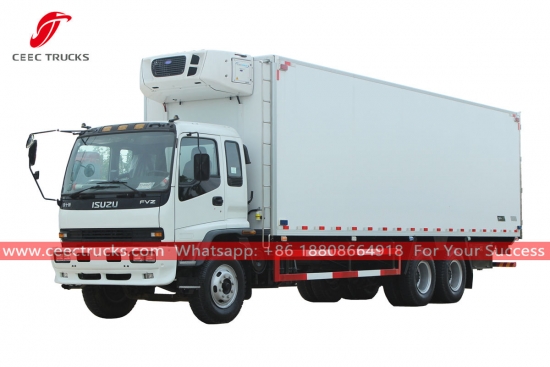

ISUZU 10 wheeler refrigerated truck

ISUZU FVZ Refrigerator Truck

ISUZU 20T Refrigerated van truck, ISUZU left hand drive heavy model 6×4 chassis, FAST 9-shift manual gearbox, ISUZU 6HK1-TCH 300 HP engine. Equipped with  America Carrier cooling units for high performance, as for van capacity can be 5-25T optional.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now
ISUZU 300HP Reefer truck

 Applications:

ISUZU 6×4 Freezer Truck (also called Refrigerated truck ISUZU, ISUZU 20 Ton reefer box truck, ISUZU FVZ Chiller lorry, ISUZU Refrigerator van truck, ISUZU 10 wheeler refrigerated lorry) is a van or truck designed to carry perishable freight as specific temperatures.


Refrigerator trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize carbon dioxide as a cooling agent.


CEEC TRUCKS can supply reefer van trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.


 Key Features:



---- ISUZU chassis, perfect performance

---- ISUZU technology engine option, super powerful, no overhaul within 100,000 km.

---- Refrigeration system brand can be optional.

---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.



 Specifications:



  ISUZU Refrigerator Van (25 Ton)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

10200* 2500 * 3800 mm

GVW / Kerb Weight

25,000kg / 10,100kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU

Power

300 HP (220 KW)

Displacement

7780 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (left hand drive)

Transmission

FAST 9-shift speed levers with 1 reverse

Wheelbase/No. of axle

5100+1300 mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body size

9000×2400×2200(mm)

Load Capacity

25 Tons

Panel Structure

Fiber glass sandwich polyurethane

Front/Side/Rear panel

Panel Thickness: 85mm

Roof/Floor panel

Panel Thickness: 105mm

Lights & Switch

Led, Water-proof, 12V/24V convertible

Lowest temperature

-5°C or -25

Equipment

Standard: Aluminum alloy flooring, rear doors.

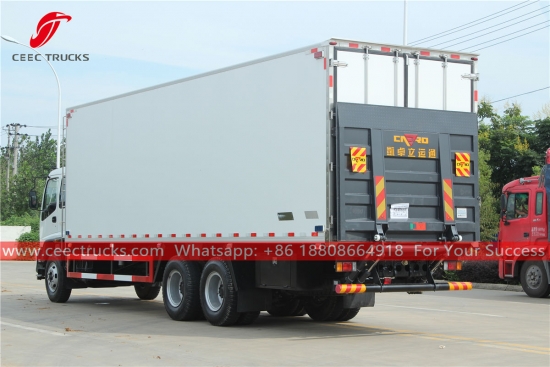

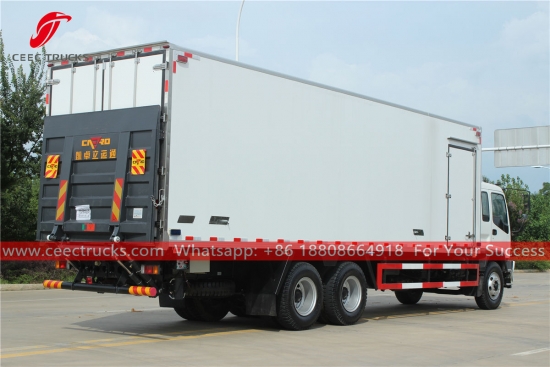

Optional: 1. Hydraulic Tailift and Cargo Control System.

2. Side doors, side steps and ladders.

3. Different temperature area control.

4. Customized floor roller design for convenient working.




 CEEC TRUCKS is a professional refrigerator trucks manufacturer. We can provide ISUZU reefer truck, HOWO chiller lorry, FOTON refrigerated truck, Dongfeng reefer van truck, etc. The capacity of van can be 3-25 tons. Our freezer trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Equipped with famous domestic chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, and Sinotruk

Equipped with famous refrigeration units, Thermo King & Carrier, & Guchen Super Snow refrigeration units.

Refrigerated truck body structure is sandwich structure: Fiberglass + PU + fiberglass. All the double surface sandwich polyurethane panel and door are 100mm thickness, the Fiberglass plate thickness is 2.5mm for the outer and inner skins; the polyurethane foam density is 45-50kg/m3. (All is the best material in China and have excellent insulation performance).

The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.

Sandwich panel thickness can be changed according to customers’ requirements: 60mm, 80mm, and 100mm.




ISUZU 10 wheeler refrigerated truck

ISUZU 25 tons reefer van

CEEC TRUCKS is a leading exporter of refrigerator trucks in China. We possess over 10-year export experience of reefer van trucks. We can ensure the fast delivery time and 12 months guarantee for our freezer  trucks. Our refrigerator lorries are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely
