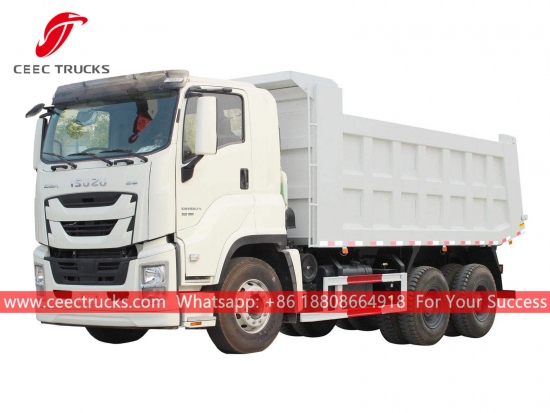

ISUZU GIGA Dump truck

ISUZU GIGA dump truck, ISUZU 6x4 LHD chassis, ISUZU 380HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on customer's requirement.

  • Product Origin:

    China CEEC

  • Shipping Port:

    China Main Port

  • Lead Time:

    20 Days

  • Payment:

    T/T, West Union
contact now

 Applications:

ISUZU GIGA Dumper truck (also called ISUZU heavy duty dump truck, ISUZU GIGA 6X4 dumper vehicle, ISUZU GIGA tipper lorry, hydrualic dump vehicle ISUZU, 10 wheels construction tipper truck, ISUZU GIGA dumping vehicles) is a truck used for transporting oose material, such as sand, gravel, coal, dirt, etc.



CEEC TRUCK dump truck is manufactured with the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front or middle hydraulic system, etc.



 Key Features:

---- ISUZU chassis, perfect performance
---- ISUZU diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 10ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



 ISUZU GIGA Dump truck

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

ISUZU

Overall Dimension

8500 * 2500 * 3500 mm

GVW / Kerb Weight

25,000kg / 12,200kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

ISUZU diesel engine

Power

380 HP (280 KW)

Displacement

9839 ml

Emission Standard

Euro 5

Chassis

Drive Type

6X4 (LHD)

Transmission

FAST 12 speed levers with 2 reverse

Wheelbase/No. of axle

3985+1375 mm / 3

Tire Specification

11.00R20

Tire Number

10 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

25 Tons

Cargo body

5600*2450*1200

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

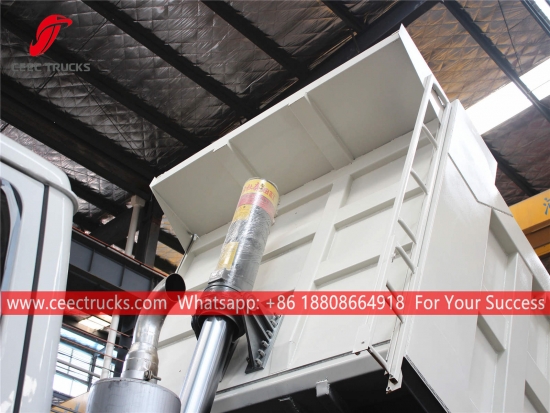

Cylinder type

T Type or Domestic 220 or HYVA 200

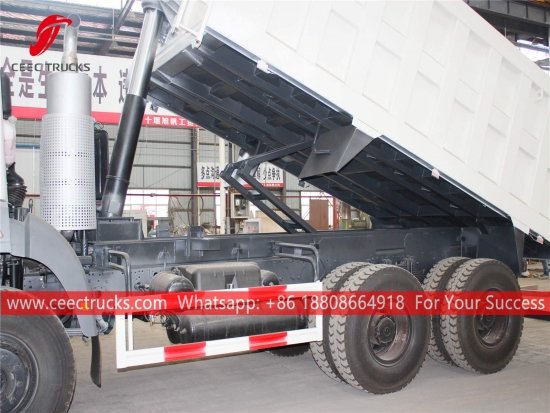

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

★ Euro 4 type, ISUZU engine, fuel consumption save 20%

★ MLD 6-shift manual mechanical transmission gearbox

★ Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

★ 12 months fast moving spare parts for FREE

★ Authorized ISUZU tipper trucks exporter

★ Training service for ISUZU dumper trucks




China best dump truck supplier and exporter, we supply the best quality ISUZU 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our dumping trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.


---- Maximize save your sea freight.

---- Professional guidance on your importing documents.

---- Safety, Quickly, Timely



CEEC garbage compactor truck factory review


---- Service more than 60 countries.

----  Professional guidance on your importing documents.

----  CO, FORM E, FORM P, Pre-shipping Inspection...



export documents

Related Tags :

ISUZU GIGA Dumper truck ISUZU Tipper truck Hevy duty dump truck 6X4 Tipper lorry 25Tons dump vehicle 10 wheels dumping vehicle
Successful Cases
  • Cabo Verde - 1 unit garbage compactor truck into 40 HQ container
    Cabo Verde - 1 unit garbage compactor truck into 40 HQ container

    On August 10th , 2019, another isuzu garbage compactor truck is successfully put into 40 HQ container .  This order is the second order from cabo verde customer. isuzu garbage compactor truck Client: Cabo verde customer Mr Hadi Project: Cabo ver...

  • Tanzania- 20 units dongfeng skip loader export
    Tanzania- 20 units dongfeng skip loader export

    On July 10th , 2019, 20 units dongfeng skip refuse trucks are successfully painted .  These 10 CBM skip bin trucks  will be used in dar es salaam , Tanzania. 20 units dongfeng skip lift trucks Client: Tanzania customer Mr ahamed Project: Da...

  • Cote Dlvoire- 8 units beiben 3138 concrete mixer trucks are successfully exported
    Cote Dlvoire- 8 units beiben 3138 concrete mixer trucks are successfully exported

    On July 6th , 2019, 8 units beiben 3138 concrete mixer trucks are successfully finished .  These beiben 14 cement mixer trucks will be used in Cote divoire 8 units beiben transit mixer truck Client: Cote dlvoire customer Mr Hugo Project: Adidjan...

  • Malta- Vacuum tanker upper body exporting
    Malta- Vacuum tanker upper body exporting

    On July 9th , 2019, 3 CBM vacuum sewage tanker upper body is successfully shipped into container .  These first sample vacuum tanker body will be used in malta. 3 CBM faecal suction tanker body Client: Malta customer Mr Josef Project: Alletta ci...

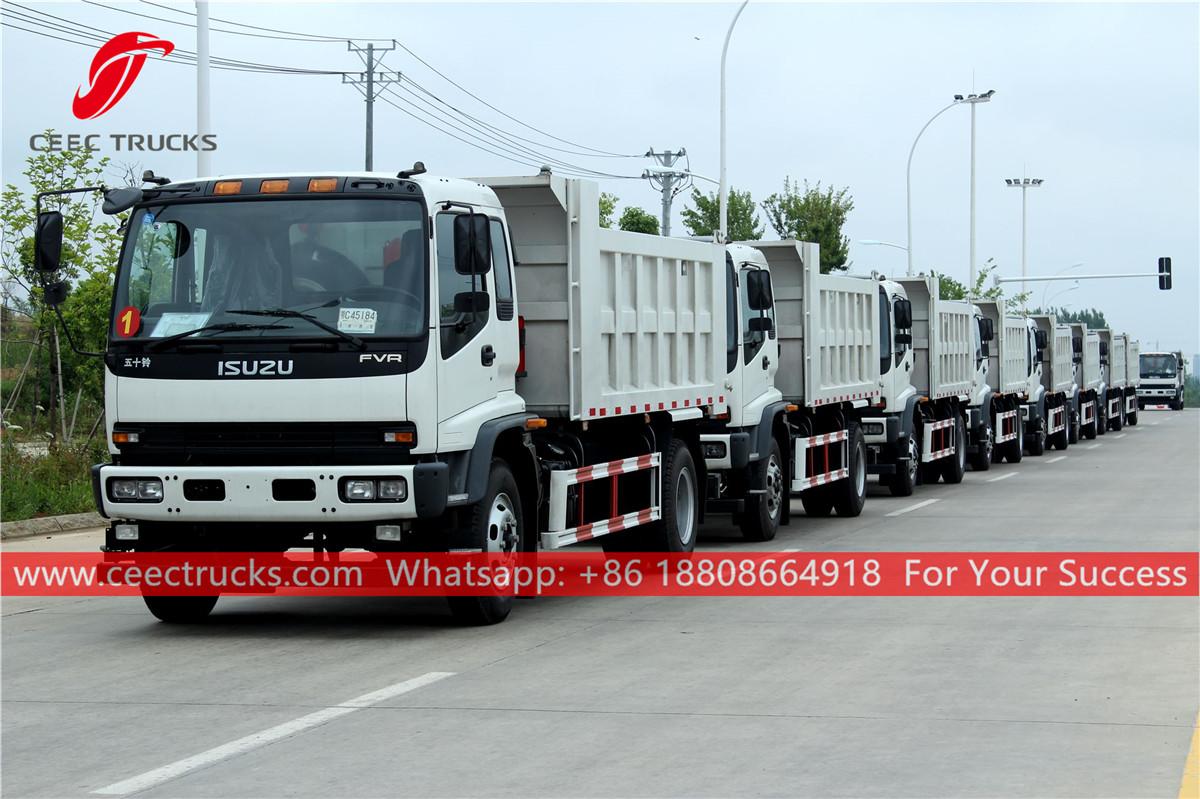

  • Philippine-10 units ISUZU FVR dump truck export
