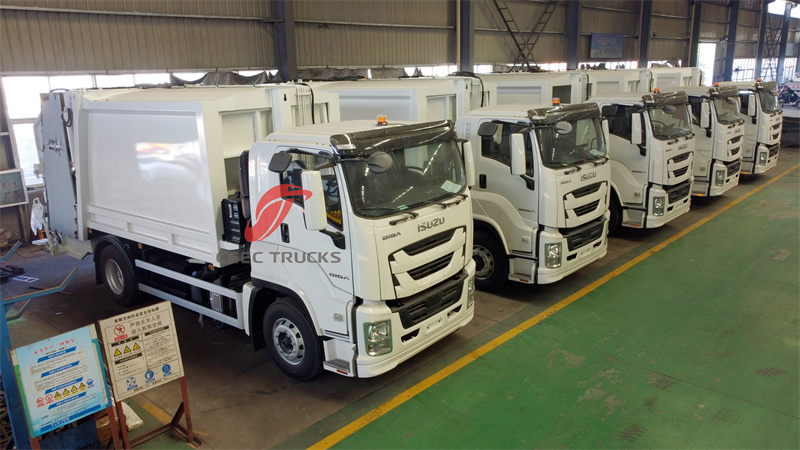

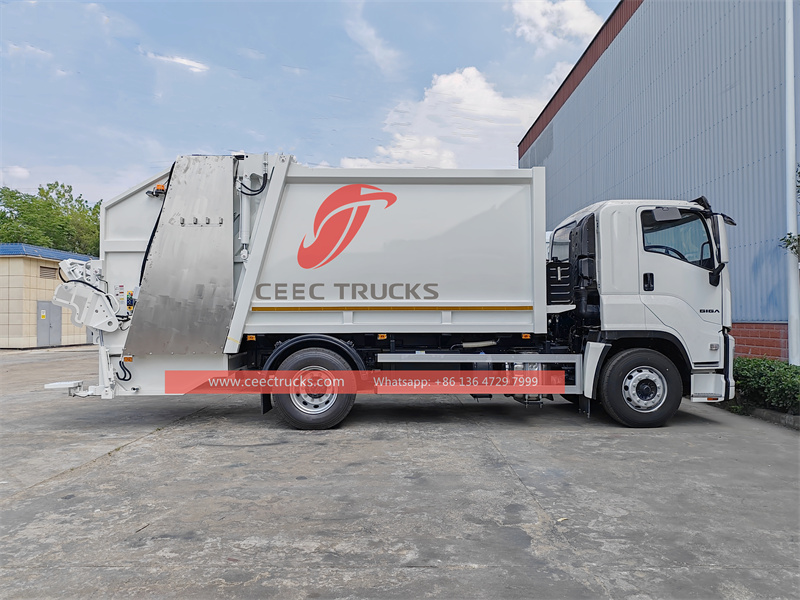

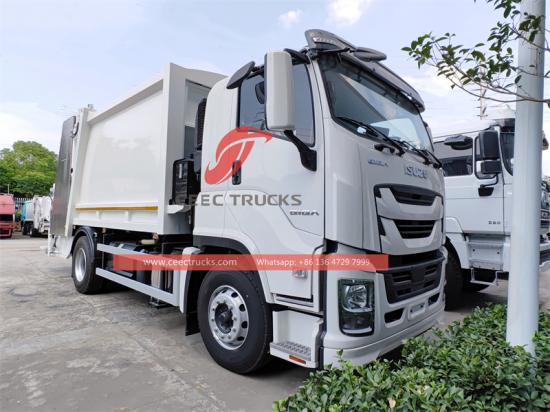

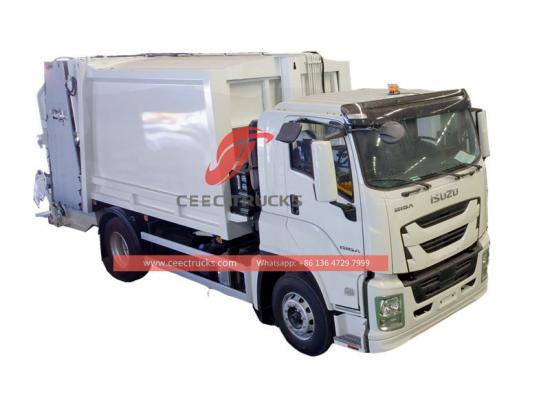

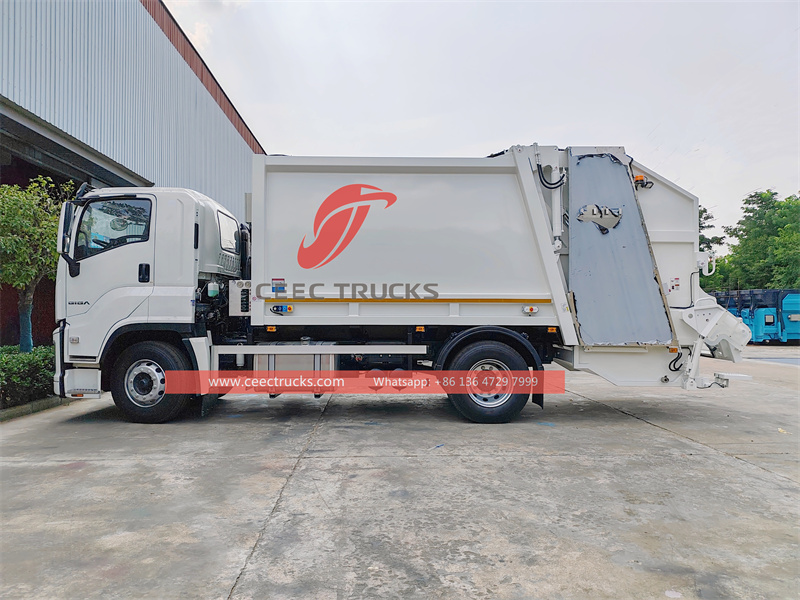

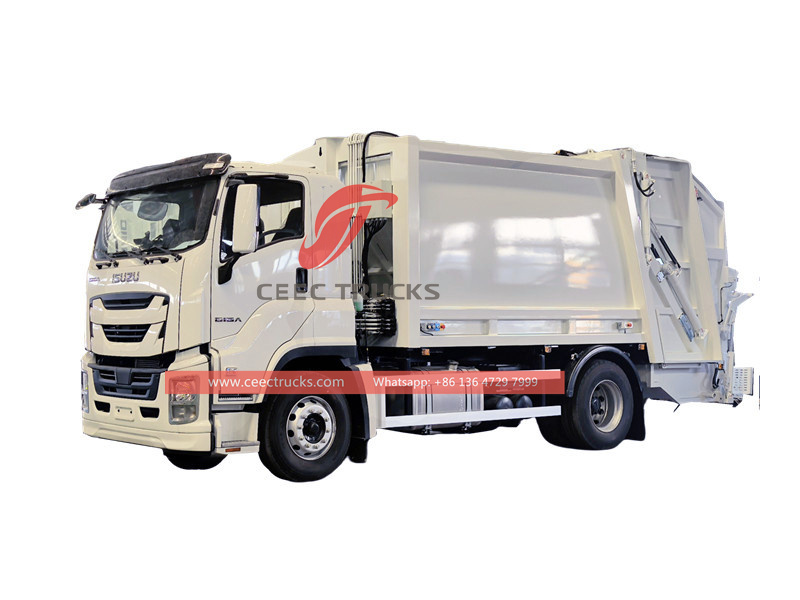

The ISUZU New GIGA FTR garbage rear loader truck is a high-efficiency equipment specifically designed for urban waste management. It employs advanced compactor technology to significantly reduce the volume of garbage, thereby enhancing transportation efficiency, decreasing the number of transport trips, and lowering operational costs. Built on the Isuzu GIGA chassis, the garbage rear loader is equipped with a 205HP 4HK1 engine and MLD 6-speed transmission, offering robust power performance and stable driving capabilities. With its compact design and easy operation, the ISUZU New GIGA FTR garbage compactor is suitable for garbage collection and transportation in various environments, including cities and townships.

*Isuzu GIGA 205HP Rear Loader Truck

Isuzu FTR Garbage Compactor Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1.  Efficient compression: bidirectional compression technology, the loading capacity is more than 30% higher than that of ordinary garbage trucks.

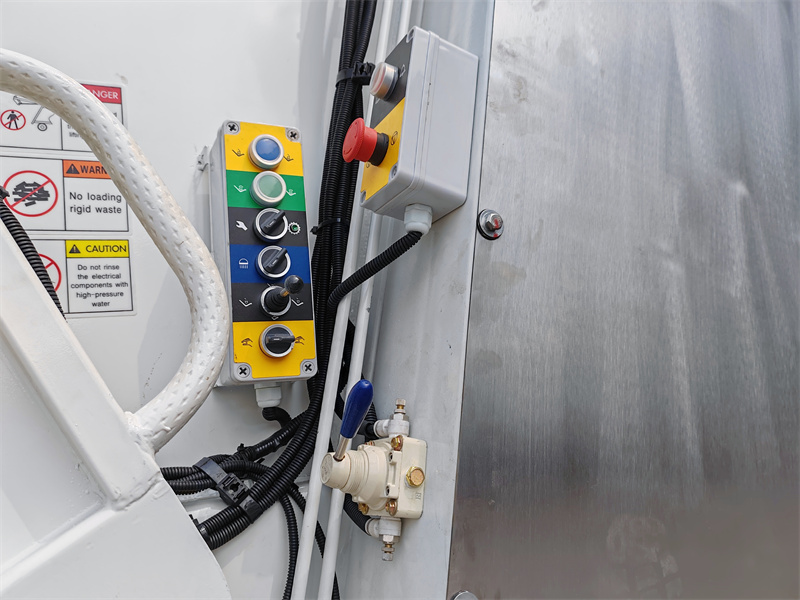

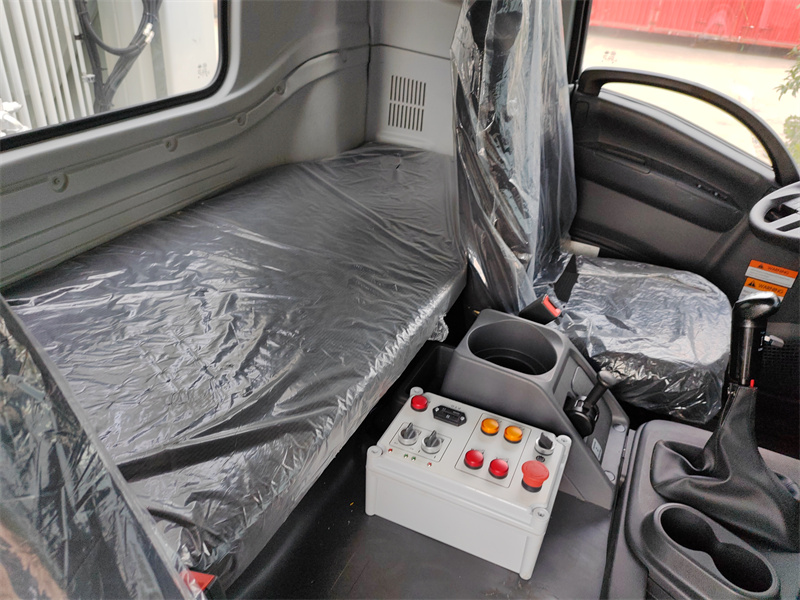

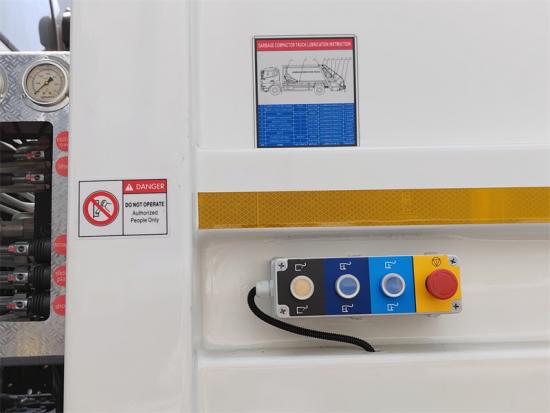

2. Convenient operation: three operation points (cab, driver's side, tail) adapt to different operation scenarios.

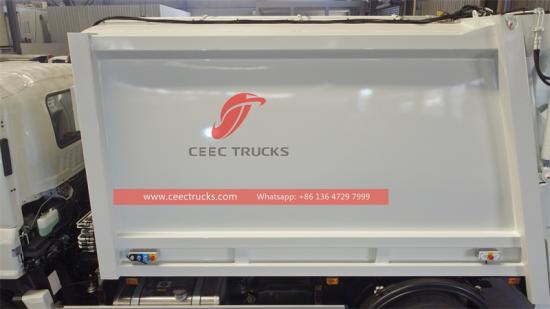

3. Strong durability: carbon steel box + anti-corrosion treatment, adapt to harsh working environment.
4. Low fuel consumption and economy: Isuzu 205 horsepower engine + 6-speed gearbox, excellent fuel economy.
5. Safe and reliable: the hydraulic system is equipped with a safety valve to prevent overload and ensure operation safety.

» Ⅱ.Product Parameter for Isuzu GIGA rear loader truck

» Ⅲ.Product Details & Advantages:

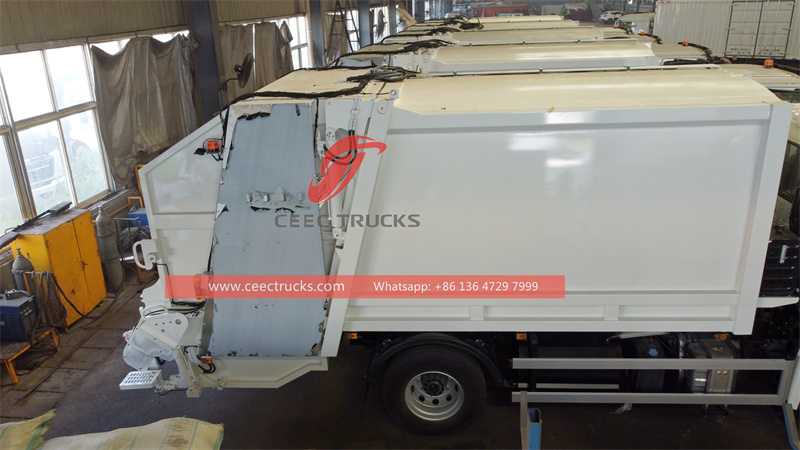

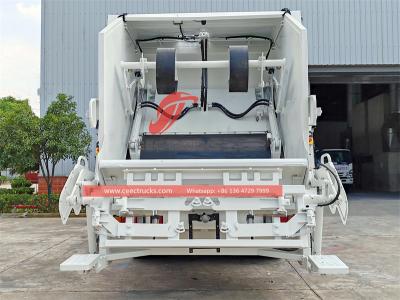

1. Maximize the use of compression stroke and box volume

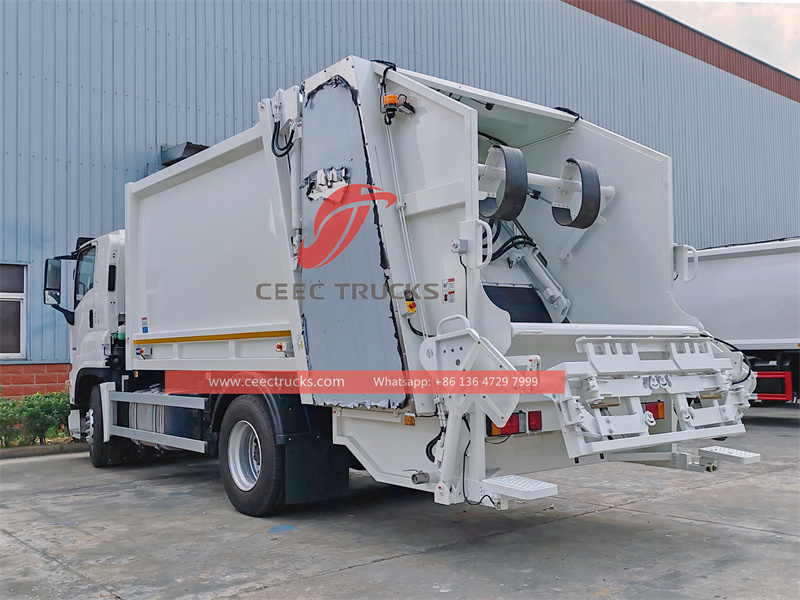

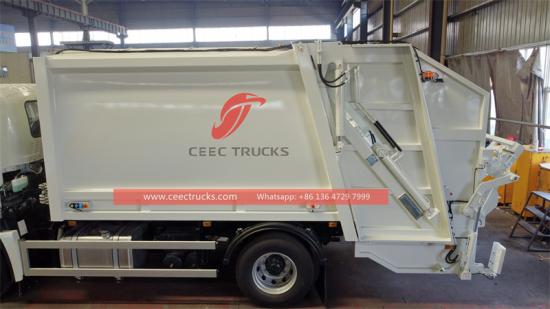

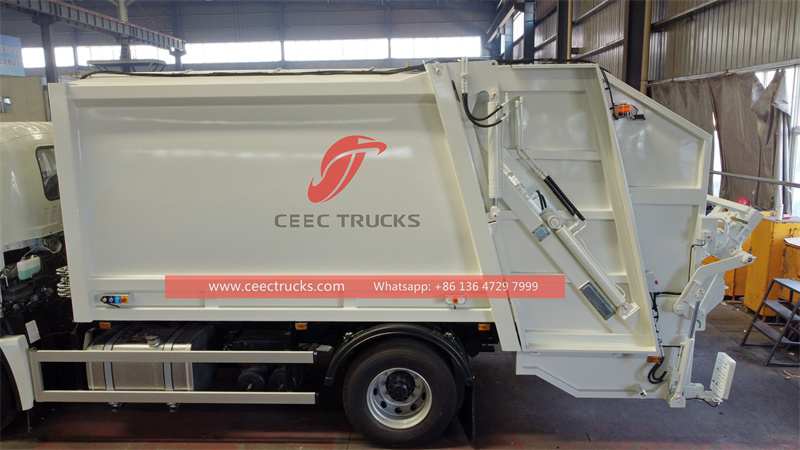

The core of the Garbage rear loader is the compression mechanism (such as scrapers and slide plates) to compact the loose garbage. The Isuzu GIGA F-serious 16CBM Garbage compactor truck usually reciprocates from the rear to the front of the box.

CEEC engineer considered that if the rear filling bucket and the box entrance are designed too low, the garbage will accumulate at a lower position at the rear of the box when it is initially poured in. When the compression mechanism is pushed forward for the first time, it can only push the garbage accumulated at the bottom, and the upper space is not effectively utilized, the compression efficiency is low, and the single loading volume is small.



After repeated communication with European customers, CEEC technicians improved the design of the rear filling bucket and the box entrance, so that the garbage poured by the Isuzu GIGA waste compactor truck initially falls at a relatively high position in the middle and rear of the box. When the compression mechanism moves forward, it can not only push the garbage horizontally, but also effectively compact the garbage downward, making full use of the height and volume of the entire box, and significantly improving the loading efficiency and compaction ratio.

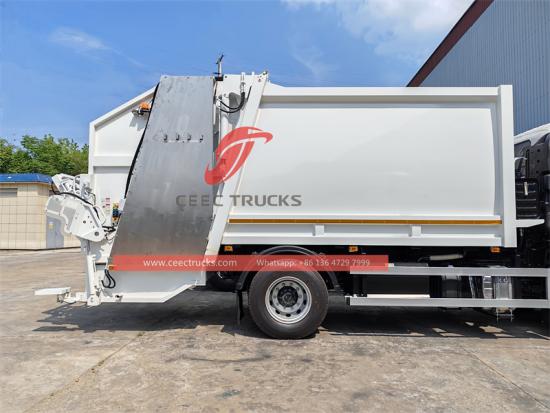

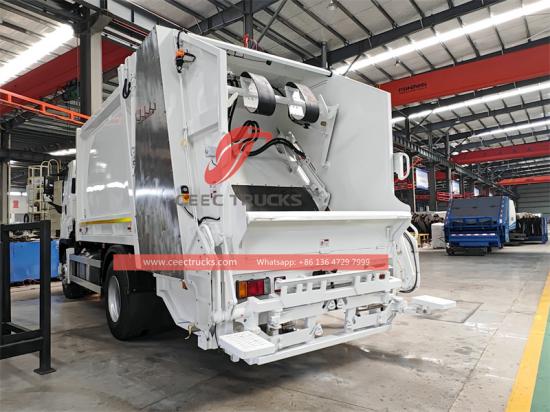

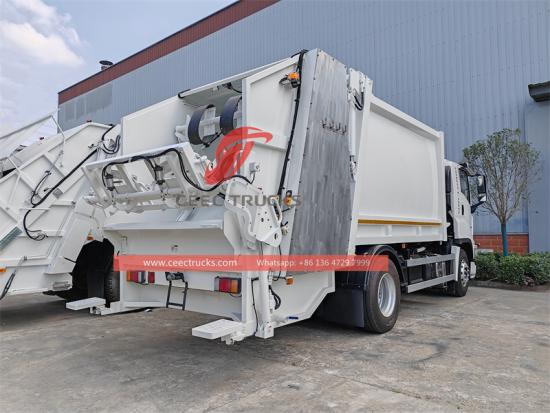

2. Preventing garbage spillage and improving sanitation

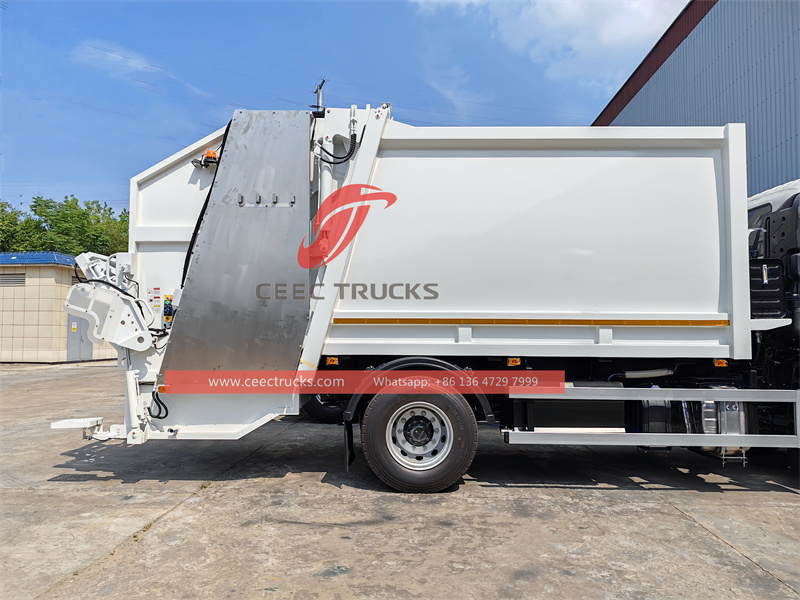

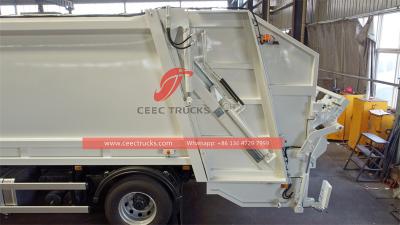

The Isuzu FTR rear loader's high rear bucket edge can form a better containment effect. When the garbage bin is lifted and dumped by the lifting arm, it can more effectively prevent the garbage from being blown out or scattered outside the vehicle, especially when the wind is strong or the garbage is light (such as paper scraps, plastic bags). The garbage in the garbage bin falls from the high place of the bucket into the deep part of the bin, reducing the possibility of garbage rebounding or splashing out at the entrance, helping to keep the work area clean and hygienic.



Products--100% Customized Level One!

« Ⅳ.Performance tests of Isuzu GIGA rear loader:

100% customized appearance, design the compactor bin capacity, operation methods and location, also the whole truck size can be customized.
