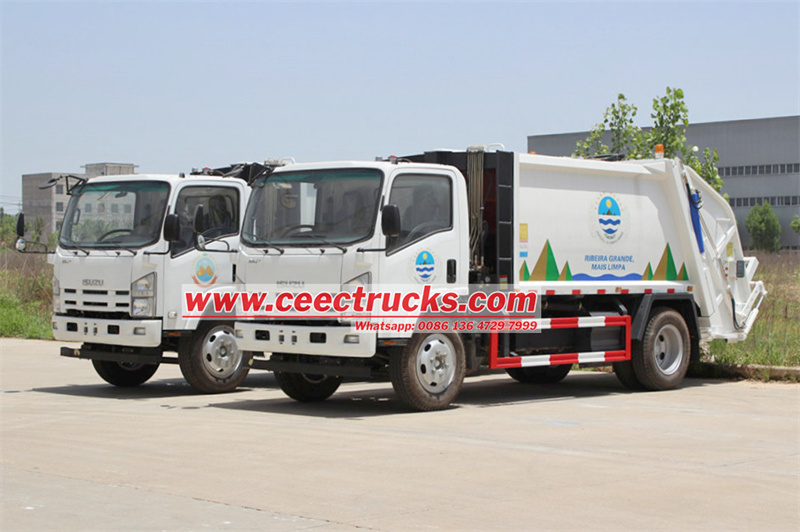

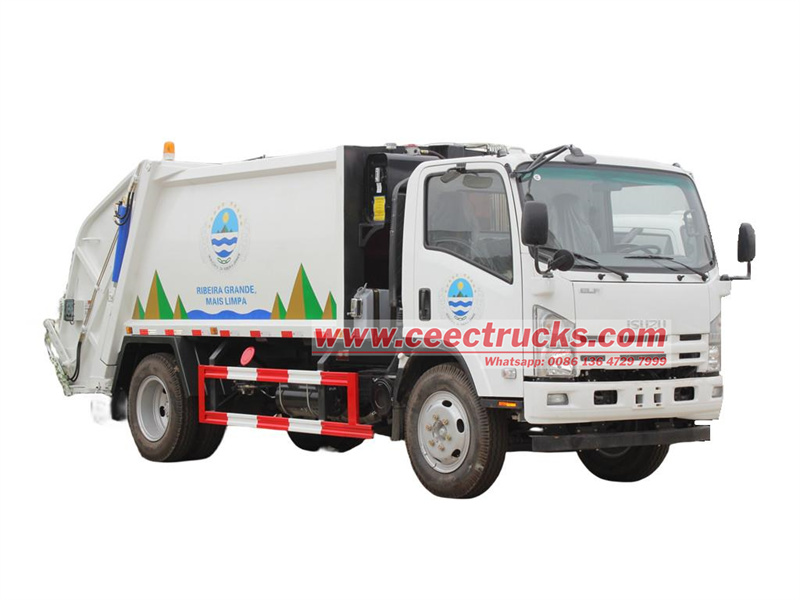

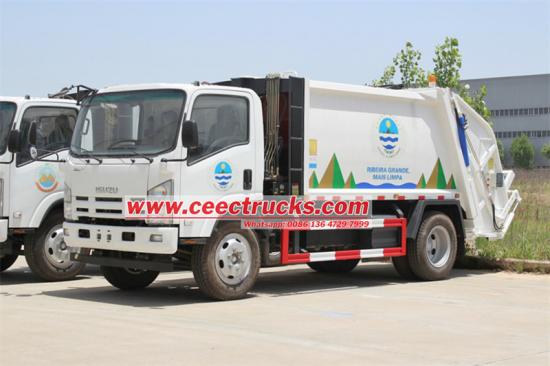

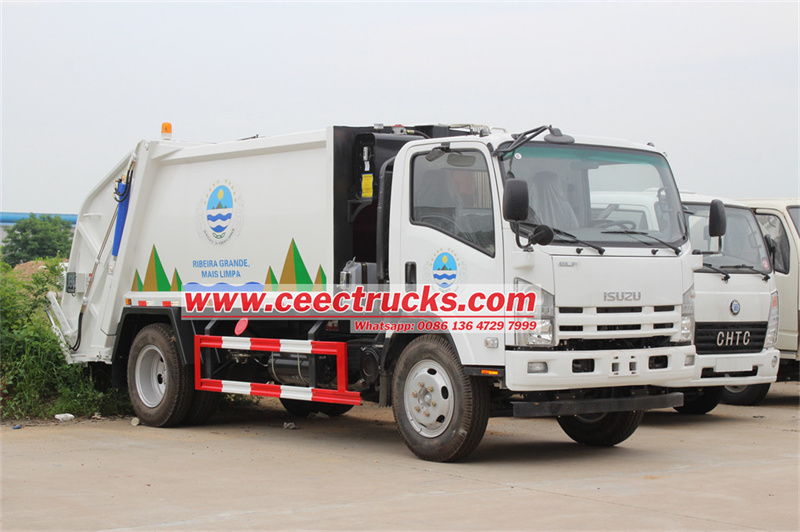

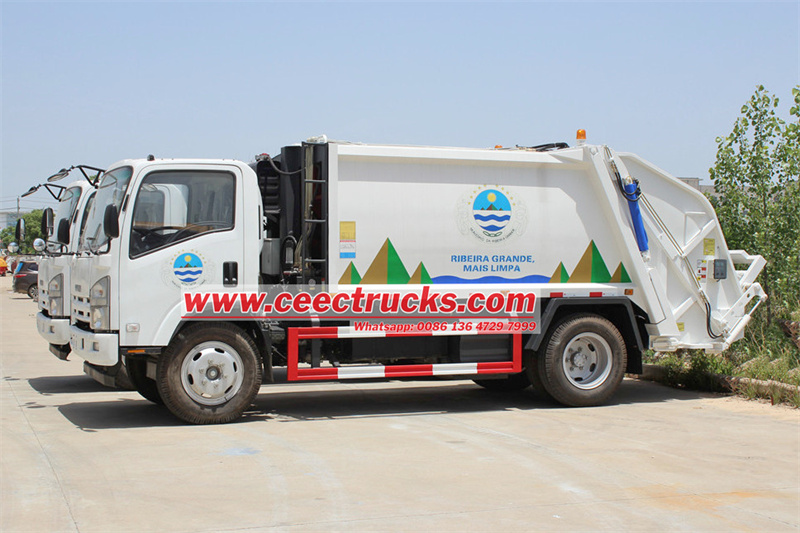

Isuzu NPR engine waste compactor vehicle

Let's learn about the structure of high-quality ISUZU garbage rear loader truck.

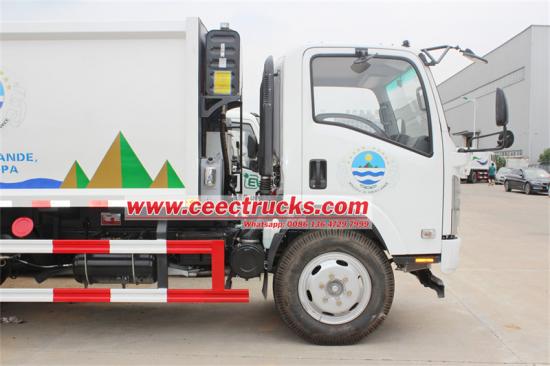

——Chassis system: Isuzu NPR garbage compactor truck, equipped with Isuzu special engine 4HK1 model, 190 horsepower engine, gearbox (such as MSB five-speed gearbox) and drive system, supports National V/National VI emission standards. Chassis configuration includes air brake, ABS, original air conditioning, remote control key, to ensure driving stability and convenient operation.

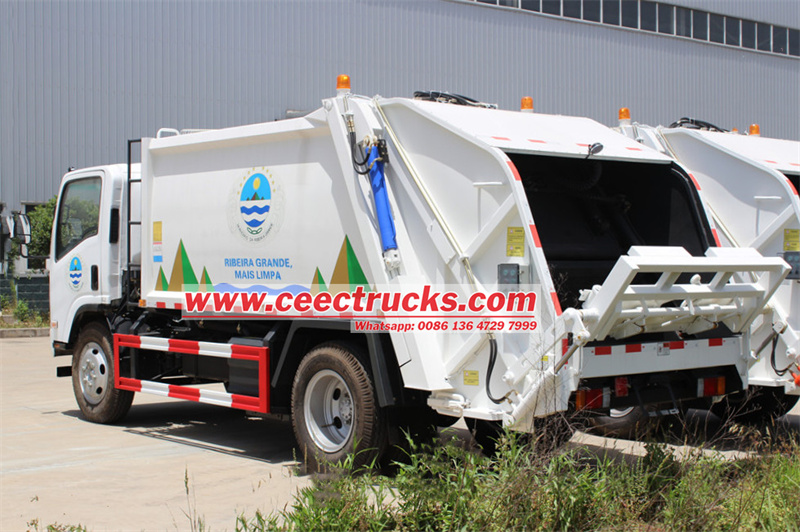

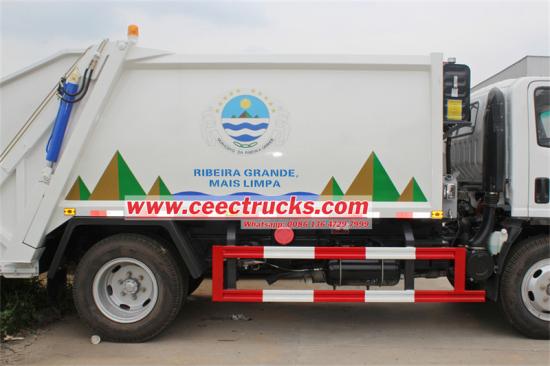

——Garbage compartment: The compartment is made of high-strength materials, high-quality carbon steel such as Q345 manganese steel, and is formed by fully sealed welding. The volume ranges from 4 cubic meters to 20 cubic meters. The compartment design includes an arc structure, a two-way compression push plate, a sewage tank (volume ≥ 200L) and an anti-leakage sealing device to effectively prevent secondary pollution.

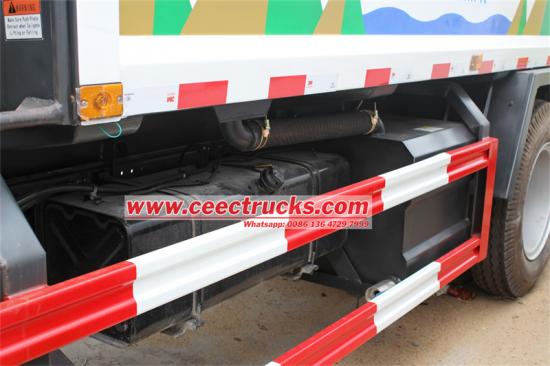

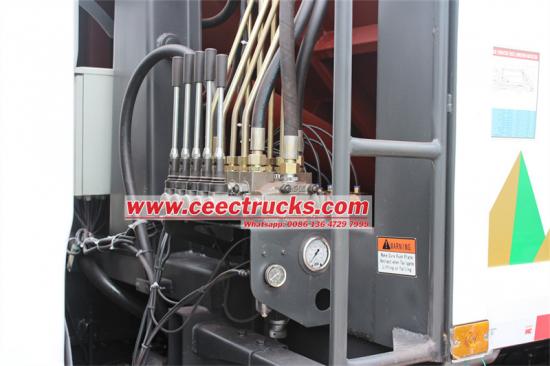

——Hydraulic system: It consists of a fuel tank, an oil pump, a multi-way valve, a hydraulic cylinder, a pipeline, etc. The hydraulic pressure is usually set to 16Mpa, and the power is obtained from the engine through the power take-off to drive loading and unloading, compression, lifting and other actions.

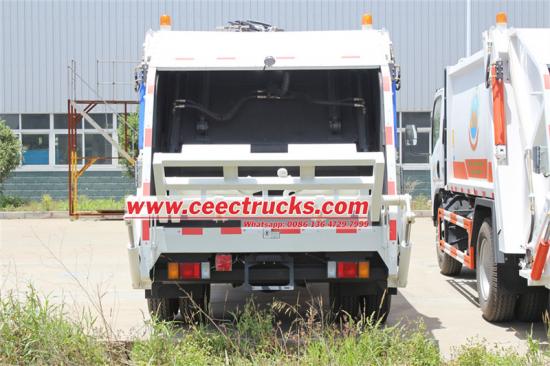

——Loading and unloading and compression mechanism: Loading mechanism, rear flip bucket hanging mechanism can adapt to 240L or 660L standard trash cans, realize one-button automatic loading, and complete single garbage dumping within 15 seconds. Compression mechanism, push shovel and scraper compress garbage in both directions, the compression ratio can reach 1:3, and the peristaltic compaction function controlled by PLC can increase the loading capacity.

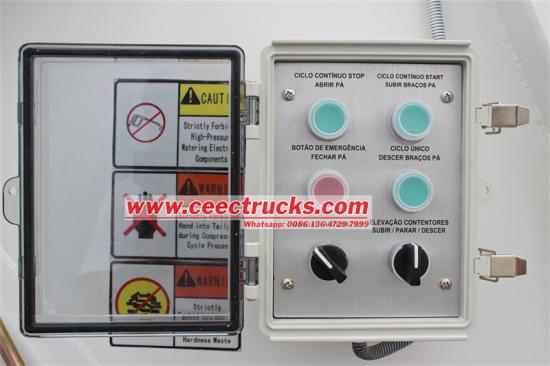

——Control system: adopts electromechanical and hydraulic linkage control, supports electronic control in the cab, wireless remote control and manual operation. PLC programming realizes automated operation (such as automatic throttle control, cycle compression), integrated operation, and improved efficiency.

Advantage:

Enhanced Safety: The truck comes with multiple safety features, including rearview cameras and warning systems, to ensure the safety of operators and pedestrians.

Cost-Effective: With its high efficiency and durability, the Isuzu NPR Rear Load Trash Truck offers a cost-effective solution for waste management.

Eco-Friendly: The truck's efficient design helps reduce fuel consumption and emissions, making it an environmentally friendly choice.​

Upper Body Customized

We understand that each customer's needs are unique. Therefore, we offer customized upper body solutions for our Rear Load Trash Truck. Whether you need a specific size, shape, or additional features, our team of experts can work with you to create a customized solution that meets your exact requirements.

After-sales Service

We pride ourselves on providing exceptional after-sales service. Our team of experts is always available to assist with any issues or concerns you may have with your Rear Load Trash Truck. We offer regular maintenance checks, parts replacements, and technical support to ensure your truck remains in optimal condition.
