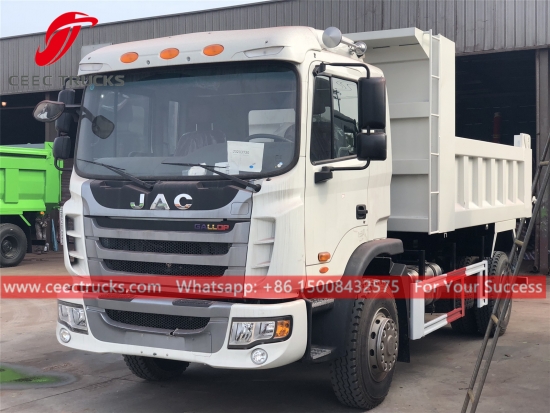

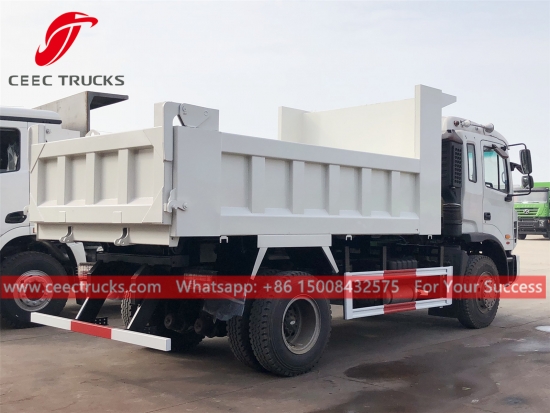

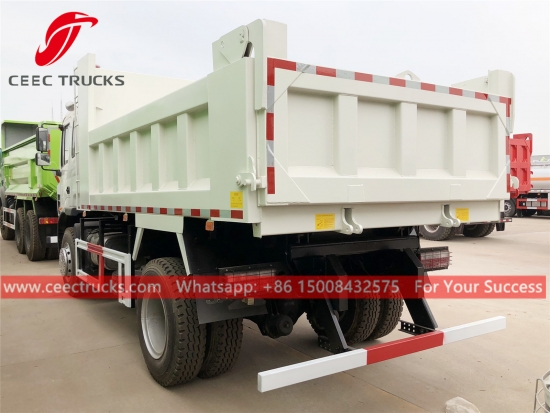

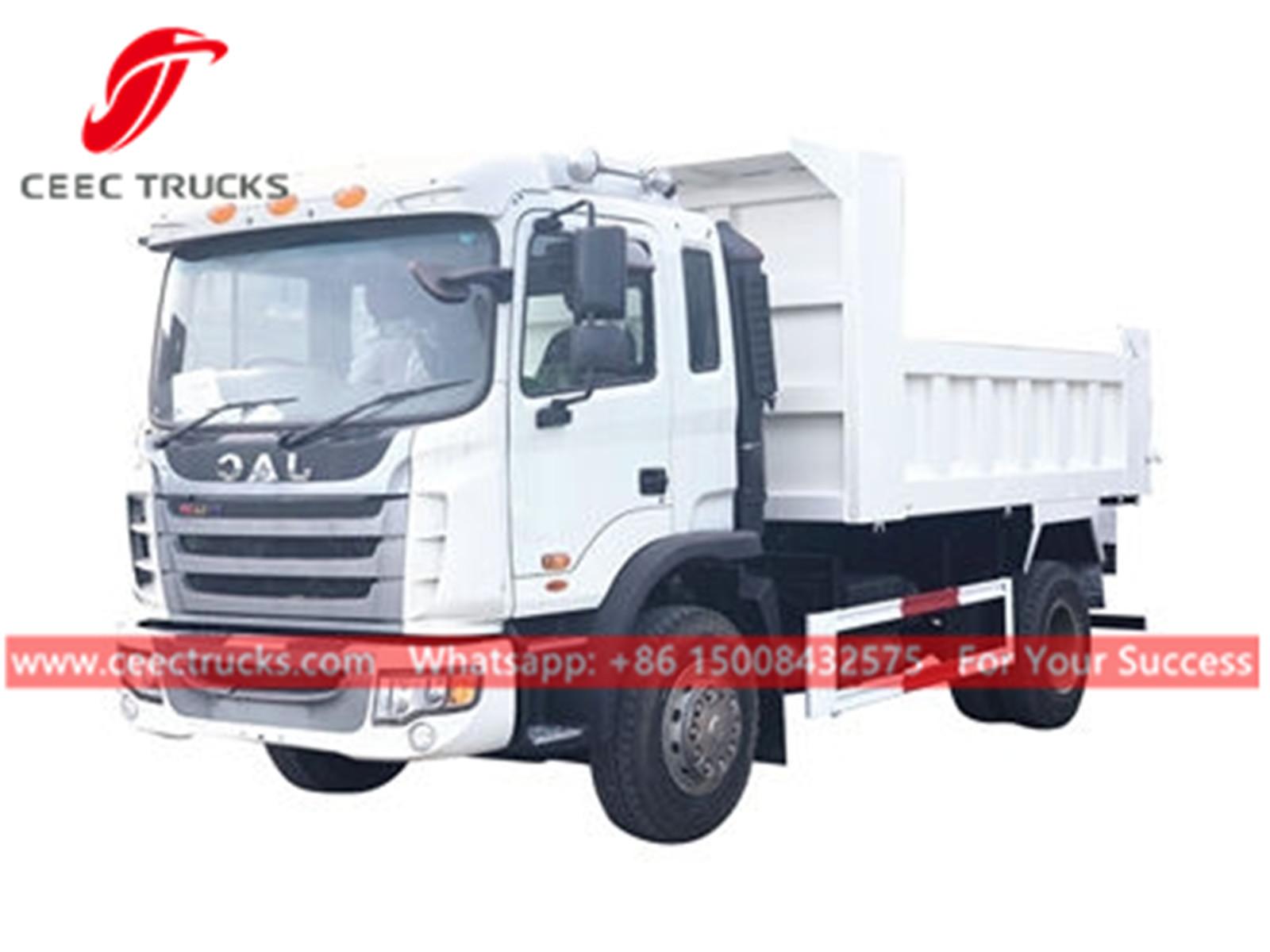

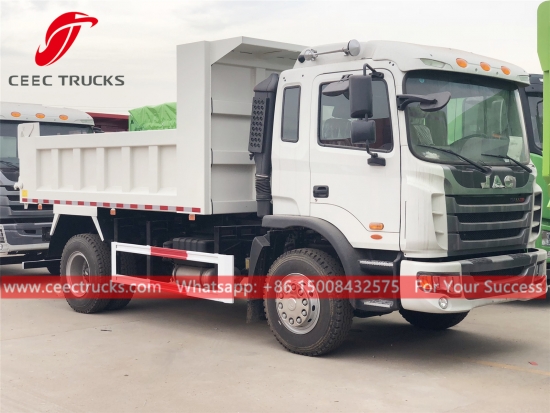

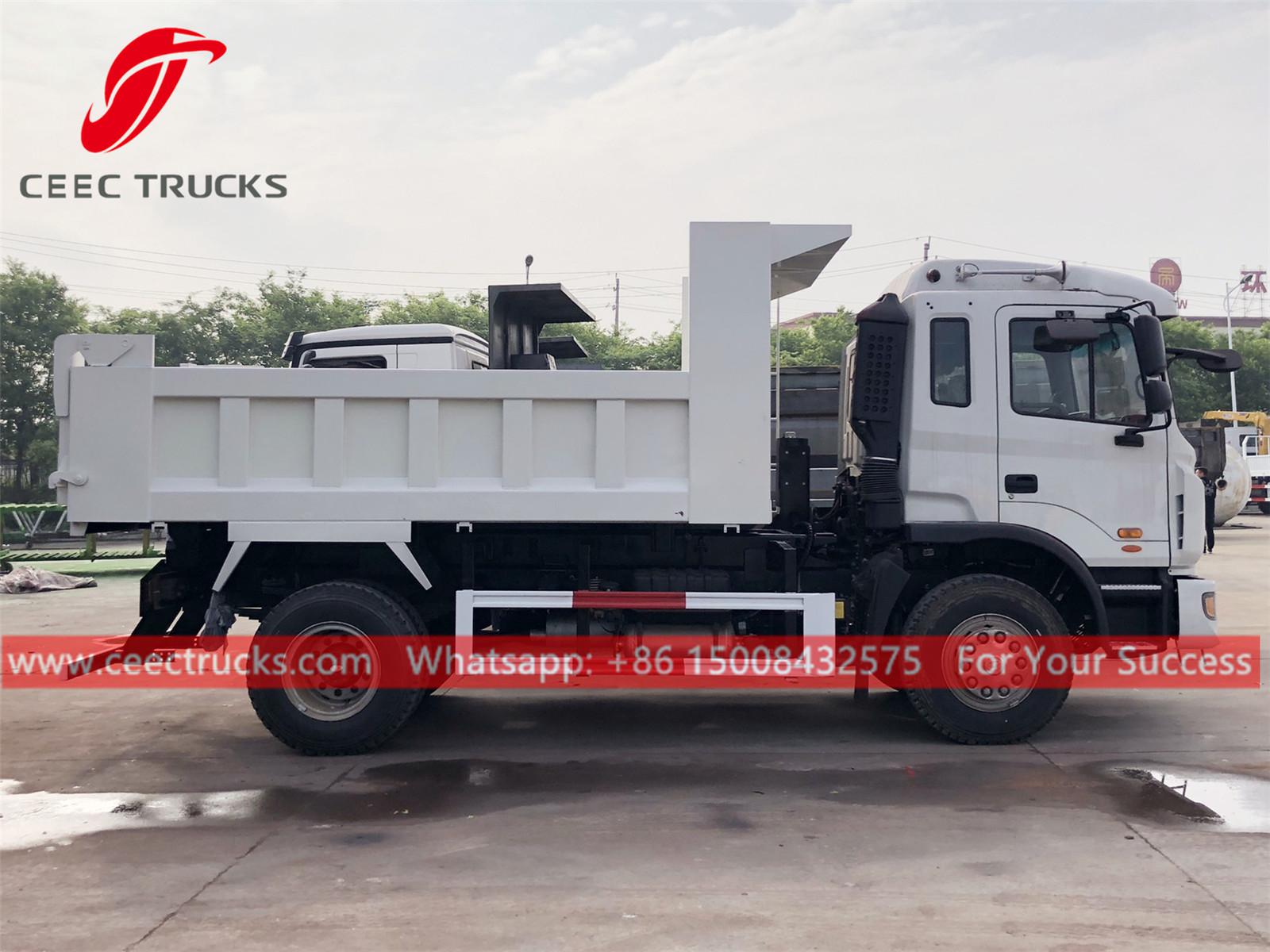

JAC 4x2 Dump truck

Kazakhstan 4x2 dump trucks for sale, JAC left hand drive chassis tipper trucks, HYVA lifting as optional. painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $24,000-39,000
contact now



 Applications:

4x2 Dump truck JAC (also called heavy duty JAC 4x2 dump truck, JAC tipper truck, 10tons JAC tipper trucks, Hyva front lifting JAC dump truck, 20 cubic meter JAC dump truck, construction sand rock dump truck JAC brand) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- JAC heavy duty chassis, perfect performance

---- JAC engine, super powerful; reliable performance, no overhaul within 100,000 km.

---- Payloading from 20ton to 100 tons.

---- Easy operation and easy maintenance.

---- Virious types of tipper body are available.



 Specifications:



JAC Dumper trucks (10 tons)

General

Vehicle Brand

CEEC

Chassis Brand

JAC

Overall Dimension

7220 * 2500 * 3170 mm

GVW / Kerb Weight

16,000kg / 8,950kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUCHAI

Power

180 HP (132 KW)

Displacement

6494 ml

Emission Standard

Euro 4 or 5

Chassis

Drive Type

4X2, (left hand drive or right hand drive)

Transmission

8 speed levers with 1 reverse

Wheelbase/No. of axle

3800 mm / 2

Tire Specification

11.00R20

Tire Number

6 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

10 Tons

Cargo body

4000*2300*800

Thickness of cargo body

Bottom 8mm

Side 6mm

Cylinder type

T Type or Domestic 180 or HYVA 150

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable trilgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 4 or 5 type, YUCHAI 180HP engine

8-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized JAC tipper trucks exporter

Training service for JAC dumper trucks
