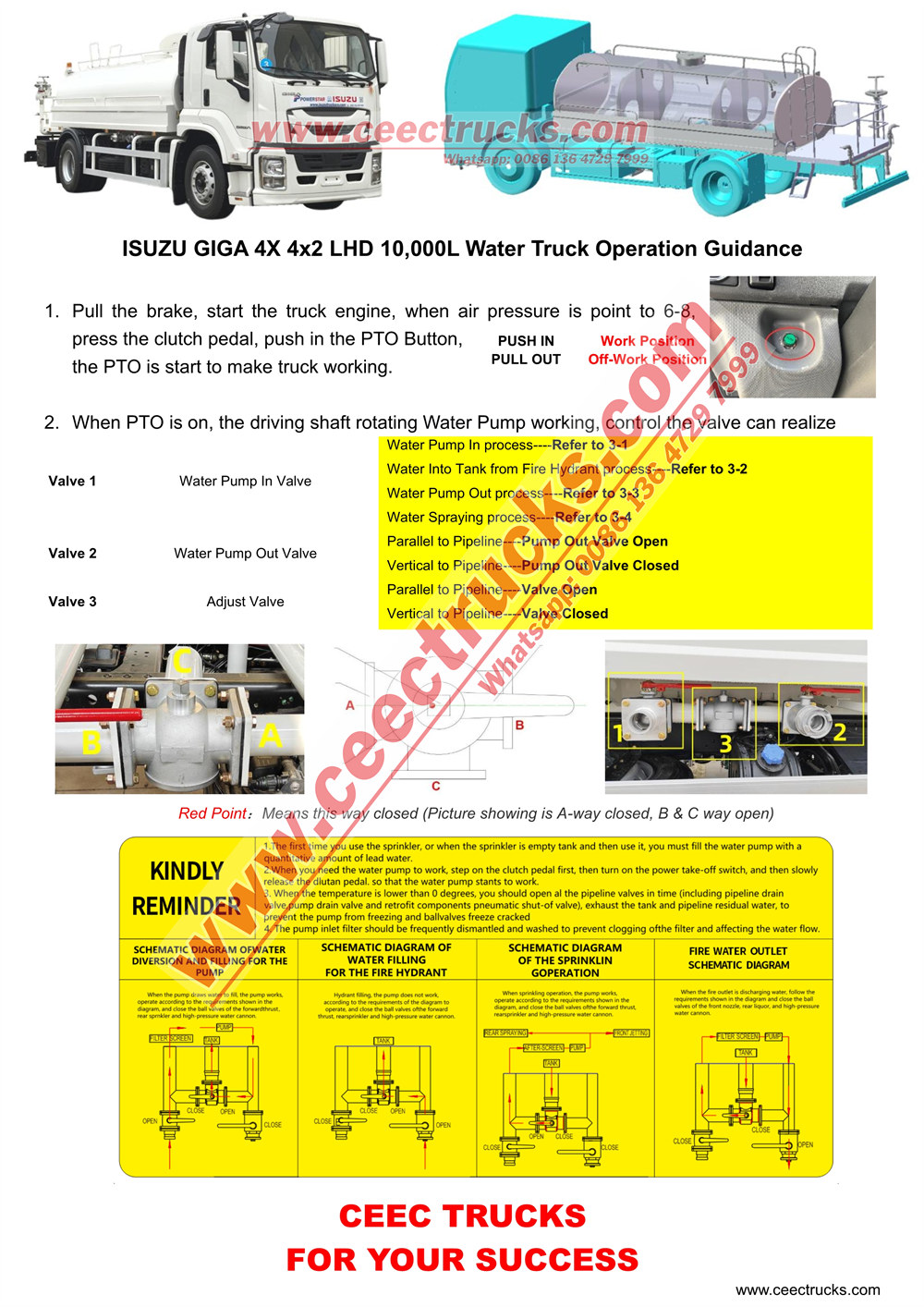

European Moldova clients purchased Isuzu FTR water bowser truck it is modified on the Isuzu GIGA  4X EURO 6 emission standard truckchassis, equipped with 4HK1-TCG60 diesel engine, inline 4 cylinder with 4 stroke, ‌maximum output‌ 151kW (205 hp), matched working with Isuzu MLD 6-speed gearbox, 6 forward and 1 reverse, very lower fuel consumption. The ISUZU GIGA 4X 10000L water truck upper body part is a 10cbm water tank, oval shape carbon steel designed water bowser is configured with front jetting nozzle, rear sprinkler nozzles and side spray, also rear platform mounted with water cannon, a self-priming special water pump 80QZB-60/90 model is installed below tanker, rotated by PTO and driving shaft, so that can realize pump in and pump out function, also pump water into the tanker body from pool, river, etc. ISUZU 10CBM water sprinkler truck equipped with a fire-fighting joint, a gravity valve, and on the rear safety fence equiped with 10 sets water jetting nozzles, which can realize function of dust suppression. Below operation manual is prepared together with truck for prefessional operation guidance, detailed user's manual as below showing:

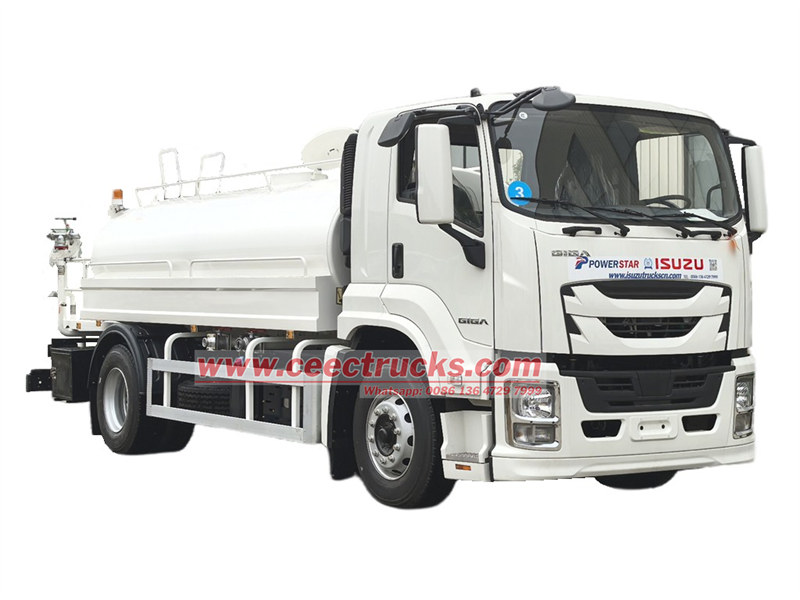

*Isuzu GIGA 4X water bowser sprinkler tank truck

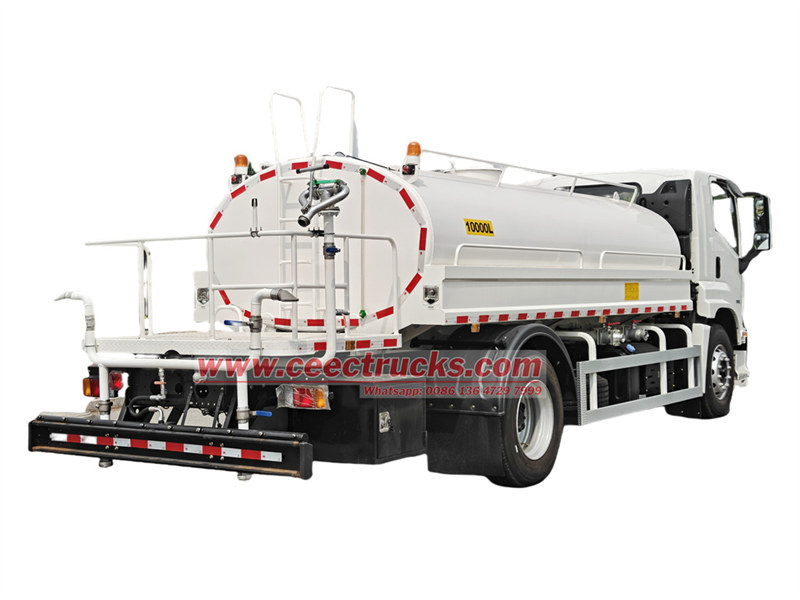

    Isuzu GIGA 10000L water carrier truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

>> How to choose best ISUZU GIGA 4X water tanker trucks?

ISUZU GIGA 4X model water bowser truck is a multi-function sanitation and environmental protection vehicles, which equipped with largo capacity 10000Liters water tanker and equipped with water pump and multiple nozzles, so can realize function of road cleaning, dust suppression and firefighting in emergency. Below mainly tips are guidance for choose:

1. ISUZU GIGA 4X LHD 4x2 Truck: Equipped with Japanese ISUZU 4HK1-TCG60 model with 205HP diesel engine + ISUZU MLD 6-speed gearbox, excellent and lower fuel consumption.

2. Customized Water Tanker Assembly: High quality carbon steel Q235 material oval shaped designed water tanker, with powder coating process for long life service.

3. Water Pump Assembly: 80QZB-60/90 water pump with efficiently pipeline device, efficiently water flow rate 60m3h.

4. Efficiently Usage: ISUZU GIGA 4X water tanker truck with below nozzles for multiple functions, details as below showing.

>> Professional design for ISUZU GIGA 4X water wagon?

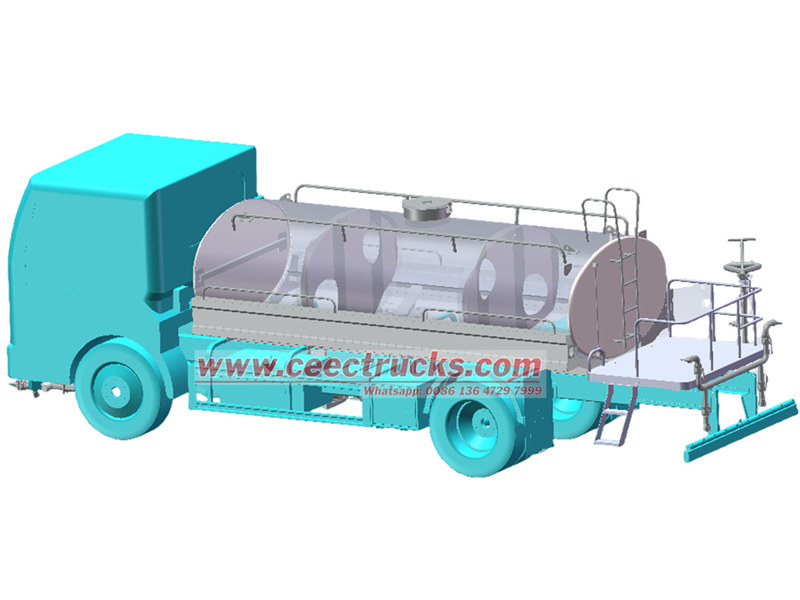

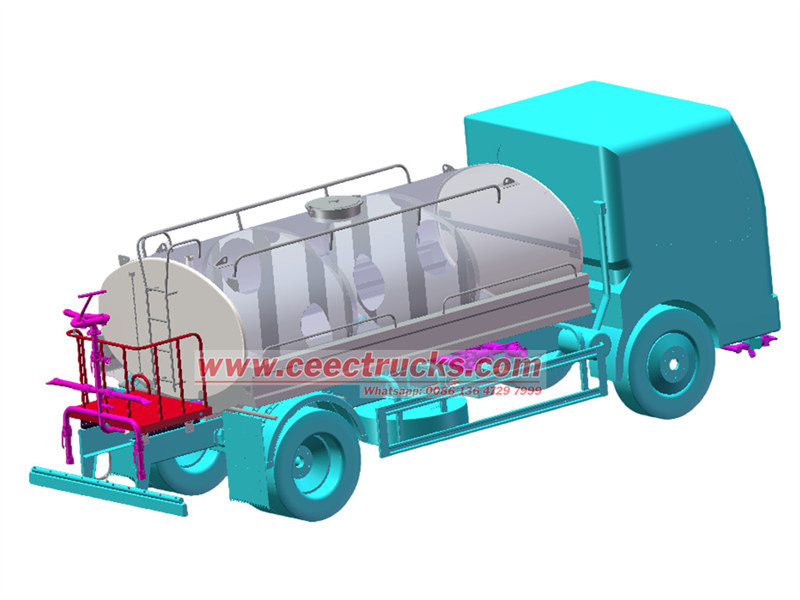

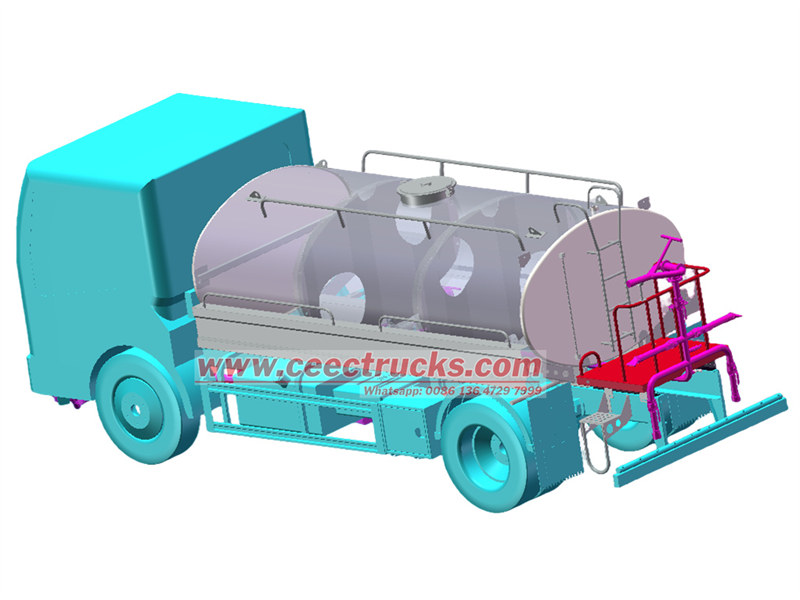

ISUZU 10000 liters water wagon truck is designed and produced based on ISUZU GIGA 4X truck chassis, our Engineer Department is design the water wagon body kit to be suitable for Isuzu truck, both normal technical design and 3D drawing will be prepared for customer checking and confirm, then start for production, to guarantee Isuzu GIGA 4X water sprinkler truck 100% suitable multiple market.

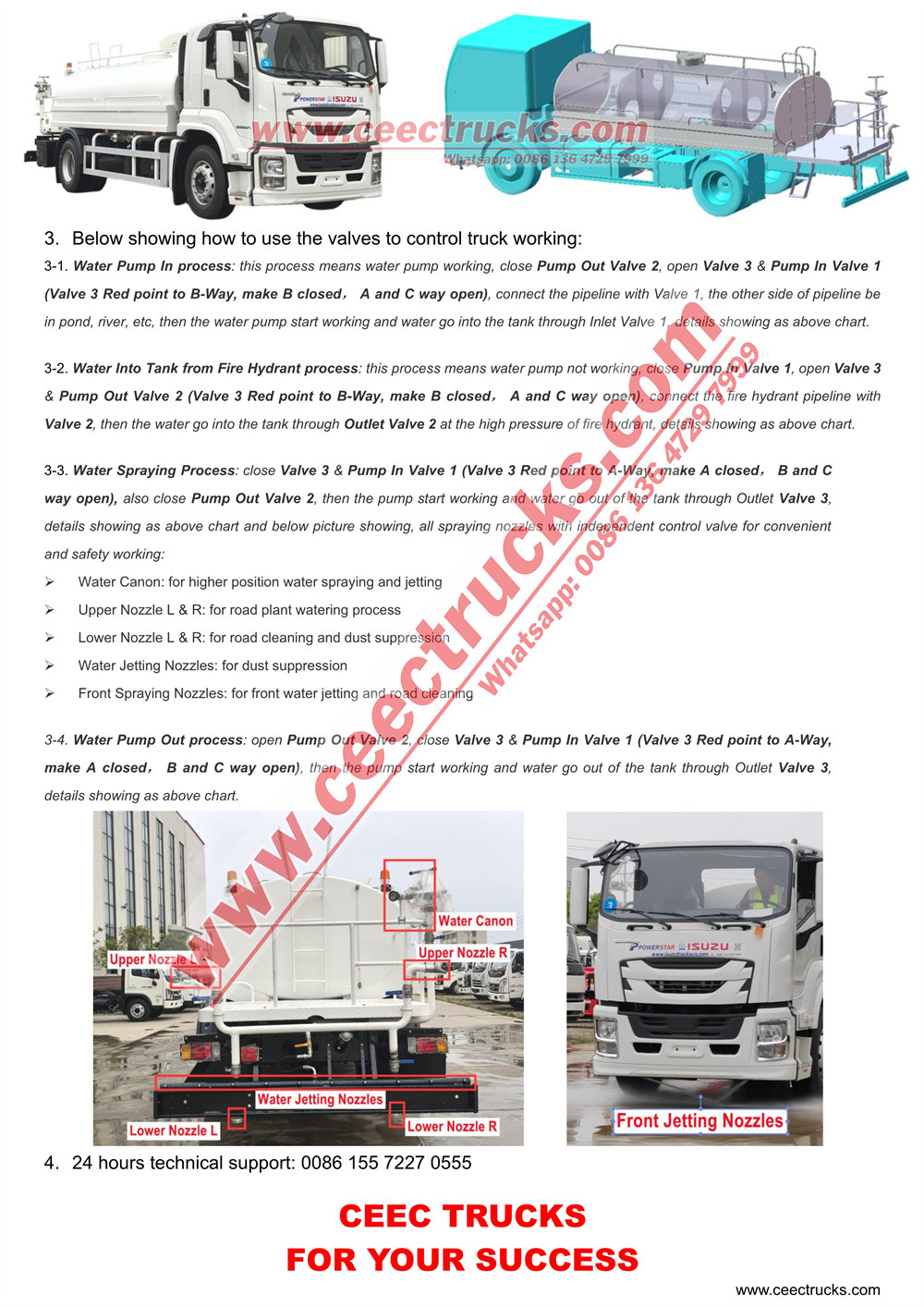

>> Operation Method for ISUZU GIGA 4X water carrier truck?

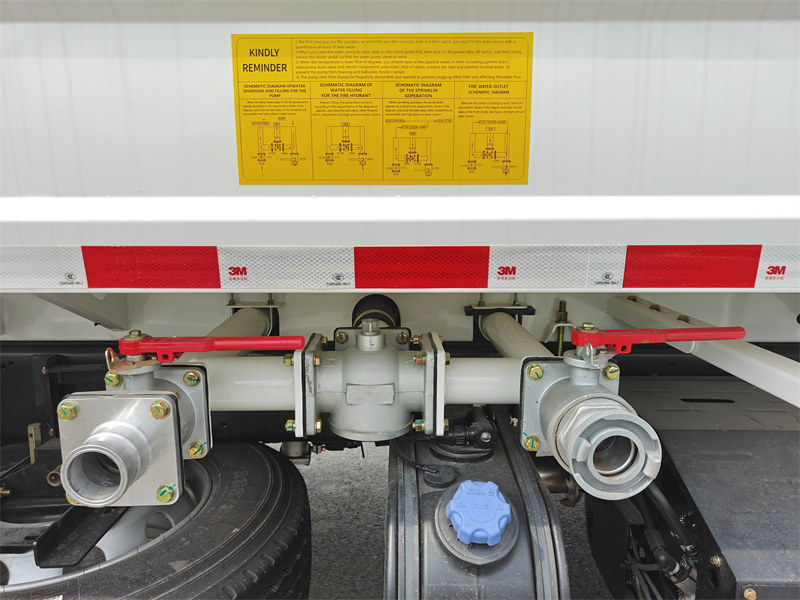

ISUZU GIGA 10000L water carrier trucks are designed with 80QZB-60/90 water pump, matched with pipelines for pump in and pump out function, both front, middle and rear platform are equipped for water jetting and spraying. Below are main functions for checking and optional.

Front jetting nozzles: Jetting on two sides for road cleaning

Middle jetting nozzles: Watering the plants on two sides of the road, also have function of dust suppression

Rear jetting nozzles: Equipped at rear safety fence, totally 10 sets nozzles for dust suppression

Rear platform and water cannon: Rear platform for pipeline and equipment storage. Water cannon for high altitude and long distance water jetting, also can be used as fire truck in emergency

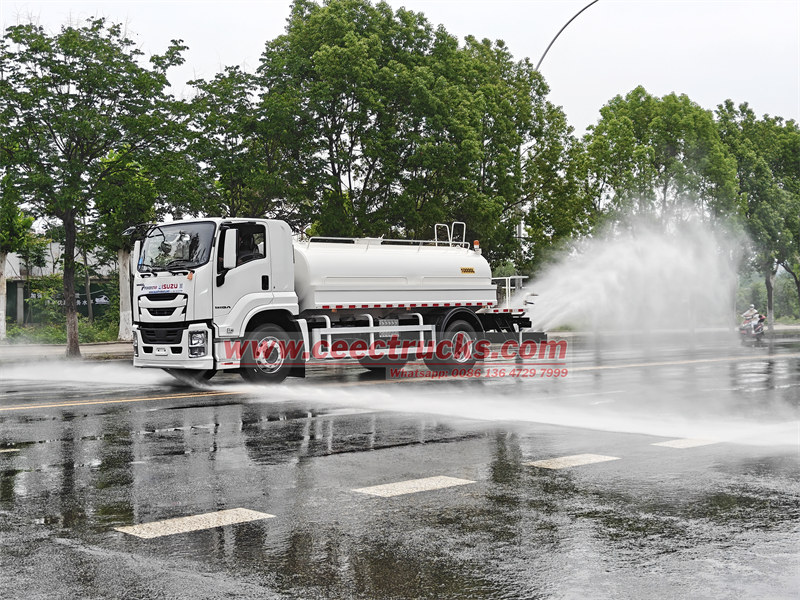

ISUZU GIGA water truck front jetting nozzles

Isuzu GIGA 4X water tanker trucks equipped with front jetting nozzles, with power jetting pressure to make water clean the road

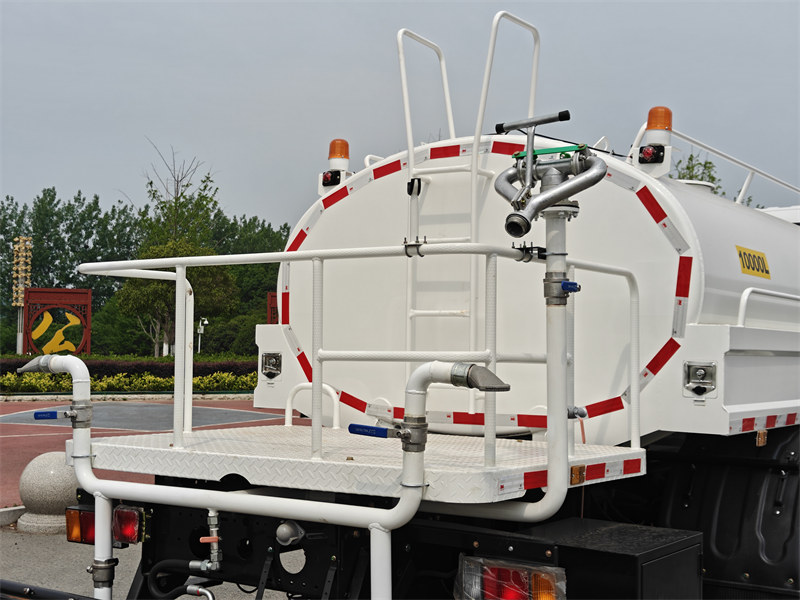

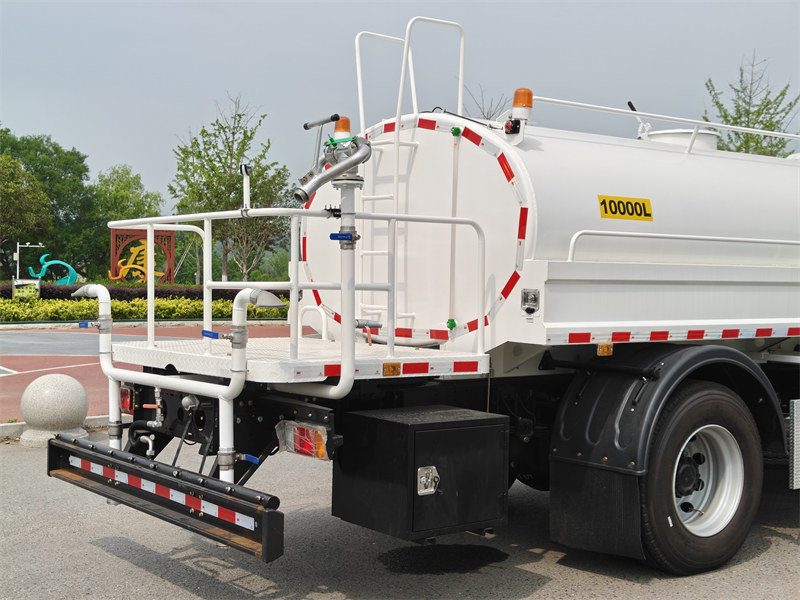

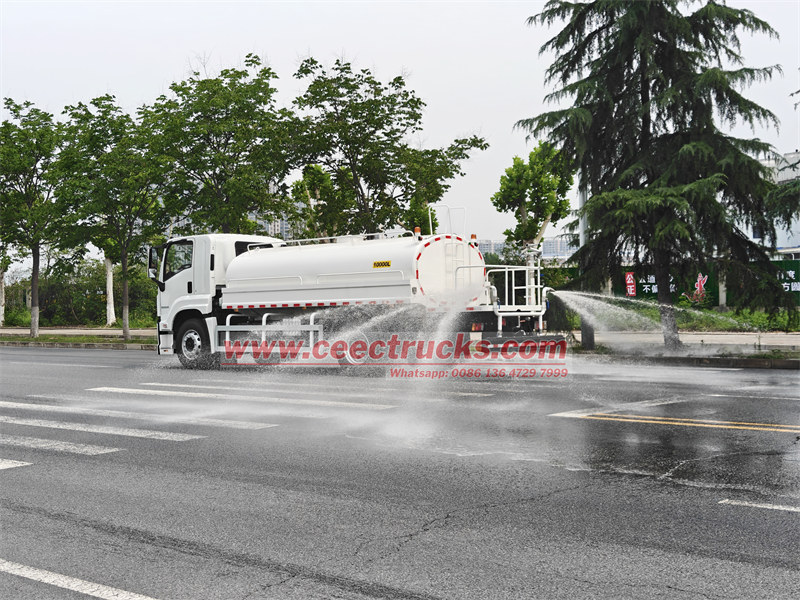

Isuzu 10000L water bowser tanker truck rear platform and water canon

Isuzu water sprinkler truck matched with rear platform and water canon, also the side nozzles for water jetting and spraying, used for emergency fire fighting process. Also matched for plants watering and nozzles jetting.

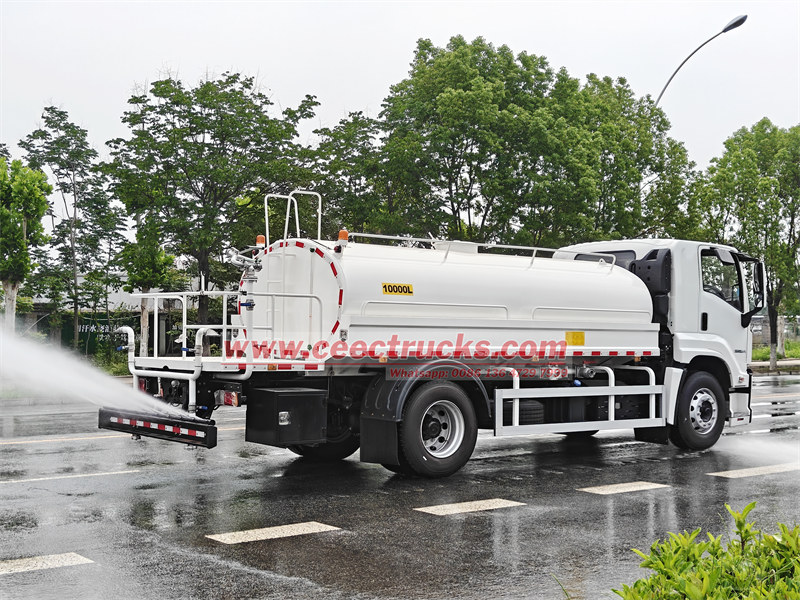

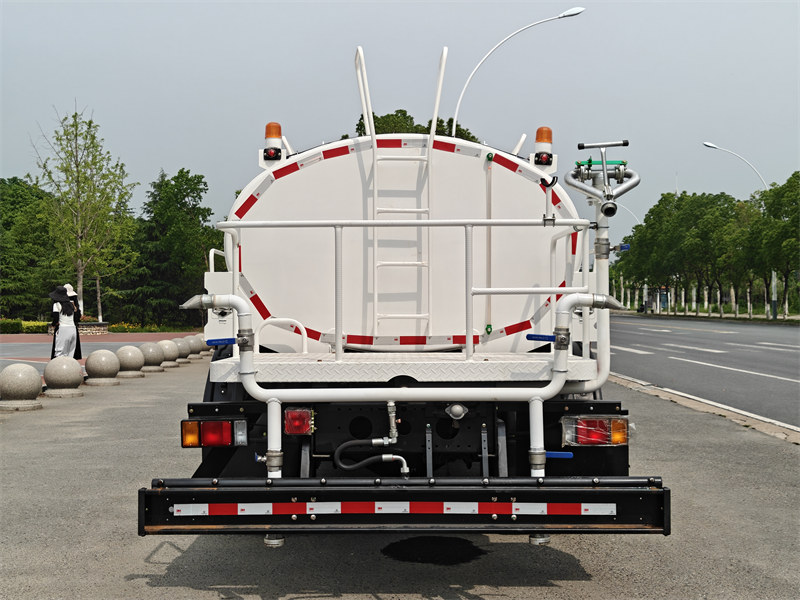

ISUZU water carrier truck rear spraying nozzles

Isuzu water carrier truck equipped with 8-12 sets rear spraying nozzles, which for water spraying and jetting and mainly service for dust suppression.

-
