Isuzu FTR potable water bowser truck is a multi-functional sanitation vehicle that plays a vital role in urban environmental maintenance. It is mainly responsible for important tasks such as urban road cleaning, dust reduction and greening maintenance. It is widely used in urban road cleaning, dust reduction and greening maintenance. Its core functions include high-pressure washing of stubborn stains on the road surface, spray dust suppression to improve air quality, and watering vegetation on both sides of the road. Isuzu FTR potable water bowser truck is equipped with a large-capacity water tank, made of high-quality carbon steel anti-corrosion material, equipped with a high-power centrifugal water pump, front flushing, side spraying, and rear sprinkling. It has a working platform and a high-pressure water cannon at the rear, and can adjust the fan-shaped/columnar nozzle with a range of more than 30 meters.

● China best potable water bowser truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

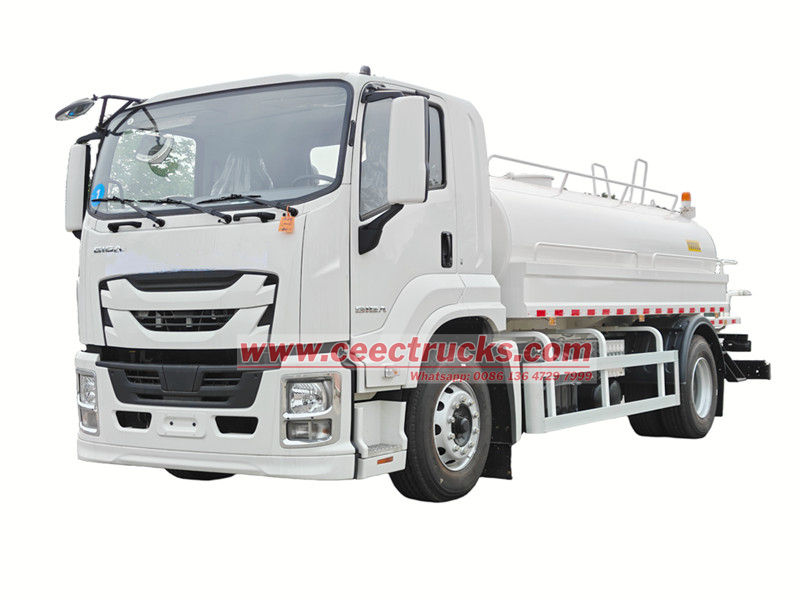

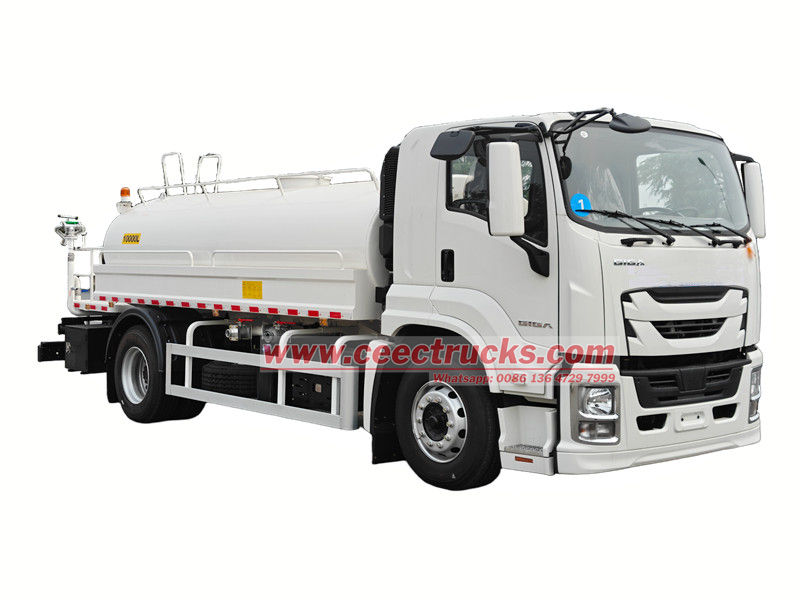

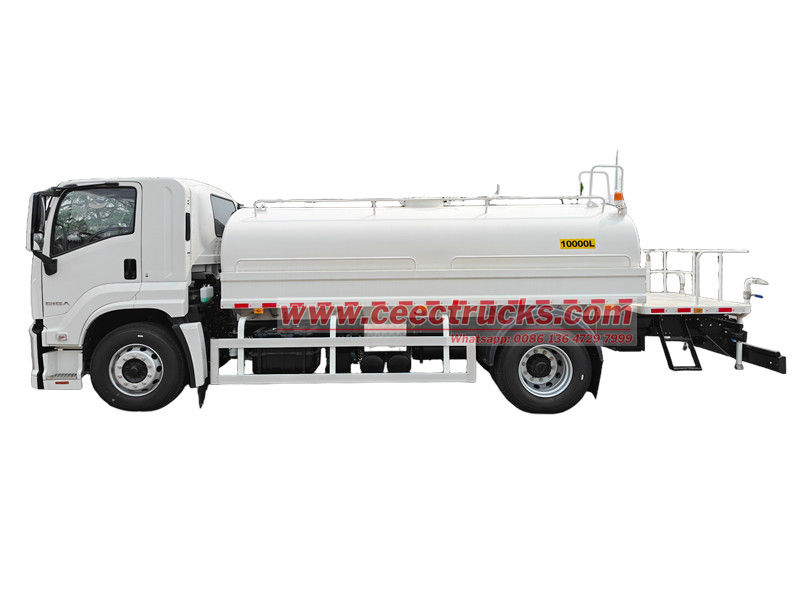

*Isuzu FTR potable water bowser truck

    Isuzu GIGA water carrier truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Isuzu FTR chassis, 4x4,  6x4 model

                          Isuzu 4HK1-TC60 model with 205HP and emission 5193cc.

Isuzu FTR potable water bowser truck(also called Isuzu GIGA water carrier truck, Isuzu lorry water tank, Isuzu FTR water bowser truck, Isuzu potable water truck, Isuzu 4x2 mobile water bowser) is used to transport and supply water, whatever industrial or agriculture water. Equipped with a large-capacity water tank and a high-pressure spraying system, it can achieve functions such as road dust reduction, greening irrigation, cooling and heat relief, and emergency fire fighting through multi-mode operations such as side spraying, rear spraying and high-pressure gun nozzles.

Working principle: Isuzu potable water bowser truck is mainly composed of Isuzu chassis, tank, water pump, power take-off, pipe network, spraying device and other parts. During operation, the engine drives the water pump through the power take-off, and the water pump generates strong suction to suck the water in the tank, and then transports it to each spraying device through the pipe network.

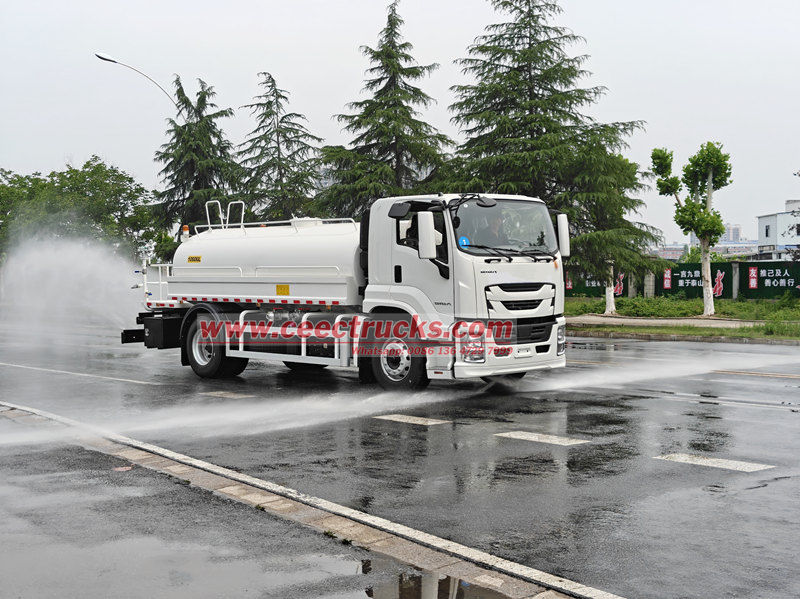

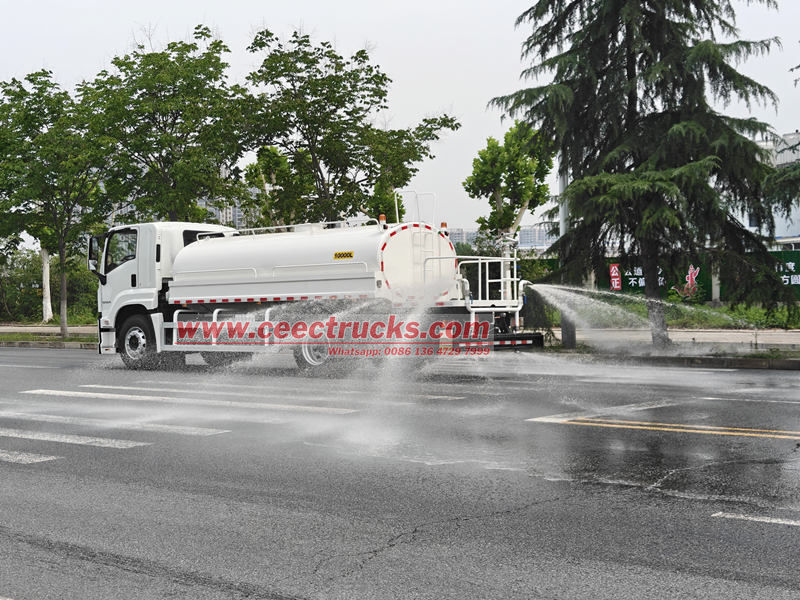

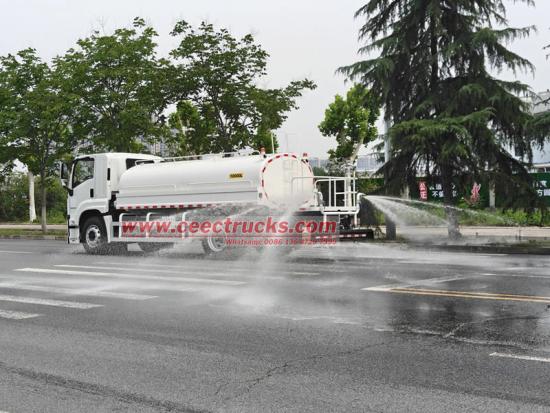

The front flushing device is located below the front end of the vehicle, and the water is sprayed in a fan shape, which can strongly wash away the dust and sand on the road; the rear sprinkler is at the rear of the vehicle, and the water is evenly sprinkled on the road to play a role in dust reduction and moisturizing; the side spray device is used to irrigate the green belts on both sides of the road; the high-position sprinkler can spray water on taller trees and flowers.

Features: Isuzu FTR potable water bowser truck is the "all-rounder" in urban operations. It has rich and diverse functions, and truly realizes multiple functions in one vehicle. It can not only wash the road surface vigorously like a diligent cleaner to make the road look brand new, but also transform into a caring gardener to provide meticulous irrigation for green vegetation. It can also serve as an air purification guard to effectively reduce dust. Even in emergencies, it can also participate in fire fighting as a fire assistant.

Its operation is very convenient, and the driver can easily control the opening and closing of each spraying device in the cab. The tank body is made of high-quality carbon steel plate, which has excellent corrosion resistance and greatly extends its service life. In addition, Isuzu FTR potable water bowser truck can flexibly customize the tank capacity and spraying device according to different actual needs, so as to perfectly adapt to various operation scenarios.

» Ⅱ.Product Parameter for Isuzu FTR potable water bowser truck：







Isuzu FTR potable water bowser truck
Vehicle Dimensions, Weights & Capacities		Chassis brand	Isuzu FTR
		Overall dimension (LxWxH)	8500x2500x3050 mm
		Wheelbase	4500 mm
		Curb weight	8860 kg
		Gross weight	19000 Kg
Chassis		Drive mode	4x2
		Steering	LHD
		Gearbox	Isuzu MLD 6-speed gearbox
		Tires	6+1 spare tire
		Tyre specification	295/80R22.5
		A/C	Air conditioning
Engine		Engine model	4HK1-TC60
		Horse power	205HP
		Displacement	5.193L
		Emission level	Euro 6
Water truck
Tank volume	10000L
Water tanker material	High quality carbon steel (Q235). Ellipse tank
Introduction	1. Suction≥7m  Sprinkler width≥14m   Range≥28m
	2. With front water spraying nozzles, rear water spraying nozzles, water spraying monitor

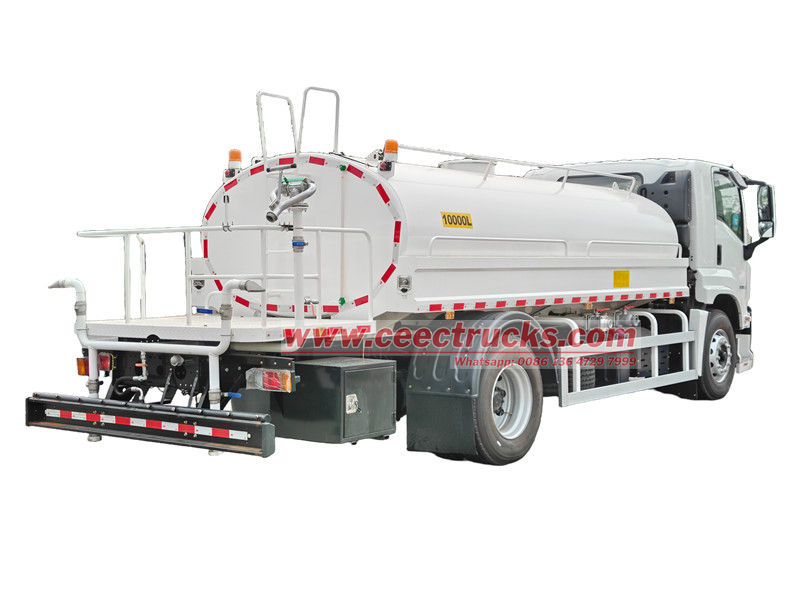

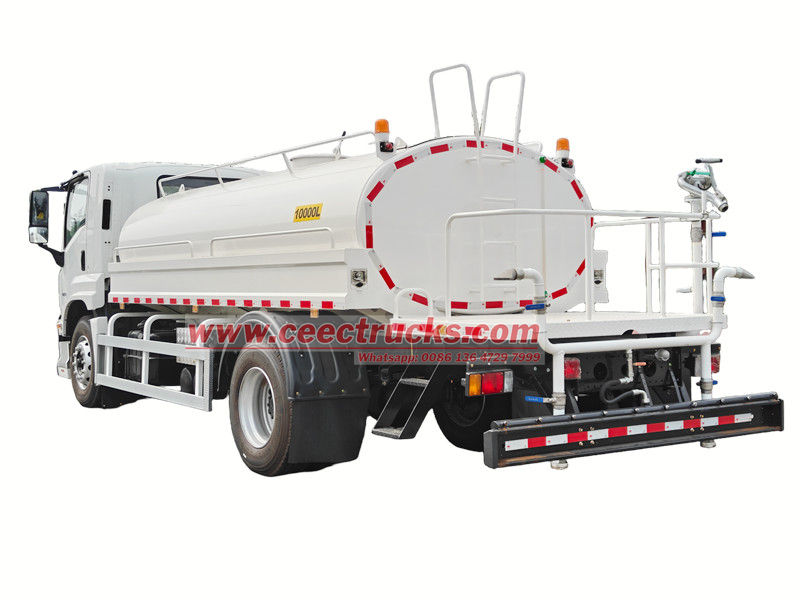

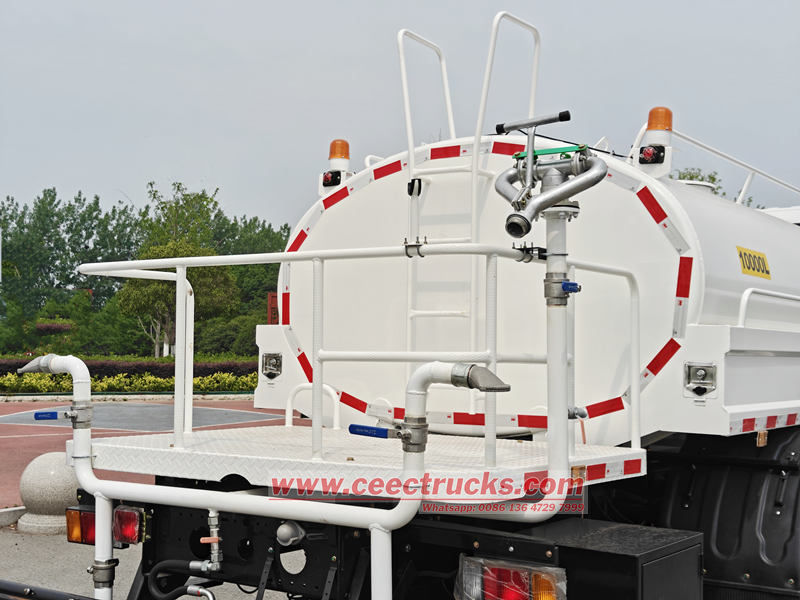

	3. with the working platform at the back, installed high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

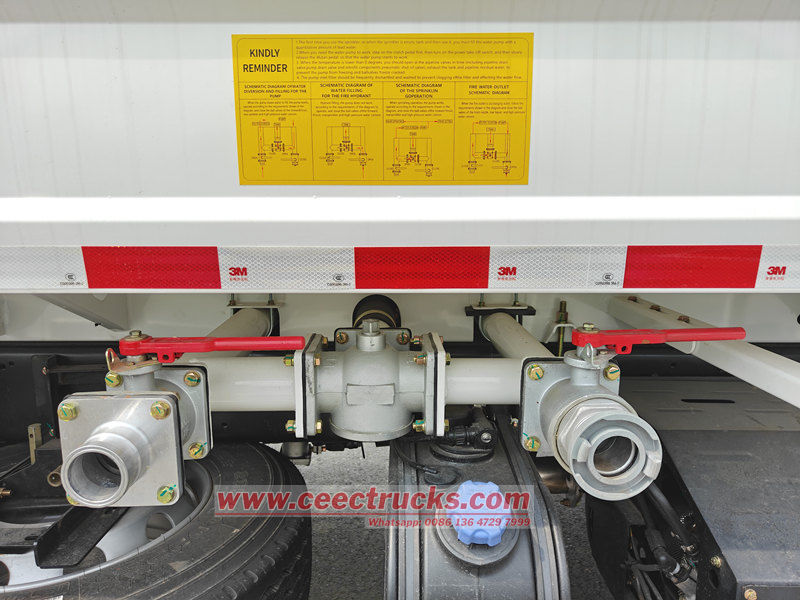

	4.Water Inlet & Outlet control valves
	5. Equipped with pipeline storage box at the side of tank
Horse reels	Two hose pipes on each side of the tank



» Ⅲ.Product Details & Advantages:

1. Excellent power and reliable chassis

Isuzu FTR potable water bowser truck is equipped with Isuzu classic 4HK1-TC60 engine, with a displacement of 5.193L, a maximum power of 151kW (205 horsepower), and a peak torque of 647N·m. It has strong power output and excellent low-speed torque performance, and can easily cope with full-load climbing, complex road conditions and other operational requirements. It is matched with Isuzu MLD-6Q six-speed manual transmission, which has smooth gear shifting and high transmission efficiency. The chassis adopts high-strength steel frame and double-layer longitudinal beam structure, with outstanding stability and anti-bumping performance.



2. 10cbm large-capacity tank, fully upgraded functional configuration

The tank has a volume of 10 cubic meters, made of Q235B high-quality carbon steel plate, with a thickness of 5mm, and multiple wave-breaking plates and longitudinal reinforcement ribs are set inside to effectively reduce the shaking of liquid during driving and ensure driving safety.

Equipped with 80QZF-60/90S water pump, it supports self-priming and self-draining functions. The spraying system integrates four modules: front flushing (range ≥18 meters), rear sprinkling (covering width ≥14 meters), side spraying (adjustable angle) and high-pressure water cannon (range ≥35 meters, supporting DC/flowering dual modes), which can meet the needs of multiple scenarios such as road washing, greening irrigation, dust reduction and cooling, emergency fire fighting, etc.

3. Wide application scenarios

●On urban roads, sprinkler trucks operate regularly to reduce dust pollution and keep the road clean;

●In public places such as parks and squares, they water flowers, plants and trees to help maintain greenery;

●Around construction sites, they sprinkle water to reduce dust and improve air quality;

●During high temperatures in summer, they can also cool the road surface and increase air humidity.

•

•



•
