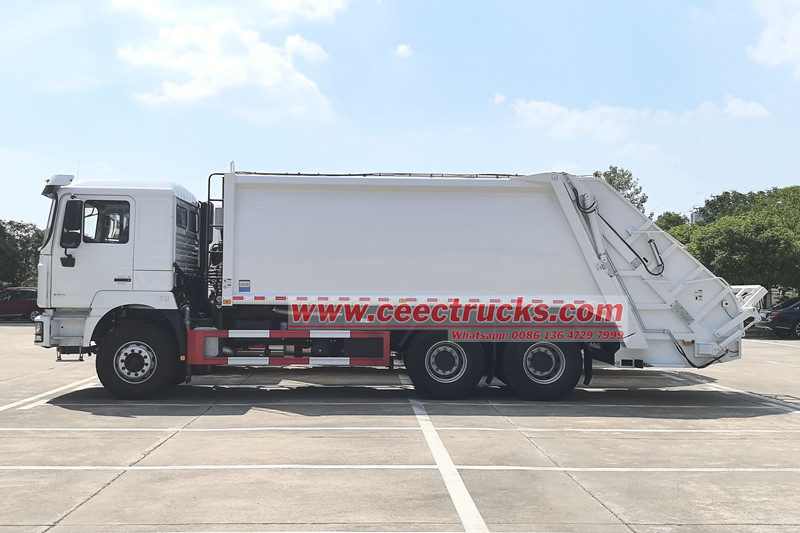

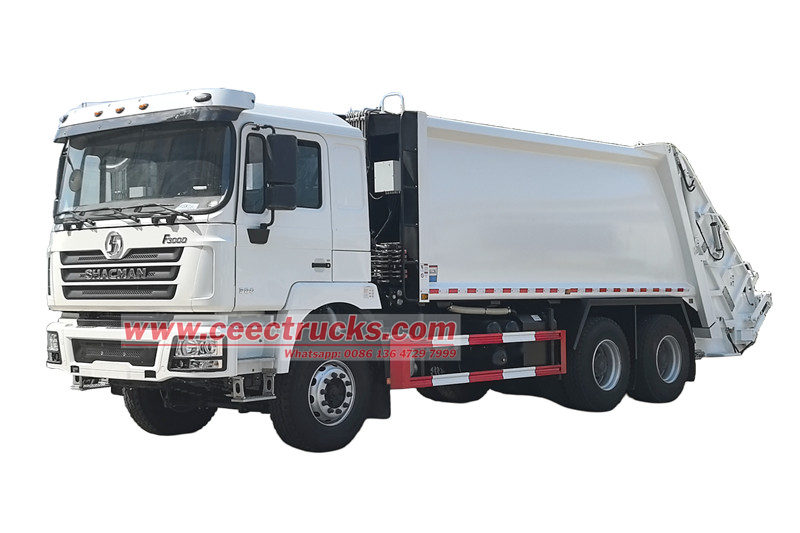

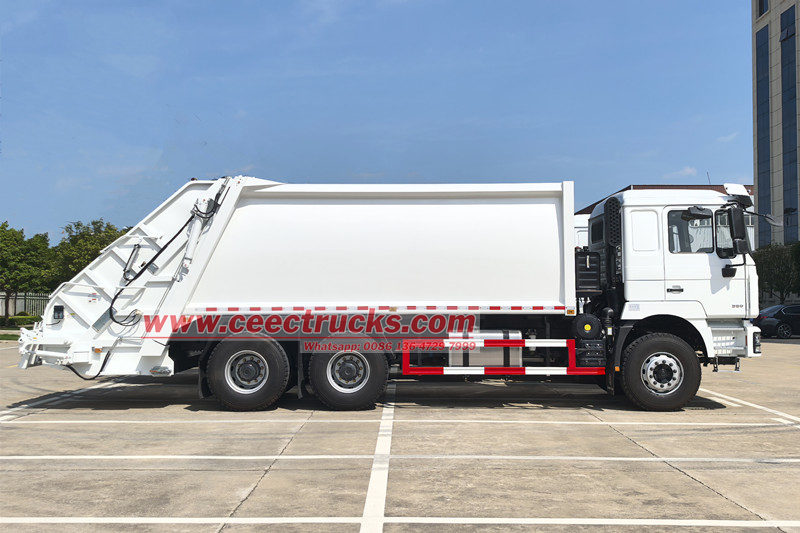

Shacman 25cbm rear loader garbage truck

The Shacman 25cbm rear loader garbage truck is a sanitation vehicle that integrates garbage collection, compression, and transportation. Its hydraulic system pushes loose garbage into a compression chamber for powerful compression, significantly increasing loading capacity and reducing haul times.

The Shacman rear loader garbage truck features a compact structure and excellent sealing, preventing garbage leakage and secondary contamination. It is easy to operate, safe, and reliable, making it a crucial piece of equipment for improving sanitation efficiency and environmental hygiene. It is widely used in cities, towns, and residential areas for domestic waste collection and transportation.

The Shacman 25cbm rear loader garbage truck is a dependable and efficient solution for waste collection in both urban and suburban areas. It is built on a 4350+1400mm wheelbase and powered by a 380HP WP10.380E32 Euro 3 diesel engine with a 9.726L displacement, paired with a Fast RTD-11509C 9-speed gearbox.

The vehicle is equipped with 12.00R20 tires (11 in total), a 300L aluminum alloy fuel tank, and features such as air conditioning, USB port, power steering, and seating for three passengers. The upper body is a 25cbm garbage bin,rear is a bucket flip mechanism,there are 3 methods to operation the truck loading and unloading.

Shacman 25cbm rear loader garbage truck(also called Shacman 6x4 waste compaction truck, Shacman F3000 rear loader watse collection truck, Shacman 25cbm garbage compactor truck, Shacman split rear loader garbage truck, Shacman 10 wheels trash compactor truck) is a new type of sanitation vehicle specially used for collecting, transferring and removing garbage.

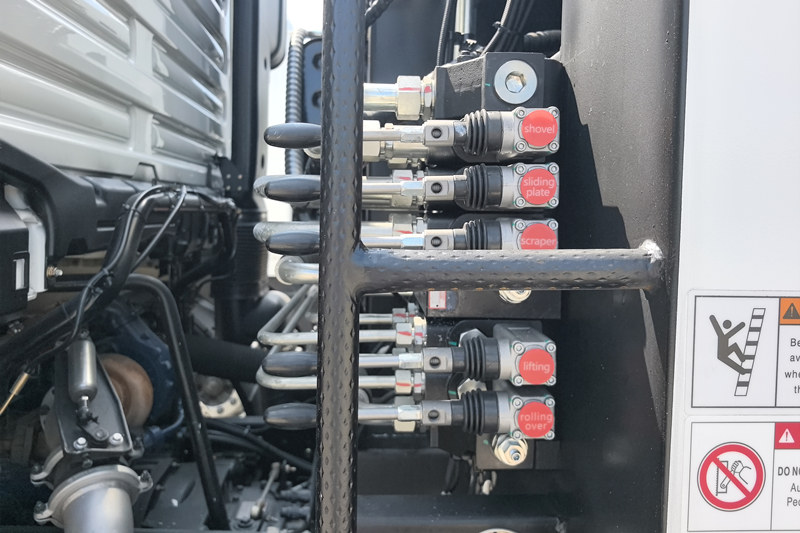

The whole vehicle adopts imported electro-hydraulic multi-way valve and PLC (programmable controller integrated control), and uses logic circuit to ensure that each operation instruction is executed in sequence, which reduces the failure rate, avoids accidents caused by misoperation, and improves reliability.

The interface between the trash bin and the filler is fitted with a custom rubber seal, compressed and sealed with a hydraulic locking mechanism for excellent airtightness. A specially designed water collection trough underneath provides dual protection, effectively preventing wastewater leaks and secondary contamination.

An emergency stop button is installed to halt the compactor at any state or position, ensuring the safety of both operators and equipment.

Shacman 25cbm rear loader garbage truck
Vehicle Description
Overall dimensions	10500X2550X3400mm
Curb weight	13500kg
Chassis brand	Shacman
Traction type	6x4, Left hand drive
Up-parts Specification
Dustbin volume	25 cbm
Material & thickness	Side: 4mm Q345; Bottom: 5mm
Sewage water tank	200L
Type of Rear garbage filler (Rear Turnover device)	Hanging trash bin flip mechanism
Control system	Electrically Controlled Air
PLC	Importation PLC (Programmable controller)
Chassis Description
Wheelbase	4350+1400 mm
Tire specification	12.00R20（10+1）
Engine	Type	Inline 6-cylinder 4-stroke, supercharged, intercooled
	Model	WP10.380E32
	Emission level	Euro 3
	Displacement/output	9.726L / 280kW
	Horse power	380 HP
Gear box	Model	RTD-11509C
Brake system	Full air brake
Optional	Back alarm and Camera can be equipped
	Italy mulit-valve can be choose.
	240L (single bin or double bin) or standard 660 L, 1100 L bins with bin lifter can be choose



» .Product Details & Advantages:



1. Container and Structural Design

The Shacman rear loader garbage truck's container is constructed from high-strength, wear-resistant steel, ensuring durability, corrosion resistance, and excellent sealing. Its large container capacity allows for a larger load of garbage at once, reducing haul frequency. The truck's excellent sealing performance prevents garbage leakage and odor spread, effectively preventing secondary pollution and maintaining a clean urban environment.



2. Hydraulic Compression System

●The Shacman rear loader compactor truck utilizes electro-hydraulic control valves and a PLC programmable control system, combining the advantages of both electronic and hydraulic control. This integrated electro-hydraulic control effectively resolves interface issues between the hydraulic and electrical systems, improving operational reliability.

●Its operation is simple, controlled from either the cab or the rear control panel, ensuring high safety and reliability.

3. Wide Range of Applications

● Urban streets and residential areas: Used for centralized collection and transfer of daily household waste, improving sanitation efficiency and maintaining a clean urban environment.

● Commercial areas and large markets: Enables rapid removal of large volumes of high-density waste, preventing pollution and traffic disruptions caused by accumulated waste.

● Factories and rural areas: Suitable for centralized collection of mixed industrial and domestic waste and scattered waste, reducing transportation times and costs while meeting environmental standards.
