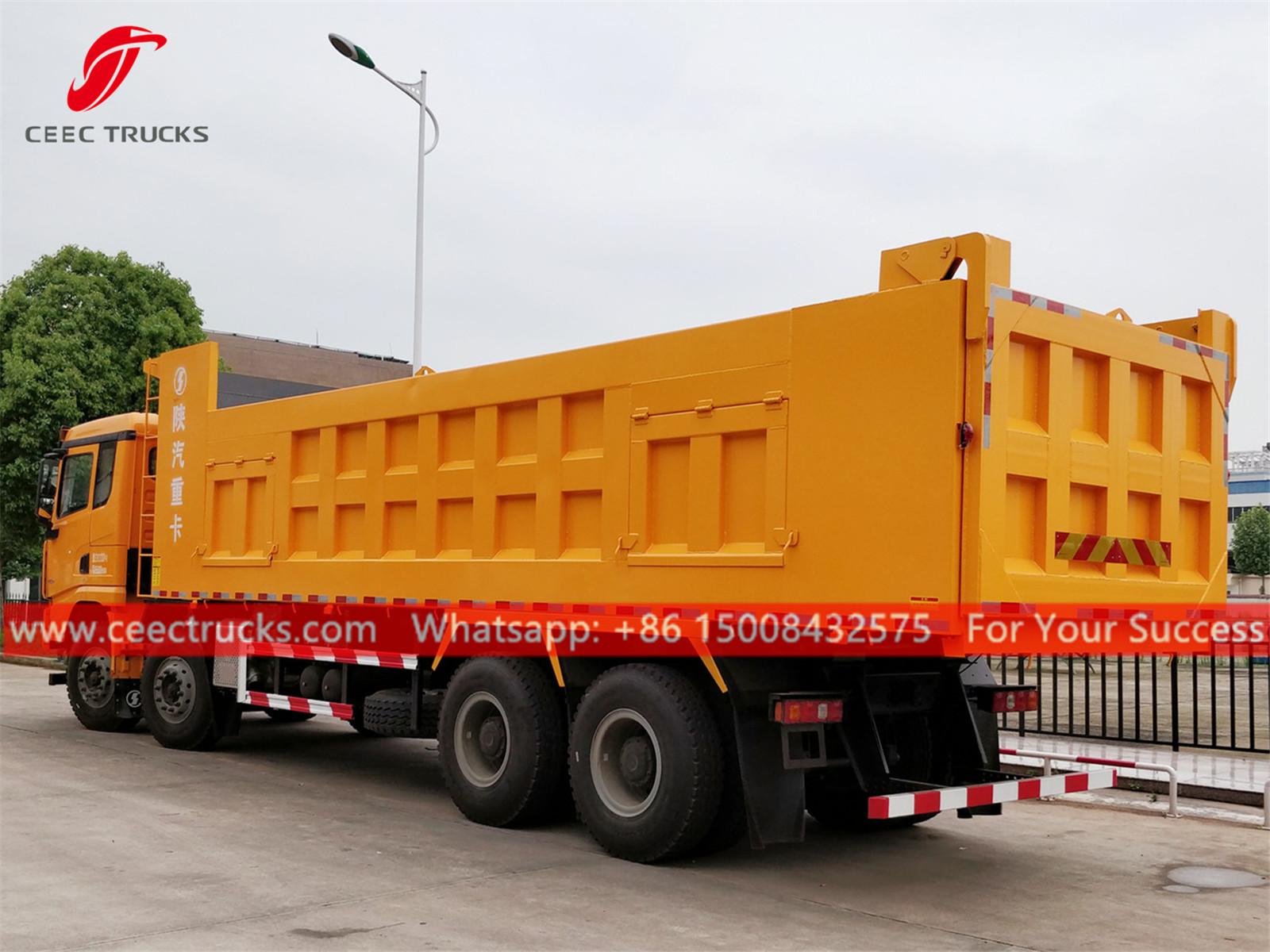

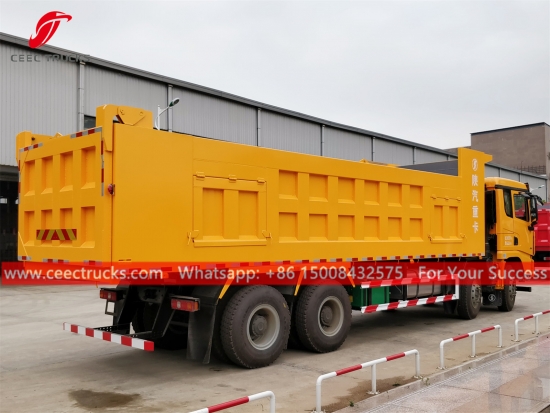

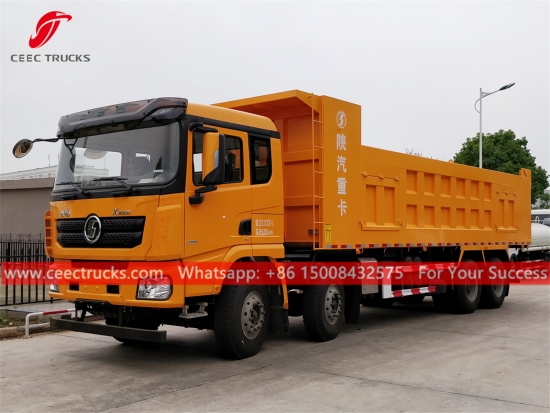

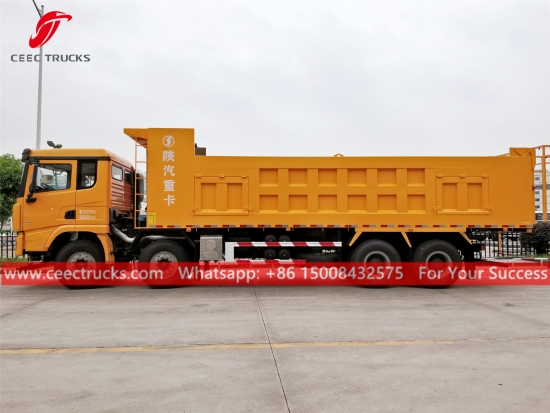

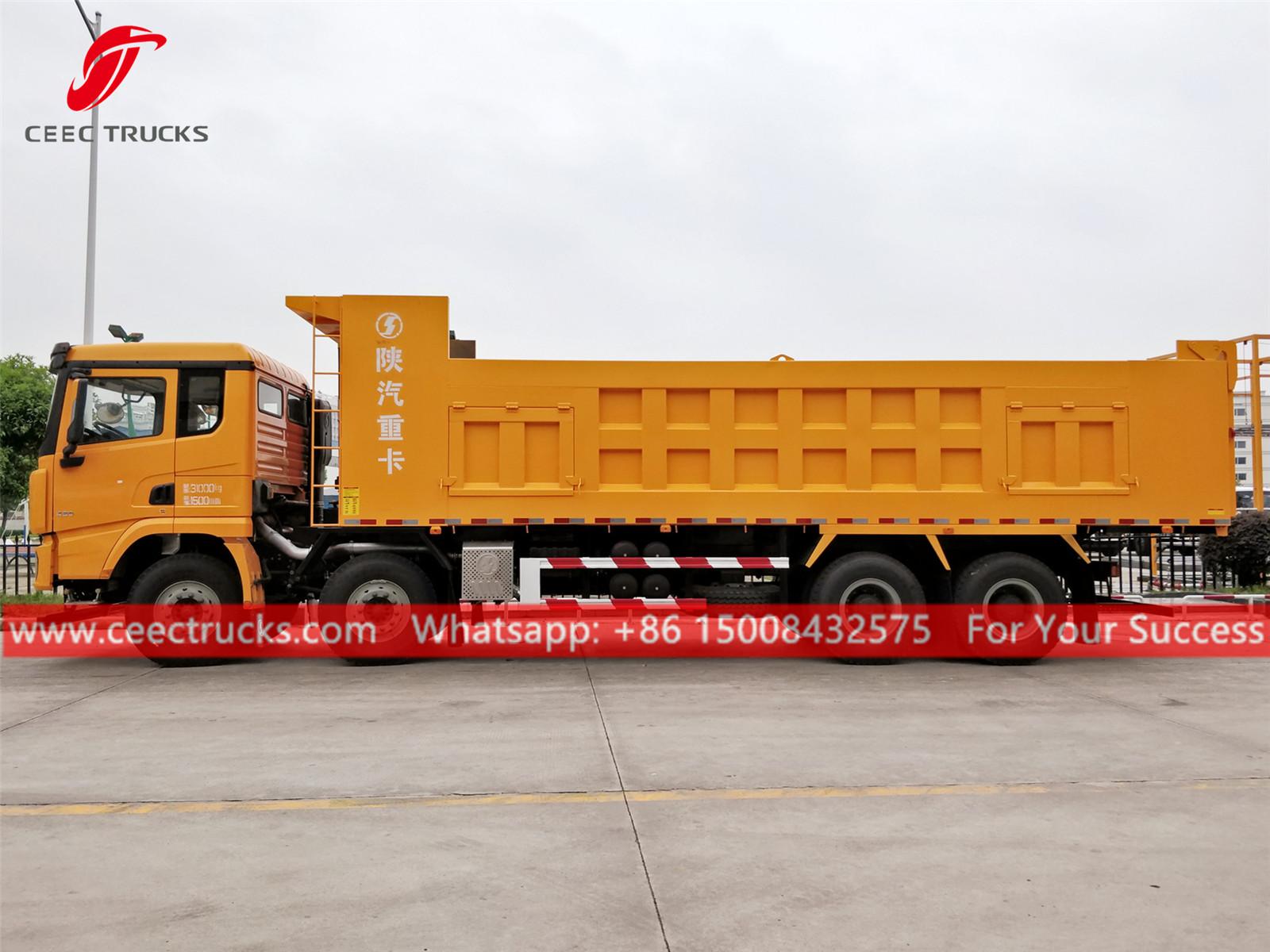

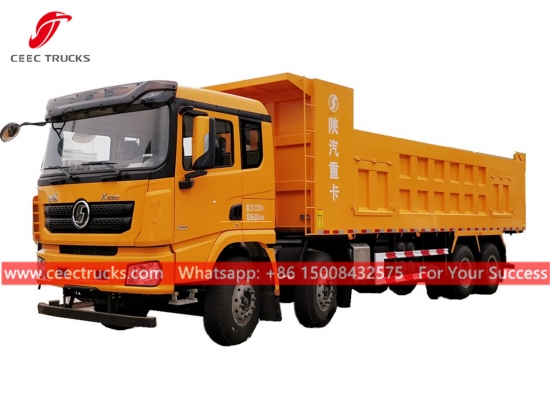

Shacman 8x4 Dumper truck

Uzbekistan 60Tons dump tipper truck, shacman 8x4 LHD chassis, FAST 12-shift manual gearbox, famous Chinese brand WEICHAI 380HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
  • FOB Price:

    USD $55,000-75,000
contact now

 Applications:

Shacman 8x4 Dumper truck (also called Shacman heavy-duty dump truck, tipper truck, 60tons tipper trucks, Hyva front lifting dumping truck, 12-wheel dump truck, construction sand rock tip truck, tipper lorry, heavy duty tipping truck, Shacman tipper lorry) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC Trucks dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- SHACMAN heavy duty chassis, perfect performance
---- WEICHAI diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



SHACMAN tipper truck (60 tons)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

SHACMAN

Overall Dimension

9600 * 2500 * 3450 mm

GVW / Kerb Weight

31,000kg / 16,850kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

WEICHAI diesel engine

Power

380 HP (280 KW)

Displacement

9726 ml

Emission Standard

Euro 3 or 4

Chassis

Drive Type

8X4 (LHD or RHD)

Transmission

FAST  12 speed levers with 2 reverse

Wheelbase/No. of axle

1350+3800+1450 mm / 4

Tire Specification

11.00R20

Tire Number

12 tires and 1 spare tire

Max Speed

95 km/h

Paint

Metallic paint

Superstructure

Pay loading capacity

60 Tons

Cargo body

7200*2300*1500

Thickness of cargo body

Option 1: Bottom 8mm, Side 6mm

Option 2: Bottom 10mm, Side 8mm

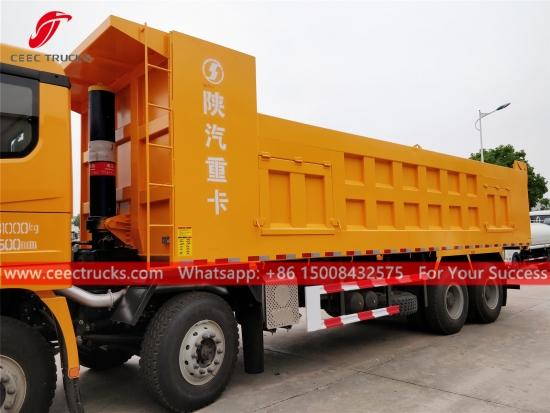

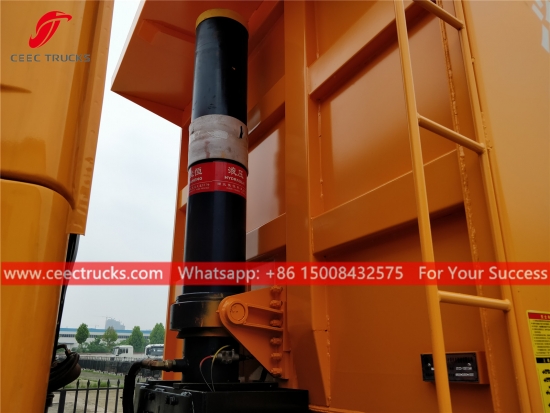

Cylinder type

T Type or Domestic 220 or HYVA 200

Lifting system

Middle or Front

Control

in the cabin

Color & LOGO

According to wish

All standard accessories: All steel body with drop sides. Auto release removable tailgate.

Ladder, warning lights, PTO

 fire extinguisher, basic tool kit, English manual……

Optional

** Back alarm and Camera can be equipped.

** Other tipper body can be choose.

** Other material and plate thickness can be choose.

Euro 5 type, WP12.375E50 engine, fuel consumption save 20%

FAST 12-shift manual mechanical transmission gearbox

Dumper truck body material can be High strength carbon steel Q345 material, with thickness over 6mm

12 months fast moving spare parts for FREE

Authorized Shacman tipper trucks exporter

Training service for Shacman  dumper trucks


China best dump truck supplier and exporter, we supply the best quality SHACMAN 4*2, 6*4, 6*6, 8*4, 8*8, etc. We can ensure the fast delivery time and 12 months guarantee for our tipper trucks. Our Shacman heavy trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
