Garbage compactor truck as the name description, which is a solid waste treatment truck with full hydraulic system as the core feature and component, and specially designed as a highly efficient truck for garbage collecting, compressing and transporting. Compared with other type garbage trucks, The rear loader compactor body kits have the function of compressing, which use powerful hydraulic pressure to repeatedly squeeze and compact the loose waste during and after loading, then can guarantee the more loading capacity.

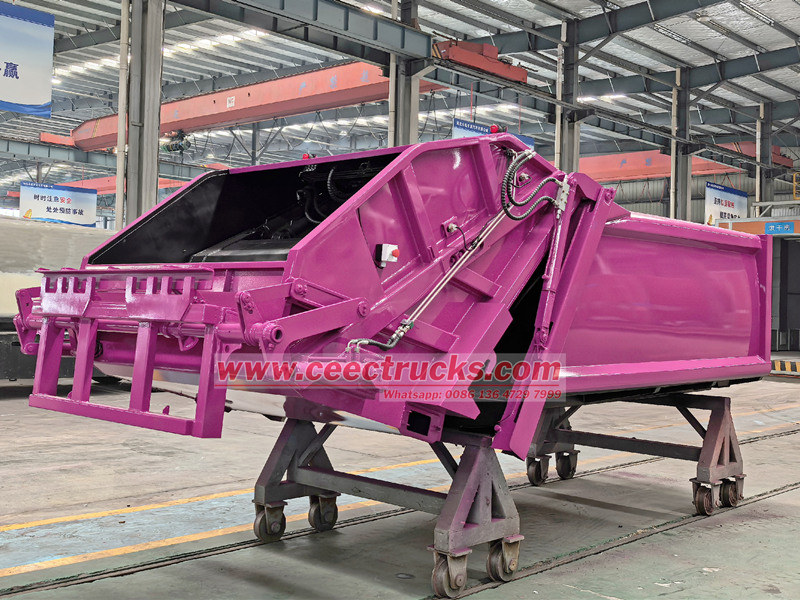

Customized purple painting 8cbm waste disposal rear loader body kit is designed based on Philippines Manila local ISUZU truck chassis. Equipped with full sets hydraulic system working with multiple device to make the body kit working. Details as below showing:

Rear Tilting Device: Available for international standard garbage bins,  optional 120L, 240L, 360L, 660L, 770L, 1100L, etc. both Plastic and Metal material are available.

Rear Hopper: Equipped at rear to make the garbage truck as rear loading type, which equipped with scraper and slide plate inside for garbage colelction, also can be lifting up for garbage discharge.

Scraper Plate: Move up and down to working with Scraper for garbage collecting into compactor body.

Slide Plate: Move open and close to working with Slide Plate for garbage collecting into compactor body.

Push Plate Shovel: Mainly have two functions

1. When ready for garbage collection and compression, make the Push Plate at rear part, approx 200mm distance to rear hopper, when colleting garbage into compactor body and compressing, the Push Plate will move forward to realize the double compression function.

2. When ready for discharging compressed garbage inside compactor body, open the Rear Hopper, operate the Push Plate move backwoard to discharge garbage.

● China best Refuse Collection Truck Body Structure factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

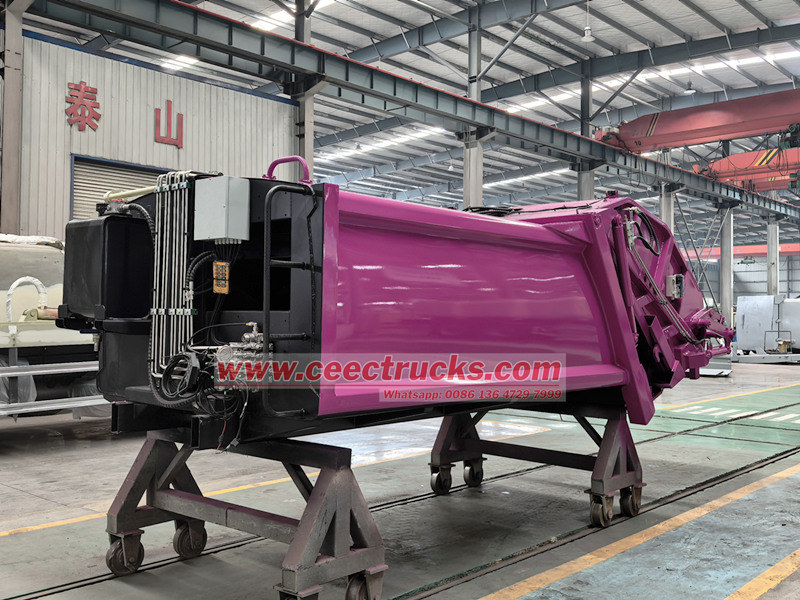

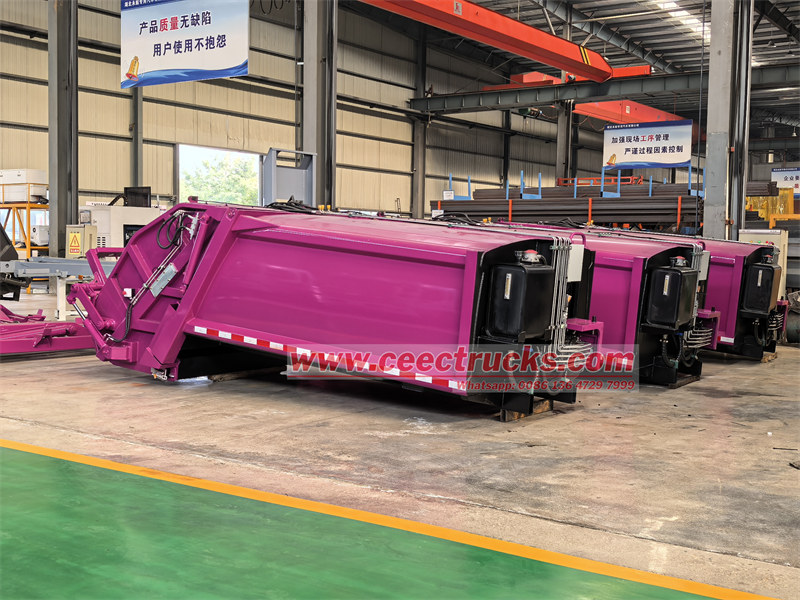

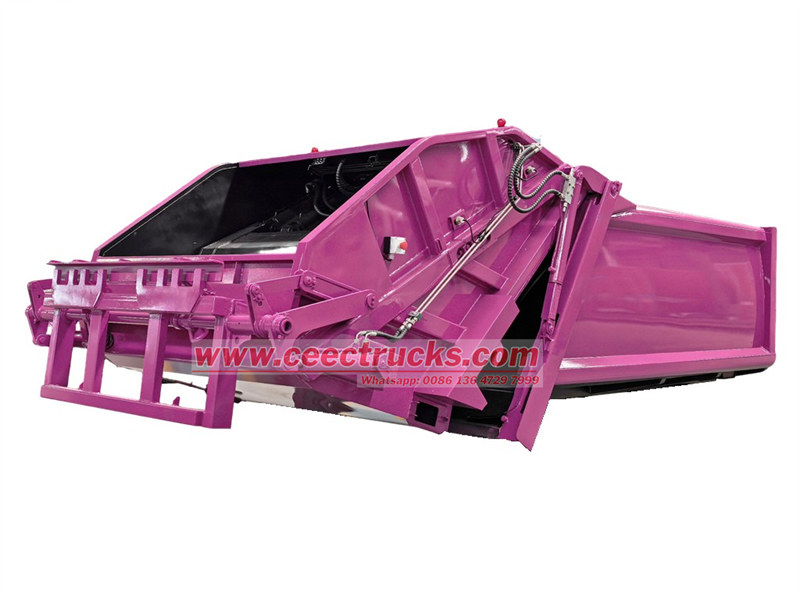

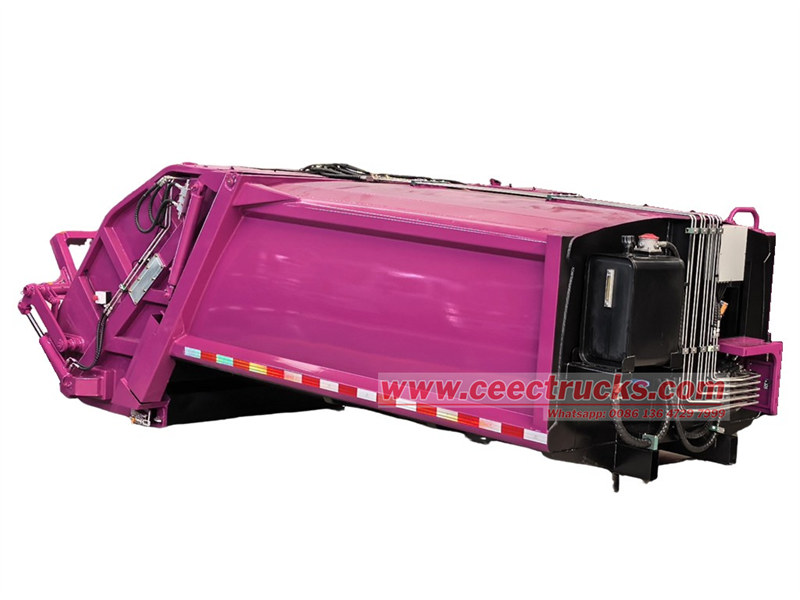

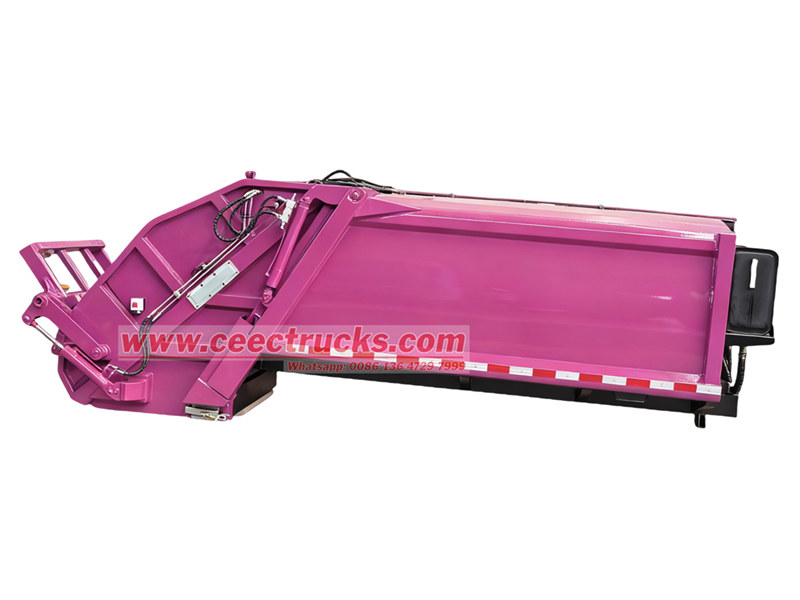

*Philippines Manila 8cbm Rear Loader Truck Body Kit

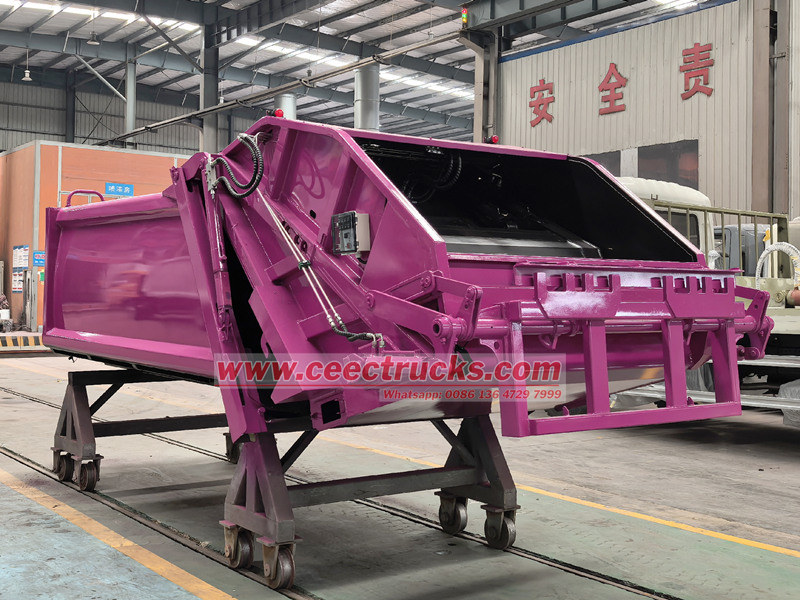

Solid waste management truck superstructure*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS

Product Features

1. Compactor Body: Newly designed Curve Shape, stronger and durable

2. Body Kit Material: T420 material, thickness for side and floor 4mm

3. Rear Tilting Device: Optional to be 240L, 360L, 660L, and 1100L international standard bins

4. Control System: Customized Hydraulic control valve, CAN BUS electric control box in cabin and hopper, Wireless control box for remote usage

5. Painting and Logos: Electrophoretic painting for long life service

» Ⅱ.Product Parameter for 8cbm Trasn Compactor Truck Body Kit：



Garbage Bin	Capacity	8CBM
	Material	Garbage Bin Body：Side 4mm, Bottom 4mm
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Garbage Compact Ratio	1/3 - 1/4
Control System	1.      Hydraulic Control Valve 2.      CAN BUS electric control box 3.      Wireless control box
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request



» Ⅲ.Product Details & Advantages:

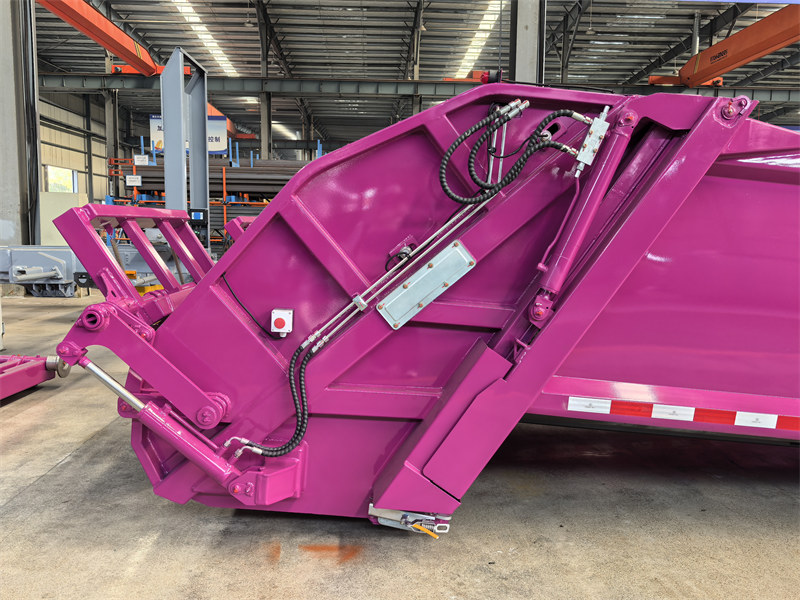

Rear Hopper Device

The rear loader garbage compactor body key component is rear hopper, which including the rear tillting device, scraper and slide plate, all multiple working together to collect garbage into compactor body.

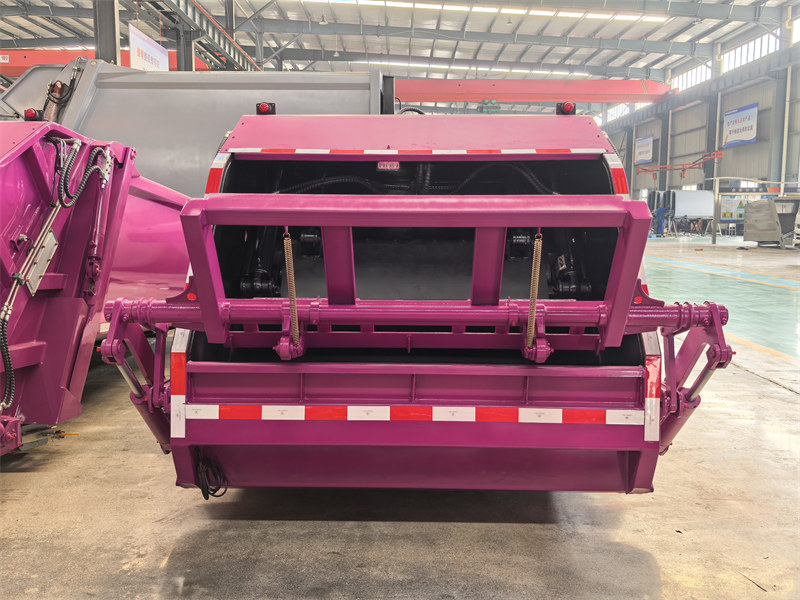

Rear tilting device for loading 240L and 1100L bins

Equipped with an advanced operating system to control the rear tilting device and designed to lift 240L and 1100L bins, both plastic material bins and metal material bins are available. the 240L bins can be loaded two sets at one time to make more efficiently.

Besides, the rear tillting device also can be customized to load 110L, 240L, 360L, 660L, 770L, 1100L, etc.



Multiple control system to operate the rear loader compactor kit

To ensure operational safety, the 8cbm Refuse Collection Compactor Body Structure is equipped with multiple safety features. And the control system also multiple to realize all function. Including standard hydraulic control valve, CAN BUS electric control box, wireless control box for remote usage. All make the rear loader superstructure an ideal vehicle for solid waste management.



•

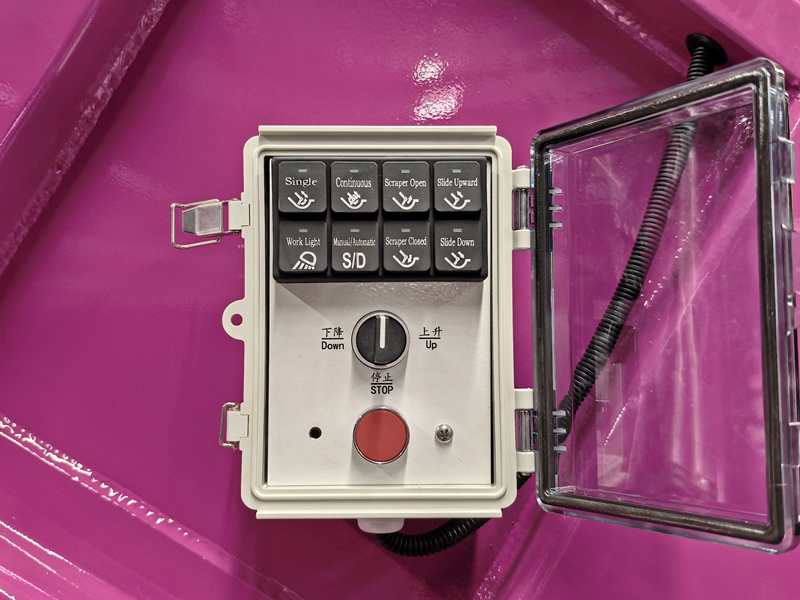

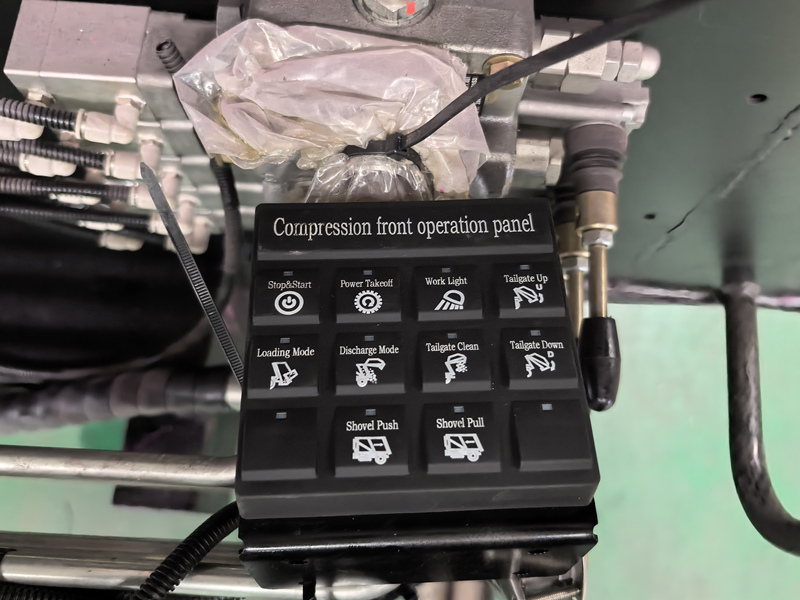

  CAN BUS in cabin control box
•
  Wireless remote control box with customized English language
•

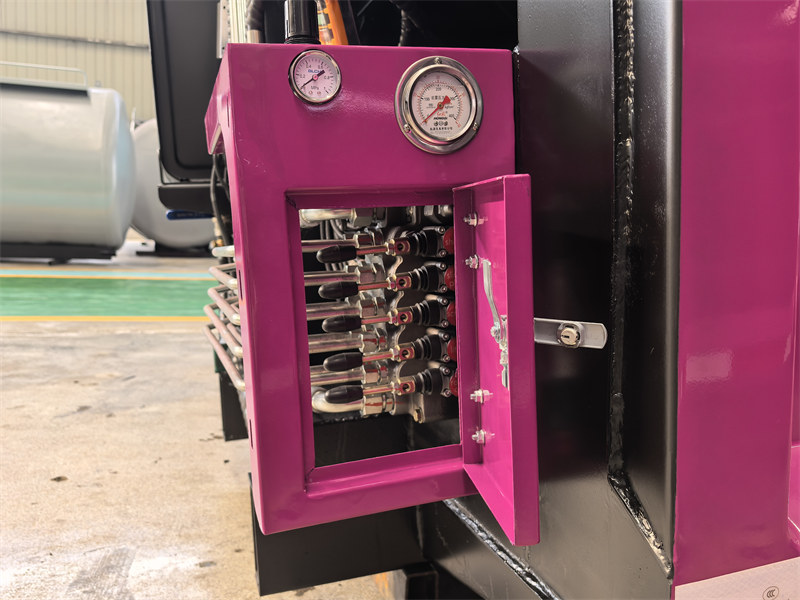

  Hydraulic control valve with English plate for guidance
