The customized 10 CBM rear loader refuse body combines efficient collection, powerful compression, and sealed transport. Constructed from high-strength, wear-resistant steel, the sealed compartment features a hydraulically driven loader and pusher mechanism for automatic waste crushing and high-density compression.

The rear loader refuse body intelligent electronic control system precisely controls the movement of each component, while the double-sealed rear door prevents leaks. The overall structure has been rigorously tested to ensure durability and reliability, making it an ideal choice for efficient urban sanitation operations.

● China best rear loader refuse body factory

● More than 30 years professional manufacturer experience.

● Be designed according to your requirements.

● Professional sales team which will help you to choose suitable truck.

● We can offer your a good after-sale service.

*10 CBM rear loader refuse body

waste compaction truck superstructure*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Product Features

●The trash bin is constructed from high-strength weathering steel.

●The side panels are formed using a one-piece process, resulting in a rounded shape and a sturdy structure.

●Adopt imported electro-hydraulic multi-way valve and PLC (programmable controller integrated control).

●It has both automatic and manual operation modes. The operation control boxes are installed in the cab and at the rear of the vehicle respectively, making it very convenient to use and operate.

Producing high-quality rear loader refuse bodies requires strict control of four key steps:

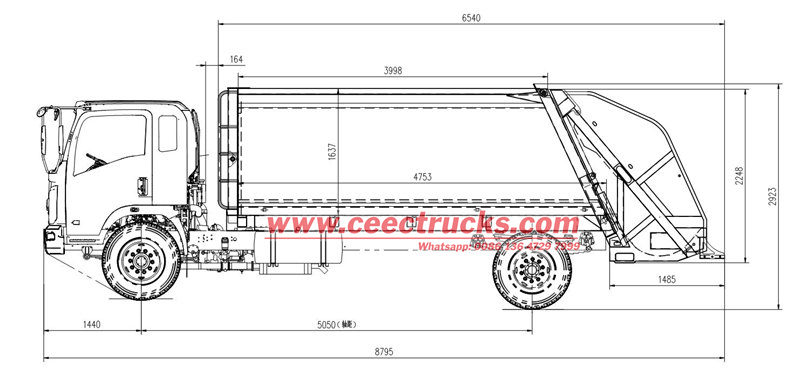

●Determining technical drawings and designing a matching compactor body based on the customer's chassis model;

●Using high-strength, wear-resistant steel plates for a welded, sealed body to ensure a stable and leak-proof structure;

●Utilizing a precision hydraulic system and intelligent electronic control module to achieve precise coordination between the scraper and pusher blades, improving the compression ratio;

●Strictly testing the loader's crushing capacity and rear door sealing, verified by load simulation and road testing, ensures the durability and reliability of all components.

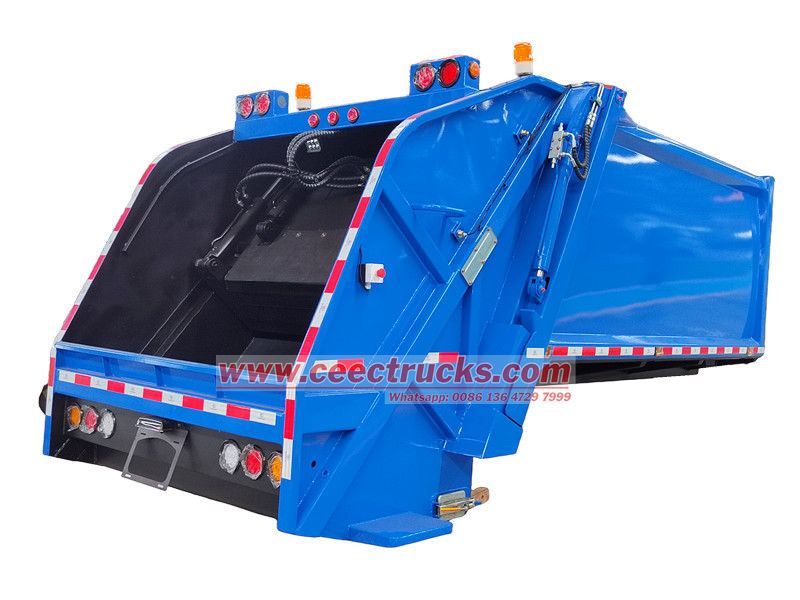

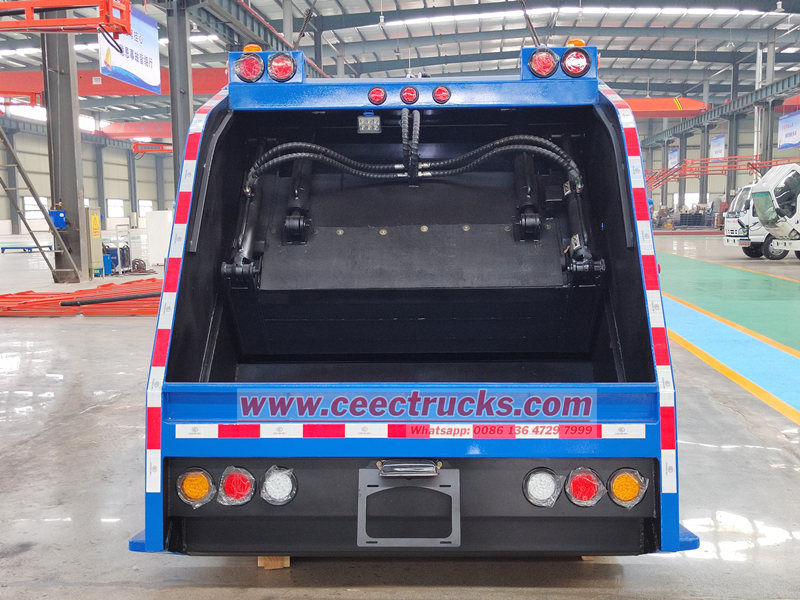

1. Loader (Garbage Hopper)

♦Structure: Located at the rear end of the container, it consists of a scraper, a slide plate, side panels, and a hydraulic cylinder, resembling a funnel.

♦Function: Collection: A tilting mechanism (such as a bucket hook) dumps garbage from the container into the loader.

Crushing and Compression: The scraper and slide plate work together to push the garbage into the container and initially compress it, breaking up large pieces of garbage (such as plastic bottles and cardboard boxes).

Sealing: When the loader is closed, it forms a seal with the container to prevent spillage during transport.

♦Features: The scraper is made of wear-resistant steel, and the hydraulic system provides high-pressure power (up to 16-20 MPa).

2. Pusher Blade

●Structure: Installed inside the cargo box, driven by a hydraulic cylinder, it moves forward and backward along a slide at the bottom.

●Function: Secondary Compression: After the garbage is loaded into the cargo box, the pusher blade moves forward to further compress the garbage, increasing the loading capacity.

Unloading: Upon arrival at the unloading site, the pusher blade pushes the garbage out of the cargo box's rear door.

●Features: The front end of the pusher blade is designed with a curved shape, conforming to the cargo box's inner wall to reduce compression dead zones.

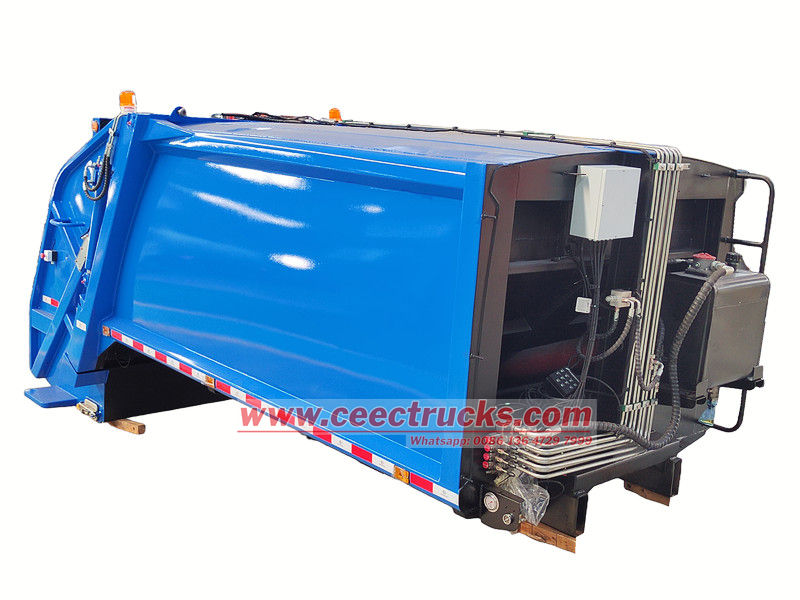

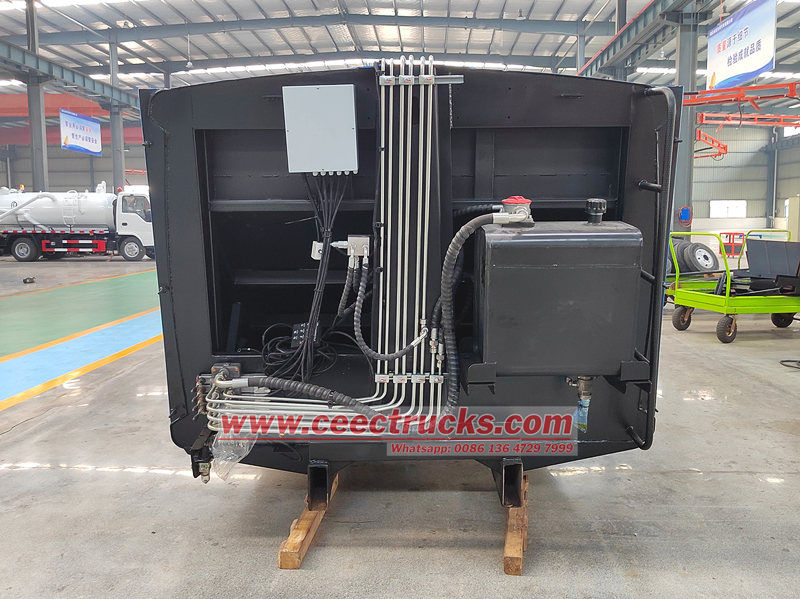

3. Hydraulic System

♦Components: Includes a hydraulic pump, multi-way directional control valve, hydraulic cylinders, oil tank, and piping.

♦Function: Provides power for the loader, dozer blade, and rear door opening and closing.

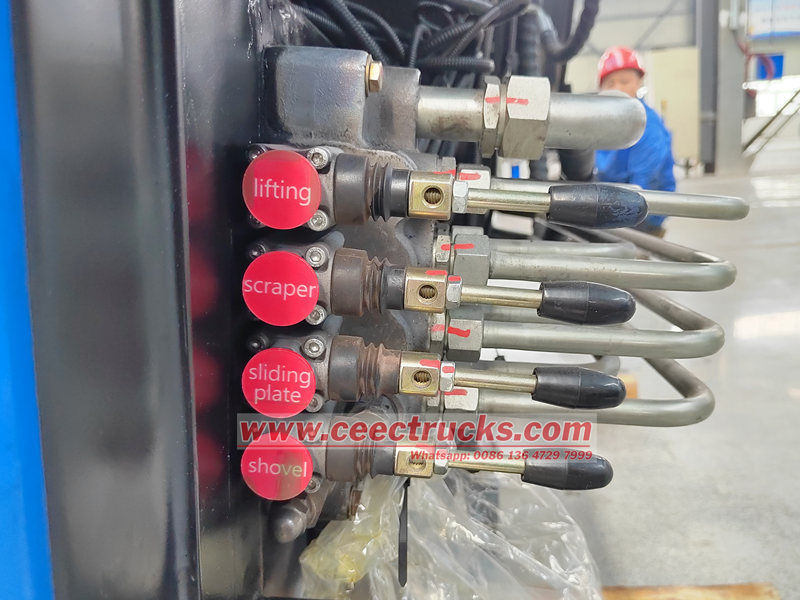

A multi-way control valve coordinates the operation of each cylinder, automating the collection, compression, and unloading process.

♦Features: Utilizes a high-pressure gear pump or plunger pump for stable system pressure.

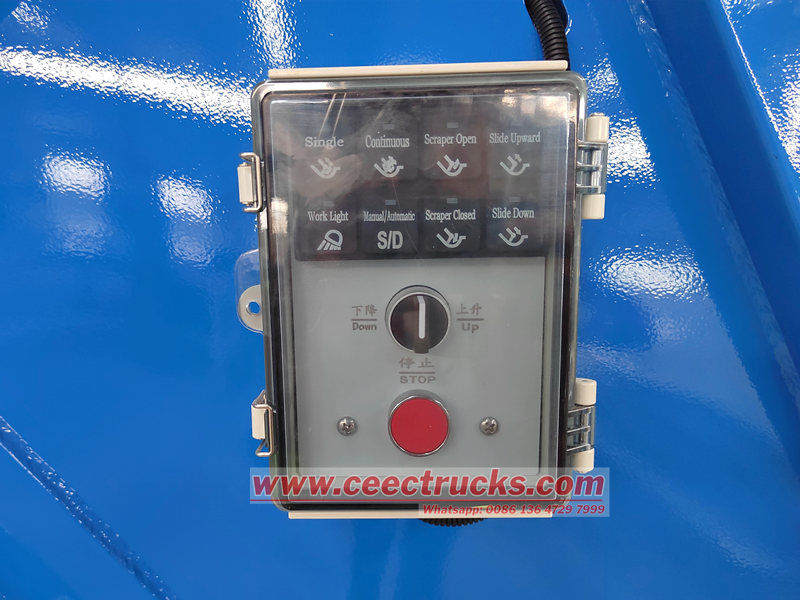

4. Electronic Control System

●Components: Consists of a control panel, sensors, a PLC controller, and circuitry.

●Function: Operates the loader's tilting, scraper blade movement, and dozer blade compression.

Monitors hydraulic system pressure, oil temperature, and load to prevent overload or malfunction.

» Ⅱ.Product Parameter for customized 10 CBM rear loader refuse body：



10 CBM rear loader refuse body
Garbage Bin	Capacity	5-20CBM
	Material	Garbage Bin Body：Side 4mm, Bottom 5mm
	Design	Whole unit with Leakage Proof Design
Ways of Loading	Rear Loading with optional Bucket Lifting System
Control System	One control Panel on the back, One Control system in back of Cabin Electrically Controlled Hydraulic + Manual Hydraulic
Dispensing System	1. Equipped with air-tight dustbin, hydraulic system and operating system.
	2. Automatic loading, compressing and discharging, all handled by 1 person
	3. Sewage water collection tank to avoid any pollution during handling.
	4. Large Pressure, Good Leakage Proof, Convenient Operation
	Dependable Security
	5. Electrical Control Panel for compacting system.
	6. Cycling time<14~18s
Remarks	1. Color is optional
	2. Customized LOGO painting as per customer request



» Ⅲ.Product Details & Advantages:

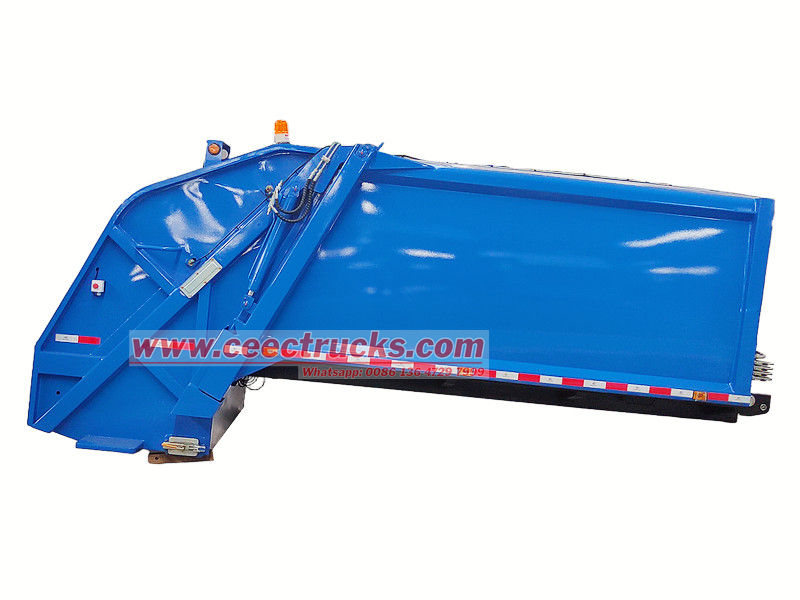

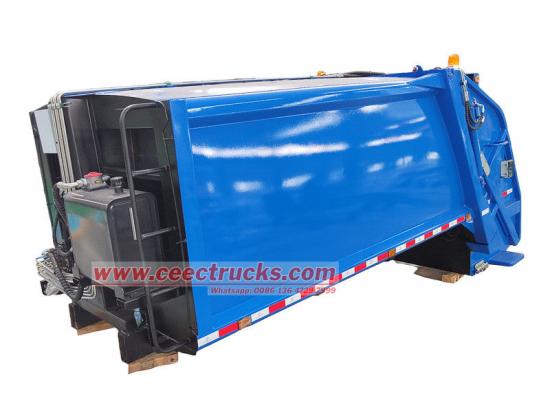

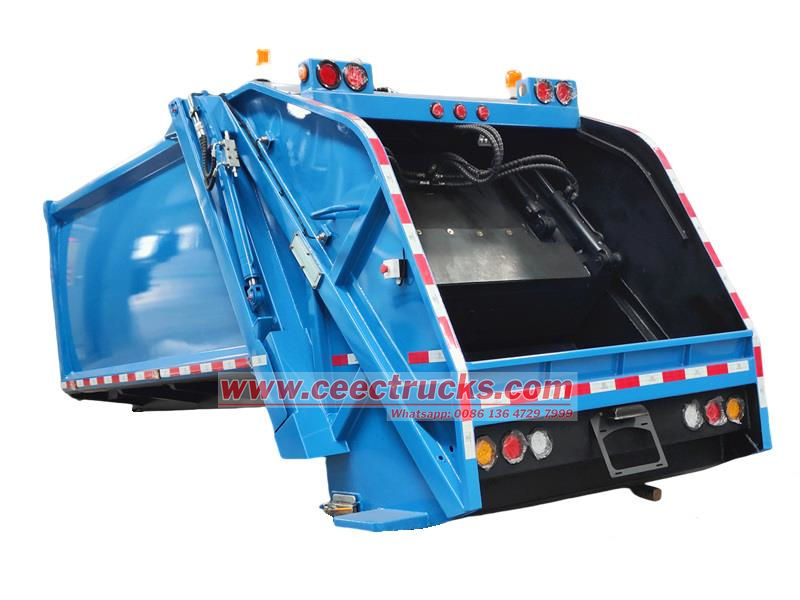

1. High-Strength Sealed Body

➤The core of the customized 10 CBM rear loader refuse body is a fully sealed body welded from high-strength, wear-resistant steel plates. Its robust and corrosion-resistant structure allows for long-term loading and compacting operations.

➤The body's smooth interior minimizes waste residue, and the bottom is equipped with slides or guide rails to ensure smooth movement of the dozer blade.

➤The body volume ranges from 5 to 30 cbm, depending on the vehicle model, to meet the loading needs of various scenarios.

2. Hydraulically Driven Compression System

➤The upper body integrates a hydraulically driven loader and pusher, forming a two-stage compression system.

➤The loader, equipped with a scraper and a slide, is driven by a high-pressure hydraulic cylinder. It automatically breaks up large pieces of waste (such as plastic bottles and cardboard) and performs initial compression. The pusher then performs a secondary, powerful compression, significantly increasing loading capacity.



3. Intelligent Electronic Control and Safety Design

➤The upper body is equipped with a PLC intelligent control system. The operator panel integrates a one-touch operation function, enabling remote monitoring of hydraulic pressure, oil temperature, and vehicle load, providing real-time warnings of overload or leak risks.

➤Guardrails and warning lights are installed around the loader, and the rear door locking mechanism utilizes both hydraulic and mechanical safety mechanisms to ensure safe transportation. This makes it an ideal choice for urban sanitation, residential property management, and other applications.



•

•

•




Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

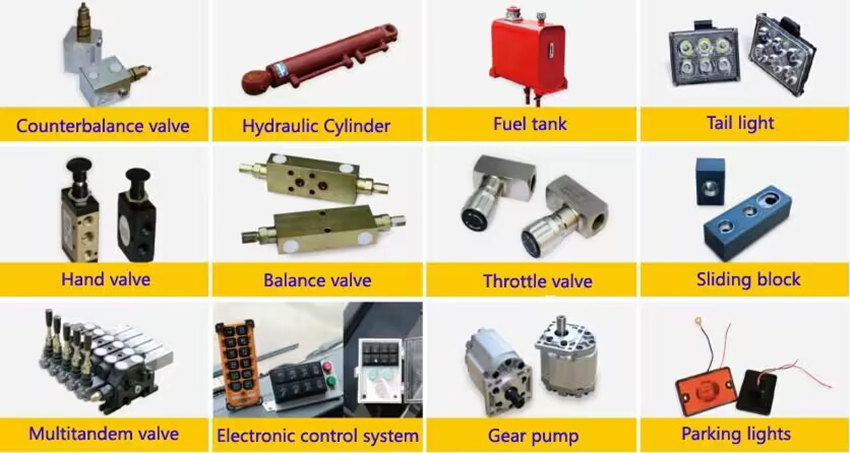

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
