Beiben 10cbm water bowser distributor truck is a special operation vehicle in urban sanitation and municipal engineering, integrating water storage, transportation and spraying functions. It is equipped with a large-capacity carbon steel tank, a high-pressure water pump and an adjustable nozzle system, and supports multiple modes such as side spraying, rear spraying, and high-pressure gun spraying. Beiben water bowser distributor truck has a wide range of uses. It can not only suppress road dust and purify the air through atomization spraying, but also cool the road surface at high temperatures; it can also be used for green belt irrigation, construction site dust reduction, emergency fire fighting and road washing. It is an all-rounder to ensure urban cleanliness and maintain the ecological environment.

● China best water bowser distributor truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

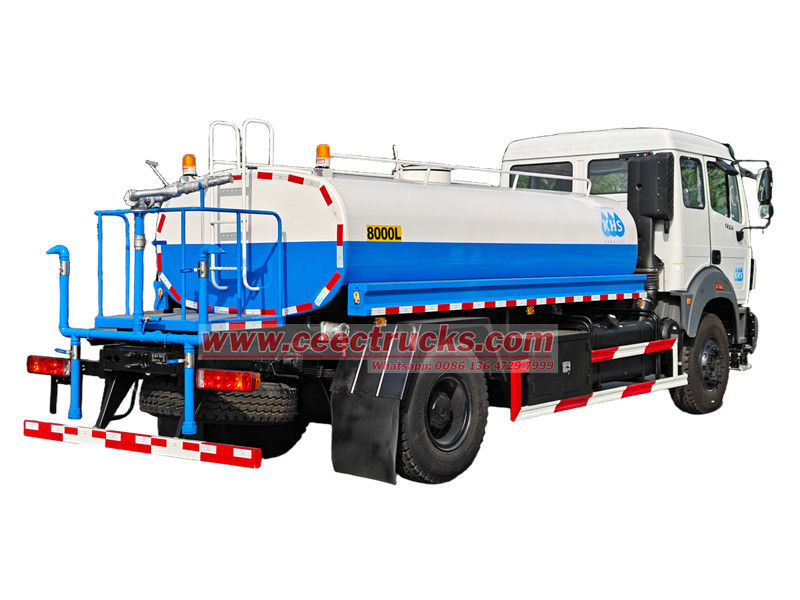

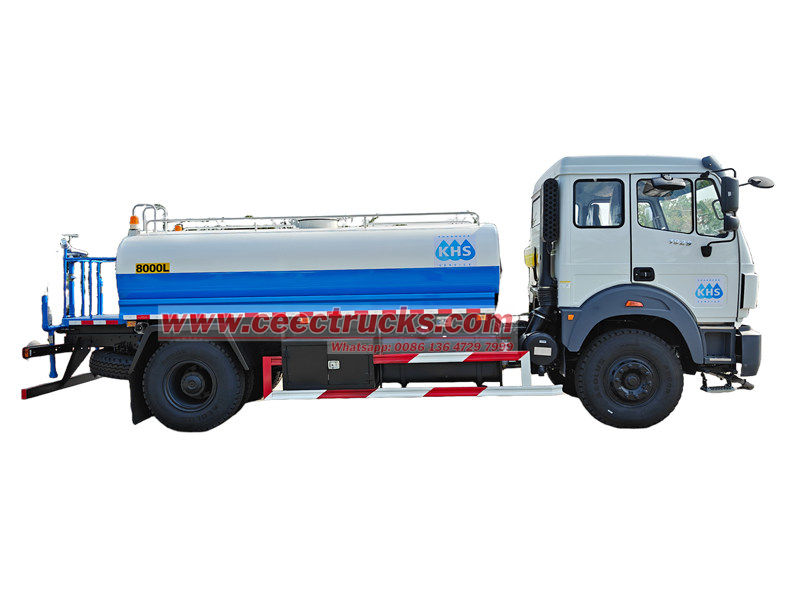

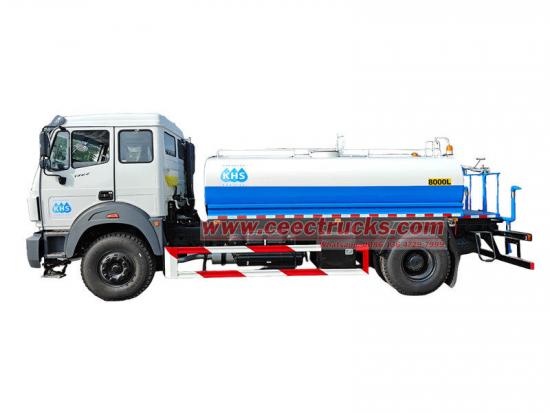

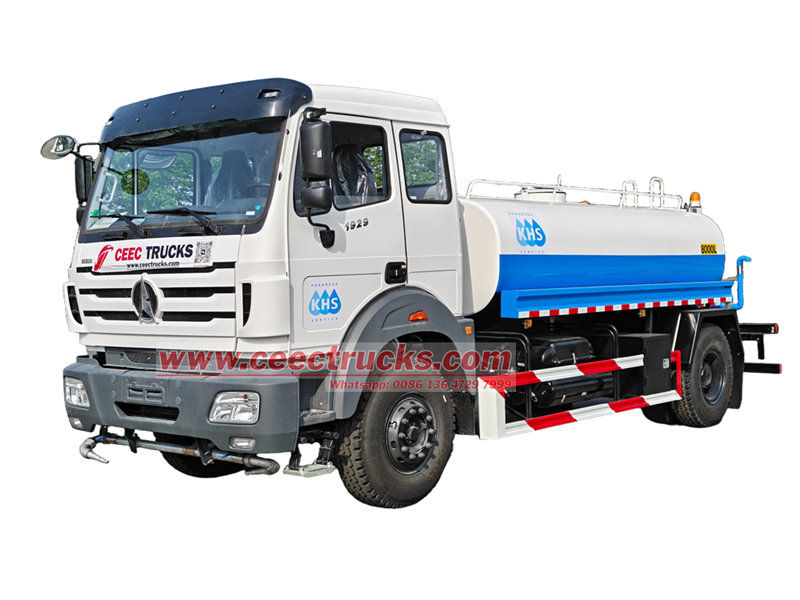

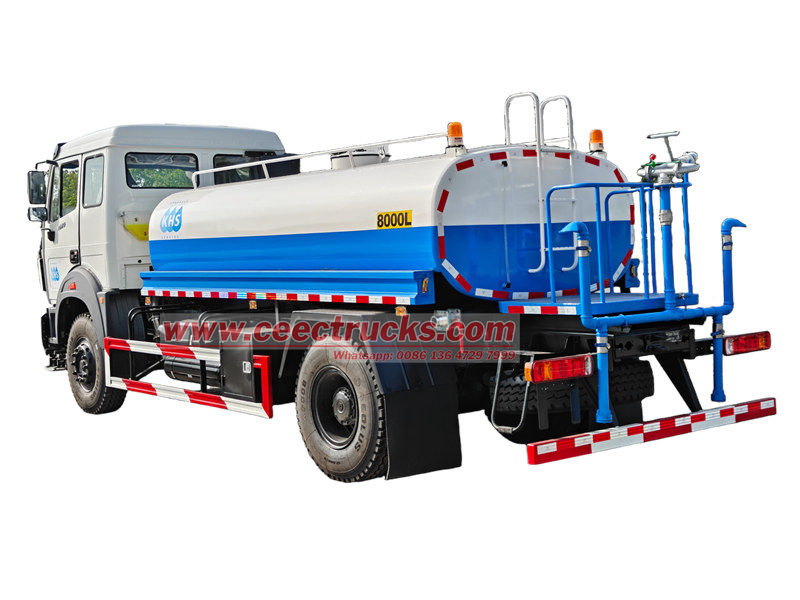

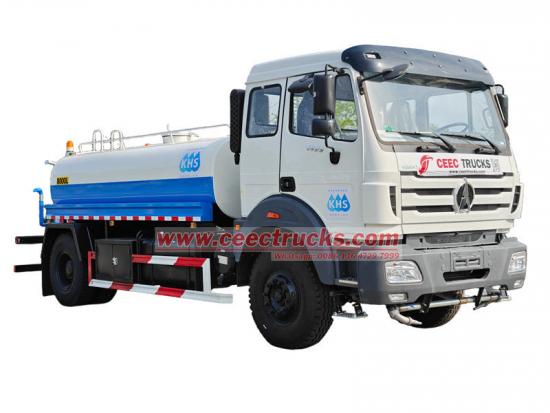

*Beiben 10cbm water bowser distributor truck

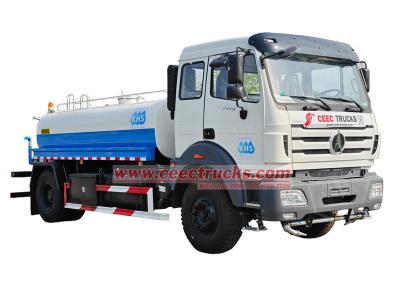

    Beiben 1929 10cbm sprinkler truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis: Beiben 1929 truck chassis, 4x4,  6x6 model

                          WP10.290E32 model with 290HP and emission 9726cc.

Beiben 10cbm water bowser distributor truck(also called Beiben water bowser truck, Beiben 1929 water tanker truck, Beiben 4x2 mobile water bowser, Beiben water truck, Beiben 1929 sprinkler truck) is used to transport and supply water, whatever industrial or agriculture water. Equipped with a large-capacity water tank and a high-pressure spraying system, it can achieve functions such as road dust reduction, greening irrigation, cooling and heat relief, and emergency fire fighting through multi-mode operations such as side spraying, rear spraying and high-pressure gun nozzles.

The upper body is an ellipse carbon steel water tank with a capacity of 10cbm, equipped with a WEILONG 80QZF-60/90S pump, pipeline storage boxes on both sides, the rear of the tank is working platform, with a high-pressure water spray gun and a portable fire pump set on the platform. In addition, the vehicle also has three spraying modes: front water spray nozzle, rear water spray nozzle and water cannon spray monitoring, which can meet a variety of watering operation needs.

The working principle of Beiben water bowser distributor truck is mainly based on the coordinated operation of power transmission and water circulation system.

●After the vehicle is started, the engine drives the high-pressure water pump through the transmission device. The water pump generates strong suction and pumps the water in the tank to the pump chamber through the pipeline for pressurization.

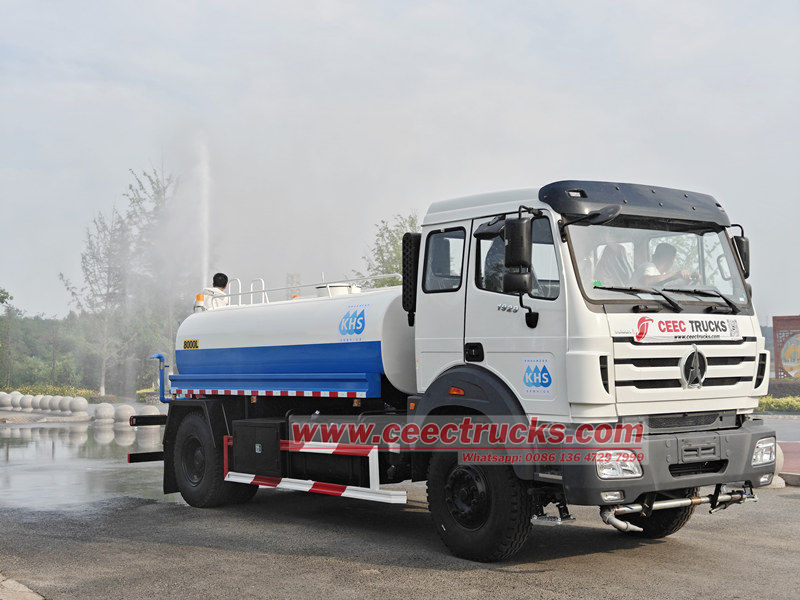

●The pressurized water is distributed to different nozzles through the diverter valve: the front nozzle sprays at a fan-shaped wide angle to achieve rapid dust reduction on the road; the rear nozzle wets the road surface evenly; the side spray bar can flexibly adjust the angle to meet the irrigation needs of the green belt; the high-altitude nozzle sprays water to high altitude through high pressure, which is used for tree spraying or high-altitude cooling.

●Beiben 10cbm water bowser distributor truck can also choose a fog cannon device, which atomizes water into micron-sized particles through high pressure, efficiently absorbs dust in the air, and completes dust reduction and purification operations.

» Ⅱ.Product Parameter for Foton Auman 20,000 liters water hauling tanker：







Beiben 10cbm water bowser distributor truck
Vehicle Dimensions, Weights & Capacities		Chassis brand	Beiben 1929
		Overall dimension (LxWxH)	8200x2580x3100 mm
		Wheelbase	4800 mm
		Curb weight	8860 kg
		Gross weight	19000 Kg
Chassis		Drive mode	4x2
		Cabin type	GN80B long cabin, with sleeper
		Steering	LHD
		Gearbox	Fast 9JS150A gearbox
		Tires	6+1 spare tire
		Tyre specification	12.00R20
		A/C	Air conditioning
		Max speed	95km/h
Engine		Engine model	WP10.290E32
		Horse power	290HP
		Displacement	9.726L
		Emission level	Euro 3
Water truck
Tank volume	10000L
Water tanker material	High quality carbon steel (Q235). Ellipse tank
Introduction	1. Suction≥7m  Sprinkler width≥14m   Range≥28m
	2. With front water spraying nozzles, rear water spraying nozzles, water spraying monitor

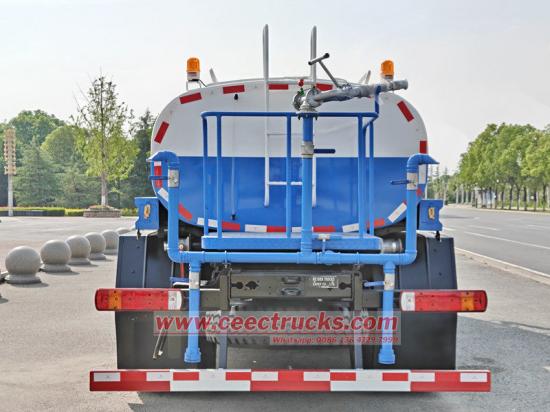

	3. with the working platform at the back, installed high-pressure water spray gun.(The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze.)

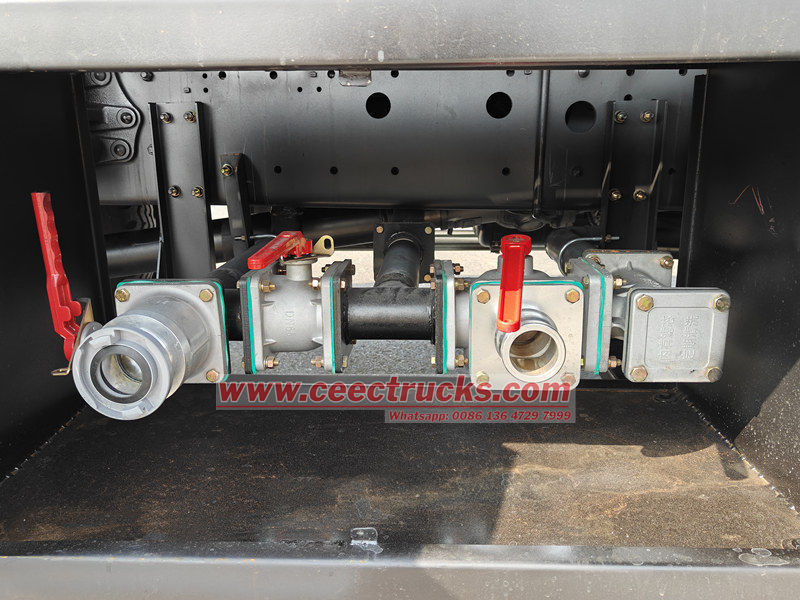

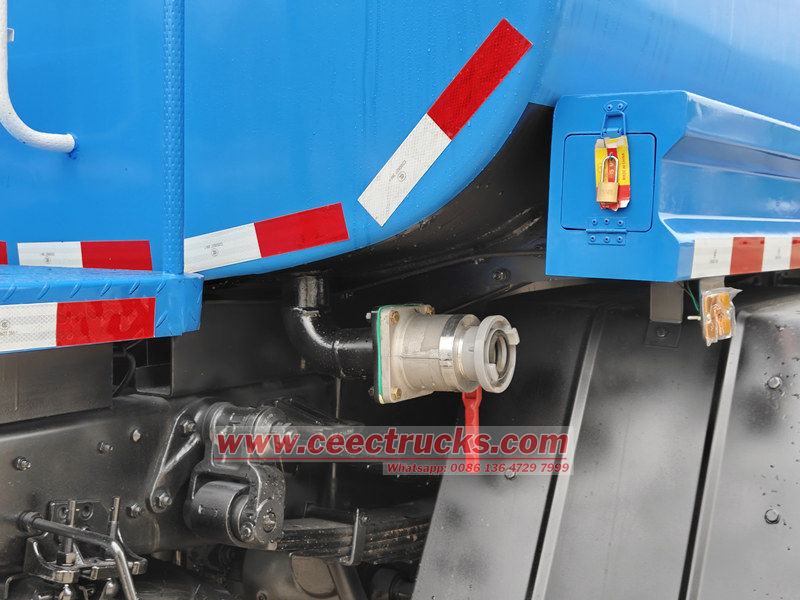

	4.Water Inlet & Outlet control valves
	5. Equipped with pipeline storage box at the side of tank
Horse reels	Two hose pipes on each side of the tank





» Ⅲ.Product Details & Advantages:

1. Military-grade chassis, double guarantee of load-bearing and durability

Beiben 10cbm water bowser distributor truck adopts Beiben heavy-duty truck special chassis, the frame adopts reinforced design, front wide and rear narrow variable cross-section structure with thick lining beam and reinforcement plate, high torsional and bending strength; the axle is an upgraded product of wheel-side reduction axle, with strong load-bearing capacity and stable performance; the chassis layout of the whole vehicle is reasonable, the stress distribution is uniform, and the stress concentration is eliminated. It can easily cope with complex road conditions and heavy load requirements, and has high stability, high load-bearing capacity and high reliability.



2. Large-capacity tank and efficient spraying system

The tank is designed as a 10-cubic-meter elliptical structure, made of high-strength carbon steel, and processed by automatic welding technology. The thickness of the tank is 4mm, with excellent corrosion resistance and sealing, ensuring long-term use without leakage. A wave-breaking plate is set inside the tank to reduce the impact of water flow on the vehicle body during driving, while optimizing the center of gravity distribution and improving driving stability.

3. Weilong 80QZF-60/90S water pump, the core of efficient spraying

This model is equipped with Weilong 80QZF-60/90S high-pressure water pump, with a flow rate of 60m³/h and a head of over 90 meters, which far exceeds the industry standard. The water pump adopts a centrifugal design, with powerful self-priming and self-draining functions and a suction range of 7 meters. It can quickly draw water from water sources such as rivers and fire hydrants without the need for additional pumping equipment. Its sealing structure is optimized, wear-resistant and corrosion-resistant, with a service life extended by 30%, and low maintenance costs, suitable for high-intensity continuous operations.



4. Multifunctional spraying system, covering all scene needs

The tank is equipped with various spraying devices such as front flushing, rear sprinkling, side spraying, and high-pressure guns. The width of the front flushing nozzle is up to 8 meters, which is suitable for rapid dust reduction on roads; the rear sprinkling nozzle evenly wets the road surface to avoid water accumulation; the side spray rod can flexibly adjust the angle to meet the irrigation needs of green belts; the high-pressure gun nozzle has a maximum spray height of 18 meters, and can spray micron-level water mist with a fog cannon device, effectively absorbing PM2.5 and increasing air purification efficiency by 35%.



•

•



•
