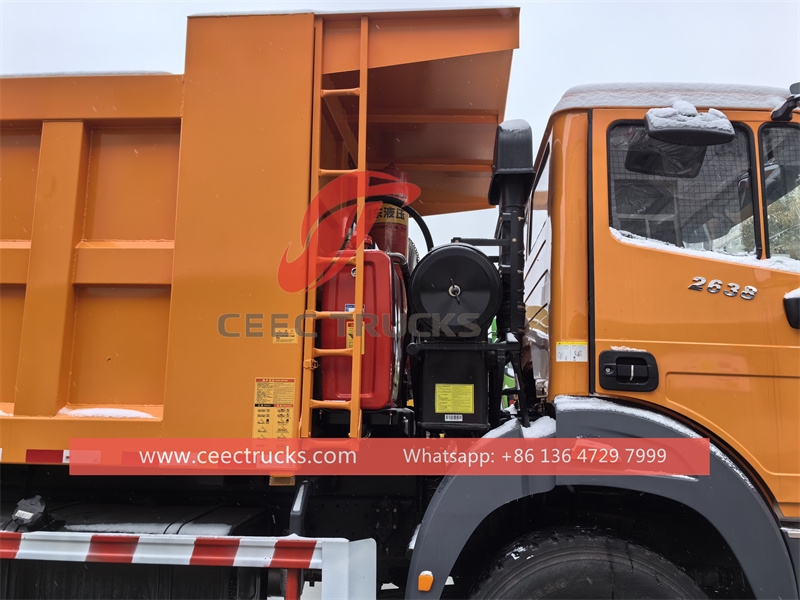

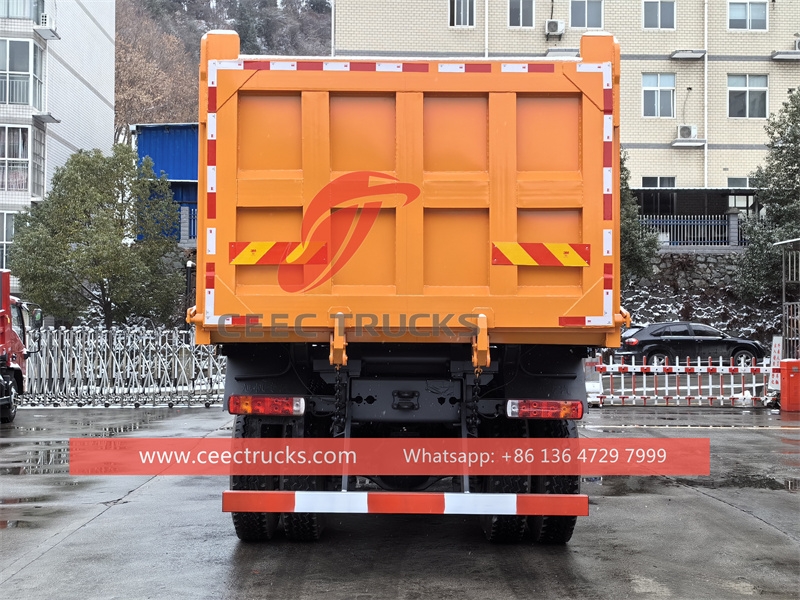

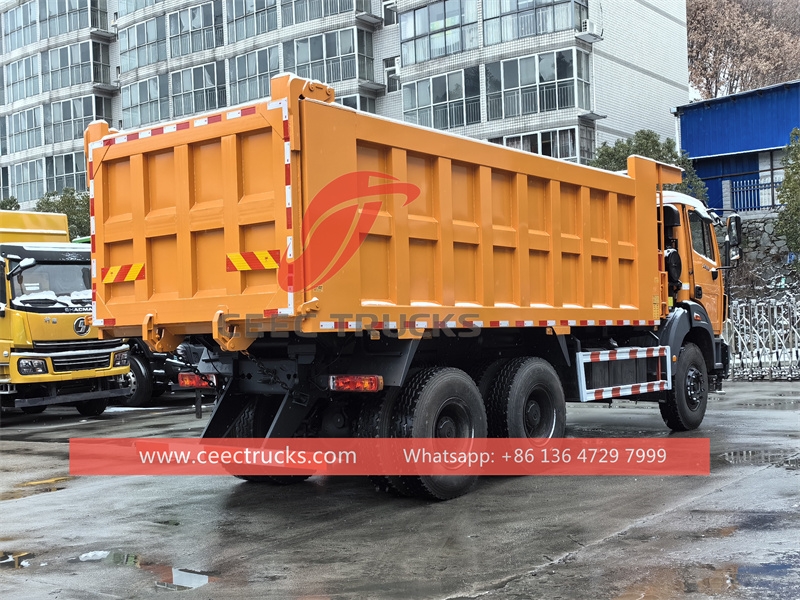

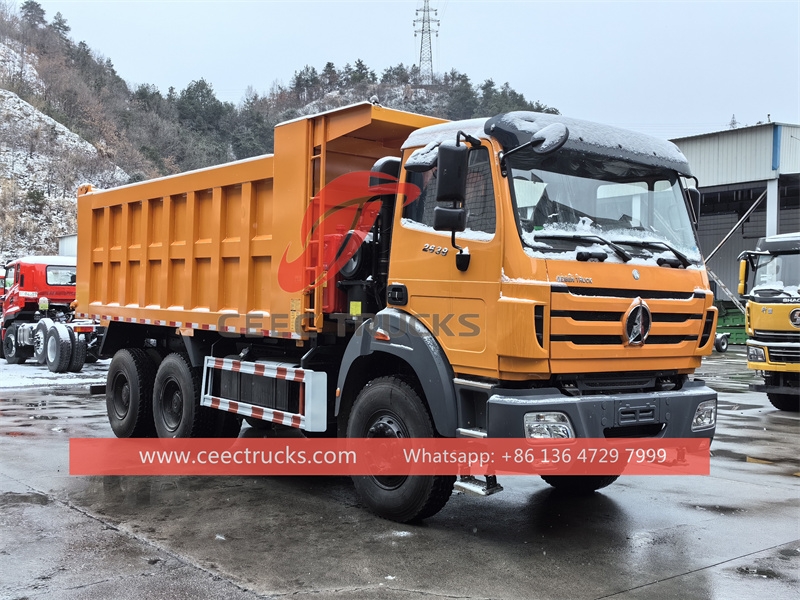

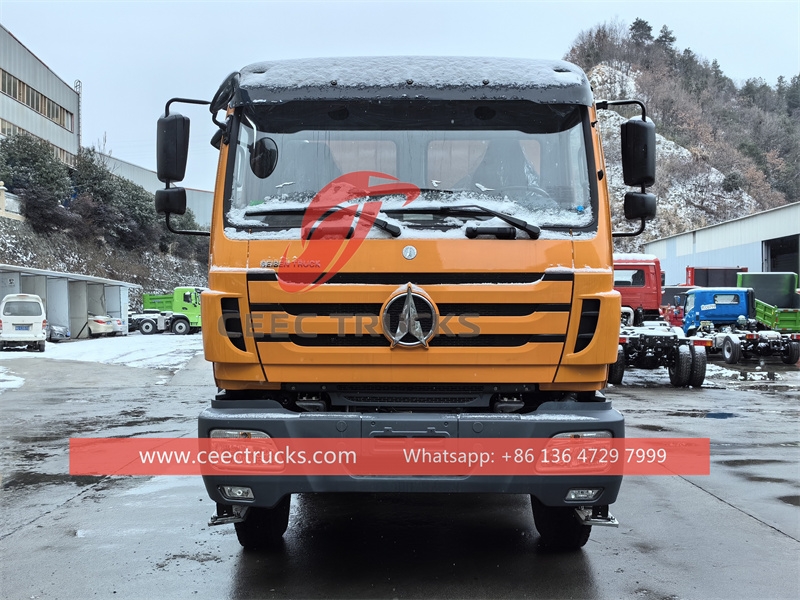

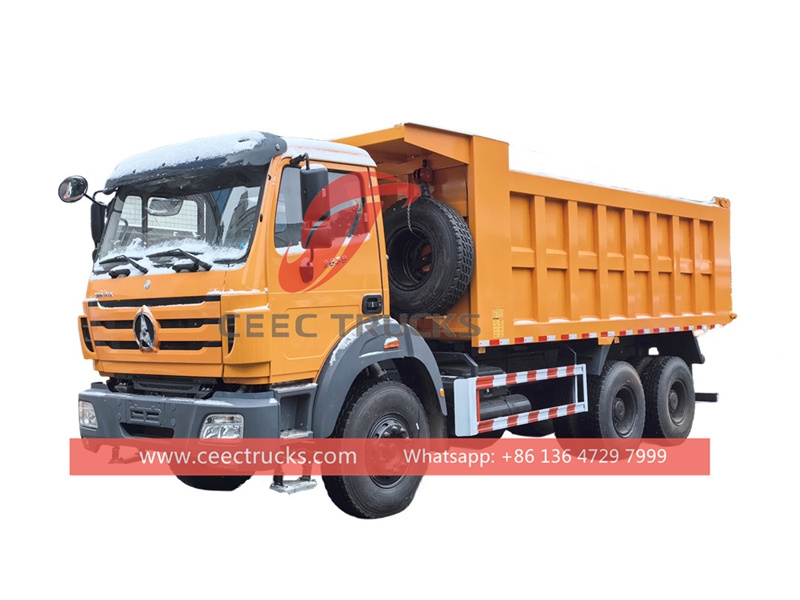

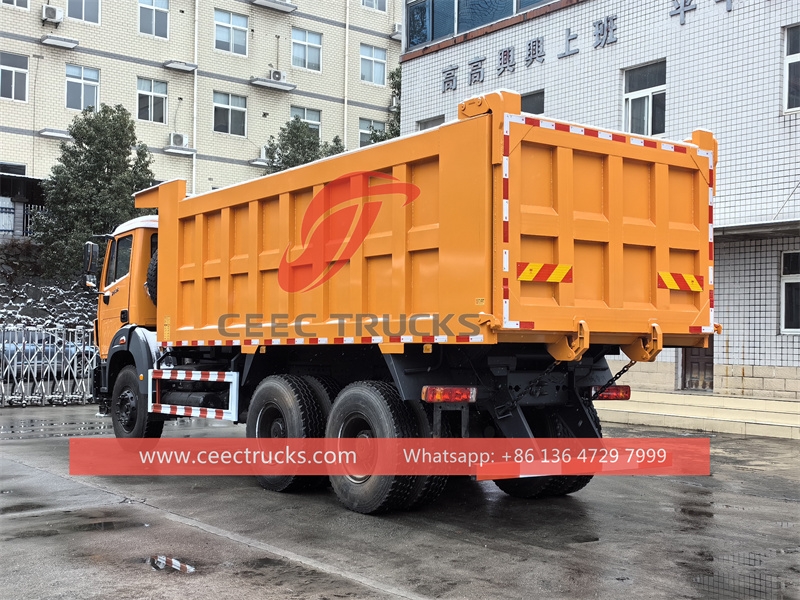

Beiben 2638 dump truck for sale

Beiben 2638 dump truck

Beiben 20Tons dump truck, Beiben 6x4 chassis, FAST 9-shift manual gearbox,Beiben 380HP diesel engine, high strength steel tipper body, with HYVA or domestic hydraulic lifter optional. All painting and logos depend on requirement.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

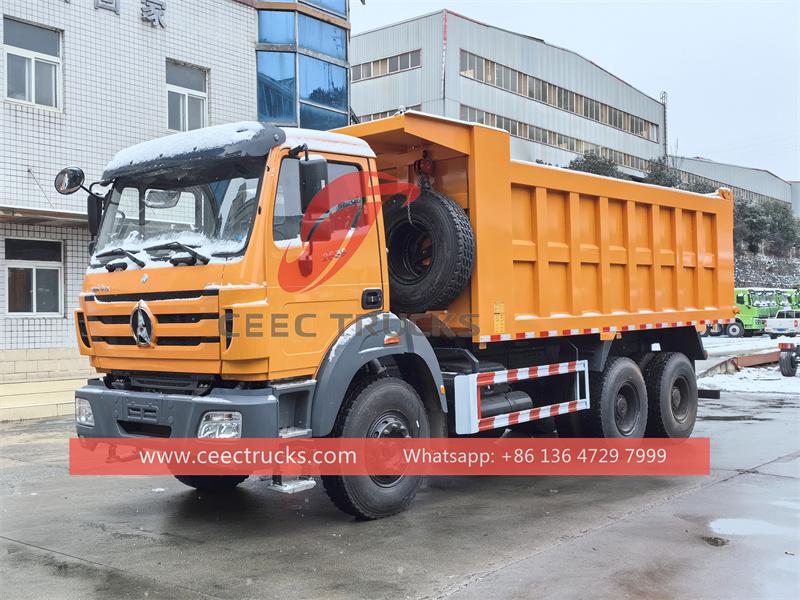

Beiben Mining Dump Truck



 Applications:

Beiben 6*4 construction tipper truck (also called Beiben tipper truck, Beiben heavy duty tip-truck, Beiben 30 tons tipper lorry, Beiben dumper truck, construction tipper truck, dump truck manufacturer) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.



CEEC TRUCKS dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.



 Key Features:

---- Beiben heavy duty chassis, perfect performance
---- Beiben diesel engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payload from 20ton to 100 tons.
---- Easy operation and easy maintenance.

---- Various types of tipper body are available.



 Specifications:



Description

Beiben Mining Dump Truck

Item

CS dump truck

Model

CSC5250ZX

Cabin

Beiben single cabin

whole vehicle main
dimension



Overall dimensions (L*W*H)mm

9500*2480*2850 mm

Dimensions of dump body  (L*W*H)mm

5800*2300*1800 mm

Driving type

Left/Right hand drive 4×2

Wheel base

3800+1450mm

Weight data

Curb weight (kg)

12000

Rated payload(kg)

25000

Person in cab (persons)

3

whole vehicle main
performance

Max.speed(km/h)

95

Max.slope of climb(%)

25

Min.turning radius (m)

9.5

Engine

Engine model

WP10.380E32

Engine type

Vertical, water-cooled, six-stroke,
turbocharged and inter cooled

Emission standard

Euro3

Displacement (L)

9.726L

Rated power (HP)

380hp

Steering gear type

Power steering

Brake system

Service brake and boosting type

Air brake

Parking brake

Central drum brake

Auxiliary brake

Air brake

Tyre size

12R22.5

Electric system

Rated voltage

24V

Battery

100Ah

Dump Performance

Loading Capacity

20 tons

Body Material

High performance carbon

Plate Thickness

Front/Side are 6mm

Control System

Rear/Side are 8mm

Hydraulic Lifting

Hydraulic

Discharging System

Front lifting device

Lifting Time

Tipping 45 degree

Lowering Time

20 s

Tailgate

15 s

Drop side

Auto release

Painting

Detachable

Color & Logo

Two primers,and one final paint coating

Loading Capacity

According to wish

Factory Standard

Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps...

Documents

English operation manual, Spare parts list, and all necessary export docs.

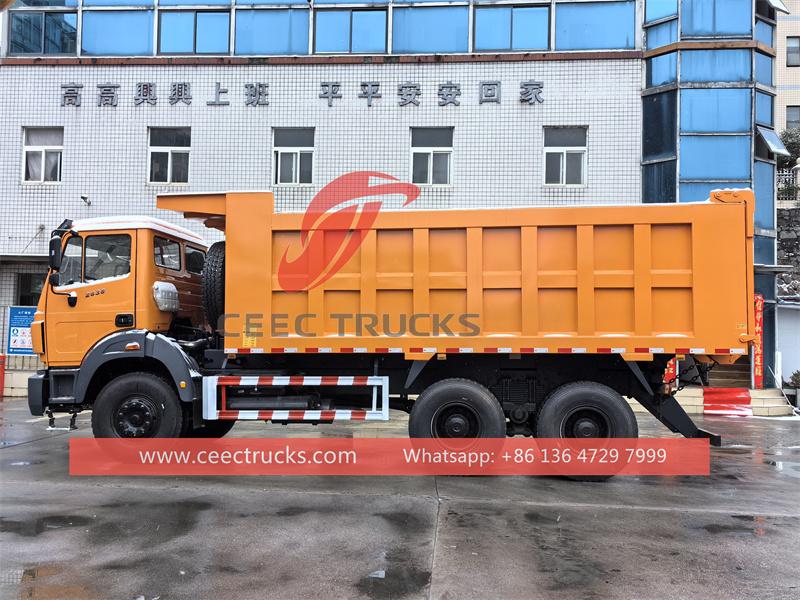

 Beiben Mining Dump Truck

Heavy duty dump trucks are widely used in the following scenarios due to their high load capacity and unloading flexibility:



1.Mining Industry: Heavy duty dump trucks play an important role in the mining industry and are used to transport large quantities of bulk materials such as ore and coal. Large dump trucks can transport ore directly from the excavation area to crushing or processing equipment at the mining site, and transport impurity materials such as waste rock back to the mining site. Its high load capacity and strong off-road capabilities make the dump truck competent for heavy material transportation in the mining industry.


2.Construction sites: In construction sites, Heavy duty dump trucks are often used to transport earth, stone, building materials and other materials. They can transport large amounts of soil, sand, bricks, etc. from the construction site, or transport construction materials such as mortar, cement, etc. to the construction site. The quick unloading function of the dump truck can quickly complete the unloading of materials on the construction site and improve the efficiency of construction site logistics.

Beiben Mining Dump Truck

3.Transportation construction: In transportation infrastructure construction such as road construction and subway construction, Heavy duty dump trucks are usually used for material transportation in earthworks, tunnel projects, and roadbed projects. They can move large quantities of earth and rock materials out of excavation areas or tunnels, or transport landfill materials, roadbed materials, etc. to the construction site.


4.Waste disposal: In the field of urban sanitation and waste disposal, Heavy duty dump trucks are often used to transport large quantities of bulk materials such as garbage, waste, and waste. They can transport these waste materials from cities or construction sites to garbage disposal stations or slag disposal sites, and play the role of cleaning and processing waste materials.



In addition to the above scenarios, large dump trucks can also be used in special occasions such as military material transportation and coal mine closures. Generally speaking, large dump trucks are suitable for areas that require large amounts of material transportation, with industry and construction being the main application areas.

Beiben Mining Dump Truck

(Factory supplies BEIBEN tipper trucks at good price)

Key words: BEIBEN Dump truck, BEIBEN tip-truck, factory outlet BEIBEN tipper lorry

 Famous brand FAST 9-shift manual gearbox, 9 forward & 1 reverse

Expert for producing BEIBEN tipper truck over 10 years with good reputation

Carbon steel material

12 months free fast moving spare parts

All English version control box, panel, and owner's manual, for easy understanding

Training service for BEIBEN dump trucks


Beiben Mining Dump Truck



Beiben Mining Dump Truck

CEEC TRUCKS is the best supplier of HOWO Dump trucks in China. Our Howo 6*4 tip-trucks are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.



---- Professional guidance on your importing documents.

---- Maximize save your sea freight.

---- Safty, Quickly, Timely.

CEEC garbage compactor truck factory review


---- Service more than 60 countries.

---- Professional guidance on your importing documents.

---- CO, FORM E, FORM P, Pre-shipping Inspection....


 export documents



Successful Cases
inquiry now

    Please feel free to inquiry trucks from us; our experience sale manager will give the quotation within 12 hours
