The Beiben 6x6 all-drive water tanker is equipped with the WP10.340E32 engine, which is a powerful power source. It adopts the Inline 4-cylinder 6-stroke design and has supercharged, intercooled and water-cooled technologies. The 340HP horsepower output and the maximum torque reach 1350N.m, which can be output at 900rpm and the rated speed is 2200rpm, ensuring the strong power of the Beiben off-road water sprinkler truck in starting and climbing conditions. The Beiben cabin adopts a one-and-a-half-row design, 2 seats with sleeper, and the cab is equipped with A/C and radio, which not only provides a comfortable driving space, but also supports long-distance water transportation tasks. Large-capacity water tank and high-quality materials, the water tank capacity of Beiben heavy-duty water sprinkle truck reaches more than 20,000L, which can meet the needs of large-area water sprinkling operations, reduce the number of frequent water additions, and improve operating efficiency. The water tank is made of High quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

● China best potable water bowser truck factory

● More than 30 years professional manufacturer experience

● Be designed according to your requirements

● Professional sales team which will help you to choose suitable truck

● We can offer your a good after-sale service

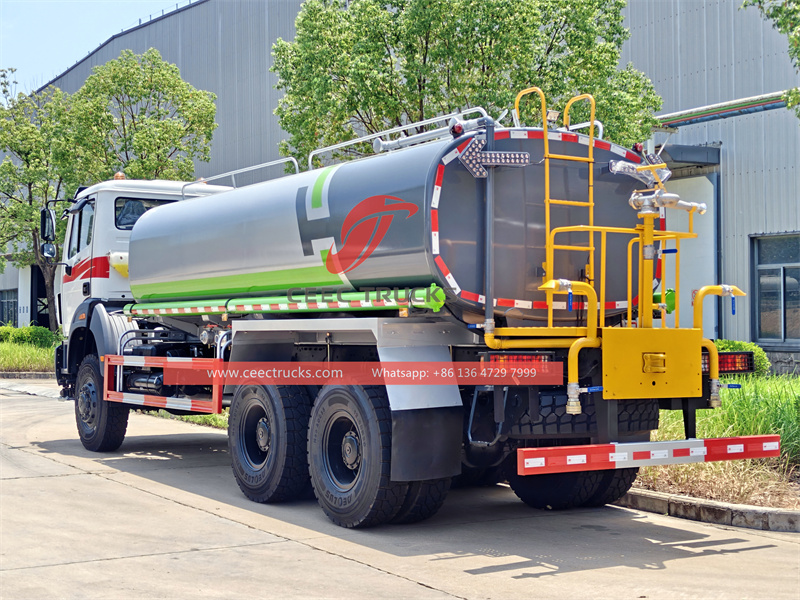

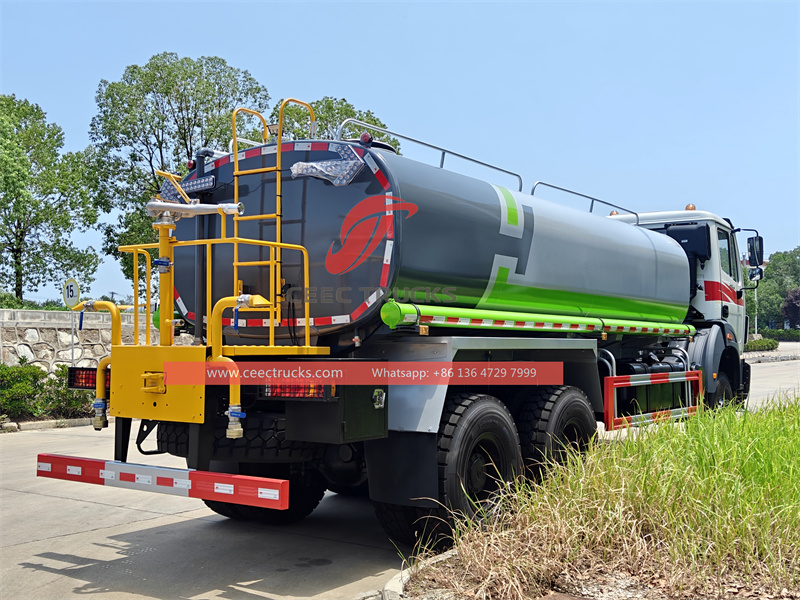

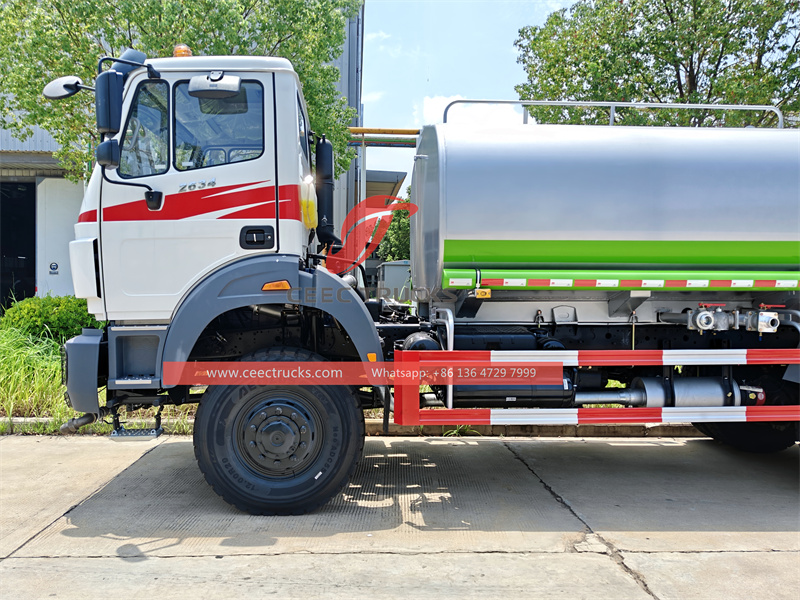

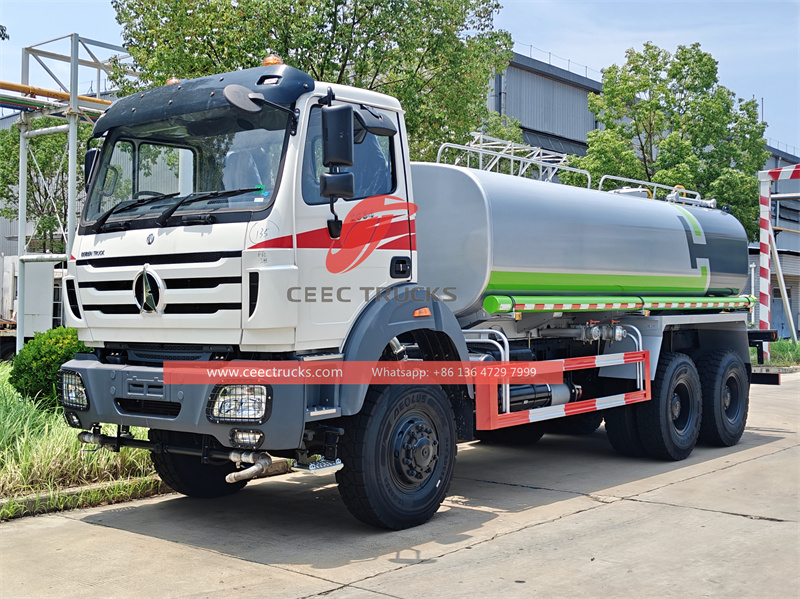

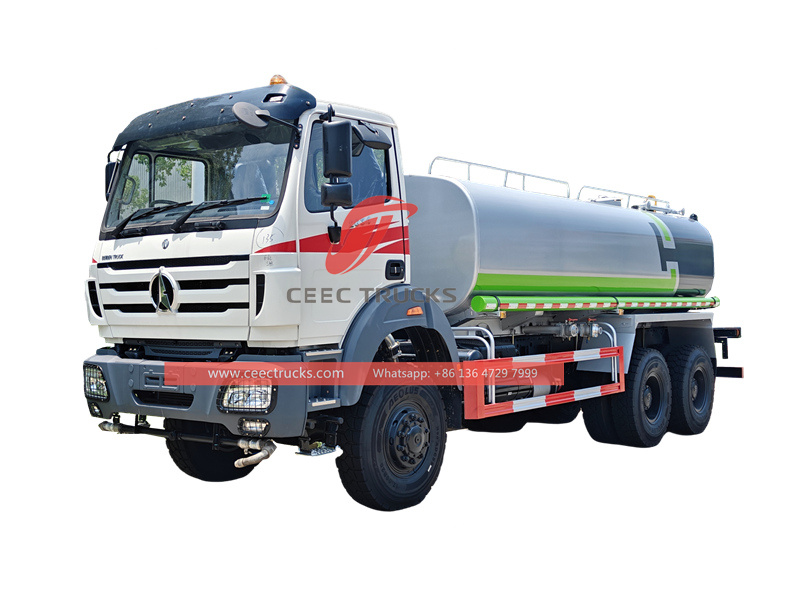

*Beiben heavy-duty water bowser truck

    Bieben 6x6 water carrier truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

Truck Chassis:Beiben chassis, 6x4,  6x6 model

                          WP10.340E32 model with 340HP and emission 5193cc.

Beiben 20000L water bowser truck(also called Bieben water carrier truck, Beiben lorry water tank, Beiben water bowser truck, Beiben water truck, Beiben 6x4 mobile water bowser) is used to transport and supply water, whatever industrial or agriculture water. Equipped with a large-capacity water tank and a high-pressure spraying system, it can achieve functions such as road dust reduction, greening irrigation, cooling and heat relief, and emergency fire fighting through multi-mode operations such as side spraying, rear spraying and high-pressure gun nozzles.

» Ⅱ.Product Parameter for Beiben 20000L water bowser truck：





Beiben heavy-duty 20000L water tanker
Main parameter	Overall dimension(LxWxH)		11300*2580*3250mm
	Wheel base(mm)		4325+1370mm
	Driving Type		6×6,left/right hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		33000 kg
	Curb weight		16500 kg
	Loading capacity		20000 L
	Front axles loading capacity		7.5T*2
	Rear axles loading capacity		16 T*2
Engine	Engine model		WP10.340E32
	Engine type		Inline 4-cylinder 6-stroke, supercharged, intercooled, water-cooled
	Horsepower		340 HP
	Max. output (kw)		247 Kw
	Rated speed		2200 rpm
	Maximum Torque		1350 N.m
	Displacement(L)		9.726 L
	Emission standard		Euro 3
Transmission	Gear box 12 forward ,2 reserve
Tire	12.00R22.5 standard tire,10 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		20000L
	Structure	TANK MATERAIL	6mm,Q235 stee
		Pipe	Galvanized pipe
		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22

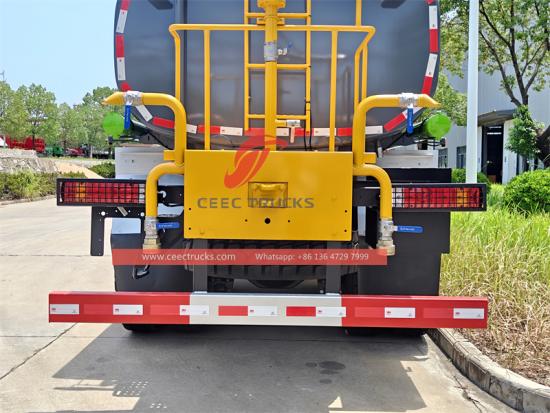

Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa





» Ⅲ.Product Details & Advantages:

1.Passability and Off-Road Capability:

The water tank sprinkler truck will be used in African countries. It primarily performs dust suppression and temporary road watering within or around construction sites covered in mud, potholes, soft sand, and gravel. Road conditions are poor, and mud often forms during the rainy season. Sometimes, the truck must traverse grassy areas, slopes, and ditches for landscaping or road cleaning.



So the water tanker is based on Beiben 6x6 all-drive chassis, with all wheels providing driving force, significantly improves traction and climbing ability on low-grip surfaces (mud, snow, sand, and ice), preventing slippage and sinking. Beiben off-road chassis typically offer high ground clearance, allowing them to easily navigate obstacles on rough roads (such as large rocks, deep ruts, and fallen trees), reducing the risk of bottoming out and protecting the chassis and lower tank. Multi-leaf spring or hydro-pneumatic suspension is often used, providing increased load capacity and excellent impact resistance, allowing them to withstand the harsh jolts of unpaved roads and protect the vehicle structure and tank equipment. The large approach/departure angles are designed to make it easier to go up and down steep slopes and through humpback roads, avoiding collisions between the front and rear bumpers.





2.High-quality tank structure：

The tank body is made of high-quality carbon steel (Q235) + high-performance anti-corrosion coating (such as epoxy resin, polyurethane). The cost is low, but at the same time it can maintain anti-corrosion performance and life (usually 8-10 years). The coating used by CEEC factory can ensure strong adhesion, no pinholes, uniform thickness, and pass the salt spray test.





The inner wall of the tank should be smooth without dead corners to facilitate cleaning and drainage. The sewage outlet should be located at the lowest point and reasonably designed to ensure that sewage and impurities can be completely emptied. For water tanks, CEEC engineer sets a sufficient number of transverse wave-breaking plates (partition plates). The wave-breaking plates should have large enough water flow holes to effectively suppress the impact of liquid sloshing without hindering the flow of water and the emptying of the tank. The wave-breaking plates are firmly welded to the tank body to avoid cracking and falling off under long-term impact.

•


•


•
