Dubai customer purchased 2 units Isuzu GIGA 4X airport road sweeper truck from CEEC TRUCKS. Fully rely on original ISUZU GIGA 4X truck chassis, new model GIGA 4X single-row cab design with 2+1 seats, in cabin with AC for comfortable driving. Equipped with Japanese ISUZU diesel engine 4HK1-TCG60 with horse power 151kw / 205HP, which is a four-cylinder, four-stroke, water-cooled, turbocharged and intercooled engine, designed displacement of 5193cc standard, matched working with ISUZU MLD 6 shift manual transmission gearbox, 6 shift move forward and 1 shift move back, very lower fuel consumption, totally installed 7 units tubeless tires with model 295/80R22.5 model, very suitable for multiple kinds of road condition.
As for upper body kit of ISUZU truck mounted vacuum road sweeper, which is designed as separated type square tanker body model, including 4500L cleaning water tanker, matched working with high pressure jetting pump and nozzles. 5500L dust tanker, matched working with auxiliary diesel engine and powerful fan system, also sweeping brush device and suction plate, all to make the Isuzu 4500L+5500L street sweeper water jetting truck is an ideal vehicle service for road cleaning and dust suppression. Below operation manual is prepared together with truck for prefessional operation guidance, detailed user's manual as below showing:
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
>> Brief Introduction of ISUZU 10000L combined road sweeper truck?
ISUZU GIGA 4X newly designed truck mounted road sweeper is a customized cleaning equipment modified service for dust suppression, garbage collection and road cleaning. Isuzu road sweeper high pressure jetting truck designed with totally 10cbm tanker body kit, including 4500Liters for clean water and 5500Liters for dust, matched working with American CUMMINS B140 33 diesel engine, powerful fan system and pipeline, road sweeping system with sweeper brushes and suction plate, high pressure water jetting and lower pressure water spraying system, also integrated with Germany SIEMENS PLC control system for safety and convenient usage. Below mainly tips are guidance for choose, and all make the Isuzu road sweeper jetting truck suitable for daily usage:
1. ISUZU GIGA 4X LHD 4x2 Truck: Equipped Japanese ISUZU 4HK1-TCG60 model with 151KW / 205HP diesel engine + ISUZU MLD 6-speed gearbox, excellent and lower fuel consumption.
2. Auxiliary Diesel Engine System: Top American brand CUMMINS B140 33 model diesel engine, provide powerful output to guarantee the Isuzu road sweeper truck working smoothly and reliable.

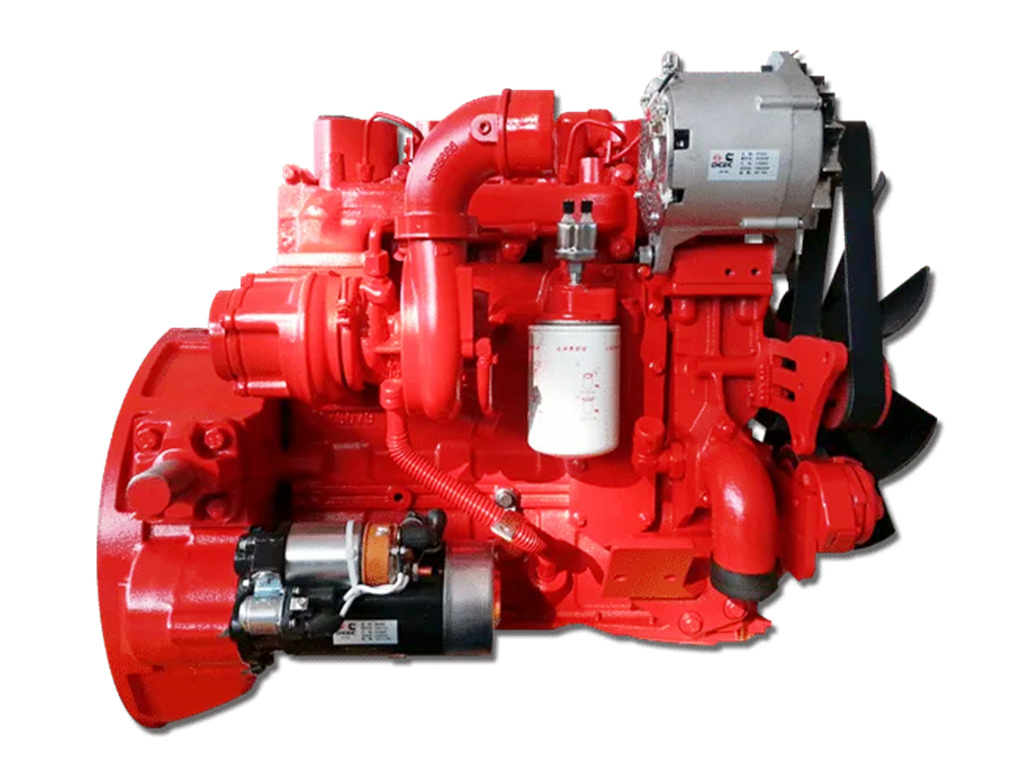

American CUMMINS B140 33 diesel engine
Engine model: B140-33

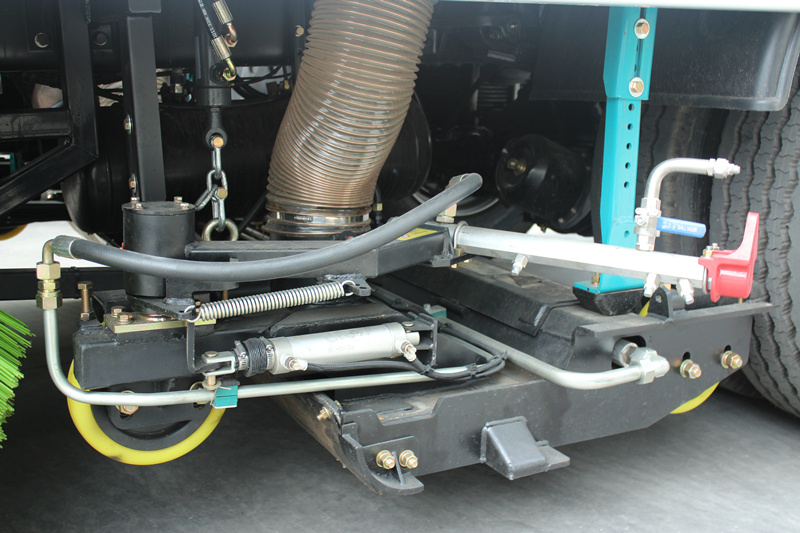

3. Dust Tanker Assembly: Customized 5500Liters capacity, based on Stainless steel SS304 material, matched with CUMMINS B140 33 diesel engine with 140HP to offer powerful output, working together with dust suction fan device, 2 sets road sweeping brushes allocated on two sides, middle installed one set suction plate, all for road cleaning and sewage suction.
4. Clean Water Tanker Assembly: Customized 4500Liters capacity, based on stainless steel SS304 material
>> Equipped with Germany PINFL PF36 model high pressure water jetting pump, efficiently jetting flow rate 122L/min, rated rotation speed 800r/min and power 37kw, designed working pressure 16Mpa. Matched working with φ19 diameter 20m jetting pipeline and hose reel, also with water gun for water jetting.
>>Equipped with Top Chinese brand WEILONG 80QZB-60/90 low pressure water pump, efficiently spraying flow rate 60m3/h, delivery over 90m, rated rotation speed 1180r/min, suction ability 1.5min/4m, efficiency 61% and power 24kw. Matched working with front jetting, middle and rear jetting nozzles for road cleaning and dust suppression.

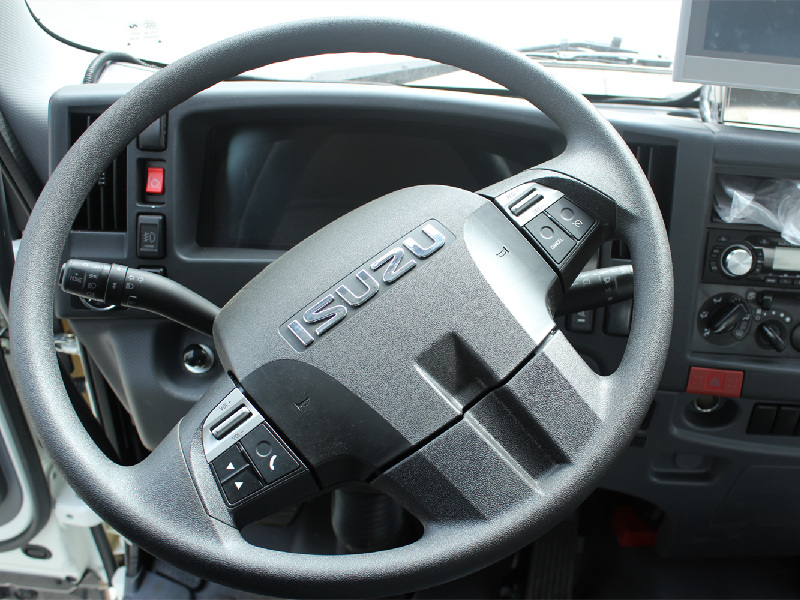

5. Integrated Control Device: ISUZU road sweeper trucks equipped with integrated control device inside cabin with 7" screen, smart and convenient for daily usage and operation.
>> How to design and produce ISUZU 10CBM street sweeper truck?
CEEC TRUCKS R&D department and profressional engineers fully learning customer requirement, then customized to design and produce the ISUZU road sweepers to guarantee 100% meet clients requirement, and also matched with paper version User's Manual for ISUZU GIGA 4X Airport road sweeper jetting truck, all help clients better use the truck. Below are normally technical design and 3D drawing design for the Isuzu sweeping trucks:

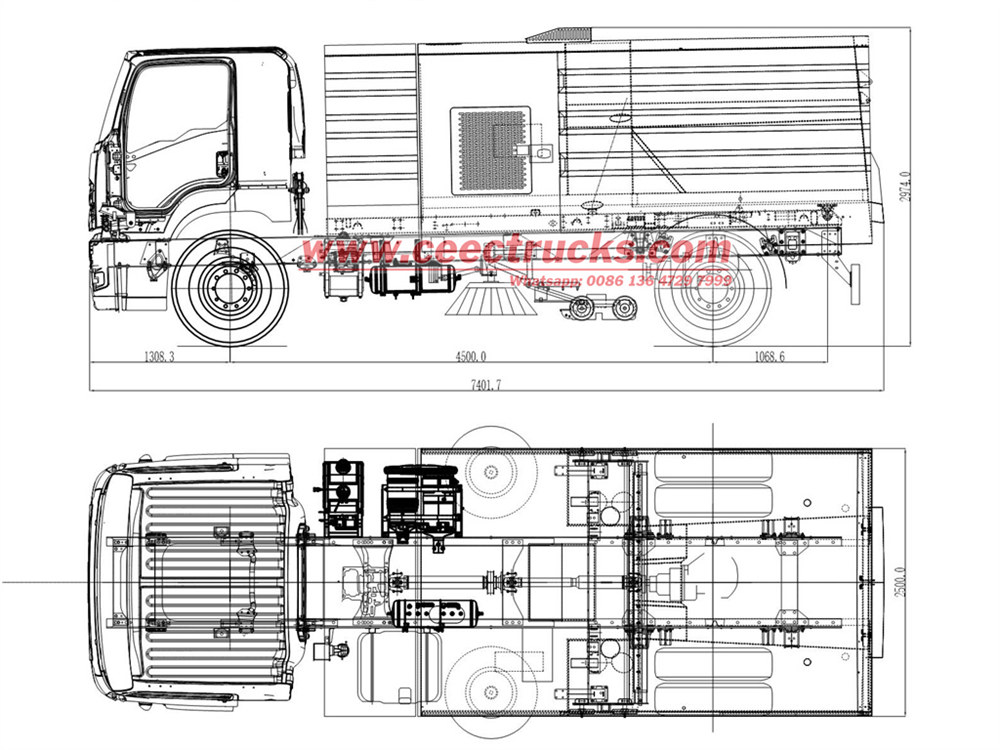

Technical drawing for ISUZU GIGA 4X sweeper jetting truck
After received the detailed requirement from customers, we CEEC TRUCKS professional Engineers will prepare the technical drawing for required model Isuzu road sweeper trucks, fully meet the requirement, including 4500Liters clean water tanker and 5500Liters dust tanker, matched with 2 sets sweeper brushes installed on two sides, also 1 set suction plate in the middle, also the overall dimension design if customer have special requirement for shipment, such as Bluk shipment, RORO shipment, specially for Container shipment, including 20GP, 40HQ, 40OT, 40FR containers, etc.

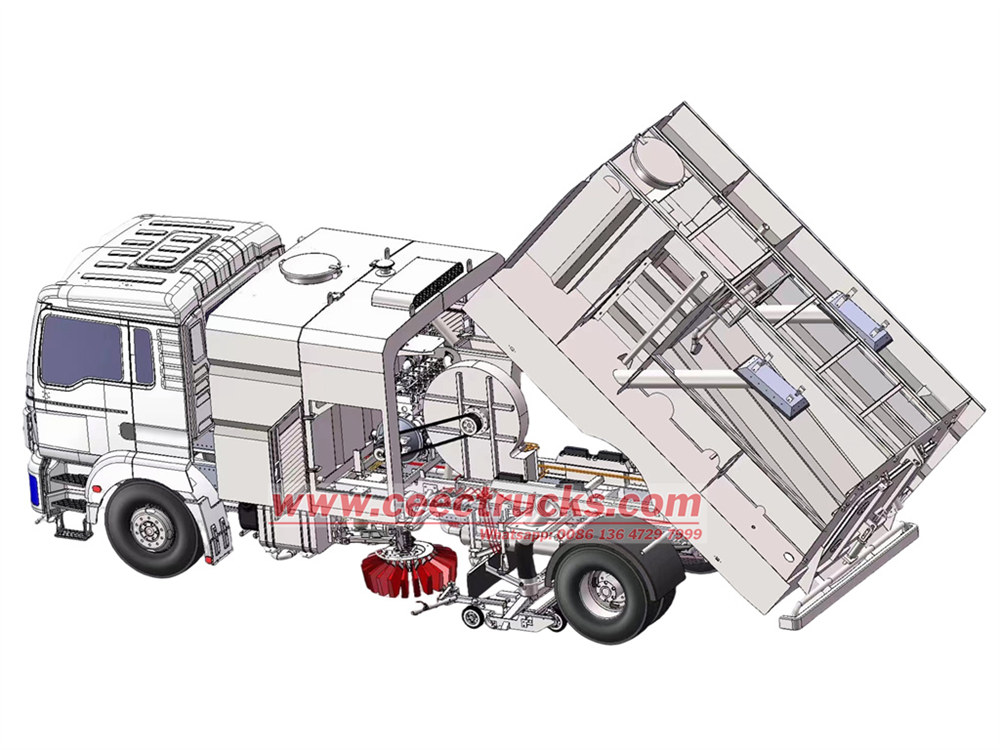

3D drawing for ISUZU GIGA 4X road sweeper jetting truck
3D technical drawing for ISUZU GIGA 4X 10000L road sweeping water jetting trucks can help customer more easily understand the detailed configuration. Except the appearance, but also inside power fan system, American CUMMINS B140 33 auxiliary diesel engine, magnetic valve, pepelines and valves, all can be displayed on computer to help customer more easily know what the truck will be.
>> Advanced features for ISUZU 10CBM sweeper truck?
Isuzu FTR GIGA 4X truck mounted 10 cbm road sweeper is a powerful road sweeping equipment. It has the advantages of large sweeping width, sufficient water tank capacity and considerable garbage capacity, and can efficiently clean municipal roads. The vehicle adopts advanced road sweeping technology and is equipped with an intelligent dust removal device, which does not require manual participation and has high cleaning efficiency. Also matched with in cabin integrated control box, under the guidance of User's Manual, so can teach operator more professional and safety usage.
>> Multiple Function for ISUZU GIGA 4X Road Cleaning Truck?
Isuzu GIGA 4X road sweeper cleaning truck equipped with all necessary equipment, mainly service for road cleaning, street washing and dust suppression. Below are mainly purpose of ISUZU GIGA 4X truck mounted 10cbm road sweepers.

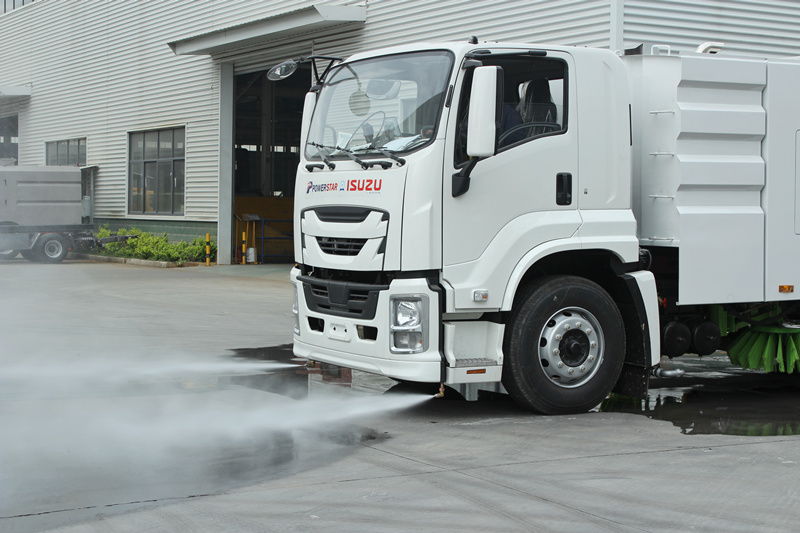

Front flushing for road cleaning and dust suppression
Isuzu road sweeper trucks with front mounted 2 sets water jetting nozzles, which can optionally jetting fog or others to realize dust suppression function. Also used for road cleaning.

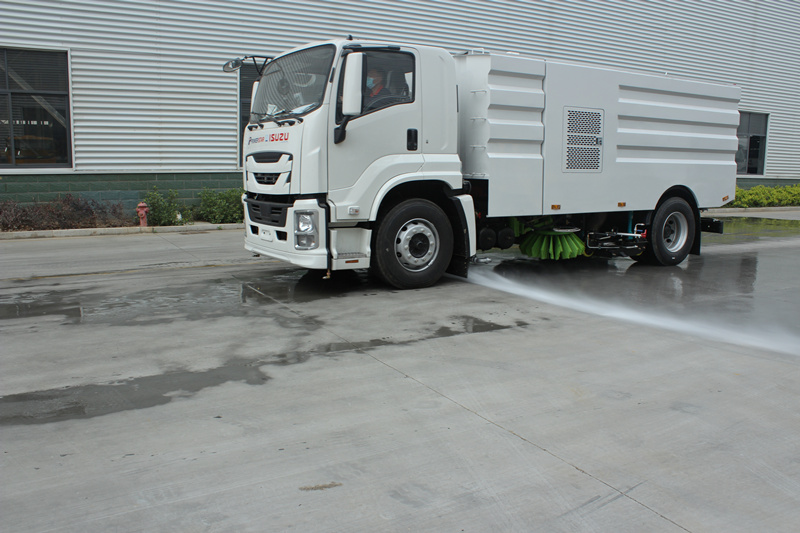

Middle mounted water nozzles for side jetting

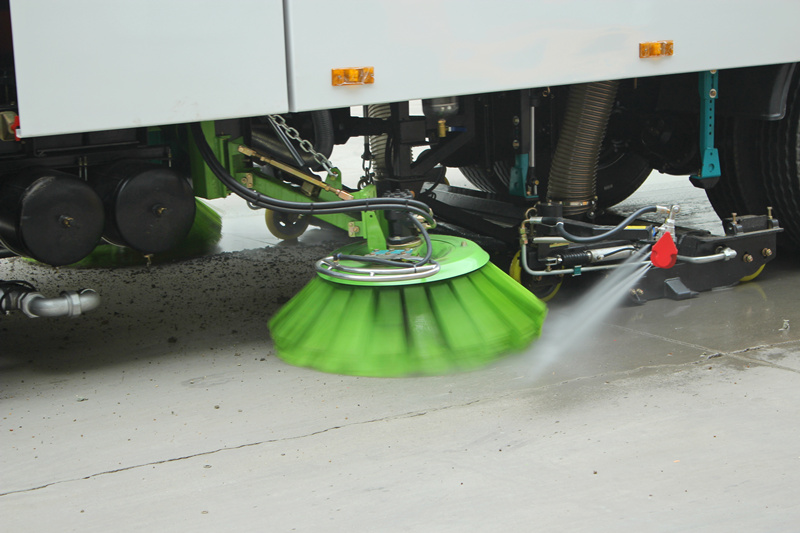

In the middle of the Isuzu sweeper trucks installed two sets water jetting nozzles, which can make water jetting width over 20m, efficiently cleaning the road during driving, specially clean the leaves and mud on the road.

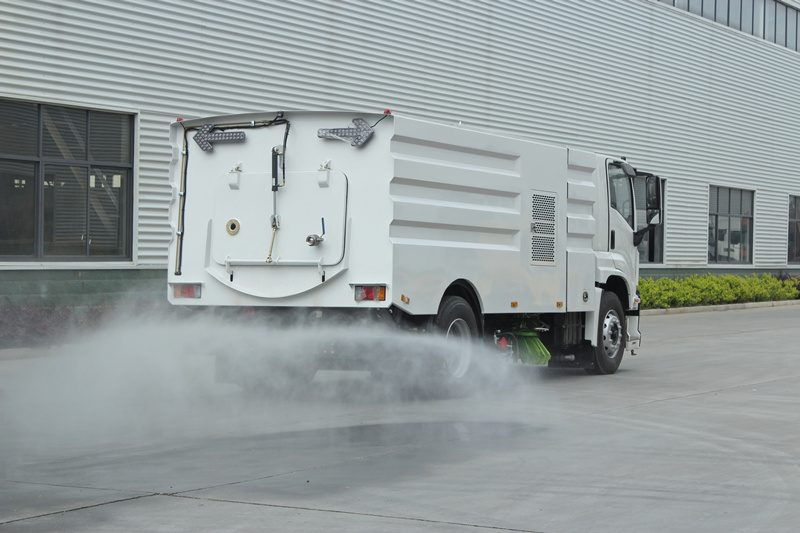

Rear high pressure jetting for dust suppression
Isuzu sweeper truck with high jetting system mounted 8-14 sets nozzles at rear, which jetting water as fog, efficiently service for dust suppression, specially when road too dirty.
>> Overview for ISUZU 4HK1 combined road sweeper jetting truck?

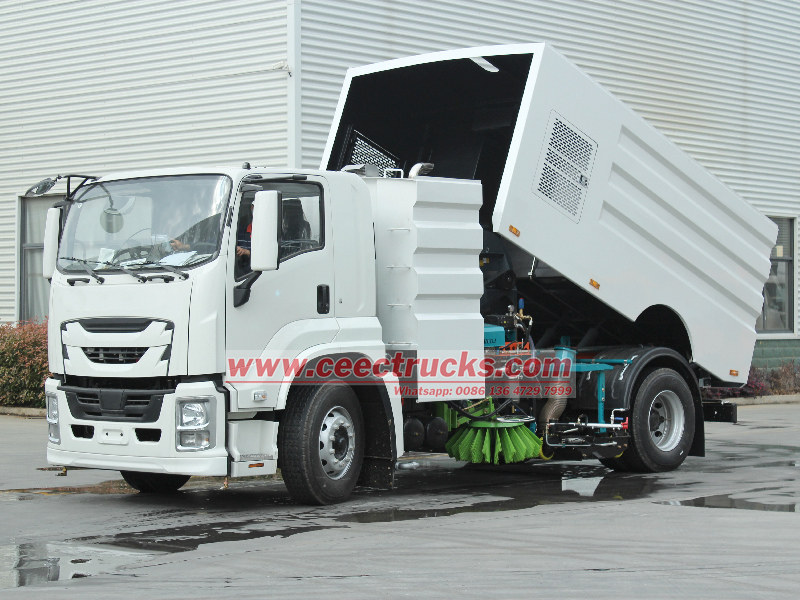

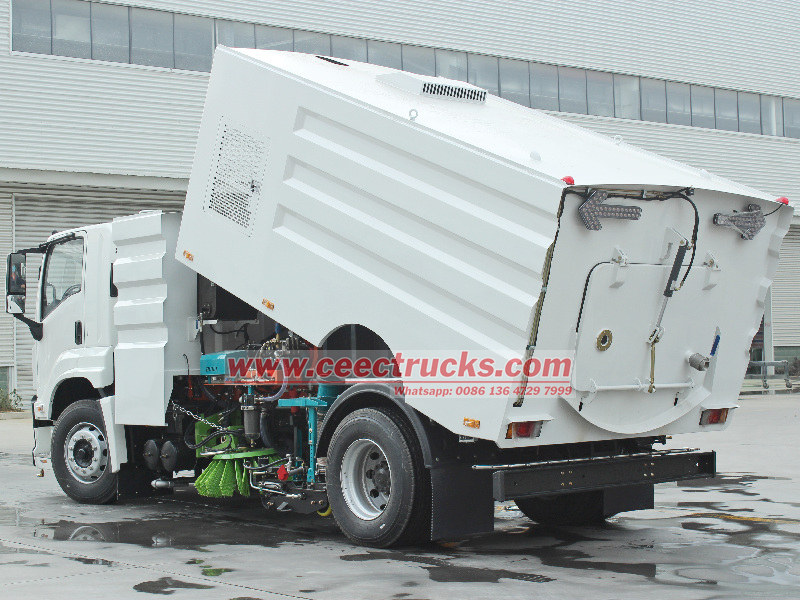

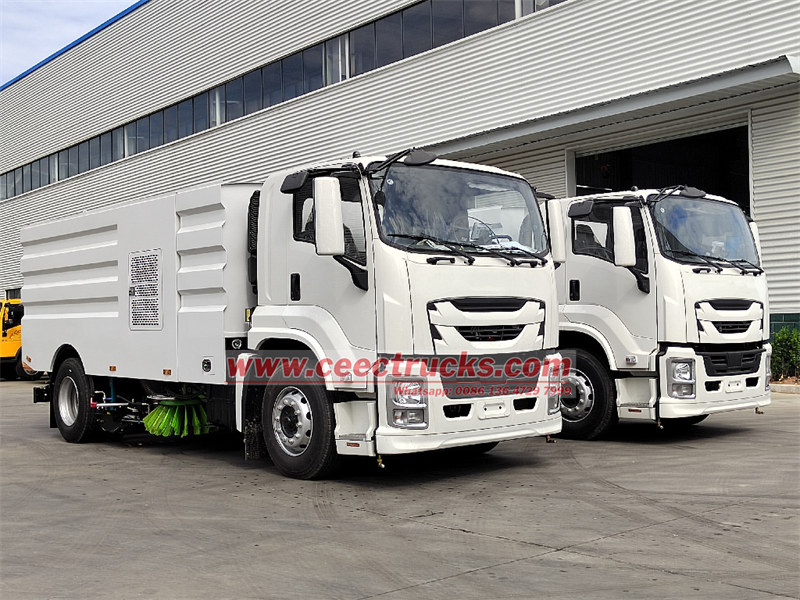

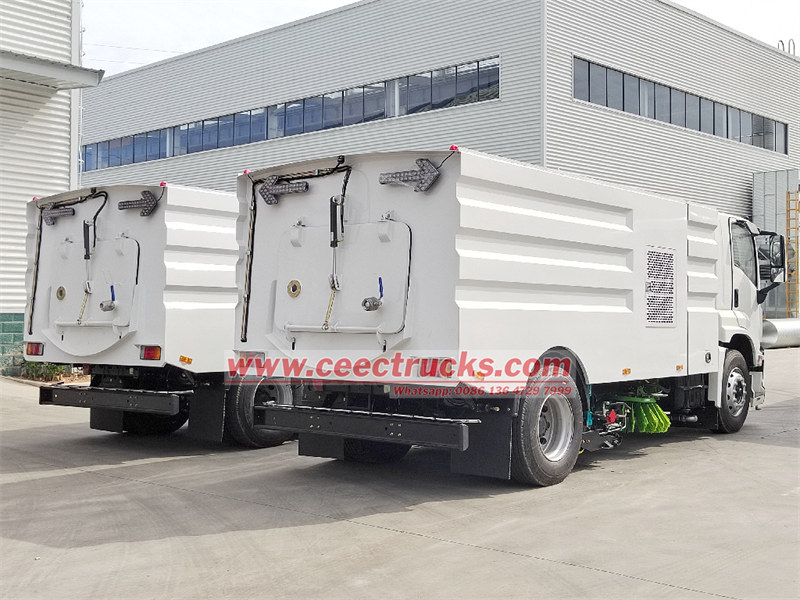

ISUZU 4HK1 road sweeper jetting trucks are export to Dubai Jebel Ali seaport, which service for Airport road cleaning project, have multiple efficiently function of Airport runway cleaning, Airport dust suppression, etc. Below pictures showing 2 units Isuzu road sweepers well tested and ready for shipment from China SHANGHAI seaport.
