European country customer purchased Isuzu new NPR sewer jetting truck for local sanitation project. Isuzu combined vacuum sewage suction truck uses the Isuzu new NPR NQR series truck chassis, single-row cab design with comfortable 2+1 seats, in cabin with air conditional and AM/FM MP3 player for safety and convenient driving. Equipped with Japanese ISUZU diesel engine 4KH1CN6LB with horse power 88kw / 120HP, which is a four-cylinder, four-stroke, water-cooled, turbocharged and intercooled engine, designed displacement of 2999cc standard, to meet different customer requirement, we can originaly customized reprogram the ISUZU combined sewer truck ECU computer, remove the DPF and ADblue device, to make the emission standard optional to be EURO 3,4,5,6. As for upper body kit, which is round tanker devce, including 2500L sewage tanker and 1000L clean water tanker, and European customer use this Isuzu 2500L+1000L sewer jetting truck to suction and transport liquid sewage and waste. Below operation manual is prepared together with truck for prefessional operation guidance, detailed user's manual as below showing:

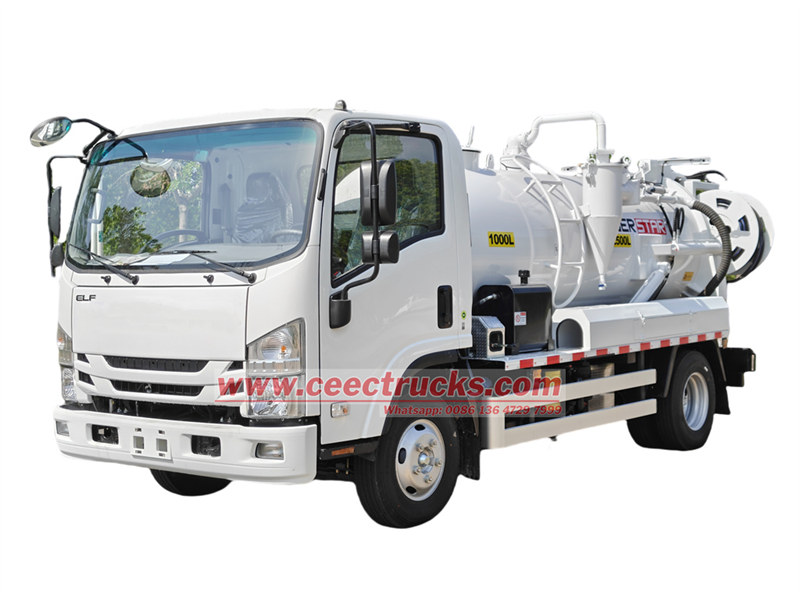

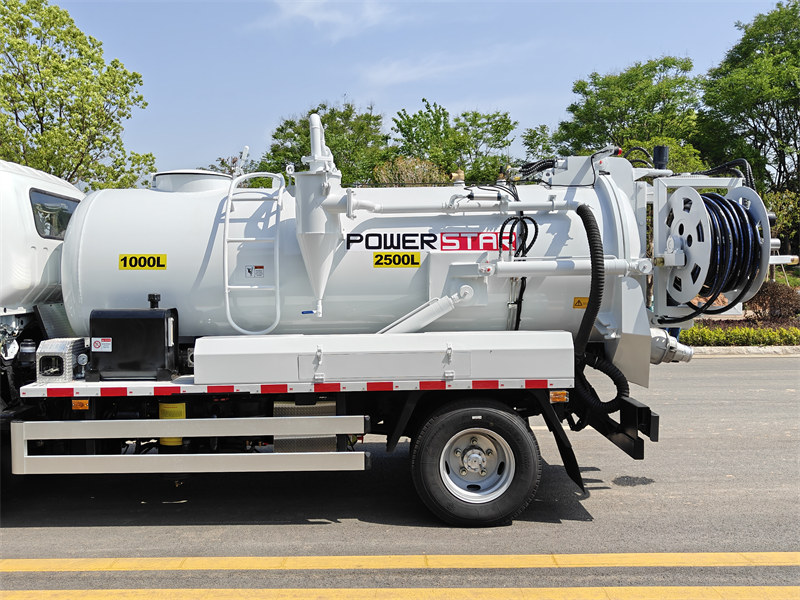

*Isuzu NPR NQR 3500Liters Combined Sewage Vacuum Truck

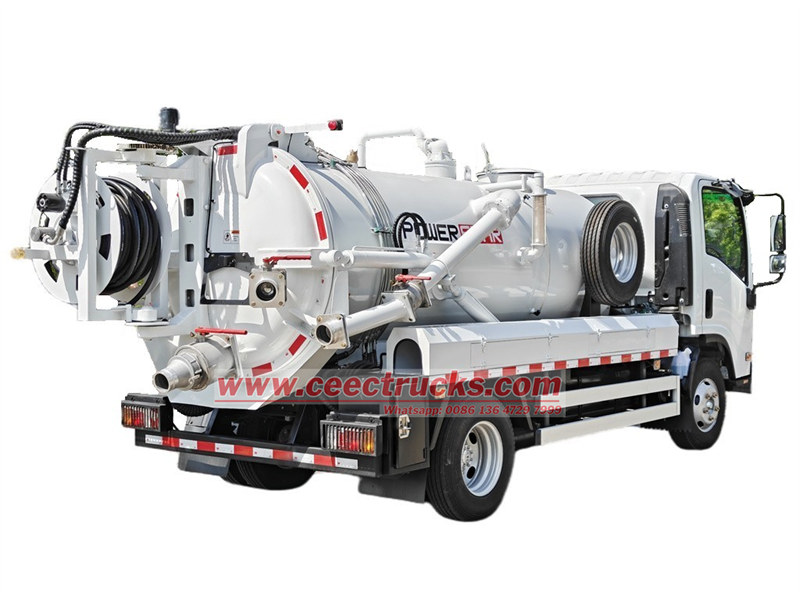

    Isuzu 2500L+1000L sewer jetting truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

>> Where to buy best ISUZU NPR combined sewer jetting truck?

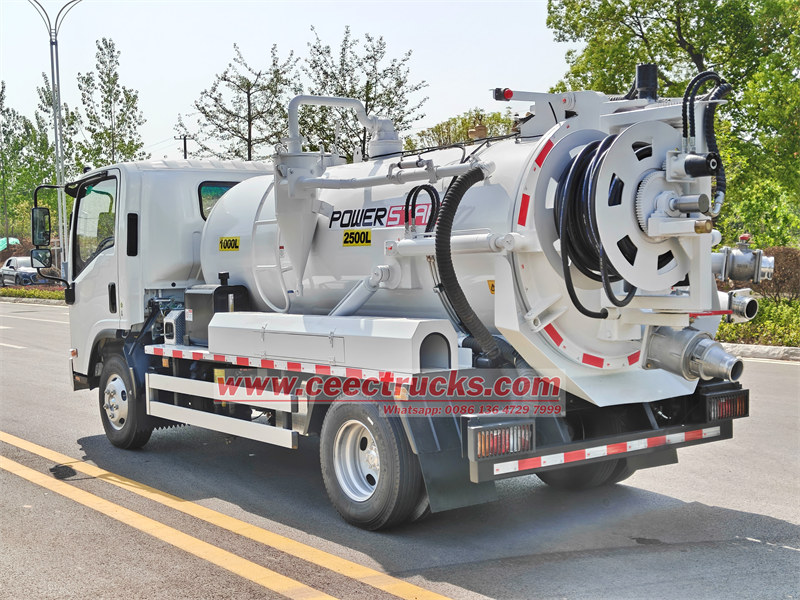

ISUZU new NPR sewer jetting truck is designed based on Japanese ISUZU light duty truck chassis, equipped with Isuzu diesel engine and MSB 5 shift manual gearbox, powerful output and lower fuel consumption. Equipped with multiple round tanker device, divided into vacuum sewage tanker and clean water tanker, durable and convenient for sanitationn service. Below mainly tips are guidance for choose, and all make the Isuzu sewer jetting truck suitable for EURO customer daily usage:

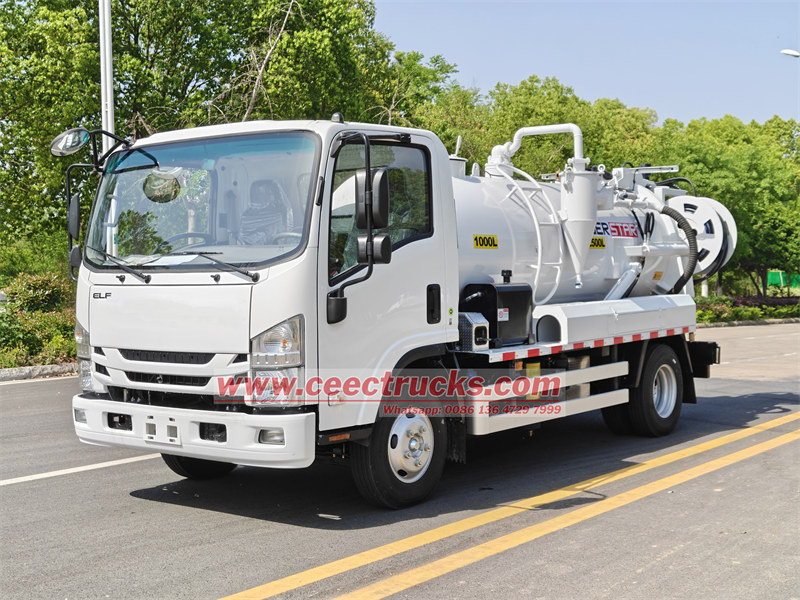

1. ISUZU new NPR LHD 4x2 Truck: Equipped with Japanese ISUZU 4KH1CN6LB model with 88KW / 120HP diesel engine + ISUZU MSB 5-speed gearbox, excellent and lower fuel consumption.

2. Customized Sewage Tanker Body: High quality carbon steel Q355 material round tanker body with thickness 6mm, full sealed type.

3. Vacuum Tanker Assembly: Customized 2500Liters capacity, matched with hydraulic lifting device and rear door open cylinders, Vacuum assembly matched with top Chinese brand WEILONG 68/7000 model vacuum pump, efficiently air flow rate 68L/s, working pressure 7000Pa, rated rotation speed 800r/min and power 5kw. Together working with Water-Gas Separator and Oil-Gas Separator, controlled by four-way ball valve, so can realize pump in and pump out functions.

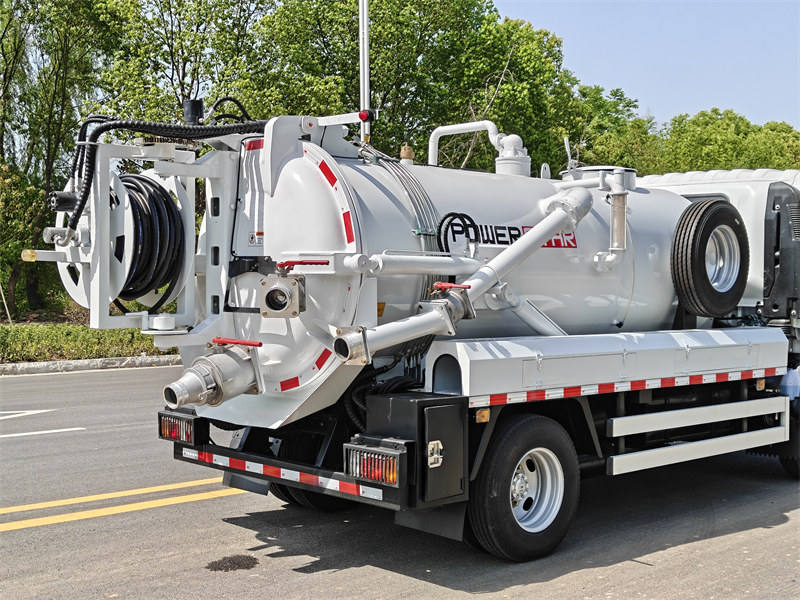

4. Clean Water Tanker Assembly Cylinder: Customized 1000Liters capacity, mounted with DN500 manhole and cover on top of the water tanker, convenient for water filling and regular maintenance. Equipped with Germany PINFL PF36 model high pressure water jetting pump, efficiently jetting flow rate 122L/min, rated rotation speed 800r/min and power 37kw, designed working pressure 16Mpa. Matched working with φ19 diameter 60m jetting pipeline and hose reel, also with 10 sets multiple nozzles for jetting and drainage cleaning.

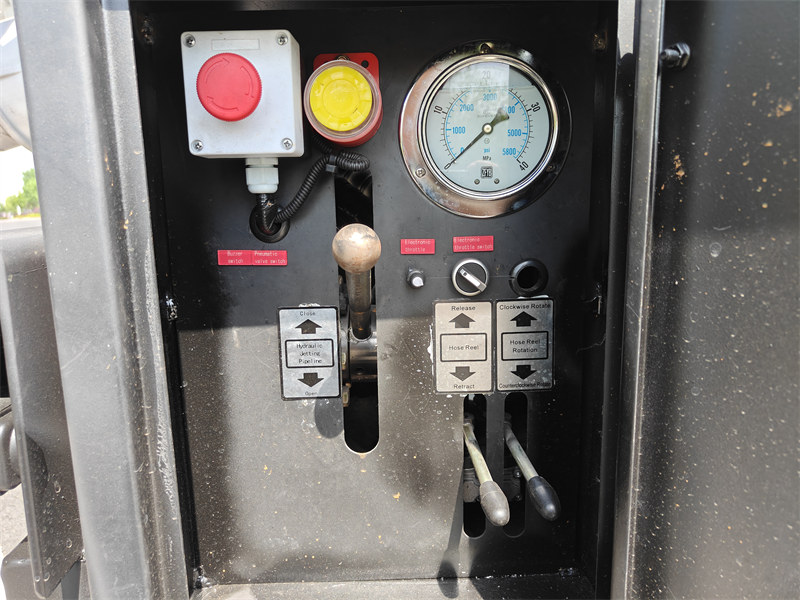

5. Integrated Control Device: ISUZU combined jetting trucks equipped with integrated control device on a sealed box, smart and convenient for daily usage and operation.

>> Overview for ISUZU 4KH1 combined vacuum jetting truck?

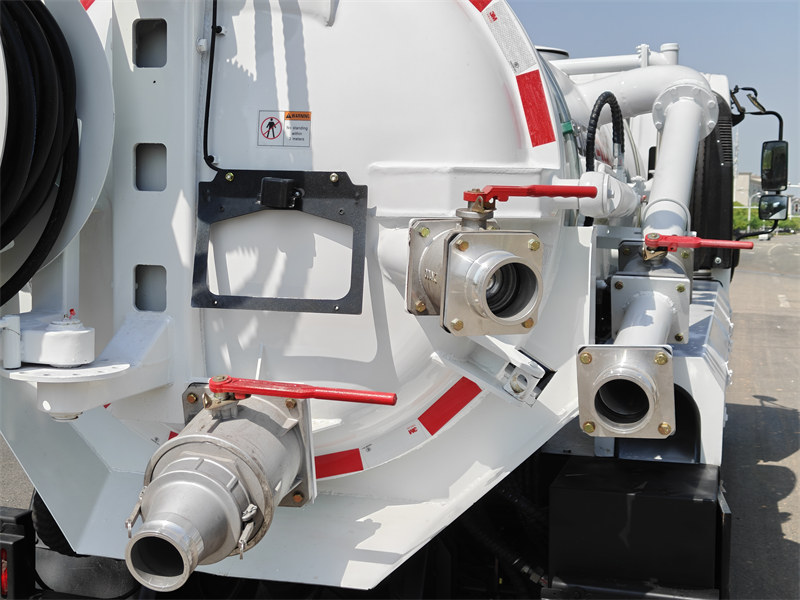

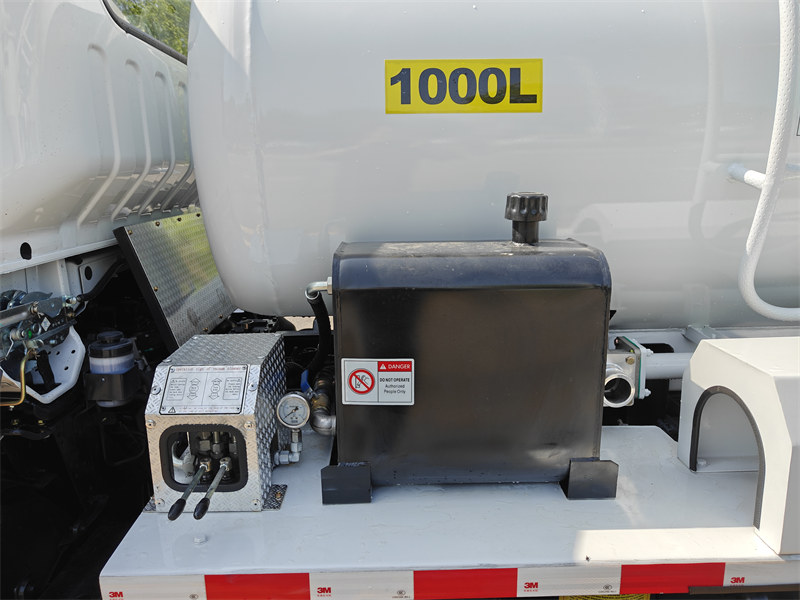

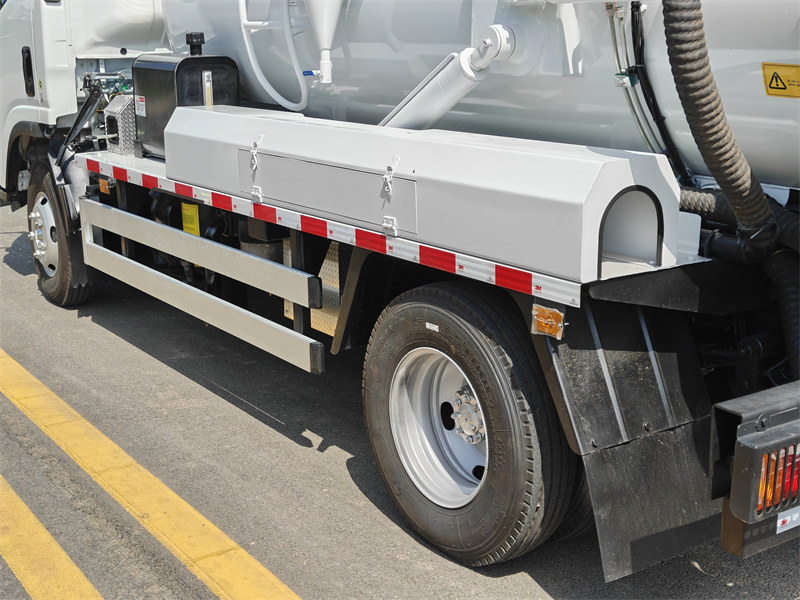

ISUZU 4KH1 sewer jetting tanker truck is equipped with Weilong vacuum pump, imported high-pressure water pump, sewage window, ladder, first level overflow valve and second level overflow valve, pipeline box, tailgate discharge valve, φ19 model 60m pipeline hose reel, and the vehicle is controlled by the manual hydraulic operation valve on the driver's side and the right rear control box.
