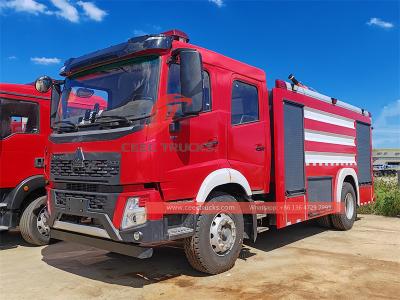

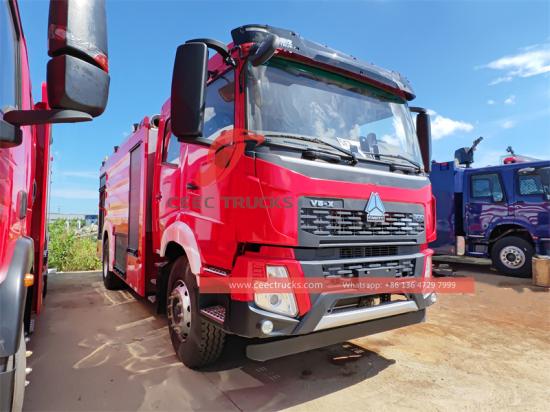

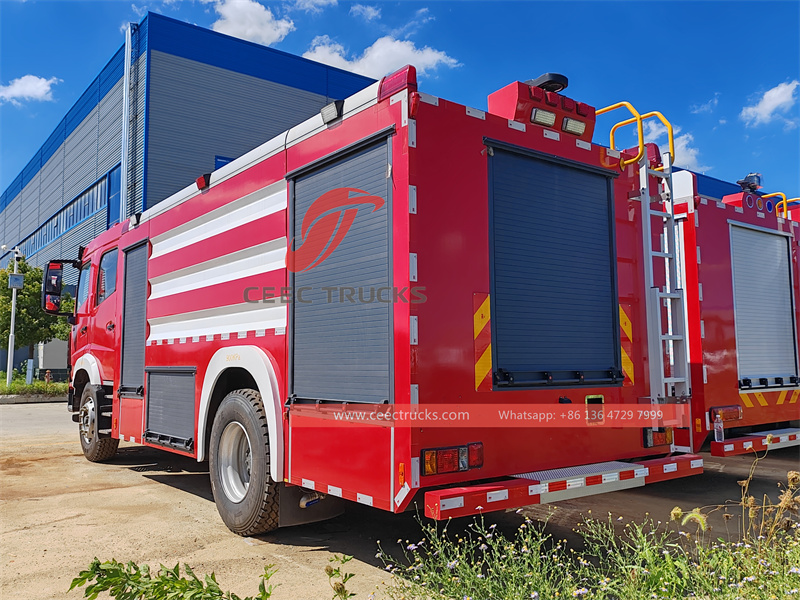

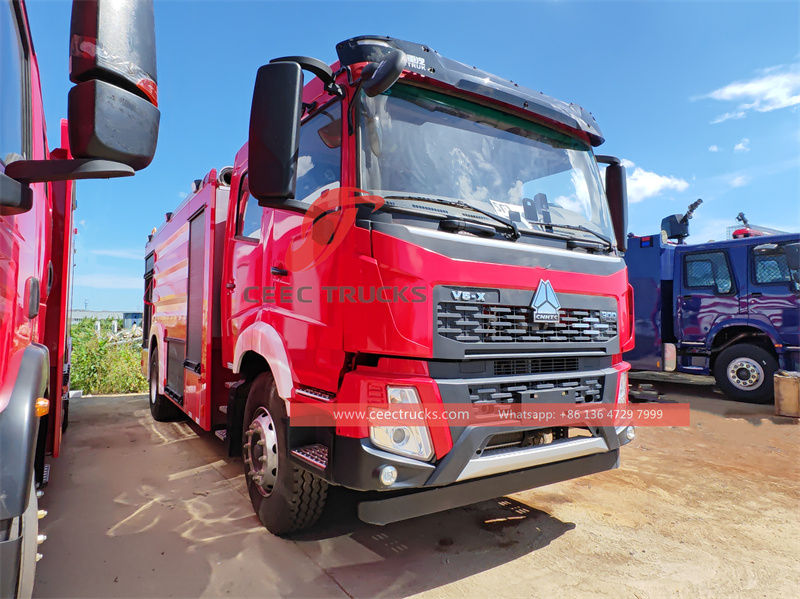

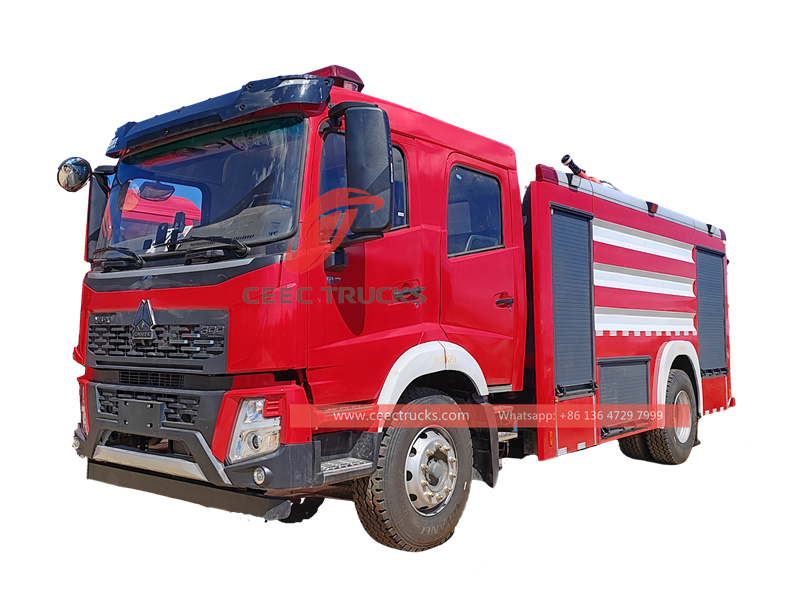

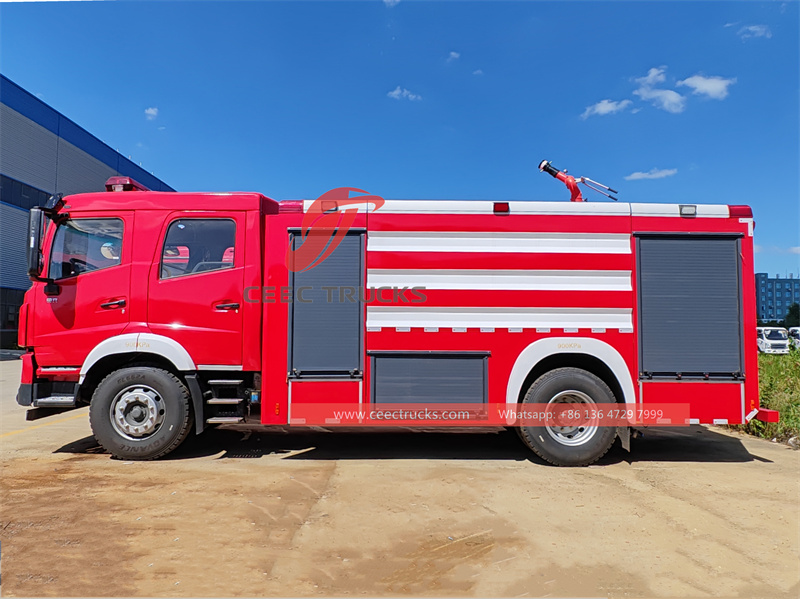

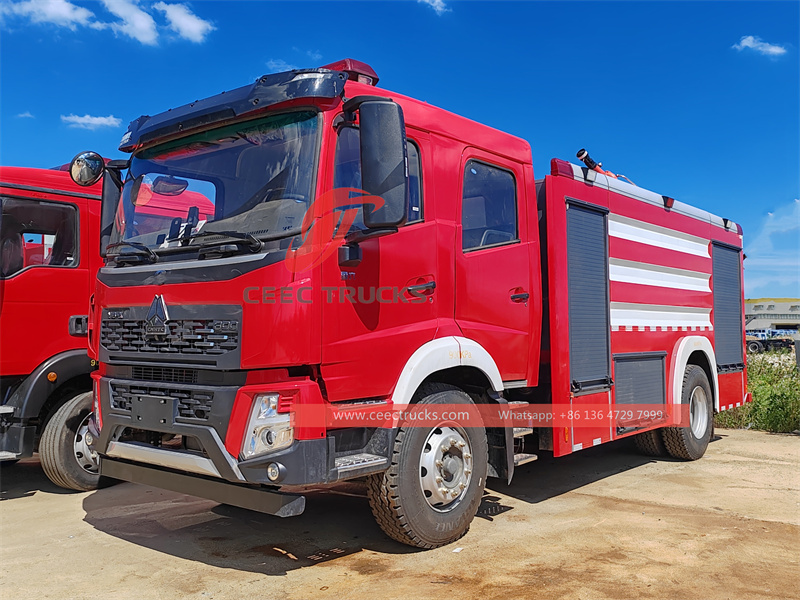

Howo fire water pumper truck, built on the sturdy Howo V5 cabin 4x2 chassis, integrates an excellent power system, and the WP7H300E62 engine with 300 HP, can challenge all kinds of difficult roads. Equipped with a 5000-liter large-capacity water tank and a professional fire pump, the spraying distance is up to 60m, the control panel language is optional, and a variety of optional configurations are provided to meet different needs. This Howo middle-duty 300HP fire water truck provides solid protection for fire safety and demonstrates excellent performance and flexibility. The V5 double-row cab of the Howo fire fighting truck provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions.

*Howo 300HP fire fighting truck

Howo double cabin fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2 model

                              WP model with 300HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 65m
                        Optional CB10/80, CB10/100 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Howo 4x2 fire rescue truck





Howo 4x2 fire fighting truck
General	Vehicle Brand	CEEC
	Chassis Brand	Howo
	Overall Dimension	7800*2500*2850mm
	GWW/ Kerb Weight	20,300kg/9,220kg
	Painting	Red color
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Model	WP7H300E62
	Engine type	Inline 6-cylinder, turbocharged, inter-cooled diesel engine
	Power	300 HP
	Displacement	6.8 L
	Emission Standard	Euro 6
Chassis	Drive Type	4X2,left hand drive
	Transmission	Fast 8-speed forward, 2 reverse
	Wheelbase/No.of axle	5000 mm/2
	Tyre Specification	295/80R22.5
	Tyre Number	6 tyres and 1 spare tyre
	Max Speed	95 km/h
	Fuel tank capacity	400 L
	PTO	Full power sandwich type
Superstructure	Water Tank Capacity	5,000 Litres
	Tank Material	carbon steel
	Standardized Sub-frame	Material	High-strength rectangular tube made of special steel

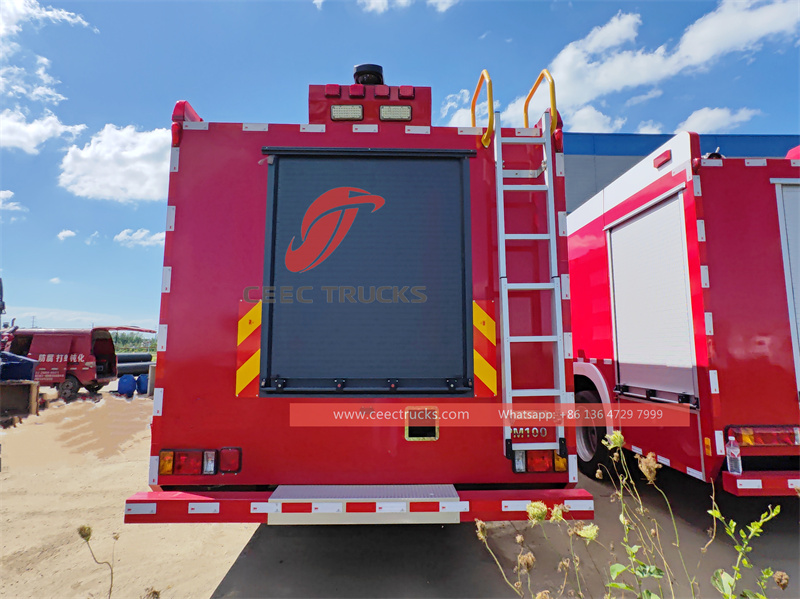

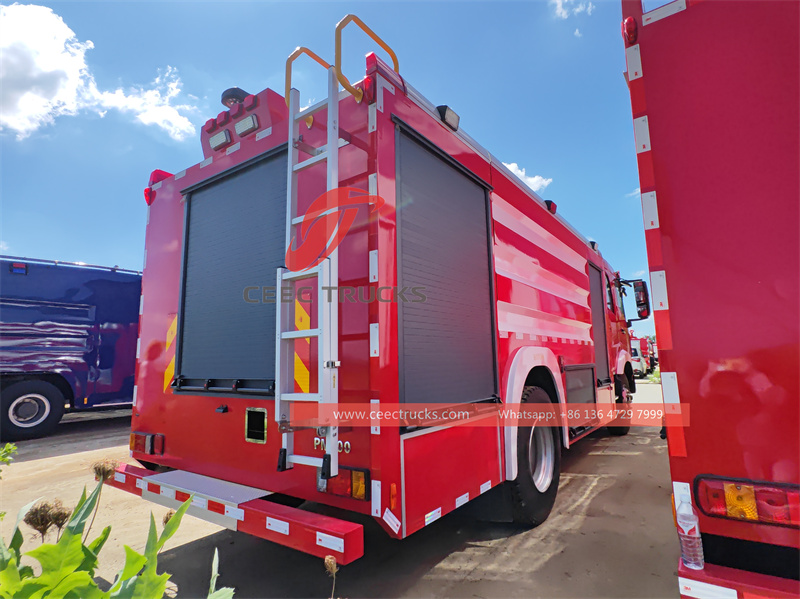

		Structure	Aluminum alloy welded structure. Roof railing with LED light. With aluminum alloy ladder in the rear

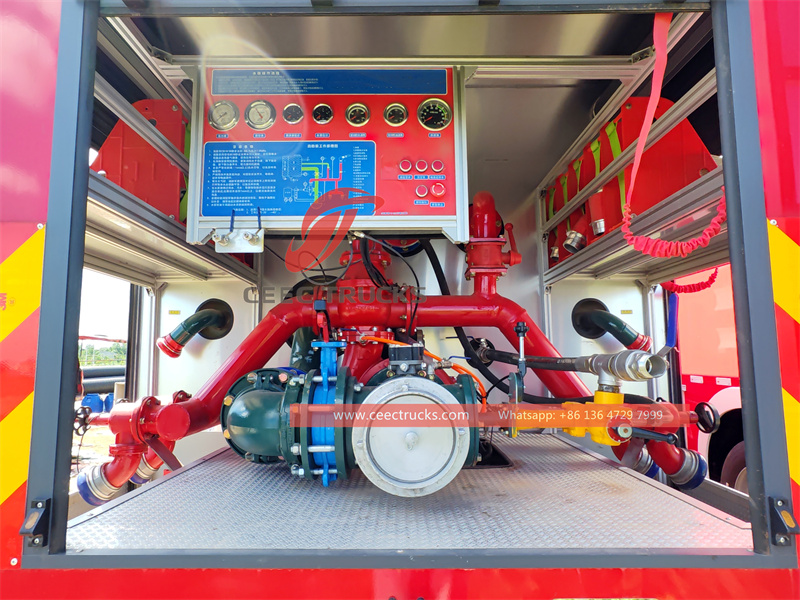

	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	** Back alarm and Camera can be equipped ** Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.High-quality Production Standards



1. Strengthening process of chassis and high-quality drive system

High-precision welding and reinforcement: Robot welding technology is used to reinforce the key load-bearing parts of the Howo V5-X chassis (such as beams and suspension brackets) in multiple layers to ensure torsional strength and durability under rugged road conditions.

Precision assembly of drive system: core components such as transfer cases, differential locks, and drive shafts must pass dynamic balance tests to ensure traction distribution on complex roads.

Anti-corrosion treatment: The chassis is electrophoresis coated + multi-layer anti-rust sprayed, and passes the salt spray test to cope with the corrosive environment where fire trucks are frequently exposed to water and chemical agents.



2. Integration of special upper structure and functional components

Manufacturing of large-capacity water tanks:

Material selection: Use high-quality stainless steel or high-strength composite materials, with antibacterial coating on the inner wall and anti-collision frame on the outer wall.

Dynamic stability design:

The center of gravity distribution under full load should be simulated during installation, and the hydraulic damping bracket should be combined to reduce the impact of water sway during driving on the control of the Howo fire truck.

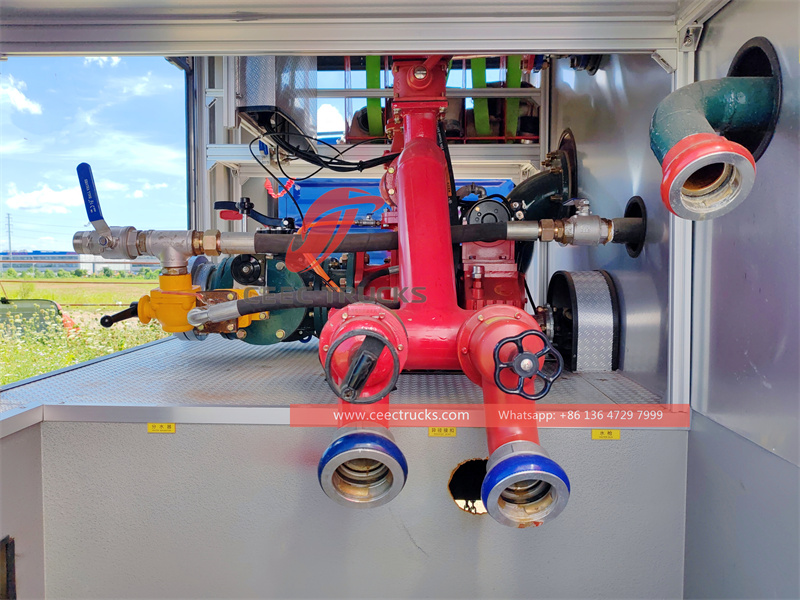

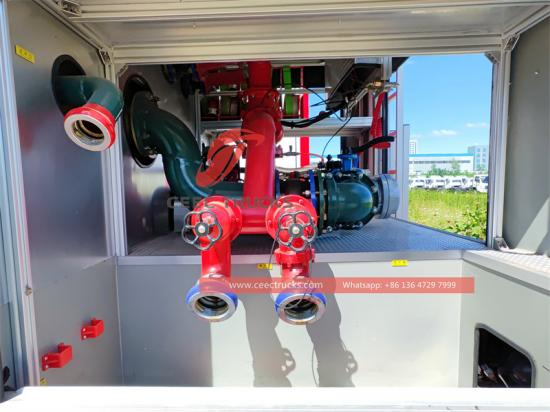

Fire pump system matching:

High-pressure pipeline integration: Use aviation-grade aluminum alloy pipelines, laser welding of interfaces to ensure sealing, and the pump pressure must Passed rigorous certification testing bench for 72 hours of continuous full-load testing.

Intelligent control integration:

The control panel must support multi-language real-time switching, and the electrical circuit adopts a redundant design and has the high-level waterproof rating.



3. Flexible manufacturing system for customized production

Modular production line design:

Adopt AGV logistics + digital assembly system, support rapid switching of water tank capacity (3000-8000L), pump type (medium pressure/high pressure), cloud control platform and other configurations.

Full life cycle test:

Each Howo fire rescue truck needs to complete a 3,000-kilometer comprehensive road test (including 40% off-road sections), simulated fire scene high-temperature spray test.



Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Key points of periodic maintenance：





• Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).





• Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).





• Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
