The Isuzu 520HP GIGA 8x4 water tanker is equipped with the Isuzu 6WG1-TCG62 engine, which is a powerful power source. It adopts the Inline 4-cylinder 6-stroke design and has supercharged, intercooled and water-cooled technologies. The 520HP horsepower output and the maximum torque reach 2250N.m, which can be output at 900rpm and the rated speed is 1800rpm, ensuring the strong power of the Isuzu GIGA 8x4 water tank truck in starting and climbing conditions. The Isuzu GIGA 5X cabin adopts a one-and-a-half-row design, 2 seats with sleeper, and the cab is equipped with A/C and radio, which not only provides a comfortable driving space, but also supports long-distance water transportation tasks. Large-capacity water tank and high-quality materials, the water tank capacity of Isuzu GIGA water sprinkle truck reaches more than 30,000L, which can meet the needs of large-area water sprinkling operations, reduce the number of frequent water additions, and improve operating efficiency. The water tank is made of High quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

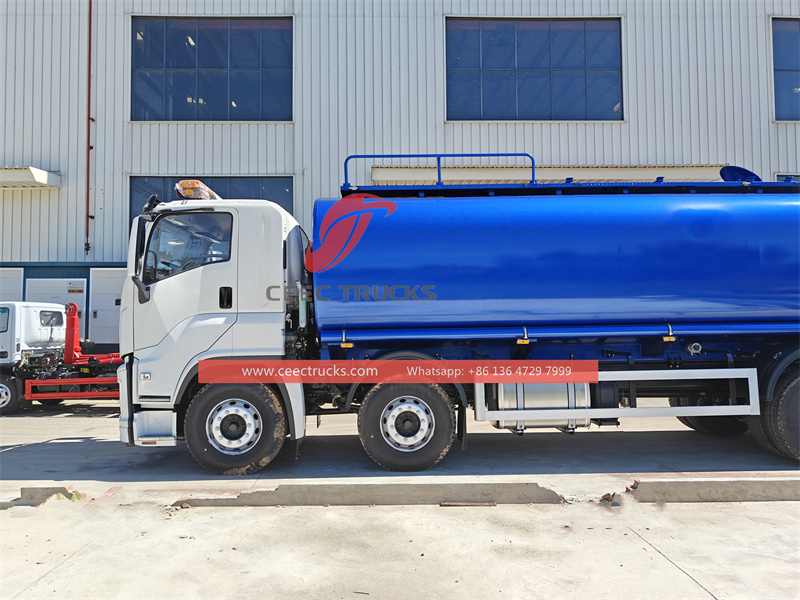

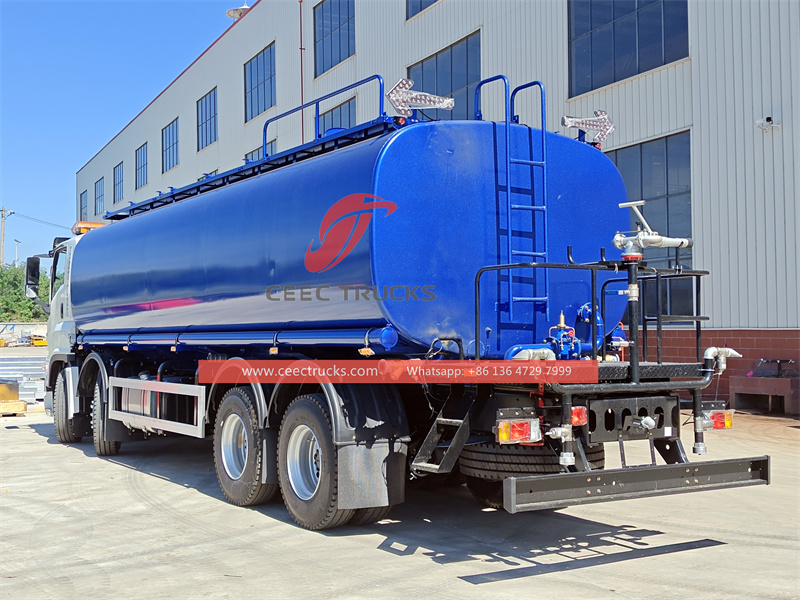

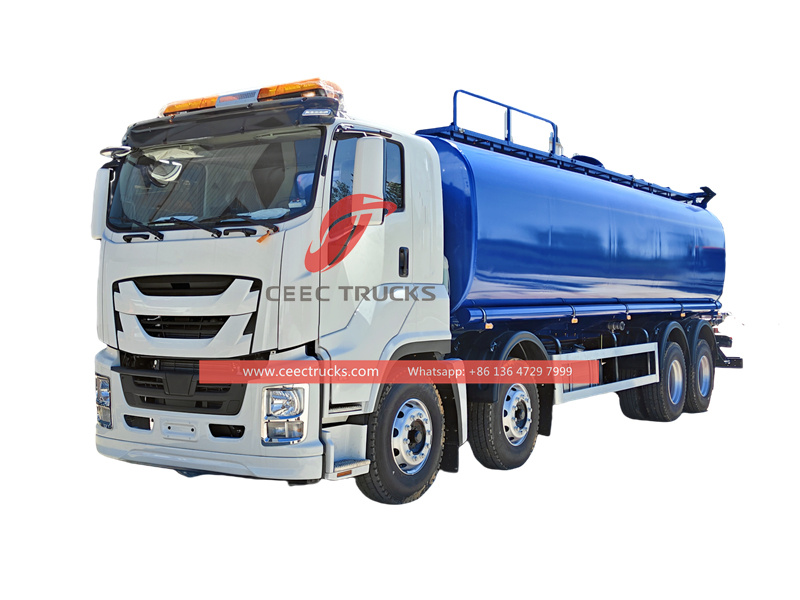

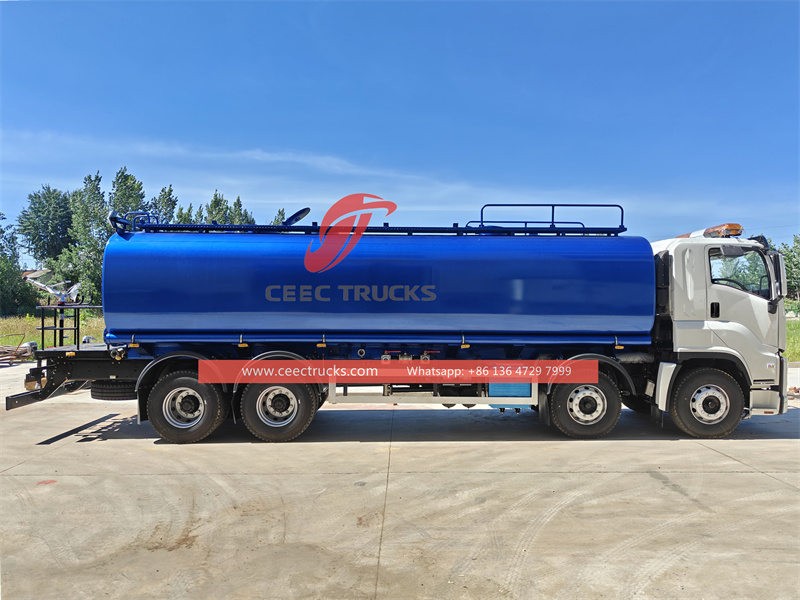

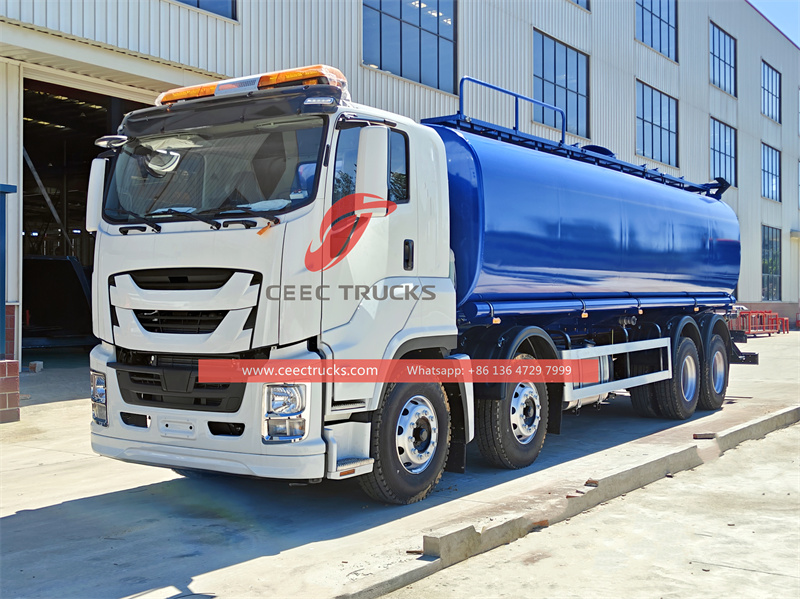

*ISUZU GIGA 8x4 water tank truck

Isuzu GIGA 520HP 30000L water bowser Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: ISUZU GIGA truck chassis, 8X4 model

                              6WG1 model with 520HP and Euro 6

2. Tank material: 6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy can be choose

3. Fire Pump: China TOP water pump, flow rate 60L/s, working distance over 38m
                        Optional famous Imported pump











» Ⅱ.Product Parameter for Isuzu GIGA 30000L water tank truck

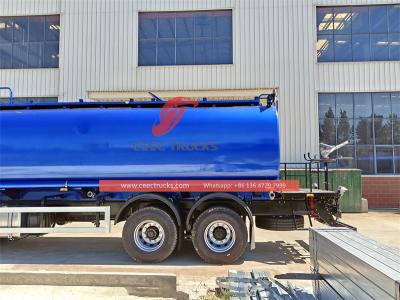

Isuzu GIGA heavy-duty 30000L water tanker
Main parameter	Overall dimension(LxWxH)		11300*2580*3250mm
	Wheel base(mm)		2100+4325+1370mm
	Driving Type		8×4,left hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		33000 kg
	Curb weight		16500 kg
	Loading capacity		20000L
	Front axles loading capacity		7.5T*2
	Rear axles loading capacity		16 T*2
Engine	Engine model		Isuzu 6WG1-TCG62
	Engine type		Inline 6-cylinder 6-stroke, supercharged, intercooled, water-cooled
	Horsepower		520HP
	Max. output (kw)		382Kw
	Rated speed		1800rpm
	Maximum Torque		2250N.m
	Displacement(L)		15.681L
	Emission standard		Euro 6
Transmission	Gear box 12 forward ,2 reserve
Tire	295/80R22.5 standard tire,6 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		30000L
	Structure	TANK MATERAIL	6mm,Q235 stee
		Pipe	Galvanized pipe

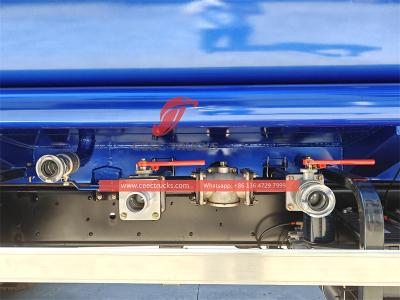

		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22
Water sprinkler system	Front sprinkler jet		14m
	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa







-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Water Pump: Based on tanker body and jetting distance, optional famous Import brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.Advantage of the Isuzu GIGA 8X4 water tank truck?





1. Powerful water spraying function

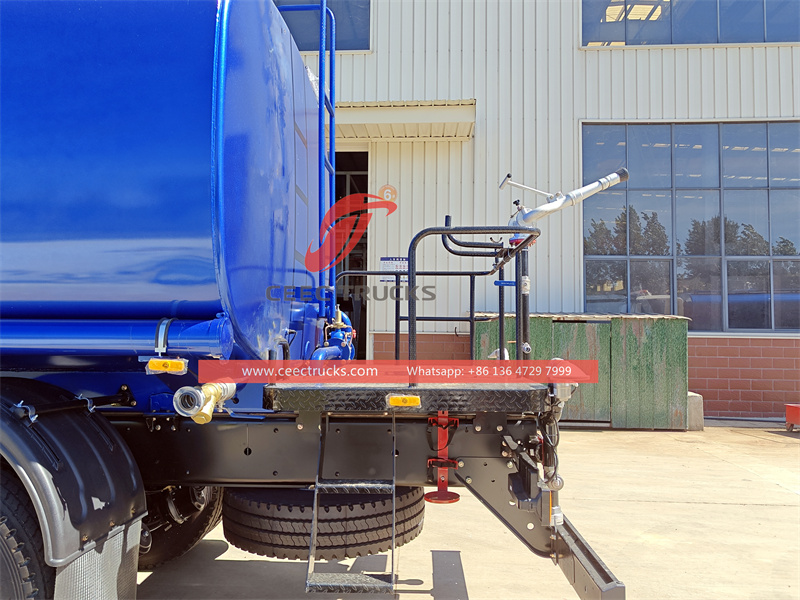

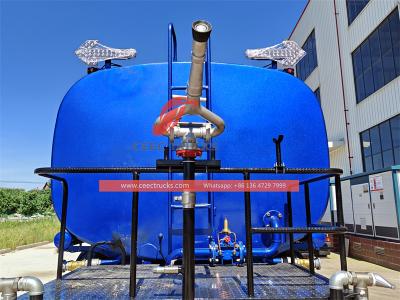

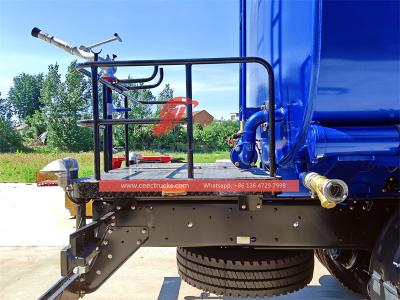

Isuzu GIGA 30000L water tanker has excellent water spraying performance, Suction ≥ 12m, Sprinkler width ≥ 18m, water cannon Range ≥ 38m. The Isuzu GIGA water tanker is also equipped with front water spraying nozzles, rear water spraying nozzles and water spraying monitor, which can realize multi-angle and all-round water spraying operations. In addition, there is a working platform at the rear, and a high-pressure water spray gun is installed. The shape of the spray gun can be adjusted according to actual needs, such as heavy rain, moderate rain, drizzling rain) or haze and other different modes to meet different operation scenarios.

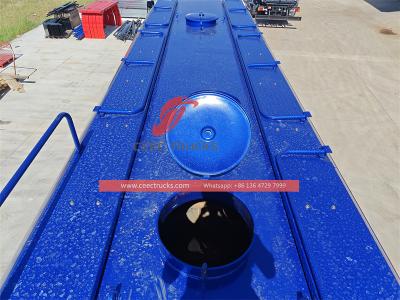

2. Large-capacity water tank and high-quality materials

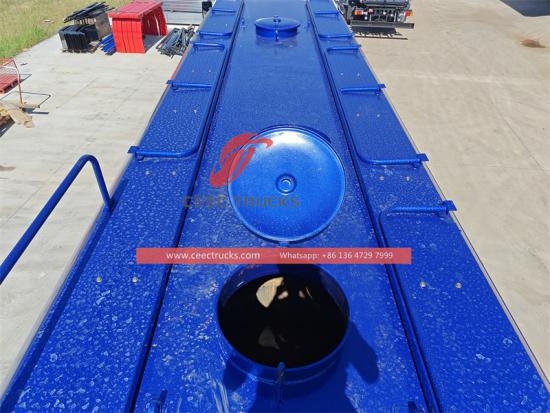

The water tank capacity of Isuzu GIGA water sprinkle truck reaches more than 30,000L, which can meet the needs of large-area water sprinkling operations, reduce the number of frequent water additions, and improve operating efficiency. The water tank is made of High quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.





3.High-quality water pump

The Isuzu GIGA 30000L water sprinkle truck uses the WEILONG 80QZF - 60/90S pump, which has excellent performance. Its flow rate is 60m³/h, head of delivery reaches 90m, self-priming function takes only 1.5 minutes at a height of 4 meters, efficiency is as high as 95%, related rotate speed is 1180r/min, matched power is 22kw. The efficient water pump system ensures the Isuzu GIGA heavy-duty water truck can quickly absorb and spray water, improving work efficiency.
