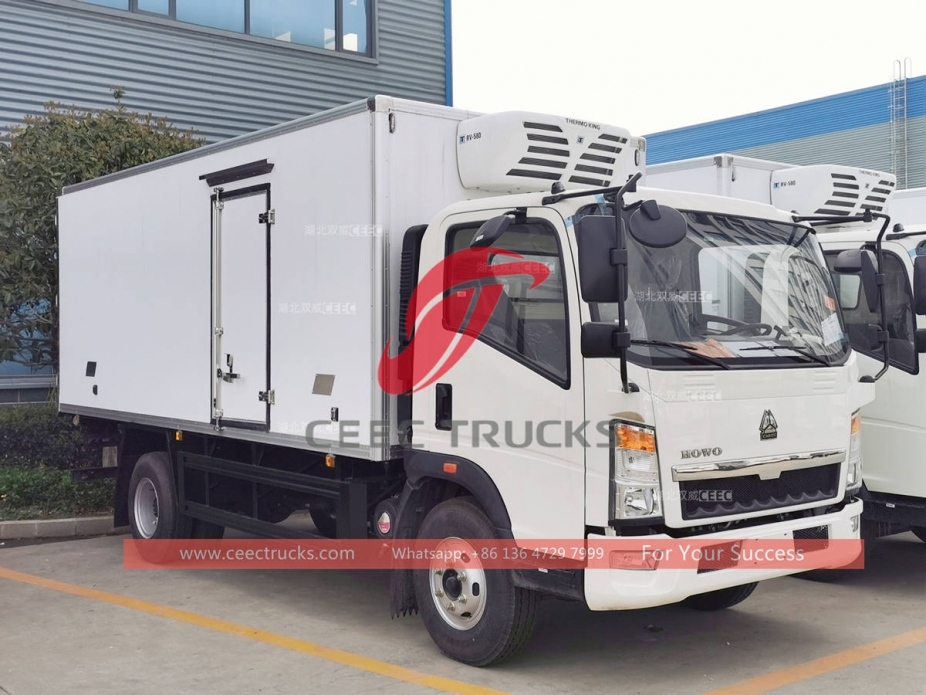

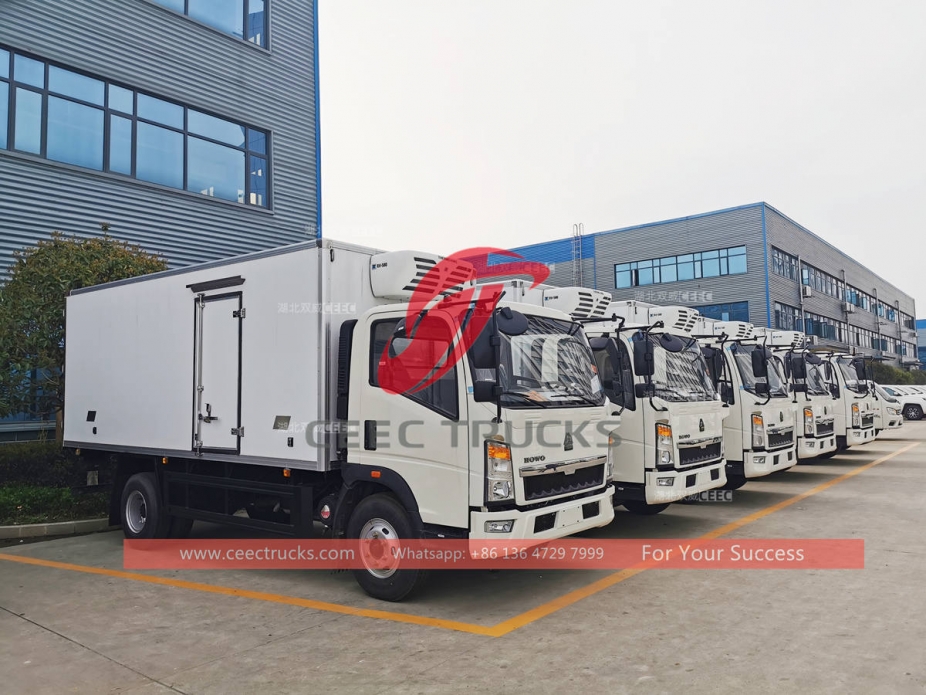

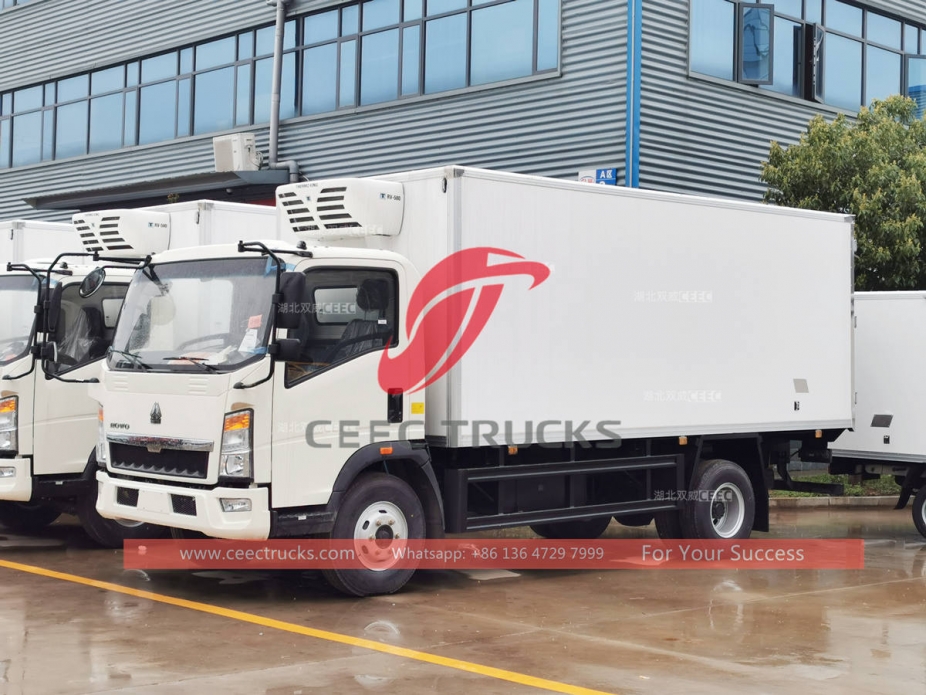

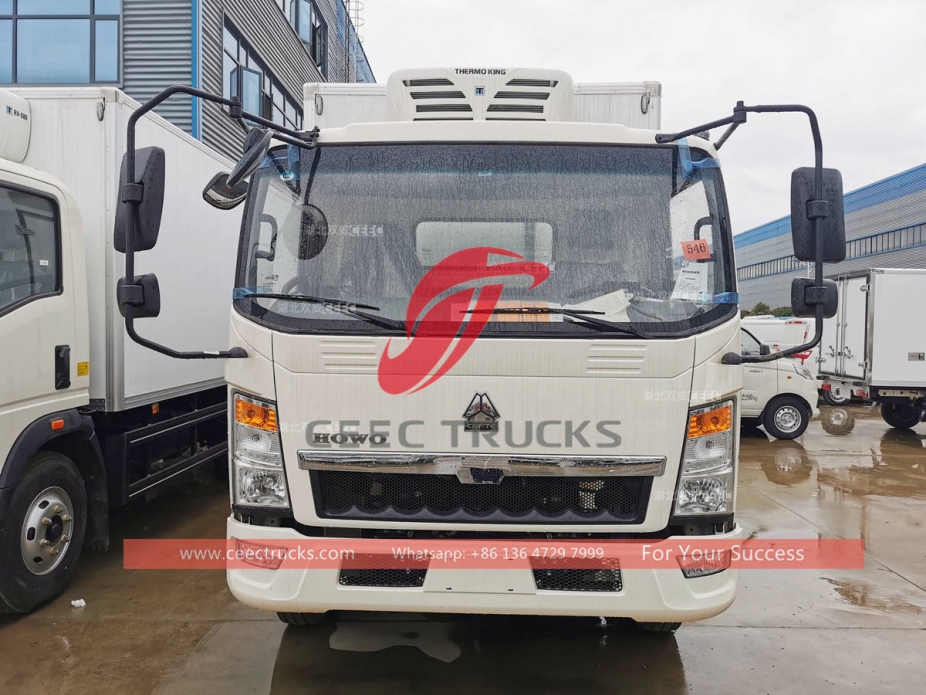

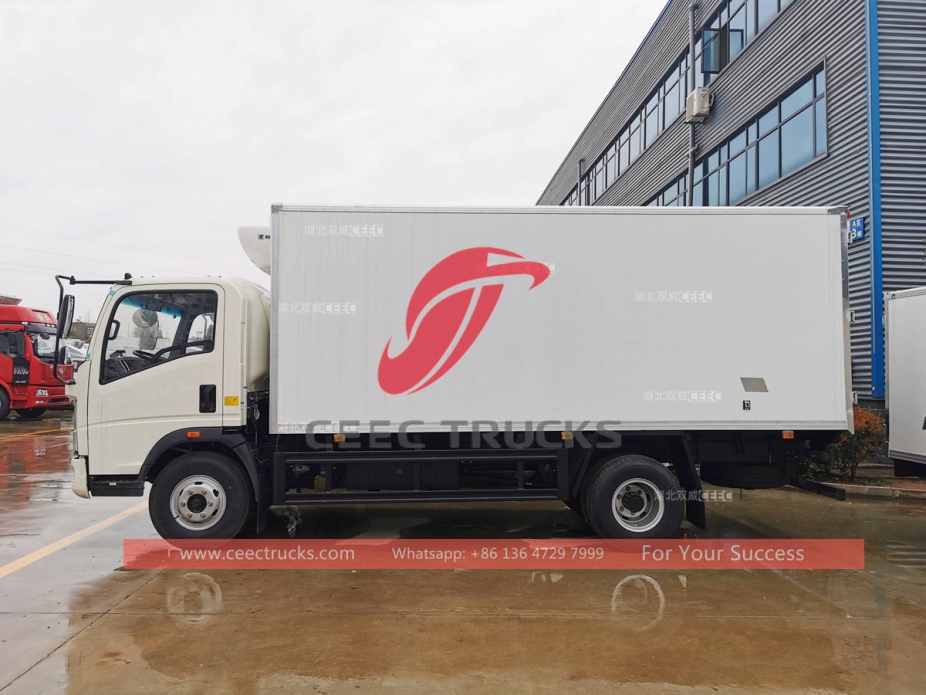

HOWO 4×2 Refrigerated box truck

HOWO 5 tons Freezer Truck

HOWO 5 ton freezer truck, HOWO left hand drive model 4×2 chassis, WLY 6-shift manual gearbox, YUNNEI 116HP engine. Equipped with THERMO KING refrigeration units for high performance, as for van capacity can be 3-25T optional.

  • Product Origin:

    China CEEC
  • Shipping Port:

    China Main Port
  • Lead Time:

    20 Days
  • Payment:

    T/T, West Union
contact now

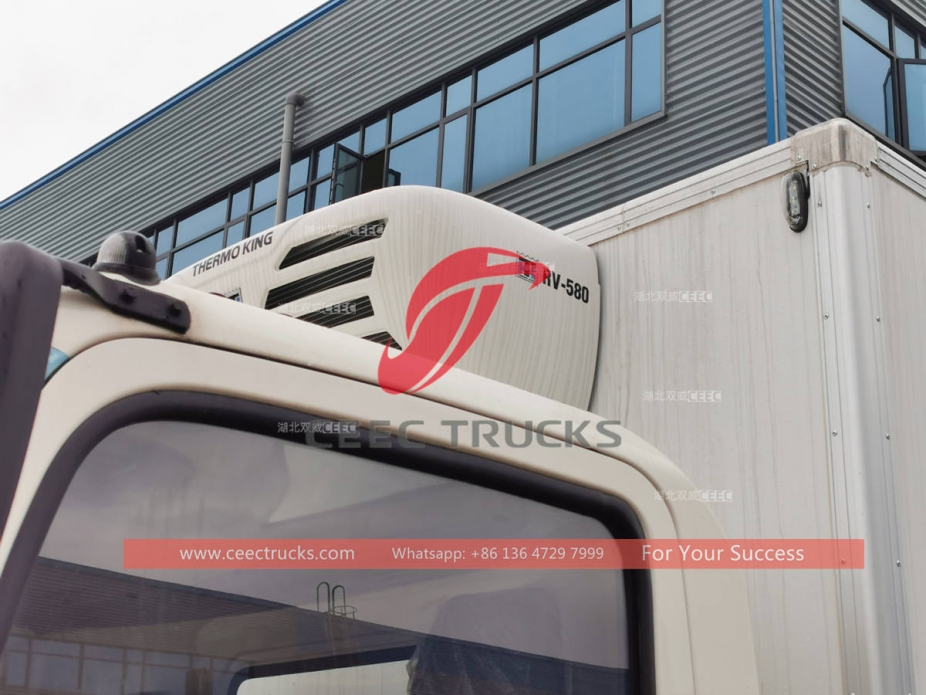

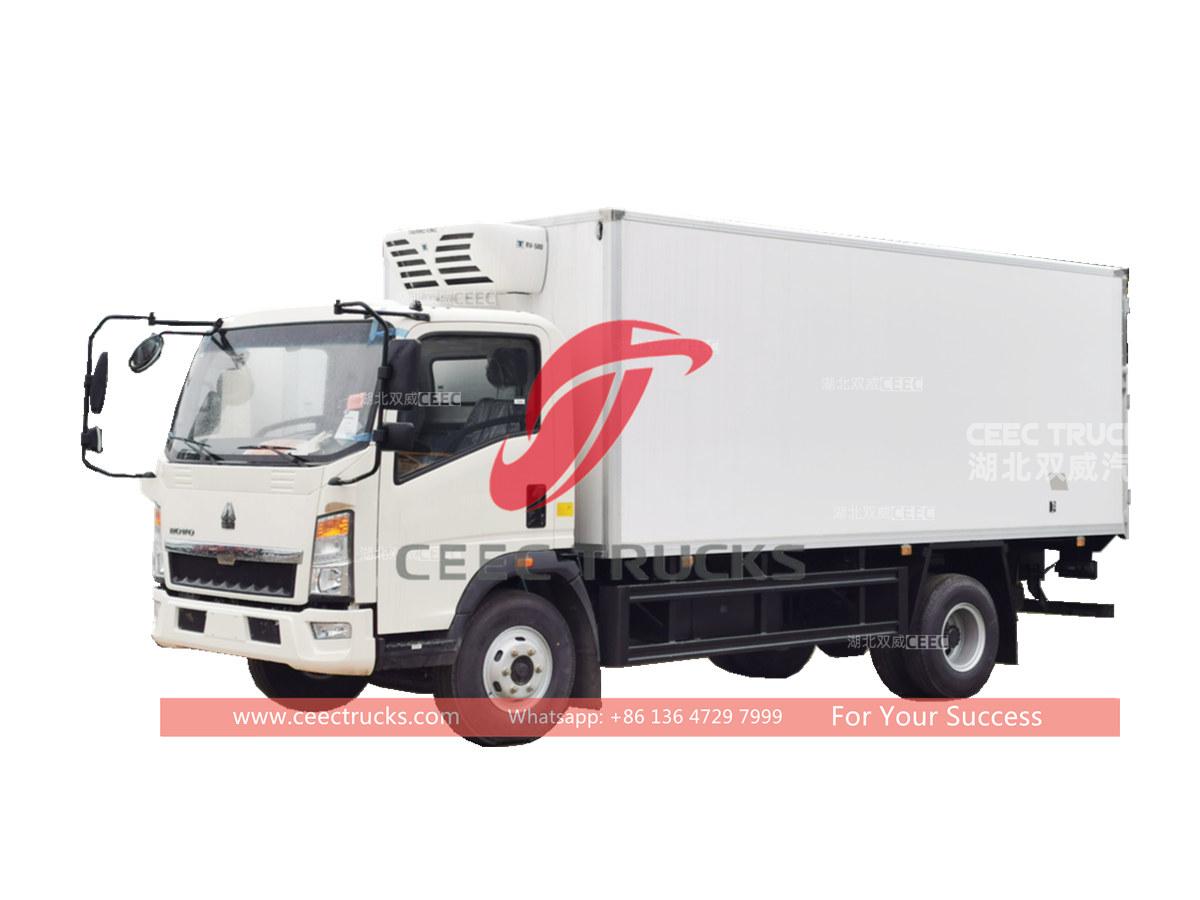

HOWO refrigerated trucks with THERMO KING refrigeration unit

 Applications:

HOWO reefer van (also called Refrigerated van HOWO, HOWO freezer truck, HOWO reefer truck, HOWO chiller lorry, HOWO cooling van truck) is a van or truck designed to carry perishable freight as specific temperatures.


Refrigerated trucks can be ice-cooled, equipped with any one of a variety of mechanical refrigeration system powered by small displacement diesel engines, or utilize carbon dioxide as a cooling agent.


CEEC TRUCKS can supply freezer trucks with capacity from 2Ton, 3.2Ton, 4Ton, 5Ton, 6.3Ton, 8Ton, 10Ton, 12Ton, 14Ton, 16Ton, 25Ton.


 Key Features:



---- SINOTRUK HOWO chassis, perfect performance

---- YUNNEI engine option, super powerful, no overhaul within 100,000 km.

---- Refrigeration system brand can be optional.

---- Transportation temperature can be from +7°C, +2°C, -10°C, -15°C, -20°C, -25°C.



 Specifications:



 HOWO Freezer Box Truck (5 Ton)

General

Vehicle Brand

CEEC TRUCKS

Chassis Brand

HOWO

Overall Dimension

7900* 2500 * 3250 mm

GVW / Kerb Weight

10,000kg / 5,200kg

Cab

Cab Capacity

3 persons allowed

Air Conditioner

Heating/cooling air conditioner

Engine

Fuel Type

Diesel

Engine Brand

YUNNEI

Power

116 HP (85 KW)

Displacement

3760 ml

Emission Standard

Euro 2

Chassis

Drive Type

4×2 (left/right hand drive)

Transmission

6-shift speed levers with 1 reverse

Wheelbase/No. of axle

3800 mm / 2

Tire Specification

8.25R20

Tire Number

6 tires and 1 spare tire

Max Speed

90 km/h

Paint

Metallic paint

Superstructure

Body size

4200×2200×2200(mm)

Load Capacity

5 Tons

Panel Structure

Fiber glass sandwich polyurethane

Front/Side/Rear panel

Panel Thickness: 85mm

Roof/Floor panel

Panel Thickness: 105mm

Lights & Switch

Led, Water-proof, 12V/24V convertible

Lowest temperature

-5°C or -25

Equipment

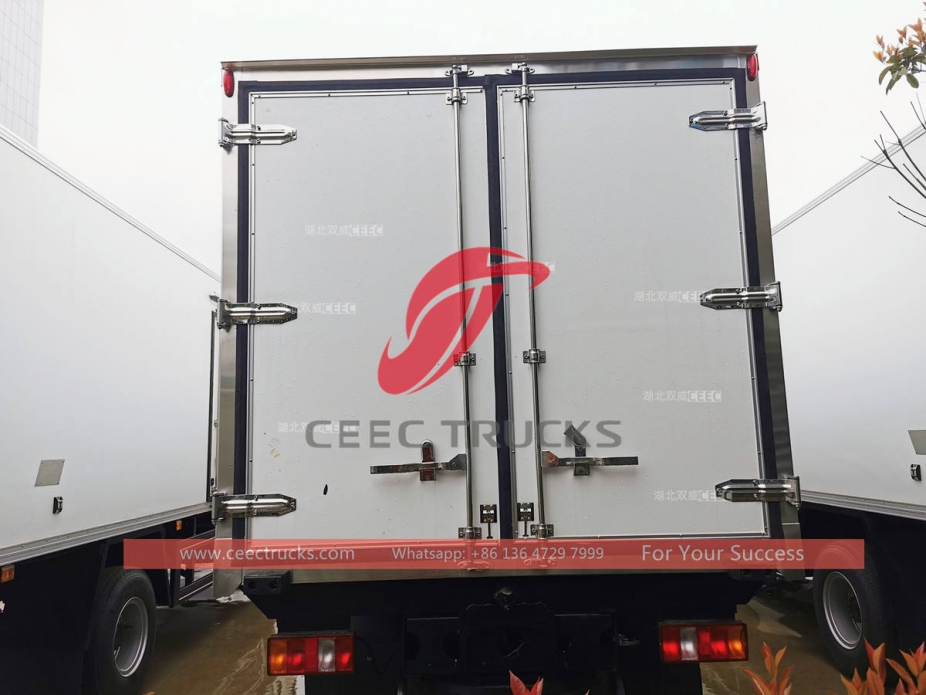

Standard: Aluminum alloy flooring, rear doors.

Optional: 1. Hydraulic Tailift and Cargo Control System.

2. Side doors, side steps and ladders.

3. Different temperature area control.

4. Customized floor roller design for convenient working.




CEEC TRUCKS is a leading freezer van manufacturer. We can provide ISUZU freezer truck, HOWO chiller van, FAW refrigerated truck, Dongfeng chiller lorry, etc. The capacity of freezer van can be 3-25 tons. Our reefer trucks are very popular in Southeast Asia, Middle East, Africa and South America because of the high quality and low price.

Equipped with famous domestic chassis such as ISUZU, Dongfeng, Foton, FAW, JAC, JMC, and Sinotruk

Equipped with famous refrigeration units, Thermo King & Carrier, & Guchen Super Snow refrigeration units.

Refrigerated truck body structure is sandwich structure: Fiberglass + PU + fiberglass. All the double surface sandwich polyurethane panel and door are 100mm thickness, the Fiberglass plate thickness is 2.5mm for the outer and inner skins; the polyurethane foam density is 45-50kg/m3. (All is the best material in China and have excellent insulation performance).

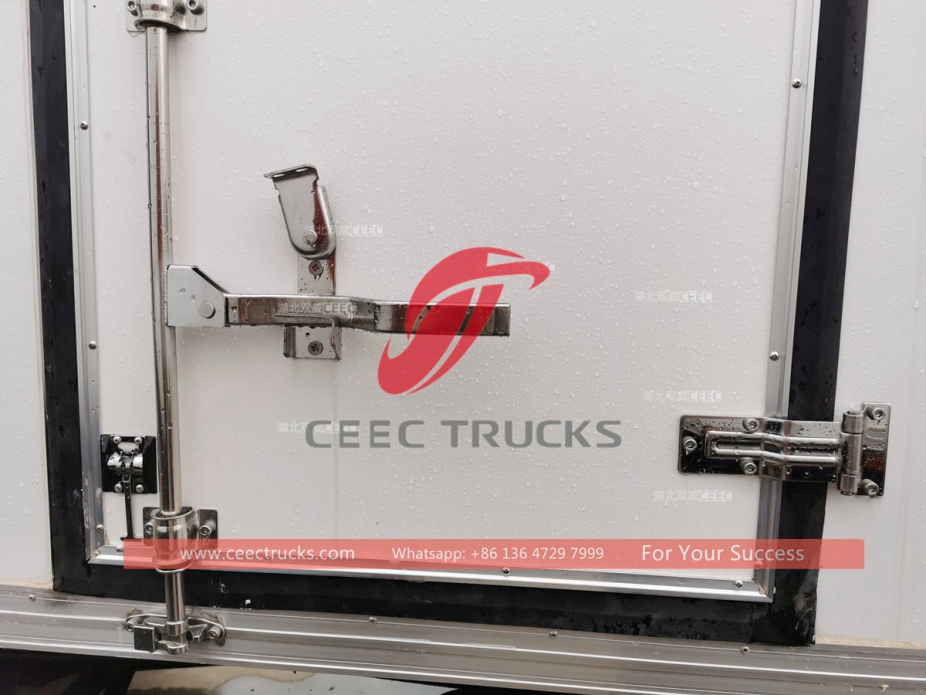

The hardware (door frame, hinge, lock, handle) are made of 304 stainless steel, and wrap angle are aluminum alloy.

Sandwich panel thickness can be changed according to customers’ requirements: 60mm, 80mm, and 100mm.

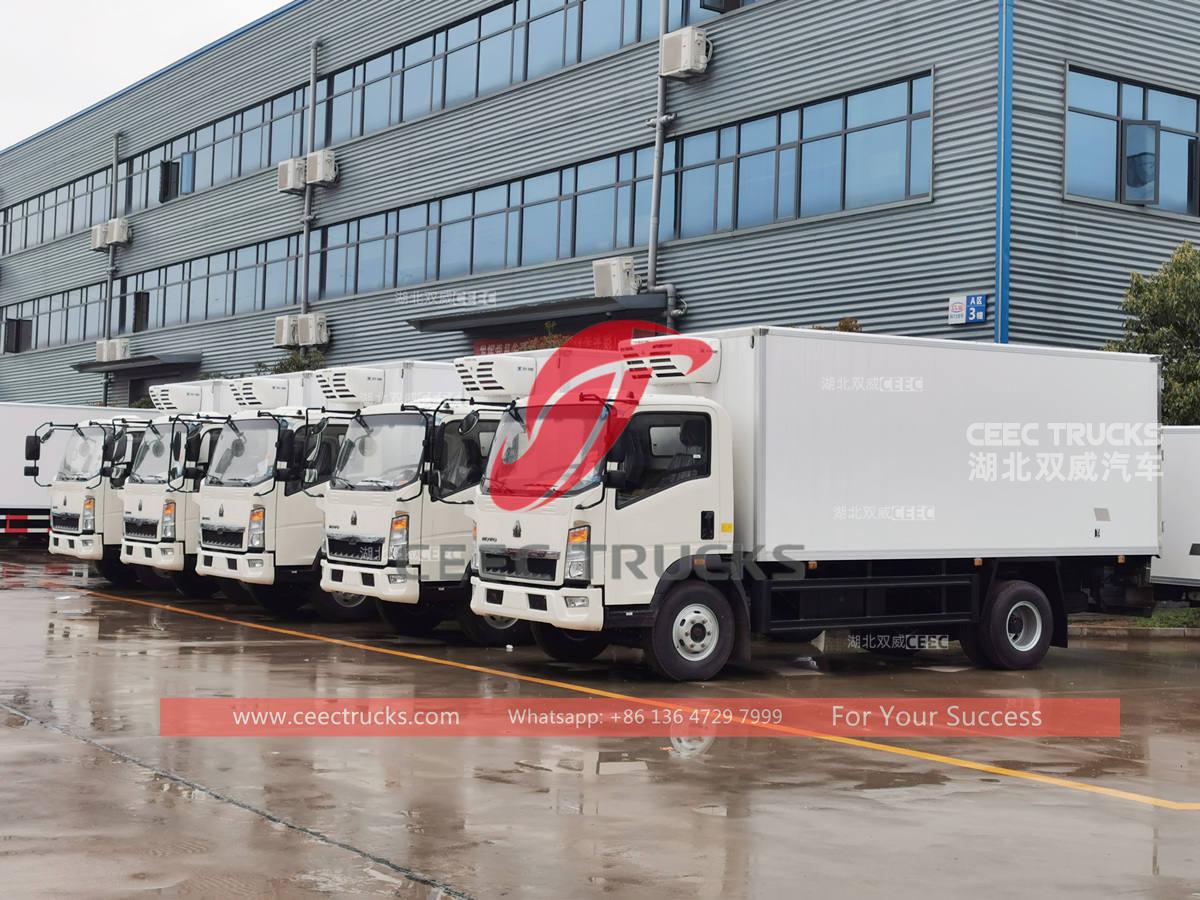

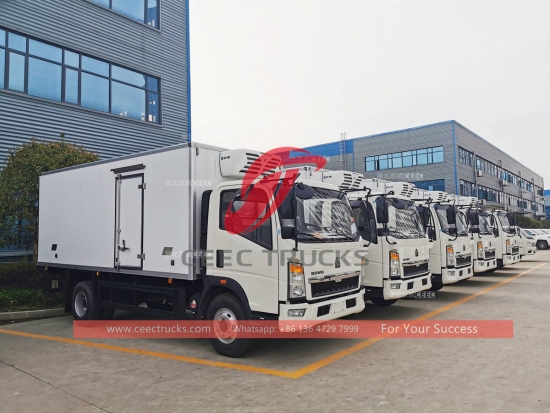

HOWO 6 wheeler 5 tons freezer box trucks for sale

Factory supplies HOWO 4×2 mini reefer van at best price

CEEC TRUCKS is a professional supplier of refrigerated van in China. We possess over 10-year export experience of freezer trucks. We can ensure the fast delivery time and 12 months guarantee for our chiller trucks. Our refrigerated vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
