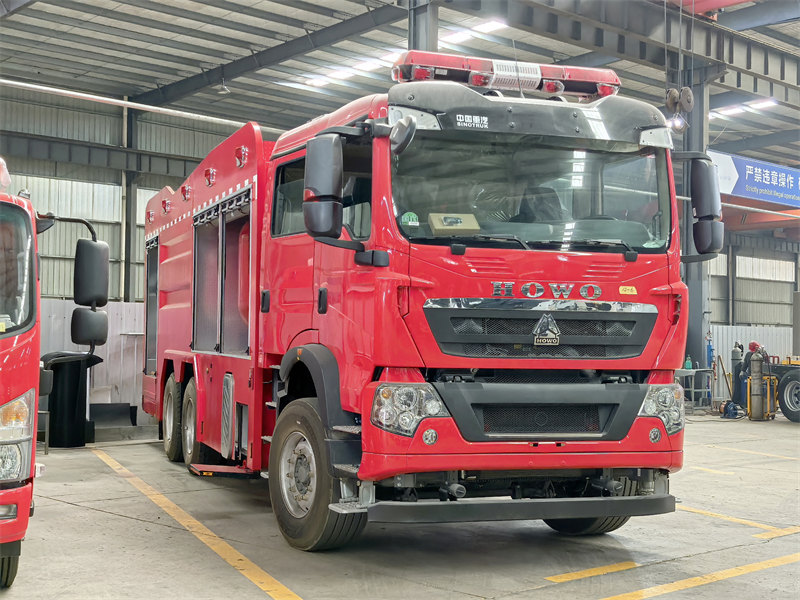

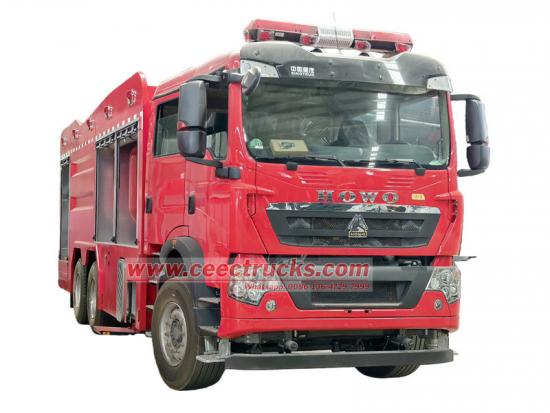

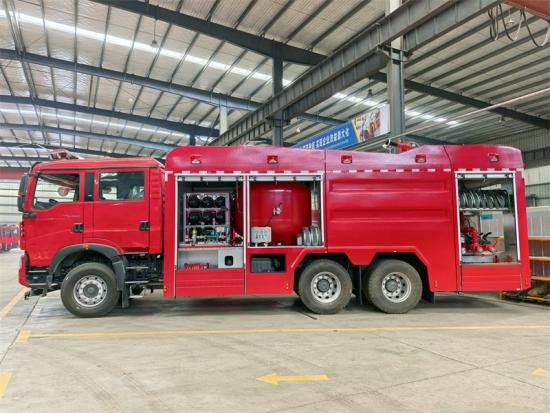

Howo 6000 L dry powder fire truck

This is a dry powder nitrogen fire truck built on Howo TX Chassis. It is equipped with a powerful Weichai 340HP engine with a displacement of 9.839L. It adopts a 6X4 drive mode and is equipped with a 10-speed gearbox. In terms of the fire protection system, the vehicle is equipped with 3000L carbon steel dry powder storage tanks and 6units 80-liter nitrogen cylinders with a design pressure of 15MPa.

Work capacity:
3000L water+3000L dry
Dimension ( mm ):
10300*2670*3550 mm
Wheelbase ( mm ):
4350+1350 mm
Engine power:
340HP
Engine type:
WP10.340E22
Axle drive:
6x4,LHD
Gear box:
HW19710 gearbox,10 forward and 2 reverse
Remarks:
High-strength aluminum alloy or titanium alloy frames

Inquiry now

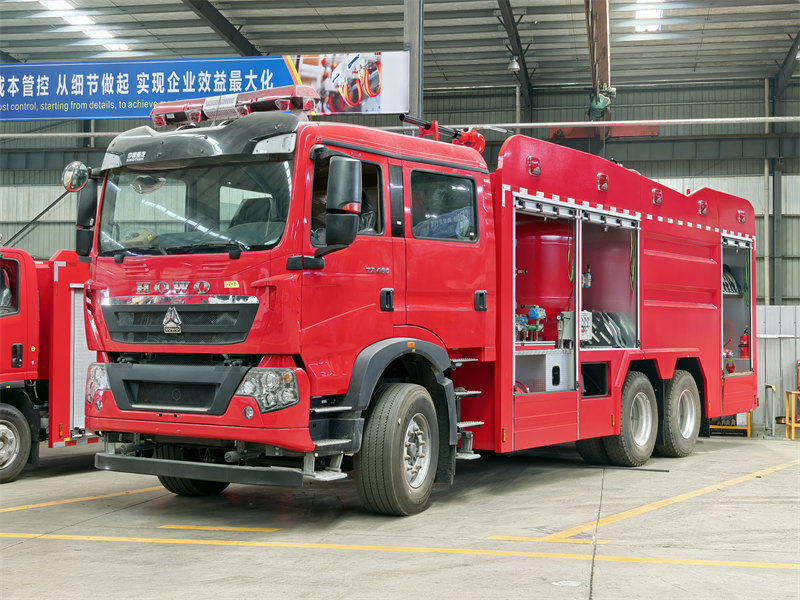

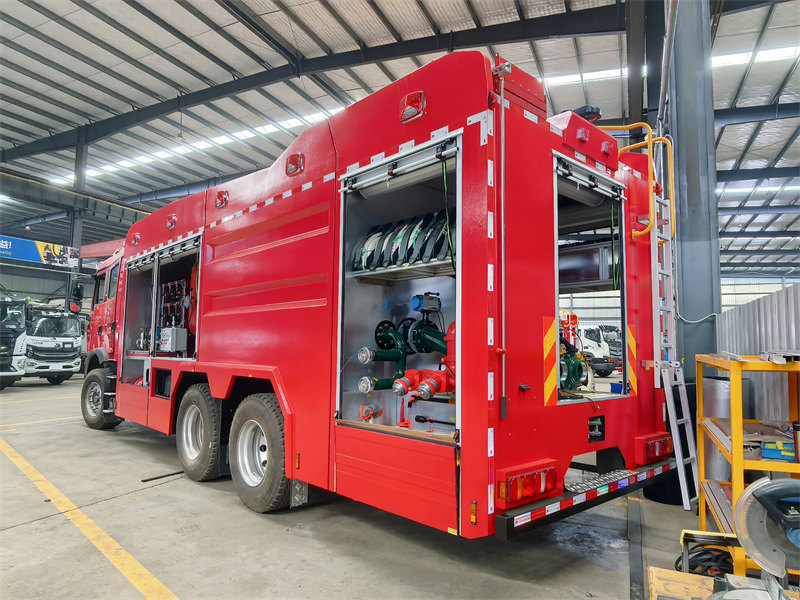

The fire fighting truck is based on the Howo TX reinforced chassis and equipped with a mature Weichai WP10.340E32 engine. It features a 6x4 drive system and a 10 speed transmission, balancing power output and driving stability. It can adapt to various complex road conditions, including rough, slippery, and unpaved surfaces, with a maximum speed of 95 km/h. It can quickly respond to emergency rescue commands, buying valuable time for fire fighting.

Regarding the fire extinguishing system, the truck achieves coordinated operation of dry powder and water systems. It is equipped with a 3000L carbon steel dry powder storage tank, nine 80L high-pressure nitrogen cylinders, and a 3000L carbon steel water tank. Combined with a high-efficiency fire pump and a long-range fire monitor, it can flexibly respond to different types of fires. The vehicle is also equipped with a full set of standard rescue equipment and offers various optional configurations to meet multiple needs, including fire extinguishing, rescue, and cooling.

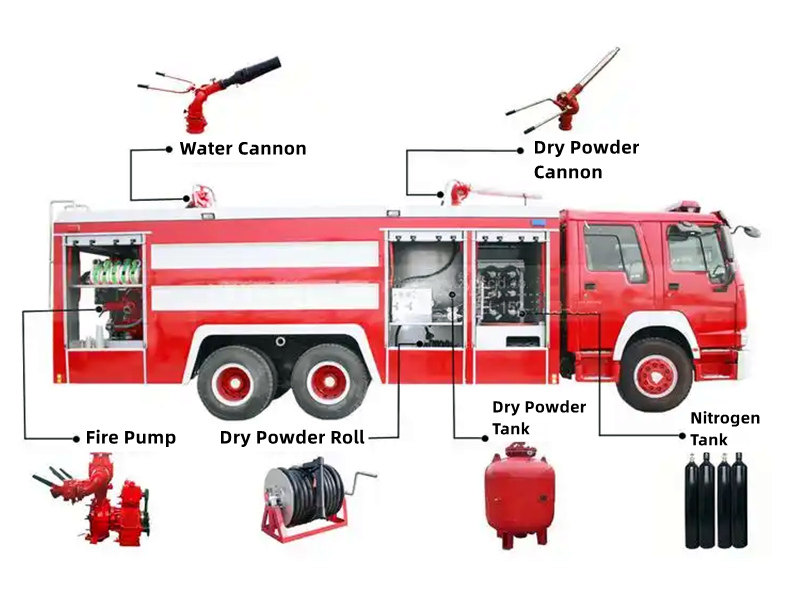

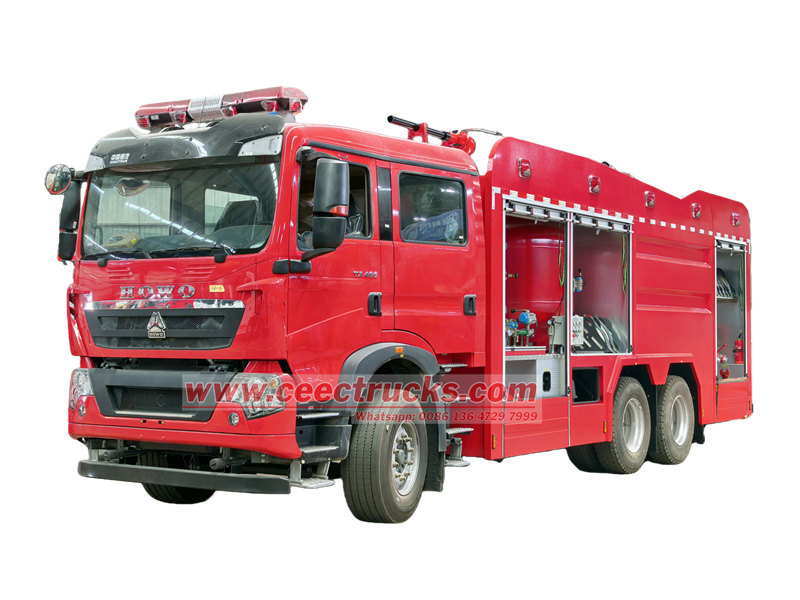

Howo heavy fire dry powder truck

*Howo heavy fire pump dry powder truck

Howo heavy fire fighting truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

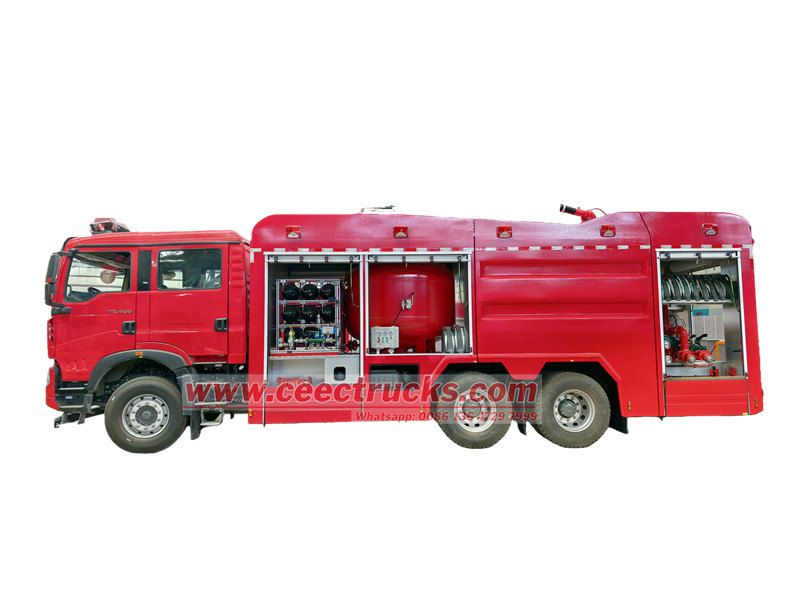

Howo heavy fire dry powder truck

Howo 6x4 Heavy Dry Powder Fire Truck
General	Vehicle Brand	CS Trucks Group
	Chassis Brand	Howo
	Overall Dimension	1030026703550mm
	GWW/ Kerb Weight	25,000kg/11,820kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine ,WP10.340E32
	Power	340HP (257kw)
	Displacement	9.839L
	Emission Standard	Euro 3
Chassis	DriveType	6X4,left hand drive
	Transmission	HW 10 speed forward, 2 reverse
	Wheelbase/No.of axle	4350+1350 mm
	Tyre Specification	12.00R22.5
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	95km/h
	Paint	Metallic paint
Superstructure	Dry Powder Tank Capacity	3000L	1 pcs
	TankMaterial	Carbon steel
	Nitrogen Gas Bottle	Material	37Mn
		Capacity	80 Litres
		Quantity	9
		Design pressure	15MPa
	Fire Pump	Drive mode	PTO
		Pressure range	1.6-2.5 MPa
		Flow rate	80-120 kg/s
	Fire Cannon	Flow speed	60-100 kg/s
		Range	40-60 m
	Water Tank Capacity	3,000 Litres
	Tank Material	carbon steel
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	Back alarm and Camera can be equipped Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional

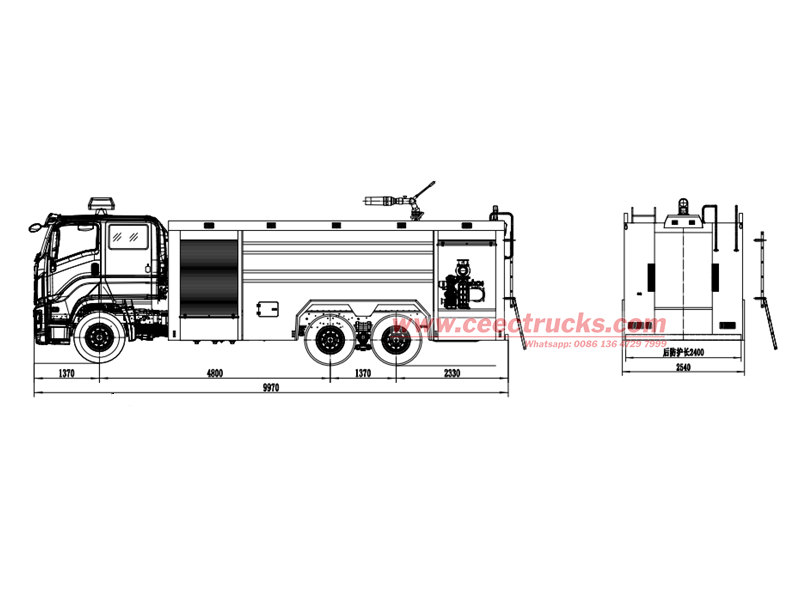

Howo fire fighting truck

» Ⅱ.Product Parameter for Howo fire fighting truck：

1. Powerful Engine and Superior Chassis：

♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.

♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.

♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.

♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.

2. Comprehensive and Practical Configuration：

♦ The cab can accommodate 2+4 people and is equipped with air conditioning, providing a comfortable working environment for rescue personnel.

♦ The superstructure has a complete electrical system, and the cab roof is equipped with a long row of warning lights and an siren.

♦ Strobe lights, LED lights, and yellow warning lights are installed on both sides of the truck bed, the roof, and the steps, respectively.

♦ Comprehensive protection ensures warning and lighting needs during operations, improving safety at night and in complex environments.

♦ The vehicle is equipped with a full set of standard fire and rescue equipment, including shovels, crowbars, axes, and cutting equipment.

» Ⅲ.Functional Structure for Howo fire fighting truck：

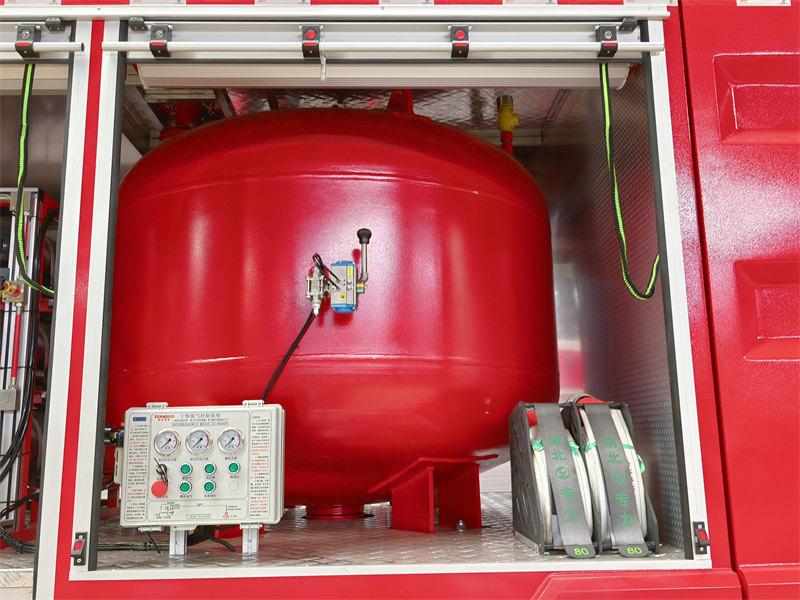

Dry Powder Fire Extinguishing System：

♦ Equipped with a 3000L carbon steel dry powder storage tank, providing ample reserves for sustained, long-term spraying.

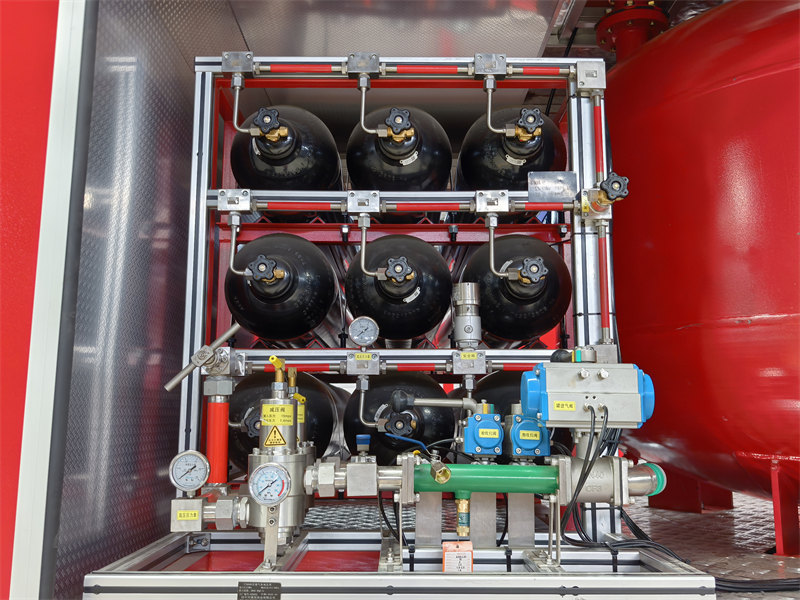

♦ Combined with nine 80L 37Mn nitrogen cylinders, designed to withstand pressures up to 15MPa.

♦ High-pressure nitrogen atomizes the dry powder at a rate of 60-100kg/s, providing wide coverage.

♦ It can rapidly smother and chemically suppress fires, suitable for Class A (solid), Class B (liquid, gas), and Class C (electrical) fires.

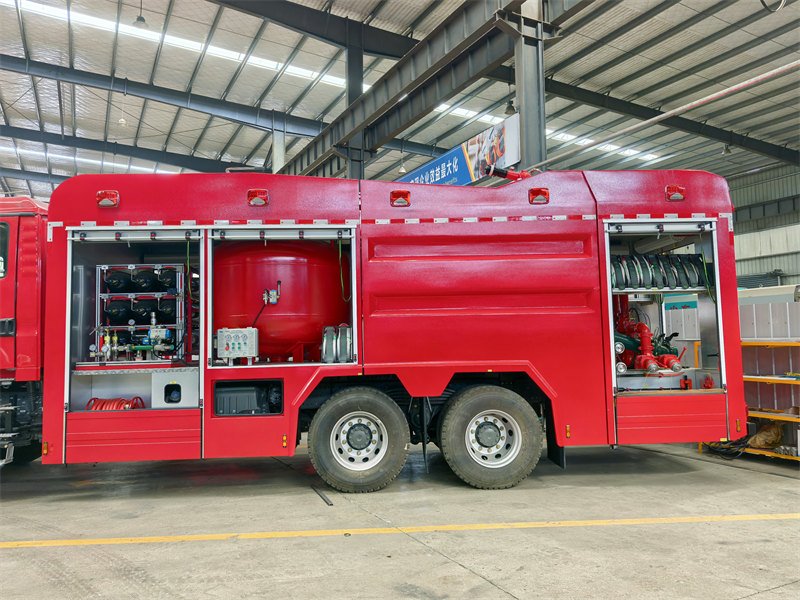

Howo fire dry powder tank truck

Dry Powder System
Model	R25-303
Pressure Vessel	Ⅱ
Design Pressure	1.76MPa
Pressure Test Pressure	2.2MPa
Design Temperature	50°
Net Weight of Vessel	1345 kg
Capacity	3.0 CBM
Nitrogen Cylinder Group
NO of Nitrogen Cylinder	9
Capacity	80L
Working Pressure	≤15Mpa

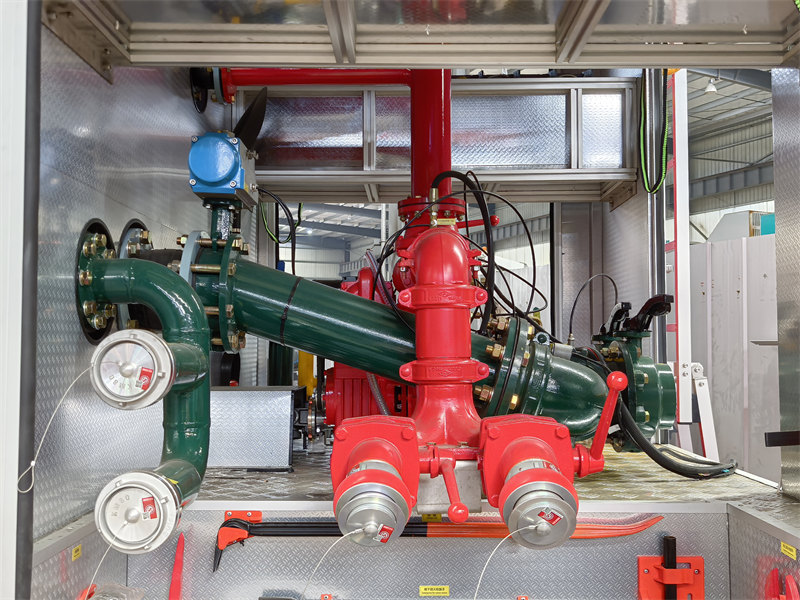

Water & Foam Fire Extinguishing System:

♦ Equipped with a 3000L carbon steel water tank and a top-tier domestic brand fire pump

♦ Utilizes PTO drive mode, automatic priming, pressure range 1.6-2.5MPa

♦ Flow rate up to 45L/s, suction height 9m, priming time ≤10s

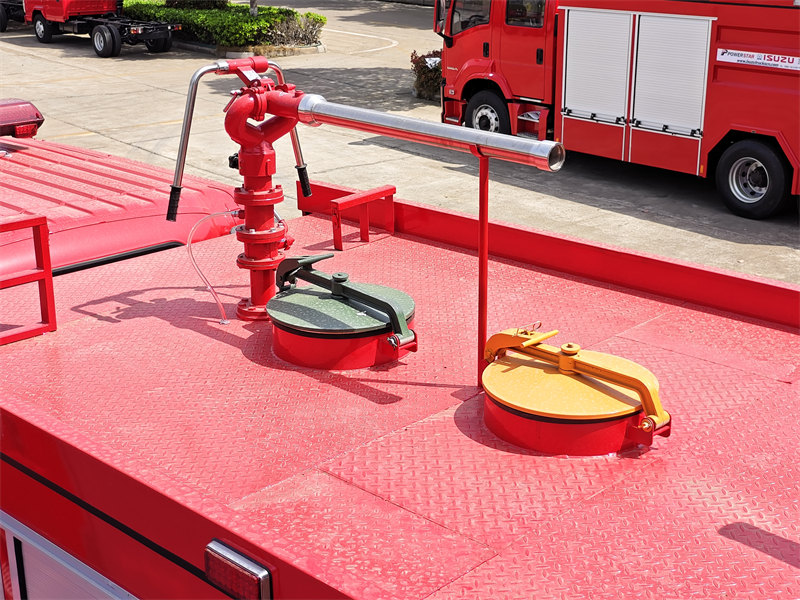

♦ Long-range fire monitor with a range of up to 65 meters, allowing firefighters to operate at a safe distance and avoid direct contact with the fire source.

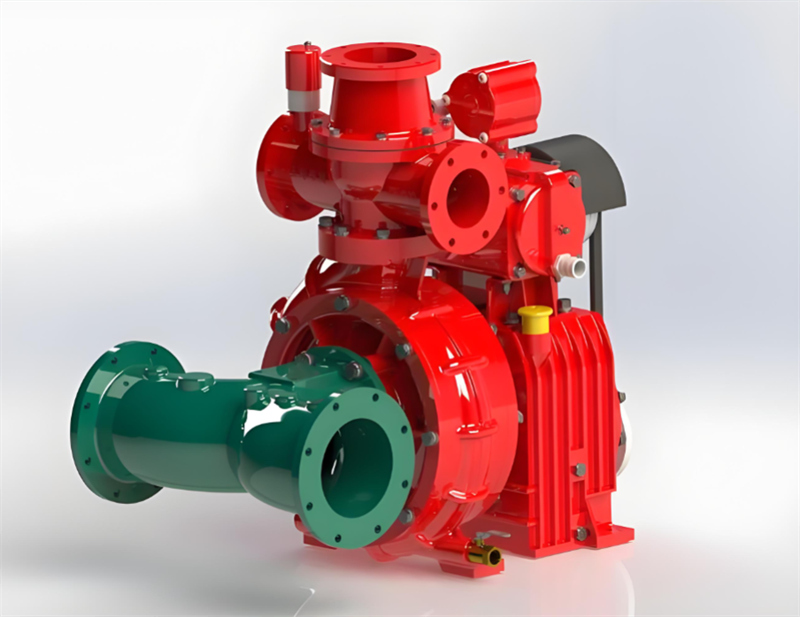

fire pump

Fire pump Model	Pressure	Max working pressure	Flux	Rated speed	Speed Ratio	Max pressure	Priming Time	Head
CB10/80-XZ	1.0MPa	1.380MPa	80L/s	3300±3435r/min	1:1.54	≥0.40MPa	≤10s	40m

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 type, sinotruk engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO fire engine exporter

★ Easy operation and easy maintenance

Howo fire fighting truck

Howo fire fighting truck dry powder

CEEC TRUCKS is a leading supplier of fire fighting truck in China. We possess over 10-year export experience of fire truck. We can ensure the fast delivery time and 12 months guarantee for our fire engine. Our fire engines are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
