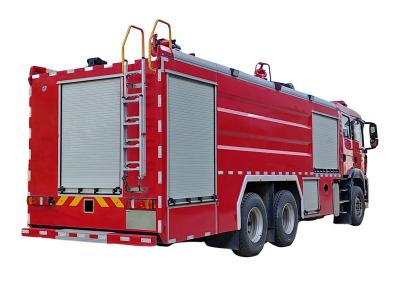

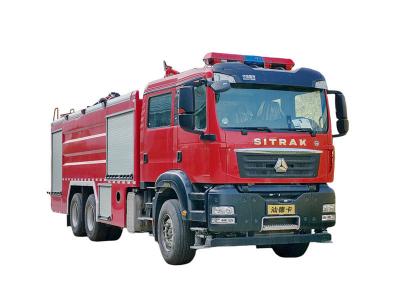

Howo TX fire Truck with dry powder

This is a dry powder nitrogen fire truck built on Howo TX Chassis. It is equipped with a powerful Weichai 340HP engine with a displacement of 9.839L. It adopts a 6X4 drive mode and is equipped with a 10-speed gearbox. The maximum speed can reach 95km/h, which can adapt to various complex road conditions. In terms of the fire protection system, the vehicle is equipped with 700kg carbon steel dry powder storage tanks and 6units 80-liter nitrogen cylinders with a design pressure of 15MPa.

Work capacity:
4000L water+2000L foam+500kg dry
Dimension ( mm ):
10300*2670*3550 mm
Wheelbase ( mm ):
4350+1350 mm
Engine power:
340HP
Engine type:
WP10.340E60
Axle drive:
6x4,LHD
Gear box:
HW19710 gearbox,10 forward and 2 reverse
Remarks:
High-strength aluminum alloy or titanium alloy frames

Inquiry now

This is a dry powder fire truck built on Howo TX Chassis. It is equipped with a powerful Weichai 340HP engine with a displacement of 9.839L. It adopts a 6X4 drive mode and is equipped with a 10-speed gearbox. The maximum speed can reach 95km/h, which can adapt to various complex road conditions. In terms of the fire protection system, the vehicle is equipped with 700kg carbon steel dry powder storage tanks and 6units 80-liter nitrogen cylinders with a design pressure of 15MPa.

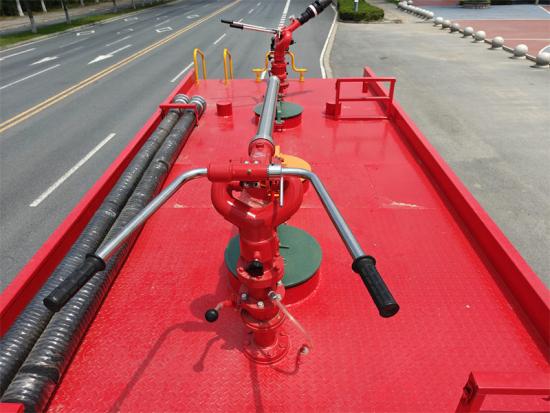

The fire pump is driven by PTO, with a pressure range of 1.6-2.5 MPa and a flow rate of 80-120 kg/s. The fire cannon has a spray speed of 60-100 kg/s and a range of 40-60 meters, which can effectively respond to various fire situations. The Howo fire truck is also equipped with a full set of standard fire rescue equipment, such as shovels, crowbars, axes and cutting equipment, and ladders and floodlights are optional.

Howo heavy fire dry powder truck

*Howo heavy fire water cannon riot truck

Howo heavy fire fighting truck*

-----------------------------------------------------------------

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

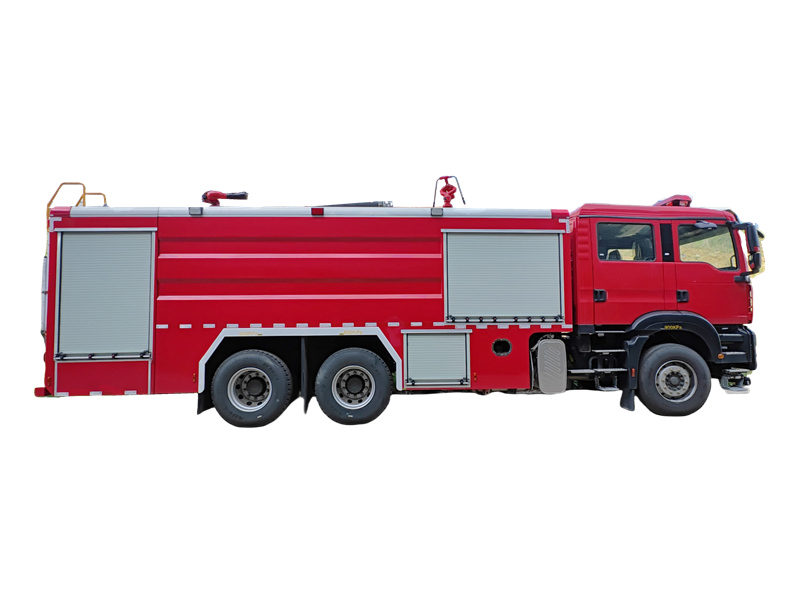

Howo heavy fire dry powder truck

Howo 6x4 heavy dry powder fire truck
General	Vehicle Brand	CEEC Trucks Group
	Chassis Brand	Howo
	Overall Dimension	1030026703550mm
	GWW/ Kerb Weight	25,000kg/11,820kg
Cab	Cab Capacity	2+4 persons allowed
	Air Conditioner	air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	Weichai engine ,WP10.340E32
	Power	340HP(257kw)
	Displacement	9.839L
	Emission Standard	Euro 3
Chassis	DriveType	6X4,left hand drive
	Transmission	HW 10 speed forward, 2 reverse
	Wheelbase/No.of axle	4350+1375 mm
	Tyre Specification	295/80R22.5
	Tyre Number	10 tyres and 1 spare tyre
	Max Speed	95km/h
	Paint	Metallic paint
Superstructure	Dry Powder Tank Capacity	700 kg	4 pcs
	TankMaterial	Carbon steel
	Nitrogen Gas Bottle	Material	37Mn
		Capacity	80Litres
		Quantity	12
		Design pressure	15MPa

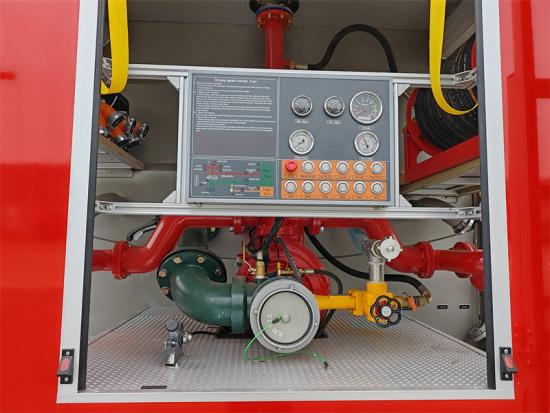

	Fire Pump	Drive mode	PTO
		Pressure range	1.6-2.5 MPa
		Flow rate	80-120 kg/s
	Fire Cannon	Flow speed	60-100 kg/s
		Range	40-60 m
	Water Tank Capacity	4,000 Litres
	Tank Material	carbon steel
	Fire Pump	Brand	China TOP brand
		Drive mode	PTO
		Priming Manner	Automatic
		Pressure range	1.6-2.5 MPa
		Flow rate	45L / s
		Suction Height	9m
	Fire Cannon	Flow speed	45L /s
		Range	65 m
	Superstructure Electric Appliance	Warning Light and Siren	Long-row warning light and siren are mounted above cabin. The controller is installed in the driver's cabin.
		Strobe Light	Mounted on the both sides of the compartment
		External Lighting	LED lights are mounted on the both sides of the compartment
		Roof Lighting	LED lights are mounted on the inside of the roof
		Side Indicator Light	Inline yellow warning light is mounted on the side of the compartment and pedals
	All standard accessories.Typical modern fire apparatu scarries equipment for a wide range of fire fighting and rescue tasks.These include shovel,pike poles,axes and cutting equipment, halligan bars...
Optional	Back alarm and Camera can be equipped Standard carbon steel, stainless steel optional ** USA or Germany fire pump can be optional

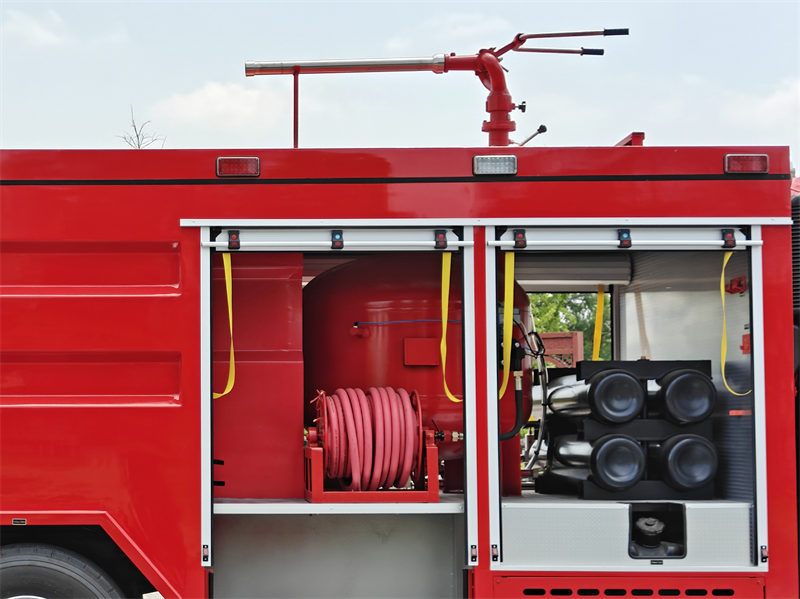

Howo fire fighting truck

» Ⅱ.Product Parameter for Howo fire fighting truck：

1. Powerful Engine and Superior Chassis：

♦ The 6x4 configuration provides exceptional traction and load-bearing capacity, making it ideal for operation in accident scenes such as factories and warehouses on rough, slippery, or unpaved roads.

♦ The Howo TX cabin chassis is reinforced to reliably support heavy-duty equipment (dry powder systems, water tanks, nitrogen cylinders), ensuring stability and safety during driving and operation.

♦ The Weichai WP10.340E32 engine is a proven and mature engine with high torque and excellent low-speed torque characteristics, making it ideal for fire trucks that require frequent starts, acceleration, and continuous operation.

♦ The HW 10-speed transmission features closely spaced gears, allowing the driver to precisely select the appropriate gear based on road conditions and load, ensuring smooth and efficient power delivery.

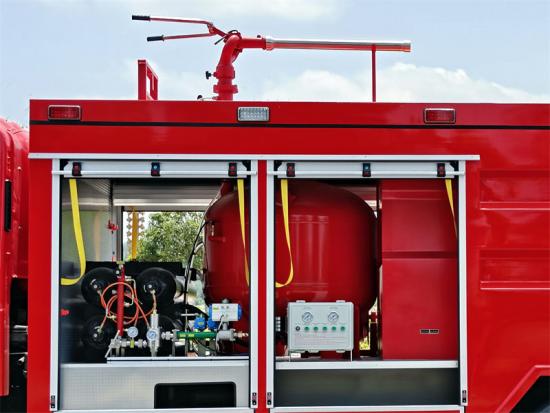

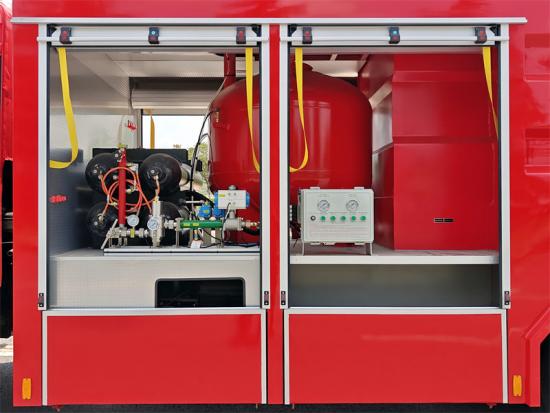

2.Dry Powder Fire Extinguishing System:

♦ A total dry powder canister with a capacity of 700 kg provides ample reserves for sustained spraying over extended periods.

♦ 4 units 80L nitrogen cylinders with a design pressure of up to 15 MPa provide an extremely powerful power source.

♦ High-pressure nitrogen ensures the dry powder is sprayed at extremely high speeds and with excellent atomization, instantly covering the fire source for rapid suffocation and chemical suppression.

♦ Suitable for extinguishing Class A (solid), Class B (liquid, gas), and Class C (electrical) fires, it is an effective tool for handling fires involving oil tanks, chemicals, power facilities, and natural gas leaks.

3. Professional Superstructure Design:

♦ Long row of warning lights, pneumatic siren, side marker lights, and external and roof LED lighting.

♦ This constitutes a comprehensive audio-visual warning and work lighting system, ensuring safe and efficient operation at night or in low-visibility conditions.

♦ Optional reversing alarm and camera: For this large vehicle, this greatly enhances safety when reversing and moving in complex environments.

♦ Double-row cab: Allows a complete fire crew to deploy simultaneously, enabling personnel to conduct mission deployment and equipment checks en route.

♦ Standard onboard tools: Includes crowbars, axes, cutting tools, meeting demolition and rescue needs.

Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!

1.we can do the designs according to the your requirement .

2.we can offer you the high quality & reasionalble price

3.we can offer your a reliable after-sell service

4.we have skilled professinal design team

5.promptly delivery. any order is welcome.

CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

★ Euro 3 type, sinotruk engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized HOWO fire engine exporter

★ Easy operation and easy maintenance

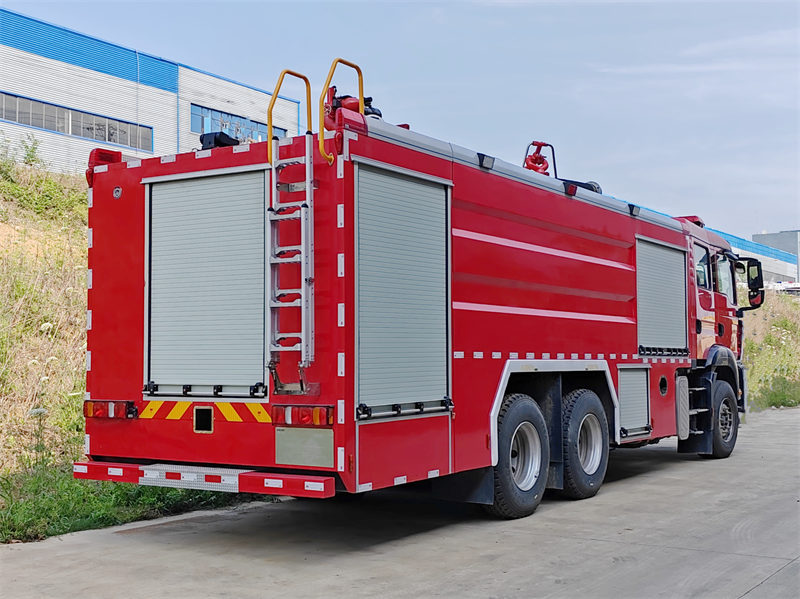

Howo fire fighting truck

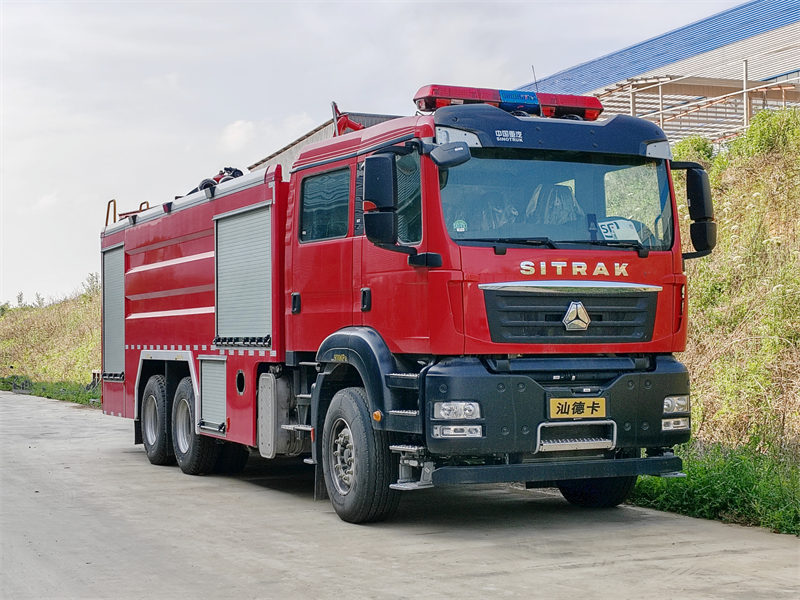

Howo fire fighting truck dry powder
