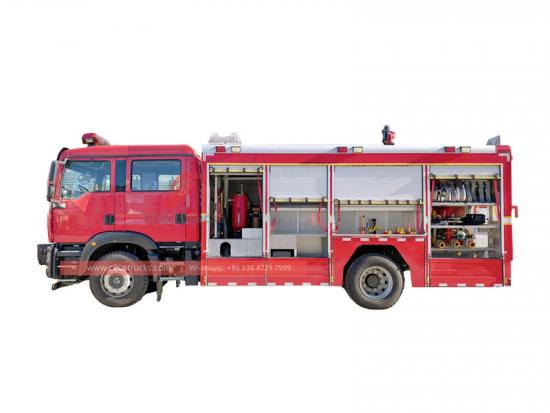

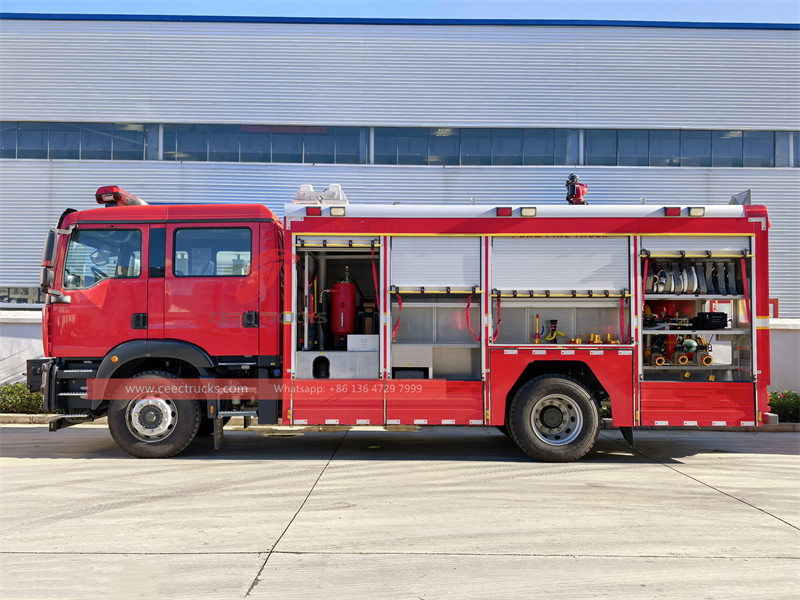

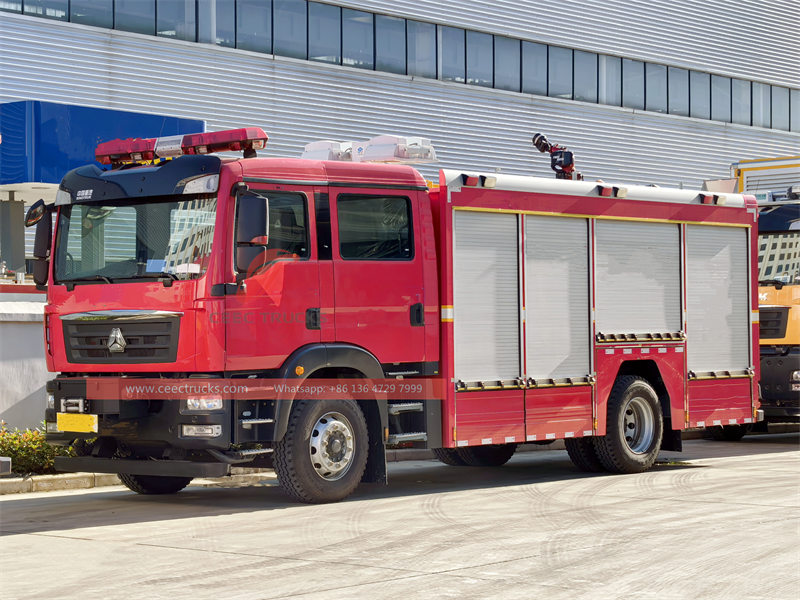

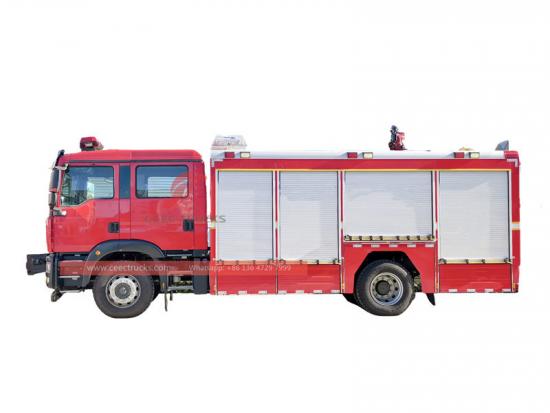

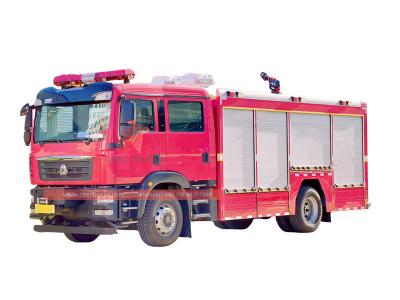

Howo 6000L CAFS fire truck for Nigeria

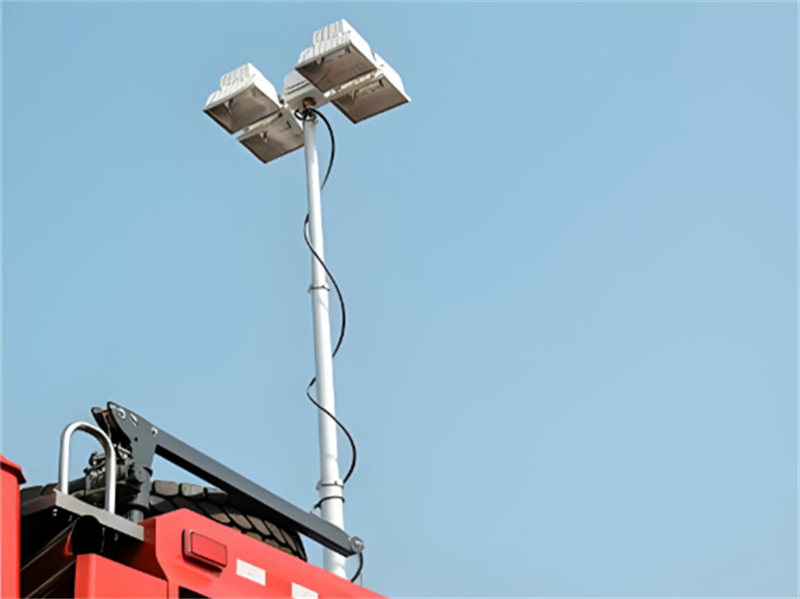

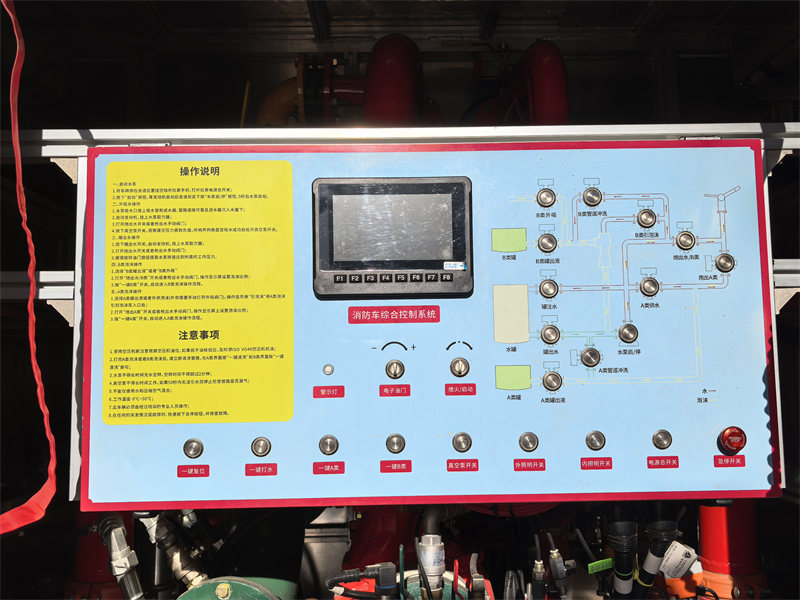

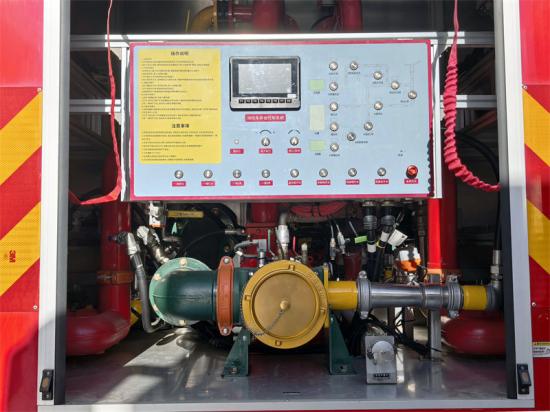

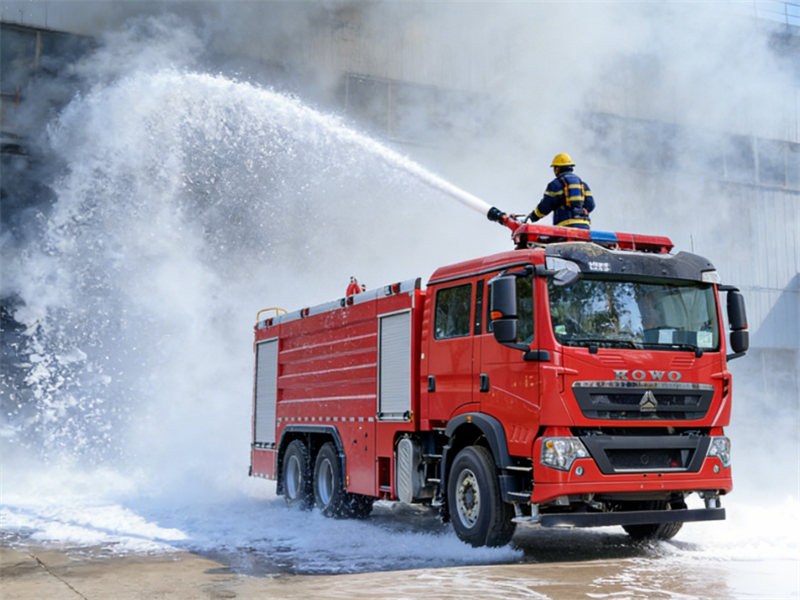

The Howo heavy 4x2 CAFS fire truck, built on the high-quality Howo C5H chassis, combines superior power with environmentally friendly emissions, capable of tackling various challenging terrains. It integrates a water pump, foam proportioning system, and air compression system, extinguishing fires by spraying compressed air foam. It also features an independent power generation system and an emergency lighting system, providing multi-angle, all around illumination to quickly illuminate rescue routes during a fire. The control panel is language selectable and offers various optional configurations to meet different needs.

✦ Product Introduction of Howo Fire Foam Truck « « «

Manufacturer: CEEC Trucks Group

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 4X2,4x4 model

                              WP model with 340HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/40 centrifugal fire pump, flow rate 40L/s, working distance over 55m
                        Optional CB10/40, CB10/60 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue

✦ Product Parameter of Howo Fire Fighting Truck « « «

\

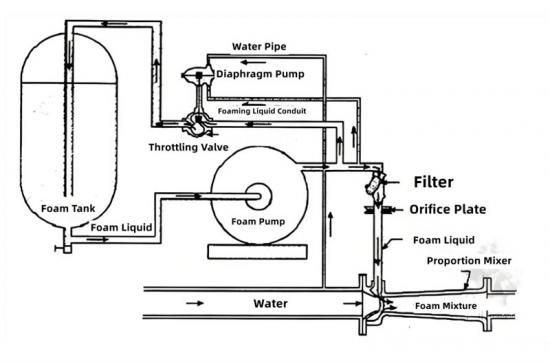

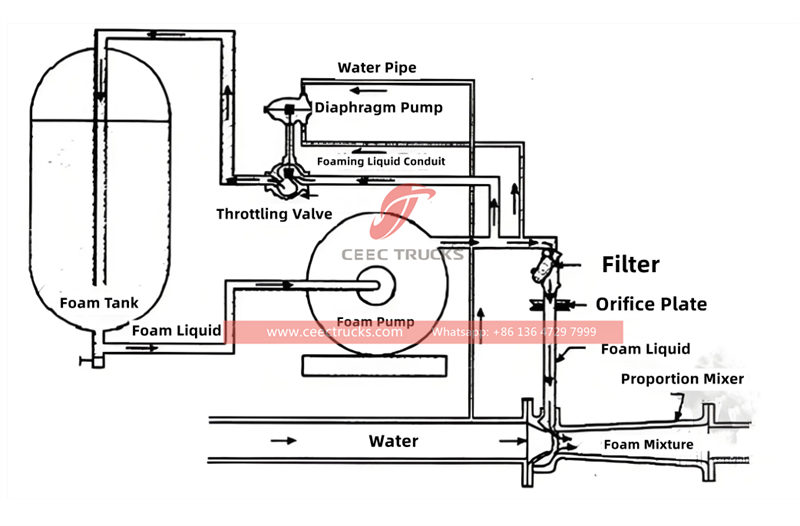

The CAFS (Combined Firefighting System) firefighting process can be summarized in three key steps, corresponding to its 3 core systems:

▶Proportional Mixing:

The vehicle's water tank provides water.

The vehicle's foam tank provides foam concentrate.

A precise electronic or mechanical proportioner precisely mixes the water and foam concentrate at a preset ratio (typically 0.1% to 6%) to form a "foam solution."

▶Air Injection:

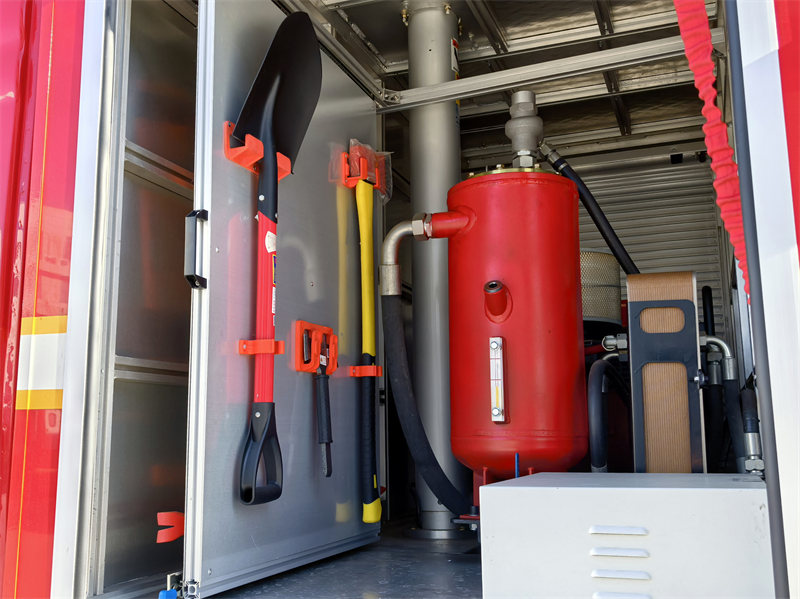

The vehicle's air compressor starts working, generating high-pressure air.

The high-pressure air is injected into the pipeline containing the freshly mixed "foam solution."

▶Fogging and Spraying:

The water, foam concentrate, and compressed air undergo turbulence and mixing in the pipeline, ultimately reacting fully in the foam generator (such as a water gun) at the end of the fire hose, producing extremely fine and uniform compressed air foam.

Firefighters spray this high-quality foam onto the fire scene using water guns.

✦ Advantage Of Howo 4x2 Fire Foam Truck « « «

1. Chassis Performance:

♦ Engine and Powertrain The Howo C5H is equipped with an MC07H.35-60 diesel engine, delivering a maximum power of 350 HP  and a torque of 1230 N·m.

♦ Equipped with heavy-duty 295/80R22.5 tires, it offers a minimum turning radius of ≤12 meters and a wading depth of ≥800 mm, making it suitable for complex terrain and adverse weather conditions.

2.Structural design：

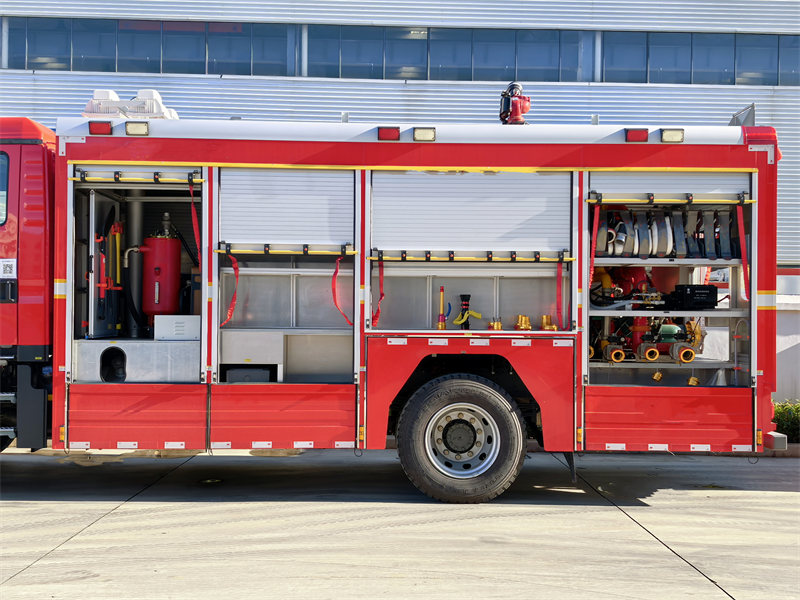

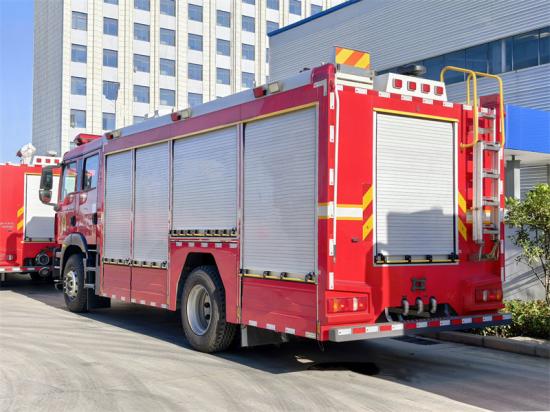

♦ The chassis adopts a high-strength carbon steel frame, anti-twisting box structure, and the external rolling door design facilitates quick access to rescue tools.

♦ The interior is equipped with adjustable aluminum alloy storage racks and rotating trailers to optimize space utilization.
