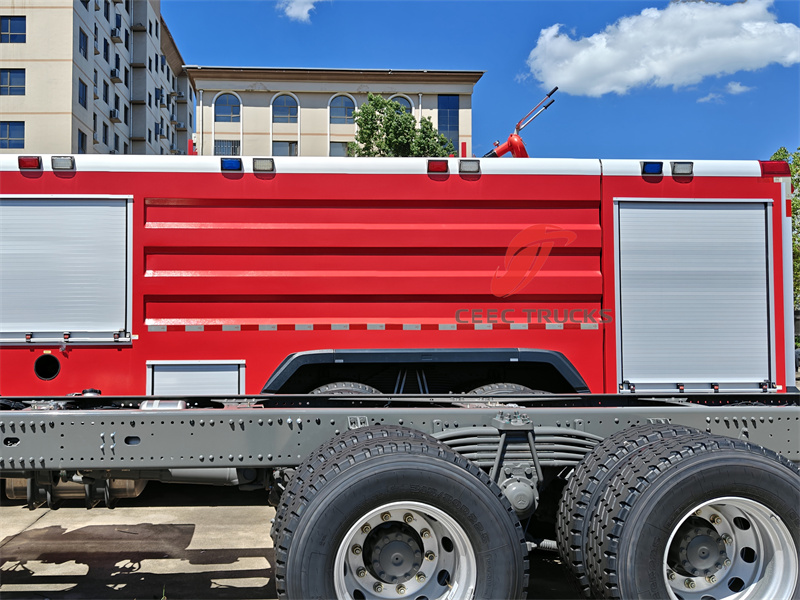

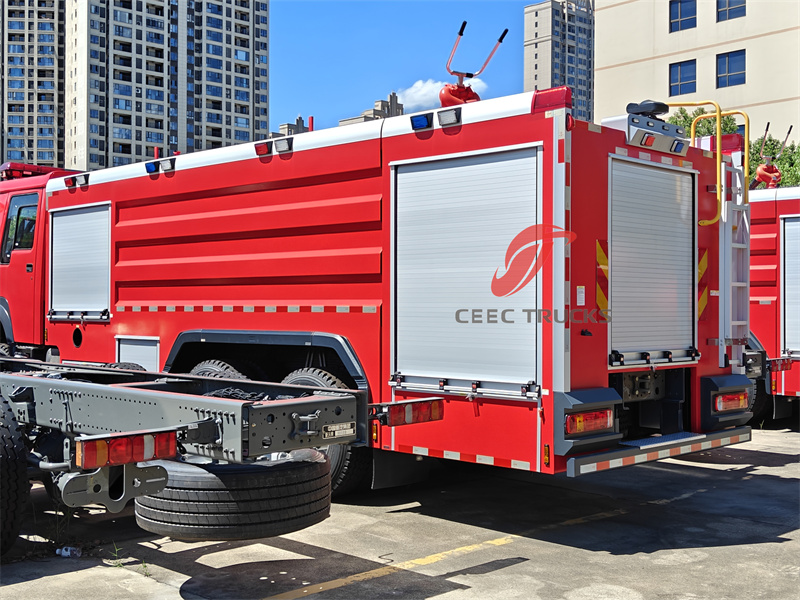

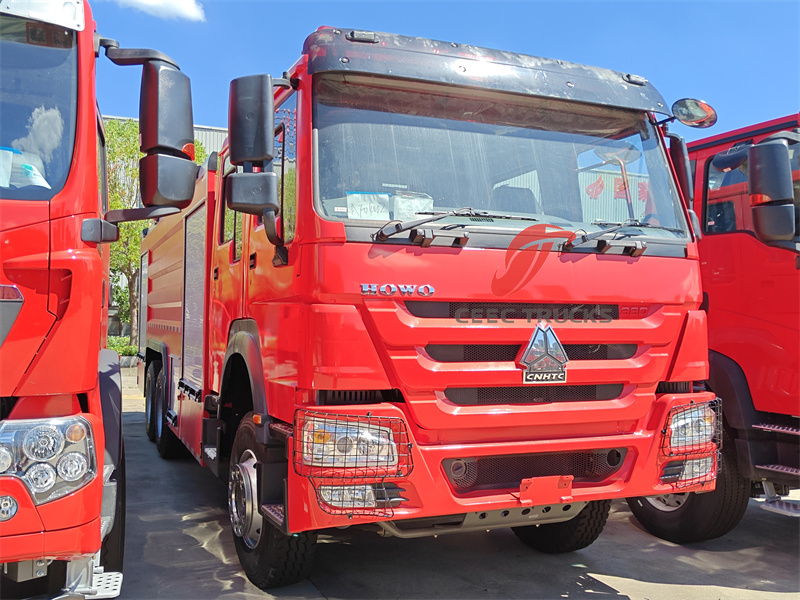

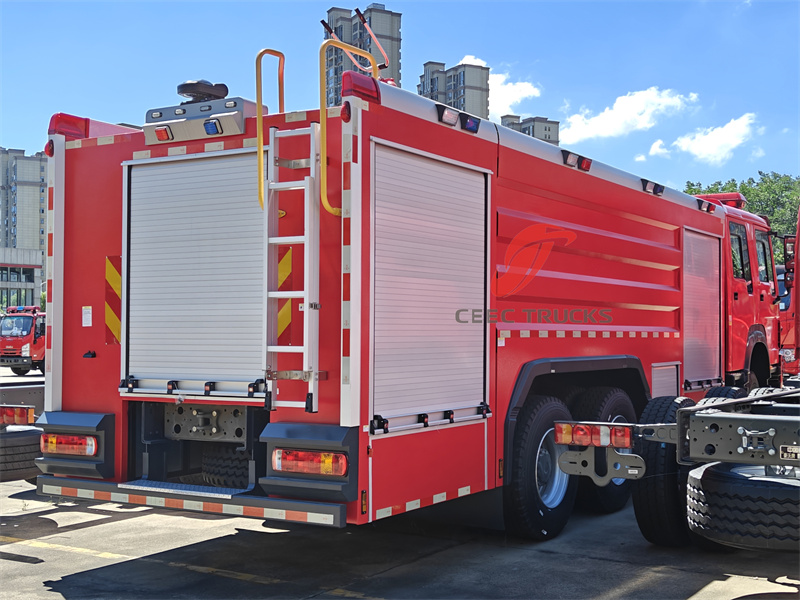

The fire rescue special truck, built on the sturdy Howo 6x4 heavy-duty chassis, integrates excellent power of 371HP, can challenge all kinds of difficult roads, and lays a good foundation for emergency fire rescue. The Howo fire truck is equipped with a 6000-liter large-capacity water tank and a PS professional fire pump, with a long spray distance of up to 65m. Operation introduction, optional control panel language, and a variety of optional configurations are provided to meet different needs. This Howo fire water truck provides solid protection for fire safety and demonstrates excellent performance and flexibility. The double-row cab of The Howo fire fighting truck provides enough space and quality to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions.

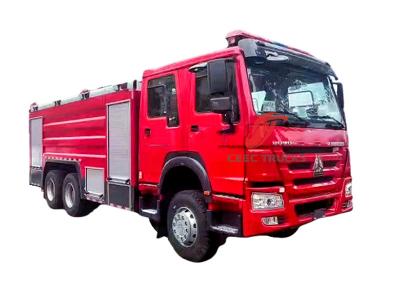

*Howo 371HP fire fighting truck

Howo RHD double cabin fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

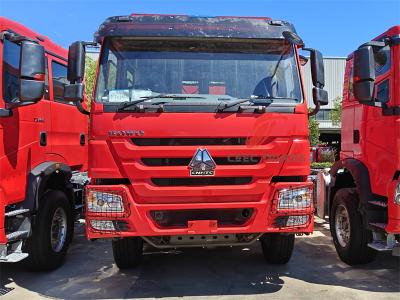

1. Truck Chassis: Sinotruk Howo truck chassis, 6X4 model

                              WD model with 371HP and Euro 2,3

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

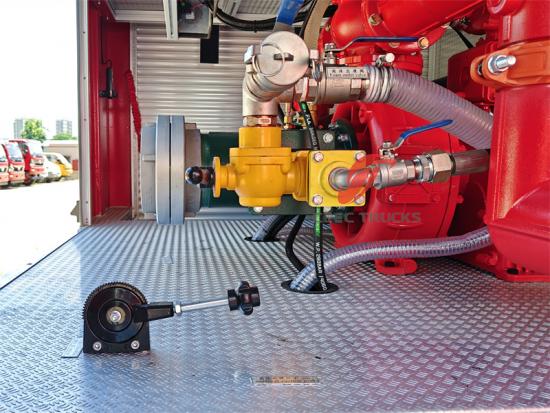

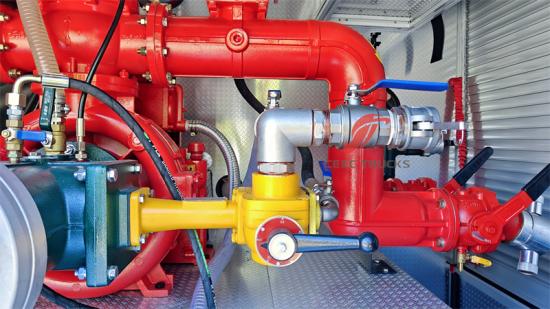

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 65m
                        Optional CB10/80, CB10/100 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Howo 6x4 fire rescue truck







Product Name	Howo 6x4 water fire truck
Vehicle Model	CEEC52503MXF
Main specifications	Manufactory	CEEC
	Overall dimension(L*W*H)	10600×2480×3160mm
	GVW	25000Kg
	Curb weight	12500Kg

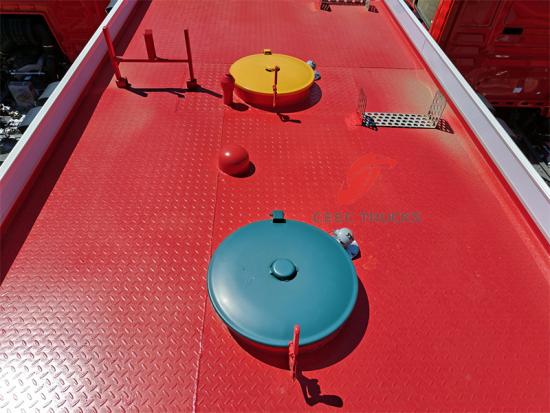

	Water tank volume	6,000 liters

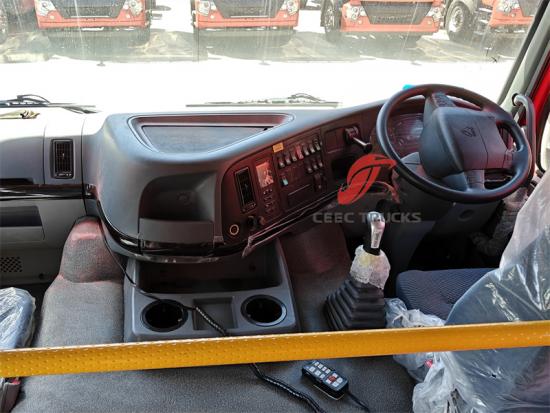

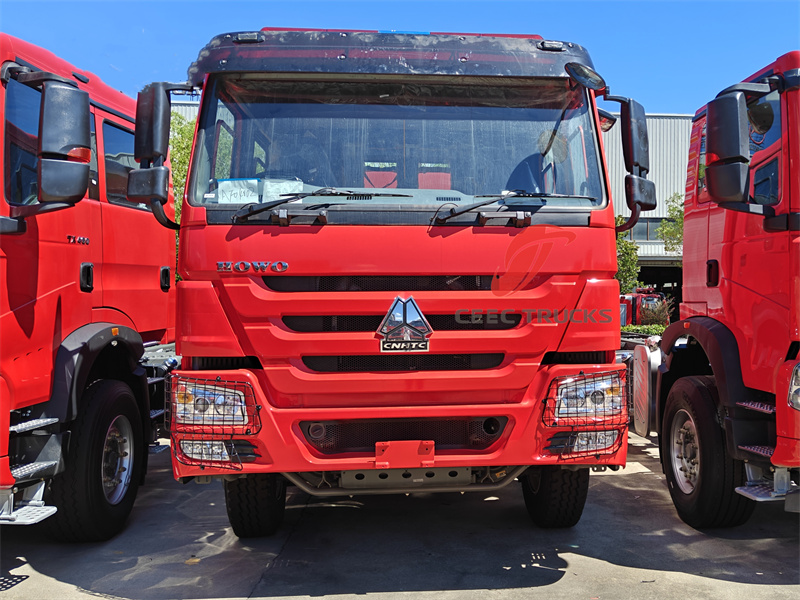

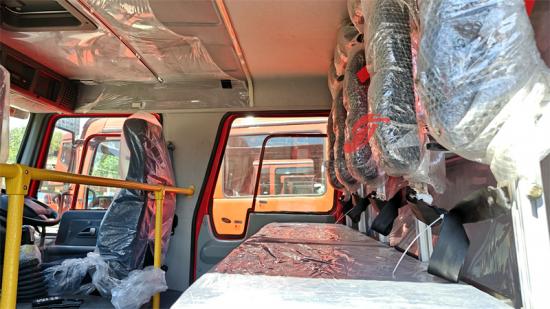

	Cabin	double cabin, 2+3seats,with Air conditioner, electronic windows, USB
	Wheel base	4600+1370 mm
	Driving type	6*4
	Chiassis model	Howo
	Transmission	Fast 12-speed forward, 2 reverse
	Number of axles	3
	Tire specification	12.00R20
	Number of Tires	10pcs with 1 spare tire
	Passengers in cab	3+3
Engine	Engine model	WD615.47
	Type of fuel	Diesel
	Displacement/power	9.839L / 380 Ps
	Maximum torque	1800N·m
	Max speed	95 Km/h
	Emission standard(TAS)	EURO 2
Fire performance	Water tank capacity	6000L
	Fire pump	China Top brand
		Model: CB10/60
		Low-pressure:60L/S
		Medium-pressure:60L/S

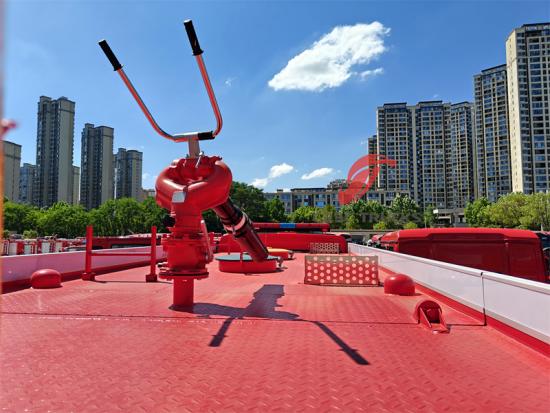

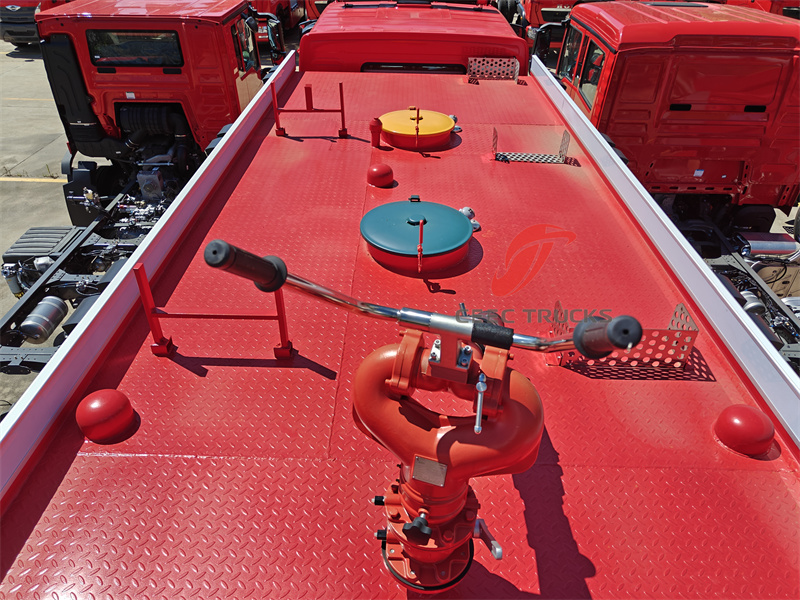

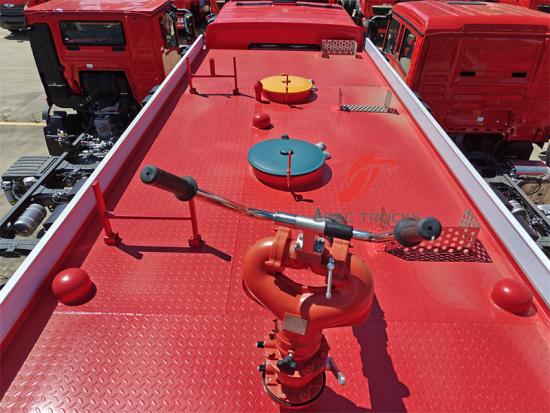

	Fire monitor	China top brand
		Model:PS50
		Working pressure: 1.0MPa
		Flow:60L/S
		Water jet distance:≥65m
		Rotation angle: 360° horizontally, -45° to 70° in pitch
	Fire pump Input	1 unit, diameter: 100mm

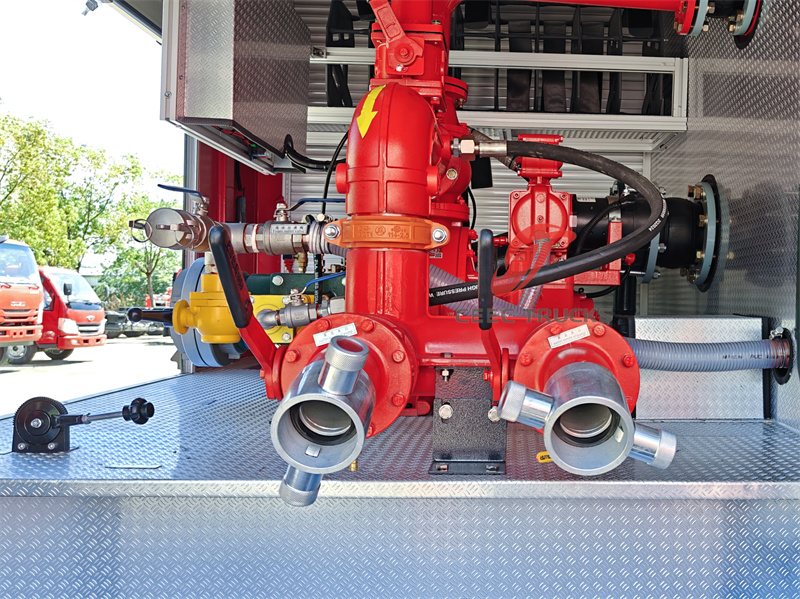

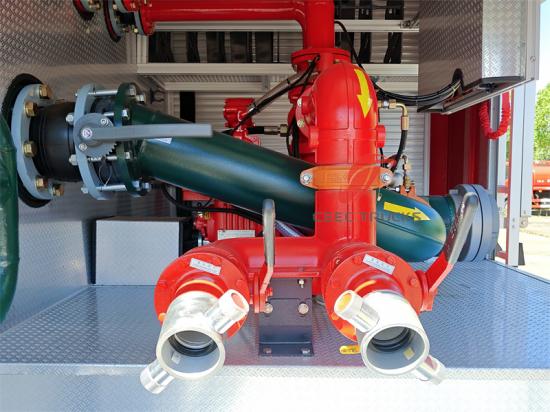

	Fire pump Outlet	2 units, diameter: 65mm 2 units,diameter: 85mm

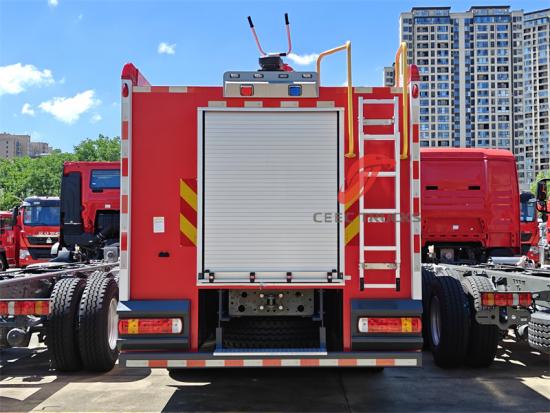

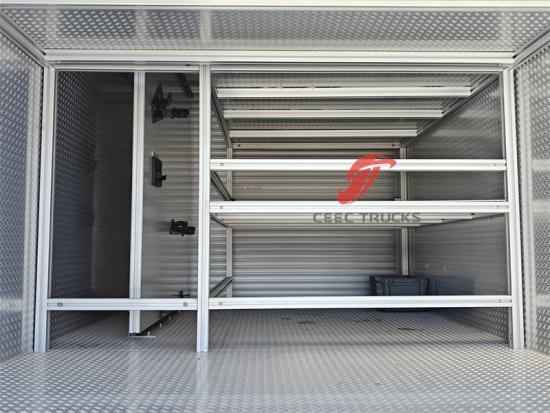

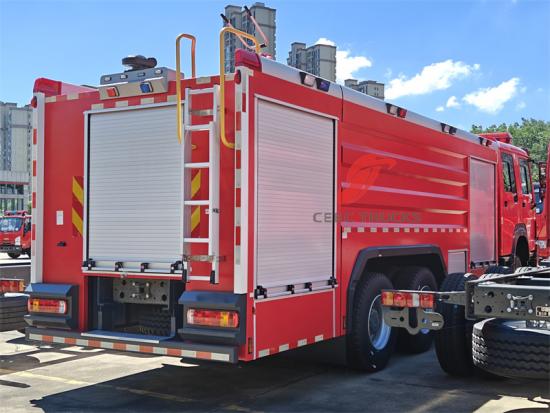

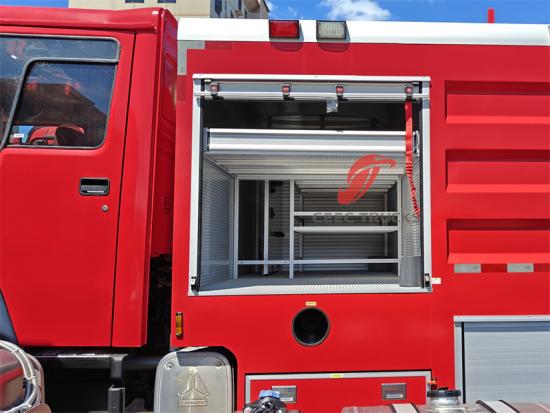

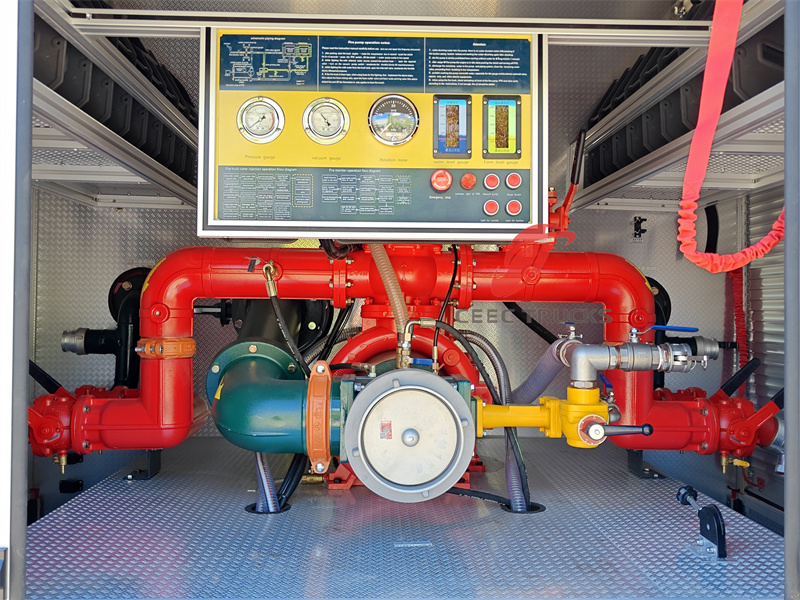

	Standard configurations	Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.How to use the Howo fire fighting truck correctly?





1. Preparation and inspection before operation



Power system pre-inspection: Check the engine before starting daily. The oil level must be kept at the center line of the dipstick (API CI-4 or above), the coolant level (ethylene glycol-based long-term antifreeze), and the air filter clogging indicator status (pressure difference > 25kPa requires replacement).

Pre-inspection of water system: Inspect 6000L water tank，drain residual water to prevent freezing (in winter), monthly biofilm test on inner wall (ATP test <50RLU), accuracy of water injection filter device (≥200 mesh).Confirm before starting, vacuum pump sealing (vacuum degree reaches -85kPa within 30 seconds), water outlet pressure sensor calibration (error <±0.2MPa), foam proportion mixer accuracy test (±1%).



2. Operational Specifications during Operation Phase

Power system management: Engine running, idle preheating after cold start (water temperature ≥50℃ can be loaded), continuous working cycle ≤4 hours requires shutdown for cooling (intercooler temperature monitoring), overspeed is prohibited (≤2300rpm is the red line zone).

Water system operation: When using the fire water pump, ensure that the pipeline valve opening is ≥30% before starting, and the working pressure is controlled in stages (normal pressure stage ≤1.0MPa, boost stage ≤1.8MPa). If the continuous operation time is ≤2 hours, the standby pump needs to be switched.





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Key points of periodic maintenance：





• Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).





• Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).





• Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
