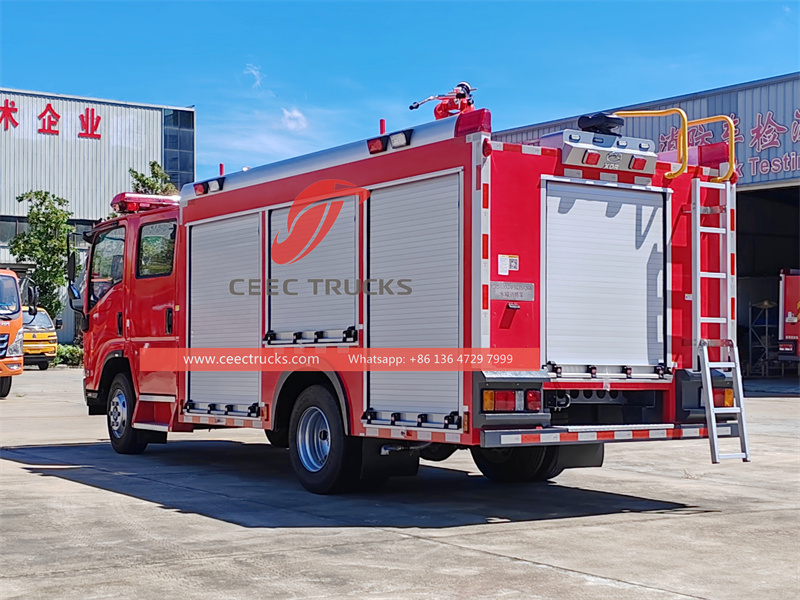

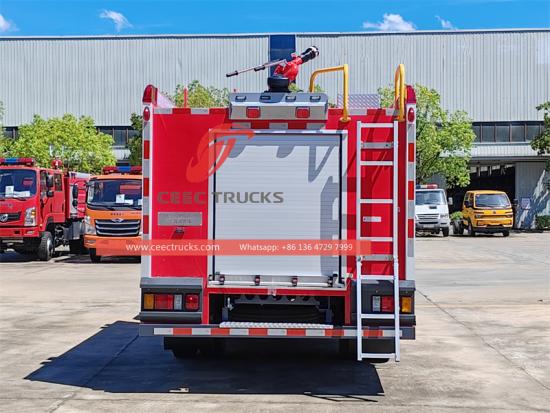

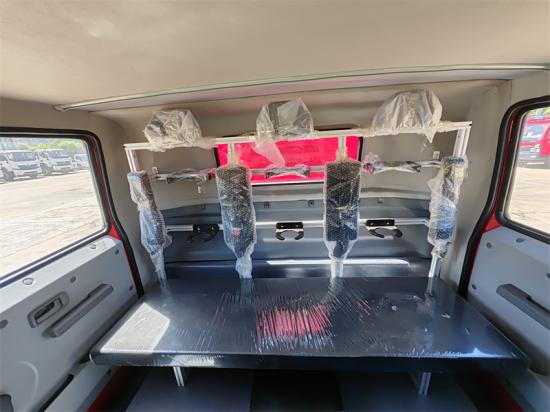

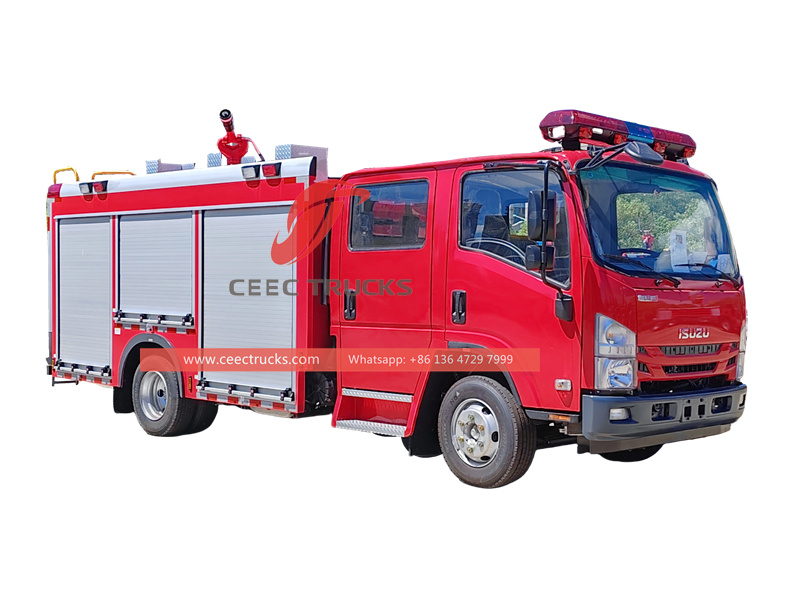

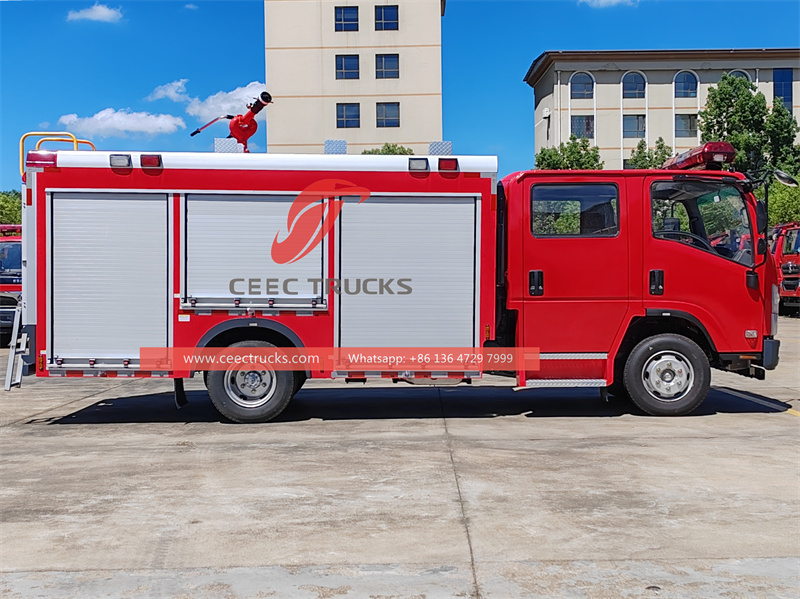

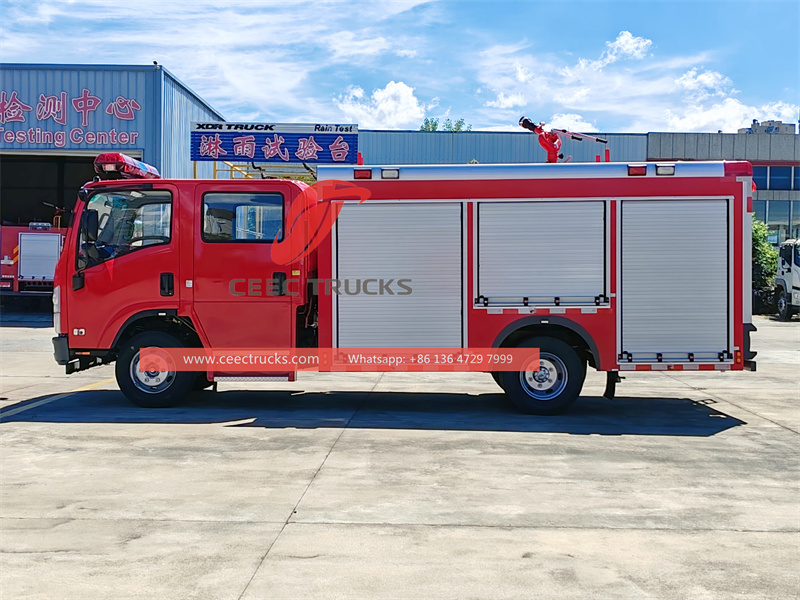

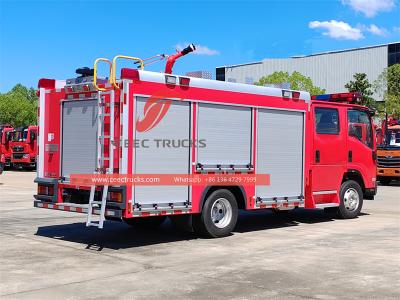

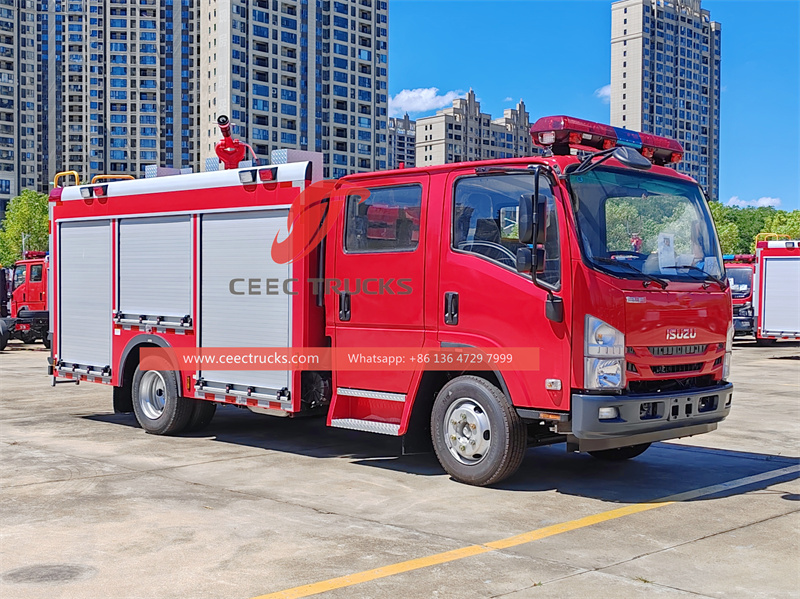

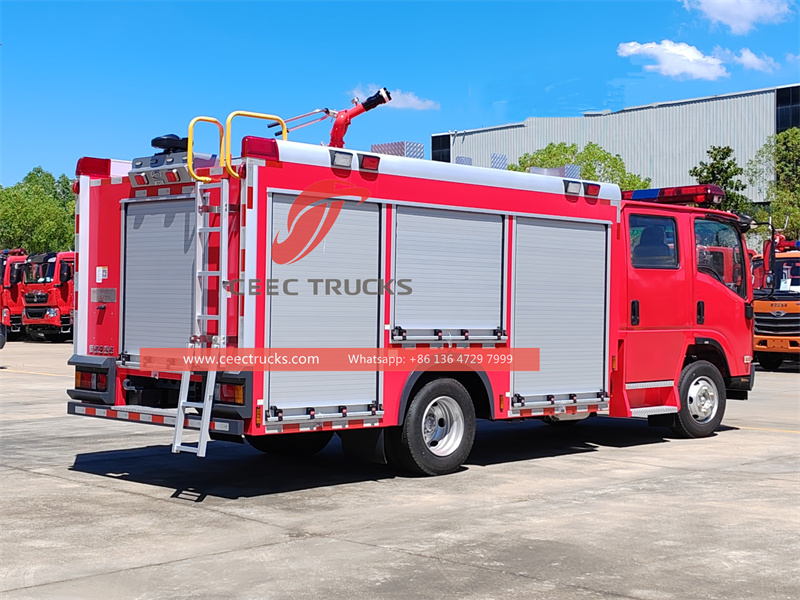

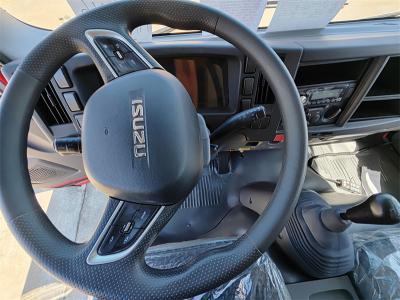

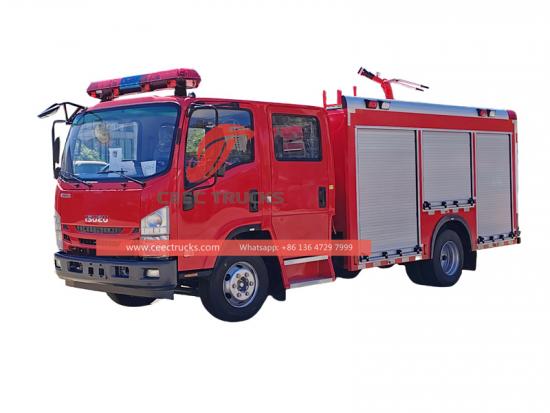

The fire fighting truck is built on the sturdy and lightweight ISUZU NPR double cabin chassis. It combines excellent power and environmentally friendly emissions, and can challenge all kinds of difficult roads. It is equipped with a 3000-liter large-capacity water tank and a professional fire pump, with a long spray distance and optional control panel language. It also provides a variety of optional firefighting configurations to meet different needs. The Isuzu NPR double cabin fire fighting truck's classic ELF double-row cab provides enough space and a comfortable environment. The CEEC factory focuses on building a high-quality main frame to load firefighting equipment and maintain good driving performance. The cab can accommodate 5 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions.

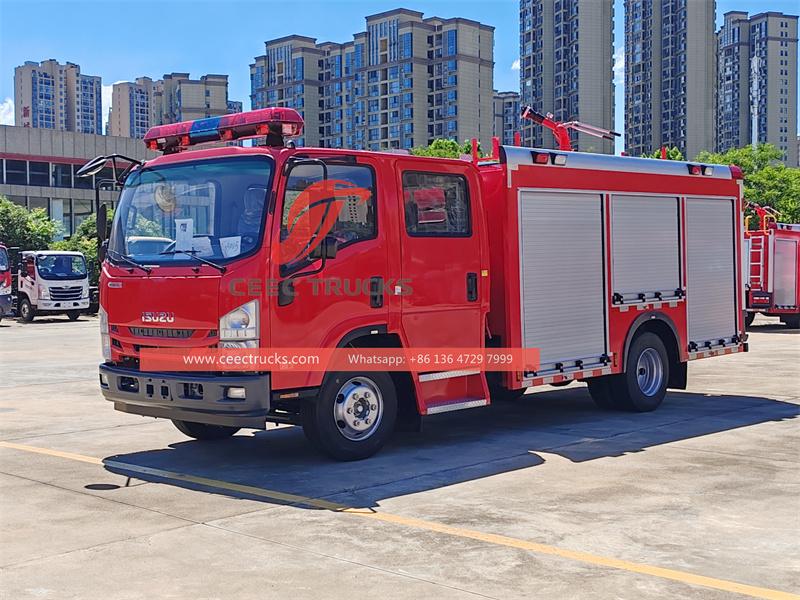

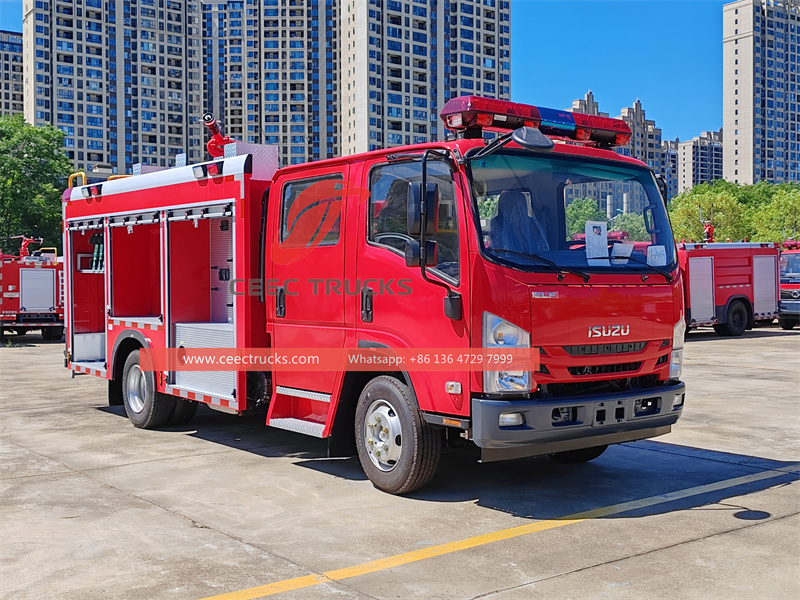

*ISUZU NPR 190HP fire fighting truck

ISUZU ELF 190HP double cabin fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: ISUZU NPR truck chassis, 4x2,4X4 model

                              4HK1 model with 190HP and emission 5199cc

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

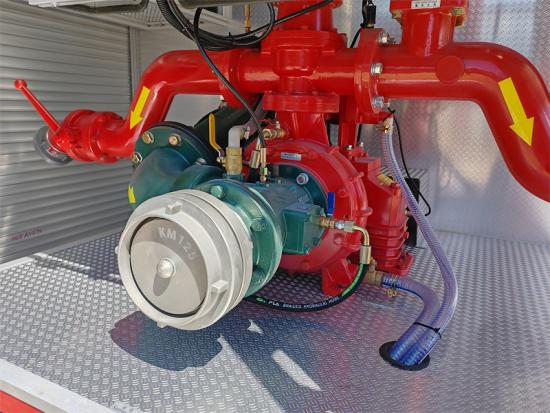

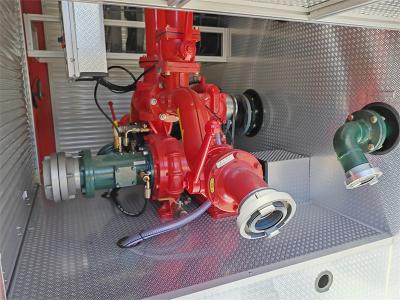

4. Fire Pump: CB10/30 centrifugal fire pump, flow rate 30L/s, working distance over 60m
                        Optional CB10/40,  also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Isuzu NPR 5tons service boom truck





Isuzu NPR double cabin fire water truck
General	Vehicle Brand	Powerstar TRUCKS
	Chassis Model	Isuzu NPR
	Overall Dimension	7300 * 2350 * 3150 mm
	GVW / Kerb Weight	10,055kg / 5,300kg

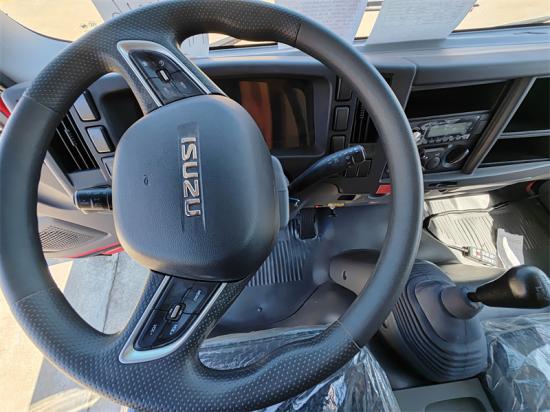

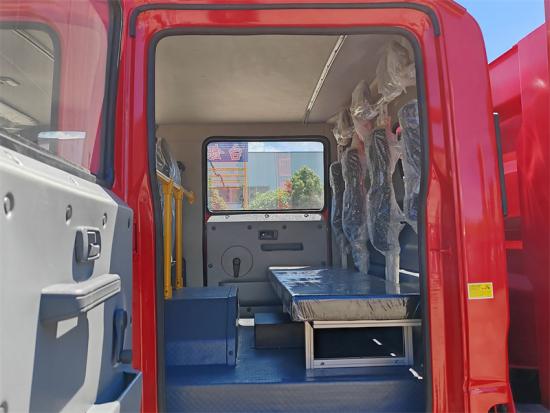

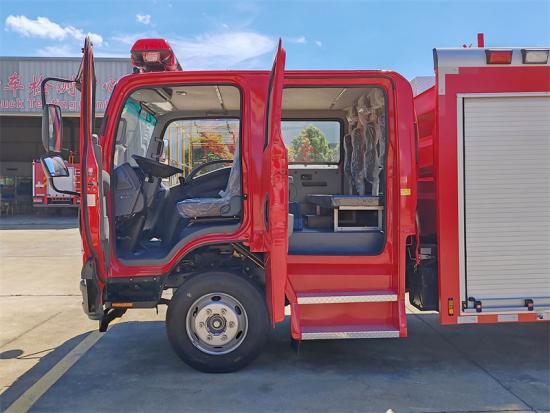

Cab	Cab Capacity	3 persons allowed
	Air Conditioner	Heating/cooling air conditioner
Engine	Fuel Type	Diesel
	Engine Brand	ISUZU
	Model	4HK1
	Power	190 HP (139 KW)
	Displacement	5197 ml
	Emission Standard	Euro 6
Chassis	Drive Type	4X2 (left or right hand drive)
	Transmission	6-speed levers with 1 reverse
	Wheelbase/No. of axle	4175 mm / 2
	Tire Specification	235/75R17.5
	Tire Number	6 tires and 1 spare tire
	Max Speed	90 km/h
	Paint	Metallic paint

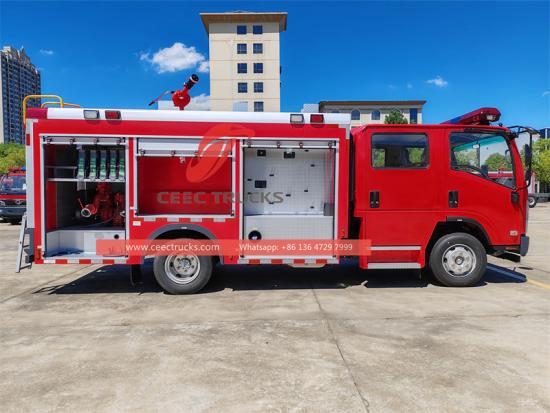

Superstructure	Tank Capacity	3,000 L Water tank
		1,000L Foam tank
	Tanker Material	Stainless Steel

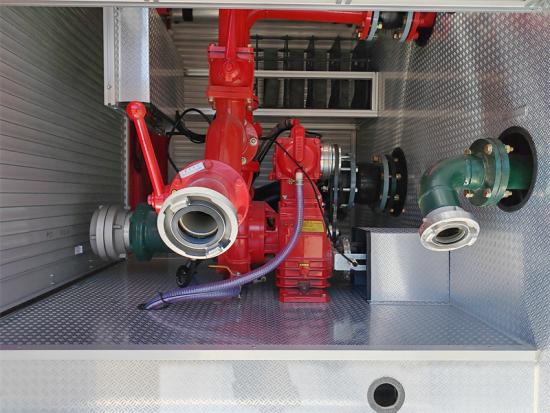

	Fire pump	CB10/30, 30L/S
	Fire pump location	Center or rear
	Fire monitor	Water jet distance: ≥55m / Foam jet distance: ≥40m

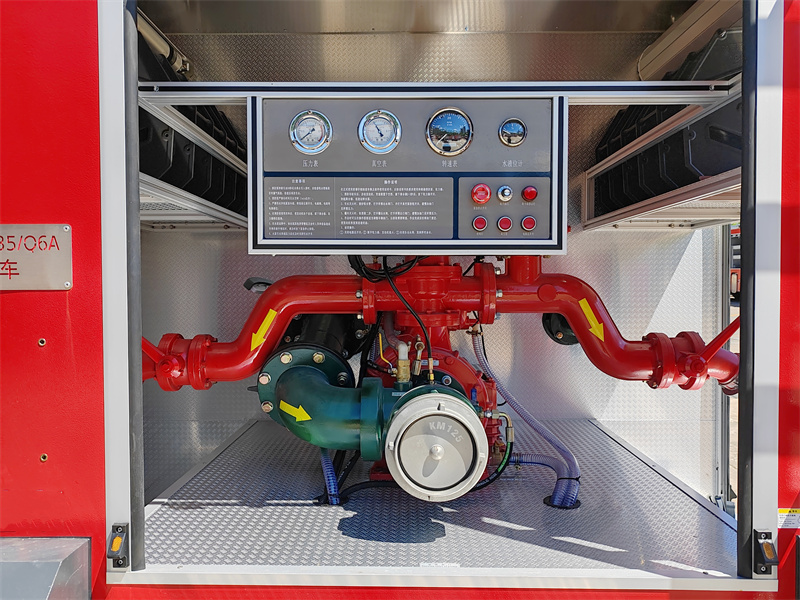

	Control panel	English or Your language
	All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual……
Optional	** Back alarm and Camera can be equipped.  ** Standard carbon steel, stainless steel optional.  ** USA or Germany fire pump can be optional







-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.Product Details & Advantages:



1. Exquisite manufacturing process of Isuzu chassis

High-precision welding and reinforcement: Robot welding technology is used to reinforce the key load-bearing parts of the Isuzu NPR double cabin chassis (such as beams and suspension brackets) in multiple layers to ensure torsional strength and durability under rugged road conditions.

Anti-corrosion treatment: The chassis is electrophoretically coated + multi-layer anti-rust sprayed, and has passed the salt spray test to cope with the corrosive environment where fire trucks are frequently exposed to water and chemical agents.





2. Integration of special upper structure and functional components

Material selection: Use high-quality stainless steel or high-strength composite materials, with antibacterial coating on the inner wall and anti-collision frame on the outer wall.

Dynamic stability design: The center of gravity distribution under full load should be simulated during installation, and the hydraulic damping bracket should be combined to reduce the impact of water sway during driving on the control of the ISUZU ELF 190HP fire fighting truck.

High-pressure pipeline integration: Use aviation-grade aluminum alloy pipelines, laser welding of interfaces to ensure sealing, and the pump pressure must pass the ISO 9001 certified test bench for 72 hours of continuous full-load testing.

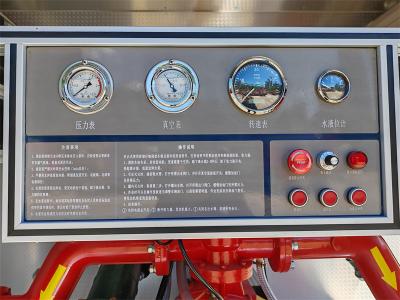

Intelligent control integration: The control panel of CEEC factory must support multi-language real-time switching, and the electrical circuit adopts a redundant design and has an IP67 waterproof rating.



3. Flexible manufacturing system for customized production

Modular production line design: Adopt AGV logistics + digital assembly system, support rapid switching of water tank capacity (3000L), pump type (medium pressure/high pressure), cloud control platform and other configurations.

Full life cycle test: Each Isuzu off-road fire truck needs to complete a 3,000-kilometer comprehensive road test (including 40% off-road sections), simulated fire scene high-temperature spray test.



4. Intelligent and data traceability management

Digital process control: Key components (such as pumps, valves, and sensors) are implanted with RFID chips to achieve full-cycle data traceability from production to service to maintenance. The AR-assisted assembly system is used to ensure zero-error installation of complex pipelines.

Remote operation and maintenance support: Pre-installed Internet of Vehicles terminals monitor vehicle status in real time and provide fault warnings, and support OTA upgrades of fire pump control algorithms.





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Key points of periodic maintenance：





• Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).





• Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).





• Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
