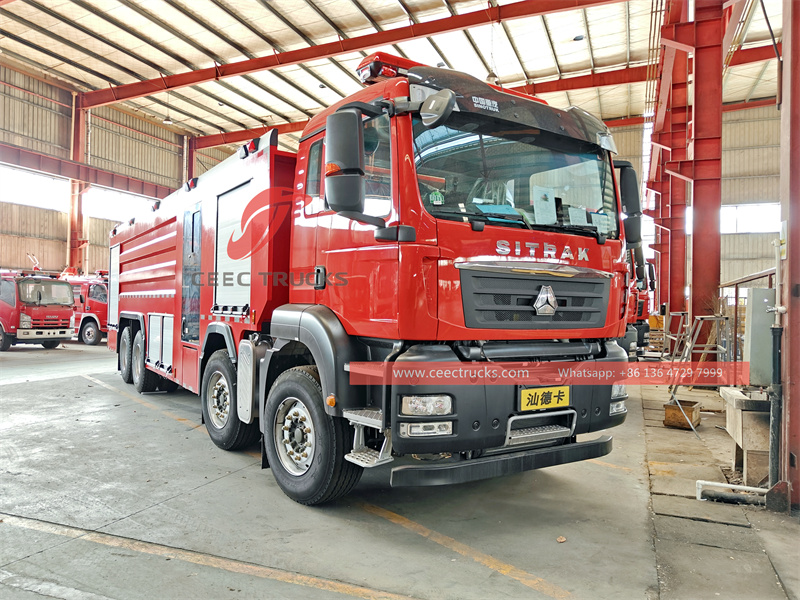

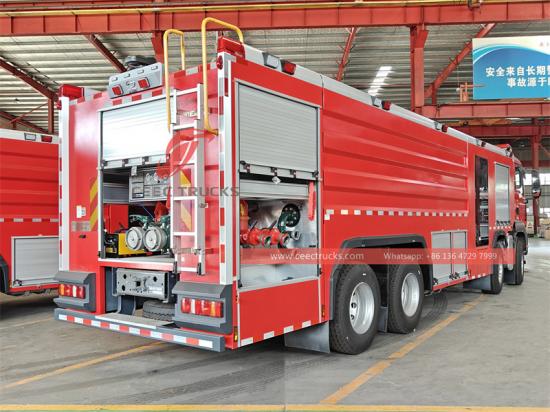

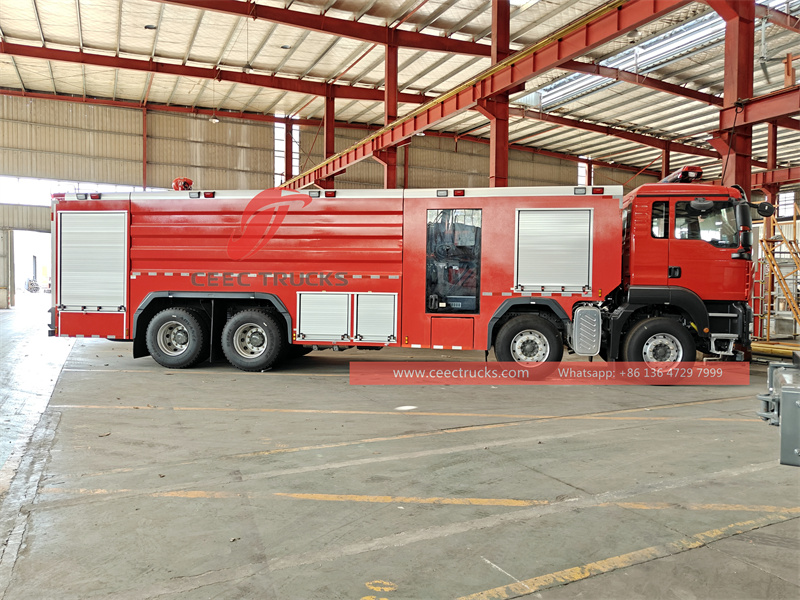

The fire rescue special truck is built on the sturdy Howo 8x4 heavy-duty chassis. It combines a powerful 540HP engine and can carry a large fire extinguishing capacity to challenge various difficult roads and achieve the purpose of efficient emergency rescue. The Howo 8x4 fire truck is equipped with a 6000L large-capacity water tank, a 2000L foam tank and a professional remote-controlled electronic fire cannon, which can spray far away up to 65-85m. The control panel language is optional and easy to operate. At the same time, a variety of optional configurations are provided to meet different needs. This Howo heavy-duty fire rescue truck provides solid protection for fire safety and demonstrates excellent performance and flexibility. The single cabin and firefighter cabin provides enough space and quality to load firefighting equipment and maintain good driving performance. The fire truck can accommodate 6 firefighters and is equipped with air conditioning to ensure that the driver can stay comfortable in any weather conditions.

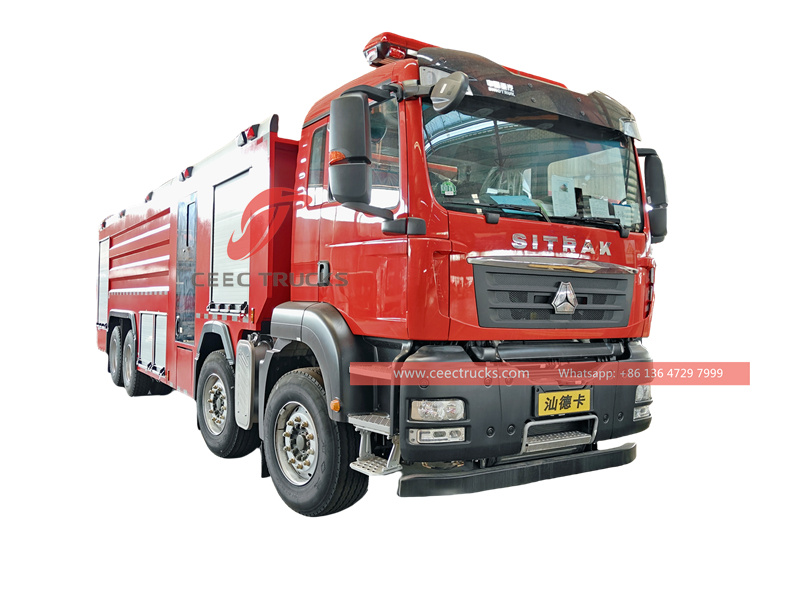

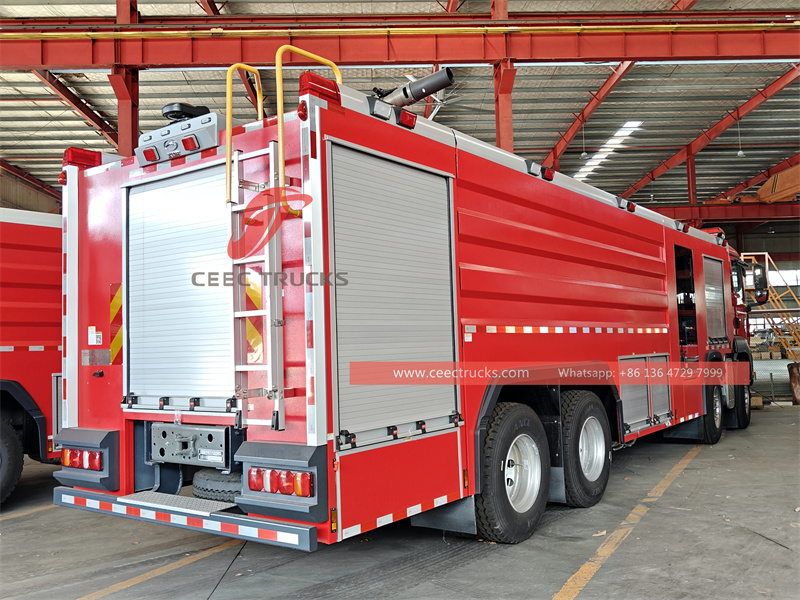

*Howo 540HP fire fighting truck

Howo 8x4 heavy-duty fire rescue Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC TRUCKS INDUSTRY CO., LIMITED.

Features:

1. Truck Chassis: Sinotruk Howo truck chassis, 8X4 model

                              MC13.54-50 model with 540HP and Euro 5

2. Tank material: 4-6mm thick stainless steel for prolonged service lier
                            carbon steel, aluminum alloy or PP material can be choose

3. Tanker body: Customized for Water + Foam + Dry Powder fire agent

4. Fire Pump: CB10/60 centrifugal fire pump, flow rate 60L/s, working distance over 65m
                        Optional CB10/80, CB10/100 also available Darley fire pump

5. Special design: Super designed working temperature -41℃ to +48℃ day and night, with efficiently working height over 5000m

                                Optional equipped CAFS foam system and Dry Powder system

                                Full sets fire fighting rescue equipped for convenient working, fire extinguishing and people rescue











Firefighting truck also know as fire engine, fire pumper, tanker fire truck, fire water truck, fire fighting tanker, water tank fire truck, foam tank fire truck, dry powder fire truck, fire appliance, fire fighting engine, fire-extinguishing water truck, water tender, foam tender, fire service truck, fire hydrant, which is an emergency rescue vehicle designed primarily for fire fighting, also to extinguish fire efficiently to prevent fire spread, and rescue people in emergency.



» Ⅱ.Product Parameter for Howo 8x4 fire fighting truck





Product Name	Howo 8x4 water fire truck
Vehicle Model	CEEC52803DXF
Main specifications	Manufactory	CEEC
	Overall dimension(L*W*H)	11600×2550×3360mm
	GVW	28000Kg
	Curb weight	13500Kg

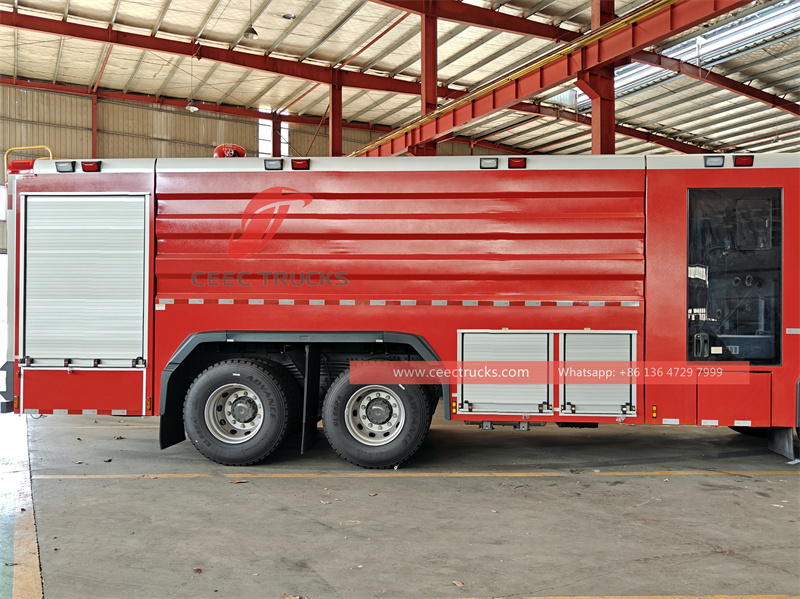

	Water tank volume	6,000 liters
	Foam tank volume	2,000 liters
	Cabin	Single cabin, 2seats,with Air conditioner, electronic windows, USB

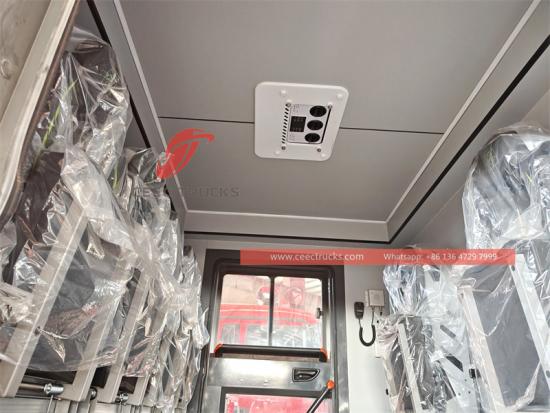

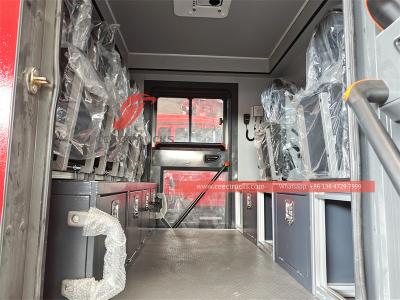

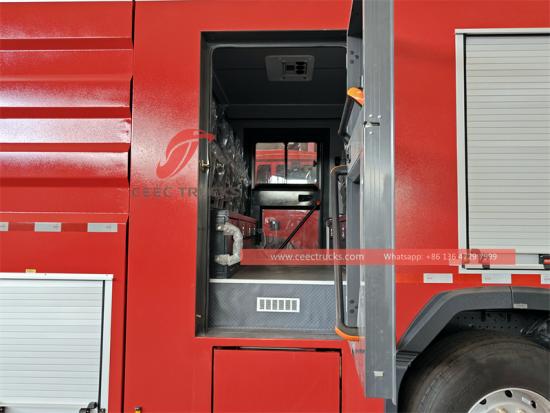

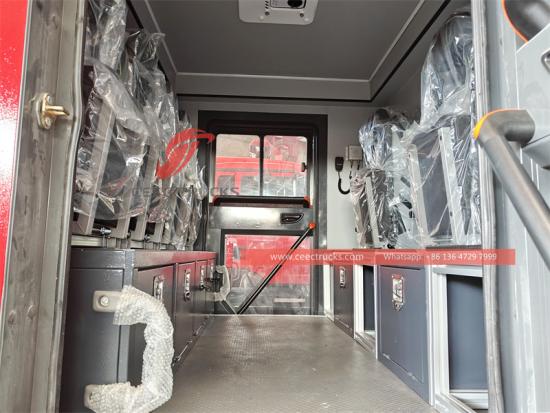

	Firefighter cabin	6 seats, with A/C
	Wheel base	1650+4600+1370 mm
	Driving type	8*4
	Chassis model	Howo
	Transmission	Fast 12-speed forward, 2 reverse
	Number of axles	3
	Tire specification	12.00R20
	Number of Tires	12 pcs with 1 spare tire
	Passengers in cab	3+3
Engine	Engine model	MC13.54-50
	Type of fuel	Diesel
	Displacement/power	13L / 540 HP
	Maximum torque	1900N·m
	Max speed	95 Km/h
	Emission standard(TAS)	EURO 5
Fire performance	Fire pump	China Top brand
		Model: CB10/80
		Low-pressure:80L/S
		Medium-pressure:80L/S
		China top brand

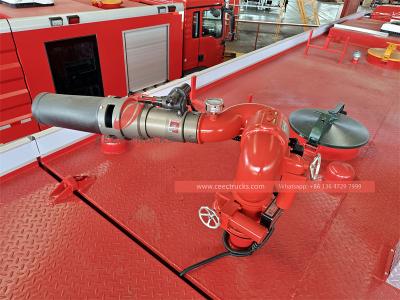

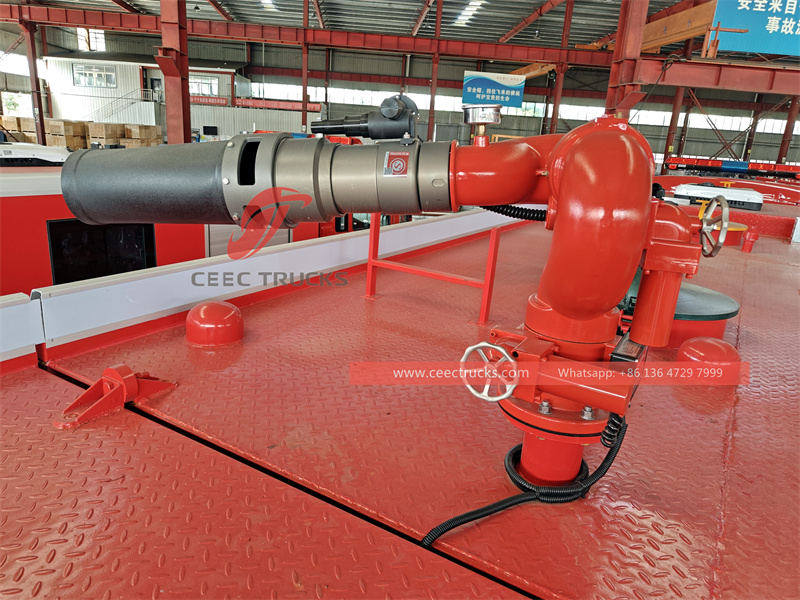

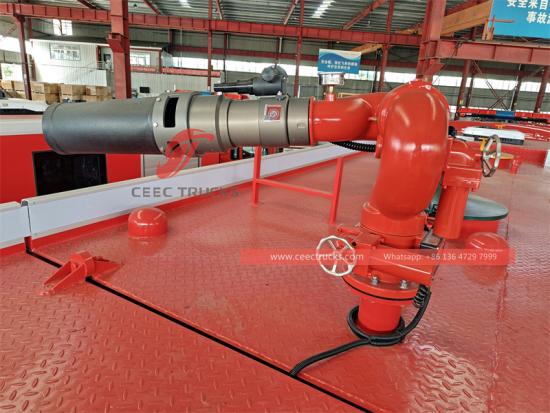

	Electric Fire monitor	Model:WST-DKP80X
		Working pressure: 1.2MPa
		Flow:80L/S
		Water jet distance:≥75m
		Rotation angle: 360° horizontally, -45° to 70° in pitch
		Control distance: ≤30m

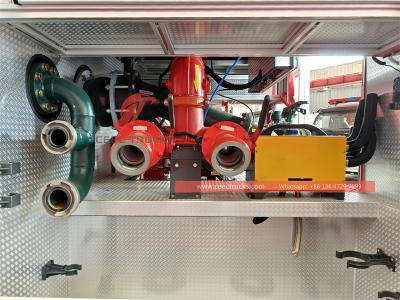

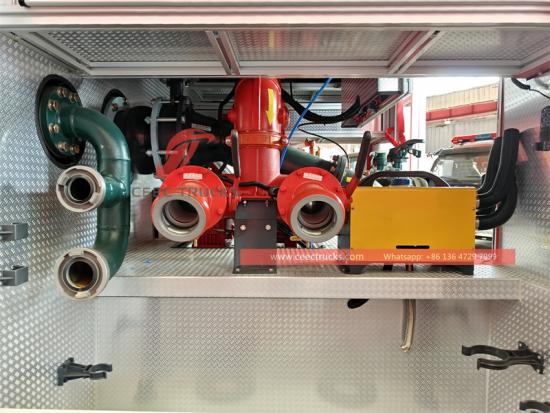

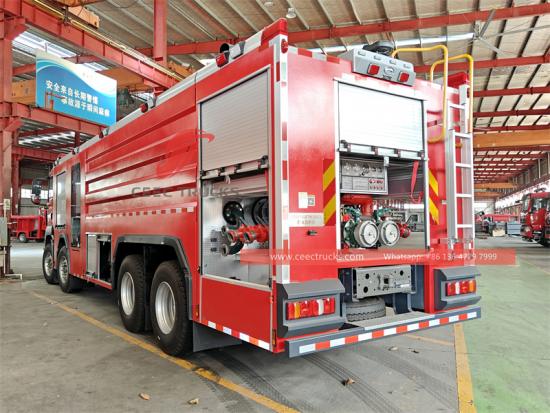

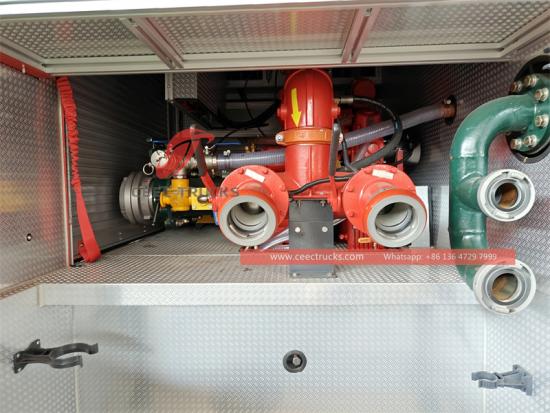

	Fire pump Inlet	1 unit, diameter: 100mm
	Fire pump Outlet	2 units, diameter: 65mm 2 units,diameter: 85mm

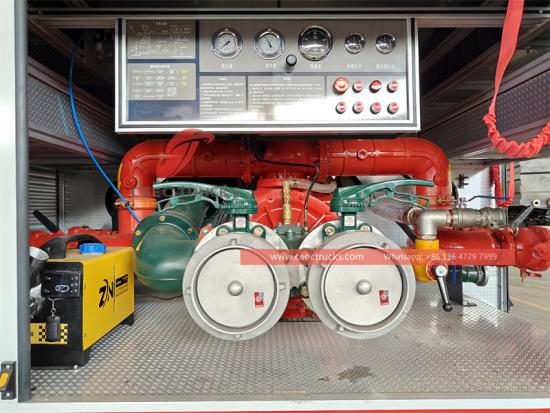

	Standard configurations	Water pump operation panel in English, fender should be black, with alarm light, detachable ladder, body rear equipment box under the direction of the upward tilt of about 45 degrees, all interfaces of the vehicle and accessories are British, with a 30m roll of black high-pressure hose







-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Fire Pump: Based on tanker body and jetting distance, optional American Darley brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.Advantage Howo fire truck with smart fire cannon?





1. Maximize personnel safety

Stay away from dangerous areas: Operators do not need to be close to high temperatures, toxic fumes, explosion risks (such as chemical plants, gas leaks), collapse risks (building fires) or wildfire spread fronts. Precise firefighting can be carried out at a safe distance (hundreds of meters or even kilometers away).

Withstand extreme environments: The fire monitor itself can be designed to withstand high temperatures, high-pressure water backwash and harsh environments, replacing firefighters exposed to fatal risks.

Reduce casualties: This is the most fundamental advantage, especially in the face of sudden explosions, flashovers, boiling splashes or building collapses, it can protect the lives of firefighters to the greatest extent.



2. Significantly improve firefighting efficiency and coverage

Quick deployment and response: After the fire truck is in place, the long-range gun can be quickly raised, rotated, aimed and started to spray, which is much faster than setting up traditional water guns or laying water hoses, especially at high altitudes or inaccessible areas.

Ultra-long range and high flow rate: Modern long-range guns have a range of more than 100 meters and a huge flow rate (thousands or even tens of thousands of liters/minute), which can quickly suppress large-scale fires, cool key structures or protect unburned areas.

High-altitude operation capability: It can easily accurately hit the water flow/foam to the middle and upper parts of high-rise buildings, making up for the limitations of the height and deployment speed of the ladder truck.

Wide coverage: Large-angle horizontal rotation and high and low pitch capabilities can quickly scan and cover wide areas (such as warehouses, factories, and forest edges).





Products--100% Customized Level One!

Transportation--100% Safety, Convenience, Efficient!

Services--7days + 24hours Safetify Service!



● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sale service



CEEC factory also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.



» Ⅳ.Key points of periodic maintenance：





• Power system maintenance: Maintenance is carried out every 500 hours of use, including diesel filter replacement (with oil-water separation function), EGR valve carbon deposit cleaning (ultrasonic cleaning), and turbocharger axial clearance detection (standard value 0.03-0.08mm).





• Water system maintenance: Every quarter, the inside of the tank is cleaned under high pressure (≥10MPa), the check valve is tested for sealing (leakage rate <0.1L/min), and the pipeline is pulse tested (maintained at 1.5 times the working pressure).





• Structural parts inspection: Every six months, the frame welds are inspected by magnetic particle inspection (with a focus on the rear suspension connection), the leaf spring U-bolts are torqued back (standard torque ±5%), and the drive shaft universal joint clearance is measured (angular clearance <15°).
