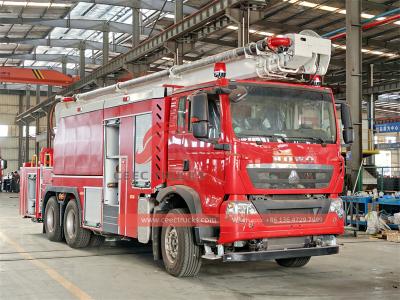

Howo fire truck with 32m extendable turret

Howo 6x4 high-lift fire fighting truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly.

Product Origin:
China CEEC Trucks
Work capacity:
8000L
Dimension ( mm ):
10500 × 2540 × 3820
Wheelbase ( mm ):
4600+1370
Engine power:
340HP
Engine type:
WP.10.340
Axle drive:
6X4,LHD
Gear box:
FAST 12-speed,manual
Remarks:
8000L stainless water tank,32m high reach extendable turret

Inquiry now

Howo 6x4 high reach fire fighting truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly. The slewing part is equipped with a central slewing joint that can achieve an infinite 360-degree slewing angle. The howo fire truck with high reach extendable turret has the large-flow fire pump and fire cannon. The water tank and waterway are all made of high-quality stainless steel and high-strength aluminum alloy pipes. The hydraulic system adopts a high-performance pump and an electric-liquid proportional control mode. The electrical system adopts a mature and reliable controller CAN bus communication technology, and multi-point centralized operation.

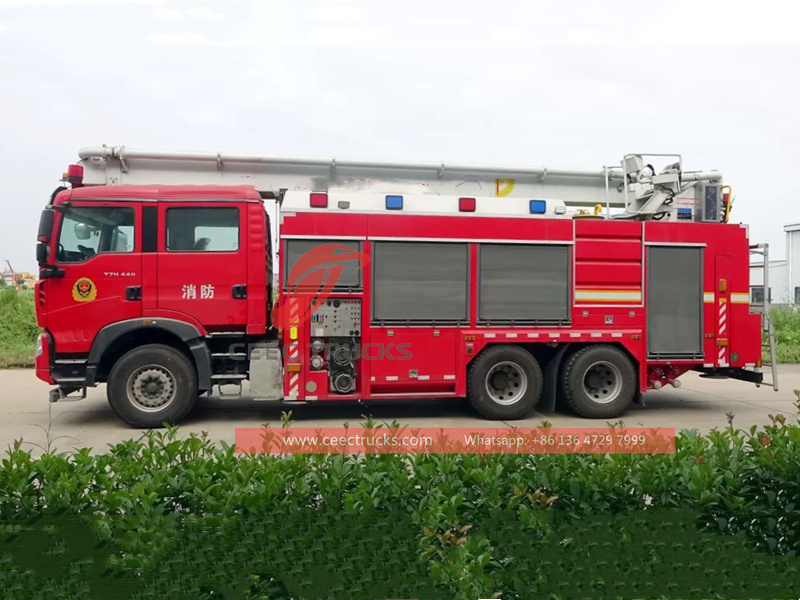

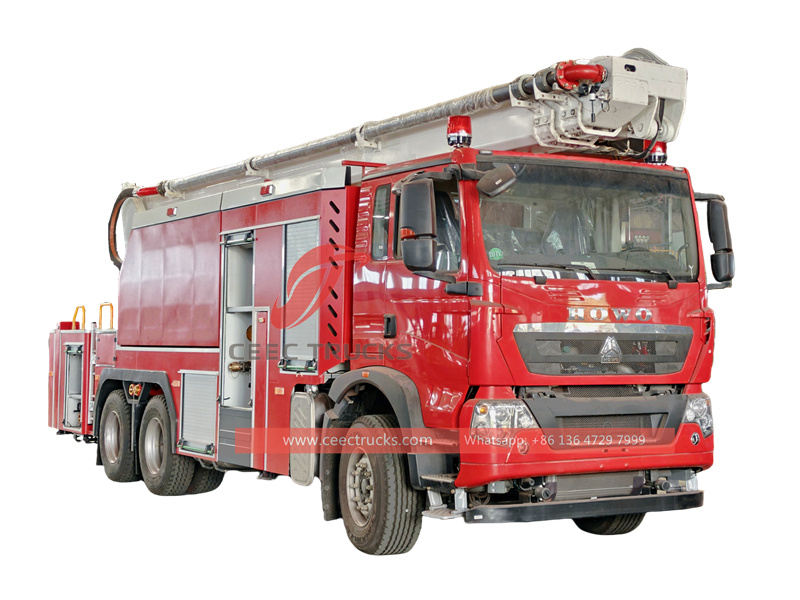

Howo water & foam with mounted high reach extendable turret

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

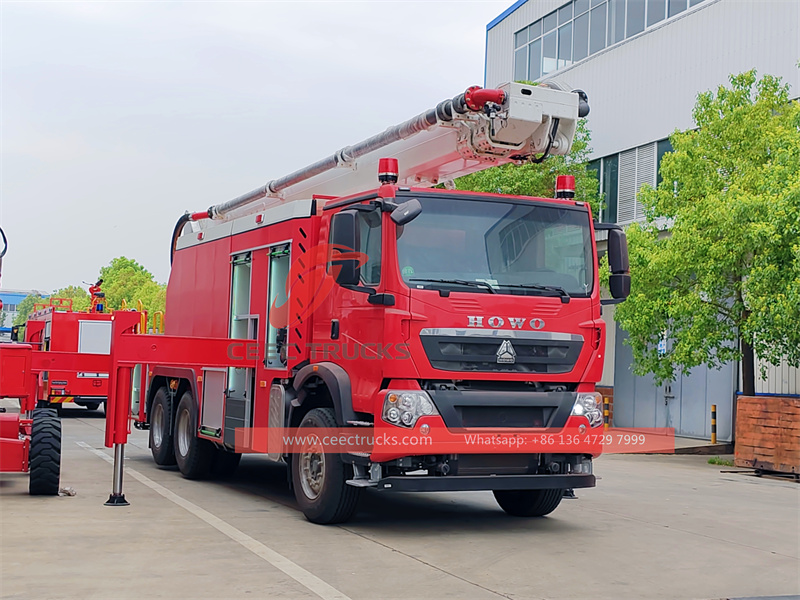

Howo water & foam with mounted high reach extendable turret

Item					Unit	Parameters
Driving performance parameters	Overall dimensions (length x width x height)				mm	10500×2540×3820
	Maximum speed				km/h	90
	Minimum turning diameter				m	22
	Maximum climbing ability				％	40
	Braking distance (full load, initial braking speed 30km/h)				m	9
	Approach / departure angle				°	19/ 10
	wheelbase				mm	4,600+1,370
	Number of leaf springs					4/5/5
	Tire specifications					Front wheel385/65R22.5 Rear wheel 315/80R22.5
	Number of tires					10+1
	Number of passengers allowed in the cab					2+4
Quality Parameters	Fire extinguishing agent rating Loading mass		water		kg	8000
	Fire extinguishing agent rating Loading mass		Foam		kg	1000
	Curb Weight		Vehicle		kg	22000
			First Axle		kg	9000
			Second Axle		kg	15000
			Third Axle		kg	15000
Chassis	Brand					Howo
Chassis	Drive System					6x4
Engine	Model					WP.10.340
	Displacement				mL	9839
	Emission Standards					Euro 6
	Brand					Weichai
Working performance	Rated working height				m	20
	Maximum working range				m	8.3
	Fire Pump			Brand		China top brand
				Model		CB10/100-TB
				Limited Data	L/s	100
				Preset Pressure	MPa	1.0
				Water Absorption Depth	m	7
				Water diversion time	s	≤85
	Fire cannon	Water-foam dual-purpose cannon		Brand		China Top Brand
				Model		PLKD8/80
				Limited Data	L/s	80
				preset pressure	MPa	0.8
				Range	m	Water≥75，Foam≥70
		Gun head swing range (relative to the gun body in driving state)		UP & Down		-30°～+70°
				Right & Left		≥340°
	Arm	range		Lower arm (relative to horizontal plane)		0～+80°
	Arm	range		Lower arm relative to upper arm		0～150°
	Boom action time (boom fully extended, amplitude changed to maximum angle, rotation to 90°)				s	＜150
	Outrigger deployment time				s	＜40
	Boom rotation speed				r/min	1～2
	Outrigger span (vertical × horizontal)				mm	5890×2150

Main features:

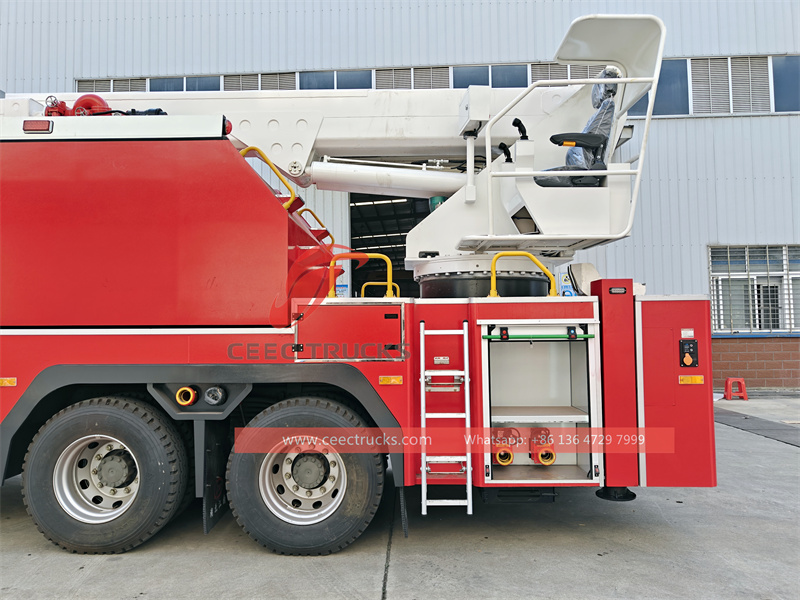

Howo water & foam with mounted high reach extendable turret

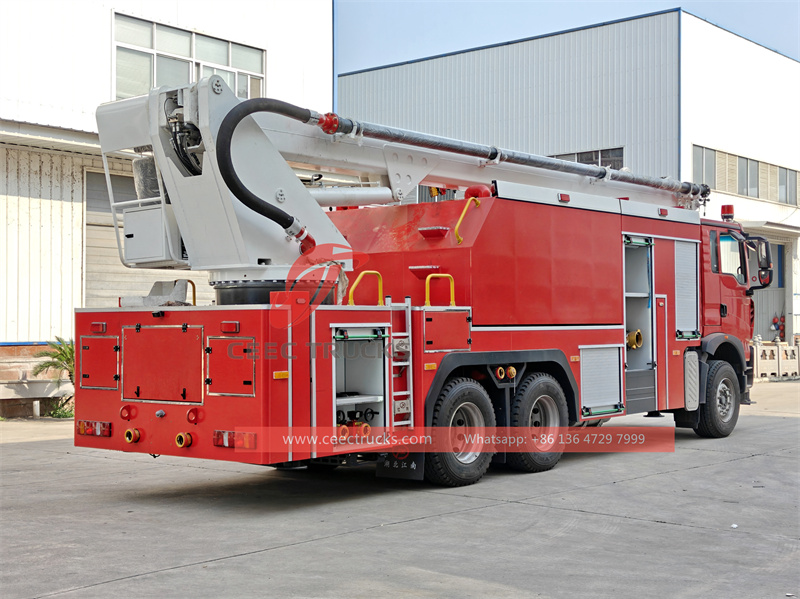

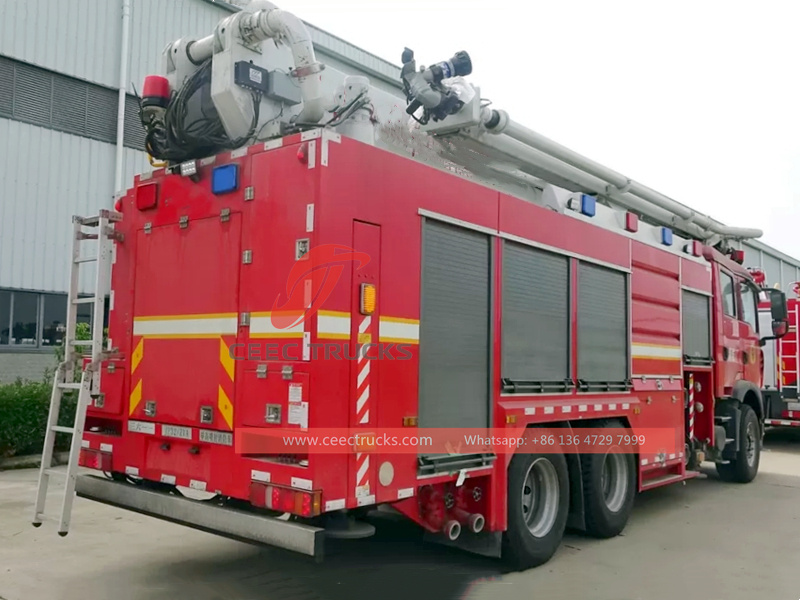

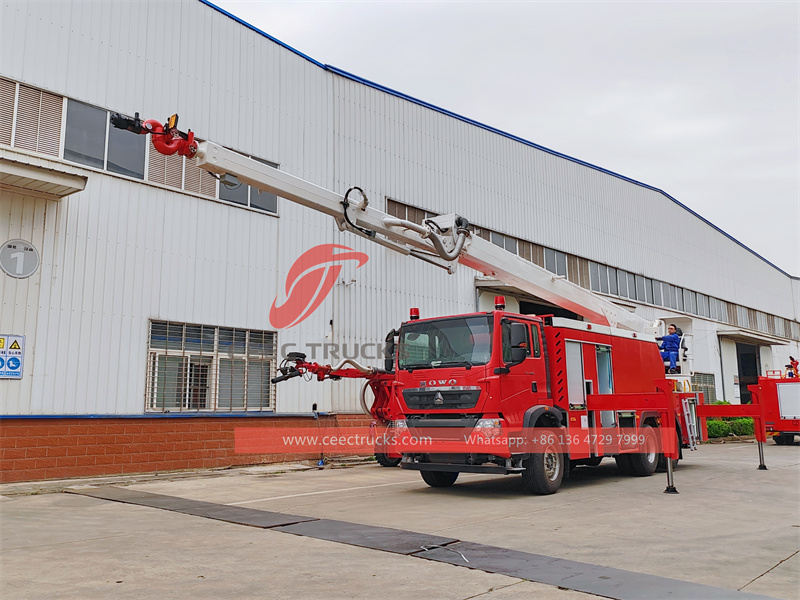

Main features of the Howo 32m high reach fire truck

1.Howo fire truck with high reach extendable turret has the function of high spray fire extinguishing, the outrigger and boom move smoothly and quickly, and can reach the working state faster.

2.The Howo high-lift fire water truck adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, which is stable, reliable and easy to operate.

3.The Howo fire truck adopts a folding arm structure. The lower arm can be lifted within 80°, and the lower arm and upper arm can be lifted within 150°. The cross-section of the boom adopts a quadrilateral box-type structure, which is welded with high-strength steel.

4.The boom rotation has a buffer function, the boom rotation mechanism adopts a worm gear structure, and the hydraulic system is equipped with a buffer valve, which can achieve smooth and reliable starting and braking, and has good micro-motion performance.

Howo fire truck with high reach extendable turret is an important firefighting equipment for high-altitude rescue and firefighting. Safety devices are very important. As a fire truck manufacturer with many years of experience, The Howo high reach fire water truck has the following safety protection functions:

1. It is controlled by electrical system and hydraulic system. When the electrical system fails, the hydraulic control system can ensure the normal use of the boom in a safe area.

2. It has the function of getting on and off the vehicle interlocking. The outriggers are not unfolded and the boom cannot move. The outriggers cannot move when the boom leaves the bracket.

3. It has the function of emergency vehicle retraction. All hydraulic valves are equipped with emergency mechanical operation. The system is equipped with an emergency power unit. When the engine or oil pump fails, it is used to retract the boom and outriggers.

4. It has an auxiliary power device. In the case of normal power loss, the boom can be retracted to the driving state.

5. The vehicle body is anti-collision. When the boom rotates at a small amplitude angle, in order to prevent the boom from colliding with the vehicle body, it automatically stops rotating in the dangerous direction when it rotates to a certain position.

6. Equipment box door is not closed reminder. If the equipment box door is not closed, the sound and light will automatically alarm to prevent accidents during driving.

7. Automatic charging device is installed for the self-discharge of the battery system of the howo high-lift fire truck that has been parked for a long time, so that it can still perform tasks in an emergency.

Electronic and hydraulic operating system:

Howo high-lift fire water truck has two operating points, one at the rear of the vehicle and the other for plugging in wired remote control. The rear of the fire truck is mainly used for leg deployment and retraction operations, engine start/stop, throttle increase/decrease, water pump start/stop, foam system, water pump speed, water line pressure, hydraulic pressure, water tank water level, foam tank liquid level, water flow, foam ratio, water usage, foam usage and other operations.

Wired remote control operation is mainly used for the control of the vehicle boom. The three operating modes of the Howo fire fighting truck ensure the reliability of operation under various working conditions.

Electronic control operation

Under normal circumstances, all actions of the Howo high-lift fire water truck are realized by operating the electronic control handle to ensure the safety and reliability of the boom operation.
Hydraulic control operation

When the electronic control system of the Howo high reach fire water truck fails, the hydraulic handle can be directly operated to ensure the normal function of the fire truck in the safe area.
Emergency standby power unit operation

The gasoline engine drives the gear pump structure to ensure the reliability of the Howo 32m high-lift fire water truck under various fault conditions.

★ Euro 3 type, Weichai engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized Howo fire trucks exporter

★ Easy operation and easy maintenance

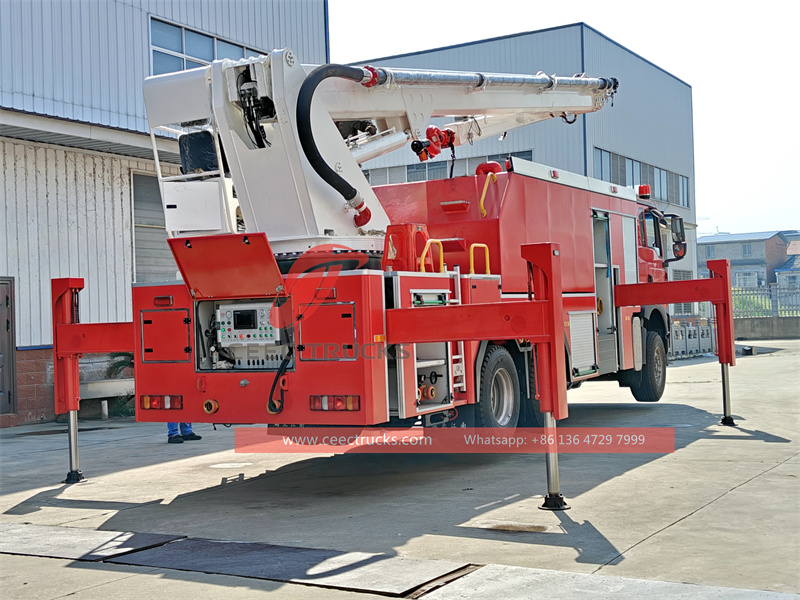

Howo water & foam with mounted high reach extendable turret

CEEC TRUCKS is a leading exporter of fire fighting truck in China. We possess over 10-year export experience of fire engine. We can ensure the fast delivery time and 12 months guarantee for our fire trucks. Our fire vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
