High lift fire truck made by Howo 6x4 chassis

Howo high reach fire truck with 20m jet power

Product Origin:
China CEEC Trucks
Work capacity:
8000L
Dimension ( mm ):
10500 × 2540 × 3820
Wheelbase ( mm ):
4600+1370
Engine power:
340HP
Engine type:
WP.10.340
Axle drive:
6X4,LHD
Gear box:
FAST 12-speed,manual
Remarks:
8000L stainless water tank

Inquiry now

Howo 6x4 high-lift fire fighting truck has compact structure, small size, large operational adjustability, flexible operation, and high and low altitude rescue and fire extinguishing functions. It adopts Howo heavy-duty 6x4 chassis with strong power and advanced configuration. The PTO is the original power take-off of the chassis, which has the best power matching. The subframe adopts a large-section box-shaped structure with good torsion resistance, the outrigger adopts a short-span H-shaped structure, and the arm adopts a folding arm combination, which moves quickly and smoothly. The slewing part is equipped with a central slewing joint that can achieve an infinite 360-degree slewing angle. The Howo fire truck is equipped with a large-flow fire pump and fire cannon. The water tank and waterway are all made of high-quality stainless steel and high-strength aluminum alloy pipes. The hydraulic system adopts a high-performance pump and an electric-liquid proportional control mode. The electrical system adopts a mature and reliable controller CAN bus communication technology, and multi-point centralized operation.

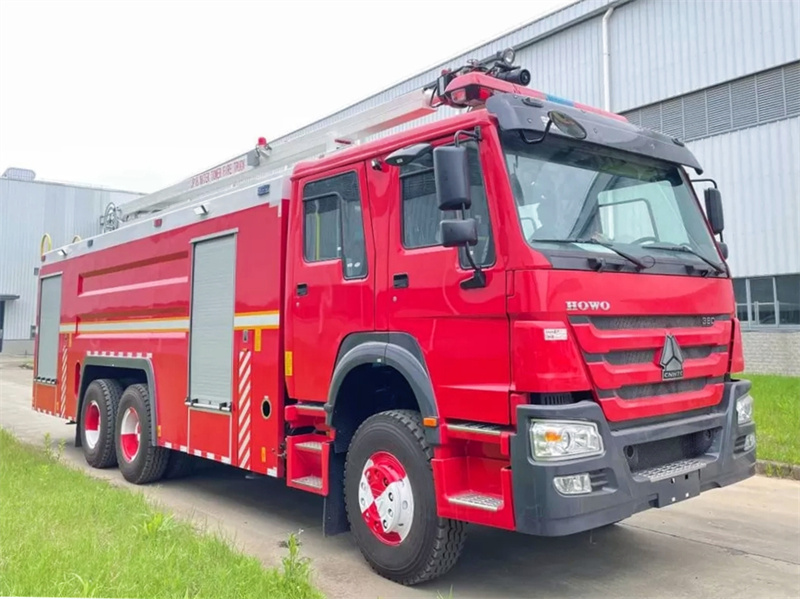

Howo water & foam with mounted high reach extendable turret

● China best fire fighting truck factory
● More than 30 years professional manufacturer experience
● Be designed according to your requirements
● Professional sales team which will help you to choose suitable truck
● We can offer your a good after-sell service

Specification:

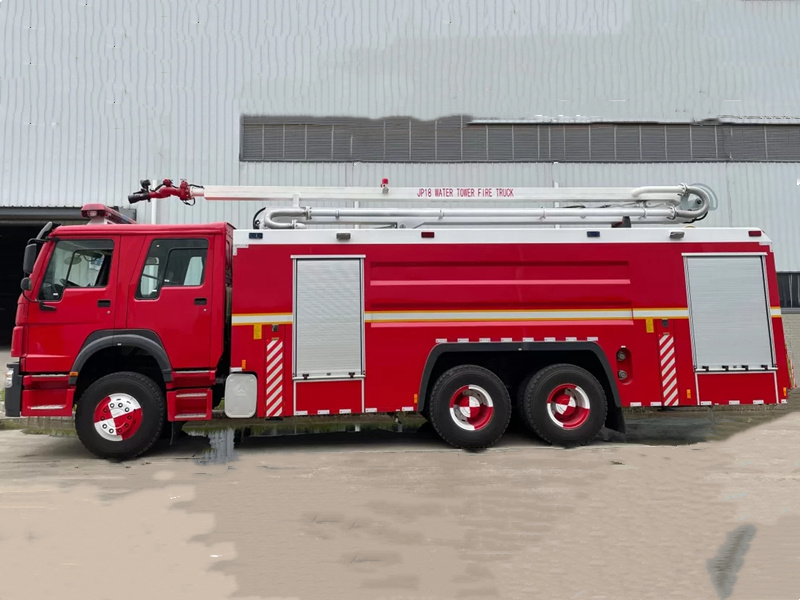

Howo water & foam with mounted high reach extendable turret

Item					Unit	Parameters
Driving performance parameters	Overall dimensions (length x width x height)				mm	10500×2540×3820
	Maximum speed				km/h	90
	Minimum turning diameter				m	22
	Maximum climbing ability				％	40
	Braking distance (full load, initial braking speed 30km/h)				m	9
	Approach / departure angle				°	19/ 10
	wheelbase				mm	4,600+1,370
	Number of leaf springs					4/5/5
	Tire specifications					Front wheel385/65R22.5 Rear wheel 315/80R22.5
	Number of tires					10+1
	Number of passengers allowed in the cab					2+4
Quality Parameters	Fire extinguishing agent rating Loading mass		water		kg	8000
	Fire extinguishing agent rating Loading mass		Foam		kg	1000
	Curb Weight		Vehicle		kg	22000
			First Axle		kg	9000
			Second Axle		kg	15000
			Third Axle		kg	15000
Chassis	Brand					Howo
Chassis	Drive System					6x4
Engine	Model					WP.10.340
	Displacement				mL	9839
	Emission Standards					Euro 6
	Brand					Weichai
Working performance	Rated working height				m	20
	Maximum working range				m	8.3
	Fire Pump			Brand		China top brand
				Model		CB10/100-TB
				Limited Data	L/s	100
				Preset Pressure	MPa	1.0
				Water Absorption Depth	m	7
				Water diversion time	s	≤85
	Fire cannon	Water-foam dual-purpose cannon		Brand		China Top Brand
				Model		PLKD8/80
				Limited Data	L/s	80
				preset pressure	MPa	0.8
				Range	m	Water≥75，Foam≥70
		Gun head swing range (relative to the gun body in driving state)		UP & Down		-30°～+70°
				Right & Left		≥340°
	Arm	range		Lower arm (relative to horizontal plane)		0～+80°
	Arm	range		Lower arm relative to upper arm		0～150°
	Boom action time (boom fully extended, amplitude changed to maximum angle, rotation to 90°)				s	＜150
	Outrigger deployment time				s	＜40
	Boom rotation speed				r/min	1～2
	Outrigger span (vertical × horizontal)				mm	5890×2150

Main features:

1) Howo water & foam with mounted high reach extendable turret has the function of high spray fire extinguishing, the outrigger and boom movement speed is stable and fast, and can reach the working state faster.

2) The design technology of this truck is advanced, the quality is safe and reliable, and the main technical performance parameters have reached the leading level of similar domestic products.

3) The whole machine adopts high-performance electro-hydraulic proportional control technology and hydraulic transmission, which is stable, reliable and easy to operate.

4) It adopts a folding arm structure. The lower arm can be lifted within 80°, and the lower arm and upper arm can be lifted within 150°. The cross-section of the arm adopts a quadrilateral box-type structure and is welded with high-strength steel.

5) The arm rotation has a buffer function, the arm rotation mechanism adopts a worm gear structure, and the hydraulic system is equipped with a buffer valve, which can achieve smooth and reliable starting and braking, and has good micro-motion performance.

Functions and features of main components

Boom structure

The boom is welded from high-strength alloy steel. The boom consists of a lower boom and an upper boom. The lifting is driven by a hydraulic cylinder. The maximum operating range is 8.3 meters, 360-degree continuous rotation, the maximum working height is 20 meters, and the boom action time is <40S; the lower boom can be lifted at any angle between 0° and 80°. The lower and upper booms can be lifted at any angle between 0° and 150°.
Turntable structure

The slewing mechanism is completed by a hydraulic motor driving a worm gear, which makes the rotation smooth and self-locking; the luffing mechanism is realized by an optimized combination of the luffing hydraulic cylinder, the luffing balance valve and the two-way hydraulic lock, and its characteristics are good luffing synchronization and strong safety.
Center rotation body

The central rotating body is used to realize the connection of hydraulic pressure, electric circuit and water circuit for getting on and off the vehicle, so as to avoid the damage of hydraulic pipeline, electric circuit and water circuit caused by the rotation of turntable and arm.

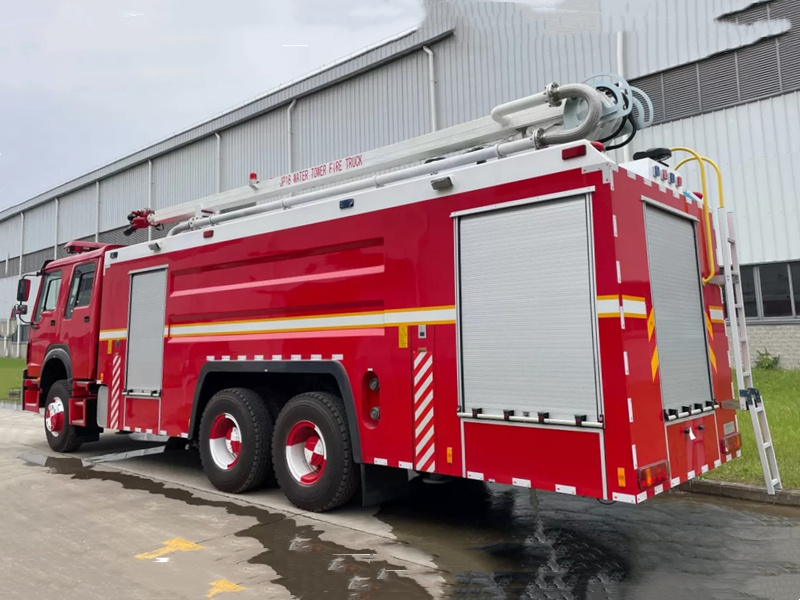

Howo water & foam with mounted high reach extendable turret

Electric remote control fire cannon

The fire cannon is manufactured by a well-known Chinese brand and uses a manual fire cannon for both water and foam.

1) Model: PLKD8/80.

2) Material: The cannon head is made of aluminum alloy and the cannon body is cast iron.

3) Fire cannon flow rate: 0-4800L/min; rated pressure ≤1.0MPa.

4) Range: water range ≥75 meters, foam range ≥70 meters;

5) Rotation angle: horizontal rotation angle 0 degrees ~ 340 degrees, elevation angle -30 degrees ~ +70 degrees;
Fire Pump System

The fire pump is produced and provided by a well-known Chinese brand, model CB10/100-TB, displacement 6000 liters per minute; water absorption depth greater than 7 meters; water diversion time less than 50 seconds; equipped with a computer automatic voltage stabilizing device with advanced technical performance. Automatic foam proportion mixer: mixing ratio 1%~10%.
Water system

The pipeline of the fire protection system is stainless steel pipeline + aluminum alloy pipeline. The water pipe reaches the upper vehicle through the central rotating body, which can meet the needs of water supply or foam. There is an electric remote-controlled water cannon at the upper arm head, which can change the water flow form (straight and water splash), and can spray water or foam. There is a water inlet at the bottom of the vehicle to meet the large flow fire extinguishing requirements of high-rise buildings.

Howo water & foam with mounted high reach extendable turret

★ Euro 6 type, Weichai engine, super powerful

★ Water tank and Foam tank capacity can be optional.

★ 12 months fast moving spare parts for FREE

★ Authorized Howo fire trucks exporter

★ Easy operation and easy maintenance

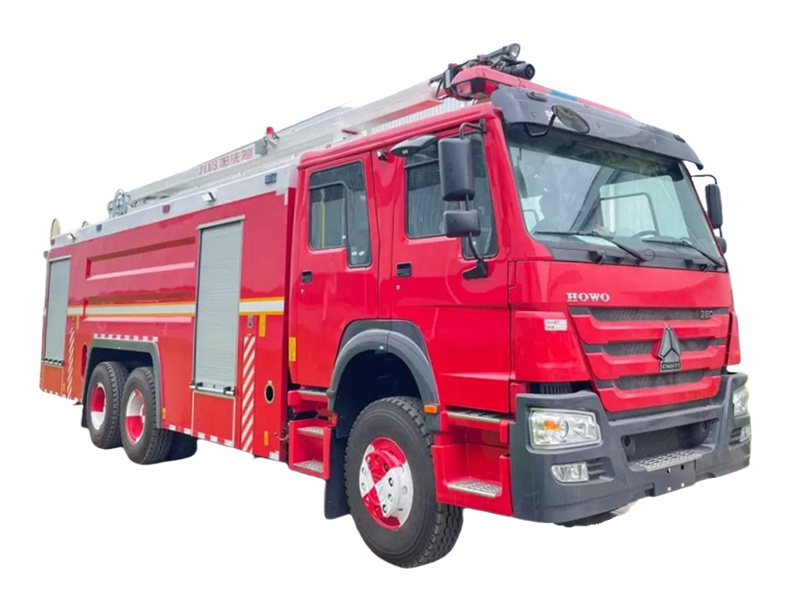

Howo water & foam with mounted high reach extendable turret

CEEC TRUCKS is a leading exporter of fire fighting truck in China. We possess over 10-year export experience of fire engine. We can ensure the fast delivery time and 12 months guarantee for our fire trucks. Our fire vehicles are sold to more than 80 countries including Eastern Europe and CIS countries, Africa, Southeast Asia, Central and South America, Middle East, etc.
