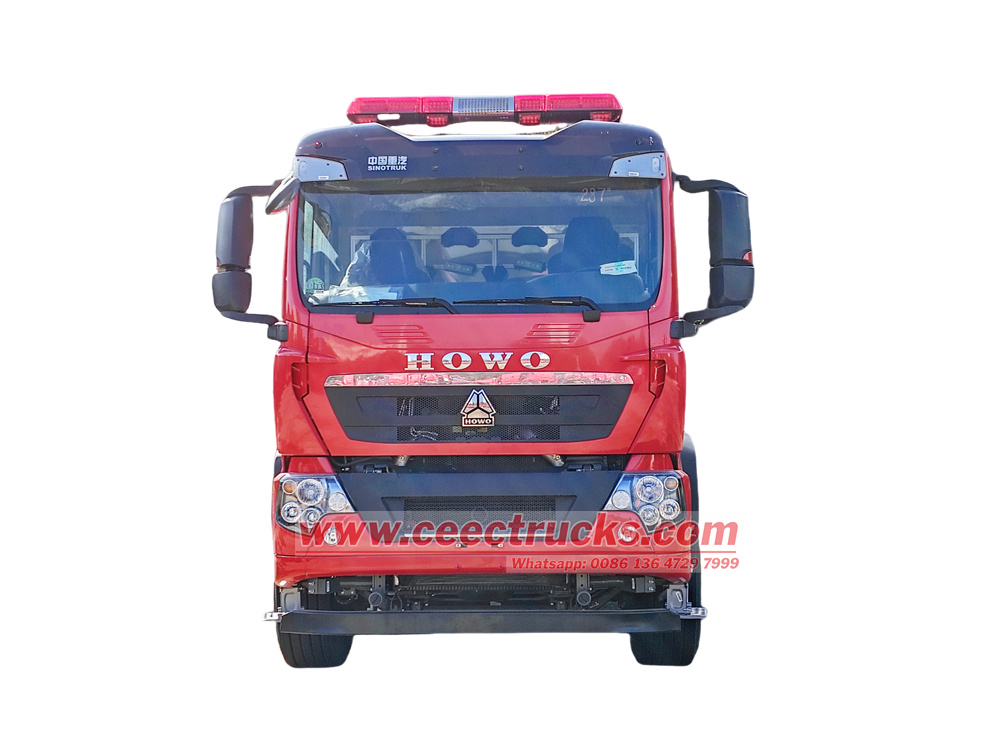

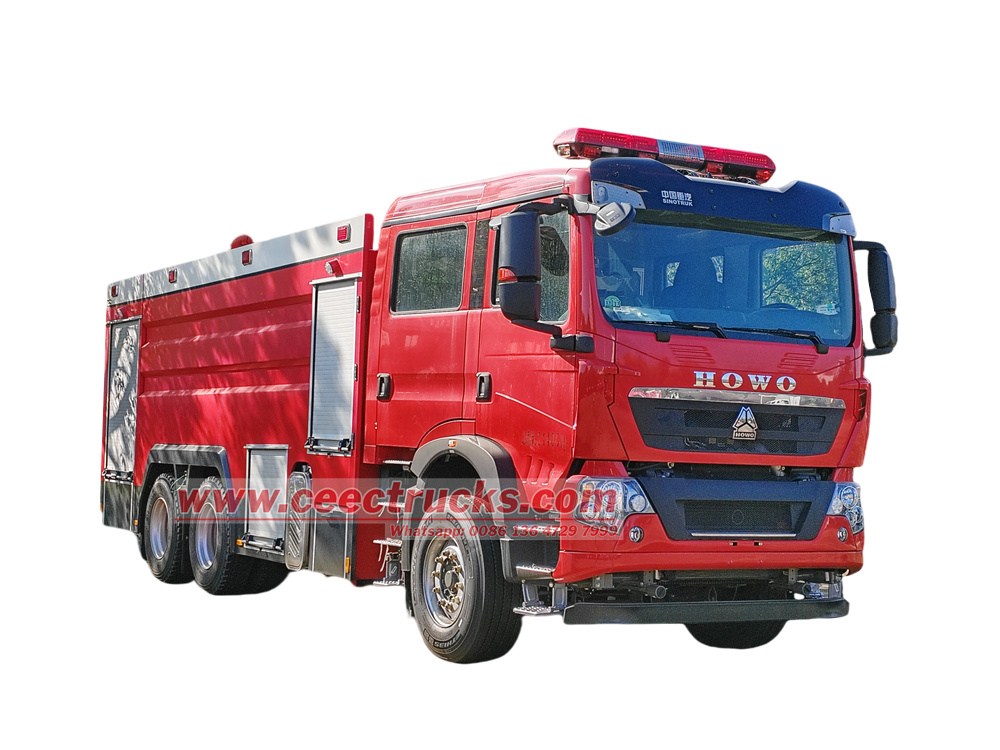

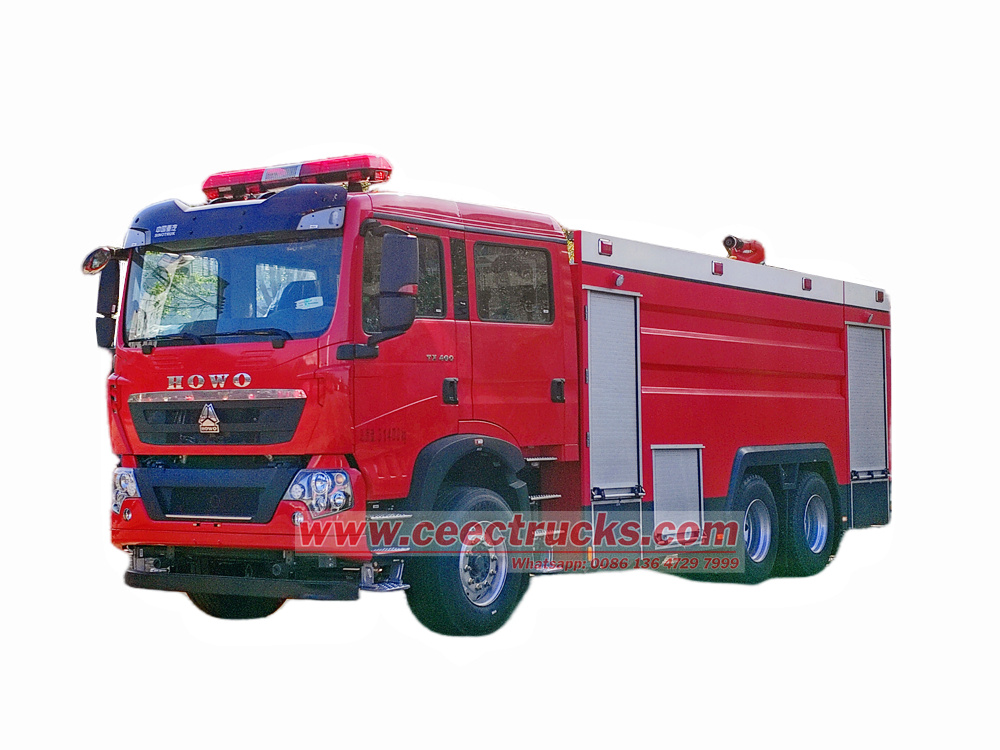

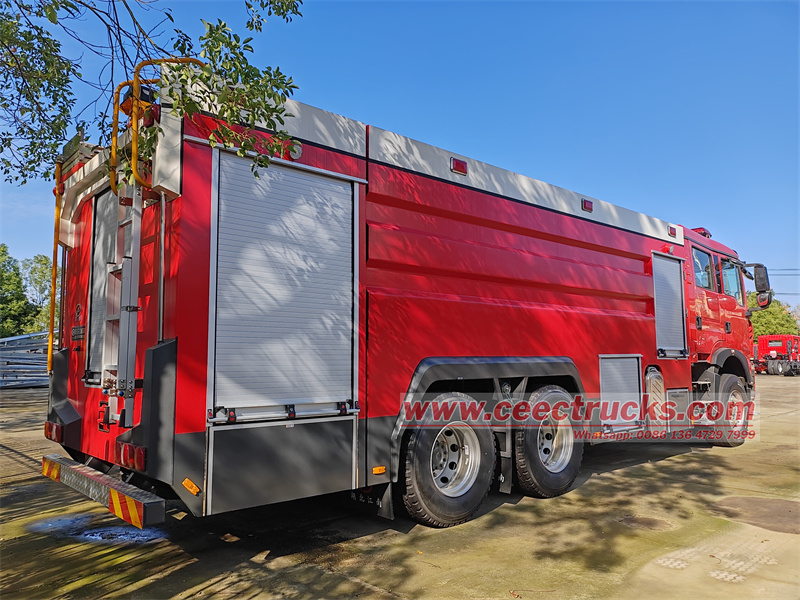

HOWO TX 460HP Fire protection trucks

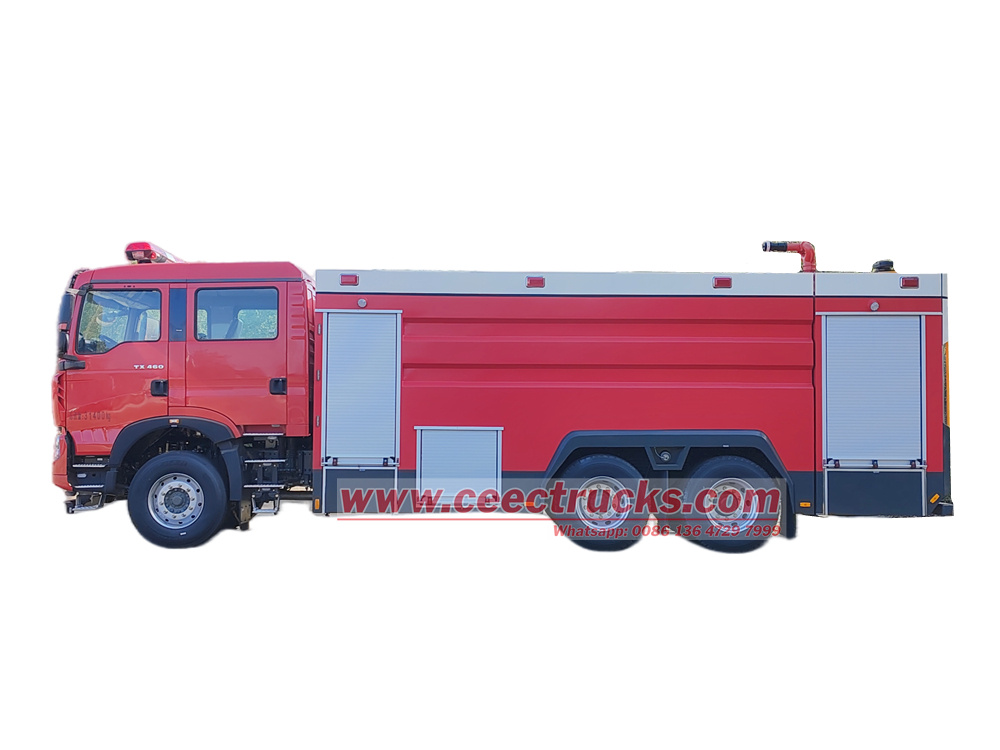

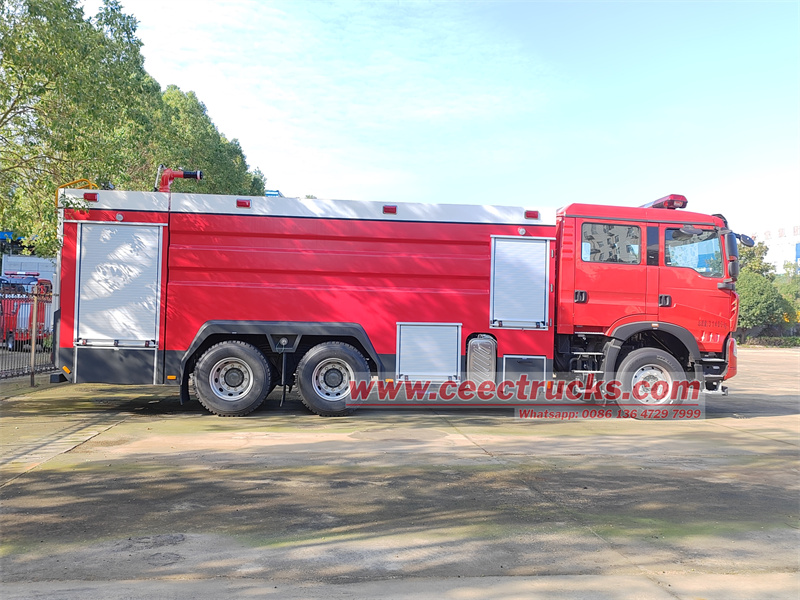

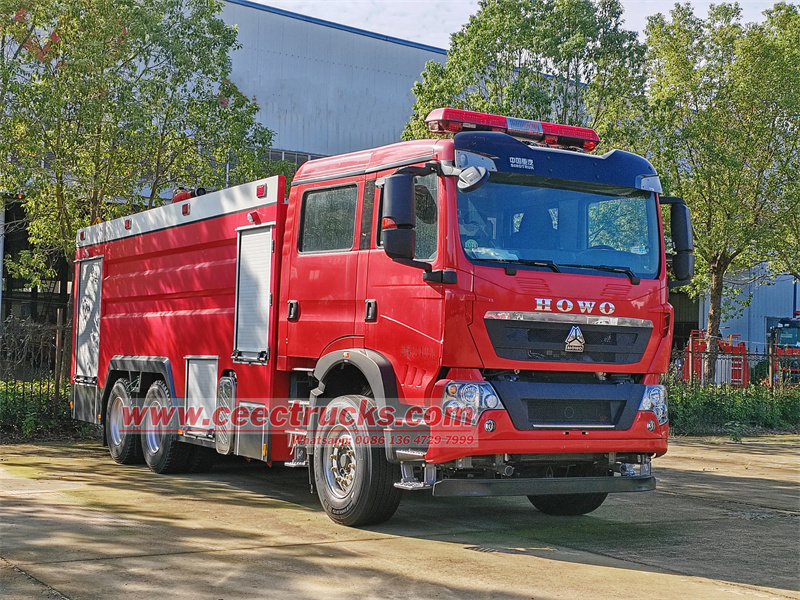

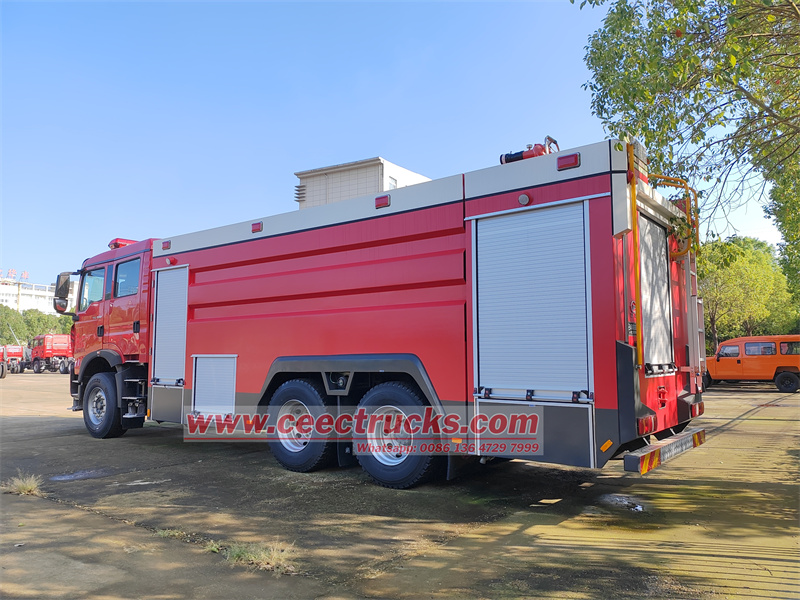

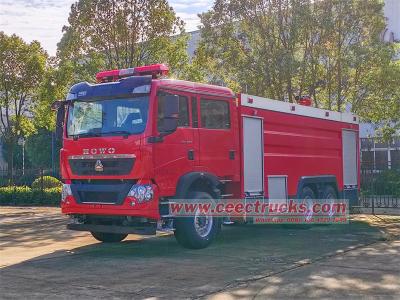

HOWO TX 6x4 Fire protection trucks

The HOWO TX 460HP Fire protection trucks is a highly efficient main battle vehicle that integrates transport, firefighting, and rescue capabilities. It utilizes a powerful 460-horsepower HOWO TX chassis. Its refined and practical design features a front equipment compartment for storing various firefighting equipment; a central 12-cubic-meter carbon steel water tank provides ample fire extinguishing agents; and a rear pump room equipped with a high-flow fire pump and intelligent monitoring system. The 12-cubic-meter water tank, combined with a CB10/60-RS fire pump, delivers 60 L/s of high-pressure water flow. This allows for precise long-range spraying via a PS8/40W fire monitor or fire hose. It features both direct current and blooming modes, providing both cooling and suffocation extinguishing. It is widely used for rapid response and efficient firefighting in urban high-rise buildings, industrial areas, and forest fires.

Product Performance Advantages:

1. Fast power response: The Sinotruk 460-horsepower engine and ten-speed transmission meet emergency deployment needs.

2. Large liquid capacity: The 12m³ water tank supports long-term continuous operation, reducing the frequency of water replenishment.

3. Pump-cannon coordination: The CB10/60 fire pump and PS8/40W fire monitor work together to achieve long-range, high-pressure spraying, suitable for scenarios such as high-rise buildings and chemical fires.

4. High equipment integration: Separate storage in equipment boxes and pump rooms shortens operational preparation time.

Product Parameters:

Product Details:

Chassis:

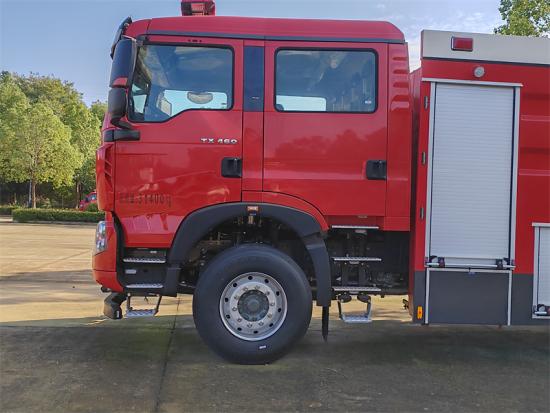

• Chassis: HOWO TX 6x4, double-row cab, 4625mm + 1350mm wheelbase



• Engine: SINOTRUK MC11.46-61, 460hp, high-pressure common-rail, turbocharged, intercooled diesel engine with a displacement of 10.52L, offering powerful power and low fuel consumption



• Transmission: SINOTRUK HW19710, featuring clear gear selection and a wide ratio range to adapt to various driving conditions.



Superstructure

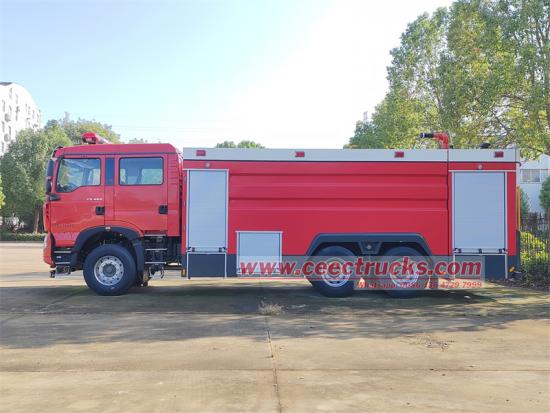

The superstructure adopts an integrated "equipment box - tank - pump room" layout.



1. Equipment Box (Front)

Function: Centralizes storage for auxiliary firefighting equipment for quick access.



Configuration:

• Demolition Tools: Fire axes, hammers, shovels, fire wrenches, etc.

• Firefighting Equipment: Portable dry powder fire extinguishers

• Protective Equipment: Fire suits, helmets, gloves.

• Lighting and Communication Equipment: Explosion-proof flashlights, intercoms, and warning tape.

2. Tank (Middle)

Material and Capacity: 12m³ carbon steel water tank (Q345B, pressure resistance 1.2MPa), anti-corrosion treated.



Structural Design:

• Internal wave shield: Reduces liquid sloshing and improves driving stability.

• Water Inlet: DN80 quick-connect fitting on top supports water replenishment from fire hydrants or natural water sources.

• Drainage System: DN65 ball valve on bottom for easy drainage.

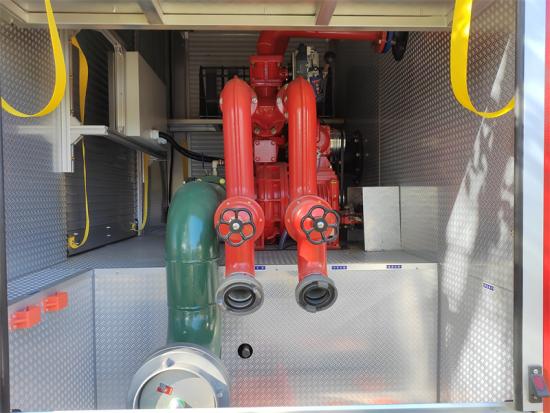

3. Pump Room (Tail)

• Core Equipment: CB10/60-RS fire pump (rated flow rate 60 L/s, pressure 1.0 MPa), supports parallel water supply, and has a maximum range of ≥ 65 m.

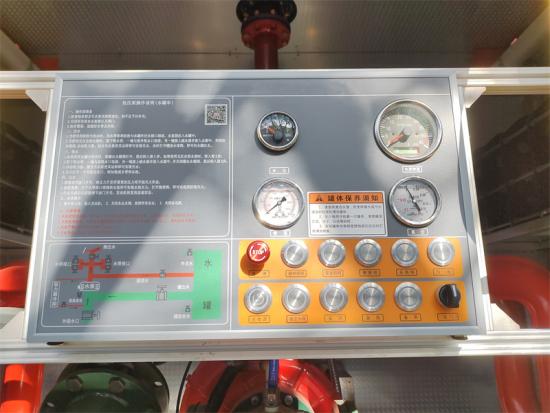

• Control Panel: Integrated operating instructions, piping diagram, pump tachometer, atmospheric pressure gauge, vacuum pressure gauge, water level gauge, light, emergency stop switch, main power button, and other functions.



• Accessories:

 Manifold/Distributor: DN100 T-connector, supports multiple water supply lines.

 Water Filter: Filters impurities and protects the pump body.

 Fire Hose: 10 DN65 and DN80 hoses, totaling 10.

 Fire Hose: 2 dual-purpose direct/spike hoses, with a range of ≥ 25 m.

4. Top Fire Monitor

Model: PS8/40W Water Fire Monitor, flow rate 40 L/s, range ≥ 65 m, supports 360° pan rotation and -30° to +70° pitch adjustment.

•

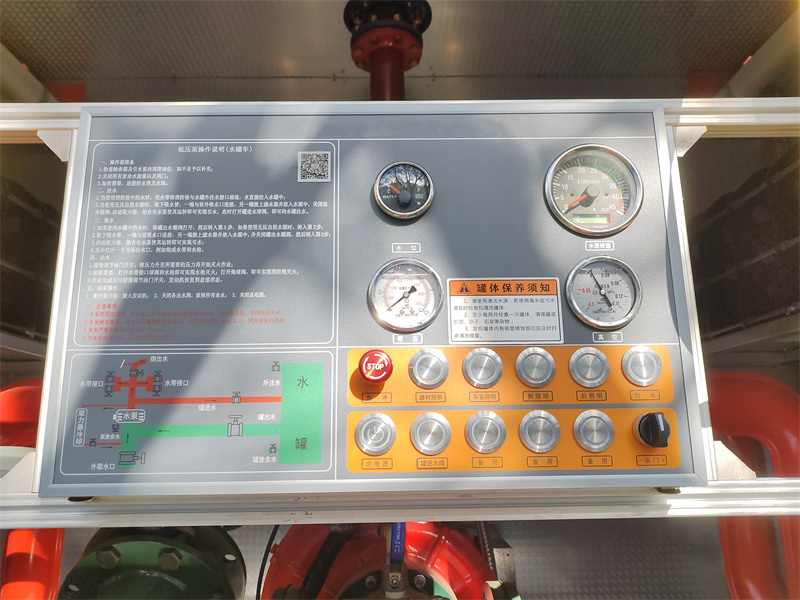

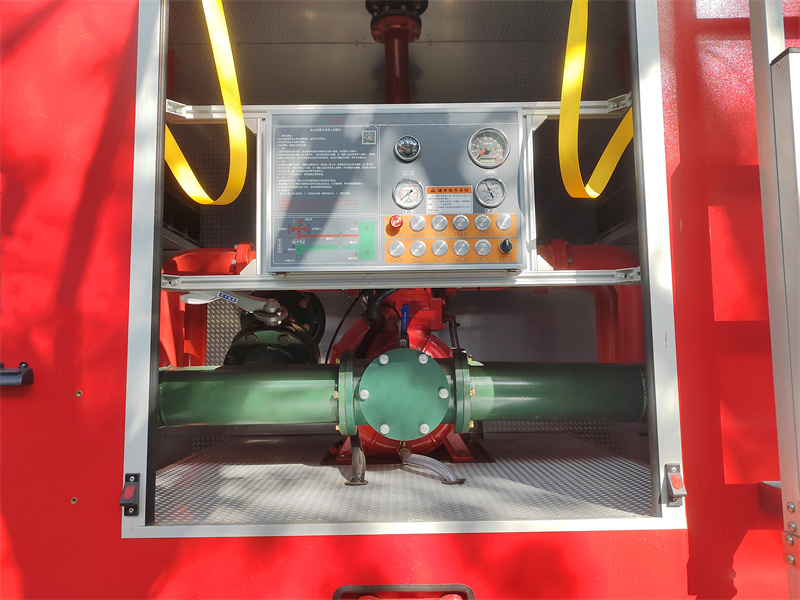

  Control Panel
•

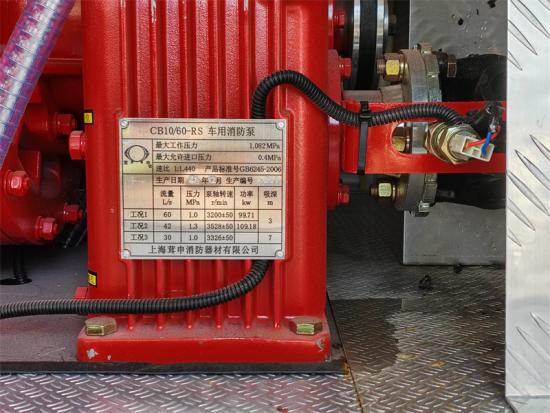

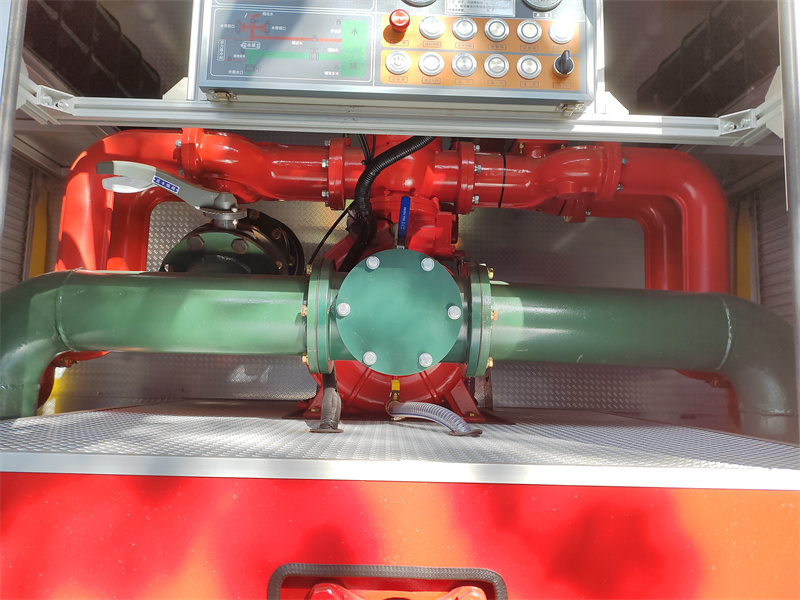

   CB10/60-RS fire pump
•

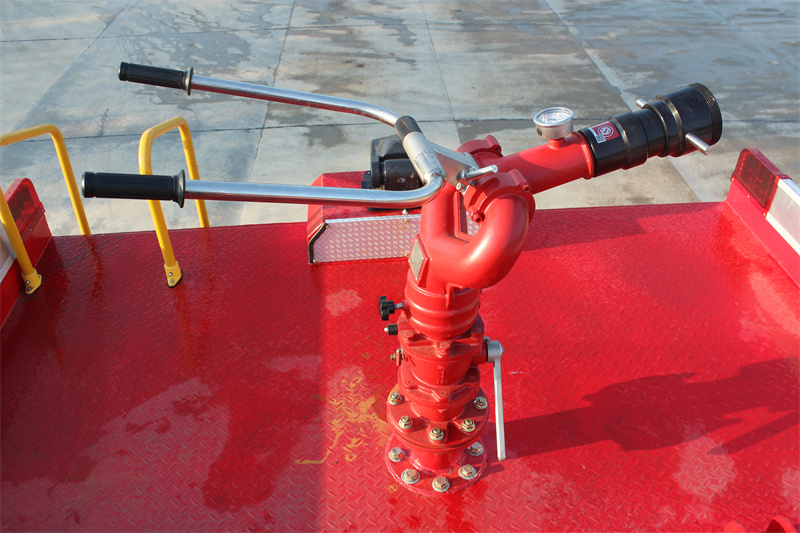

  PS8/40W water fire monitor



Firefighting Principle:

The core firefighting principle of this HOWO 6x4 water tank fire truck is "water delivery and high-pressure injection." The vehicle's onboard 12-cubic-meter large-capacity water tank serves as the central fire extinguishing agent storage center. During firefighting, a CB10/60 fire pump, driven by the chassis engine, draws water from the tank and pressurizes it. The pressurized water is then discharged at a flow rate of 60 L/s through fire hoses or PS8/40W fire monitors. The direct flow mode concentrates cooling at the root of the fire, rapidly reducing the temperature to below the ignition point. The blooming mode expands the water mist coverage area, isolating oxygen through evaporative heat absorption and the asphyxiation effect. A control panel in the pump room monitors various parameters for timely adjustments.
