HOWO sitrak heavy foam fire fighting tender

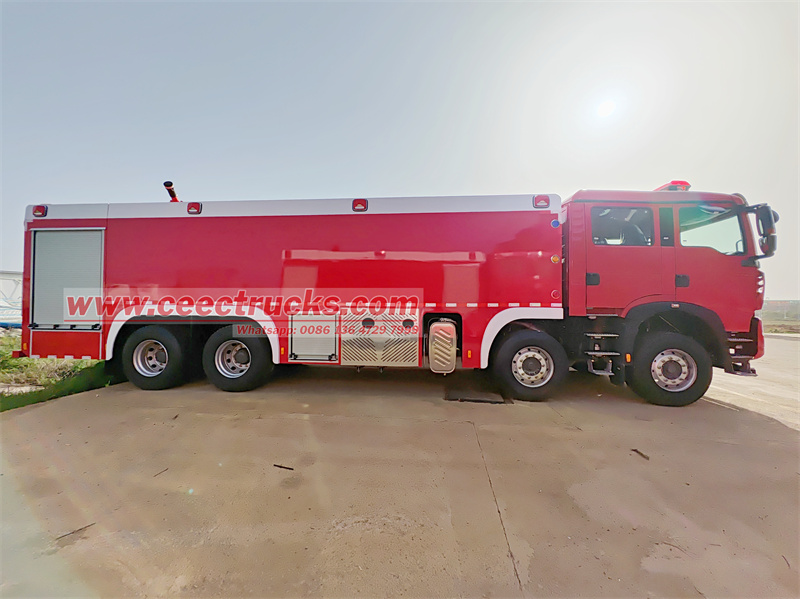

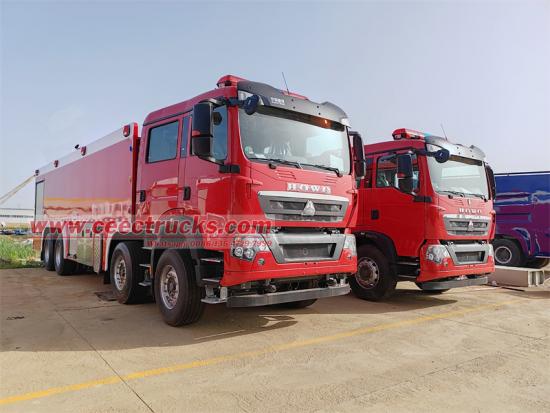

HOWO sitrak heavy foam fire fighting tender is a professional fire fighting equipment that integrates power, functionality and intelligence. The vehicle is built on the HOWO TX460 8×4 special chassis, equipped with a 460 horsepower Sinotruk MC11H.46-61 National VI engine, matched with a 12-speed HW19712L gearbox, and a 1950+3825+1350mm wheelbase design to ensure excellent passability and stability.

The HOWO 8×4 fire truck can be called the "all-round warrior" for fire rescue. The upper body is equipped with a 15 cubic meter carbon steel water tank with a capacity of 20000 tons. The CB10/80 fire pump it carries is the "power heart", with a rated flow of 80L/s and a pressure of 1.0MPa. It is flexible in water absorption and cavitation resistance, with strong power, stability and durability, and convenient and efficient intelligent control. The PS50 fire monitor is a "water dragon god of war" with a maximum range of 65 meters and a flow rate of 50L/s. The direct current, spray, and blooming spray modes are flexible to adapt to various fire conditions. It has 360-degree horizontal rotation and a wide pitch adjustment of -30 to +70 degrees, which can achieve full coverage without dead angles. It is made of solid materials and resistant to fire corrosion. The whole vehicle relies on a stable chassis to respond quickly and maneuverably, with a large-capacity water tank, a high-performance fire pump, and a fire monitor. It is equipped with an equipment box to store firefighting equipment, and the pump room controls real-time monitoring of key parameters. The vehicle combines efficient fire extinguishing, reliable protection, and flexible control. In various complex fire rescue operations, it provides solid support for firefighters to charge forward and protect the safety of life and property.

● China best HOWO water fire truck factory

● 30 years experience on water tank fire tender designing

● Be designed according to your requirements

● Promptly delivery. any order is welcome

● 24 month quality guarantee term

★ Chassis: Solid foundation, forging a mobile edge

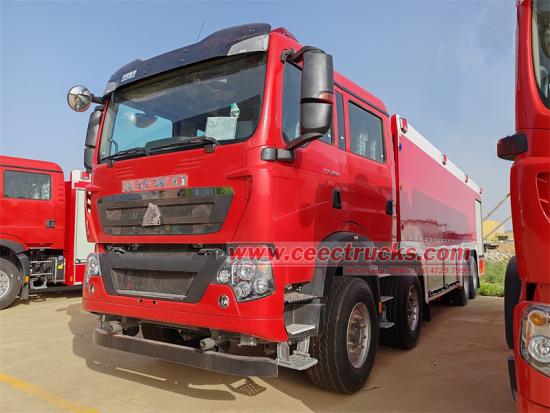

The HOWO 8×4 15 cubic meter water tank fire truck is equipped with the HOWO TX460 8×4 chassis, with an exquisite wheelbase layout of 1950+3825+1350mm. The vehicle is equipped with the Sinotruk MC11H.46-61 engine, which is a well-deserved "power heart". The powerful horsepower of 460HP and the large displacement of 11.05L complement each other, providing a steady stream of power for the vehicle. The matching Sinotruk HW19712L 12-speed gearbox makes power transmission more accurate and efficient. The design of 12 gears enables the vehicle to flexibly adjust the speed and torque output according to different road conditions and load conditions.

★ Tank: 15000L large-capacity water tank, continuous water supply

The 15-cubic-meter carbon steel water tank has sufficient capacity and can provide a steady stream of water for firefighting work. Carbon steel is durable and has good corrosion resistance and pressure resistance, ensuring that there will be no leakage and other problems during long-term use. The equipment box equipped under the water tank is reasonably designed and clearly classified. Various fire-fighting equipment is neatly arranged in an orderly manner, which is convenient for firefighters to quickly access in an emergency, greatly improving the rescue efficiency.

★ Pump room: Fire extinguishing center, controlling the overall situation

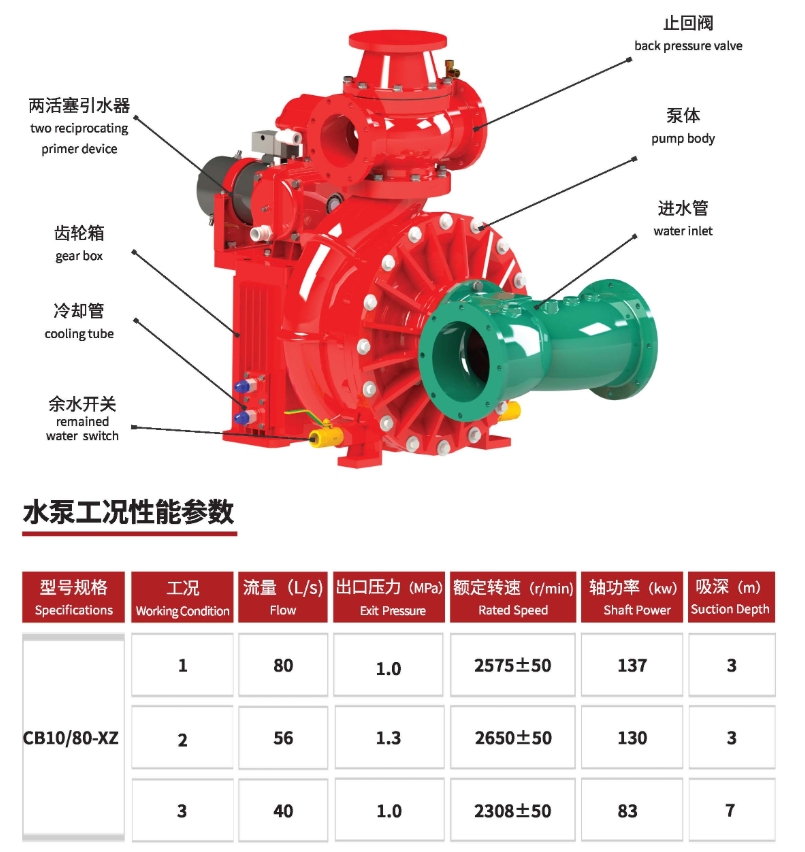

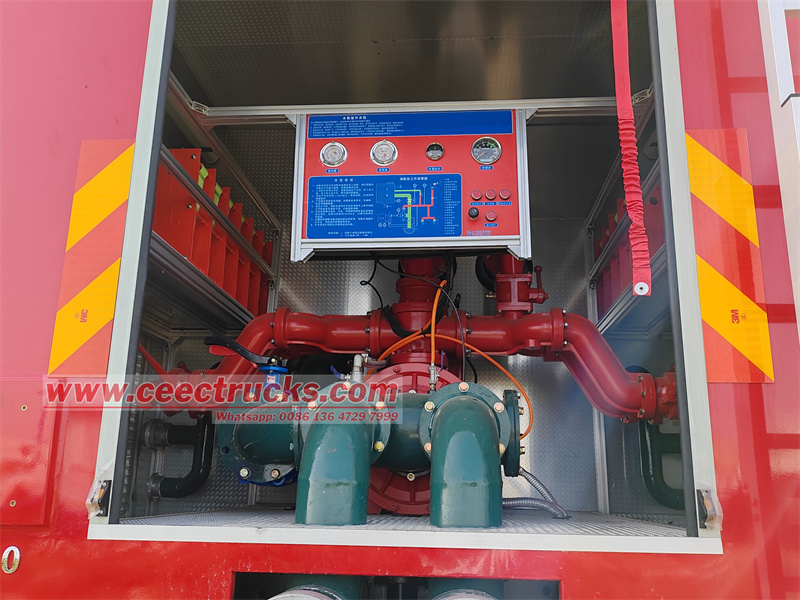

● CB10/80 fire pump

As the core "brain" of the fire truck, the pump room is the key hub of the entire fire extinguishing system. In the pump room of the HOWO 8×4 15 cubic water tank fire truck, the CB10/80 fire pump is like a tireless "fire-fighting warrior", always ready to fight. Its rated flow rate reaches 80L/s and the rated pressure is 1.0MPa.

When facing fire scenes such as large shopping malls and factory warehouses, the fire is often fierce and spreads rapidly. At this time, the large flow advantage of the CB10/80 fire pump is fully demonstrated. It can form a strong water flow impact in a short time, break through the encirclement of the flame, and directly hit the core of the fire source, so as to buy precious time for subsequent fire fighting work. At the same time, the rated pressure of 1.0MPa ensures that the water flow can be sprayed to a longer distance with sufficient kinetic energy. Even in the face of high-rise building fires or fire sources located far away, it can achieve precise strikes, making firefighting operations more efficient and powerful.

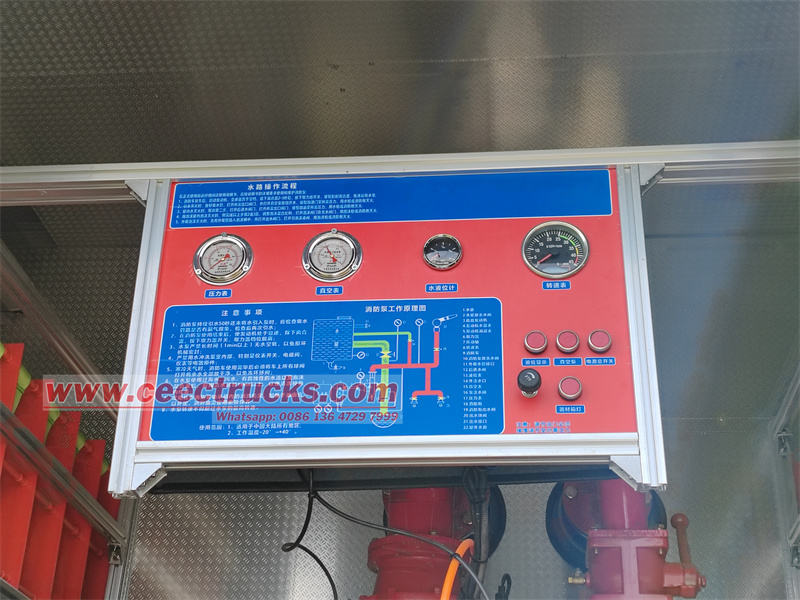

● Control panel

The control panel in the pump room is the "smart command desk" for firefighters, which displays key parameters such as pressure gauges, vacuum gauges, water level gauges, and tachometers in real time.

The pressure gauge accurately displays the water pressure output by the water pump. Firefighters can flexibly adjust the water pump speed or valve opening through the control panel according to factors such as the distance from the fire scene and the size of the fire, and accurately control the water pressure within the appropriate range to ensure that the water flow can be accurately and powerfully sprayed onto the fire source to achieve efficient fire extinguishing.

The vacuum gauge reflects the water absorption performance of the water pump in real time. If the water absorption is not smooth, the firefighters can detect it and take measures in the first time, such as checking whether the water suction pipe connection is tight, cleaning the filter, etc., to ensure the normal operation of the water pump.

The water level gauge intuitively displays the water level in the water tank, allowing firefighters to know the remaining water volume and plan water use reasonably to avoid water outages that affect the rescue progress. The tachometer helps firefighters to grasp the engine speed in real time, ensure that the engine works within a safe and efficient speed range, and extend the engine life.

The control panel also has control buttons such as liquid level display, vacuum pump, main power switch, equipment box light, PTO, etc., which are convenient and intuitive to operate. The liquid level display button allows firefighters to clearly view the water level even in a dimly lit environment; the vacuum pump button is used to control the start and stop of the vacuum pump. During the pumping operation, starting the vacuum pump can quickly establish a vacuum and improve the water absorption efficiency; the main power switch ensures the safety and stability of the pump room circuit, and can quickly cut off the power supply in an emergency; the equipment box light button provides lighting for firefighters to use equipment at night; the PTO button controls the transmission of power from the engine to the fire pump to ensure that the fire pump has sufficient power. The design of these buttons fully considers the actual needs of firefighters at the rescue site, and the operation is simple and fast, allowing firefighters to devote themselves to firefighting and rescue work.

★ Fire monitor: long-range sharp blade, directly hit the fire demon's vital points

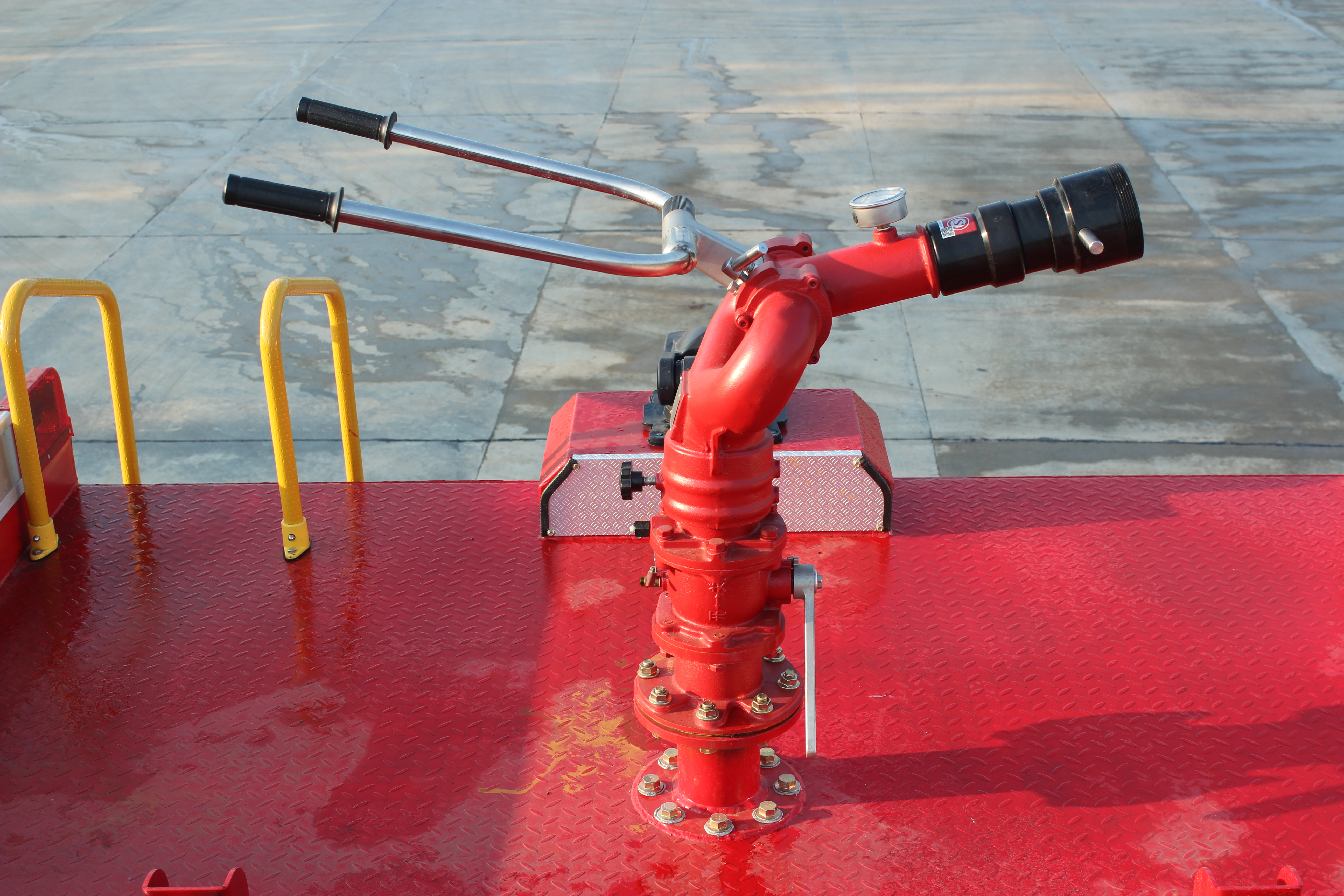

The PS50 fire monitor installed on the top of the HOWO TX460 8x4 water fire engine is the "trump weapon" of the HOWO 8×4 15 cubic water tank fire truck. With its powerful power and precise strike capability, it has become a "long-range sharp blade" on the fire-fighting battlefield. The PS50 fire monitor has an ultra-long range and huge flow rate, with a maximum range of 65 meters and a flow rate of up to 50L/s. It can strike the fire scene from a safe distance and effectively protect the lives of firefighters.

It has a variety of spraying methods, which can be flexibly switched according to different fire types and fire conditions. When the direct current is sprayed, the water flow is concentrated and the impact force is large, like a steel dragon, which can penetrate the thick smoke and obstacles, spray directly to the core of the fire source, quickly reduce the temperature of the fire scene, and extinguish the flames. This spraying method is particularly suitable for extinguishing open flames at a distance or high-rise fires in large buildings, allowing firefighters to effectively control the fire without taking the risk of approaching the fire source.

When spraying, the water flow is dispersed into fine water droplets, forming a large area of ​​water mist, like a huge water curtain, which can play a role in cooling, isolating air and absorbing smoke. When extinguishing special fires such as oil fires and electrical fires, the spray spray method can effectively prevent the spread and re-ignition of the fire and reduce fire losses. When spraying in bloom, the water flow spreads in a fan shape, which can fully cover a large area of ​​fire and effectively control the spread of the fire. At large-scale fire scenes such as forest fires and warehouse fires, the bloom spray method can quickly suppress the fire and buy more rescue time for firefighters.

In addition, the PS50 fire monitor also has flexible rotation angle (360°) and pitch angle (-30～+70°) adjustment functions. Whether it is a fire on the top of a high-rise building, a fire in the corner of an underground garage, or a complex fire in a chemical enterprise, it can quickly adjust the angle and accurately spray the water flow to the fire source, greatly improving the efficiency and accuracy of fire extinguishing.

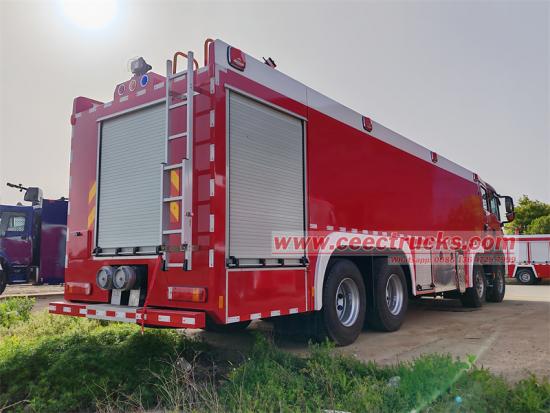

★ Equipment room: a treasure house of equipment to meet diverse rescue needs

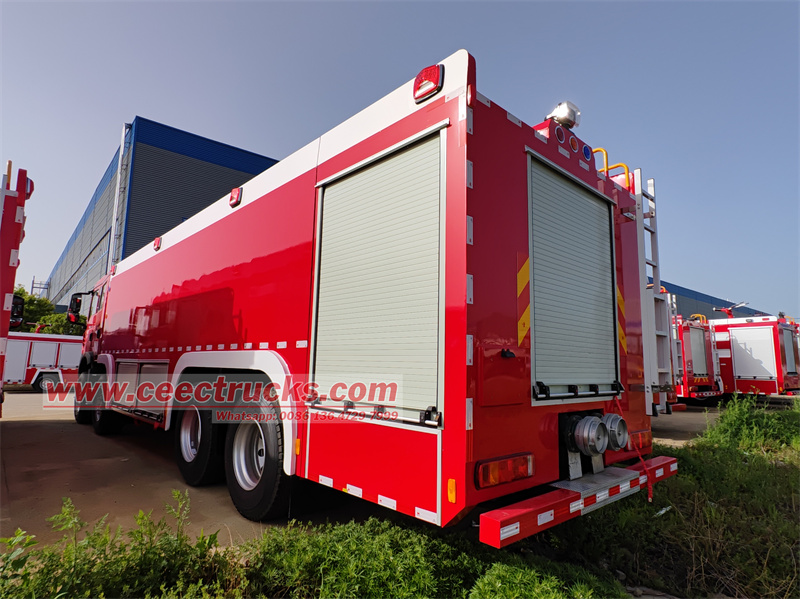

The equipment room located below the water tank is the "equipment treasure house" of the HOWO 8x4 heavy-duty water fire fighting truck, which is filled with equipment and tools needed to deal with various fire and rescue scenarios. The interior of the equipment room adopts a scientific and reasonable layout design, and the equipment is stored in different areas according to the type, purpose and frequency of use. Commonly used fire hoses, fire hoses, water collectors, water filters, water distributors, fire axes, pickaxes, shovels and other equipment are placed in easy-to-access locations. After receiving the alarm mission, firefighters can find and use these equipment as quickly as possible and quickly engage in firefighting and rescue work.
