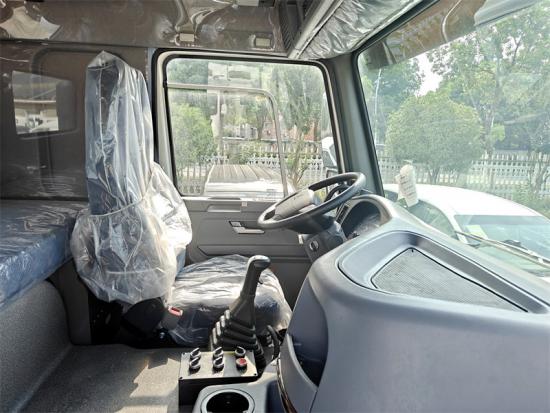

The Howo 8x4 water tanker is equipped with a WP10.380E53 inline 4-cylinder, 6-stroke engine featuring supercharged, intercooled, and water-cooled technology. It delivers 380 HP and a maximum torque of 1550 Nm, available at 1500 rpm and rated at 1900 rpm, ensuring the Howo heavy water tanker's powerful power for starting and climbing. The Howo cabin features a one and a half row design with two seats and a sleeper. Equipped with A/C and radio, it provides a comfortable driving environment while also supporting long-distance water transport missions.

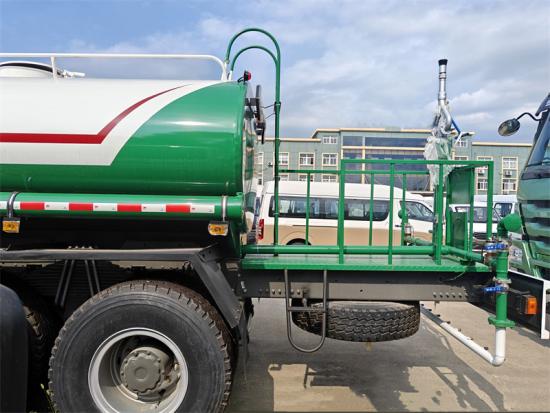

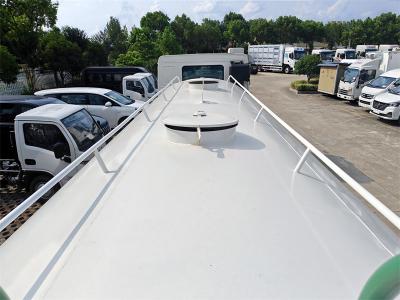

With a large water tank and high-quality materials, the Howo water sprinkler truck boasts a tank capacity of over 20,000 liters, meeting the needs of large-scale water spraying operations, reducing frequent refills and improving operational efficiency. The water tank is made of high quality carbon steel (Q235) and is made into an oval-shaped tank body. It has the advantages of high strength and corrosion resistance, ensuring the service life of the water tank.

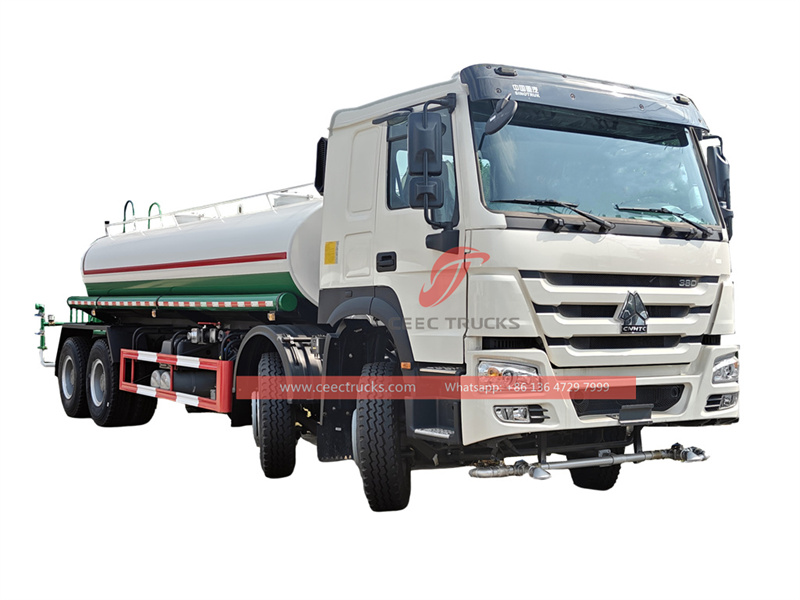

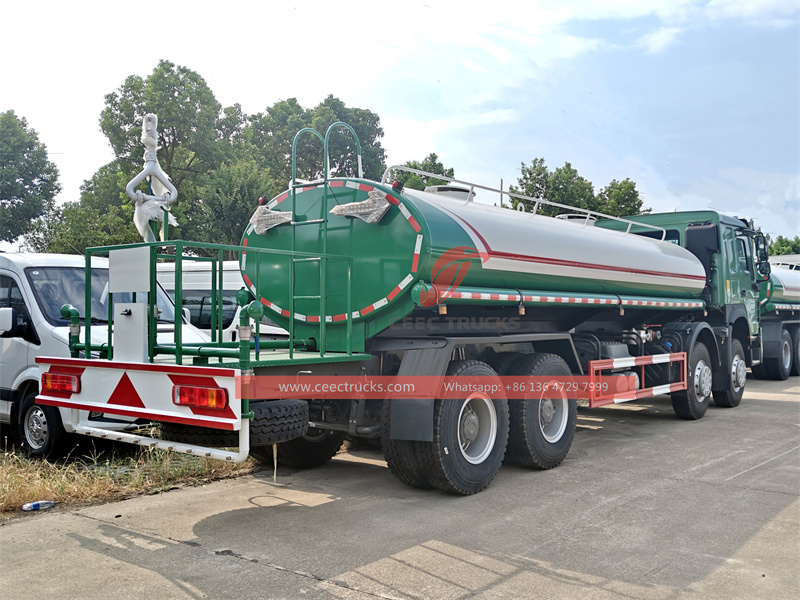

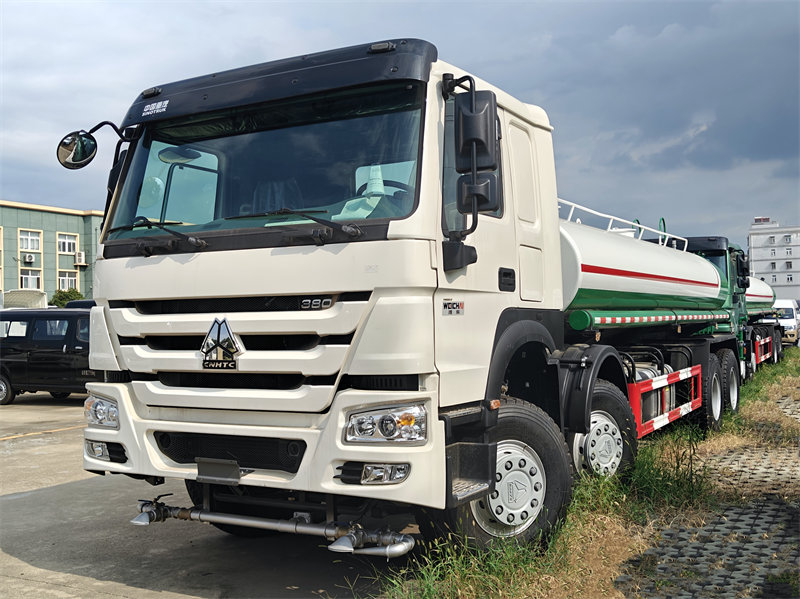

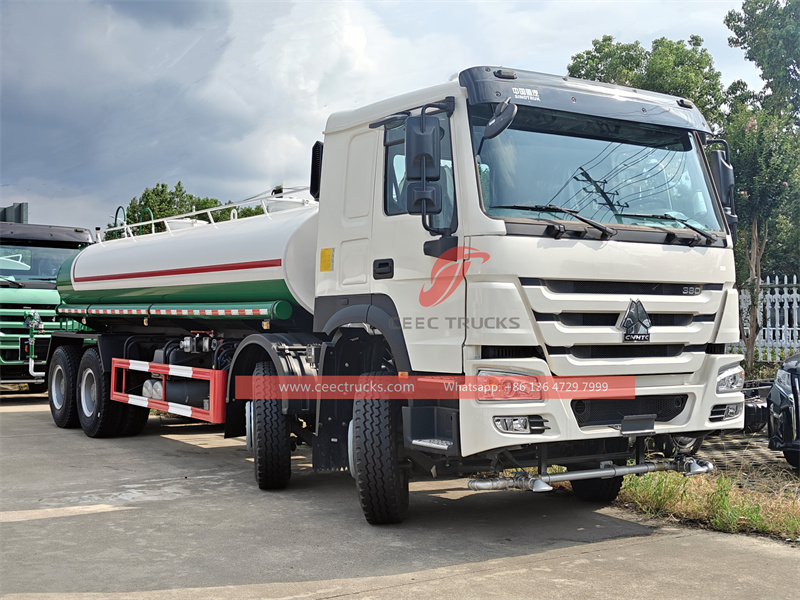

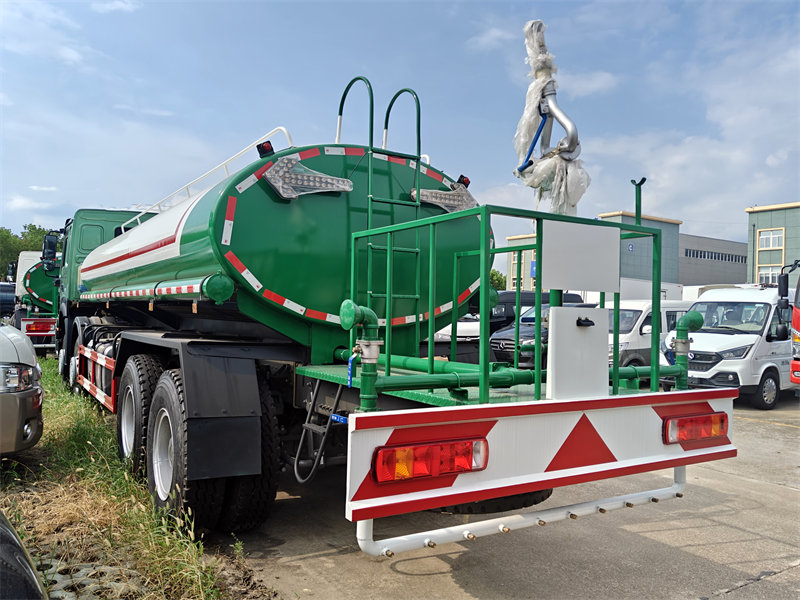

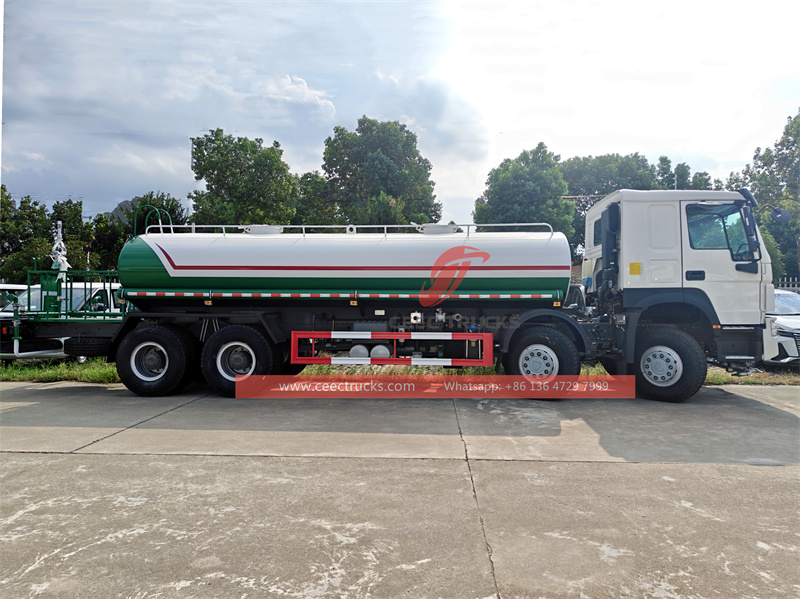

*Howo 8x4 water tank truck

Howo 380HP 20000L water bowser Truck*

CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.

» Ⅰ.Product Defination and Introduction:

Manufacturer: CEEC Trucks

Features:

1. Truck Chassis: Howo heavy truck chassis, 8X4 model

                              WP model with 380HP and Euro 2,3,4

2. Tank material: 6mm thick stainless steel for prolonged service lier
                             carbon steel, aluminum alloy can be choose

3. Water Pump: China TOP water pump, flow rate 60L/s, working distance over 38m
                           Optional famous Imported pump









» Ⅱ.Product Parameter for Howo hravy 20000L water tank truck

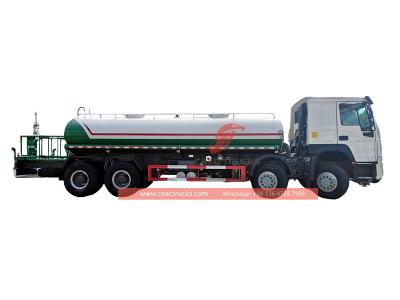

Howo heavy 20000L water tanker
Main parameter	Overall dimension(LxWxH)		11300*2580*3250mm
	Wheel base(mm)		2100+4325+1370mm
	Driving Type		8×4,left hand drive
	Color		White,blue,green,color can choose
	Front/rear overhang		1535/2215
	Max speed		100 km/h
Weight in KGS	GVW		30000 kg
	Curb weight		12500 kg
	Loading capacity		20000L
	Front axles loading capacity		7.5T*2
	Rear axles loading capacity		16 T*2
Engine	Engine model		WP10.380E53
	Engine type		Inline 4-cylinder 6-stroke, supercharged, intercooled, water-cooled
	Horsepower		380HP
	Max. output (kw)		279Kw
	Rated speed		1500rpm
	Maximum Torque		1550N.m
	Displacement(L)		9.72 L
	Emission standard		Euro 6
Transmission	Gear box 10 forward ,2 reserve
Tire	295/80R22.5 standard tire,12 tires+1 spare tire
Brake	Air brake
Steering	Power steering
Body	Capacity		20000L
	Structure	TANK MATERAIL	6mm,Q235 stee
		Pipe	Galvanized pipe

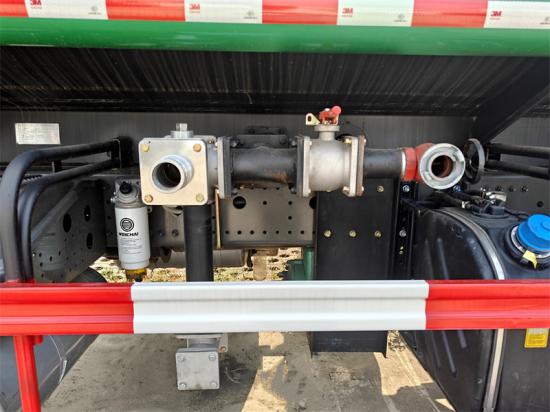

		Discharge nozzle	SS,at side bottom of tank,quick coupling
		Discharge nozzle option	Stainless steel faucet
Water pump	Model		WEILONG 80QZF-60/90S pump
	Flow rate(L/m):		60m3/h
	Head of delivery(m)		90m
	Self-priming function(min/4m)		1.5
	Efficiency(%)		95%
	Related rotate speed(r/min)		1180
	Matched power(kw)		22

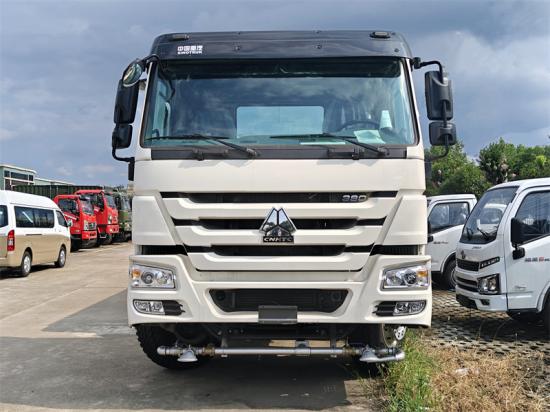

Water sprinkler system	Front sprinkler jet		14m

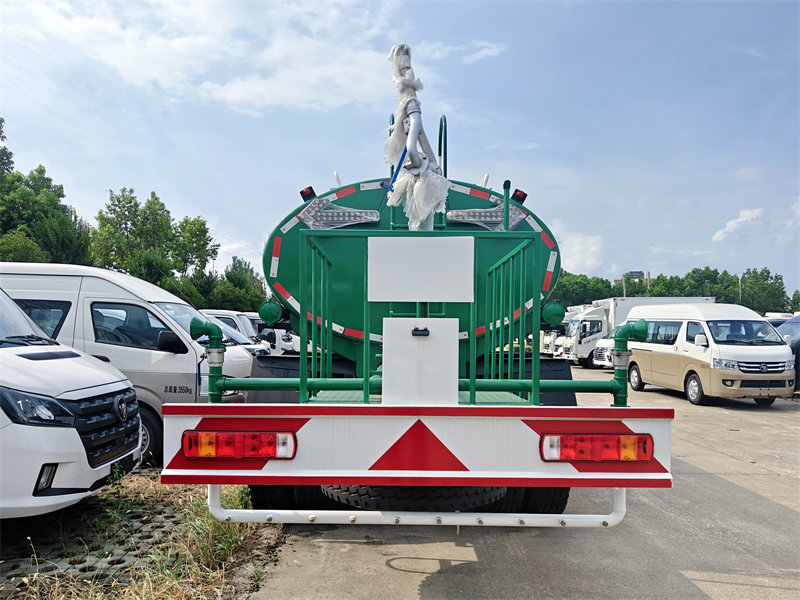

	Rear sprinkler jet		13m
	Rear sprinkler nozzle range		12m
	Water cannon range		45m
	Water time		＞5 minutes
	Working condition		Flow≥60L/m, 1.55Mpa
	Max working pressure		≥0.9Mpa





-----Tanker material: Carbon steel, stainless steel, aluminum alloy, PP material

-----Water Pump: Based on tanker body and jetting distance, optional famous Import brand

-----Optional: Pipeline, hose reel, aluminium ladder, Joint model (Chinese, European, American type)



» Ⅲ.Advantage of the Howo 8X4 water tank truck?



1. Production Advantages:

♦ The production line utilizes cutting-edge robotic automated welding and laser precision cutting.

♦ This ensures extremely high assembly accuracy and consistency, enabling customized customization.

♦ For 20CBM tanks, high-strength, wear-resistant steel plates are used, utilizing CNC rolling and one-step spinning technology.

♦ This ensures uniform roundness and optimal stress distribution within the tank, eliminating dead corners.

♦ An advanced internal wave-shaped anti-wave plate design enhances structural strength while effectively reducing impact during liquid transportation.

2. Technical Advantages:

♦ Equipped with a high-horsepower engine, it forms a golden powertrain with an HW1910 transmission and a low-ratio drive axle.

♦ It features an 8x4 drive system, high-strength frame materials, and a multi-leaf spring reinforced suspension system.

♦ The dual front axle steering design ensures exceptional load-bearing capacity while enhancing steering flexibility.

♦ The water pump, a renowned Chinese brand, boasts high flow, high head, and long service life, and is self-priming and self-discharging.

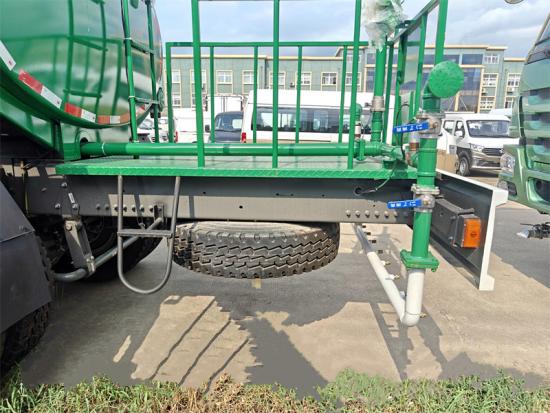

♦ It features front-end flushing, side spraying, and a rear sprinkler—all in one.

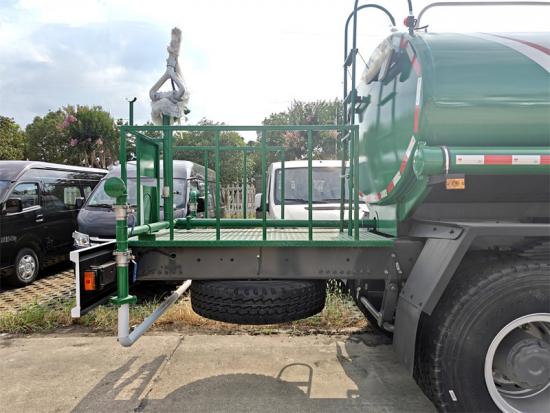

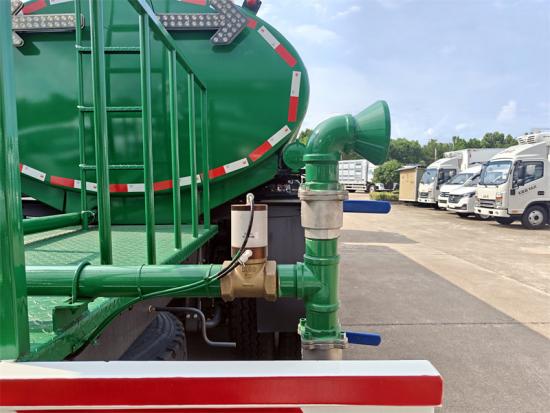

♦ The high-pressure water canon rotates 360 degrees and can be adjusted to a columnar configuration for maximum range.

♦ Adjusting to a mist configuration effectively suppresses dust and haze, enabling one-touch switching between multiple functions: flushing, dust suppression, watering, and emergency response.

3. "One Vehicle, Multiple Uses" for Superior Functionality:

♦ This vehicle perfectly meets the water supply and sprinkler needs of urban construction, road maintenance, and landscaping irrigation.

♦ The large-capacity water tank and high-lift water cannon allow it to quickly transform into a "mini fire truck" in the event of an initial fire, reaching the scene and controlling the blaze as quickly as possible.

♦ It is an effective dust suppression tool in dust-prone areas such as mines, steel mills, and thermal power plants, helping companies fulfill their environmental responsibilities.

♦ With minimal modification, it can be used for drought relief in farmland, emergency water supply, and other applications, extending its reach to a wide range of scenarios.
