Newly designed heavy type HOWO NX series fuel tank truck is designed based on NX series 8x4 model truck chassis, left hand drive suitable for Middle Asian countries, including Kazakhstan, Uzbekistan, Kyrgyzstan, Tajikistan, Turkmenistan. Equipped with WEICHAI brand MC07.34-50 model diesel engine, with efficiently horsepower 340HP and emission 6870ml, six-cylinder, water-cooled, four-stroke design engine, with exhaust valve braking, direct injection, supercharged intercooler, and turbocharging delivers powerful power. Matched with HW19710 manual 10 shift transmission gearbox, to realize lower fuel consumption. Designed 30000L fuel bowser upper body kit suitable for fuel, diesel, gasoline and other flammable liquid storage and transportation.
Product Origin:
China CEECLead Time:
40 DaysWork capacity:
30,000 LitersDimension ( mm ):
11800 X 2500 X 3300Wheelbase ( mm ):
1800+4600+1350Engine power:
340HPEngine type:
MC07.34-50Axle drive:
8x4, LHDGear box:
HOWO HW19710 manual 10-shift transmissionRemarks:

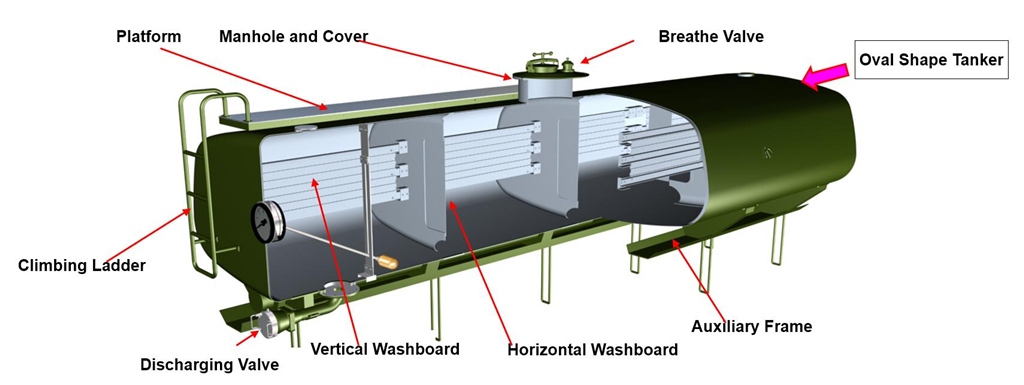

Equipped with fuel dispenser and hose reel for refueling workHowo NX series truck mounted mobile fuel bowser is specially designed for transporting and storing petroleum derivaties. Which designed to be mounted with oval shape full sealed tanker body on HOWO NX series 8x4 heavy duty truck chassis, HOWO 340HP fuel tank bowser installed with largo flowrate fuel pump 80YHCB-60,with efficiently working capability 60m3/h, matched with full sets fuel pipelines and valves to realize pump in and pump out function. The HOWO diesel tanker truck mounted with 30000Liters tanker body kit, customized to be build as 3 compartment and efficiently loading capacity 10000Liters + 10000Liters + 10000Liters for design, and each compartment build with baffles for vertical and horizontal, efficiently avoid flammable liqiud shaking during transportation and prevent generation of static electric. On top of the fuel tanker equipped with tally 3 sets EURN manhole cover, all with breathe valve for safety service for each compartment. Moreover, the HOWO oil tanker truck also can be optional to equip fuel dispenser and refueling hose reel and gun, so to make the truck an ideal mobile refueling tanker truck service for gasoline, diesel, oil, crude oil, lubricants and coal tar, etc.
CEEC factory is professional manufacturer in truck area,
guarantee all products Brand-New and High-Quality.
»» Ⅰ.Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
Features:
1. HOWO 8x4 NX series Truck chassis: Equipped MC07.34-50 model with 340HP diesel engine + SINOTRUK HOWO HW19710 model manual 10-speed gearbox, excellent fuel economy.
2. Fuel Tanker Body: High strength carbon steel Q235 material, thickness 5mm and shell 6mm, inside with baffles, anticorrosion painting
3. Fuel Pump: Customized 80YHCB-60 fuel pump with flow rate 60m3/h, efficiently function of pump in and pump out
4. Refueling Device: Standard pump in and pump out working, optional fuel dispenser, hose reel and refueling gun for safety working
5. Safety Equipment:
EURO manhole cover with breathe valve for safety transportation.
Antistatic belt and clamp for static electric release to guarantee safety.
Emergency stop button to control submarine valve for emergency stop and guarantee safety usage.

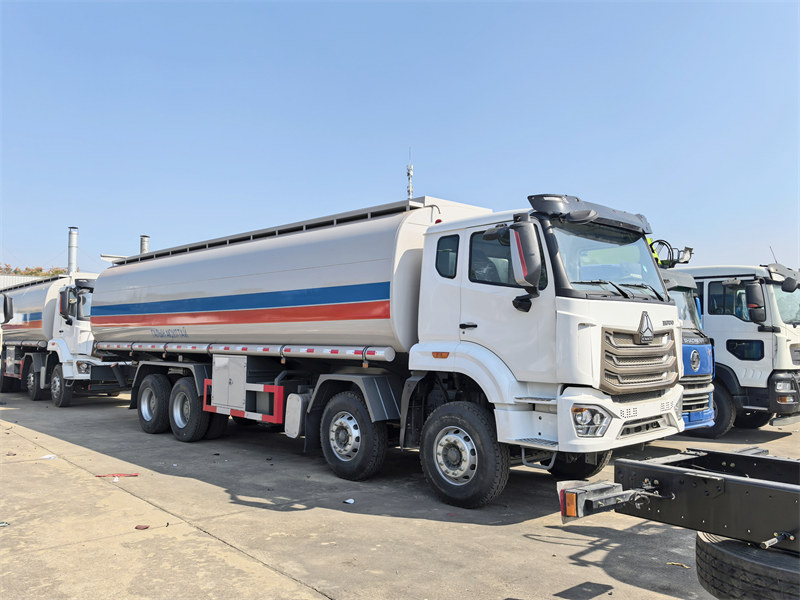

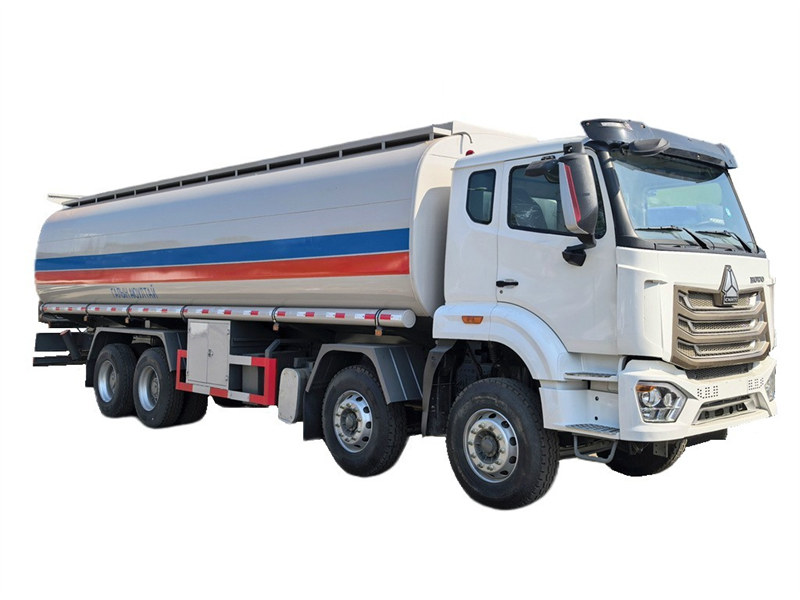

HOWO NX 30000L mobile diesel bowser is special designed for fuel distribution work. Based on Sinotruk HOWO NX series truck chassis, with model ZZ1317V4641JB1, NX series long cabin, 2 seats, single sleeper with Air conditioner and AM/FM, Radio MP3 player. Equipped with EURO 5 model WEICHAI MC07.34-50 diesel engine, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection, 248KW / 340HP and emission 6870cc, matched with HOWO HW19710 manual gearbox, 10 forward and 2 reverse, Speed Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2), the side installed PTO rotate fuel pump working. Front axle VGD95 model with 9500kg capacity, dual for front axles; rear axle MCX16ZG model with 16000kg capacity, dual fron rear axles. ZF8118 model power steering, hydraulic type with power assistance. Standard 12.00R20 tyres for front and rear axles, totally 13 units, including one spare tire. Aluminum alloy fuel tanker capacity 400L for longer distance driving. Designed 30000Liters oval shape fuel tanker matched with 80YHCB-60 model diesel pump to realize pump in and pump out functions. Also equipped with flow meter and hose reel to make HOWO fuel tanker suitable for fuel distribution.
»» Ⅱ.Product Parameter for HOWO 30CBM Oil Tanker Truck：
| Model | ZZ1317V4641JB1 | |
| Cabin | NX Long Cabin, with two seats and two beds, with Air Conditioner and electric window. | |
Engine |
Model | MC07.34-50 |
| Horse Power (Hp/rpm) | 340/2300, Euro V Emission Standard | |
| Max.Toruqe (Nm/rpm) | 1250/1200-1800 | |
| Displacement (L) | 9.726 | |
| Type | 6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke common rail diesel engine | |
| Transmission | HW19710, 10 speeds forward and 2 speeds reverse. | |
| Front Axle | VGD95, Steering with double T-cross section beam, Loading Capacity: 2X9,500kgs | |
| Driving Axle | MCX16ZG, Pressed axle housing, central reduction with hub reduction, with differential locks between wheels and axles. ratio: 4.8. Option: 4.42 | |
| Suspension | Front suspension: hydraulic telescopic double-action shock absorbers and stabilizer; Rear suspension: leaf semi-elliptic springs, bogie spring and stabilizer | |
| Steering System | ZF8118, Hydraulic steering with power assistance | |
| Brake System | Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake | |
| Tire | 12.00R20, totally 12+1 units, including one spare tire | |
| Fuel Tank Capacity (L) | 400L Diesel Tank | |
| Kurb Weight (kg) | 14,850 | |
| Loading Capacity (kg) | 25,000 | |
| Gross Vehicle Weight (kg) | 31,000 | |
| Overall Dimension(L*W*H)(mm) | 11800×2500×3300 | |
| Tank Capacity(m3) | 24 | |
| Tank Material | Carbon Steel Q235 material with thickness 5mm, and shell thickness 6mm | |
| Nos of Compartment | Customized design as 3 compartments, each with EURO manhole and breathe valve | |
| Wheelbase(mm) | 1800+4600+1350 | |
| Max. Speed (km/h) | 105 | |
»» Ⅲ.HOWO NX 8x4 LHD 30,000L Oil Bowser Truck Details & Advantages:

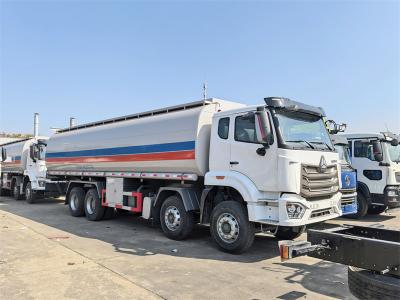

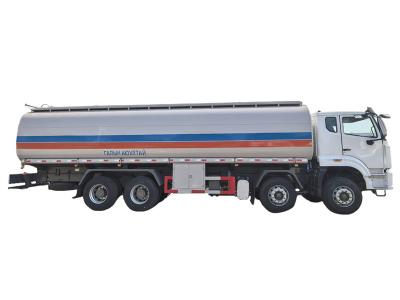

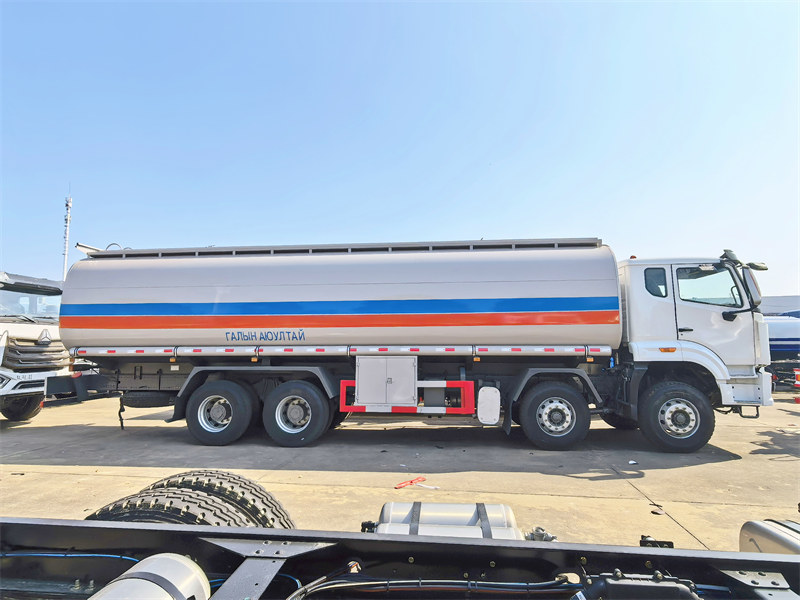

HOWO 30cbm fuel tanker bowser truck
HOWO 8x4 model NX series fuel bowser, equipped with MC07.34-50 diesel engine with 340HP, it boasts ample power output and robust torque, easily handling a wide range of road conditions when transporting a full load of flammable fuel products. Very suitable for tough road contition and fuel distribution.

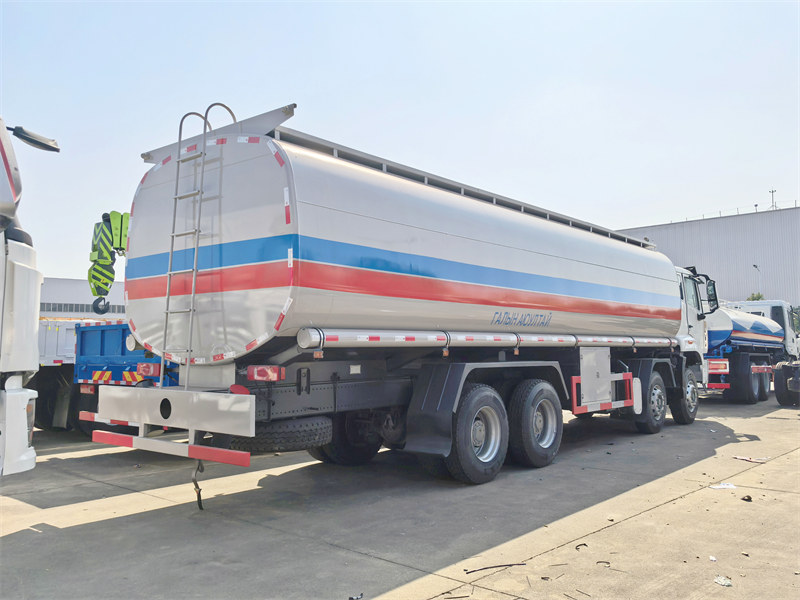

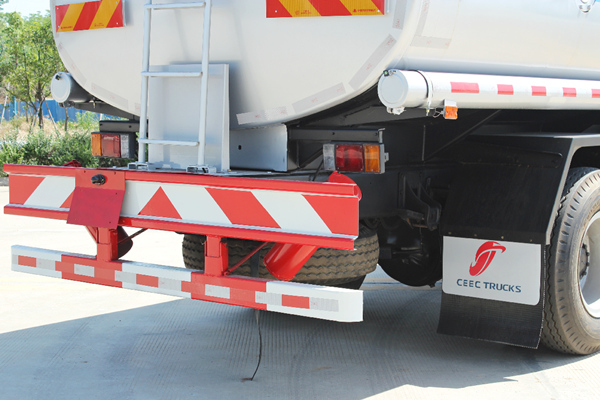

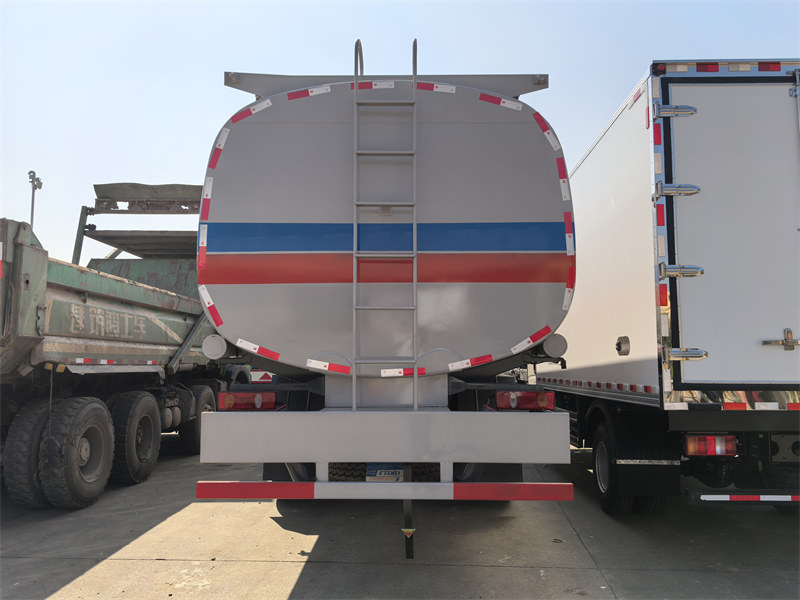

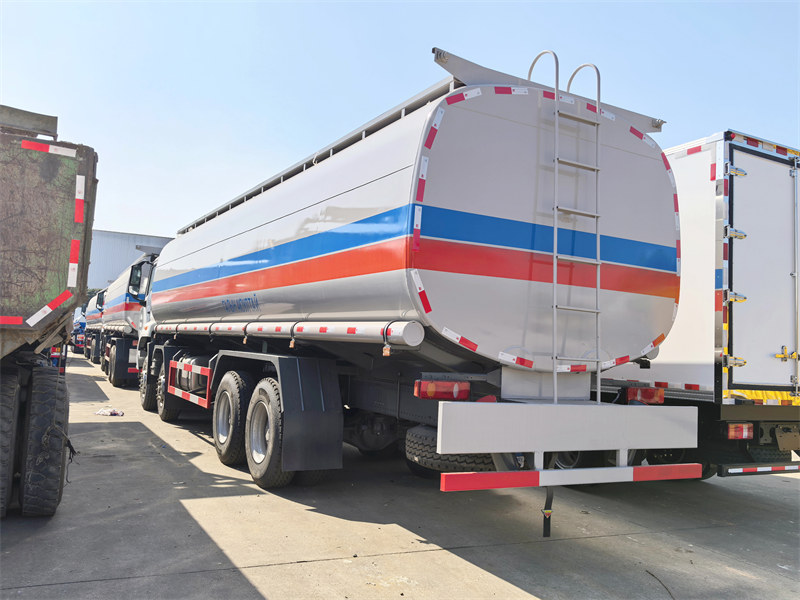

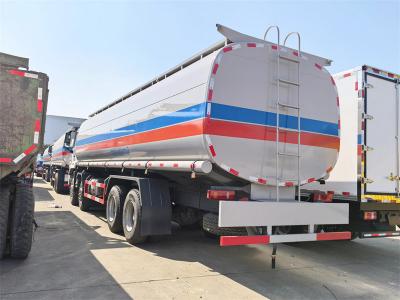

Back view of HOWO 30cbm fuel tanker truck

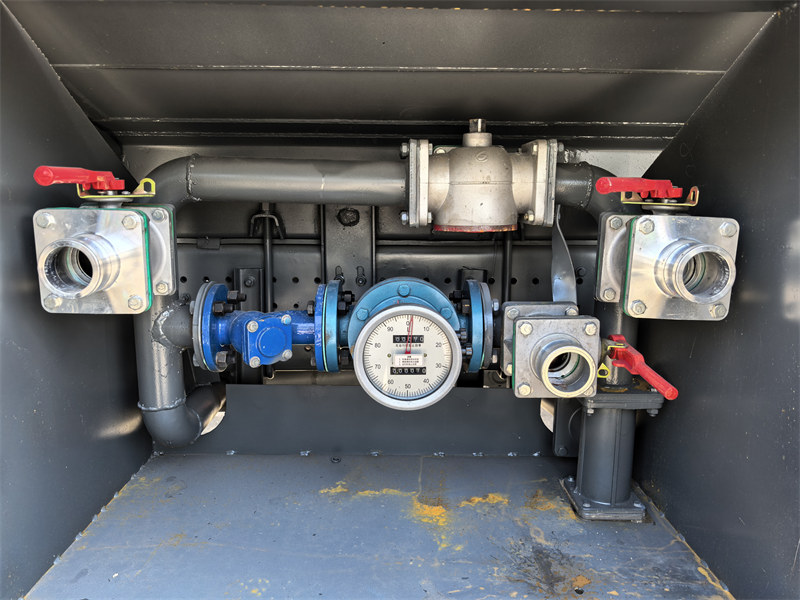

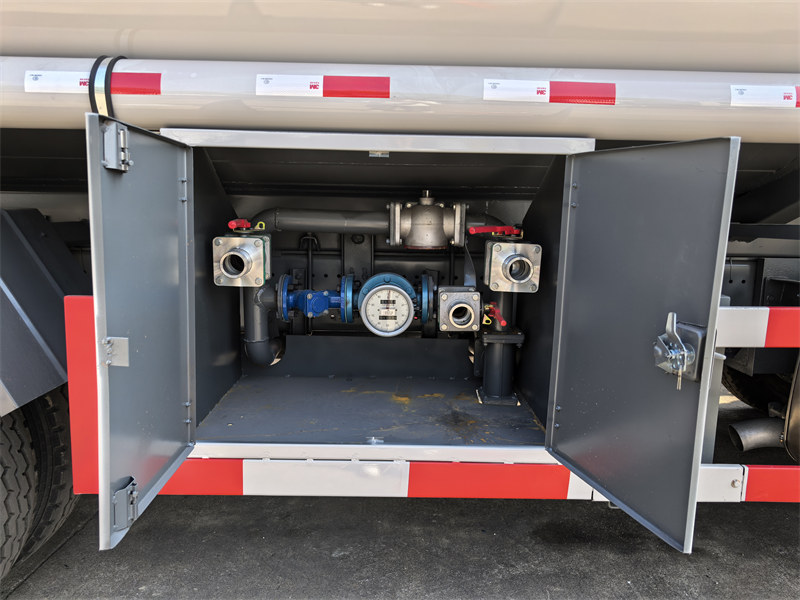

Pump in and Pump out valves
HOWO refueling oil trucks equipped with 80YHCB-60 fuel pump, efficiently air flow rate is 60m3 per hour, matched with suitable valves and pipelines to realize pump in and pump out function. During pipeline also equipped with flow meter, which can be used to record pump fuel volume.

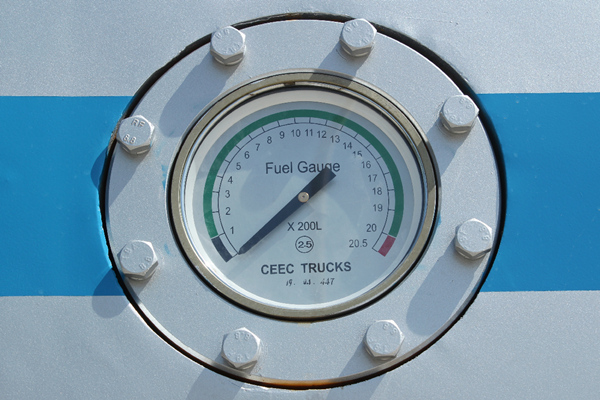

HOWO fuel tanker truck flowmeter

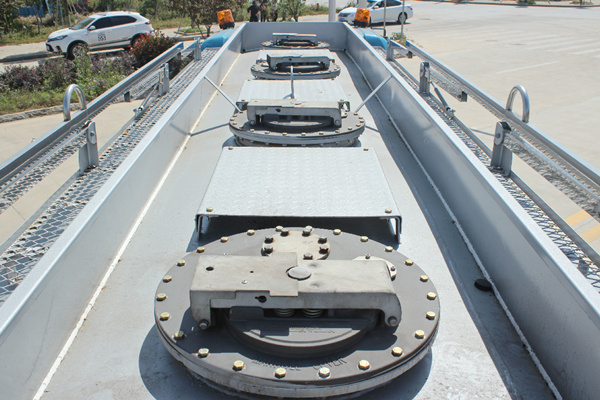

Aluminum alloy manhole cover and safety fence
Customized 3 compartment with EURO manhole installed on the top of fuel tanker, each cover with breathe valve for pressure release, special when hot weather or long time transportation, inner tanker pressure will increase, this breathe can efficiently release pressure to guarantee inner tanker same pressure when outside, guarantee delivery safety.

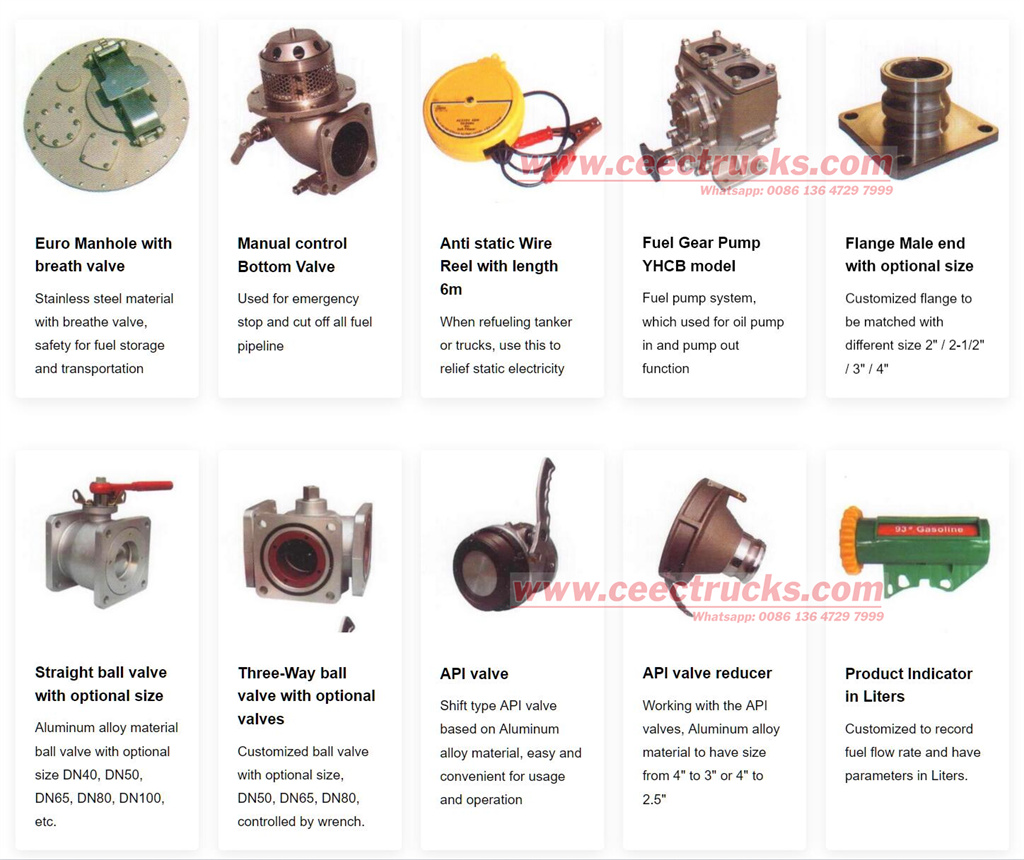

»» Ⅳ.HOWO Fuel Tanker Truck Multiple Spare Parts:
Products--100% Customized Level One!
1.we can do the designs according to the your requirement .
2.we can offer you the high quality & reasionalble price
3.we can offer your a reliable after-sell service
4.we have skilled professinal design team
5.promptly delivery. any order is welcome.
We CEEC also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers
with discount and nice quality to ensure our customers's trucks and trailers being in good working conditions.

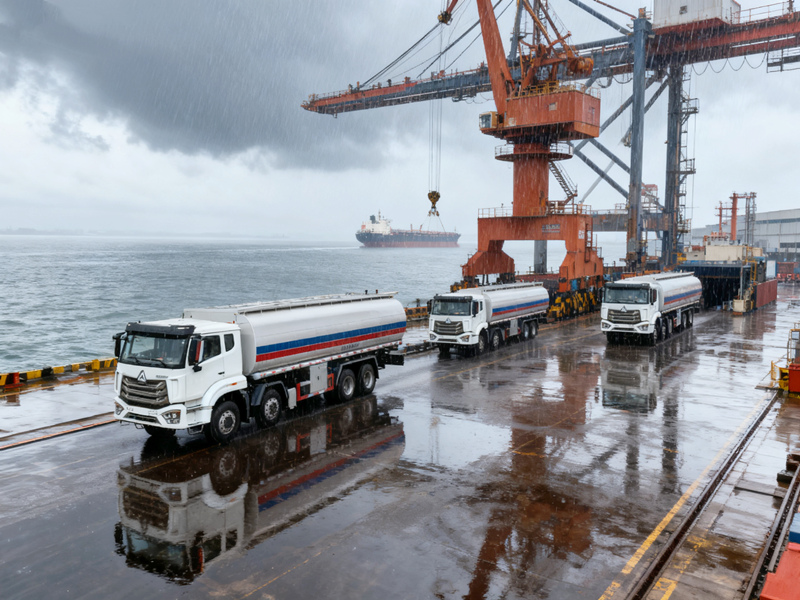

»» Ⅴ.HOWO NX series 30cbm Oil Tank Truck for shipment:
★ WEICHAI MC07.34-50 Euro 5 diesel engine, super powerful
★ HOWO HW19710 Manual 10-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized HOWO NX 30cbm fuel bowser exporter
★ Training service for Sinotruk HOWO 30000L fuel tanker truck
